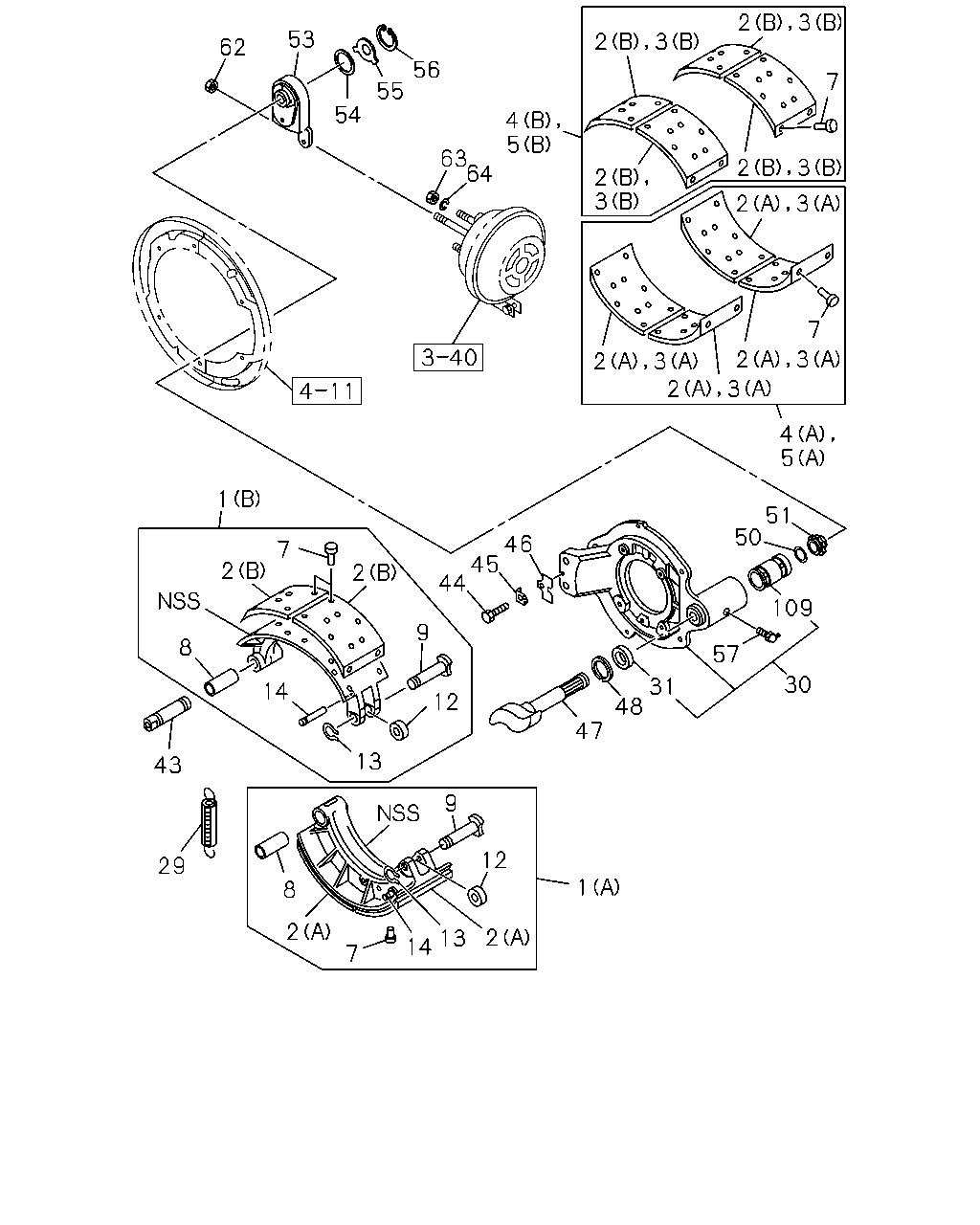

3-01 — FRONT WHEEL BRAKE (#68807) — 104 parça

53 62 56 7 55 54 4 5 63 64 2 3 2 3 7 2 3 2 3 4 5 1 51 50 46 45 44 7 2 2 109 9 8 57 30 31 48 14 12 47 13 43 9 12 29 1 8 2 2 13 14 7 2 3 2 3 2 3 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,FRT (B) TRAILING	1-47120-333-0	01	1	0908-
1	SHOE; BRK,FRT (B) TRAILING	1-47120-335-0	01	1	0908-
1	SHOE; BRK,FRT (A) LEADING	1-47120-833-0	01	1	0908-
1	SHOE; BRK,FRT (A) LEADING	1-47120-835-0	01	1	0908-
2	LINING; FRT BRK SHOE,STANDARD (B)	1-47125-432-0	04	1	0908-
2	LINING; FRT BRK SHOE,STANDARD (A)	1-47126-056-0	04	1	0908-
3	LINING; FRT BRK SHOE,OVER SIZE (B)	1-47125-434-0	04	1	0908-
3	LINING; FRT BRK SHOE,OVER SIZE (A)	1-47126-057-0	04	1	0908-
4	LINING SET; FRT BRK,STANDARD (B)	1-88310-311-0	01	1	0908-
4	LINING SET; FRT BRK,STANDARD (A)	1-88310-741-0	01	1	0908-
5	LINING SET; FRT BRK,OVER SIZE (B)	1-88310-312-0	01	1	0908-
5	LINING SET; FRT BRK,OVER SIZE (A)	1-88310-742-0	01	1	0908-
7	RIVET; LINING,FRT BRK L=18.5	1-09732-034-0	80	1	0908-
8	BUSHING; BRK SHOE	1-47112-011-0	04	1	0908-
9	PIN; SHOE HOLDER	1-09744-060-0	04	1	0908-
12	ROLLER; CAM,BRK SHOE	1-47113-007-0	04	1	0908-
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	04	1	0908-
14	PIN; SHOE RETURN SPR L=73.5	1-47119-017-1	04	1	0908-
29	SPRING; RETURN,FRT BRK SHOE	1-09583-185-2	02	1	0908-
30	BRACKET; ANCHOR,FRT ANTILOCK BRAKE SYSTEM<BFA>	1-47137-419-1	01	1	0908-
30	BRACKET; ANCHOR,FRT ANTILOCK BRAKE SYSTEM<BFA>	1-47137-420-1	01	1	0908-
30	BRACKET; ANCHOR,FRT EXC. ANTILOCK BRAKE SYSTEM<BFA>	1-47137-118-3	01	1	0908-
30	BRACKET; ANCHOR,FRT EXC. ANTILOCK BRAKE SYSTEM<BFA>	1-47137-119-3	01	1	0908-
31	SEAL; OIL,CM/SHF	1-09625-228-0	02	1	0908-
43	PIN; ANCHOR L=106.5	1-47131-038-0	04	1	0908-
44	BOLT; LOCK,ANCHOR PIN M10X16	0-20851-016-0	02	1	0908-
45	WASHER; LK	1-47133-011-0	02	1	0908-
46	PLATE; LOCK	1-47133-005-0	02	1	0908-
47	CAMSHAFT; FRT BRK	1-47141-051-0	01	1	0908-
47	CAMSHAFT; FRT BRK	1-47141-052-0	01	1	0908-
48	RING; SPACER,CM/SHF	1-47143-005-0	02	1	0908-
50	RING; FELT,CM/SHF	1-09620-009-0	02	1	0908-
51	COLLAR; RING,CM/SHF ANTILOCK BRAKE SYSTEM<BFA>	1-47143-013-0	02	1	0908-
51	COLLAR; RING,CM/SHF EXC. ANTILOCK BRAKE SYSTEM<BFA>	1-47143-016-0	02	1	0908-
53	ADJUSTER ASM; SLACK ANTILOCK BRAKE SYSTEM<BFA>	1-48270-071-0	01	1	0908-
53	ADJUSTER ASM; SLACK ANTILOCK BRAKE SYSTEM<BFA>	1-48270-072-0	01	1	0908-
53	ADJUSTER ASM; SLACK EXC. ANTILOCK BRAKE SYSTEM<BFA>	1-48270-043-0	01	1	0908-
53	ADJUSTER ASM; SLACK EXC. ANTILOCK BRAKE SYSTEM<BFA>	1-48270-044-0	01	1	0908-
54	SPACER; CM/SHF ANTILOCK BRAKE SYSTEM<BFA>	1-47143-004-0	04	1	0908-
54	SPACER; CM/SHF EXC. ANTILOCK BRAKE SYSTEM<BFA>	1-47143-004-0	02	1	0908-
55	PLATE; STOPPER,CM/SHF ANTILOCK BRAKE SYSTEM<BFA>	1-47149-055-0	02	1	0908-
55	PLATE; STOPPER,CM/SHF EXC. ANTILOCK BRAKE SYSTEM<BFA>	1-47149-021-0	02	1	0908-
56	CLIP; ANCHOR PIN	9-09180-038-0	02	1	0908-
57	NIPPLE; GREASE,ANCHOR BRKT AUTO ADJUSTER BRAKE<BCU> EXC. ANTILOCK BRAKE SYSTEM<BFA> PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	1411-
57	NIPPLE; GREASE,ANCHOR BRKT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0908-
62	NUT; LK,JAW JOINT M16	0-91111-516-0	02	1	0908-
63	NUT; POWER CHAMBER M16	0-91110-516-0	04	1	0908-
64	WASHER; LK,POWER CHAMBER ID=16.2	0-91510-516-0	04	1	0908-
109	BUSHING; CM/SHF,FRT BRK	1-47146-003-1	04	1	0908-

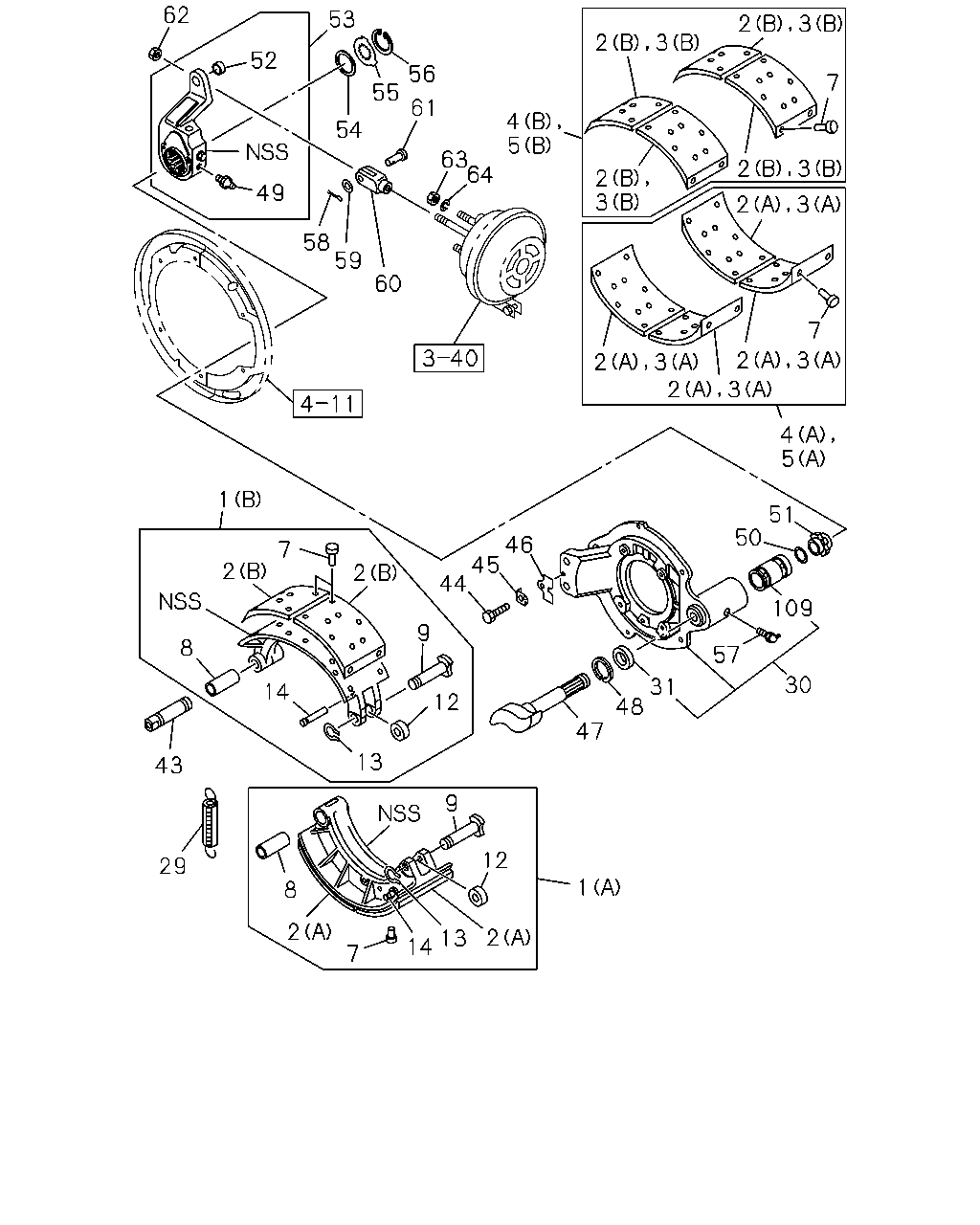

62 53 52 56 7 55 61 4 5 54 63 64 2 3 49 2 3 58 59 60 7 2 3 2 3 4 5 1 51 50 46 45 44 7 2 2 109 9 8 57 30 31 48 14 12 47 13 43 9 12 29 1 8 2 2 13 14 7 2 3 3 2 3 2 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,FRT (B) TRAILING	1-47120-333-0	01	1	0908-
1	SHOE; BRK,FRT (B) TRAILING	1-47120-335-0	01	1	0908-
1	SHOE; BRK,FRT (A) LEADING	1-47120-833-0	01	1	0908-
1	SHOE; BRK,FRT (A) LEADING	1-47120-835-0	01	1	0908-
2	LINING; FRT BRK SHOE,STANDARD (B)	1-47125-432-0	04	1	0908-
2	LINING; FRT BRK SHOE,STANDARD (A)	1-47126-056-0	04	1	0908-
3	LINING; FRT BRK SHOE,OVER SIZE (B)	1-47125-434-0	04	1	0908-
3	LINING; FRT BRK SHOE,OVER SIZE (A)	1-47126-057-0	04	1	0908-
4	LINING SET; FRT BRK,STANDARD (B)	1-88310-311-0	01	1	0908-
4	LINING SET; FRT BRK,STANDARD (A)	1-88310-741-0	01	1	0908-
5	LINING SET; FRT BRK,OVER SIZE (B)	1-88310-312-0	01	1	0908-
5	LINING SET; FRT BRK,OVER SIZE (A)	1-88310-742-0	01	1	0908-
7	RIVET; LINING,FRT BRK L=18.5	1-09732-034-0	80	1	0908-
8	BUSHING; BRK SHOE	1-47112-011-0	04	1	0908-
9	PIN; SHOE HOLDER	1-09744-060-0	04	1	0908-
12	ROLLER; CAM,BRK SHOE	1-47113-007-0	04	1	0908-
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	04	1	0908-
14	PIN; SHOE RETURN SPR L=73.5	1-47119-017-1	04	1	0908-
29	SPRING; RETURN,FRT BRK SHOE	1-09583-185-2	02	1	0908-
30	BRACKET; ANCHOR,FRT ANTILOCK BRAKE SYSTEM<BFA>	1-47137-419-1	01	1	0908-
30	BRACKET; ANCHOR,FRT ANTILOCK BRAKE SYSTEM<BFA>	1-47137-420-1	01	1	0908-
30	BRACKET; ANCHOR,FRT EXC. ANTILOCK BRAKE SYSTEM<BFA>	1-47137-118-3	01	1	0908-
30	BRACKET; ANCHOR,FRT EXC. ANTILOCK BRAKE SYSTEM<BFA>	1-47137-119-3	01	1	0908-
31	SEAL; OIL,CM/SHF	1-09625-228-0	02	1	0908-
43	PIN; ANCHOR L=106.5	1-47131-038-0	04	1	0908-
44	BOLT; LOCK,ANCHOR PIN M10X16	0-20851-016-0	02	1	0908-
45	WASHER; LK	1-47133-011-0	02	1	0908-
46	PLATE; LOCK	1-47133-005-0	02	1	0908-
47	CAMSHAFT; FRT BRK	1-47141-051-0	01	1	0908-
47	CAMSHAFT; FRT BRK	1-47141-052-0	01	1	0908-
48	RING; SPACER,CM/SHF	1-47143-005-0	02	1	0908-
49	NIPPLE; GREASE,SLACK ADJ EXC. ANTILOCK BRAKE SYSTEM<BFA> PT1/8 STRAIGHT	0-90301-410-0	02	1	0908-
50	RING; FELT,CM/SHF	1-09620-009-0	02	1	0908-
51	COLLAR; RING,CM/SHF ANTILOCK BRAKE SYSTEM<BFA>	1-47143-013-0	02	1	0908-
51	COLLAR; RING,CM/SHF EXC. ANTILOCK BRAKE SYSTEM<BFA>	1-47143-016-0	02	1	0908-
52	BUSHING; SLACK ADJ EXC. ANTILOCK BRAKE SYSTEM<BFA>	1-09330-041-0	02	1	0908-
53	ADJUSTER ASM; SLACK ANTILOCK BRAKE SYSTEM<BFA>	1-48270-071-0	01	1	0908-
53	ADJUSTER ASM; SLACK ANTILOCK BRAKE SYSTEM<BFA>	1-48270-072-0	01	1	0908-
53	ADJUSTER ASM; SLACK EXC. ANTILOCK BRAKE SYSTEM<BFA>	1-48270-043-0	01	1	0908-
53	ADJUSTER ASM; SLACK EXC. ANTILOCK BRAKE SYSTEM<BFA>	1-48270-044-0	01	1	0908-
54	SPACER; CM/SHF ANTILOCK BRAKE SYSTEM<BFA>	1-47143-004-0	04	1	0908-
54	SPACER; CM/SHF EXC. ANTILOCK BRAKE SYSTEM<BFA>	1-47143-004-0	02	1	0908-
55	PLATE; STOPPER,CM/SHF ANTILOCK BRAKE SYSTEM<BFA>	1-47149-055-0	02	1	0908-
55	PLATE; STOPPER,CM/SHF EXC. ANTILOCK BRAKE SYSTEM<BFA>	1-47149-021-0	02	1	0908-
56	CLIP; ANCHOR PIN	9-09180-038-0	02	1	0908-
57	NIPPLE; GREASE,ANCHOR BRKT AUTO ADJUSTER BRAKE<BCU> EXC. ANTILOCK BRAKE SYSTEM<BFA> PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	1411-
57	NIPPLE; GREASE,ANCHOR BRKT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0908-
58	PIN; SPLIT,JAW JOINT EXC. ANTILOCK BRAKE SYSTEM<BFA> OD=3.7 L=28	0-81124-028-0	02	1	0908-
59	WASHER; PL,JAW JOINT EXC. ANTILOCK BRAKE SYSTEM<BFA> ID=17 OD=32	9-09160-616-0	02	1	0908-
60	JOINT; JAW,POWER CHAMBER EXC. ANTILOCK BRAKE SYSTEM<BFA>	1-09768-060-1	02	1	0908-
61	PIN; JAW JOINT,POWER CHAMBER EXC. ANTILOCK BRAKE SYSTEM<BFA>	1-09744-088-0	02	1	0908-
62	NUT; LK,JAW JOINT M16	0-91111-516-0	02	1	0908-
63	NUT; POWER CHAMBER M16	0-91110-516-0	04	1	0908-
64	WASHER; LK,POWER CHAMBER ID=16.2	0-91510-516-0	04	1	0908-
109	BUSHING; CM/SHF,FRT BRK	1-47146-003-1	04	1	0908-
