Sayfa 2-36 - Isuzu EPC

2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#68804) — 195 parça

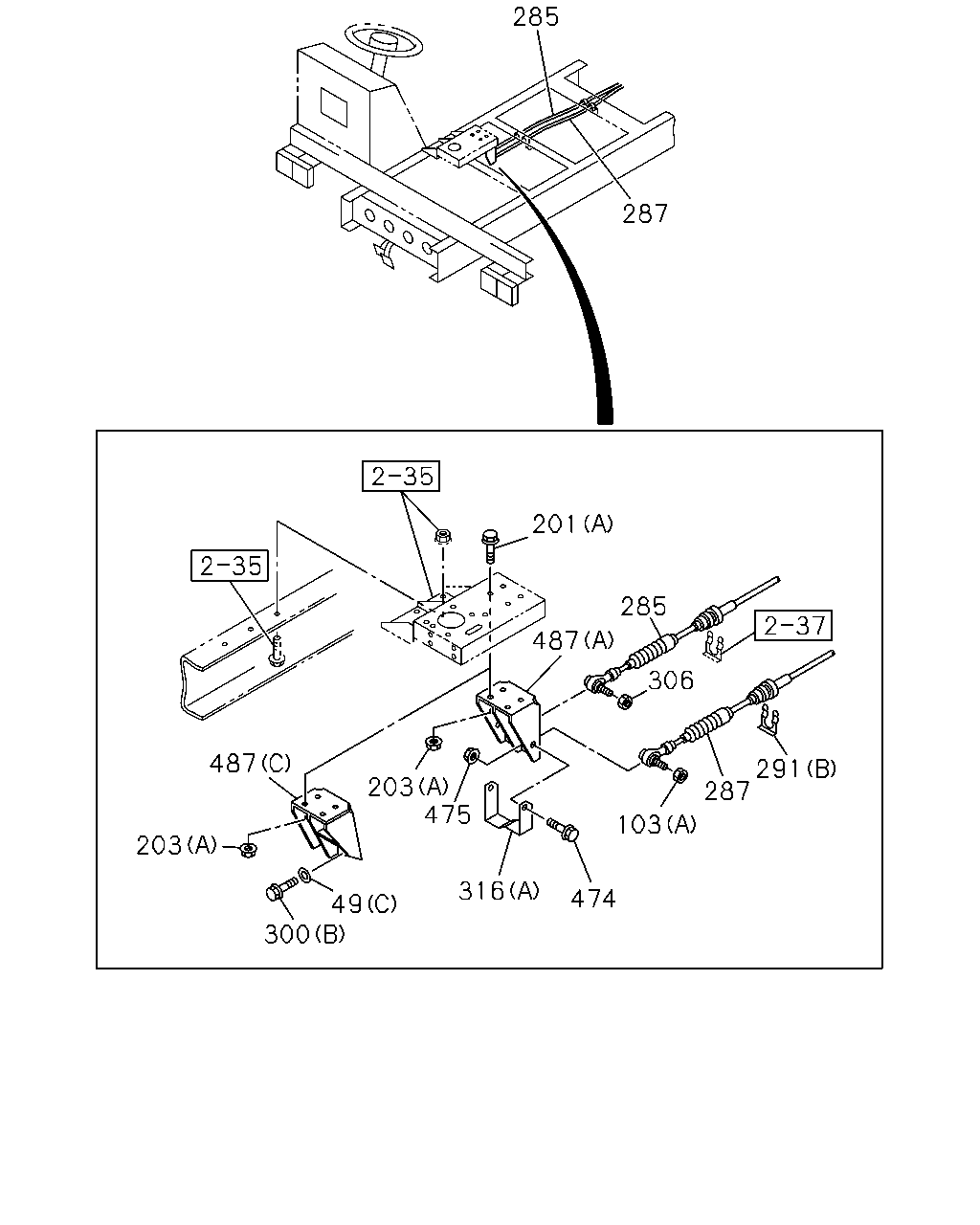

285 287 201 285 487 306 487 291 287 203 475 103 203 316 474 49 300

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
49	WASHER; LK MLD6Q M/T(X5J) (A) ID=14.2	0-91510-514-0	01	1	0909-
49	WASHER; LK MZW6P M/T(RSZ) (B) ID=12.2	0-91510-512-0	01	1	0908-
49	WASHER; LK MZW6P M/T(RSZ) (C)	1-09500-043-0	02	1	0908-
103	NUT MZW6P M/T(RSZ) (B) M12	0-91111-512-0	01	1	0908-
103	NUT (A) M8 FLANGE	1-09440-062-1	01	1	0908-
201	BOLT; BRKT MLD6Q M/T(X5J) (B) M10X30 FLANGE	0-28651-030-0	02	1	0909-
201	BOLT; BRKT MLD6Q M/T(X5J) (B) M10X30 FLANGE	0-28651-030-0	04	1	0909-
201	BOLT; BRKT MZW6P M/T(RSZ) (D) M10X30 FLANGE	0-28661-030-0	01	1	0908-
201	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	04	1	0908-
201	BOLT; BRKT MZW6P M/T(RSZ) (C) M14X25 FLANGE	0-28951-425-0	03	1	0908-
203	NUT; BRKT FIX MLD6Q M/T(X5J) (B) M10 FLANGE	0-91180-210-0	04	1	0909-
203	NUT; BRKT FIX MZW6P M/T(RSZ) (C) M10 FLANGE	0-91180-210-0	01	1	0908-
203	NUT; BRKT FIX (A) M8 FLANGE	0-91180-108-0	04	1	0908-
285	WIRE; SHIFT,TRANS CONT MLD6Q M/T(X5J) WHEEL BASE 5000MM(50W)	1-33672-048-1	01	1	0909-
285	WIRE; SHIFT,TRANS CONT MLD6Q M/T(X5J) WHEEL BASE 5700MM(57W)	1-33672-010-1	01	1	0909-
285	WIRE; SHIFT,TRANS CONT WHEEL BASE 5000MM(50W)	8-98134-053-2	01	1	0908-0908
285	WIRE; SHIFT,TRANS CONT MZW6P M/T(RSZ) WHEEL BASE 5000MM(50W)	8-98134-053-2	01	1	0909-
285	WIRE; SHIFT,TRANS CONT WHEEL BASE 5700MM(57W)	8-98134-051-2	01	1	0908-0908
285	WIRE; SHIFT,TRANS CONT MZW6P M/T(RSZ) WHEEL BASE 5700MM(57W)	8-98134-051-2	01	1	0909-
287	WIRE; SELECT,TRANS CONT MLD6Q M/T(X5J) WHEEL BASE 5000MM(50W)	1-33672-049-0	01	1	0909-
287	WIRE; SELECT,TRANS CONT MLD6Q M/T(X5J) WHEEL BASE 5700MM(57W)	1-33672-011-0	01	1	0909-
287	WIRE; SELECT,TRANS CONT MZW6P M/T(RSZ) WHEEL BASE 5000MM(50W)	8-98134-046-1	01	1	0908-
287	WIRE; SELECT,TRANS CONT MZW6P M/T(RSZ) WHEEL BASE 5700MM(57W)	8-98134-045-1	01	1	0908-
291	CLIP; SHIFT TO SELECT,FRAME (A) ID=13 H=29 L=30	1-09700-001-0	02	1	0908-
291	CLIP; SHIFT TO SELECT,FRAME (B) ID=22.2	1-09701-209-1	01	1	0908-
300	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	0908-
300	BOLT; CLIP MZW6P M/T(RSZ) (B) M6X20 FLANGE	0-28050-620-0	02	1	0908-
306	NUT; WIRE BRKT M10 FLANGE	1-09440-061-0	01	1	0908-
316	BRACKET; CLIP MLD6Q M/T(X5J) (A)	1-33657-736-0	01	1	0909-
316	BRACKET; CLIP WHEEL BASE 5000MM(50W) (B)	1-47479-729-0	09	1	0908-
316	BRACKET; CLIP WHEEL BASE 5700MM(57W) (B)	1-47479-729-0	10	1	0908-
474	BOLT; BRKT MLD6Q M/T(X5J) M8X20 FLANGE	0-28650-820-0	02	1	0909-
474	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0908-
474	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	02	1	0908-
474	BOLT; BRKT WHEEL BASE 5000MM(50W) M8X25 FLANGE	0-28650-825-0	18	1	0908-
474	BOLT; BRKT WHEEL BASE 5700MM(57W) M8X25 FLANGE	0-28650-825-0	20	1	0908-
475	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0908-0908
475	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0909-
475	NUT; BRKT MLD6Q M/T(X5J) M8 FLANGE	0-91180-108-0	02	1	0909-
475	NUT; BRKT WHEEL BASE 5000MM(50W) M8 FLANGE	0-91180-108-0	18	1	0908-
475	NUT; BRKT WHEEL BASE 5700MM(57W) M8 FLANGE	0-91180-108-0	20	1	0908-
487	BRACKET; CONT CABLE MLD6Q M/T(X5J) (A)	1-33657-725-0	01	1	0909-
487	BRACKET; CONT CABLE MLD6Q M/T(X5J) (B)	1-33657-803-0	01	1	0909-
487	BRACKET; CONT CABLE MZW6P M/T(RSZ) (C)	8-98096-018-1	01	1	0908-
487	BRACKET; CONT CABLE (D)	8-98106-227-1	01	1	0908-0908
487	BRACKET; CONT CABLE MZW6P M/T(RSZ) (D)	8-98106-227-1	01	1	0909-

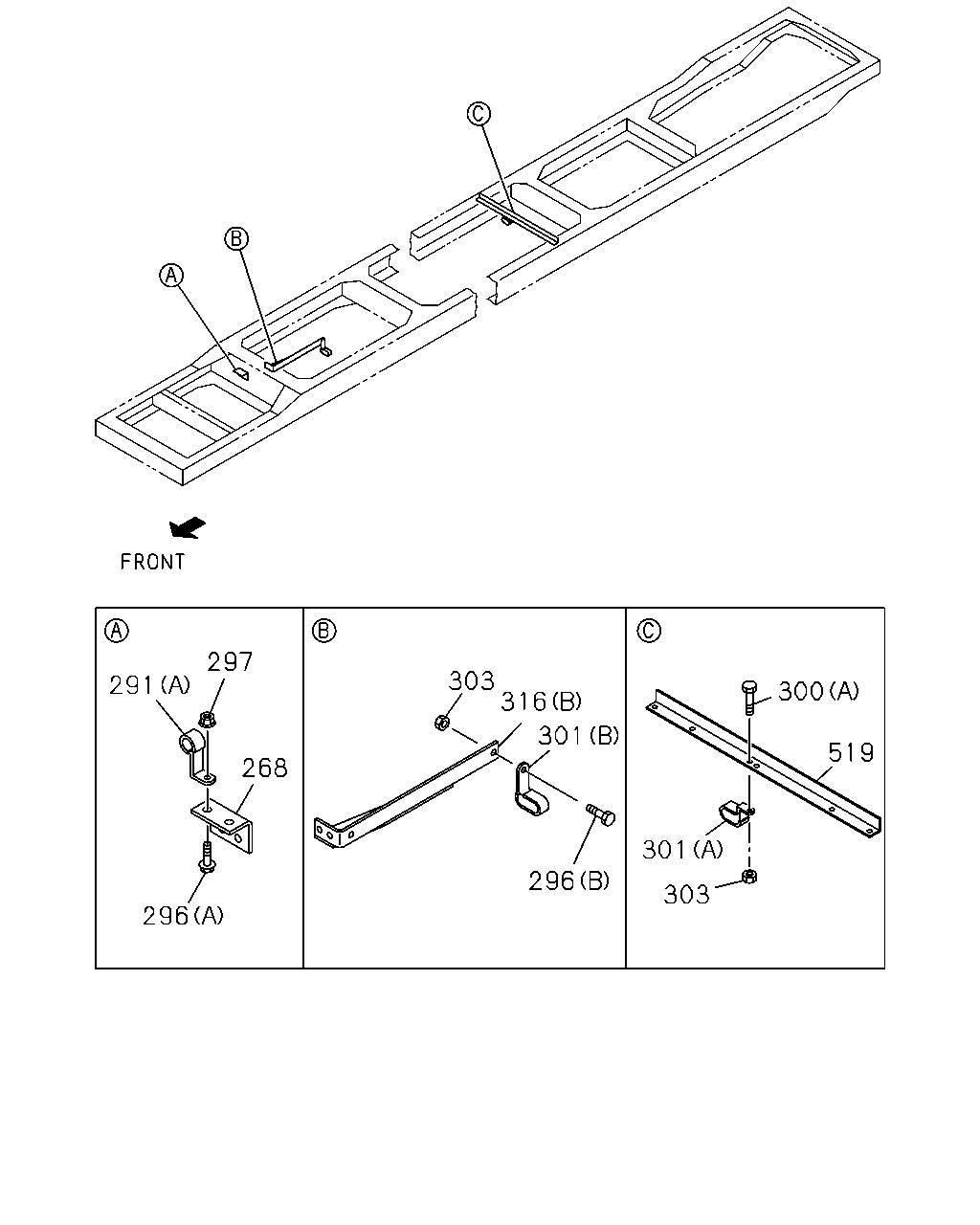

297 303 316 291 300 301 519 268 301 296 303 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
268	BRACKET; LINK ROD	1-47479-107-0	01	1	0908-
291	CLIP; SHIFT TO SELECT,FRAME (A) ID=13 H=29 L=30	1-09700-001-0	02	1	0908-
291	CLIP; SHIFT TO SELECT,FRAME (B) ID=22.2	1-09701-209-1	01	1	0908-
296	BOLT; CLIP,SHIFT & SELECT MLD6Q M/T(X5J) WHEEL BASE 5000MM(50W) (B) M8X20 FLANGE	0-28650-820-0	13	1	0909-
296	BOLT; CLIP,SHIFT & SELECT MLD6Q M/T(X5J) WHEEL BASE 5700MM(57W) (B) M8X20 FLANGE	0-28650-820-0	15	1	0909-
296	BOLT; CLIP,SHIFT & SELECT (A) M10X20 FLANGE	0-28651-020-0	02	1	0908-
296	BOLT; CLIP,SHIFT & SELECT MZW6P M/T(RSZ) WHEEL BASE 5000MM(50W) (B) M8X20 FLANGE	0-28650-820-0	14	1	0908-
296	BOLT; CLIP,SHIFT & SELECT MZW6P M/T(RSZ) WHEEL BASE 5700MM(57W) (B) M8X20 FLANGE	0-28650-820-0	16	1	0908-
297	NUT; CLIP M10 FLANGE	0-91180-210-0	02	1	0908-
300	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	0908-
300	BOLT; CLIP MZW6P M/T(RSZ) (B) M6X20 FLANGE	0-28050-620-0	02	1	0908-
301	CLIP; WIRE (A) ID=13 & 13 L=20 H=21.5	8-98033-769-0	01	1	0908-
301	CLIP; WIRE MZW6P M/T(RSZ) (B) ID=15X2 L=20	1-09700-845-1	01	1	0908-
301	CLIP; WIRE WHEEL BASE 5000MM(50W) (B) ID=13X2 L=32	1-09701-245-0	13	1	0908-
301	CLIP; WIRE WHEEL BASE 5700MM(57W) (B) ID=13X2 L=32	1-09701-245-0	15	1	0908-
303	NUT; CLIP MLD6Q M/T(X5J) WHEEL BASE 5000MM(50W) M8 FLANGE	0-91180-108-0	13	1	0909-
303	NUT; CLIP MLD6Q M/T(X5J) WHEEL BASE 5700MM(57W) M8 FLANGE	0-91180-108-0	15	1	0909-
303	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0908-
303	NUT; CLIP MZW6P M/T(RSZ) WHEEL BASE 5000MM(50W) M8 FLANGE	0-91180-108-0	14	1	0908-
303	NUT; CLIP MZW6P M/T(RSZ) WHEEL BASE 5700MM(57W) M8 FLANGE	0-91180-108-0	16	1	0908-
316	BRACKET; CLIP MLD6Q M/T(X5J) (A)	1-33657-736-0	01	1	0909-
316	BRACKET; CLIP WHEEL BASE 5000MM(50W) (B)	1-47479-729-0	09	1	0908-
316	BRACKET; CLIP WHEEL BASE 5700MM(57W) (B)	1-47479-729-0	10	1	0908-
519	BRACKET; FRAME	1-47479-486-0	01	1	0908-

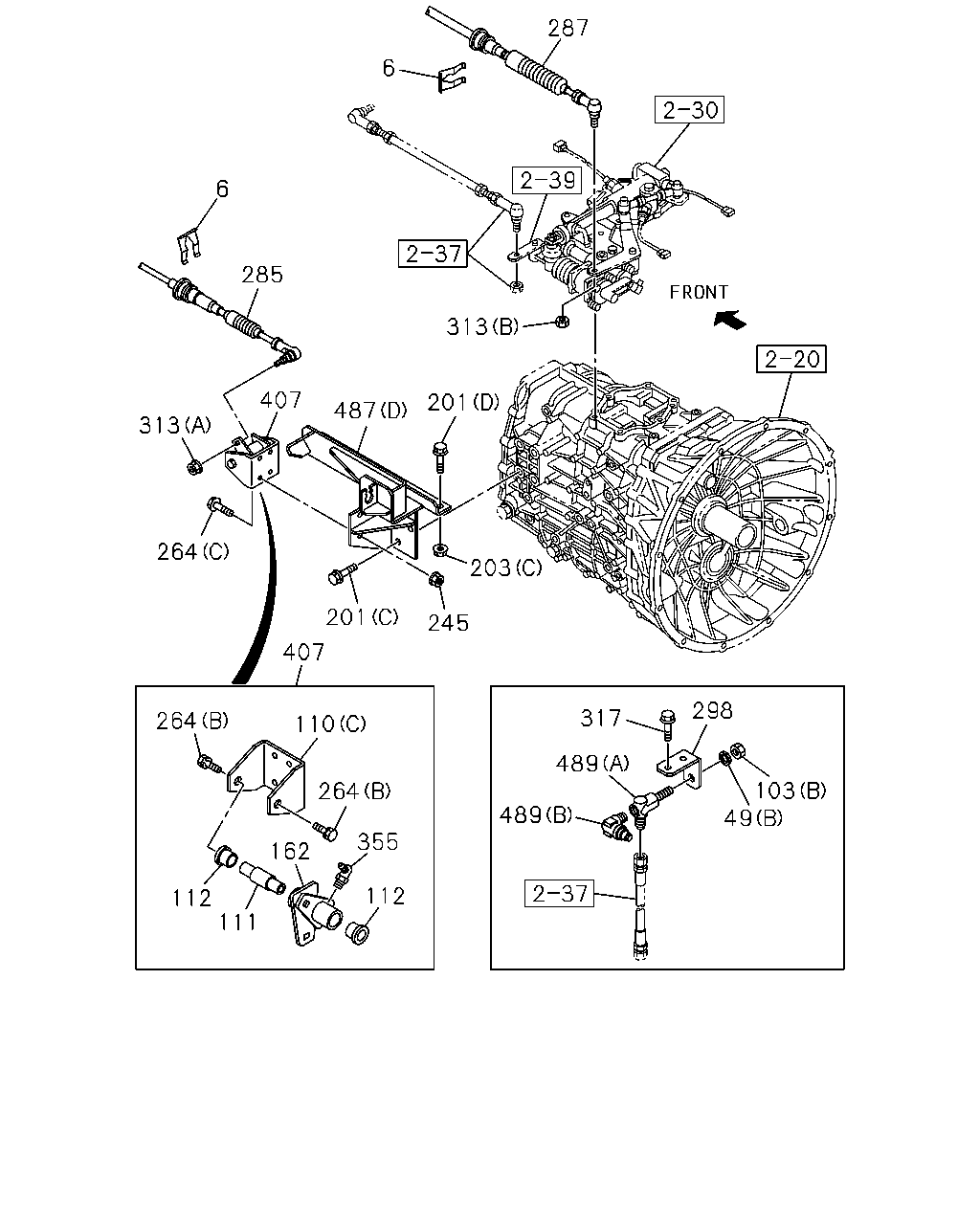

287 6 6 285 313 407 201 487 313 264 203 201 245 407 298 317 264 110 489 103 49 264 489 355 162 112 112 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	CLIP; CABLE ID=22.2	1-09701-209-1	02	1	0908-
49	WASHER; LK MLD6Q M/T(X5J) (A) ID=14.2	0-91510-514-0	01	1	0909-
49	WASHER; LK MZW6P M/T(RSZ) (B) ID=12.2	0-91510-512-0	01	1	0908-
49	WASHER; LK MZW6P M/T(RSZ) (C)	1-09500-043-0	02	1	0908-
103	NUT MZW6P M/T(RSZ) (B) M12	0-91111-512-0	01	1	0908-
103	NUT (A) M8 FLANGE	1-09440-062-1	01	1	0908-
110	BRACKET; RELAY LEVER,1ST MLD6Q M/T(X5J) (A)	1-33657-797-1	01	1	0909-
110	BRACKET; RELAY LEVER,1ST MLD6Q M/T(X5J) (B)	1-33657-835-0	01	1	0909-
110	BRACKET; RELAY LEVER,1ST MZW6P M/T(RSZ) (C)	8-98075-373-0	01	1	0908-
111	SHAFT; RELAY LEVER,1ST MLD6Q M/T(X5J)	1-33619-508-0	01	1	0909-
111	SHAFT; RELAY LEVER,1ST MZW6P M/T(RSZ)	8-98075-371-0	01	1	0908-
112	BUSHING; RELAY LEVER MLD6Q M/T(X5J) L=24	5-33659-054-0	04	1	0909-
112	BUSHING; RELAY LEVER MZW6P M/T(RSZ)	8-98075-387-0	02	1	0908-
162	LEVER; RELAY MLD6Q M/T(X5J)	1-33651-817-0	01	1	0909-
162	LEVER; RELAY MZW6P M/T(RSZ)	8-98105-940-1	01	1	0908-
201	BOLT; BRKT MLD6Q M/T(X5J) (B) M10X30 FLANGE	0-28651-030-0	02	1	0909-
201	BOLT; BRKT MLD6Q M/T(X5J) (B) M10X30 FLANGE	0-28651-030-0	04	1	0909-
201	BOLT; BRKT MZW6P M/T(RSZ) (D) M10X30 FLANGE	0-28661-030-0	01	1	0908-
201	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	04	1	0908-
201	BOLT; BRKT MZW6P M/T(RSZ) (C) M14X25 FLANGE	0-28951-425-0	03	1	0908-
203	NUT; BRKT FIX MLD6Q M/T(X5J) (B) M10 FLANGE	0-91180-210-0	04	1	0909-
203	NUT; BRKT FIX MZW6P M/T(RSZ) (C) M10 FLANGE	0-91180-210-0	01	1	0908-
203	NUT; BRKT FIX (A) M8 FLANGE	0-91180-108-0	04	1	0908-
245	NUT; BRKT,RELAY LEVER M8 FLANGE	0-91180-108-0	04	1	0908-
264	BOLT; BRKT,RELAY LEVER MLD6Q M/T(X5J) (A) M8X30 FLANGE	0-28650-830-0	08	1	0909-
264	BOLT; BRKT,RELAY LEVER MZW6P M/T(RSZ) (C) M8X25 FLANGE	0-28650-825-0	04	1	0908-
264	BOLT; BRKT,RELAY LEVER MZW6P M/T(RSZ) (B) M14X25 W/LK WASHER	0-50541-425-0	02	1	0908-
285	WIRE; SHIFT,TRANS CONT MLD6Q M/T(X5J) WHEEL BASE 5000MM(50W)	1-33672-048-1	01	1	0909-
285	WIRE; SHIFT,TRANS CONT MLD6Q M/T(X5J) WHEEL BASE 5700MM(57W)	1-33672-010-1	01	1	0909-
285	WIRE; SHIFT,TRANS CONT WHEEL BASE 5000MM(50W)	8-98134-053-2	01	1	0908-0908
285	WIRE; SHIFT,TRANS CONT MZW6P M/T(RSZ) WHEEL BASE 5000MM(50W)	8-98134-053-2	01	1	0909-
285	WIRE; SHIFT,TRANS CONT WHEEL BASE 5700MM(57W)	8-98134-051-2	01	1	0908-0908
285	WIRE; SHIFT,TRANS CONT MZW6P M/T(RSZ) WHEEL BASE 5700MM(57W)	8-98134-051-2	01	1	0909-
287	WIRE; SELECT,TRANS CONT MLD6Q M/T(X5J) WHEEL BASE 5000MM(50W)	1-33672-049-0	01	1	0909-
287	WIRE; SELECT,TRANS CONT MLD6Q M/T(X5J) WHEEL BASE 5700MM(57W)	1-33672-011-0	01	1	0909-
287	WIRE; SELECT,TRANS CONT MZW6P M/T(RSZ) WHEEL BASE 5000MM(50W)	8-98134-046-1	01	1	0908-
287	WIRE; SELECT,TRANS CONT MZW6P M/T(RSZ) WHEEL BASE 5700MM(57W)	8-98134-045-1	01	1	0908-
298	BRACKET MZW6P M/T(RSZ)	8-98150-399-0	01	1	0908-
313	NUT; CLIP BRKT (A) M10 FLANGE	1-09440-061-0	01	1	0908-
313	NUT; CLIP BRKT (B) M8 FLANGE	1-09440-062-1	01	1	0908-
317	BOLT; BRKT,SIDE MBR MZW6P M/T(RSZ) M8X20 FLANGE	0-28650-820-0	02	1	0908-
355	NIPPLE; GREASE,RELAY LEVER MLD6Q M/T(X5J) PT1/8 ELBOW	0-90301-610-0	02	1	0909-
355	NIPPLE; GREASE,RELAY LEVER MZW6P M/T(RSZ) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0908-
407	LEVER; RELAY,SHIFT MLD6Q M/T(X5J)	1-33671-914-1	01	1	0909-
407	LEVER; RELAY,SHIFT MZW6P M/T(RSZ)	8-98105-941-1	01	1	0908-
487	BRACKET; CONT CABLE MLD6Q M/T(X5J) (A)	1-33657-725-0	01	1	0909-
487	BRACKET; CONT CABLE MLD6Q M/T(X5J) (B)	1-33657-803-0	01	1	0909-
487	BRACKET; CONT CABLE MZW6P M/T(RSZ) (C)	8-98096-018-1	01	1	0908-
487	BRACKET; CONT CABLE (D)	8-98106-227-1	01	1	0908-0908
487	BRACKET; CONT CABLE MZW6P M/T(RSZ) (D)	8-98106-227-1	01	1	0909-
489	CONNECTOR MZW6P M/T(RSZ) (A)	1-09654-430-0	01	1	0908-
489	CONNECTOR MZW6P M/T(RSZ) (B) DIN8 & R1/8 ELBOW	1-09660-702-0	01	1	0908-

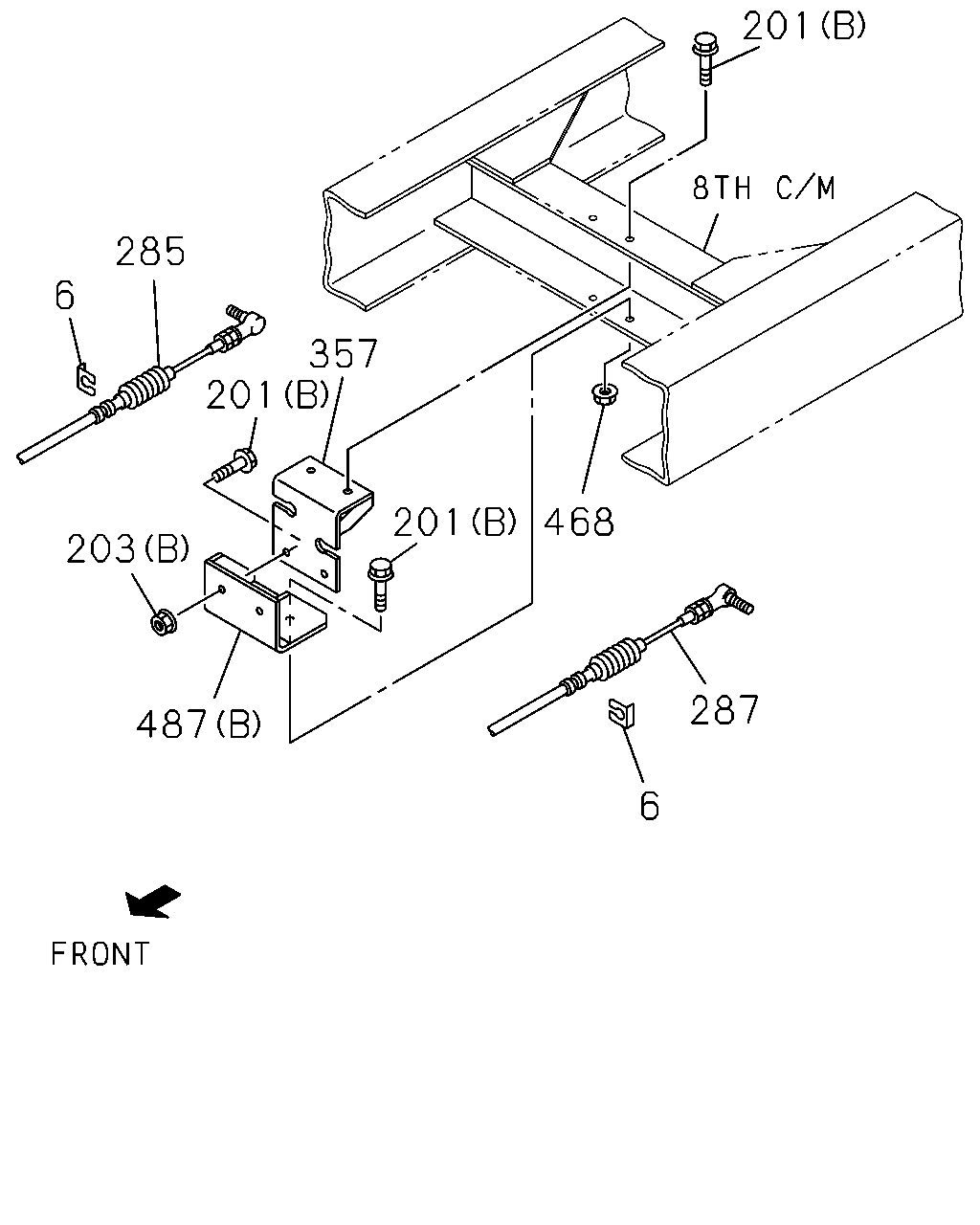

201 285 6 357 201 201 468 203 287 487 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	CLIP; CABLE ID=22.2	1-09701-209-1	02	1	0908-
201	BOLT; BRKT MLD6Q M/T(X5J) (B) M10X30 FLANGE	0-28651-030-0	02	1	0909-
201	BOLT; BRKT MLD6Q M/T(X5J) (B) M10X30 FLANGE	0-28651-030-0	04	1	0909-
201	BOLT; BRKT MZW6P M/T(RSZ) (D) M10X30 FLANGE	0-28661-030-0	01	1	0908-
201	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	04	1	0908-
201	BOLT; BRKT MZW6P M/T(RSZ) (C) M14X25 FLANGE	0-28951-425-0	03	1	0908-
203	NUT; BRKT FIX MLD6Q M/T(X5J) (B) M10 FLANGE	0-91180-210-0	04	1	0909-
203	NUT; BRKT FIX MZW6P M/T(RSZ) (C) M10 FLANGE	0-91180-210-0	01	1	0908-
203	NUT; BRKT FIX (A) M8 FLANGE	0-91180-108-0	04	1	0908-
285	WIRE; SHIFT,TRANS CONT MLD6Q M/T(X5J) WHEEL BASE 5000MM(50W)	1-33672-048-1	01	1	0909-
285	WIRE; SHIFT,TRANS CONT MLD6Q M/T(X5J) WHEEL BASE 5700MM(57W)	1-33672-010-1	01	1	0909-
285	WIRE; SHIFT,TRANS CONT WHEEL BASE 5000MM(50W)	8-98134-053-2	01	1	0908-0908
285	WIRE; SHIFT,TRANS CONT MZW6P M/T(RSZ) WHEEL BASE 5000MM(50W)	8-98134-053-2	01	1	0909-
285	WIRE; SHIFT,TRANS CONT WHEEL BASE 5700MM(57W)	8-98134-051-2	01	1	0908-0908
285	WIRE; SHIFT,TRANS CONT MZW6P M/T(RSZ) WHEEL BASE 5700MM(57W)	8-98134-051-2	01	1	0909-
287	WIRE; SELECT,TRANS CONT MLD6Q M/T(X5J) WHEEL BASE 5000MM(50W)	1-33672-049-0	01	1	0909-
287	WIRE; SELECT,TRANS CONT MLD6Q M/T(X5J) WHEEL BASE 5700MM(57W)	1-33672-011-0	01	1	0909-
287	WIRE; SELECT,TRANS CONT MZW6P M/T(RSZ) WHEEL BASE 5000MM(50W)	8-98134-046-1	01	1	0908-
287	WIRE; SELECT,TRANS CONT MZW6P M/T(RSZ) WHEEL BASE 5700MM(57W)	8-98134-045-1	01	1	0908-
357	BRACKET; RELAY LEVER MLD6Q M/T(X5J)	1-33657-832-0	01	1	0909-
468	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0908-
487	BRACKET; CONT CABLE MLD6Q M/T(X5J) (A)	1-33657-725-0	01	1	0909-
487	BRACKET; CONT CABLE MLD6Q M/T(X5J) (B)	1-33657-803-0	01	1	0909-
487	BRACKET; CONT CABLE MZW6P M/T(RSZ) (C)	8-98096-018-1	01	1	0908-
487	BRACKET; CONT CABLE (D)	8-98106-227-1	01	1	0908-0908
487	BRACKET; CONT CABLE MZW6P M/T(RSZ) (D)	8-98106-227-1	01	1	0909-

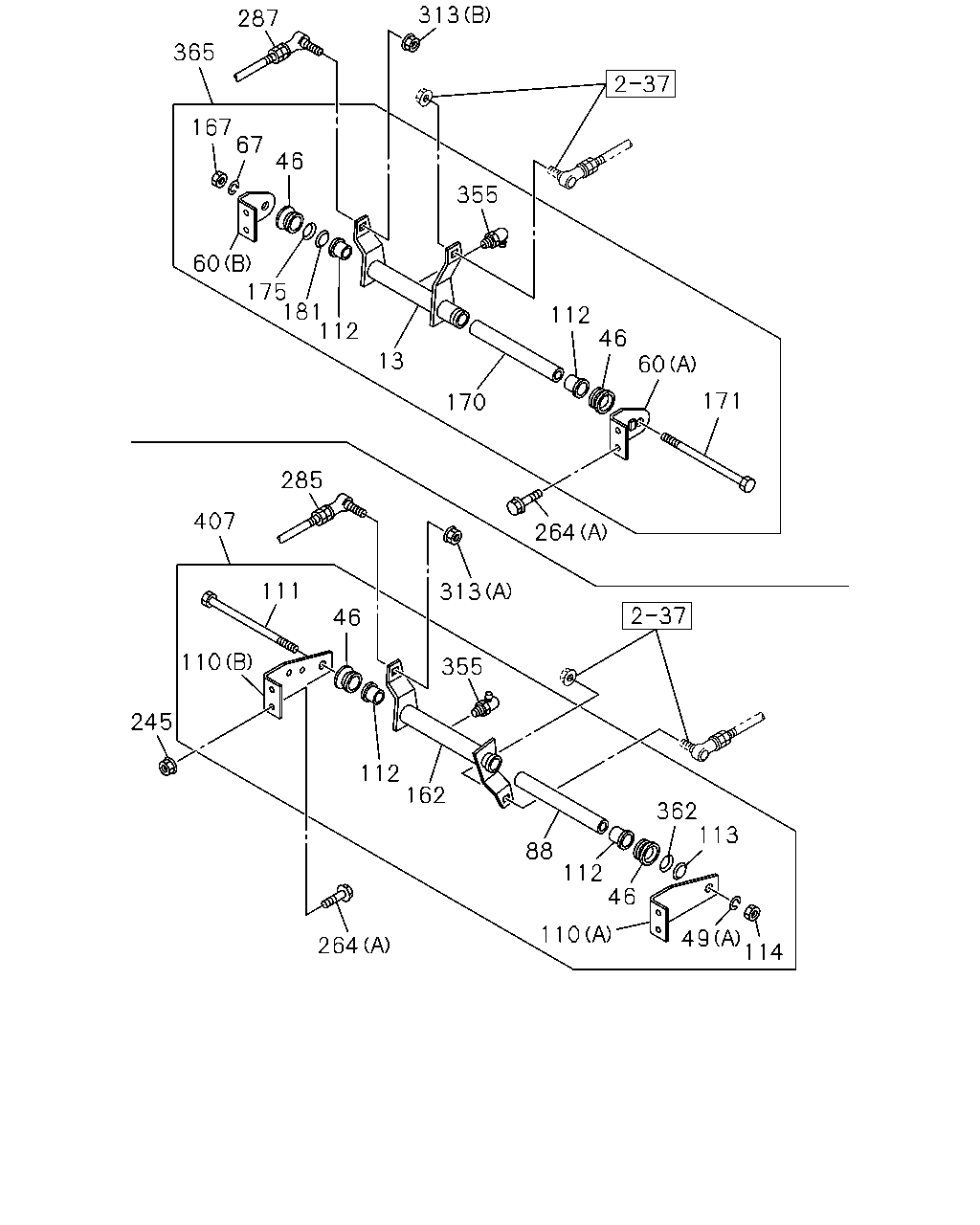

313 287 365 167 67 46 355 60 175 181 112 112 46 13 60 171 170 285 407 264 111 313 46 110 355 245 112 162 362 113 88 112 46 110 49 114 264

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	LEVER; RELAY,1ST SELECT INNER MLD6Q M/T(X5J)	1-33651-818-0	01	1	0909-
46	SEAL; DUST,RELAY LEVER MLD6Q M/T(X5J)	1-33659-113-0	04	1	0909-
49	WASHER; LK MLD6Q M/T(X5J) (A) ID=14.2	0-91510-514-0	01	1	0909-
49	WASHER; LK MZW6P M/T(RSZ) (B) ID=12.2	0-91510-512-0	01	1	0908-
49	WASHER; LK MZW6P M/T(RSZ) (C)	1-09500-043-0	02	1	0908-
60	BRACKET; RELAY LEVER,SELECT ROD MLD6Q M/T(X5J) (A)	1-33657-833-0	01	1	0909-
60	BRACKET; RELAY LEVER,SELECT ROD MLD6Q M/T(X5J) (B)	1-33657-834-0	01	1	0909-
67	WASHER; LK,RELAY LEVER,SELECT ROD MLD6Q M/T(X5J) ID=14.2	0-91510-514-0	01	1	0909-
88	COLLAR; RELAY LEVER MLD6Q M/T(X5J)	1-33659-154-0	01	1	0909-
110	BRACKET; RELAY LEVER,1ST MLD6Q M/T(X5J) (A)	1-33657-797-1	01	1	0909-
110	BRACKET; RELAY LEVER,1ST MLD6Q M/T(X5J) (B)	1-33657-835-0	01	1	0909-
110	BRACKET; RELAY LEVER,1ST MZW6P M/T(RSZ) (C)	8-98075-373-0	01	1	0908-
111	SHAFT; RELAY LEVER,1ST MLD6Q M/T(X5J)	1-33619-508-0	01	1	0909-
111	SHAFT; RELAY LEVER,1ST MZW6P M/T(RSZ)	8-98075-371-0	01	1	0908-
112	BUSHING; RELAY LEVER MLD6Q M/T(X5J) L=24	5-33659-054-0	04	1	0909-
112	BUSHING; RELAY LEVER MZW6P M/T(RSZ)	8-98075-387-0	02	1	0908-
113	WASHER; RELAY LEVER MLD6Q M/T(X5J)	1-33659-093-0	01	1	0909-
114	NUT; RELAY LEVER MLD6Q M/T(X5J) M14	0-91111-514-0	01	1	0909-
162	LEVER; RELAY MLD6Q M/T(X5J)	1-33651-817-0	01	1	0909-
162	LEVER; RELAY MZW6P M/T(RSZ)	8-98105-940-1	01	1	0908-
167	NUT; RELAY LEVER,SELECT ROD MLD6Q M/T(X5J) M14	0-91111-514-0	01	1	0909-
170	COLLAR; RELAY LEVER,SELECT ROD,1ST MLD6Q M/T(X5J)	1-33659-154-0	01	1	0909-
171	SHAFT; RELAY LEVER,SELECT ROD,1ST MLD6Q M/T(X5J)	1-33619-508-0	01	1	0909-
175	WASHER; RELAY LEVER,SELECT CONT ROD MLD6Q M/T(X5J)	1-33659-093-0	01	1	0909-
181	SHIM; RELAY LEVER,SELECT ROD MLD6Q M/T(X5J)	1-33659-092-0	01	1	0909-
245	NUT; BRKT,RELAY LEVER M8 FLANGE	0-91180-108-0	04	1	0908-
264	BOLT; BRKT,RELAY LEVER MLD6Q M/T(X5J) (A) M8X30 FLANGE	0-28650-830-0	08	1	0909-
264	BOLT; BRKT,RELAY LEVER MZW6P M/T(RSZ) (C) M8X25 FLANGE	0-28650-825-0	04	1	0908-
264	BOLT; BRKT,RELAY LEVER MZW6P M/T(RSZ) (B) M14X25 W/LK WASHER	0-50541-425-0	02	1	0908-
285	WIRE; SHIFT,TRANS CONT MLD6Q M/T(X5J) WHEEL BASE 5000MM(50W)	1-33672-048-1	01	1	0909-
285	WIRE; SHIFT,TRANS CONT MLD6Q M/T(X5J) WHEEL BASE 5700MM(57W)	1-33672-010-1	01	1	0909-
285	WIRE; SHIFT,TRANS CONT WHEEL BASE 5000MM(50W)	8-98134-053-2	01	1	0908-0908
285	WIRE; SHIFT,TRANS CONT MZW6P M/T(RSZ) WHEEL BASE 5000MM(50W)	8-98134-053-2	01	1	0909-
285	WIRE; SHIFT,TRANS CONT WHEEL BASE 5700MM(57W)	8-98134-051-2	01	1	0908-0908
285	WIRE; SHIFT,TRANS CONT MZW6P M/T(RSZ) WHEEL BASE 5700MM(57W)	8-98134-051-2	01	1	0909-
287	WIRE; SELECT,TRANS CONT MLD6Q M/T(X5J) WHEEL BASE 5000MM(50W)	1-33672-049-0	01	1	0909-
287	WIRE; SELECT,TRANS CONT MLD6Q M/T(X5J) WHEEL BASE 5700MM(57W)	1-33672-011-0	01	1	0909-
287	WIRE; SELECT,TRANS CONT MZW6P M/T(RSZ) WHEEL BASE 5000MM(50W)	8-98134-046-1	01	1	0908-
287	WIRE; SELECT,TRANS CONT MZW6P M/T(RSZ) WHEEL BASE 5700MM(57W)	8-98134-045-1	01	1	0908-
313	NUT; CLIP BRKT (A) M10 FLANGE	1-09440-061-0	01	1	0908-
313	NUT; CLIP BRKT (B) M8 FLANGE	1-09440-062-1	01	1	0908-
355	NIPPLE; GREASE,RELAY LEVER MLD6Q M/T(X5J) PT1/8 ELBOW	0-90301-610-0	02	1	0909-
355	NIPPLE; GREASE,RELAY LEVER MZW6P M/T(RSZ) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0908-
362	SHIM MLD6Q M/T(X5J)	1-33659-092-0	01	1	0909-
365	LEVER; RELAY,SELECT MLD6Q M/T(X5J)	1-33671-915-0	01	1	0909-
407	LEVER; RELAY,SHIFT MLD6Q M/T(X5J)	1-33671-914-1	01	1	0909-
407	LEVER; RELAY,SHIFT MZW6P M/T(RSZ)	8-98105-941-1	01	1	0908-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
