◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 11207 - LT134(RHD) EURO2/5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30 - GEAR SHIFTER AND QUADRANT BOX ▶
2-30 — GEAR SHIFTER AND QUADRANT BOX (#68802) — 220 parça

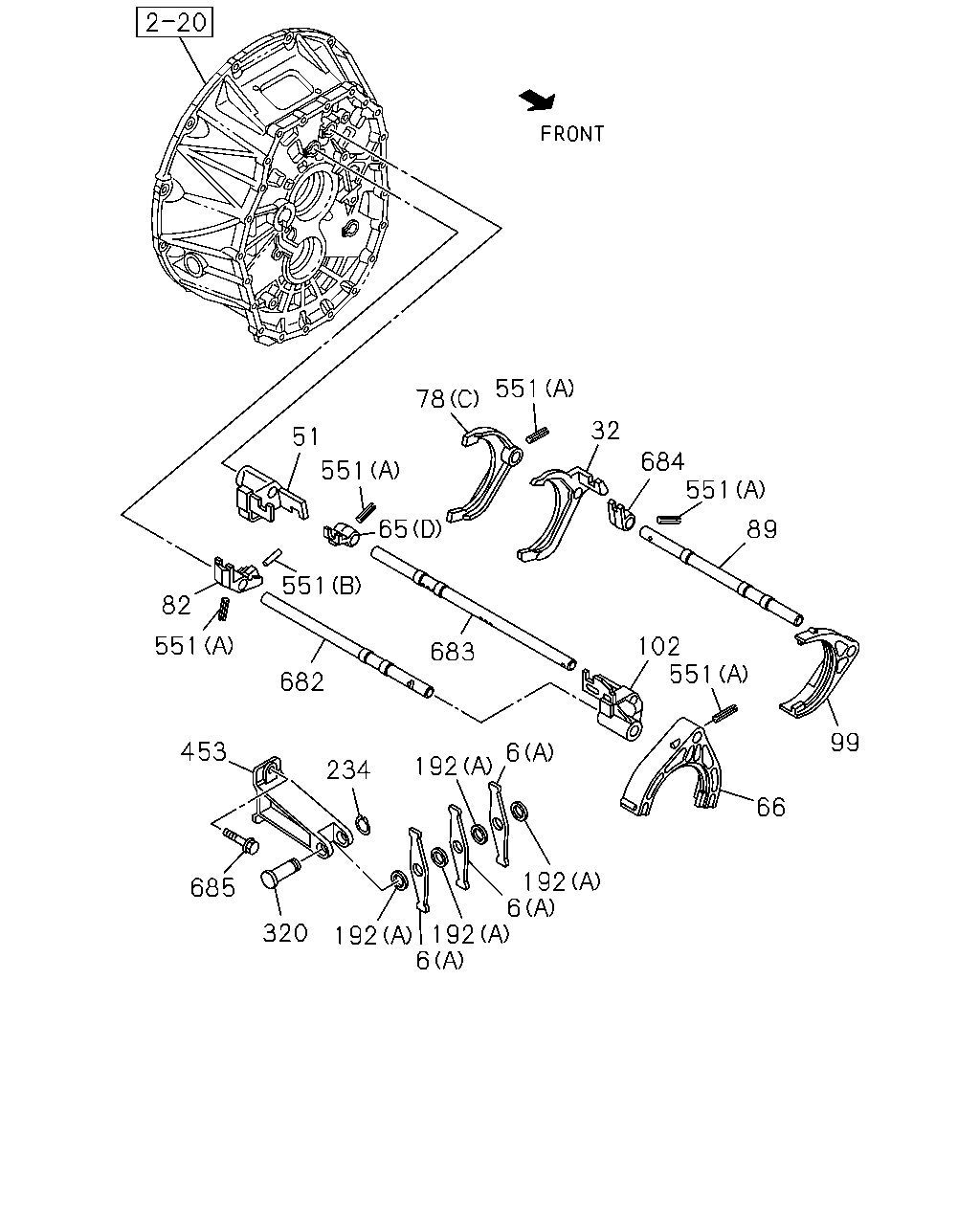

çizim 109739
551 78 32 51 684 551 551 65 89 551 82 551 102 551 683 682 99 453 6 192 234 66 192 6 685 320 192 6 192
BalonParca AdiParca NoAdetTipApplied Date A B
6 LEVER; RELAY
(A) 		8-97241-342-0 03 1 0908- ●
6 LEVER; RELAY
(B) 		8-98022-855-0 01 1 0908- ●
32 ARM; SHIFT,1ST & 2ND 8-98062-167-0 01 1 0908-1307 ●
32 ARM; SHIFT,1ST & 2ND 8-98236-424-1 01 1 1308- ●
51 BLOCK; SHIFT,1ST & 2ND 8-98074-457-1 01 1 0908- ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(A) 		1-33511-202-3 01 1 0909- ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(B) 		1-33511-208-3 01 1 0909- ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(C) 		1-33511-513-0 01 1 0909- ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(D) 		8-97388-980-1 01 1 0908- ●
66 ARM; SHIFT,5TH & 6TH 1-33511-505-0 01 1 0909- ●
66 ARM; SHIFT,5TH & 6TH 8-97388-981-0 01 1 0908- ●
78 ARM; SHIFT,REV
(B) 		1-33511-082-0 01 1 0909- ●
78 ARM; SHIFT,REV
(A) 		1-33511-234-1 01 1 0909- ●
78 ARM; SHIFT,REV
(C) 		8-97388-975-1 01 1 0908- ●
82 BLOCK; SHIFT,REV 1-33511-310-1 01 1 0909- ●
82 BLOCK; SHIFT,REV 8-97388-969-0 01 1 0908- ●
89 ROD; SHIFT,REV 1-33531-252-1 01 1 0909-1202 ●
89 ROD; SHIFT,REV 8-98207-582-0 01 1 1203- ●
89 ROD; SHIFT,REV 8-98062-172-0 01 1 0908- ●
99 ARM; SHIFT,4TH & 3RD 8-98062-170-0 01 1 0908-1506 ●
99 ARM; SHIFT,4TH & 3RD 8-98309-861-0 01 1 1507- ●
102 BLOCK; SHIFT,3RD & 4TH 8-97388-978-2 01 1 0908- ●
192 WASHER; PL
(A) ID=18.2 OD=29 		1-09503-032-0 04 1 0908- ●
192 WASHER; PL
(B) 		8-97305-661-0 02 1 0908- ●
234 RING; SNAP
ID=16.5 		0-91800-618-0 01 1 0908- ●
320 SHAFT; LEVER 1-33657-413-0 01 1 0909- ●
320 SHAFT; LEVER 8-97377-928-0 01 1 0908- ●
453 BLOCK; RELAY LEVER 8-97377-927-1 01 1 0908- ●
551 PIN; SPRING
(C) L=25 OD=5 		1-09748-032-0 01 1 0908- ●
551 PIN; SPRING
(A) L=32 		8-97011-596-2 05 1 0908- ●
551 PIN; SPRING
(B) L=20 		8-97241-340-0 01 1 0908- ●
682 ROD; SHIFT,REV,SUB 8-97388-974-0 01 1 0908- ●
683 ROD; SHIFT,5TH & 6TH 8-98062-173-1 01 1 0908- ●
684 BLOCK; SHIFT,REV,SUB 8-97388-970-0 01 1 0908- ●
685 BOLT; BLOCK
M8X30 FLANGE 		8-98034-764-0 02 1 0908- ●

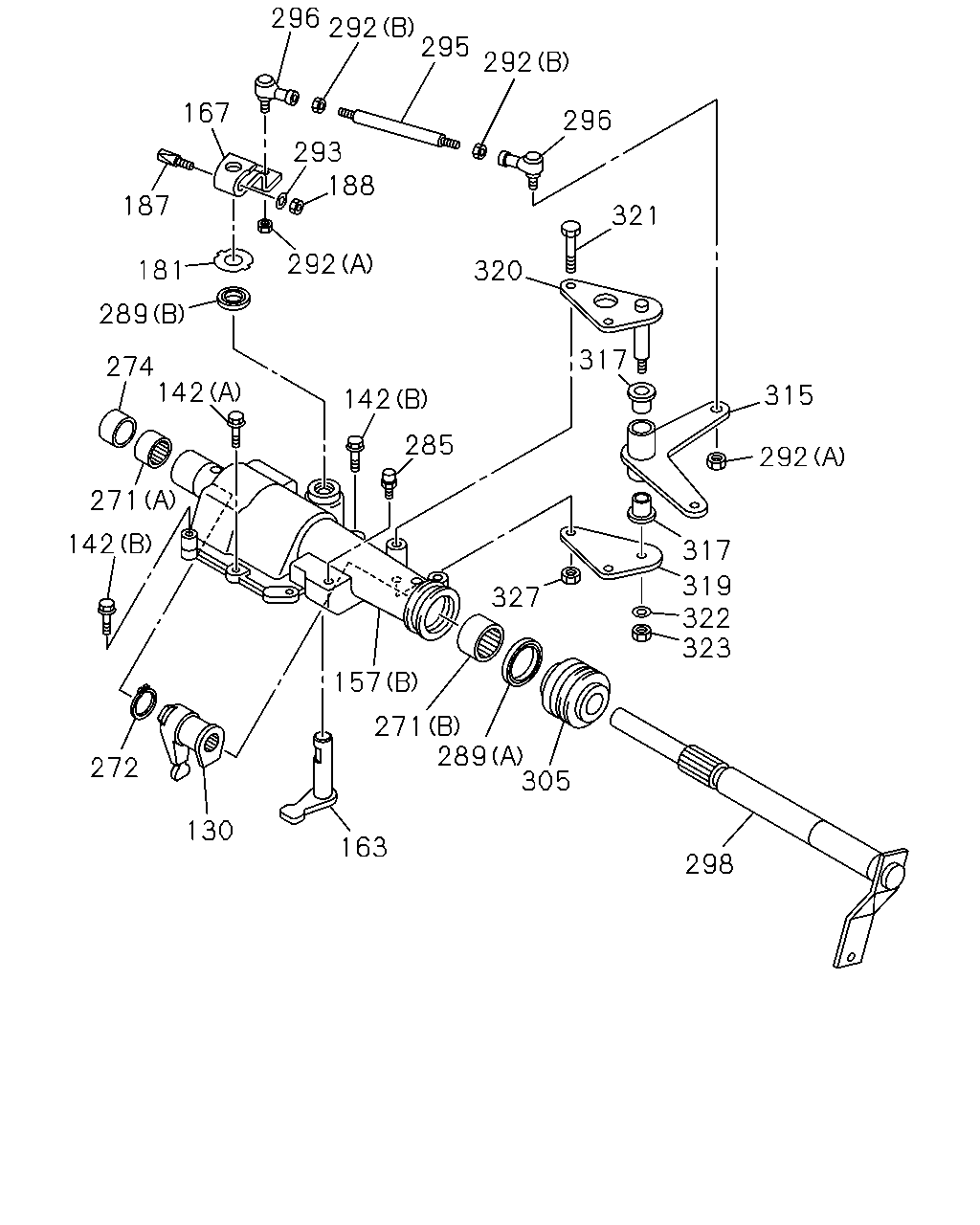

çizim 188353
296 292 295 292 167 296 293 188 187 321 292 181 320 289 317 274 142 315 142 285 292 271 142 317 319 322 323 327 157 271 289 305 272 130 163 298
BalonParca AdiParca NoAdetTipApplied Date A B
130 LEVER; SHIFT,INTERNAL 1-33521-111-1 01 1 0909- ●
130 LEVER; SHIFT,INTERNAL 8-97306-647-0 01 1 0908- ●
142 BOLT; QUAD BOX
(C) M10X60 FLANGE 		0-28151-060-0 03 1 0909- ●
142 BOLT; QUAD BOX
(D) M10X20,M10X60 L=90 		1-09049-020-0 01 1 0909- ●
142 BOLT; QUAD BOX
(B) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0909- ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		8-98044-944-0 12 1 0909- ●
142 BOLT; QUAD BOX
(E) M8X22 FLANGE 		8-97365-376-0 03 1 0908- ●
157 BOX; QUAD,TRANS
(B) 		1-33541-478-0 01 1 0909- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-481-0 01 1 0909- ●
163 LEVER; SELECT,INTERNAL 1-33522-041-4 01 1 0909- ●
163 LEVER; SELECT,INTERNAL 8-97305-663-0 01 1 0908- ●
167 LEVER; SELECT,EXTERNAL 1-33521-064-1 01 1 0909- ●
167 LEVER; SELECT,EXTERNAL 8-98133-572-0 01 1 0908- ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 0909- ●
181 WASHER; PL,SELECT LEVER 8-97367-327-0 01 1 0908- ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 0909- ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 0909- ●
271 BUSHING; QUAD BOX
(A) ID=20 OD=23 		1-33549-016-0 01 1 0909- ●
271 BUSHING; QUAD BOX
(B) ID=28 OD=32 		1-33549-104-0 01 1 0909- ●
272 RING; SNAP,QUAD BOX 1-09588-175-0 01 1 0909- ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 0909- ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 0909- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 0909- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-647-0 01 1 0909- ●
292 NUT; LINK ROD
(B) M8 		0-91111-508-0 02 1 0909- ●
292 NUT; LINK ROD
(A) M8 FLANGE 		1-09440-062-1 02 1 0909- ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		0-91610-708-0 01 1 0909- ●
295 ROD; LINK,RELAY LEVER
L=130 		1-09765-262-0 01 1 0909- ●
296 ROD END
L=45.5 		1-09760-118-1 02 1 0909- ●
298 SHAFT; SHIFT LEVER 1-33522-186-0 01 1 0909- ●
298 SHAFT; SHIFT LEVER 8-97305-685-0 01 1 0908-1507 ●
298 SHAFT; SHIFT LEVER 8-98305-342-0 01 1 1508- ●
305 BOOT; LEVER SHAFT 1-33529-028-0 01 1 0909- ●
315 LEVER; SELECT 1-33651-487-0 01 1 0909- ●
317 BUSHING; LEVER
ID=16 OD=18 H=16 		1-09503-151-0 02 1 0909- ●
317 BUSHING; LEVER 1-09330-119-0 02 1 0908- ●
319 BRACKET; SELECT LEVER 1-33657-412-0 01 1 0909- ●
320 SHAFT; LEVER 1-33657-413-0 01 1 0909- ●
320 SHAFT; LEVER 8-97377-928-0 01 1 0908- ●
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10856-080-0 02 1 0909- ●
322 WASHER; LK
ID=10.2 		9-09150-510-0 01 1 0909- ●
322 WASHER; LK 8-98031-750-0 01 1 0908- ●
323 NUT; LK,SELECT LEVER
M10 		9-09110-410-0 01 1 0909- ●
327 NUT; BRKT,RELAY LEVER
M10 FLANGE 		0-91180-210-0 02 1 0909- ●

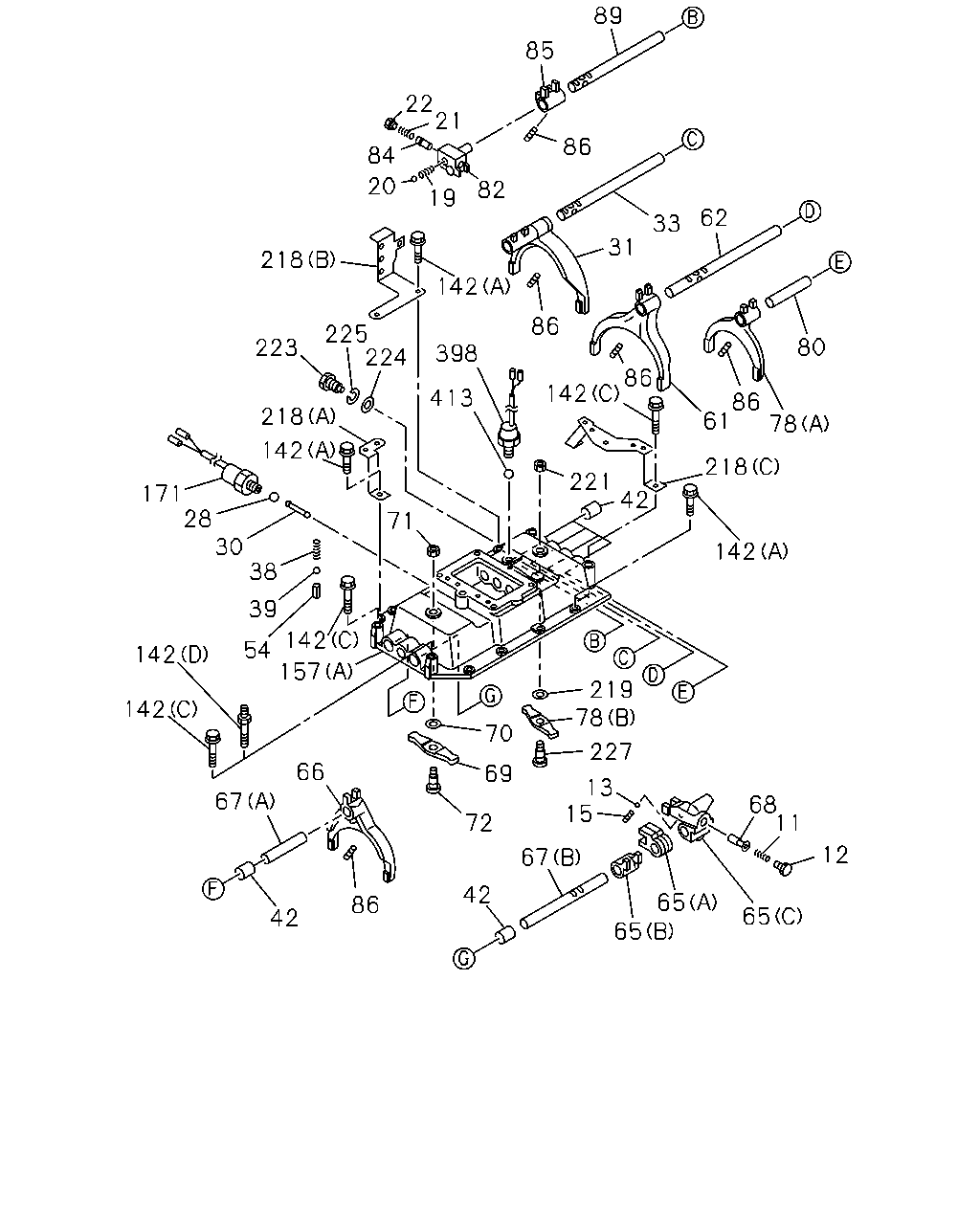

çizim 188355
89 85 22 21 84 86 19 20 82 62 33 31 218 142 225 224 86 80 223 398 86 142 413 86 61 78 218 142 218 221 42 171 28 30 38 71 142 39 142 54 142 157 219 78 142 70 227 66 69 13 15 67 68 11 72 12 67 42 65 65 86 65 42
BalonParca AdiParca NoAdetTipApplied Date A B
11 SPRING; RETURN,SHIFT SLEEVE 9-09941-160-0 01 1 0909- ●
12 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 0909- ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 0909- ●
15 SPRING; LK,SHIFT SLEEVE 1-09580-442-0 01 1 0909- ●
19 SPRING; COIL COMP 1-09580-441-0 01 1 0909- ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 0909- ●
21 SPRING; COIL COMP SLEEVE 9-09941-160-0 01 1 0909- ●
22 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 0909- ●
28 BALL; INTER LK 9-00097-501-0 04 1 0909- ●
30 PIN; INTER LK 9-33534-003-0 03 1 0909- ●
31 ARM; SHIFT,LOW & 2ND 1-33511-439-1 01 1 0909- ●
33 ROD; SHIFT,LOW & 2ND 1-33531-253-1 01 1 0909-1202 ●
33 ROD; SHIFT,LOW & 2ND 8-98207-578-0 01 1 1203- ●
38 SPRING; DETENT 1-09580-379-0 04 1 0909- ●
39 BALL; DETENT 1-09843-012-0 04 1 0909- ●
42 CAP; QUAD BOX
OD=24 L=31 		9-33545-011-1 06 1 0909- ●
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 03 1 0909- ●
61 ARM; SHIFT,3RD & 4TH 1-33511-490-1 01 1 0909- ●
62 ROD; SHIFT,3RD & 4TH 1-33531-254-1 01 1 0909-1202 ●
62 ROD; SHIFT,3RD & 4TH 8-98207-586-0 01 1 1203- ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(A) 		1-33511-202-3 01 1 0909- ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(B) 		1-33511-208-3 01 1 0909- ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(C) 		1-33511-513-0 01 1 0909- ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(D) 		8-97388-980-1 01 1 0908- ●
66 ARM; SHIFT,5TH & 6TH 1-33511-505-0 01 1 0909- ●
66 ARM; SHIFT,5TH & 6TH 8-97388-981-0 01 1 0908- ●
67 ROD; SHIFT,5TH & 6TH
(A) L=122 		1-33531-235-1 01 1 0909-1202 ●
67 ROD; SHIFT,5TH & 6TH
(A) L=122 		8-98207-587-0 01 1 1203- ●
67 ROD; SHIFT,5TH & 6TH
(B) L=278 		1-33531-255-1 01 1 0909-1202 ●
67 ROD; SHIFT,5TH & 6TH
(B) L=278 		8-98207-589-0 01 1 1203- ●
68 SLEEVE; 5TH & 6TH 1-33516-025-0 01 1 0909- ●
69 LEVER; SHIFT,5TH & 6TH 1-33511-082-0 01 1 0909- ●
70 WASHER; PL,SHIFT LEVER
ID=16.5 		9-09857-042-0 01 1 0909- ●
71 NUT; SHIFT LEVER
M12 FLANGE 		0-91180-212-0 01 1 0909- ●
72 SPINDLE; 5TH & 6TH 1-33519-012-0 01 1 0909- ●
78 ARM; SHIFT,REV
(B) 		1-33511-082-0 01 1 0909- ●
78 ARM; SHIFT,REV
(A) 		1-33511-234-1 01 1 0909- ●
78 ARM; SHIFT,REV
(C) 		8-97388-975-1 01 1 0908- ●
80 ROD; SHIFT,REV ARM 1-33531-234-1 01 1 0909-1202 ●
80 ROD; SHIFT,REV ARM 8-98207-584-0 01 1 1203- ●
82 BLOCK; SHIFT,REV 1-33511-310-1 01 1 0909- ●
82 BLOCK; SHIFT,REV 8-97388-969-0 01 1 0908- ●
84 SLEEVE; REV 1-33516-025-0 01 1 0909- ●
85 BLOCK; SHIFT,REV RR 1-33511-201-3 01 1 0909- ●
86 SCREW; TAPER,ARM TO ROD
M12X20 		1-09052-039-0 09 1 0909- ●
89 ROD; SHIFT,REV 1-33531-252-1 01 1 0909-1202 ●
89 ROD; SHIFT,REV 8-98207-582-0 01 1 1203- ●
89 ROD; SHIFT,REV 8-98062-172-0 01 1 0908- ●
142 BOLT; QUAD BOX
(C) M10X60 FLANGE 		0-28151-060-0 03 1 0909- ●
142 BOLT; QUAD BOX
(D) M10X20,M10X60 L=90 		1-09049-020-0 01 1 0909- ●
142 BOLT; QUAD BOX
(B) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0909- ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		8-98044-944-0 12 1 0909- ●
142 BOLT; QUAD BOX
(E) M8X22 FLANGE 		8-97365-376-0 03 1 0908- ●
157 BOX; QUAD,TRANS
(B) 		1-33541-478-0 01 1 0909- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-481-0 01 1 0909- ●
171 SWITCH; NEUTRAL 8-98108-345-0 01 1 0909-1104 ●
171 SWITCH; NEUTRAL 8-98166-989-0 01 1 1105-1109 ●
171 SWITCH; NEUTRAL 8-97640-725-0 01 1 1110- ●
171 SWITCH; NEUTRAL 8-98023-050-0 01 1 0908-1312 ●
171 SWITCH; NEUTRAL 8-98242-172-1 01 1 1401-1509 ●
171 SWITCH; NEUTRAL 8-98324-878-0 01 1 1510- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82699-639-1 01 1 0909- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-663-1 01 1 0909- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(C) 		1-82699-733-0 01 1 0909- ●
219 WASHER; PL,SPINDLE
ID=16.5 		9-09857-042-0 01 1 0909- ●
221 NUT; SPINDLE
M12 FLANGE 		0-91180-212-0 01 1 0909- ●
223 SCREW; SET,QUAD BOX
M14X45 		9-09816-057-1 01 1 0909- ●
224 WASHER; PL,QUAD BOX
ID=15 		0-91610-514-0 01 1 0909- ●
225 WASHER; LK,QUAD BOX
ID=14.2 		0-91510-514-0 01 1 0909- ●
227 SPINDLE; 1ST & REV 1-33519-012-0 01 1 0909- ●
398 SWITCH; REV LAMP 8-98042-853-0 01 1 0909-1209 ●
398 SWITCH; REV LAMP 8-98228-482-0 01 1 1210- ●
398 SWITCH; REV LAMP 8-98023-050-0 01 1 0908-1312 ●
398 SWITCH; REV LAMP 8-98242-173-1 01 1 1401- ●
413 BALL; BACK SW 9-00097-013-0 01 1 0909- ●

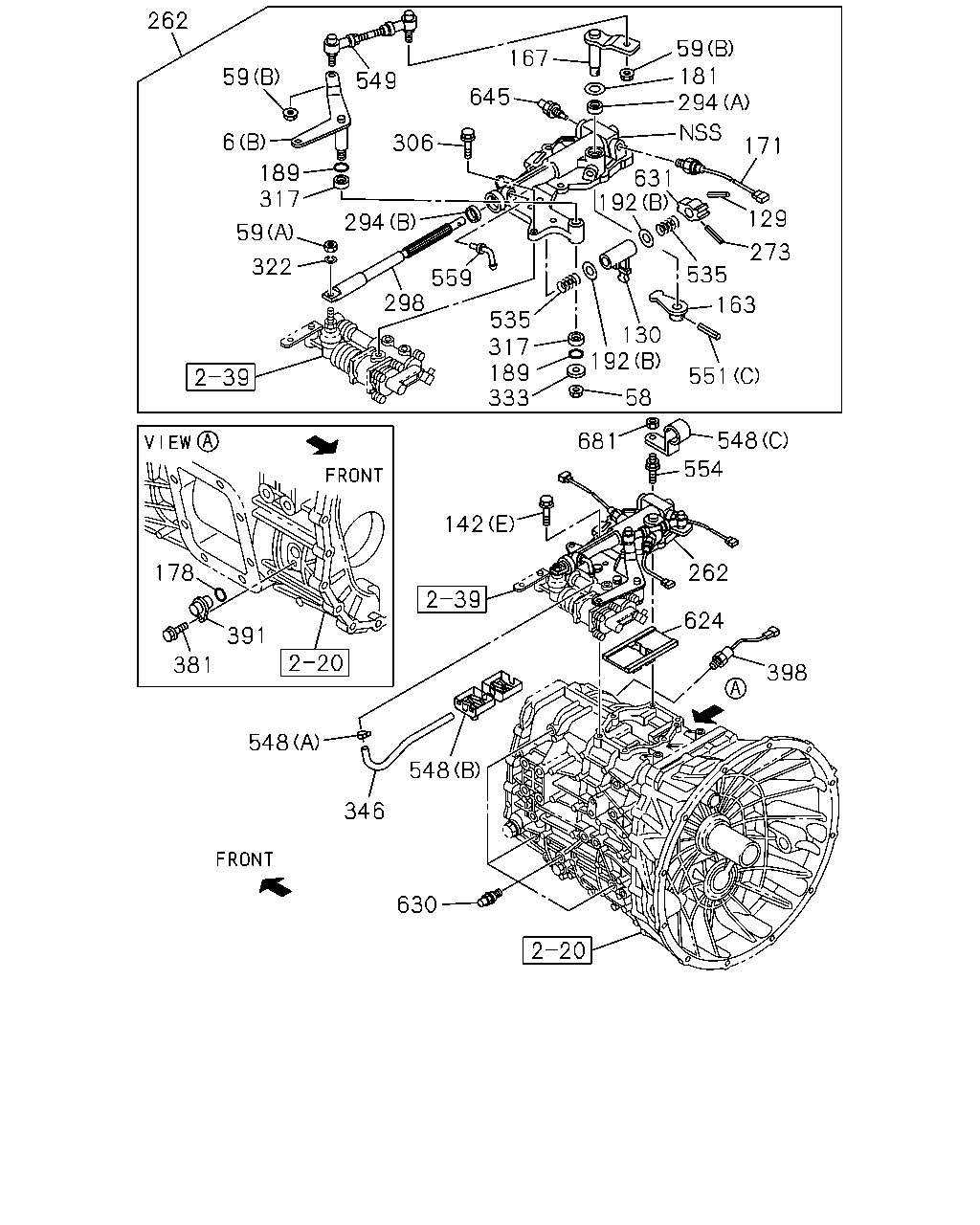

çizim 188358
262 59 181 294 167 59 549 645 6 306 171 189 317 631 192 129 294 59 273 322 535 559 298 163 535 317 189 333 130 192 551 58 548 681 554 142 178 262 624 391 381 398 548 548 346 630
BalonParca AdiParca NoAdetTipApplied Date A B
6 LEVER; RELAY
(A) 		8-97241-342-0 03 1 0908- ●
6 LEVER; RELAY
(B) 		8-98022-855-0 01 1 0908- ●
58 NUT
M10 FLANGE 		0-91180-110-0 01 1 0908- ●
59 NUT
(A) M12 		0-91110-512-0 01 1 0908- ●
59 NUT
(B) M8 FLANGE 		0-91180-108-0 02 1 0908- ●
129 PIN; SPR,SHIFT
L=30 OD=4 		1-09748-031-0 01 1 0908- ●
130 LEVER; SHIFT,INTERNAL 1-33521-111-1 01 1 0909- ●
130 LEVER; SHIFT,INTERNAL 8-97306-647-0 01 1 0908- ●
142 BOLT; QUAD BOX
(C) M10X60 FLANGE 		0-28151-060-0 03 1 0909- ●
142 BOLT; QUAD BOX
(D) M10X20,M10X60 L=90 		1-09049-020-0 01 1 0909- ●
142 BOLT; QUAD BOX
(B) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0909- ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		8-98044-944-0 12 1 0909- ●
142 BOLT; QUAD BOX
(E) M8X22 FLANGE 		8-97365-376-0 03 1 0908- ●
163 LEVER; SELECT,INTERNAL 1-33522-041-4 01 1 0909- ●
163 LEVER; SELECT,INTERNAL 8-97305-663-0 01 1 0908- ●
167 LEVER; SELECT,EXTERNAL 1-33521-064-1 01 1 0909- ●
167 LEVER; SELECT,EXTERNAL 8-98133-572-0 01 1 0908- ●
171 SWITCH; NEUTRAL 8-98108-345-0 01 1 0909-1104 ●
171 SWITCH; NEUTRAL 8-98166-989-0 01 1 1105-1109 ●
171 SWITCH; NEUTRAL 8-97640-725-0 01 1 1110- ●
171 SWITCH; NEUTRAL 8-98023-050-0 01 1 0908-1312 ●
171 SWITCH; NEUTRAL 8-98242-172-1 01 1 1401-1509 ●
171 SWITCH; NEUTRAL 8-98324-878-0 01 1 1510- ●
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		9-09567-113-0 01 1 0908- ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 0909- ●
181 WASHER; PL,SELECT LEVER 8-97367-327-0 01 1 0908- ●
189 GASKET; SELECT LEVER,CONT BOX 1-09623-594-0 02 1 0908- ●
192 WASHER; PL
(A) ID=18.2 OD=29 		1-09503-032-0 04 1 0908- ●
192 WASHER; PL
(B) 		8-97305-661-0 02 1 0908- ●
262 BOX ASM; SHIFT CONT 8-98133-152-3 01 1 0908-1312 ●
262 BOX ASM; SHIFT CONT 8-98240-988-1 01 1 1401-1507 ●
262 BOX ASM; SHIFT CONT 8-98305-329-1 01 1 1508- ●
273 PIN; SPR,STOPPER
D=4.2 L=25 		8-97103-142-0 01 1 0908- ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (A) 		8-97305-662-0 01 1 0908- ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (B) 		8-97363-225-0 01 1 0908- ●
298 SHAFT; SHIFT LEVER 1-33522-186-0 01 1 0909- ●
298 SHAFT; SHIFT LEVER 8-97305-685-0 01 1 0908-1507 ●
298 SHAFT; SHIFT LEVER 8-98305-342-0 01 1 1508- ●
306 BOLT; SHIFT ASSISTOR
M10X50 FLANGE 		0-28051-050-0 03 1 0908- ●
317 BUSHING; LEVER
ID=16 OD=18 H=16 		1-09503-151-0 02 1 0909- ●
317 BUSHING; LEVER 1-09330-119-0 02 1 0908- ●
322 WASHER; LK
ID=10.2 		9-09150-510-0 01 1 0909- ●
322 WASHER; LK 8-98031-750-0 01 1 0908- ●
333 WASHER; PL,LEVER
ID=10.5 		0-91610-710-0 01 1 0908- ●
346 HOSE; AIR
L=200 SERVICED BY L=3000 		0-04750-300-0 01 1 0908- ●
381 BOLT
M6X16 FLANGE 		0-28650-616-0 01 1 0908- ●
391 PLUG; SW HOLE 8-97300-273-1 01 1 0908- ●
398 SWITCH; REV LAMP 8-98042-853-0 01 1 0909-1209 ●
398 SWITCH; REV LAMP 8-98228-482-0 01 1 1210- ●
398 SWITCH; REV LAMP 8-98023-050-0 01 1 0908-1312 ●
398 SWITCH; REV LAMP 8-98242-173-1 01 1 1401- ●
535 SPRING; LEVER 8-97385-713-0 02 1 0908- ●
548 CLIP; HOSE
(A) ID=11 		8-94238-570-0 01 1 0908- ●
548 CLIP; HOSE
(B) 		8-97301-433-1 01 1 0908- ●
548 CLIP; HOSE
(C) ID=13 H=12 L=20 		8-98038-485-0 01 1 0908- ●
549 ROD; LINK 8-98022-841-0 01 1 0908- ●
551 PIN; SPRING
(C) L=25 OD=5 		1-09748-032-0 01 1 0908- ●
551 PIN; SPRING
(A) L=32 		8-97011-596-2 05 1 0908- ●
551 PIN; SPRING
(B) L=20 		8-97241-340-0 01 1 0908- ●
554 STUD; CONT BOX
M8X15,M8X25 L=49 		8-97365-378-0 03 1 0908- ●
559 PIPE; BREATHER 8-98020-710-0 01 1 0908- ●
624 PLATE; INTER LOCK 8-97241-317-3 01 1 0908- ●
630 DETENT ASM 8-98019-536-0 04 1 0908- ●
631 STOPPER; SPRING 8-97305-666-0 01 1 0908- ●
645 DETENT ASM 8-98019-536-0 01 1 0908- ●
681 NUT; FLANGE
M8 FLANGE 		0-91180-108-0 01 1 0908- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
