Sayfa 4-60 - Isuzu EPC

4-60 — REAR SUSPENSION (#6880) — 320 parça

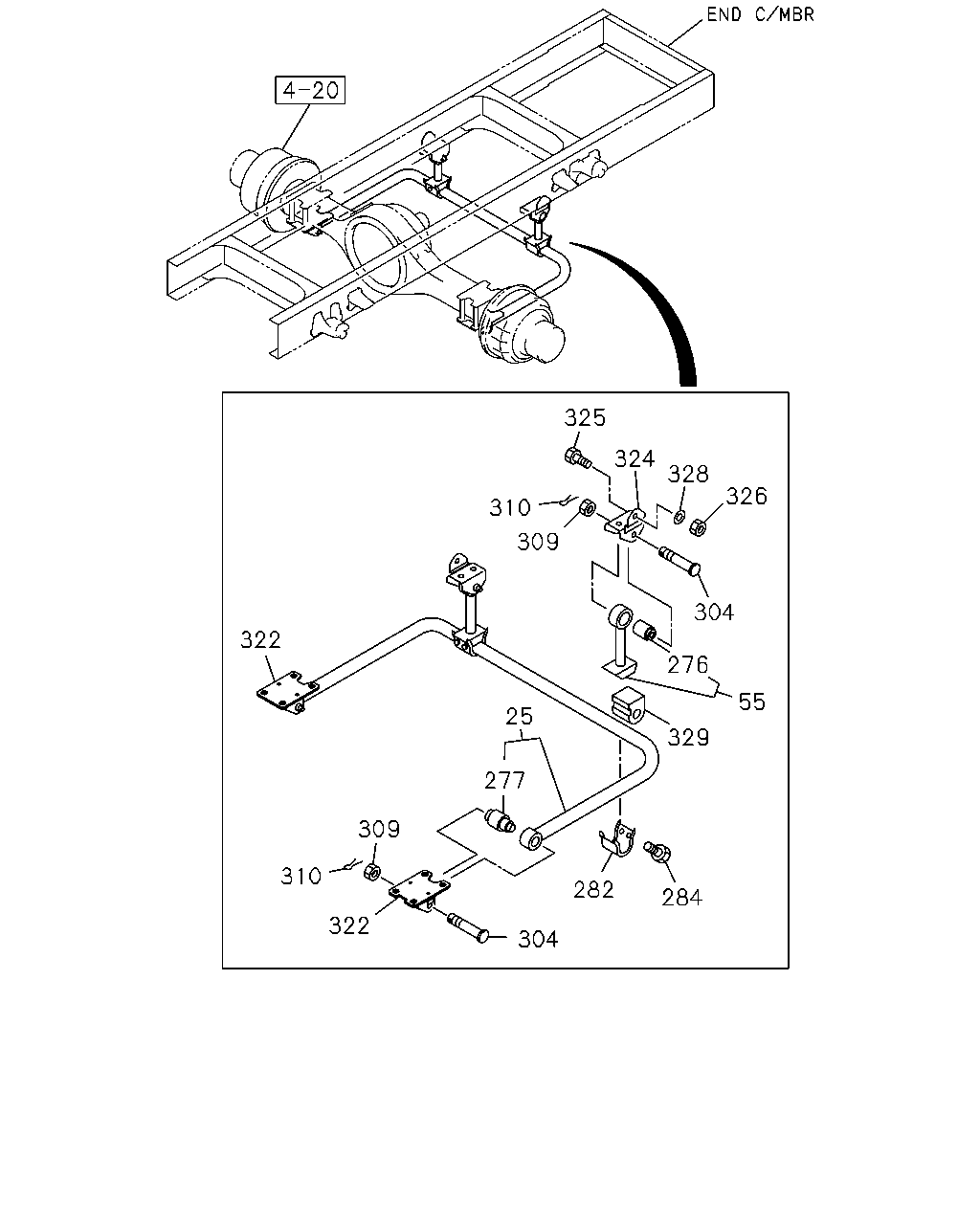

325 324 328 326 310 309 304 322 276 55 25 329 277 309 310 282 284 322 304

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BAR ASM; STAB,RR SUSP STAB SHF<FE6>	1-51771-040-1	01	1	0001-0401
25	BAR ASM; STAB,RR SUSP STAB SHF<FE6>	1-51770-188-0	01	1	0402-
25	BAR ASM; STAB,RR SUSP STAB SHF<FE6>	1-51771-040-1	01	1	9806-9911
55	ROD; STAB STAB SHF<FE6>	1-51773-048-1	02	1	0001-0401
55	ROD; STAB STAB SHF<FE6>	1-51770-024-1	02	1	0402-
55	ROD; STAB STAB SHF<FE6>	1-51773-048-1	02	1	9806-9911
276	BUSHING; STAB ROD STAB SHF<FE6>	1-51779-019-0	04	1	0402-0402
276	BUSHING; STAB ROD STAB SHF<FE6>	1-51779-019-0	02	1	0402-
277	BUSHING; STAB,RR UPR STAB SHF<FE6>	1-51779-067-0	02	1	0402-
282	RETAINER; STAB BAR STAB SHF<FE6>	1-51789-015-2	02	1	0001-
282	RETAINER; STAB BAR STAB SHF<FE6>	1-51789-015-2	02	1	9806-9911
284	BOLT; RET TO RET STAB SHF<FE6> M10X25	8-94463-351-0	08	1	0001-
284	BOLT; RET TO RET STAB SHF<FE6> M10X25	8-94463-351-0	08	1	9806-9911
304	PIN; STAB ROD STAB SHF<FE6>	1-51789-020-2	04	1	0402-
309	NUT; STAB ROD STAB SHF<FE6> M24	9-99116-424-0	04	1	0402-
310	PIN; SPLIT,STAB ROD STAB SHF<FE6> OD=4.6 L=45	9-08115-045-0	04	1	0402-0606
310	PIN; SPLIT,STAB ROD STAB SHF<FE6> OD=4.6 L=45	0-81125-045-0	04	1	0607-
322	BRACKET; STAB BAR TO RR AXLE STAB SHF<FE6> EXC. RR AXLE R105A<BBJ>,SUSP HVY DUTY VAR2<F41>	1-51781-147-0	02	1	0402-
324	BRACKET; STAB BAR TO FRAME STAB SHF<FE6>	1-51781-049-2	02	1	0001-0401
324	BRACKET; STAB BAR TO FRAME STAB SHF<FE6>	1-51781-059-0	02	1	0402-
324	BRACKET; STAB BAR TO FRAME STAB SHF<FE6>	1-51781-049-2	02	1	9806-9911
325	BOLT; BRKT TO FRAME STAB SHF<FE6> M12X40 FLANGE	0-28681-240-0	04	1	0001-0103
325	BOLT; BRKT TO FRAME STAB SHF<FE6> M12X40 FLANGE	0-28081-240-0	04	1	0104-0401
325	BOLT; BRKT TO FRAME STAB SHF<FE6> M14X40	9-92061-440-0	06	1	0402-0512
325	BOLT; BRKT TO FRAME STAB SHF<FE6> M14X40	0-20951-440-0	06	1	0601-
325	BOLT; BRKT TO FRAME STAB SHF<FE6> M12X40 FLANGE	0-28681-240-0	04	1	9806-9911
326	NUT; BRKT TO FRAME STAB SHF<FE6> M14	9-99110-514-0	06	1	0402-0512
326	NUT; BRKT TO FRAME STAB SHF<FE6> M14	0-91110-514-0	06	1	0601-
328	WASHER; PL,BRKT STAB SHF<FE6> ID=15	9-09651-069-0	12	1	0402-
329	BUSHING; STAB ROD STAB SHF<FE6>	1-51789-017-0	02	1	0402-

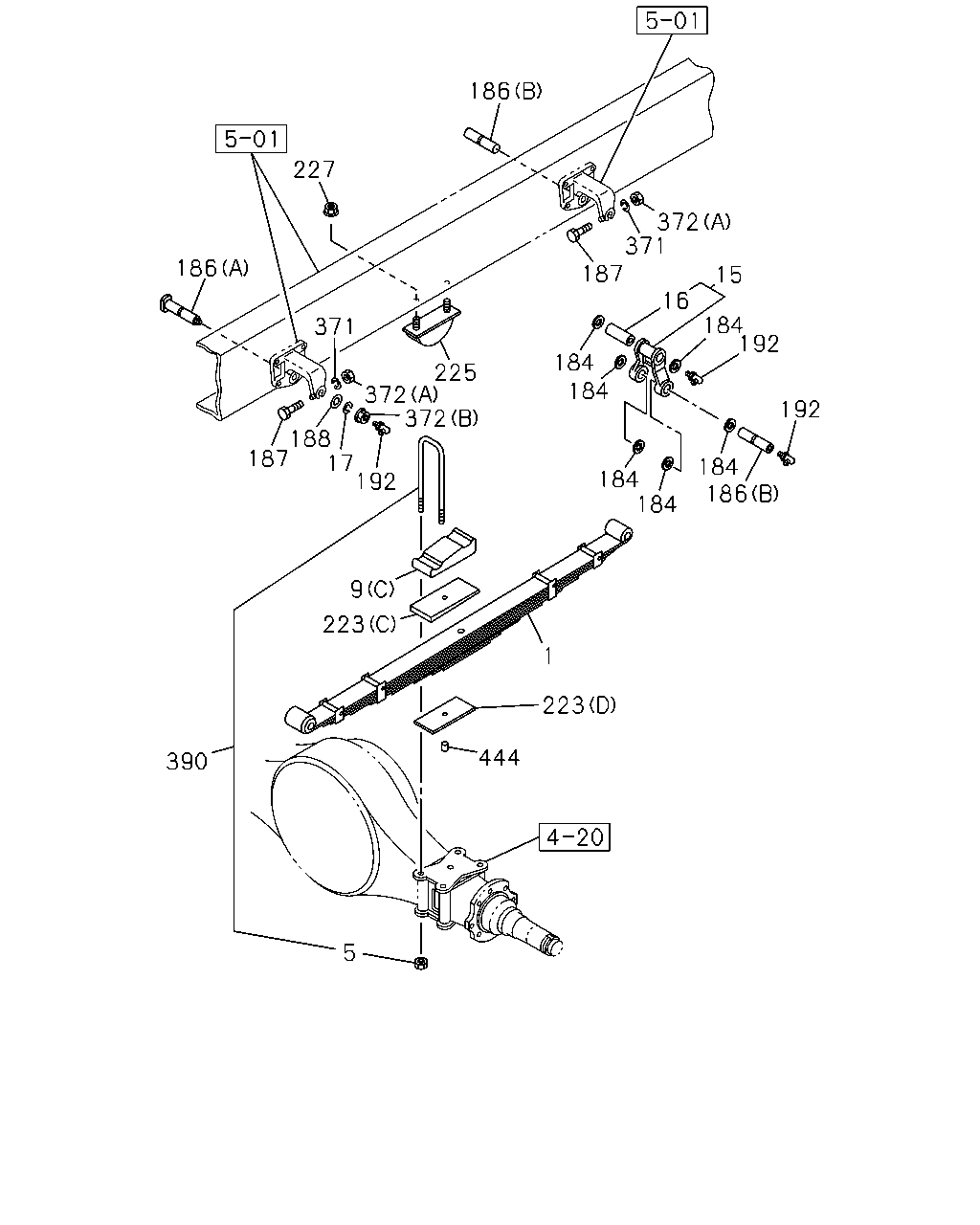

186 227 372 371 187 186 15 16 184 192 371 184 184 225 372 372 192 188 187 17 192 184 186 184 184 9 223 1 223 444 390 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. LEAF SPR W/SILENT LINER<C1N> SUSP HVY DUTY VAR2<F41> 12 LEAF	1-51410-193-0	02	1	9901-9911
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. SUSP HVY DUTY VAR2<F41> 12 LEAF	1-51410-193-0	02	1	9912-
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. WB 5000MM(50W),WB 5700MM(57W) LEAF SPR W/SILENT LINER<C1N> EXC. SUSP HVY DUTY VAR1<F40> 12 LEAF	1-51410-185-0	02	1	9806-9808
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. LEAF SPR W/SILENT LINER<C1N> EXC. SUSP HVY DUTY VAR1<F40>,SUSP HVY DUTY VAR2<F41> 12 LEAF	1-51410-185-0	02	1	9809-9911
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EXC. SUSP HVY DUTY VAR2<F41> 12 LEAF	8-97530-530-1	02	1	9912-
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. WB 5000MM(50W),WB 5700MM(57W) EXC. LEAF SPR W/SILENT LINER<C1N>,SUSP HVY DUTY VAR1<F40> 12 LEAF	1-51410-183-0	02	1	9806-9808
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EXC. LEAF SPR W/SILENT LINER<C1N>,SUSP HVY DUTY VAR1<F40>,SUSP HVY DUTY VAR2<F41> 12 LEAF	1-51410-183-0	02	1	9809-9911
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. WB 5000MM(50W),WB 5700MM(57W) SUSP HVY DUTY VAR1<F40> EXC. LEAF SPR W/SILENT LINER<C1N> 11 LEAF	1-51410-184-0	02	1	9806-9808
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. SUSP HVY DUTY VAR1<F40> EXC. LEAF SPR W/SILENT LINER<C1N> 11 LEAF	1-51410-184-0	02	1	9809-9911
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. WB 6300MM(63W) EXC. LEAF SPR W/SILENT LINER<C1N> 12 LEAF	1-51410-107-0	02	1	9806-9808
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. SUSP HVY DUTY VAR2<F41> EXC. LEAF SPR W/SILENT LINER<C1N> 12 LEAF	1-51410-107-0	02	1	9809-9911
5	NUT; U-BOLT,RR SPR RR AXLE R105A<BBJ> M24	9-99112-824-0	08	1	9806-9808
5	NUT; U-BOLT,RR SPR RR AXLE R105A<BBJ> EXC. SUSP HVY DUTY VAR2<F41> M24	9-99112-824-0	08	1	9809-9911
5	NUT; U-BOLT,RR SPR SUSP HVY DUTY VAR2<F41> M24	9-99112-824-0	08	1	9809-9911
5	NUT; U-BOLT,RR SPR SUSP HVY DUTY VAR2<F41> M24	9-99112-824-0	08	1	9912-0512
5	NUT; U-BOLT,RR SPR SUSP HVY DUTY VAR2<F41> M24	0-91112-824-0	08	1	0601-
5	NUT; U-BOLT,RR SPR EXC. RR AXLE R105A<BBJ>	9-09840-326-0	08	1	9806-9808
5	NUT; U-BOLT,RR SPR EXC. RR AXLE R105A<BBJ>,SUSP HVY DUTY VAR2<F41>	9-09840-326-0	08	1	9809-9911
5	NUT; U-BOLT,RR SPR EXC. SUSP HVY DUTY VAR2<F41>	9-09840-326-0	08	1	9912-
9	PAD; U BOLT,RR SPR WB 5000MM(50W),WB 5700MM(57W) RR AXLE R105A<BBJ> (A)	1-51372-052-0	02	1	9806-9808
9	PAD; U BOLT,RR SPR RR AXLE R105A<BBJ> EXC. SUSP HVY DUTY VAR2<F41> (A)	1-51372-052-0	02	1	9809-9911
9	PAD; U BOLT,RR SPR EXC. SUSP HVY DUTY VAR2<F41> (A)	8-97530-200-0	02	1	9912-
9	PAD; U BOLT,RR SPR WB 5000MM(50W),WB 5700MM(57W) EXC. RR AXLE R105A<BBJ> (B)	1-51372-036-0	02	1	9806-9808
9	PAD; U BOLT,RR SPR EXC. RR AXLE R105A<BBJ>,SUSP HVY DUTY VAR2<F41> (B)	1-51372-036-0	02	1	9809-9911
9	PAD; U BOLT,RR SPR WB 6300MM(63W) (C)	1-51372-070-0	02	1	9806-9808
9	PAD; U BOLT,RR SPR SUSP HVY DUTY VAR2<F41> (C)	1-51372-070-0	02	1	9809-
15	SHACKLE; RR SPR WB 5000MM(50W),WB 5700MM(57W)	1-51162-068-0	02	1	9806-9808
15	SHACKLE; RR SPR EXC. SUSP HVY DUTY VAR2<F41>	1-51162-068-0	02	1	9809-9911
15	SHACKLE; RR SPR EXC. SUSP HVY DUTY VAR2<F41>	8-97530-932-1	02	1	9912-
15	SHACKLE; RR SPR WB 6300MM(63W)	1-51362-050-0	02	1	9806-9808
15	SHACKLE; RR SPR SUSP HVY DUTY VAR2<F41>	1-51362-050-0	02	1	9809-
16	BUSHING; SHACKLE,RR SPR WB 5000MM(50W),WB 5700MM(57W) OD=38	1-51351-030-0	02	1	9806-9808
16	BUSHING; SHACKLE,RR SPR EXC. SUSP HVY DUTY VAR2<F41> OD=38	1-51351-030-0	02	1	9809-
16	BUSHING; SHACKLE,RR SPR WB 6300MM(63W) OD=38	1-51351-031-0	02	1	9806-9808
16	BUSHING; SHACKLE,RR SPR SUSP HVY DUTY VAR2<F41> OD=38	1-51351-031-0	02	1	9809-
17	WASHER; LK,SHACKLE PIN WB 6300MM(63W) ID=24.5 OD=52	9-51369-012-0	02	1	9806-9808
17	WASHER; LK,SHACKLE PIN SUSP HVY DUTY VAR2<F41> ID=24.5 OD=52	9-51369-012-0	02	1	9809-
184	WASHER; SPRING PIN	1-09503-277-0	12	1	9806-
186	PIN; SHACKLE,RR SPR WB 5000MM(50W),WB 5700MM(57W) (C)	1-51161-050-0	06	1	9806-9808
186	PIN; SHACKLE,RR SPR EXC. SUSP HVY DUTY VAR2<F41> (C)	1-51161-050-0	06	1	9809-
186	PIN; SHACKLE,RR SPR WB 6300MM(63W) (A) FRONT	1-51361-025-0	02	1	9806-9808
186	PIN; SHACKLE,RR SPR SUSP HVY DUTY VAR2<F41> (A) FRONT	1-51361-025-0	02	1	9809-
186	PIN; SHACKLE,RR SPR WB 6300MM(63W) (B) REAR	1-51361-026-0	04	1	9806-9808
186	PIN; SHACKLE,RR SPR SUSP HVY DUTY VAR2<F41> (B) REAR	1-51361-026-0	04	1	9809-
187	BOLT; SPR & SHACKLE WB 5000MM(50W),WB 5700MM(57W) M12X80	0-10806-280-0	08	1	9806-9808
187	BOLT; SPR & SHACKLE EXC. SUSP HVY DUTY VAR2<F41> M12X80	0-10806-280-0	08	1	9809-0512
187	BOLT; SPR & SHACKLE EXC. SUSP HVY DUTY VAR2<F41> M12X80	0-10856-280-0	08	1	0601-
187	BOLT; SPR & SHACKLE WB 6300MM(63W) M14X80 FLANGE	0-28881-480-0	04	1	9806-9808
187	BOLT; SPR & SHACKLE SUSP HVY DUTY VAR2<F41> M14X80 FLANGE	0-28881-480-0	04	1	9809-0512
187	BOLT; SPR & SHACKLE SUSP HVY DUTY VAR2<F41> M14X80 FLANGE	0-28851-480-0	04	1	0601-
188	WASHER; PL,SHACKLE PIN WB 6300MM(63W)	9-09164-624-0	02	1	9806-9808
188	WASHER; PL,SHACKLE PIN SUSP HVY DUTY VAR2<F41>	9-09164-624-0	02	1	9809-
192	NIPPLE; GREASE,SHACKLE PIN PT1/8 ELBOW	9-09031-210-0	06	1	9806-0512
192	NIPPLE; GREASE,SHACKLE PIN PT1/8 ELBOW	0-90301-610-0	06	1	0601-
223	SPACER; U BOLT,RR SPR WB 5000MM(50W),WB 5700MM(57W) RR AXLE R105A<BBJ> (A) CASTER PLATE	1-51377-194-0	02	1	9806-9808
223	SPACER; U BOLT,RR SPR RR AXLE R105A<BBJ> EXC. SUSP HVY DUTY VAR2<F41> (A) CASTER PLATE	1-51377-194-0	02	1	9809-9911
223	SPACER; U BOLT,RR SPR SUSP HVY DUTY VAR2<F41> (D) DISTANCE PIECE	1-51377-357-0	02	1	9912-
223	SPACER; U BOLT,RR SPR WB 5000MM(50W),WB 5700MM(57W) EXC. RR AXLE R105A<BBJ> (A) CASTER PLATE	1-51377-076-0	02	1	9806-9808
223	SPACER; U BOLT,RR SPR EXC. RR AXLE R105A<BBJ>,SUSP HVY DUTY VAR2<F41> (A) CASTER PLATE	1-51377-076-0	02	1	9809-9911
223	SPACER; U BOLT,RR SPR EXC. SUSP HVY DUTY VAR2<F41> (A) CASTER PLATE	8-97530-215-0	02	1	9912-
223	SPACER; U BOLT,RR SPR WB 5000MM(50W),WB 5700MM(57W) EXC. STAB SHF<FE6> (B) DISTANCE PIECE	1-51377-177-0	02	1	9806-9808
223	SPACER; U BOLT,RR SPR EXC. STAB SHF<FE6>,SUSP HVY DUTY VAR2<F41> (B) DISTANCE PIECE	1-51377-177-0	02	1	9809-9812
223	SPACER; U BOLT,RR SPR EXC. STAB SHF<FE6> (B) DISTANCE PIECE	1-51377-177-0	02	1	9901-9911
223	SPACER; U BOLT,RR SPR EXC. SUSP HVY DUTY VAR2<F41> (B) DISTANCE PIECE	1-51377-177-0	02	1	9912-9912
223	SPACER; U BOLT,RR SPR EXC. STAB SHF<FE6>,SUSP HVY DUTY VAR2<F41> (B) DISTANCE PIECE	1-51377-177-0	02	1	0001-0401
223	SPACER; U BOLT,RR SPR EXC. SUSP HVY DUTY VAR2<F41> (B) DISTANCE PIECE	1-51377-177-0	02	1	0402-
223	SPACER; U BOLT,RR SPR WB 6300MM(63W) (C) CASTER PLATE	1-51377-343-0	02	1	9806-9808
223	SPACER; U BOLT,RR SPR SUSP HVY DUTY VAR2<F41> (C) CASTER PLATE	1-51377-343-2	02	1	9809-
225	RUBBER; CUSHION,RR SPR	9-53366-088-3	02	1	9806-
227	NUT; CUSHION RUBBER M10 FLANGE	0-91150-210-0	04	1	9806-0602
227	NUT; CUSHION RUBBER M10 FLANGE	0-91180-210-0	04	1	0603-
371	WASHER; LK,SHACKLE WB 5000MM(50W),WB 5700MM(57W) ID=12.2	9-09150-612-0	08	1	9806-9808
371	WASHER; LK,SHACKLE EXC. SUSP HVY DUTY VAR2<F41> ID=12.2	9-09150-612-0	08	1	9809-0603
371	WASHER; LK,SHACKLE EXC. SUSP HVY DUTY VAR2<F41> ID=12.2	0-91510-612-0	08	1	0604-
371	WASHER; LK,SHACKLE WB 6300MM(63W) ID=14.2	9-09150-514-0	04	1	9806-9808
371	WASHER; LK,SHACKLE SUSP HVY DUTY VAR2<F41> ID=14.2	9-09150-514-0	04	1	9809-0603
371	WASHER; LK,SHACKLE SUSP HVY DUTY VAR2<F41> ID=14.2	0-91510-514-0	04	1	0604-
372	NUT; SHACKLE WB 5000MM(50W),WB 5700MM(57W) (C) M12	9-99110-512-0	08	1	9806-9808
372	NUT; SHACKLE EXC. SUSP HVY DUTY VAR2<F41> (C) M12	9-99110-512-0	08	1	9809-0512
372	NUT; SHACKLE EXC. SUSP HVY DUTY VAR2<F41> (C) M12	0-91110-512-0	08	1	0601-
372	NUT; SHACKLE WB 6300MM(63W) (A) M14	9-99110-414-0	04	1	9806-9808
372	NUT; SHACKLE SUSP HVY DUTY VAR2<F41> (A) M14	9-99110-414-0	04	1	9809-0512
372	NUT; SHACKLE SUSP HVY DUTY VAR2<F41> (A) M14	0-91110-514-0	04	1	0601-
372	NUT; SHACKLE WB 6300MM(63W) (B) M24	9-99110-524-0	02	1	9806-9808
372	NUT; SHACKLE SUSP HVY DUTY VAR2<F41> (B) M24	9-99110-524-0	02	1	9809-0512
372	NUT; SHACKLE SUSP HVY DUTY VAR2<F41> (B) M24	0-91110-524-0	02	1	0601-
390	U-BOLT SET; RR SPRING WB 5000MM(50W),WB 5700MM(57W) RR AXLE R105A<BBJ> LEAF SPR W/SILENT LINER<C1N> L=445	1-87870-323-0	04	1	9806-9808
390	U-BOLT SET; RR SPRING WB 5000MM(50W),WB 5700MM(57W) RR AXLE R105A<BBJ> EXC. LEAF SPR W/SILENT LINER<C1N>,SUSP HVY DUTY VAR1<F40> L=445	1-87870-323-0	04	1	9806-9808
390	U-BOLT SET; RR SPRING RR AXLE R105A<BBJ> EXC. LEAF SPR W/SILENT LINER<C1N>,SUSP HVY DUTY VAR1<F40>,SUSP HVY DUTY VAR2<F41> L=445	1-87870-323-0	04	1	9809-9911
390	U-BOLT SET; RR SPRING RR AXLE R105A<BBJ> LEAF SPR W/SILENT LINER<C1N> EXC. SUSP HVY DUTY VAR2<F41> L=445	1-87870-323-0	04	1	9809-9911
390	U-BOLT SET; RR SPRING WB 5000MM(50W),WB 5700MM(57W) RR AXLE R105A<BBJ> SUSP HVY DUTY VAR1<F40> M24 L=425	1-87870-281-0	04	1	9806-9808
390	U-BOLT SET; RR SPRING RR AXLE R105A<BBJ> SUSP HVY DUTY VAR1<F40> M24 L=425	1-87870-281-0	04	1	9809-9911
390	U-BOLT SET; RR SPRING WB 5000MM(50W),WB 5700MM(57W) EXC. RR AXLE R105A<BBJ> L=420	1-87870-244-0	04	1	9806-9808
390	U-BOLT SET; RR SPRING EXC. RR AXLE R105A<BBJ>,SUSP HVY DUTY VAR2<F41> L=420	1-87870-244-0	04	1	9809-9911
390	U-BOLT SET; RR SPRING EXC. SUSP HVY DUTY VAR2<F41> L=420	1-87870-244-1	02	1	9912-
390	U-BOLT SET; RR SPRING WB 5000MM(50W),WB 5700MM(57W) EXC. RR AXLE R105A<BBJ> L=405	1-87870-252-0	04	1	9806-9808
390	U-BOLT SET; RR SPRING EXC. RR AXLE R105A<BBJ>,SUSP HVY DUTY VAR2<F41> L=405	1-87870-252-0	04	1	9809-9911
390	U-BOLT SET; RR SPRING EXC. SUSP HVY DUTY VAR2<F41> L=405	1-87870-252-1	02	1	9912-0401
390	U-BOLT SET; RR SPRING EXC. SUSP HVY DUTY VAR2<F41> L=435	1-87870-443-0	02	1	0402-
390	U-BOLT SET; RR SPRING WB 6300MM(63W) L=430	1-87870-095-2	04	1	9806-9808
390	U-BOLT SET; RR SPRING SUSP HVY DUTY VAR2<F41> L=430	1-87870-095-3	04	1	9809-
444	PIN; CASTER PLATE WB 6300MM(63W)	1-09740-058-0	02	1	9806-9808
444	PIN; CASTER PLATE SUSP HVY DUTY VAR2<F41>	1-09740-058-0	02	1	9809-

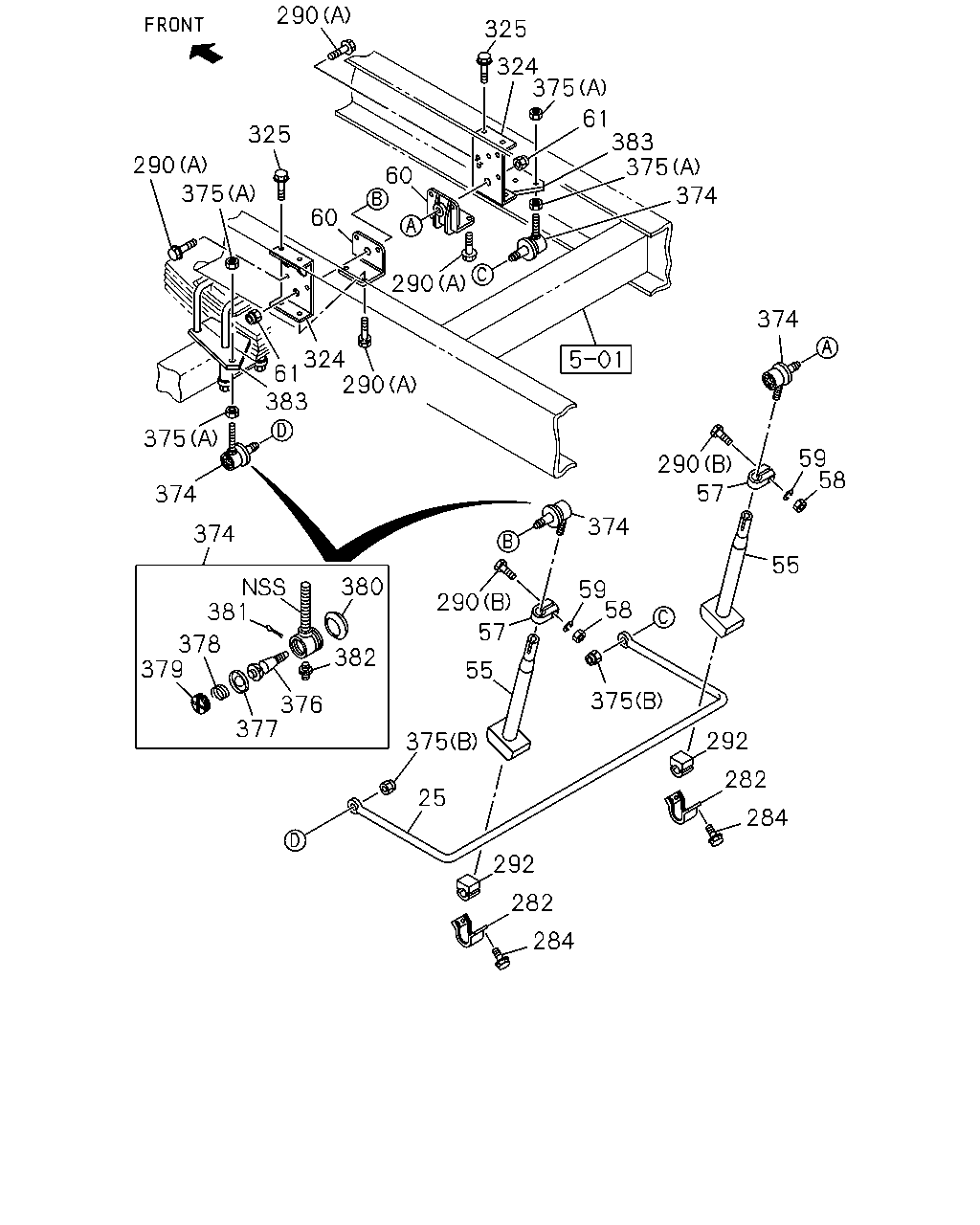

290 325 324 375 61 383 375 374 325 60 290 375 60 290 374 324 61 290 383 375 59 58 290 57 374 374 374 55 380 381 59 58 290 57 378 379 382 55 375 376 377 292 375 282 25 284 292 282 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BAR ASM; STAB,RR SUSP STAB SHF<FE6>	1-51771-040-1	01	1	0001-0401
25	BAR ASM; STAB,RR SUSP STAB SHF<FE6>	1-51770-188-0	01	1	0402-
25	BAR ASM; STAB,RR SUSP STAB SHF<FE6>	1-51771-040-1	01	1	9806-9911
55	ROD; STAB STAB SHF<FE6>	1-51773-048-1	02	1	0001-0401
55	ROD; STAB STAB SHF<FE6>	1-51770-024-1	02	1	0402-
55	ROD; STAB STAB SHF<FE6>	1-51773-048-1	02	1	9806-9911
57	CLAMP; ROD END STAB SHF<FE6>	1-43159-002-3	02	1	0001-0401
57	CLAMP; ROD END STAB SHF<FE6>	1-43159-002-2	02	1	9806-9911
58	NUT; CLAMP,ROD END STAB SHF<FE6> M12	9-99110-512-0	02	1	0001-0401
58	NUT; CLAMP,ROD END STAB SHF<FE6> M12	9-99110-512-0	02	1	9806-9911
59	WASHER; LK,CLAMP STAB SHF<FE6> ID=12.2	9-09150-812-0	02	1	0001-0401
59	WASHER; LK,CLAMP STAB SHF<FE6> ID=12.2	9-09150-812-0	02	1	9806-9911
60	BRACKET; SUPPORT,STABILIZER STAB SHF<FE6>	1-51781-037-2	02	1	0001-0401
60	BRACKET; SUPPORT,STABILIZER STAB SHF<FE6>	1-51781-037-1	02	1	9806-9911
61	NUT; SUPPORT,STABILIZER STAB SHF<FE6> M16	1-09449-014-0	02	1	0001-0401
61	NUT; SUPPORT,STABILIZER STAB SHF<FE6> M16	1-09449-014-0	02	1	9806-9911
282	RETAINER; STAB BAR STAB SHF<FE6>	1-51789-015-2	02	1	0001-
282	RETAINER; STAB BAR STAB SHF<FE6>	1-51789-015-2	02	1	9806-9911
284	BOLT; RET TO RET STAB SHF<FE6> M10X25	8-94463-351-0	08	1	0001-
284	BOLT; RET TO RET STAB SHF<FE6> M10X25	8-94463-351-0	08	1	9806-9911
290	BOLT; STAB SUPPORTER STAB SHF<FE6> (A) M12X50 FLANGE	0-28081-250-0	04	1	0001-0103
290	BOLT; STAB SUPPORTER STAB SHF<FE6> (A),(B) M12X40 FLANGE	0-28081-240-0	08	1	0104-0401
290	BOLT; STAB SUPPORTER STAB SHF<FE6> (A) M12X40 FLANGE	0-28681-240-0	04	1	0001-0103
290	BOLT; STAB SUPPORTER STAB SHF<FE6> (B) M12X47	9-09801-294-0	02	1	0001-0401
290	BOLT; STAB SUPPORTER STAB SHF<FE6> (A) M12X50 FLANGE	0-28081-250-0	04	1	9806-9911
290	BOLT; STAB SUPPORTER STAB SHF<FE6> (A) M12X40 FLANGE	0-28681-240-0	04	1	9806-9911
290	BOLT; STAB SUPPORTER STAB SHF<FE6> (B) M12X47	9-09801-294-0	02	1	9806-9911
292	BUSHING; RUBBER,STAB STAB SHF<FE6>	1-51789-017-0	02	1	0001-0401
292	BUSHING; RUBBER,STAB STAB SHF<FE6>	1-51789-017-0	02	1	9806-9911
324	BRACKET; STAB BAR TO FRAME STAB SHF<FE6>	1-51781-049-2	02	1	0001-0401
324	BRACKET; STAB BAR TO FRAME STAB SHF<FE6>	1-51781-059-0	02	1	0402-
324	BRACKET; STAB BAR TO FRAME STAB SHF<FE6>	1-51781-049-2	02	1	9806-9911
325	BOLT; BRKT TO FRAME STAB SHF<FE6> M12X40 FLANGE	0-28681-240-0	04	1	0001-0103
325	BOLT; BRKT TO FRAME STAB SHF<FE6> M12X40 FLANGE	0-28081-240-0	04	1	0104-0401
325	BOLT; BRKT TO FRAME STAB SHF<FE6> M14X40	9-92061-440-0	06	1	0402-0512
325	BOLT; BRKT TO FRAME STAB SHF<FE6> M14X40	0-20951-440-0	06	1	0601-
325	BOLT; BRKT TO FRAME STAB SHF<FE6> M12X40 FLANGE	0-28681-240-0	04	1	9806-9911
374	ROD END ASM; STABILIZER STAB SHF<FE6> EXC. RR AXLE R105A<BBJ>,SUSP HVY DUTY VAR2<F41>	1-43150-472-0	01	1	0001-0401
374	ROD END ASM; STABILIZER STAB SHF<FE6> EXC. RR AXLE R105A<BBJ>,SUSP HVY DUTY VAR2<F41>	1-43150-473-0	01	1	0001-0401
374	ROD END ASM; STABILIZER STAB SHF<FE6>	1-43150-468-0	02	1	0001-0401
374	ROD END ASM; STABILIZER STAB SHF<FE6>	1-43150-468-0	02	1	9806-9911
375	NUT; ROD END STAB SHF<FE6> (B) M16	1-09449-014-0	02	1	0001-0401
375	NUT; ROD END STAB SHF<FE6> EXC. RR AXLE R105A<BBJ>,SUSP HVY DUTY VAR2<F41> (A) M20	9-09840-318-0	02	1	0001-0401
375	NUT; ROD END STAB SHF<FE6> EXC. RR AXLE R105A<BBJ>,SUSP HVY DUTY VAR2<F41> (A) M20	9-99110-520-0	02	1	0001-0401
375	NUT; ROD END RR AXLE R105A<BBJ> STAB SHF<FE6> SUSP HVY DUTY VAR2<F41> (A) M20 LH THREAD	8-94254-726-0	02	1	9901-9911
375	NUT; ROD END STAB SHF<FE6> (B) M16	1-09449-014-0	02	1	9806-9911
375	NUT; ROD END STAB SHF<FE6> (A) M20	9-09840-318-0	02	1	9806-9812
375	NUT; ROD END STAB SHF<FE6> EXC. SUSP HVY DUTY VAR2<F41> (A) M20	9-09840-318-0	02	1	9901-9911
375	NUT; ROD END STAB SHF<FE6> (A) M20	9-99110-520-0	02	1	9806-9812
375	NUT; ROD END RR AXLE R105A<BBJ> STAB SHF<FE6> SUSP HVY DUTY VAR2<F41> (A) M20	9-99110-520-0	02	1	9901-9911
375	NUT; ROD END STAB SHF<FE6> EXC. SUSP HVY DUTY VAR2<F41> (A) M20	9-99110-520-0	02	1	9901-9911
376	JOINT; BALL,ROD END STAB SHF<FE6>	1-87090-211-0	02	1	0001-0401
376	JOINT; BALL,ROD END STAB SHF<FE6> EXC. RR AXLE R105A<BBJ>,SUSP HVY DUTY VAR2<F41>	1-87090-211-0	02	1	0001-0401
376	JOINT; BALL,ROD END STAB SHF<FE6>	1-87090-211-0	02	1	9806-9911
376	JOINT; BALL,ROD END STAB SHF<FE6>	1-87090-211-0	02	1	9806-9911
377	SEAT; JOINT BALL STAB SHF<FE6>	1-44373-002-0	02	1	0001-0401
377	SEAT; JOINT BALL STAB SHF<FE6> EXC. RR AXLE R105A<BBJ>,SUSP HVY DUTY VAR2<F41>	1-44370-002-0	02	1	0001-0401
377	SEAT; JOINT BALL RR AXLE R105A<BBJ> STAB SHF<FE6> SUSP HVY DUTY VAR2<F41>	1-44370-002-0	02	1	9901-9911
377	SEAT; JOINT BALL STAB SHF<FE6> EXC. SUSP HVY DUTY VAR2<F41>	1-44370-002-0	02	1	9901-9911
377	SEAT; JOINT BALL STAB SHF<FE6>	1-44373-002-0	02	1	9806-9911
378	SPRING; ROD END,SUPPORT STAB SHF<FE6>	1-09580-080-0	02	1	0001-0401
378	SPRING; ROD END,SUPPORT STAB SHF<FE6> EXC. RR AXLE R105A<BBJ>,SUSP HVY DUTY VAR2<F41>	1-09580-080-0	02	1	0001-0401
378	SPRING; ROD END,SUPPORT STAB SHF<FE6>	1-09580-080-0	02	1	9806-9911
378	SPRING; ROD END,SUPPORT STAB SHF<FE6>	1-09580-080-0	02	1	9806-9911
379	PLUG; ROD END,SUPPORT STAB SHF<FE6>	1-44375-001-0	02	1	0001-0401
379	PLUG; ROD END,SUPPORT STAB SHF<FE6> EXC. RR AXLE R105A<BBJ>,SUSP HVY DUTY VAR2<F41>	1-44375-001-0	02	1	0001-0401
379	PLUG; ROD END,SUPPORT STAB SHF<FE6>	1-44375-001-0	02	1	9806-9911
379	PLUG; ROD END,SUPPORT STAB SHF<FE6>	1-44375-001-0	02	1	9806-9911
380	BOOT; ROD END,SUPPORT STAB SHF<FE6> D=18.5,29	1-43159-036-0	02	1	0001-0401
380	BOOT; ROD END,SUPPORT STAB SHF<FE6> EXC. RR AXLE R105A<BBJ>,SUSP HVY DUTY VAR2<F41> D=18.5,29	1-43159-036-0	02	1	0001-0401
380	BOOT; ROD END,SUPPORT STAB SHF<FE6> D=18.5,29	1-43159-036-0	02	1	9806-9911
380	BOOT; ROD END,SUPPORT STAB SHF<FE6> D=18.5,29	1-43159-036-0	02	1	9806-9911
381	PIN; SPLIT,PLUG STAB SHF<FE6> OD=2.8 L=55	9-08113-055-0	02	1	0001-0401
381	PIN; SPLIT,PLUG STAB SHF<FE6> EXC. RR AXLE R105A<BBJ>,SUSP HVY DUTY VAR2<F41> OD=2.8 L=55	9-08113-055-0	02	1	0001-0401
381	PIN; SPLIT,PLUG STAB SHF<FE6> OD=2.8 L=55	9-08113-055-0	02	1	9806-9911
381	PIN; SPLIT,PLUG STAB SHF<FE6> OD=2.8 L=55	9-08113-055-0	02	1	9806-9911
382	NIPPLE; GREASE,ROD END STAB SHF<FE6> PT1/8 STRAIGHT	9-09031-010-0	02	1	0001-0401
382	NIPPLE; GREASE,ROD END STAB SHF<FE6> EXC. RR AXLE R105A<BBJ>,SUSP HVY DUTY VAR2<F41> M6 STRAIGHT	9-09031-006-0	02	1	0001-0401
382	NIPPLE; GREASE,ROD END STAB SHF<FE6> M6 STRAIGHT	9-09031-006-0	02	1	9806-9812
382	NIPPLE; GREASE,ROD END RR AXLE R105A<BBJ> STAB SHF<FE6> SUSP HVY DUTY VAR2<F41> M6 STRAIGHT	9-09031-006-0	02	1	9901-9911
382	NIPPLE; GREASE,ROD END STAB SHF<FE6> EXC. SUSP HVY DUTY VAR2<F41> M6 STRAIGHT	9-09031-006-0	02	1	9901-9911
382	NIPPLE; GREASE,ROD END STAB SHF<FE6> PT1/8 STRAIGHT	9-09031-010-0	02	1	9806-9911
383	BRACKET; ROD END STAB SHF<FE6> EXC. RR AXLE R105A<BBJ>,SUSP HVY DUTY VAR2<F41>	1-51781-036-0	02	1	0001-0401
383	BRACKET; ROD END RR AXLE R105A<BBJ> STAB SHF<FE6>	1-51781-055-0	02	1	9806-9812
383	BRACKET; ROD END RR AXLE R105A<BBJ> STAB SHF<FE6> EXC. SUSP HVY DUTY VAR2<F41>	1-51781-055-0	02	1	9901-9911
383	BRACKET; ROD END RR AXLE R105A<BBJ> STAB SHF<FE6> SUSP HVY DUTY VAR2<F41>	8-94300-563-0	02	1	9901-9911
383	BRACKET; ROD END STAB SHF<FE6> EXC. RR AXLE R105A<BBJ>	1-51781-036-0	02	1	9806-9812
383	BRACKET; ROD END STAB SHF<FE6> EXC. RR AXLE R105A<BBJ>,SUSP HVY DUTY VAR2<F41>	1-51781-036-0	02	1	9901-9911

192 186 193 227 372 371 192 15 186 187 16 184 184 184 187 372 371 193 225 193 192 372 371 187 184 186 184 184 9 9 9 9 223 1 390 223 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. LEAF SPR W/SILENT LINER<C1N> SUSP HVY DUTY VAR2<F41> 12 LEAF	1-51410-193-0	02	1	9901-9911
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. SUSP HVY DUTY VAR2<F41> 12 LEAF	1-51410-193-0	02	1	9912-
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. WB 5000MM(50W),WB 5700MM(57W) LEAF SPR W/SILENT LINER<C1N> EXC. SUSP HVY DUTY VAR1<F40> 12 LEAF	1-51410-185-0	02	1	9806-9808
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. LEAF SPR W/SILENT LINER<C1N> EXC. SUSP HVY DUTY VAR1<F40>,SUSP HVY DUTY VAR2<F41> 12 LEAF	1-51410-185-0	02	1	9809-9911
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EXC. SUSP HVY DUTY VAR2<F41> 12 LEAF	8-97530-530-1	02	1	9912-
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. WB 5000MM(50W),WB 5700MM(57W) EXC. LEAF SPR W/SILENT LINER<C1N>,SUSP HVY DUTY VAR1<F40> 12 LEAF	1-51410-183-0	02	1	9806-9808
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EXC. LEAF SPR W/SILENT LINER<C1N>,SUSP HVY DUTY VAR1<F40>,SUSP HVY DUTY VAR2<F41> 12 LEAF	1-51410-183-0	02	1	9809-9911
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. WB 5000MM(50W),WB 5700MM(57W) SUSP HVY DUTY VAR1<F40> EXC. LEAF SPR W/SILENT LINER<C1N> 11 LEAF	1-51410-184-0	02	1	9806-9808
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. SUSP HVY DUTY VAR1<F40> EXC. LEAF SPR W/SILENT LINER<C1N> 11 LEAF	1-51410-184-0	02	1	9809-9911
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. WB 6300MM(63W) EXC. LEAF SPR W/SILENT LINER<C1N> 12 LEAF	1-51410-107-0	02	1	9806-9808
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. SUSP HVY DUTY VAR2<F41> EXC. LEAF SPR W/SILENT LINER<C1N> 12 LEAF	1-51410-107-0	02	1	9809-9911
5	NUT; U-BOLT,RR SPR RR AXLE R105A<BBJ> M24	9-99112-824-0	08	1	9806-9808
5	NUT; U-BOLT,RR SPR RR AXLE R105A<BBJ> EXC. SUSP HVY DUTY VAR2<F41> M24	9-99112-824-0	08	1	9809-9911
5	NUT; U-BOLT,RR SPR SUSP HVY DUTY VAR2<F41> M24	9-99112-824-0	08	1	9809-9911
5	NUT; U-BOLT,RR SPR SUSP HVY DUTY VAR2<F41> M24	9-99112-824-0	08	1	9912-0512
5	NUT; U-BOLT,RR SPR SUSP HVY DUTY VAR2<F41> M24	0-91112-824-0	08	1	0601-
5	NUT; U-BOLT,RR SPR EXC. RR AXLE R105A<BBJ>	9-09840-326-0	08	1	9806-9808
5	NUT; U-BOLT,RR SPR EXC. RR AXLE R105A<BBJ>,SUSP HVY DUTY VAR2<F41>	9-09840-326-0	08	1	9809-9911
5	NUT; U-BOLT,RR SPR EXC. SUSP HVY DUTY VAR2<F41>	9-09840-326-0	08	1	9912-
9	PAD; U BOLT,RR SPR WB 5000MM(50W),WB 5700MM(57W) RR AXLE R105A<BBJ> (A)	1-51372-052-0	02	1	9806-9808
9	PAD; U BOLT,RR SPR RR AXLE R105A<BBJ> EXC. SUSP HVY DUTY VAR2<F41> (A)	1-51372-052-0	02	1	9809-9911
9	PAD; U BOLT,RR SPR EXC. SUSP HVY DUTY VAR2<F41> (A)	8-97530-200-0	02	1	9912-
9	PAD; U BOLT,RR SPR WB 5000MM(50W),WB 5700MM(57W) EXC. RR AXLE R105A<BBJ> (B)	1-51372-036-0	02	1	9806-9808
9	PAD; U BOLT,RR SPR EXC. RR AXLE R105A<BBJ>,SUSP HVY DUTY VAR2<F41> (B)	1-51372-036-0	02	1	9809-9911
9	PAD; U BOLT,RR SPR WB 6300MM(63W) (C)	1-51372-070-0	02	1	9806-9808
9	PAD; U BOLT,RR SPR SUSP HVY DUTY VAR2<F41> (C)	1-51372-070-0	02	1	9809-
15	SHACKLE; RR SPR WB 5000MM(50W),WB 5700MM(57W)	1-51162-068-0	02	1	9806-9808
15	SHACKLE; RR SPR EXC. SUSP HVY DUTY VAR2<F41>	1-51162-068-0	02	1	9809-9911
15	SHACKLE; RR SPR EXC. SUSP HVY DUTY VAR2<F41>	8-97530-932-1	02	1	9912-
15	SHACKLE; RR SPR WB 6300MM(63W)	1-51362-050-0	02	1	9806-9808
15	SHACKLE; RR SPR SUSP HVY DUTY VAR2<F41>	1-51362-050-0	02	1	9809-
16	BUSHING; SHACKLE,RR SPR WB 5000MM(50W),WB 5700MM(57W) OD=38	1-51351-030-0	02	1	9806-9808
16	BUSHING; SHACKLE,RR SPR EXC. SUSP HVY DUTY VAR2<F41> OD=38	1-51351-030-0	02	1	9809-
16	BUSHING; SHACKLE,RR SPR WB 6300MM(63W) OD=38	1-51351-031-0	02	1	9806-9808
16	BUSHING; SHACKLE,RR SPR SUSP HVY DUTY VAR2<F41> OD=38	1-51351-031-0	02	1	9809-
184	WASHER; SPRING PIN	1-09503-277-0	12	1	9806-
186	PIN; SHACKLE,RR SPR WB 5000MM(50W),WB 5700MM(57W) (C)	1-51161-050-0	06	1	9806-9808
186	PIN; SHACKLE,RR SPR EXC. SUSP HVY DUTY VAR2<F41> (C)	1-51161-050-0	06	1	9809-
186	PIN; SHACKLE,RR SPR WB 6300MM(63W) (A) FRONT	1-51361-025-0	02	1	9806-9808
186	PIN; SHACKLE,RR SPR SUSP HVY DUTY VAR2<F41> (A) FRONT	1-51361-025-0	02	1	9809-
186	PIN; SHACKLE,RR SPR WB 6300MM(63W) (B) REAR	1-51361-026-0	04	1	9806-9808
186	PIN; SHACKLE,RR SPR SUSP HVY DUTY VAR2<F41> (B) REAR	1-51361-026-0	04	1	9809-
187	BOLT; SPR & SHACKLE WB 5000MM(50W),WB 5700MM(57W) M12X80	0-10806-280-0	08	1	9806-9808
187	BOLT; SPR & SHACKLE EXC. SUSP HVY DUTY VAR2<F41> M12X80	0-10806-280-0	08	1	9809-0512
187	BOLT; SPR & SHACKLE EXC. SUSP HVY DUTY VAR2<F41> M12X80	0-10856-280-0	08	1	0601-
187	BOLT; SPR & SHACKLE WB 6300MM(63W) M14X80 FLANGE	0-28881-480-0	04	1	9806-9808
187	BOLT; SPR & SHACKLE SUSP HVY DUTY VAR2<F41> M14X80 FLANGE	0-28881-480-0	04	1	9809-0512
187	BOLT; SPR & SHACKLE SUSP HVY DUTY VAR2<F41> M14X80 FLANGE	0-28851-480-0	04	1	0601-
192	NIPPLE; GREASE,SHACKLE PIN PT1/8 ELBOW	9-09031-210-0	06	1	9806-0512
192	NIPPLE; GREASE,SHACKLE PIN PT1/8 ELBOW	0-90301-610-0	06	1	0601-
193	ATTACHMENT; GREASE NIPPLE WB 5000MM(50W),WB 5700MM(57W)	9-43165-001-0	06	1	9806-9808
193	ATTACHMENT; GREASE NIPPLE EXC. SUSP HVY DUTY VAR2<F41>	9-43165-001-0	06	1	9809-
223	SPACER; U BOLT,RR SPR WB 5000MM(50W),WB 5700MM(57W) RR AXLE R105A<BBJ> (A) CASTER PLATE	1-51377-194-0	02	1	9806-9808
223	SPACER; U BOLT,RR SPR RR AXLE R105A<BBJ> EXC. SUSP HVY DUTY VAR2<F41> (A) CASTER PLATE	1-51377-194-0	02	1	9809-9911
223	SPACER; U BOLT,RR SPR SUSP HVY DUTY VAR2<F41> (D) DISTANCE PIECE	1-51377-357-0	02	1	9912-
223	SPACER; U BOLT,RR SPR WB 5000MM(50W),WB 5700MM(57W) EXC. RR AXLE R105A<BBJ> (A) CASTER PLATE	1-51377-076-0	02	1	9806-9808
223	SPACER; U BOLT,RR SPR EXC. RR AXLE R105A<BBJ>,SUSP HVY DUTY VAR2<F41> (A) CASTER PLATE	1-51377-076-0	02	1	9809-9911
223	SPACER; U BOLT,RR SPR EXC. SUSP HVY DUTY VAR2<F41> (A) CASTER PLATE	8-97530-215-0	02	1	9912-
223	SPACER; U BOLT,RR SPR WB 5000MM(50W),WB 5700MM(57W) EXC. STAB SHF<FE6> (B) DISTANCE PIECE	1-51377-177-0	02	1	9806-9808
223	SPACER; U BOLT,RR SPR EXC. STAB SHF<FE6>,SUSP HVY DUTY VAR2<F41> (B) DISTANCE PIECE	1-51377-177-0	02	1	9809-9812
223	SPACER; U BOLT,RR SPR EXC. STAB SHF<FE6> (B) DISTANCE PIECE	1-51377-177-0	02	1	9901-9911
223	SPACER; U BOLT,RR SPR EXC. SUSP HVY DUTY VAR2<F41> (B) DISTANCE PIECE	1-51377-177-0	02	1	9912-9912
223	SPACER; U BOLT,RR SPR EXC. STAB SHF<FE6>,SUSP HVY DUTY VAR2<F41> (B) DISTANCE PIECE	1-51377-177-0	02	1	0001-0401
223	SPACER; U BOLT,RR SPR EXC. SUSP HVY DUTY VAR2<F41> (B) DISTANCE PIECE	1-51377-177-0	02	1	0402-
223	SPACER; U BOLT,RR SPR WB 6300MM(63W) (C) CASTER PLATE	1-51377-343-0	02	1	9806-9808
223	SPACER; U BOLT,RR SPR SUSP HVY DUTY VAR2<F41> (C) CASTER PLATE	1-51377-343-2	02	1	9809-
225	RUBBER; CUSHION,RR SPR	9-53366-088-3	02	1	9806-
227	NUT; CUSHION RUBBER M10 FLANGE	0-91150-210-0	04	1	9806-0602
227	NUT; CUSHION RUBBER M10 FLANGE	0-91180-210-0	04	1	0603-
371	WASHER; LK,SHACKLE WB 5000MM(50W),WB 5700MM(57W) ID=12.2	9-09150-612-0	08	1	9806-9808
371	WASHER; LK,SHACKLE EXC. SUSP HVY DUTY VAR2<F41> ID=12.2	9-09150-612-0	08	1	9809-0603
371	WASHER; LK,SHACKLE EXC. SUSP HVY DUTY VAR2<F41> ID=12.2	0-91510-612-0	08	1	0604-
371	WASHER; LK,SHACKLE WB 6300MM(63W) ID=14.2	9-09150-514-0	04	1	9806-9808
371	WASHER; LK,SHACKLE SUSP HVY DUTY VAR2<F41> ID=14.2	9-09150-514-0	04	1	9809-0603
371	WASHER; LK,SHACKLE SUSP HVY DUTY VAR2<F41> ID=14.2	0-91510-514-0	04	1	0604-
372	NUT; SHACKLE WB 5000MM(50W),WB 5700MM(57W) (C) M12	9-99110-512-0	08	1	9806-9808
372	NUT; SHACKLE EXC. SUSP HVY DUTY VAR2<F41> (C) M12	9-99110-512-0	08	1	9809-0512
372	NUT; SHACKLE EXC. SUSP HVY DUTY VAR2<F41> (C) M12	0-91110-512-0	08	1	0601-
372	NUT; SHACKLE WB 6300MM(63W) (A) M14	9-99110-414-0	04	1	9806-9808
372	NUT; SHACKLE SUSP HVY DUTY VAR2<F41> (A) M14	9-99110-414-0	04	1	9809-0512
372	NUT; SHACKLE SUSP HVY DUTY VAR2<F41> (A) M14	0-91110-514-0	04	1	0601-
372	NUT; SHACKLE WB 6300MM(63W) (B) M24	9-99110-524-0	02	1	9806-9808
372	NUT; SHACKLE SUSP HVY DUTY VAR2<F41> (B) M24	9-99110-524-0	02	1	9809-0512
372	NUT; SHACKLE SUSP HVY DUTY VAR2<F41> (B) M24	0-91110-524-0	02	1	0601-
390	U-BOLT SET; RR SPRING WB 5000MM(50W),WB 5700MM(57W) RR AXLE R105A<BBJ> LEAF SPR W/SILENT LINER<C1N> L=445	1-87870-323-0	04	1	9806-9808
390	U-BOLT SET; RR SPRING WB 5000MM(50W),WB 5700MM(57W) RR AXLE R105A<BBJ> EXC. LEAF SPR W/SILENT LINER<C1N>,SUSP HVY DUTY VAR1<F40> L=445	1-87870-323-0	04	1	9806-9808
390	U-BOLT SET; RR SPRING RR AXLE R105A<BBJ> EXC. LEAF SPR W/SILENT LINER<C1N>,SUSP HVY DUTY VAR1<F40>,SUSP HVY DUTY VAR2<F41> L=445	1-87870-323-0	04	1	9809-9911
390	U-BOLT SET; RR SPRING RR AXLE R105A<BBJ> LEAF SPR W/SILENT LINER<C1N> EXC. SUSP HVY DUTY VAR2<F41> L=445	1-87870-323-0	04	1	9809-9911
390	U-BOLT SET; RR SPRING WB 5000MM(50W),WB 5700MM(57W) RR AXLE R105A<BBJ> SUSP HVY DUTY VAR1<F40> M24 L=425	1-87870-281-0	04	1	9806-9808
390	U-BOLT SET; RR SPRING RR AXLE R105A<BBJ> SUSP HVY DUTY VAR1<F40> M24 L=425	1-87870-281-0	04	1	9809-9911
390	U-BOLT SET; RR SPRING WB 5000MM(50W),WB 5700MM(57W) EXC. RR AXLE R105A<BBJ> L=420	1-87870-244-0	04	1	9806-9808
390	U-BOLT SET; RR SPRING EXC. RR AXLE R105A<BBJ>,SUSP HVY DUTY VAR2<F41> L=420	1-87870-244-0	04	1	9809-9911
390	U-BOLT SET; RR SPRING EXC. SUSP HVY DUTY VAR2<F41> L=420	1-87870-244-1	02	1	9912-
390	U-BOLT SET; RR SPRING WB 5000MM(50W),WB 5700MM(57W) EXC. RR AXLE R105A<BBJ> L=405	1-87870-252-0	04	1	9806-9808
390	U-BOLT SET; RR SPRING EXC. RR AXLE R105A<BBJ>,SUSP HVY DUTY VAR2<F41> L=405	1-87870-252-0	04	1	9809-9911
390	U-BOLT SET; RR SPRING EXC. SUSP HVY DUTY VAR2<F41> L=405	1-87870-252-1	02	1	9912-0401
390	U-BOLT SET; RR SPRING EXC. SUSP HVY DUTY VAR2<F41> L=435	1-87870-443-0	02	1	0402-
390	U-BOLT SET; RR SPRING WB 6300MM(63W) L=430	1-87870-095-2	04	1	9806-9808
390	U-BOLT SET; RR SPRING SUSP HVY DUTY VAR2<F41> L=430	1-87870-095-3	04	1	9809-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
