2-20 — MANUAL TRANSMISSION ASM AND CASE (#68799) — 123 parça

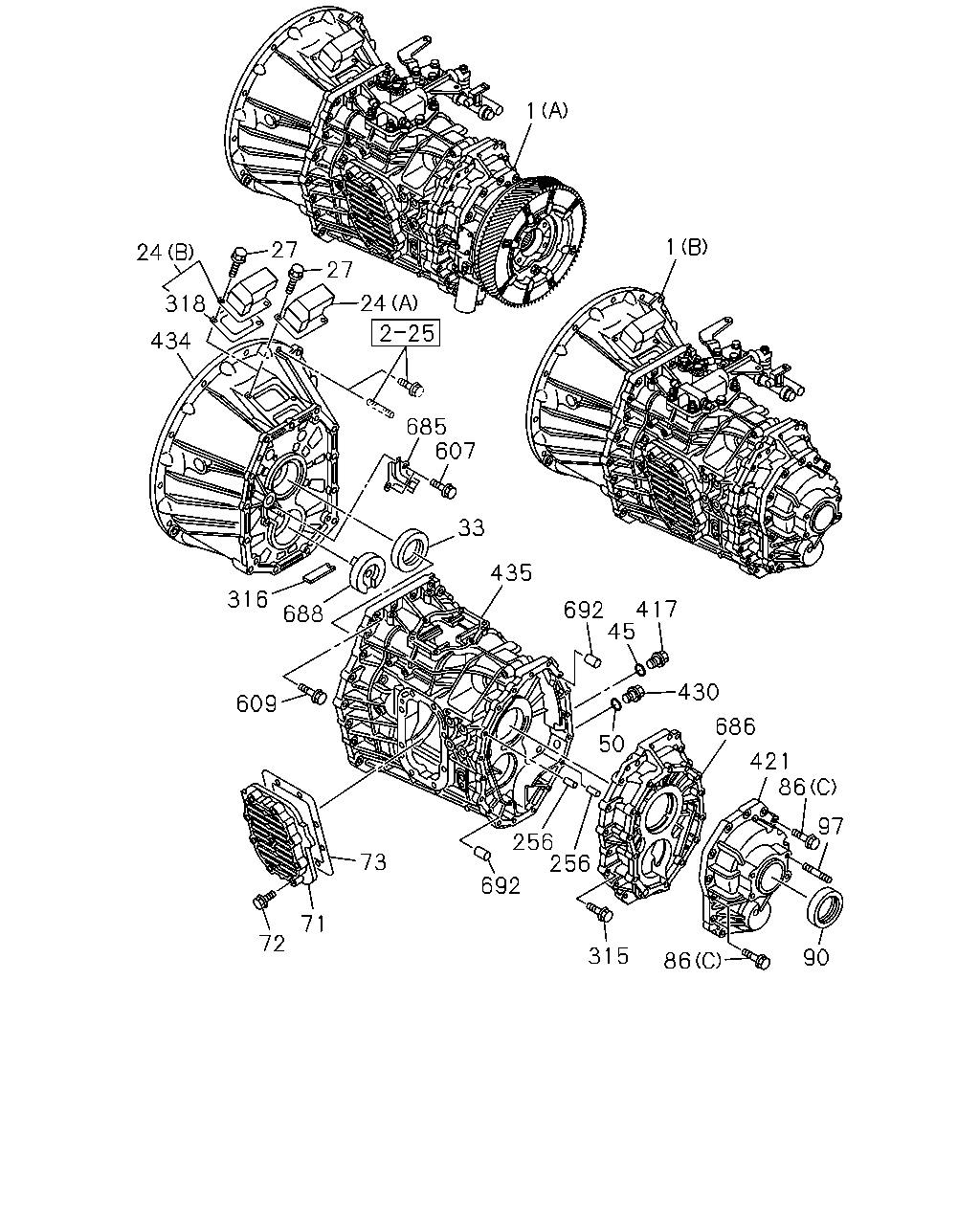

90 86 315 256 256 692 73 71 72 609 688 316 33 435 692 417 45 50 430 686 421 86 97 1 1 24 685 607 434 318 27 27 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL BRAKE SYSTEM RETARDER<RE2> (C)	1-33043-945-0	01	1	0909-	●
1	TRANSMISSION ASM; MANUAL EXC. BRAKE SYSTEM RETARDER<RE2> (D)	1-33043-754-0	01	1	0909-	●
1	TRANSMISSION ASM; MANUAL BRAKE SYSTEM RETARDER<RE2> (A)	8-98134-636-0	01	1	0908-		●
1	TRANSMISSION ASM; MANUAL EXC. BRAKE SYSTEM RETARDER<RE2> (B)	8-98134-635-0	01	1	0908-		●
24	COVER; CHECK HOLE,DUST (A)	8-98284-107-0	01	1	1411-	●
24	COVER; CHECK HOLE,DUST (A)	1-31131-041-0	01	1	0908-0908		●
24	COVER; CHECK HOLE,DUST (A)	1-31131-041-0	01	1	0909-1410	●	●
24	COVER; CHECK HOLE,DUST (B)	8-98283-062-0	01	1	1411-		●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	0909-1410	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	1411-	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	02	1	0908-1410		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-497-0	01	1	0909-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97377-947-0	01	1	0908-		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0909-	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0908-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0909-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0908-1404		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1405-		●
71	COVER; SIDE,TRANS CASE	1-33141-033-0	01	1	0909-	●
71	COVER; SIDE,TRANS CASE	8-98122-318-0	01	1	0908-1408		●
71	COVER; SIDE,TRANS CASE	8-98270-265-1	01	1	1409-		●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28151-016-0	08	1	0909-	●
72	BOLT; SIDE COVER M10X50 FLANGE	1-09044-081-0	08	1	0908-		●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-98122-320-0	01	1	0908-0908		●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-036-0	01	1	0909-	●
86	BOLT; RR COVER (B) M17X35	1-09044-076-0	08	1	0909-	●
86	BOLT; RR COVER (A) M12X60	1-09044-084-0	01	1	0909-	●
86	BOLT; RR COVER (C) M10X40 FLANGE	8-98045-397-0	14	1	0908-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97377-948-0	01	1	1104-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0908-0908		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0909-1103	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	1104-	●
97	STUD; PARKING BRK BRAKE SYSTEM RETARDER<RE2> M14X27 L=49	1-09302-099-1	03	1	0909-	●
97	STUD; PARKING BRK M14X27 L=49	1-09302-099-1	01	1	0909-	●
97	STUD; PARKING BRK EXC. BRAKE SYSTEM RETARDER<RE2> M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0908-		●
256	PIN; KNOCK OD=6 L=12	9-08150-612-0	02	1	0908-		●
315	BOLT; CASE M8X40 FLANGE	0-28050-840-0	18	1	0908-		●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	0908-		●
318	GASKET; COVER	1-31139-023-0	01	1	1411-		●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0909-	●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	0908-		●
421	COVER; RR,TRANS BRAKE SYSTEM RETARDER<RE2>	1-33131-178-1	01	1	0909-	●
421	COVER; RR,TRANS EXC. BRAKE SYSTEM RETARDER<RE2>	1-33131-177-1	01	1	0909-	●
421	COVER; RR,TRANS BRAKE SYSTEM RETARDER<RE2>	8-98004-791-1	01	1	0908-		●
421	COVER; RR,TRANS EXC. BRAKE SYSTEM RETARDER<RE2>	8-98004-790-1	01	1	0908-		●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0909-	●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	0908-1404		●
430	PLUG; OIL DRAIN	8-97365-374-0	02	1	1405-		●
434	HOUSING; CLU	1-31110-169-0	01	1	0909-	●
434	HOUSING; CLU	8-98004-506-2	01	1	0908-		●
435	CASE; TRANS	1-33111-355-0	01	1	0909-	●
435	CASE; TRANS	8-98123-098-1	01	1	0908-1108		●
435	CASE; TRANS	8-98186-449-0	01	1	1109-1404		●
435	CASE; TRANS	8-98236-421-1	01	1	1405-		●
607	BOLT; COVER M8X16 FLANGE	0-28050-816-0	02	1	0908-		●
609	BOLT; HSG TO CASE M8X40 FLANGE	0-28050-840-0	22	1	0908-		●
685	COVER; OIL PORT	8-98018-864-1	01	1	0908-		●
686	CASE; RR,TRANS	8-97388-873-1	01	1	0908-		●
688	NOZZLE; OIL,COUNTER	8-98007-741-0	01	1	0908-1110		●
688	NOZZLE; OIL,COUNTER	8-98202-402-0	01	1	1111-1508		●
688	NOZZLE; OIL,COUNTER	8-98309-860-0	01	1	1509-		●
692	PIN; DOWEL OD=11 L=8	9-11229-058-1	04	1	0908-		●
692	PIN; DOWEL OD=14 L=10	9-11319-065-3	02	1	0908-		●

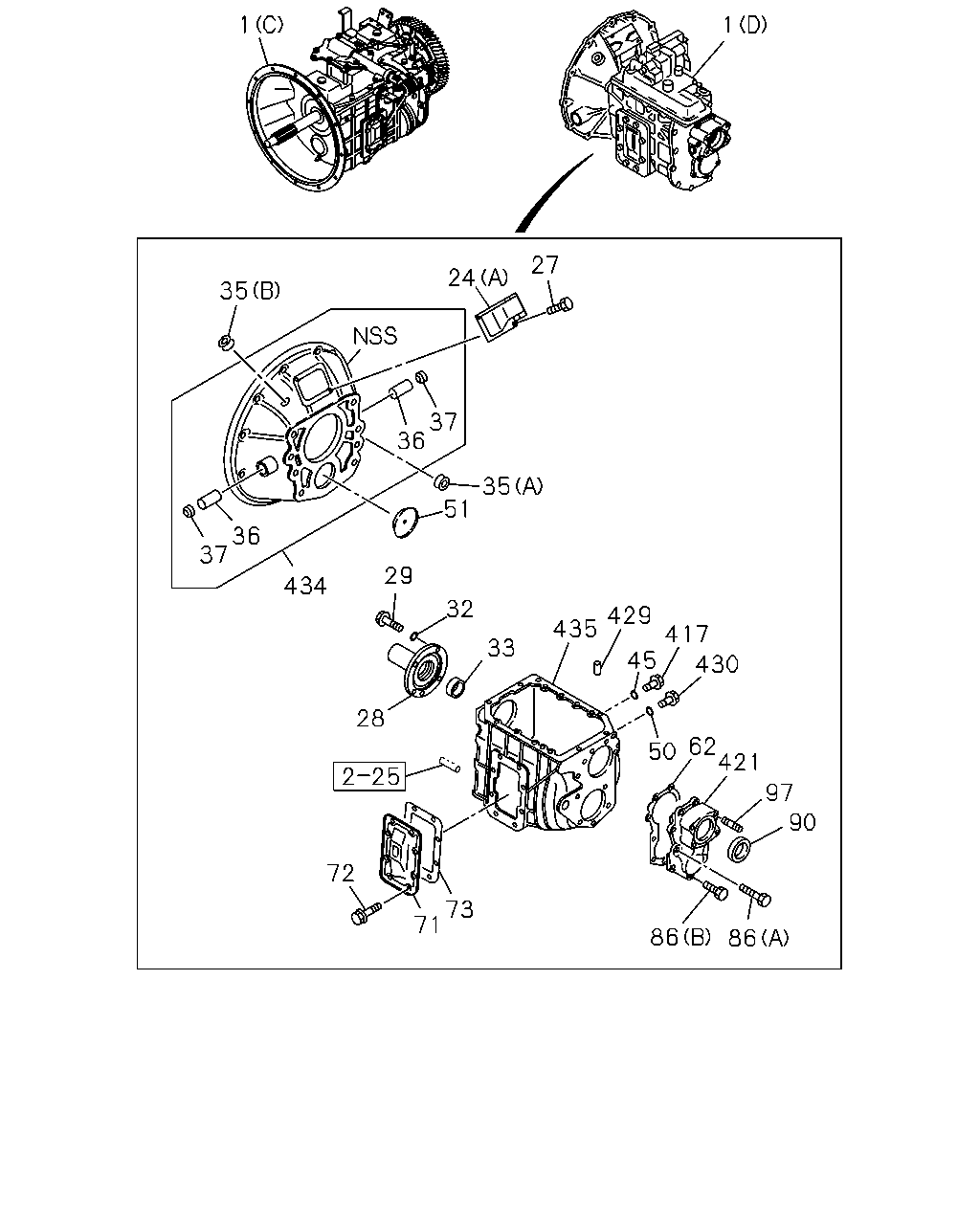

1 1 27 24 35 36 37 51 35 36 37 32 29 434 28 72 71 73 86 86 90 97 421 62 50 45 429 435 33 430 417

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL BRAKE SYSTEM RETARDER<RE2> (C)	1-33043-945-0	01	1	0909-	●
1	TRANSMISSION ASM; MANUAL EXC. BRAKE SYSTEM RETARDER<RE2> (D)	1-33043-754-0	01	1	0909-	●
1	TRANSMISSION ASM; MANUAL BRAKE SYSTEM RETARDER<RE2> (A)	8-98134-636-0	01	1	0908-		●
1	TRANSMISSION ASM; MANUAL EXC. BRAKE SYSTEM RETARDER<RE2> (B)	8-98134-635-0	01	1	0908-		●
24	COVER; CHECK HOLE,DUST (A)	8-98284-107-0	01	1	1411-	●
24	COVER; CHECK HOLE,DUST (A)	1-31131-041-0	01	1	0908-0908		●
24	COVER; CHECK HOLE,DUST (A)	1-31131-041-0	01	1	0909-1410	●	●
24	COVER; CHECK HOLE,DUST (B)	8-98283-062-0	01	1	1411-		●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	0909-1410	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	1411-	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	02	1	0908-1410		●
28	COVER; FRT,TRANS CASE	1-33121-108-1	01	1	0909-	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	8-97365-375-0	04	1	0909-	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	0909-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-497-0	01	1	0909-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97377-947-0	01	1	0908-		●
35	GROMMET; CLU HSG (A) OD=15 T=6.6	8-97037-246-0	01	1	0909-	●
35	GROMMET; CLU HSG (B) OD=31	9-09575-796-0	01	1	0909-	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	0909-	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	0909-	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0909-	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0908-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0909-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0908-1404		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1405-		●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-1	01	1	0909-	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-045-2	01	1	0909-	●
71	COVER; SIDE,TRANS CASE	1-33141-033-0	01	1	0909-	●
71	COVER; SIDE,TRANS CASE	8-98122-318-0	01	1	0908-1408		●
71	COVER; SIDE,TRANS CASE	8-98270-265-1	01	1	1409-		●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28151-016-0	08	1	0909-	●
72	BOLT; SIDE COVER M10X50 FLANGE	1-09044-081-0	08	1	0908-		●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-98122-320-0	01	1	0908-0908		●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-036-0	01	1	0909-	●
86	BOLT; RR COVER (B) M17X35	1-09044-076-0	08	1	0909-	●
86	BOLT; RR COVER (A) M12X60	1-09044-084-0	01	1	0909-	●
86	BOLT; RR COVER (C) M10X40 FLANGE	8-98045-397-0	14	1	0908-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97377-948-0	01	1	1104-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0908-0908		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0909-1103	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	1104-	●
97	STUD; PARKING BRK BRAKE SYSTEM RETARDER<RE2> M14X27 L=49	1-09302-099-1	03	1	0909-	●
97	STUD; PARKING BRK M14X27 L=49	1-09302-099-1	01	1	0909-	●
97	STUD; PARKING BRK EXC. BRAKE SYSTEM RETARDER<RE2> M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0908-		●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0909-	●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	0908-		●
421	COVER; RR,TRANS BRAKE SYSTEM RETARDER<RE2>	1-33131-178-1	01	1	0909-	●
421	COVER; RR,TRANS EXC. BRAKE SYSTEM RETARDER<RE2>	1-33131-177-1	01	1	0909-	●
421	COVER; RR,TRANS BRAKE SYSTEM RETARDER<RE2>	8-98004-791-1	01	1	0908-		●
421	COVER; RR,TRANS EXC. BRAKE SYSTEM RETARDER<RE2>	8-98004-790-1	01	1	0908-		●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	0909-	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0909-	●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	0908-1404		●
430	PLUG; OIL DRAIN	8-97365-374-0	02	1	1405-		●
434	HOUSING; CLU	1-31110-169-0	01	1	0909-	●
434	HOUSING; CLU	8-98004-506-2	01	1	0908-		●
435	CASE; TRANS	1-33111-355-0	01	1	0909-	●
435	CASE; TRANS	8-98123-098-1	01	1	0908-1108		●
435	CASE; TRANS	8-98186-449-0	01	1	1109-1404		●
435	CASE; TRANS	8-98236-421-1	01	1	1405-		●
