◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 11207 - LT134(RHD) EURO2/5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-07 - CLUTCH BOOSTER; MINIPACK ▶
2-07 — CLUTCH BOOSTER; MINIPACK (#68796) — 271 parça

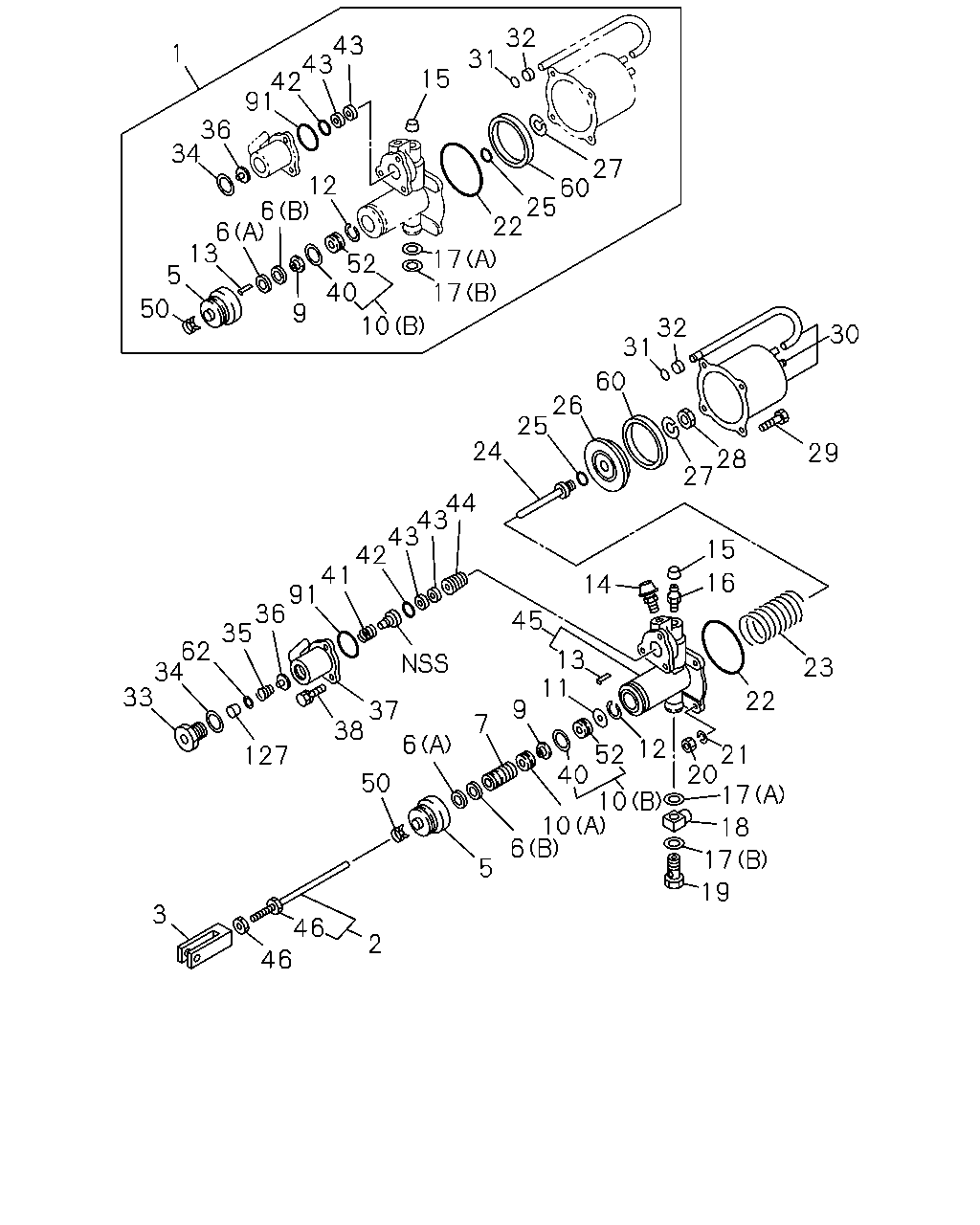

çizim 188345
32 43 43 42 91 1 31 15 36 34 27 60 25 22 12 6 6 13 5 17 52 40 17 50 9 10 32 31 30 60 26 25 24 29 28 27 44 43 43 42 41 91 36 35 62 34 33 15 16 14 45 13 11 23 22 9 37 38 7 6 12 52 40 21 20 17 10 127 50 10 6 18 17 5 19 3 46 46 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 REPAIR KIT; CLU BOOSTER 1-31829-539-0 01 1 0909- ●
1 REPAIR KIT; CLU BOOSTER 1-31829-543-0 01 1 0908-1505 ●
2 ROD; PUSH,CLU BOOSTER 1-31824-156-0 01 1 0909- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-233-0 01 1 0908-1505 ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-186-0 01 1 0908-0908 ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-186-1 01 1 0909-1505 ● ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-186-1 01 1 1506- ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-174-0 01 1 0909- ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-503-0 01 1 0908-1505 ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 0908-0908 ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 0909-1505 ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 1506- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 0908-0908 ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 0909-1505 ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 1506- ●
7 PISTON; CLU BOOSTER 1-31821-048-0 01 1 0908-0908 ●
7 PISTON; CLU BOOSTER 1-31821-048-0 01 1 0909-1505 ● ●
7 PISTON; CLU BOOSTER 1-31821-048-0 01 1 1506- ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-003-0 01 1 0908-0908 ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-003-0 01 1 0909-1505 ● ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-003-0 01 1 1506- ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-107-0 01 1 0908-0908 ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-107-0 01 1 0909-1505 ● ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-107-0 01 1 1506- ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-108-0 01 1 0908-0908 ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-108-0 01 1 0909-1505 ● ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-108-0 01 1 1506- ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 0908-0908 ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 0909-1505 ● ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 1506- ●
12 RING; RET,CLU BOOSTER 9-83315-315-0 01 1 0909- ●
12 RING; RET,CLU BOOSTER 1-31829-142-0 01 1 0908-1505 ●
13 PIN; SPR 1-31829-109-0 01 1 0908-0908 ●
13 PIN; SPR 1-31829-109-0 01 1 0909-1505 ● ●
13 PIN; SPR 1-31829-109-0 01 1 1506- ●
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 0908-0908 ●
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 0909-1505 ● ●
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 1506- ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 0908-0908 ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 0909-1505 ● ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 1506- ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 0908-0908 ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 0909-1505 ● ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 1506- ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 0908-0908 ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 0909-1505 ● ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 1506- ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 0908-0908 ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 0909-1505 ● ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 1506- ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 0908-0908 ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 0909-1505 ● ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 1506- ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 0908-0908 ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 0909-1505 ● ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 1506- ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER 9-83315-085-0 04 1 0909- ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 0908-1505 ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=8.2 		9-09150-508-0 04 1 0909- ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 0908-1505 ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-09623-327-0 01 1 0909- ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-09623-322-0 01 1 0908-1505 ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-358-0 01 1 0908-0908 ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-358-0 01 1 0909-1505 ● ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-358-0 01 1 1506- ●
24 ROD; PUSH,CLU BOOSTER 1-31829-112-0 01 1 0908-0908 ●
24 ROD; PUSH,CLU BOOSTER 1-31829-112-0 01 1 0909-1505 ● ●
24 ROD; PUSH,CLU BOOSTER 1-31829-112-0 01 1 1506- ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-09623-321-0 01 1 0908-0908 ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-09623-321-0 01 1 0909-1505 ● ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-09623-321-0 01 1 1506- ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-083-0 01 1 0909- ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-084-0 01 1 0908-1505 ●
27 SPRING; CLU BOOSTER 1-31829-111-0 01 1 0908-0908 ●
27 SPRING; CLU BOOSTER 1-31829-111-0 01 1 0909-1505 ● ●
27 SPRING; CLU BOOSTER 1-31829-111-0 01 1 1506- ●
28 NUT; PUSH ROD,CLU BOOSTER 9-88510-365-0 01 1 0908-0908 ●
28 NUT; PUSH ROD,CLU BOOSTER 9-88510-365-0 01 1 0909-1505 ● ●
28 NUT; PUSH ROD,CLU BOOSTER 9-88510-365-0 01 1 1506- ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 1-31829-015-0 04 1 0909- ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 0908-1505 ●
30 SHELL; CYL,CLU BOOSTER 1-31811-123-0 01 1 0909- ●
30 SHELL; CYL,CLU BOOSTER 1-31811-124-0 01 1 0908-1505 ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-113-0 01 1 0909- ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 0908-1505 ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-114-0 01 1 0909- ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 0908-1505 ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 0908-0908 ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 0909-1505 ● ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 1506- ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 0908-0908 ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 0909-1505 ● ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 1506- ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 0908-0908 ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 0909-1505 ● ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 1506- ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 0908-0908 ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 0909-1505 ● ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 1506- ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-138-0 01 1 0909- ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 0908-1505 ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 0908-0908 ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 0909-1505 ● ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 1506- ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 0908-0908 ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 0909-1412 ● ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-420-0 01 1 0909- ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-545-0 01 1 0908-1505 ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-143-0 01 1 0908-0908 ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-143-0 01 1 0909-1505 ● ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-143-0 01 1 1506- ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 0908-0908 ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 0909-1505 ● ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 1506- ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-087-0 01 1 0908-0908 ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-087-0 01 1 0909-1505 ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-087-0 01 1 1506- ●
45 PLATE; END,CLU BOOSTER 1-31811-081-0 01 1 0909- ●
45 PLATE; END,CLU BOOSTER 1-31811-060-0 01 1 0908-1505 ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 0908-0908 ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 0909-1505 ● ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 1506- ●
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-168-0 01 1 0909- ●
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-504-0 01 1 0908-1505 ●
52 SEAL; OIL,END PLATE,CLU BOOSTER 9-83315-118-0 01 1 0909-1412 ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-535-0 01 1 0909- ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-544-0 01 1 0908-1505 ●
62 RETAINER; POPPET 1-31829-489-0 01 1 0908-0908 ●
62 RETAINER; POPPET 1-31829-489-0 01 1 0909-1505 ● ●
62 RETAINER; POPPET 1-31829-489-0 01 1 1506- ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 0908-0908 ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 0909-1505 ● ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 1506- ●
127 FILTER; POPPET 1-31829-495-0 01 1 0908-0908 ●
127 FILTER; POPPET 1-31829-495-0 01 1 0909-1505 ● ●
127 FILTER; POPPET 1-31829-495-0 01 1 1506- ●

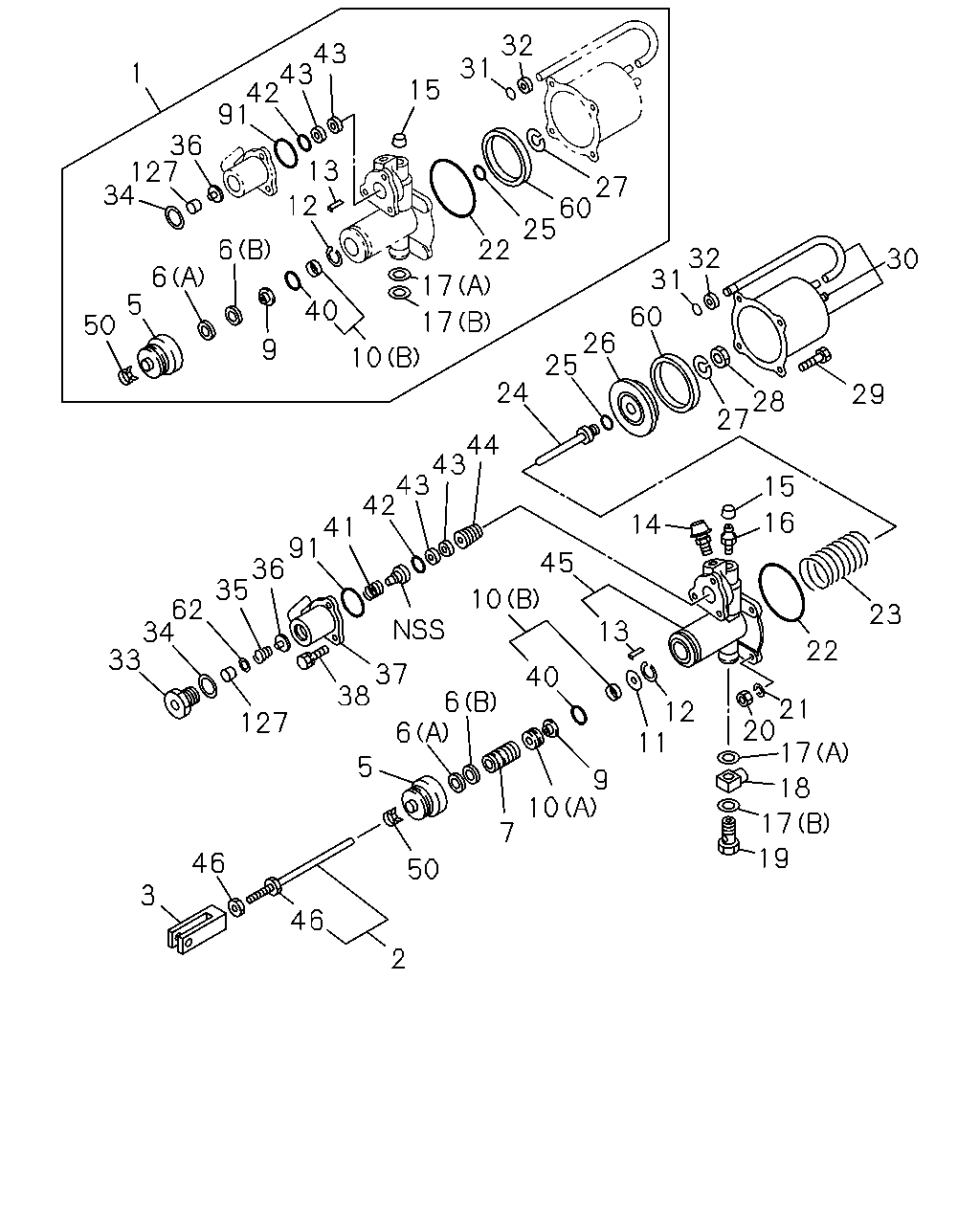

çizim 188352
32 43 43 42 91 31 1 15 36 127 34 13 27 60 25 12 6 22 32 31 30 6 5 17 40 60 17 50 26 25 9 10 24 29 28 27 44 43 43 42 41 91 36 35 62 34 33 15 16 14 45 10 23 13 22 37 38 40 6 21 20 17 12 11 127 6 5 9 18 10 17 7 19 46 50 3 46 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 REPAIR KIT; CLU BOOSTER 1-31829-539-0 01 1 0909- ●
1 REPAIR KIT; CLU BOOSTER 1-31829-543-0 01 1 0908-1505 ●
2 ROD; PUSH,CLU BOOSTER 1-31824-156-0 01 1 0909- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-233-0 01 1 0908-1505 ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-186-0 01 1 0908-0908 ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-186-1 01 1 0909-1505 ● ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-186-1 01 1 1506- ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-174-0 01 1 0909- ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-503-0 01 1 0908-1505 ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 0908-0908 ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 0909-1505 ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 1506- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 0908-0908 ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 0909-1505 ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 1506- ●
7 PISTON; CLU BOOSTER 1-31821-048-0 01 1 0908-0908 ●
7 PISTON; CLU BOOSTER 1-31821-048-0 01 1 0909-1505 ● ●
7 PISTON; CLU BOOSTER 1-31821-048-0 01 1 1506- ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-003-0 01 1 0908-0908 ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-003-0 01 1 0909-1505 ● ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-003-0 01 1 1506- ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-107-0 01 1 0908-0908 ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-107-0 01 1 0909-1505 ● ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-107-0 01 1 1506- ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-108-0 01 1 0908-0908 ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-108-0 01 1 0909-1505 ● ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-108-0 01 1 1506- ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 0908-0908 ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 0909-1505 ● ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 1506- ●
12 RING; RET,CLU BOOSTER 9-83315-315-0 01 1 0909- ●
12 RING; RET,CLU BOOSTER 1-31829-142-0 01 1 0908-1505 ●
13 PIN; SPR 1-31829-109-0 01 1 0908-0908 ●
13 PIN; SPR 1-31829-109-0 01 1 0909-1505 ● ●
13 PIN; SPR 1-31829-109-0 01 1 1506- ●
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 0908-0908 ●
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 0909-1505 ● ●
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 1506- ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 0908-0908 ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 0909-1505 ● ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 1506- ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 0908-0908 ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 0909-1505 ● ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 1506- ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 0908-0908 ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 0909-1505 ● ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 1506- ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 0908-0908 ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 0909-1505 ● ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 1506- ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 0908-0908 ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 0909-1505 ● ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 1506- ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 0908-0908 ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 0909-1505 ● ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 1506- ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER 9-83315-085-0 04 1 0909- ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 0908-1505 ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=8.2 		9-09150-508-0 04 1 0909- ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 0908-1505 ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-09623-327-0 01 1 0909- ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-09623-322-0 01 1 0908-1505 ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-358-0 01 1 0908-0908 ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-358-0 01 1 0909-1505 ● ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-358-0 01 1 1506- ●
24 ROD; PUSH,CLU BOOSTER 1-31829-112-0 01 1 0908-0908 ●
24 ROD; PUSH,CLU BOOSTER 1-31829-112-0 01 1 0909-1505 ● ●
24 ROD; PUSH,CLU BOOSTER 1-31829-112-0 01 1 1506- ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-09623-321-0 01 1 0908-0908 ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-09623-321-0 01 1 0909-1505 ● ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-09623-321-0 01 1 1506- ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-083-0 01 1 0909- ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-084-0 01 1 0908-1505 ●
27 SPRING; CLU BOOSTER 1-31829-111-0 01 1 0908-0908 ●
27 SPRING; CLU BOOSTER 1-31829-111-0 01 1 0909-1505 ● ●
27 SPRING; CLU BOOSTER 1-31829-111-0 01 1 1506- ●
28 NUT; PUSH ROD,CLU BOOSTER 9-88510-365-0 01 1 0908-0908 ●
28 NUT; PUSH ROD,CLU BOOSTER 9-88510-365-0 01 1 0909-1505 ● ●
28 NUT; PUSH ROD,CLU BOOSTER 9-88510-365-0 01 1 1506- ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 1-31829-015-0 04 1 0909- ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 0908-1505 ●
30 SHELL; CYL,CLU BOOSTER 1-31811-123-0 01 1 0909- ●
30 SHELL; CYL,CLU BOOSTER 1-31811-124-0 01 1 0908-1505 ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-113-0 01 1 0909- ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 0908-1505 ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-114-0 01 1 0909- ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 0908-1505 ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 0908-0908 ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 0909-1505 ● ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 1506- ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 0908-0908 ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 0909-1505 ● ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 1506- ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 0908-0908 ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 0909-1505 ● ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 1506- ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 0908-0908 ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 0909-1505 ● ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 1506- ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-138-0 01 1 0909- ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 0908-1505 ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 0908-0908 ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 0909-1505 ● ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 1506- ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 0908-0908 ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 0909-1412 ● ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-420-0 01 1 0909- ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-545-0 01 1 0908-1505 ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-143-0 01 1 0908-0908 ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-143-0 01 1 0909-1505 ● ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-143-0 01 1 1506- ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 0908-0908 ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 0909-1505 ● ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 1506- ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-087-0 01 1 0908-0908 ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-087-0 01 1 0909-1505 ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-087-0 01 1 1506- ●
45 PLATE; END,CLU BOOSTER 1-31811-081-0 01 1 0909- ●
45 PLATE; END,CLU BOOSTER 1-31811-060-0 01 1 0908-1505 ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 0908-0908 ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 0909-1505 ● ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 1506- ●
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-168-0 01 1 0909- ●
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-504-0 01 1 0908-1505 ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-535-0 01 1 0909- ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-544-0 01 1 0908-1505 ●
62 RETAINER; POPPET 1-31829-489-0 01 1 0908-0908 ●
62 RETAINER; POPPET 1-31829-489-0 01 1 0909-1505 ● ●
62 RETAINER; POPPET 1-31829-489-0 01 1 1506- ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 0908-0908 ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 0909-1505 ● ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 1506- ●
127 FILTER; POPPET 1-31829-495-0 01 1 0908-0908 ●
127 FILTER; POPPET 1-31829-495-0 01 1 0909-1505 ● ●
127 FILTER; POPPET 1-31829-495-0 01 1 1506- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
