◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 11207 - LT134(RHD) EURO2/5 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶
1-50 — EXHAUST PIPE AND SILENCER (#68790) — 423 parça

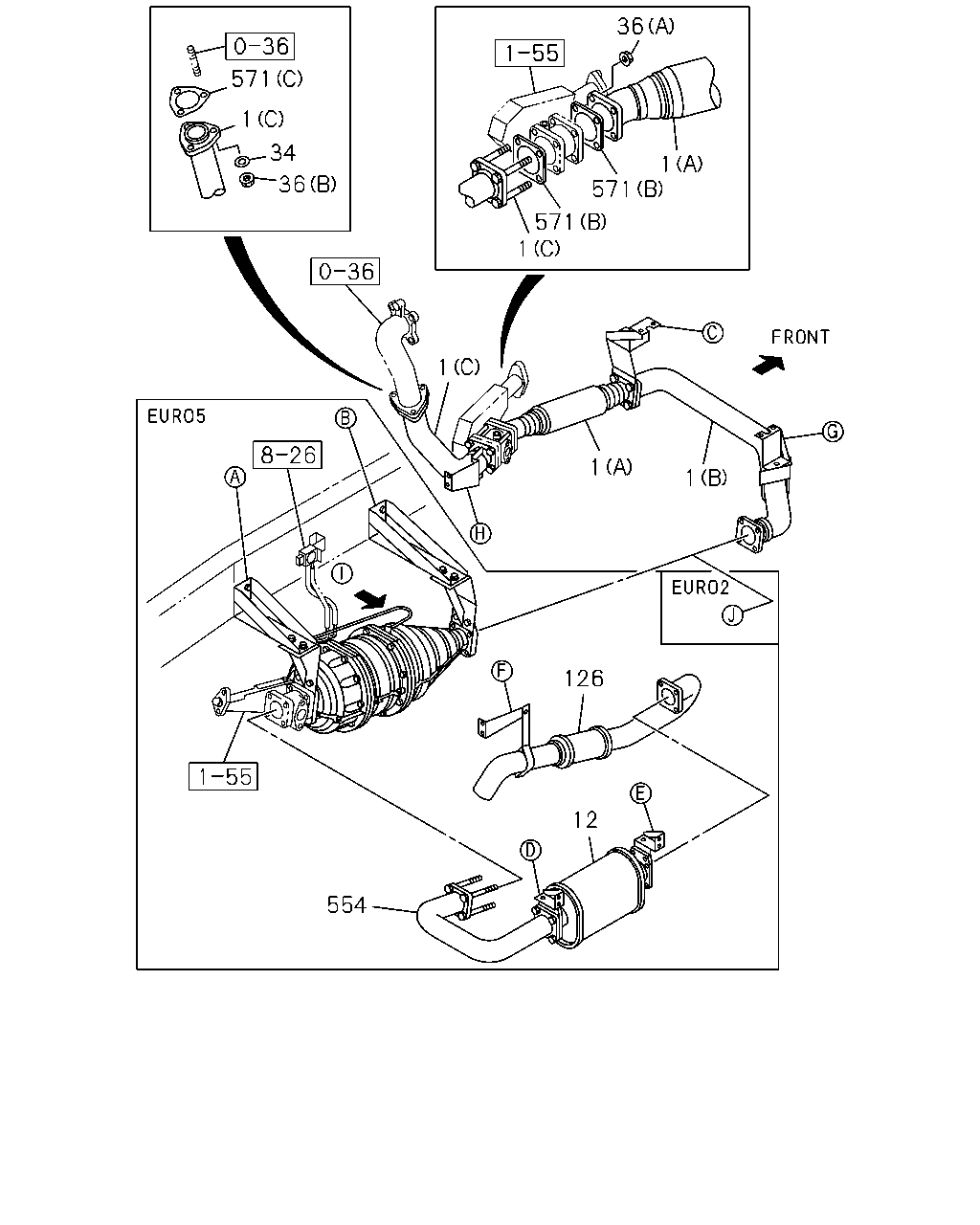

çizim 96566
36 571 1 34 1 571 36 571 1 1 1 1 126 12 554
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
EURO2 SPECIFICATION(NT2) (C) 		8-98133-584-1 01 1 0909-
1 PIPE; EXH
EURO2 SPECIFICATION(NT2) (A) 		8-98133-586-2 01 1 0909-
1 PIPE; EXH
EURO2 SPECIFICATION(NT2) (B) 		8-98132-642-1 01 1 0909-
1 PIPE; EXH
(A) 		8-98053-009-0 01 1 0908-0908
1 PIPE; EXH
EURO5 SPECIFICATION(NT5) (A) 		8-98053-009-0 01 1 0909-
1 PIPE; EXH
(B) 		8-98106-538-0 01 1 0908-0908
1 PIPE; EXH
EURO5 SPECIFICATION(NT5) (B) 		8-98106-538-0 01 1 0909-
1 PIPE; EXH
(C) 		8-98127-078-0 01 1 0908-0908
1 PIPE; EXH
EURO5 SPECIFICATION(NT5) (C) 		8-98127-078-0 01 1 0909-
12 SILENCER ASM; EXH
EURO2 SPECIFICATION(NT2) 		8-98142-620-0 01 1 0909-
12 SILENCER ASM; EXH 1-22141-201-1 01 1 0908-0908
12 SILENCER ASM; EXH
EURO5 SPECIFICATION(NT5) 		1-22141-201-1 01 1 0909-
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 0908-
36 NUT; EXH PIPE
(A) M10 		0-91110-510-0 04 1 0908-
36 NUT; EXH PIPE
(C) M12 FLANGE 		0-91180-212-0 04 1 0908-0908
36 NUT; EXH PIPE
(C) M12 FLANGE 		0-91180-212-0 04 1 0908-0908
36 NUT; EXH PIPE
(C) M12 FLANGE 		0-91180-212-0 04 1 0909-
36 NUT; EXH PIPE
EURO5 SPECIFICATION(NT5) (C) M12 FLANGE 		0-91180-212-0 04 1 0909-
36 NUT; EXH PIPE
(B) M12 		1-09400-010-0 03 1 0908-
126 PIPE; EXH,RR
EURO2 SPECIFICATION(NT2) 		8-98117-593-0 01 1 0909-
126 PIPE; EXH,RR 8-98053-012-2 01 1 0908-0908
126 PIPE; EXH,RR
EURO5 SPECIFICATION(NT5) 		8-98053-012-2 01 1 0909-
554 PIPE; EXH,SILENCER 8-98053-011-0 01 1 0908-0908
554 PIPE; EXH,SILENCER
EURO5 SPECIFICATION(NT5) 		8-98053-011-0 01 1 0909-
571 GASKET
(A) 		1-22116-040-0 01 1 0908-
571 GASKET
(B) ID=85.8 		1-22116-043-0 02 1 0908-
571 GASKET
(C) ID=81 		8-98043-481-0 01 1 0908-
çizim 97112
126 42 12 41 116 81
BalonParca AdiParca NoAdetTipApplied Date
12 SILENCER ASM; EXH
EURO2 SPECIFICATION(NT2) 		8-98142-620-0 01 1 0909-
12 SILENCER ASM; EXH 1-22141-201-1 01 1 0908-0908
12 SILENCER ASM; EXH
EURO5 SPECIFICATION(NT5) 		1-22141-201-1 01 1 0909-
41 NUT; EXH PIPE TO EXH SILENCER
M12 FLANGE 		0-91180-212-0 04 1 0908-
42 BOLT; EXH PIPE TO EXH SILENCER
M12X35 FLANGE 		0-28651-235-0 04 1 0908-
81 NUT; BRKT
EURO2 SPECIFICATION(NT2) M10 FLANGE 		0-91180-210-0 02 1 0909-
81 NUT; BRKT
EURO2 SPECIFICATION(NT2) M10 LOCK NUT 		0-91370-010-0 02 1 0909-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0908-
81 NUT; BRKT
M12 FLANGE 		0-91180-212-0 02 1 0908-0908
81 NUT; BRKT
EURO5 SPECIFICATION(NT5) M12 FLANGE 		0-91180-212-0 02 1 0909-
81 NUT; BRKT
M10 LOCK NUT 		0-91370-010-0 06 1 0908-0908
81 NUT; BRKT
EURO5 SPECIFICATION(NT5) M10 LOCK NUT 		0-91370-010-0 06 1 0909-
116 BOLT; BRKT
EURO2 SPECIFICATION(NT2) M10X35 FLANGE 		0-28651-035-0 02 1 0909-
116 BOLT; BRKT
M12X35 FLANGE 		0-28651-235-0 02 1 0908-0908
116 BOLT; BRKT
EURO5 SPECIFICATION(NT5) M12X35 FLANGE 		0-28651-235-0 02 1 0909-
126 PIPE; EXH,RR
EURO2 SPECIFICATION(NT2) 		8-98117-593-0 01 1 0909-
126 PIPE; EXH,RR 8-98053-012-2 01 1 0908-0908
126 PIPE; EXH,RR
EURO5 SPECIFICATION(NT5) 		8-98053-012-2 01 1 0909-

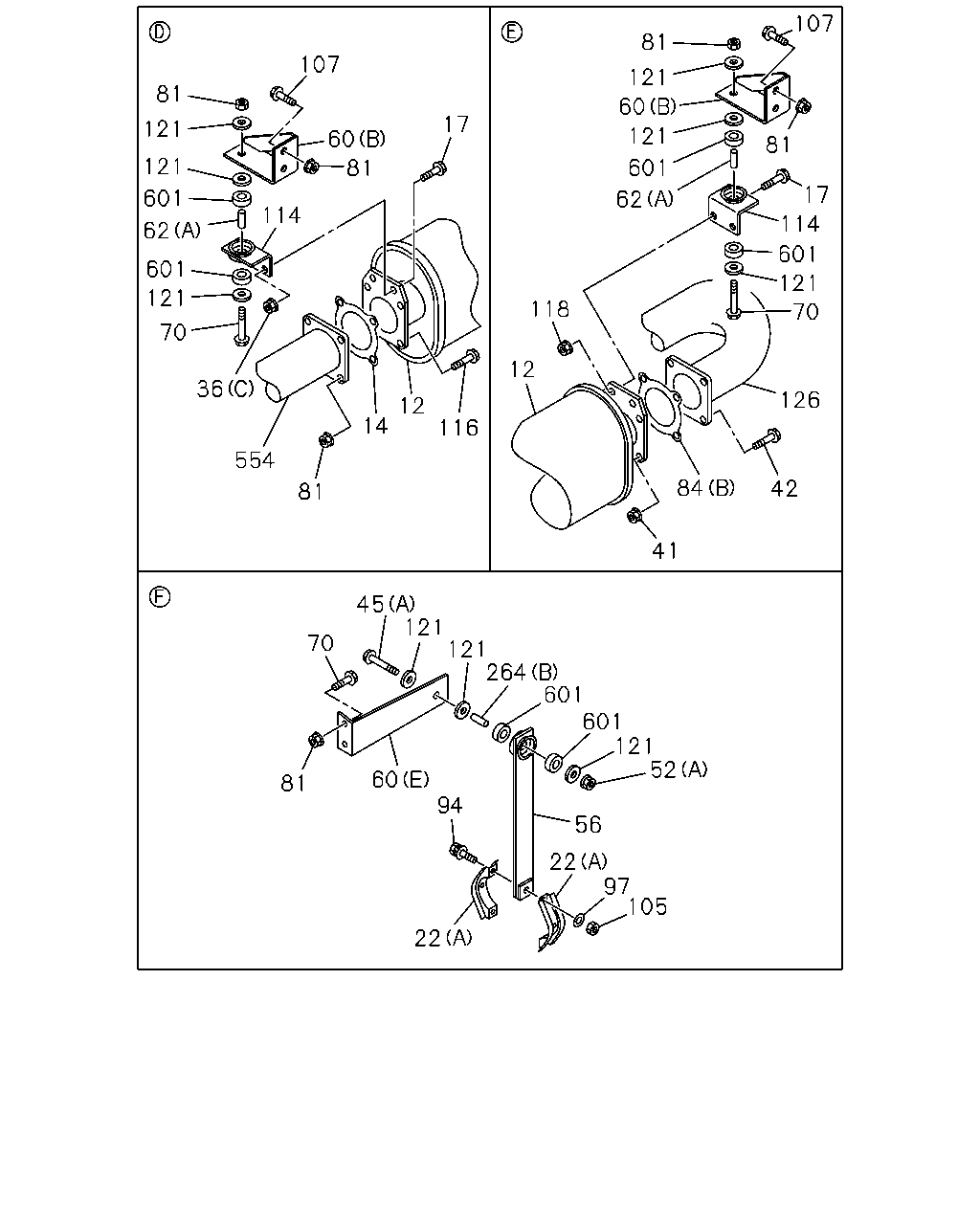

çizim 188339
107 81 107 121 81 60 17 121 121 60 81 121 601 81 17 601 62 114 14 62 601 601 121 121 118 70 70 12 36 126 12 14 116 554 84 42 81 41 45 121 121 264 601 601 121 52 70 60 94 81 56 22 97 105 22
BalonParca AdiParca NoAdetTipApplied Date
12 SILENCER ASM; EXH
EURO2 SPECIFICATION(NT2) 		8-98142-620-0 01 1 0909-
12 SILENCER ASM; EXH 1-22141-201-1 01 1 0908-0908
12 SILENCER ASM; EXH
EURO5 SPECIFICATION(NT5) 		1-22141-201-1 01 1 0909-
14 GASKET; SILENCER TO EXH PIPE
EURO2 SPECIFICATION(NT2) 		8-98096-305-0 01 1 0909-
14 GASKET; SILENCER TO EXH PIPE 1-22116-042-0 01 1 0908-0908
14 GASKET; SILENCER TO EXH PIPE
EURO5 SPECIFICATION(NT5) 		1-22116-042-0 01 1 0909-
17 BOLT; EXH PIPE
M12X35 FLANGE 		0-28651-235-0 04 1 0908-
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 0908-0908
22 CLAMP; EXH PIPE
EURO5 SPECIFICATION(NT5) (A) ID=80-84 		1-22133-233-0 02 1 0909-
22 CLAMP; EXH PIPE
(B) 		8-98073-250-0 02 1 0908-0908
22 CLAMP; EXH PIPE
EURO5 SPECIFICATION(NT5) (B) 		8-98073-250-0 02 1 0909-
36 NUT; EXH PIPE
(A) M10 		0-91110-510-0 04 1 0908-
36 NUT; EXH PIPE
(C) M12 FLANGE 		0-91180-212-0 04 1 0908-0908
36 NUT; EXH PIPE
(C) M12 FLANGE 		0-91180-212-0 04 1 0908-0908
36 NUT; EXH PIPE
(C) M12 FLANGE 		0-91180-212-0 04 1 0909-
36 NUT; EXH PIPE
EURO5 SPECIFICATION(NT5) (C) M12 FLANGE 		0-91180-212-0 04 1 0909-
36 NUT; EXH PIPE
(B) M12 		1-09400-010-0 03 1 0908-
41 NUT; EXH PIPE TO EXH SILENCER
M12 FLANGE 		0-91180-212-0 04 1 0908-
42 BOLT; EXH PIPE TO EXH SILENCER
M12X35 FLANGE 		0-28651-235-0 04 1 0908-
45 BOLT; BRKT
(B) M10X60 FLANGE 		0-28051-060-0 01 1 0908-
45 BOLT; BRKT
(B) M10X60 FLANGE 		0-28051-060-0 02 1 0908-
45 BOLT; BRKT
(A) M10X50 		0-10856-050-0 01 1 0908-0908
45 BOLT; BRKT
EURO5 SPECIFICATION(NT5) (A) M10X50 		0-10856-050-0 01 1 0909-
52 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 0908-
52 NUT; BRKT
(B) M10 LOCK NUT 		0-91370-010-0 01 1 0908-
52 NUT; BRKT
(B) M10 LOCK NUT 		0-91370-010-0 02 1 0908-
52 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 13 1 0908-0908
52 NUT; BRKT
EURO5 SPECIFICATION(NT5) (A) M10 FLANGE 		0-91180-210-0 13 1 0909-
56 BRACKET; CLAMP,EXH PIPE 1-22131-629-0 01 1 0908-0908
56 BRACKET; CLAMP,EXH PIPE
EURO5 SPECIFICATION(NT5) 		1-22131-629-0 01 1 0909-
60 BRACKET; FRAME TO BRKT
EURO2 SPECIFICATION(NT2) (B) FRONT 		8-98117-587-1 01 1 0909-
60 BRACKET; FRAME TO BRKT
EURO2 SPECIFICATION(NT2) (B) REAR 		8-98117-588-0 01 1 0909-
60 BRACKET; FRAME TO BRKT
EURO2 SPECIFICATION(NT2) (D) 		8-98117-581-1 01 1 0909-
60 BRACKET; FRAME TO BRKT
(C) 		8-98055-632-0 01 1 0908-
60 BRACKET; FRAME TO BRKT
(A) 		1-22152-390-0 01 1 0908-0908
60 BRACKET; FRAME TO BRKT
EURO5 SPECIFICATION(NT5) (A) 		1-22152-390-0 01 1 0909-
60 BRACKET; FRAME TO BRKT
(F) 		1-22152-391-0 01 1 0908-0908
60 BRACKET; FRAME TO BRKT
EURO5 SPECIFICATION(NT5) (F) 		1-22152-391-0 01 1 0909-
60 BRACKET; FRAME TO BRKT
(B) 		1-22152-392-0 02 1 0908-0908
60 BRACKET; FRAME TO BRKT
EURO5 SPECIFICATION(NT5) (B) 		1-22152-392-0 02 1 0909-
60 BRACKET; FRAME TO BRKT
(D) 		8-98055-635-0 01 1 0908-0908
60 BRACKET; FRAME TO BRKT
EURO5 SPECIFICATION(NT5) (D) 		8-98055-635-0 01 1 0909-
60 BRACKET; FRAME TO BRKT
(E) 		8-98055-700-0 01 1 0908-0908
60 BRACKET; FRAME TO BRKT
EURO5 SPECIFICATION(NT5) (E) 		8-98055-700-0 01 1 0909-
62 TUBE; DIST,BRKT
(A) L=25 		1-14234-083-0 02 1 0908-
62 TUBE; DIST,BRKT
(B) L=22 		1-22159-392-0 04 1 0908-0908
62 TUBE; DIST,BRKT
EURO5 SPECIFICATION(NT5) (B) L=22 		1-22159-392-0 04 1 0909-0909
62 TUBE; DIST,BRKT
EURO5 SPECIFICATION(NT5) (B) L=22 		9-22159-024-0 04 1 0910-
70 BOLT; BRKT
EURO2 SPECIFICATION(NT2) M10X60 FLANGE 		0-28051-060-0 02 1 0909-
70 BOLT; BRKT
EURO2 SPECIFICATION(NT2) M10X35 FLANGE 		0-28651-035-0 02 1 0909-
70 BOLT; BRKT
M10X60 FLANGE 		0-28051-060-0 06 1 0908-0908
70 BOLT; BRKT
EURO5 SPECIFICATION(NT5) M10X60 FLANGE 		0-28051-060-0 06 1 0909-
70 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0908-0908
70 BOLT; BRKT
EURO5 SPECIFICATION(NT5) M8X30 FLANGE 		0-28650-830-0 02 1 0909-
70 BOLT; BRKT
M12X35 FLANGE 		0-28651-235-0 02 1 0908-0908
70 BOLT; BRKT
EURO5 SPECIFICATION(NT5) M12X35 FLANGE 		0-28651-235-0 02 1 0909-
81 NUT; BRKT
EURO2 SPECIFICATION(NT2) M10 FLANGE 		0-91180-210-0 02 1 0909-
81 NUT; BRKT
EURO2 SPECIFICATION(NT2) M10 LOCK NUT 		0-91370-010-0 02 1 0909-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0908-
81 NUT; BRKT
M12 FLANGE 		0-91180-212-0 02 1 0908-0908
81 NUT; BRKT
EURO5 SPECIFICATION(NT5) M12 FLANGE 		0-91180-212-0 02 1 0909-
81 NUT; BRKT
M10 LOCK NUT 		0-91370-010-0 06 1 0908-0908
81 NUT; BRKT
EURO5 SPECIFICATION(NT5) M10 LOCK NUT 		0-91370-010-0 06 1 0909-
84 GASKET; EXH PIPE
EURO2 SPECIFICATION(NT2) (B) 		8-98096-305-0 01 1 0909-
84 GASKET; EXH PIPE
(A) 		1-22116-040-0 01 1 0908-0908
84 GASKET; EXH PIPE
EURO5 SPECIFICATION(NT5) (A) 		1-22116-040-0 01 1 0909-
84 GASKET; EXH PIPE
(B) 		1-22116-042-0 01 1 0908-0908
84 GASKET; EXH PIPE
EURO5 SPECIFICATION(NT5) (B) 		1-22116-042-0 01 1 0909-
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 0908-0908
94 BOLT; CLAMP
EURO5 SPECIFICATION(NT5) M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 0909-
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 0908-0908
97 WASHER; PL,CLAMP
EURO5 SPECIFICATION(NT5) ID=10.5 		9-09164-510-0 02 1 0909-0909
97 WASHER; PL,CLAMP
EURO5 SPECIFICATION(NT5) ID=10.5 		0-91614-510-0 02 1 0910-
105 NUT; CLAMP
M10 		0-91110-510-0 02 1 0908-0908
105 NUT; CLAMP
EURO5 SPECIFICATION(NT5) M10 		0-91110-510-0 02 1 0909-
107 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 04 1 0908-
114 BRACKET; EXH SILENCER
EURO2 SPECIFICATION(NT2) 		8-98117-589-0 02 1 0909-
114 BRACKET; EXH SILENCER 1-22139-348-0 02 1 0908-0908
114 BRACKET; EXH SILENCER
EURO5 SPECIFICATION(NT5) 		1-22139-348-0 02 1 0909-
116 BOLT; BRKT
EURO2 SPECIFICATION(NT2) M10X35 FLANGE 		0-28651-035-0 02 1 0909-
116 BOLT; BRKT
M12X35 FLANGE 		0-28651-235-0 02 1 0908-0908
116 BOLT; BRKT
EURO5 SPECIFICATION(NT5) M12X35 FLANGE 		0-28651-235-0 02 1 0909-
118 NUT; SILENCER MTG BRKT
EURO2 SPECIFICATION(NT2) M10 FLANGE 		0-91180-210-0 02 1 0909-
118 NUT; SILENCER MTG BRKT
M12 FLANGE 		0-91180-212-0 02 1 0908-0908
118 NUT; SILENCER MTG BRKT
EURO5 SPECIFICATION(NT5) M12 FLANGE 		0-91180-212-0 02 1 0909-
121 WASHER; PL,BRKT
ID=10.5 OD=40 T=3.2 		8-98010-405-0 06 1 0908-0908
121 WASHER; PL,BRKT
ID=10.5 OD=40 T=3.2 		8-98010-405-0 03 1 0909-
121 WASHER; PL,BRKT
ID=10.5 OD=40 T=3.2 		8-98010-405-0 03 1 0908-0908
121 WASHER; PL,BRKT
ID=10.5 OD=40 T=3.2 		8-98010-405-0 06 1 0909-
121 WASHER; PL,BRKT
EURO2 SPECIFICATION(NT2) ID=10.5 OD=40 T=3.2 		8-98010-405-0 06 1 0909-
121 WASHER; PL,BRKT
ID=10.5 OD=40 T=3.2 		8-98010-405-0 21 1 0908-0908
121 WASHER; PL,BRKT
EURO5 SPECIFICATION(NT5) ID=10.5 OD=40 T=3.2 		8-98010-405-0 21 1 0909-
126 PIPE; EXH,RR
EURO2 SPECIFICATION(NT2) 		8-98117-593-0 01 1 0909-
126 PIPE; EXH,RR 8-98053-012-2 01 1 0908-0908
126 PIPE; EXH,RR
EURO5 SPECIFICATION(NT5) 		8-98053-012-2 01 1 0909-
264 TUBE; DIST,SUPPORT RUBBER
EURO2 SPECIFICATION(NT2) (B) L=22 		9-22159-024-0 01 1 0909-0909
264 TUBE; DIST,SUPPORT RUBBER
(B) L=22 		9-22159-024-0 01 1 0910-
264 TUBE; DIST,SUPPORT RUBBER
EURO5 SPECIFICATION(NT5) (B) L=22 		9-22159-024-0 01 1 0910-
264 TUBE; DIST,SUPPORT RUBBER
(A) L=25 		1-14234-083-0 02 1 0908-
264 TUBE; DIST,SUPPORT RUBBER
(B) L=22 		1-22159-392-0 01 1 0908-0908
264 TUBE; DIST,SUPPORT RUBBER
MZW6P M/T(RSZ) (B) L=22 		1-22159-392-0 01 1 0908-0908
264 TUBE; DIST,SUPPORT RUBBER
EURO5 SPECIFICATION(NT5) (B) L=22 		1-22159-392-0 01 1 0909-0909
264 TUBE; DIST,SUPPORT RUBBER
EURO5 SPECIFICATION(NT5) (B) L=22 		1-22159-392-0 01 1 0909-0909
554 PIPE; EXH,SILENCER 8-98053-011-0 01 1 0908-0908
554 PIPE; EXH,SILENCER
EURO5 SPECIFICATION(NT5) 		8-98053-011-0 01 1 0909-
601 MOUNTING 8-98055-817-0 04 1 0908-0908
601 MOUNTING 8-98055-817-0 02 1 0909-
601 MOUNTING 8-98055-817-0 02 1 0908-0908
601 MOUNTING 8-98055-817-0 04 1 0909-
601 MOUNTING
EURO2 SPECIFICATION(NT2) 		8-98055-817-0 04 1 0909-
601 MOUNTING 8-98055-817-0 14 1 0908-0908
601 MOUNTING
EURO5 SPECIFICATION(NT5) 		8-98055-817-0 14 1 0909-

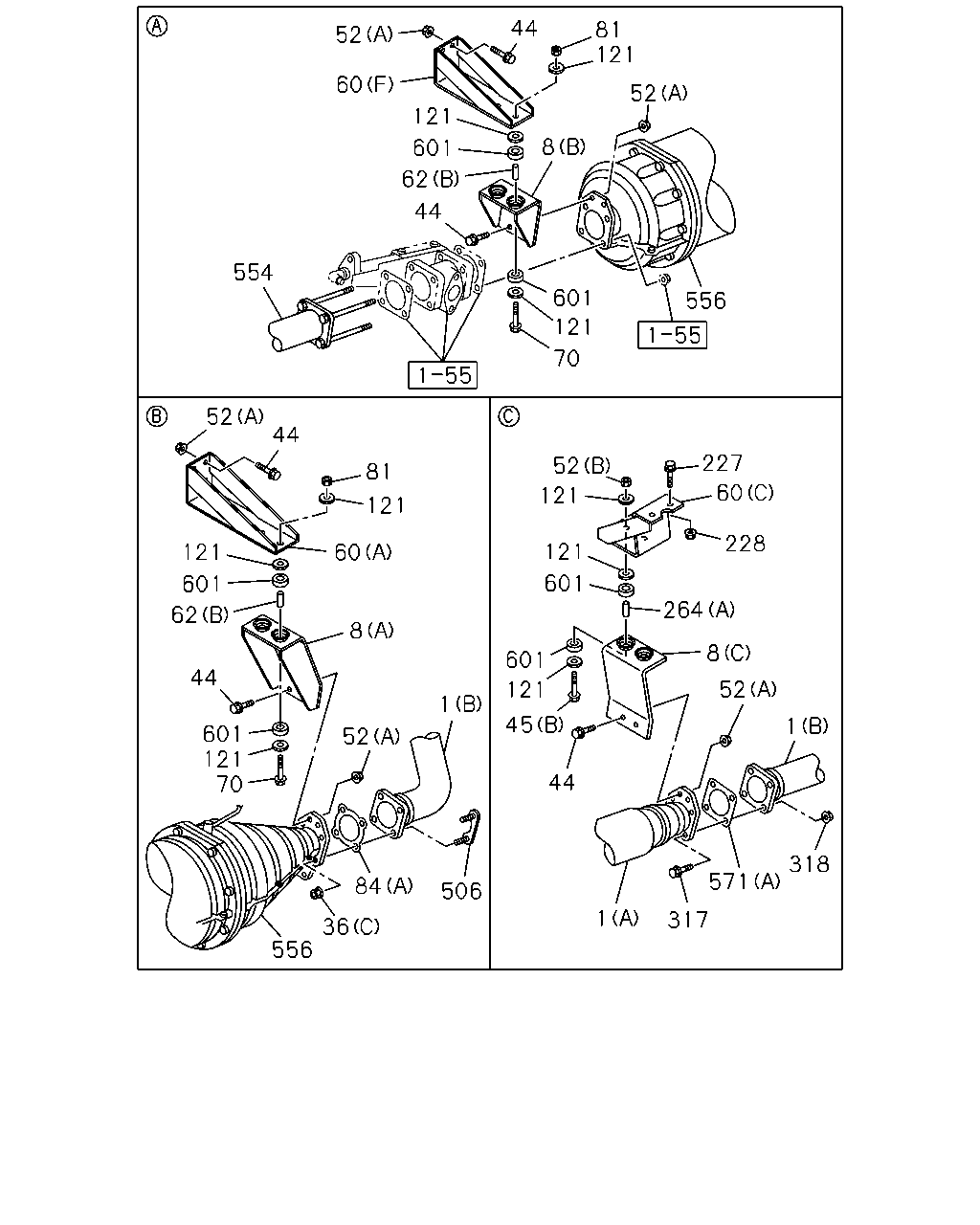

çizim 188340
44 81 121 52 60 52 121 8 601 62 44 554 601 556 121 70 52 44 227 52 81 60 121 121 228 121 121 60 601 601 264 62 8 8 601 44 52 121 1 45 1 601 121 70 52 44 318 571 84 506 1 317 36 556
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
EURO2 SPECIFICATION(NT2) (C) 		8-98133-584-1 01 1 0909-
1 PIPE; EXH
EURO2 SPECIFICATION(NT2) (A) 		8-98133-586-2 01 1 0909-
1 PIPE; EXH
EURO2 SPECIFICATION(NT2) (B) 		8-98132-642-1 01 1 0909-
1 PIPE; EXH
(A) 		8-98053-009-0 01 1 0908-0908
1 PIPE; EXH
EURO5 SPECIFICATION(NT5) (A) 		8-98053-009-0 01 1 0909-
1 PIPE; EXH
(B) 		8-98106-538-0 01 1 0908-0908
1 PIPE; EXH
EURO5 SPECIFICATION(NT5) (B) 		8-98106-538-0 01 1 0909-
1 PIPE; EXH
(C) 		8-98127-078-0 01 1 0908-0908
1 PIPE; EXH
EURO5 SPECIFICATION(NT5) (C) 		8-98127-078-0 01 1 0909-
8 BRACKET; EXH PIPE
EURO2 SPECIFICATION(NT2) (E) 		8-98133-593-0 01 1 0909-
8 BRACKET; EXH PIPE
EURO2 SPECIFICATION(NT2) (D) 		8-98133-457-0 01 1 0909-
8 BRACKET; EXH PIPE
(C) 		8-98055-633-0 01 1 0908-
8 BRACKET; EXH PIPE
(A) 		1-22152-394-1 01 1 0908-0908
8 BRACKET; EXH PIPE
EURO5 SPECIFICATION(NT5) (A) 		1-22152-394-1 01 1 0909-
8 BRACKET; EXH PIPE
(B) 		1-22152-395-1 01 1 0908-0908
8 BRACKET; EXH PIPE
EURO5 SPECIFICATION(NT5) (B) 		1-22152-395-1 01 1 0909-
8 BRACKET; EXH PIPE
(D) 		8-98055-634-0 01 1 0908-0908
8 BRACKET; EXH PIPE
EURO5 SPECIFICATION(NT5) (D) 		8-98055-634-0 01 1 0909-
8 BRACKET; EXH PIPE
(F) 		8-98125-921-0 01 1 0908-0908
8 BRACKET; EXH PIPE
EURO5 SPECIFICATION(NT5) (F) 		8-98125-921-0 01 1 0909-
8 BRACKET; EXH PIPE
(E) 		8-98125-922-0 01 1 0908-0908
8 BRACKET; EXH PIPE
EURO5 SPECIFICATION(NT5) (E) 		8-98125-922-0 01 1 0909-
36 NUT; EXH PIPE
(A) M10 		0-91110-510-0 04 1 0908-
36 NUT; EXH PIPE
(C) M12 FLANGE 		0-91180-212-0 04 1 0908-0908
36 NUT; EXH PIPE
(C) M12 FLANGE 		0-91180-212-0 04 1 0908-0908
36 NUT; EXH PIPE
(C) M12 FLANGE 		0-91180-212-0 04 1 0909-
36 NUT; EXH PIPE
EURO5 SPECIFICATION(NT5) (C) M12 FLANGE 		0-91180-212-0 04 1 0909-
36 NUT; EXH PIPE
(B) M12 		1-09400-010-0 03 1 0908-
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0908-0908
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0908-0908
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0909-
44 BOLT; BRKT
EURO5 SPECIFICATION(NT5) M10X35 FLANGE 		0-28651-035-0 02 1 0909-
44 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 12 1 0908-0908
44 BOLT; BRKT
EURO5 SPECIFICATION(NT5) M10X30 FLANGE 		0-28651-030-0 12 1 0909-
45 BOLT; BRKT
(B) M10X60 FLANGE 		0-28051-060-0 01 1 0908-
45 BOLT; BRKT
(B) M10X60 FLANGE 		0-28051-060-0 02 1 0908-
45 BOLT; BRKT
(A) M10X50 		0-10856-050-0 01 1 0908-0908
45 BOLT; BRKT
EURO5 SPECIFICATION(NT5) (A) M10X50 		0-10856-050-0 01 1 0909-
52 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 0908-
52 NUT; BRKT
(B) M10 LOCK NUT 		0-91370-010-0 01 1 0908-
52 NUT; BRKT
(B) M10 LOCK NUT 		0-91370-010-0 02 1 0908-
52 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 13 1 0908-0908
52 NUT; BRKT
EURO5 SPECIFICATION(NT5) (A) M10 FLANGE 		0-91180-210-0 13 1 0909-
60 BRACKET; FRAME TO BRKT
EURO2 SPECIFICATION(NT2) (B) FRONT 		8-98117-587-1 01 1 0909-
60 BRACKET; FRAME TO BRKT
EURO2 SPECIFICATION(NT2) (B) REAR 		8-98117-588-0 01 1 0909-
60 BRACKET; FRAME TO BRKT
EURO2 SPECIFICATION(NT2) (D) 		8-98117-581-1 01 1 0909-
60 BRACKET; FRAME TO BRKT
(C) 		8-98055-632-0 01 1 0908-
60 BRACKET; FRAME TO BRKT
(A) 		1-22152-390-0 01 1 0908-0908
60 BRACKET; FRAME TO BRKT
EURO5 SPECIFICATION(NT5) (A) 		1-22152-390-0 01 1 0909-
60 BRACKET; FRAME TO BRKT
(F) 		1-22152-391-0 01 1 0908-0908
60 BRACKET; FRAME TO BRKT
EURO5 SPECIFICATION(NT5) (F) 		1-22152-391-0 01 1 0909-
60 BRACKET; FRAME TO BRKT
(B) 		1-22152-392-0 02 1 0908-0908
60 BRACKET; FRAME TO BRKT
EURO5 SPECIFICATION(NT5) (B) 		1-22152-392-0 02 1 0909-
60 BRACKET; FRAME TO BRKT
(D) 		8-98055-635-0 01 1 0908-0908
60 BRACKET; FRAME TO BRKT
EURO5 SPECIFICATION(NT5) (D) 		8-98055-635-0 01 1 0909-
60 BRACKET; FRAME TO BRKT
(E) 		8-98055-700-0 01 1 0908-0908
60 BRACKET; FRAME TO BRKT
EURO5 SPECIFICATION(NT5) (E) 		8-98055-700-0 01 1 0909-
62 TUBE; DIST,BRKT
(A) L=25 		1-14234-083-0 02 1 0908-
62 TUBE; DIST,BRKT
(B) L=22 		1-22159-392-0 04 1 0908-0908
62 TUBE; DIST,BRKT
EURO5 SPECIFICATION(NT5) (B) L=22 		1-22159-392-0 04 1 0909-0909
62 TUBE; DIST,BRKT
EURO5 SPECIFICATION(NT5) (B) L=22 		9-22159-024-0 04 1 0910-
70 BOLT; BRKT
EURO2 SPECIFICATION(NT2) M10X60 FLANGE 		0-28051-060-0 02 1 0909-
70 BOLT; BRKT
EURO2 SPECIFICATION(NT2) M10X35 FLANGE 		0-28651-035-0 02 1 0909-
70 BOLT; BRKT
M10X60 FLANGE 		0-28051-060-0 06 1 0908-0908
70 BOLT; BRKT
EURO5 SPECIFICATION(NT5) M10X60 FLANGE 		0-28051-060-0 06 1 0909-
70 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0908-0908
70 BOLT; BRKT
EURO5 SPECIFICATION(NT5) M8X30 FLANGE 		0-28650-830-0 02 1 0909-
70 BOLT; BRKT
M12X35 FLANGE 		0-28651-235-0 02 1 0908-0908
70 BOLT; BRKT
EURO5 SPECIFICATION(NT5) M12X35 FLANGE 		0-28651-235-0 02 1 0909-
81 NUT; BRKT
EURO2 SPECIFICATION(NT2) M10 FLANGE 		0-91180-210-0 02 1 0909-
81 NUT; BRKT
EURO2 SPECIFICATION(NT2) M10 LOCK NUT 		0-91370-010-0 02 1 0909-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0908-
81 NUT; BRKT
M12 FLANGE 		0-91180-212-0 02 1 0908-0908
81 NUT; BRKT
EURO5 SPECIFICATION(NT5) M12 FLANGE 		0-91180-212-0 02 1 0909-
81 NUT; BRKT
M10 LOCK NUT 		0-91370-010-0 06 1 0908-0908
81 NUT; BRKT
EURO5 SPECIFICATION(NT5) M10 LOCK NUT 		0-91370-010-0 06 1 0909-
84 GASKET; EXH PIPE
EURO2 SPECIFICATION(NT2) (B) 		8-98096-305-0 01 1 0909-
84 GASKET; EXH PIPE
(A) 		1-22116-040-0 01 1 0908-0908
84 GASKET; EXH PIPE
EURO5 SPECIFICATION(NT5) (A) 		1-22116-040-0 01 1 0909-
84 GASKET; EXH PIPE
(B) 		1-22116-042-0 01 1 0908-0908
84 GASKET; EXH PIPE
EURO5 SPECIFICATION(NT5) (B) 		1-22116-042-0 01 1 0909-
121 WASHER; PL,BRKT
ID=10.5 OD=40 T=3.2 		8-98010-405-0 06 1 0908-0908
121 WASHER; PL,BRKT
ID=10.5 OD=40 T=3.2 		8-98010-405-0 03 1 0909-
121 WASHER; PL,BRKT
ID=10.5 OD=40 T=3.2 		8-98010-405-0 03 1 0908-0908
121 WASHER; PL,BRKT
ID=10.5 OD=40 T=3.2 		8-98010-405-0 06 1 0909-
121 WASHER; PL,BRKT
EURO2 SPECIFICATION(NT2) ID=10.5 OD=40 T=3.2 		8-98010-405-0 06 1 0909-
121 WASHER; PL,BRKT
ID=10.5 OD=40 T=3.2 		8-98010-405-0 21 1 0908-0908
121 WASHER; PL,BRKT
EURO5 SPECIFICATION(NT5) ID=10.5 OD=40 T=3.2 		8-98010-405-0 21 1 0909-
227 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0908-
228 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0908-
264 TUBE; DIST,SUPPORT RUBBER
EURO2 SPECIFICATION(NT2) (B) L=22 		9-22159-024-0 01 1 0909-0909
264 TUBE; DIST,SUPPORT RUBBER
(B) L=22 		9-22159-024-0 01 1 0910-
264 TUBE; DIST,SUPPORT RUBBER
EURO5 SPECIFICATION(NT5) (B) L=22 		9-22159-024-0 01 1 0910-
264 TUBE; DIST,SUPPORT RUBBER
(A) L=25 		1-14234-083-0 02 1 0908-
264 TUBE; DIST,SUPPORT RUBBER
(B) L=22 		1-22159-392-0 01 1 0908-0908
264 TUBE; DIST,SUPPORT RUBBER
MZW6P M/T(RSZ) (B) L=22 		1-22159-392-0 01 1 0908-0908
264 TUBE; DIST,SUPPORT RUBBER
EURO5 SPECIFICATION(NT5) (B) L=22 		1-22159-392-0 01 1 0909-0909
264 TUBE; DIST,SUPPORT RUBBER
EURO5 SPECIFICATION(NT5) (B) L=22 		1-22159-392-0 01 1 0909-0909
317 BOLT; EXH PIPE,FRT
M12X35 FLANGE 		0-28651-235-0 04 1 0908-
318 NUT; EXH PIPE,FRT
M12 FLANGE 		0-91180-212-0 04 1 0908-
506 BRACKET; STUD
M12X35 		1-22131-963-0 02 1 0908-0908
506 BRACKET; STUD
EURO5 SPECIFICATION(NT5) M12X35 		1-22131-963-0 02 1 0909-
554 PIPE; EXH,SILENCER 8-98053-011-0 01 1 0908-0908
554 PIPE; EXH,SILENCER
EURO5 SPECIFICATION(NT5) 		8-98053-011-0 01 1 0909-
556 DPD ASM 8-97610-536-6 01 1 0908-0908
556 DPD ASM
EURO5 SPECIFICATION(NT5) 		8-97610-536-6 01 1 0909-1010
556 DPD ASM
EURO5 SPECIFICATION(NT5) 		8-97622-891-4 01 1 1011-
571 GASKET
(A) 		1-22116-040-0 01 1 0908-
571 GASKET
(B) ID=85.8 		1-22116-043-0 02 1 0908-
571 GASKET
(C) ID=81 		8-98043-481-0 01 1 0908-
601 MOUNTING 8-98055-817-0 04 1 0908-0908
601 MOUNTING 8-98055-817-0 02 1 0909-
601 MOUNTING 8-98055-817-0 02 1 0908-0908
601 MOUNTING 8-98055-817-0 04 1 0909-
601 MOUNTING
EURO2 SPECIFICATION(NT2) 		8-98055-817-0 04 1 0909-
601 MOUNTING 8-98055-817-0 14 1 0908-0908
601 MOUNTING
EURO5 SPECIFICATION(NT5) 		8-98055-817-0 14 1 0909-

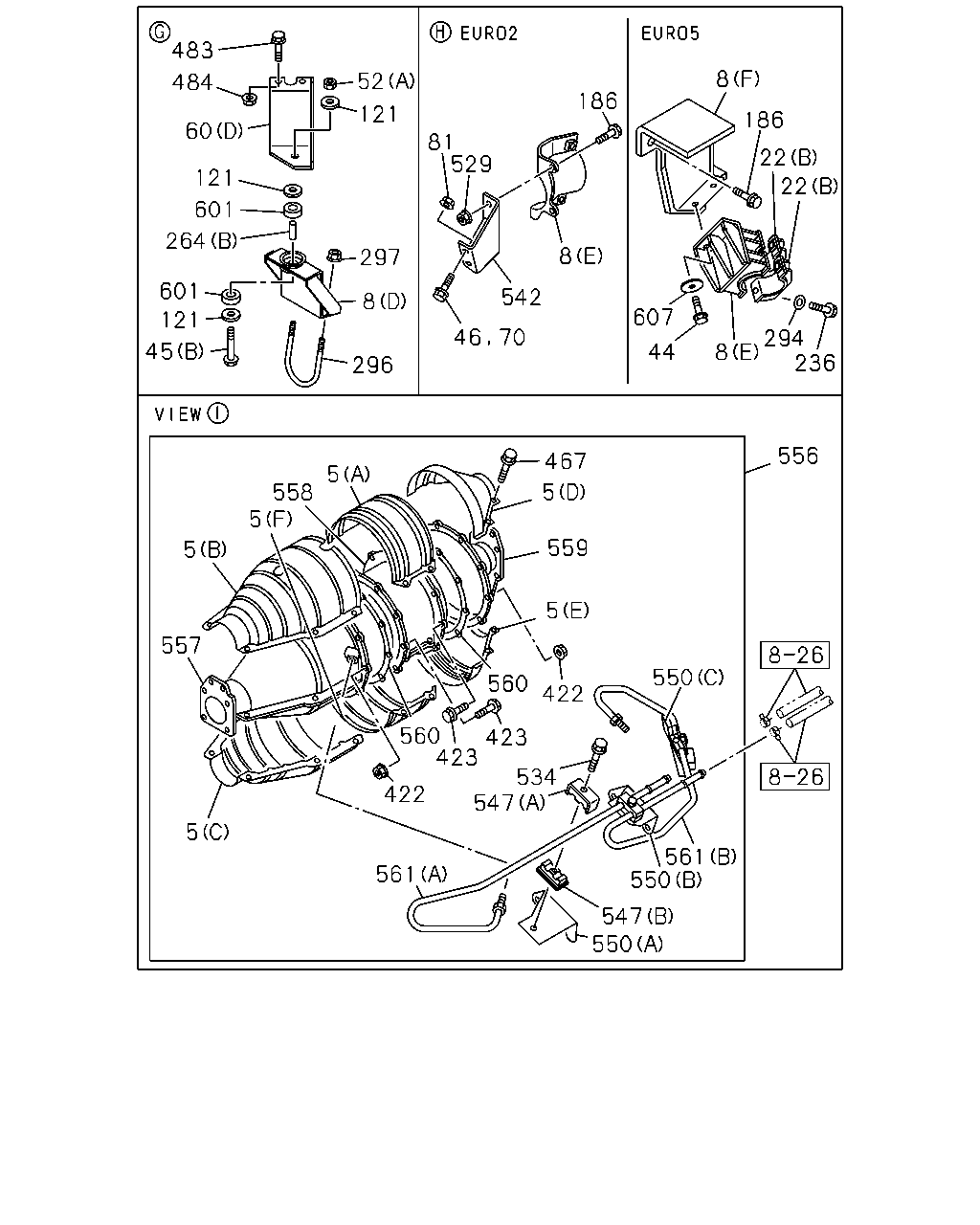

çizim 188343
483 8 52 484 186 121 186 60 81 529 22 121 22 601 264 8 297 601 542 8 607 121 46 294 8 236 45 44 296 556 467 5 5 558 5 559 5 5 557 550 560 422 560 423 423 534 547 422 5 561 550 561 547 550 70
BalonParca AdiParca NoAdetTipApplied Date
5 PROTECTOR; HEAT
(A) 		8-97605-172-0 01 1 0908-0908
5 PROTECTOR; HEAT
EURO5 SPECIFICATION(NT5) (A) 		8-97605-172-0 01 1 0909-
5 PROTECTOR; HEAT
(B) 		8-97611-086-0 01 1 0908-0908
5 PROTECTOR; HEAT
EURO5 SPECIFICATION(NT5) (B) 		8-97611-086-0 01 1 0909-
5 PROTECTOR; HEAT
(C) 		8-97611-087-0 01 1 0908-0908
5 PROTECTOR; HEAT
EURO5 SPECIFICATION(NT5) (C) 		8-97611-087-0 01 1 0909-
5 PROTECTOR; HEAT
(D) 		8-97611-088-0 01 1 0908-0908
5 PROTECTOR; HEAT
EURO5 SPECIFICATION(NT5) (D) 		8-97611-088-0 01 1 0909-
5 PROTECTOR; HEAT
(E) 		8-97611-089-0 01 1 0908-0908
5 PROTECTOR; HEAT
EURO5 SPECIFICATION(NT5) (E) 		8-97611-089-0 01 1 0909-
5 PROTECTOR; HEAT
(F) 		8-97613-390-0 01 1 0908-0908
5 PROTECTOR; HEAT
EURO5 SPECIFICATION(NT5) (F) 		8-97613-390-0 01 1 0909-
8 BRACKET; EXH PIPE
EURO2 SPECIFICATION(NT2) (E) 		8-98133-593-0 01 1 0909-
8 BRACKET; EXH PIPE
EURO2 SPECIFICATION(NT2) (D) 		8-98133-457-0 01 1 0909-
8 BRACKET; EXH PIPE
(C) 		8-98055-633-0 01 1 0908-
8 BRACKET; EXH PIPE
(A) 		1-22152-394-1 01 1 0908-0908
8 BRACKET; EXH PIPE
EURO5 SPECIFICATION(NT5) (A) 		1-22152-394-1 01 1 0909-
8 BRACKET; EXH PIPE
(B) 		1-22152-395-1 01 1 0908-0908
8 BRACKET; EXH PIPE
EURO5 SPECIFICATION(NT5) (B) 		1-22152-395-1 01 1 0909-
8 BRACKET; EXH PIPE
(D) 		8-98055-634-0 01 1 0908-0908
8 BRACKET; EXH PIPE
EURO5 SPECIFICATION(NT5) (D) 		8-98055-634-0 01 1 0909-
8 BRACKET; EXH PIPE
(F) 		8-98125-921-0 01 1 0908-0908
8 BRACKET; EXH PIPE
EURO5 SPECIFICATION(NT5) (F) 		8-98125-921-0 01 1 0909-
8 BRACKET; EXH PIPE
(E) 		8-98125-922-0 01 1 0908-0908
8 BRACKET; EXH PIPE
EURO5 SPECIFICATION(NT5) (E) 		8-98125-922-0 01 1 0909-
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 0908-0908
22 CLAMP; EXH PIPE
EURO5 SPECIFICATION(NT5) (A) ID=80-84 		1-22133-233-0 02 1 0909-
22 CLAMP; EXH PIPE
(B) 		8-98073-250-0 02 1 0908-0908
22 CLAMP; EXH PIPE
EURO5 SPECIFICATION(NT5) (B) 		8-98073-250-0 02 1 0909-
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0908-0908
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0908-0908
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0909-
44 BOLT; BRKT
EURO5 SPECIFICATION(NT5) M10X35 FLANGE 		0-28651-035-0 02 1 0909-
44 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 12 1 0908-0908
44 BOLT; BRKT
EURO5 SPECIFICATION(NT5) M10X30 FLANGE 		0-28651-030-0 12 1 0909-
45 BOLT; BRKT
(B) M10X60 FLANGE 		0-28051-060-0 01 1 0908-
45 BOLT; BRKT
(B) M10X60 FLANGE 		0-28051-060-0 02 1 0908-
45 BOLT; BRKT
(A) M10X50 		0-10856-050-0 01 1 0908-0908
45 BOLT; BRKT
EURO5 SPECIFICATION(NT5) (A) M10X50 		0-10856-050-0 01 1 0909-
46 BOLT; BRKT,EXH PIPE
EURO2 SPECIFICATION(NT2) M10X35 FLANGE 		0-28651-035-0 06 1 0909-
52 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 0908-
52 NUT; BRKT
(B) M10 LOCK NUT 		0-91370-010-0 01 1 0908-
52 NUT; BRKT
(B) M10 LOCK NUT 		0-91370-010-0 02 1 0908-
52 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 13 1 0908-0908
52 NUT; BRKT
EURO5 SPECIFICATION(NT5) (A) M10 FLANGE 		0-91180-210-0 13 1 0909-
60 BRACKET; FRAME TO BRKT
EURO2 SPECIFICATION(NT2) (B) FRONT 		8-98117-587-1 01 1 0909-
60 BRACKET; FRAME TO BRKT
EURO2 SPECIFICATION(NT2) (B) REAR 		8-98117-588-0 01 1 0909-
60 BRACKET; FRAME TO BRKT
EURO2 SPECIFICATION(NT2) (D) 		8-98117-581-1 01 1 0909-
60 BRACKET; FRAME TO BRKT
(C) 		8-98055-632-0 01 1 0908-
60 BRACKET; FRAME TO BRKT
(A) 		1-22152-390-0 01 1 0908-0908
60 BRACKET; FRAME TO BRKT
EURO5 SPECIFICATION(NT5) (A) 		1-22152-390-0 01 1 0909-
60 BRACKET; FRAME TO BRKT
(F) 		1-22152-391-0 01 1 0908-0908
60 BRACKET; FRAME TO BRKT
EURO5 SPECIFICATION(NT5) (F) 		1-22152-391-0 01 1 0909-
60 BRACKET; FRAME TO BRKT
(B) 		1-22152-392-0 02 1 0908-0908
60 BRACKET; FRAME TO BRKT
EURO5 SPECIFICATION(NT5) (B) 		1-22152-392-0 02 1 0909-
60 BRACKET; FRAME TO BRKT
(D) 		8-98055-635-0 01 1 0908-0908
60 BRACKET; FRAME TO BRKT
EURO5 SPECIFICATION(NT5) (D) 		8-98055-635-0 01 1 0909-
60 BRACKET; FRAME TO BRKT
(E) 		8-98055-700-0 01 1 0908-0908
60 BRACKET; FRAME TO BRKT
EURO5 SPECIFICATION(NT5) (E) 		8-98055-700-0 01 1 0909-
70 BOLT; BRKT
EURO2 SPECIFICATION(NT2) M10X60 FLANGE 		0-28051-060-0 02 1 0909-
70 BOLT; BRKT
EURO2 SPECIFICATION(NT2) M10X35 FLANGE 		0-28651-035-0 02 1 0909-
70 BOLT; BRKT
M10X60 FLANGE 		0-28051-060-0 06 1 0908-0908
70 BOLT; BRKT
EURO5 SPECIFICATION(NT5) M10X60 FLANGE 		0-28051-060-0 06 1 0909-
70 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0908-0908
70 BOLT; BRKT
EURO5 SPECIFICATION(NT5) M8X30 FLANGE 		0-28650-830-0 02 1 0909-
70 BOLT; BRKT
M12X35 FLANGE 		0-28651-235-0 02 1 0908-0908
70 BOLT; BRKT
EURO5 SPECIFICATION(NT5) M12X35 FLANGE 		0-28651-235-0 02 1 0909-
81 NUT; BRKT
EURO2 SPECIFICATION(NT2) M10 FLANGE 		0-91180-210-0 02 1 0909-
81 NUT; BRKT
EURO2 SPECIFICATION(NT2) M10 LOCK NUT 		0-91370-010-0 02 1 0909-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0908-
81 NUT; BRKT
M12 FLANGE 		0-91180-212-0 02 1 0908-0908
81 NUT; BRKT
EURO5 SPECIFICATION(NT5) M12 FLANGE 		0-91180-212-0 02 1 0909-
81 NUT; BRKT
M10 LOCK NUT 		0-91370-010-0 06 1 0908-0908
81 NUT; BRKT
EURO5 SPECIFICATION(NT5) M10 LOCK NUT 		0-91370-010-0 06 1 0909-
121 WASHER; PL,BRKT
ID=10.5 OD=40 T=3.2 		8-98010-405-0 06 1 0908-0908
121 WASHER; PL,BRKT
ID=10.5 OD=40 T=3.2 		8-98010-405-0 03 1 0909-
121 WASHER; PL,BRKT
ID=10.5 OD=40 T=3.2 		8-98010-405-0 03 1 0908-0908
121 WASHER; PL,BRKT
ID=10.5 OD=40 T=3.2 		8-98010-405-0 06 1 0909-
121 WASHER; PL,BRKT
EURO2 SPECIFICATION(NT2) ID=10.5 OD=40 T=3.2 		8-98010-405-0 06 1 0909-
121 WASHER; PL,BRKT
ID=10.5 OD=40 T=3.2 		8-98010-405-0 21 1 0908-0908
121 WASHER; PL,BRKT
EURO5 SPECIFICATION(NT5) ID=10.5 OD=40 T=3.2 		8-98010-405-0 21 1 0909-
186 BOLT; BRKT TO ENG
EURO2 SPECIFICATION(NT2) M10X20 FLANGE 		0-28151-020-0 03 1 0909-
186 BOLT; BRKT TO ENG
M10X25 FLANGE 		0-28151-025-0 03 1 0908-0908
186 BOLT; BRKT TO ENG
EURO5 SPECIFICATION(NT5) M10X25 FLANGE 		0-28151-025-0 03 1 0909-
236 BOLT; PIPE CLAMP TO BRKT
M10X35 		0-20851-035-0 04 1 0908-0908
236 BOLT; PIPE CLAMP TO BRKT
EURO5 SPECIFICATION(NT5) M10X35 		0-20851-035-0 04 1 0909-
264 TUBE; DIST,SUPPORT RUBBER
EURO2 SPECIFICATION(NT2) (B) L=22 		9-22159-024-0 01 1 0909-0909
264 TUBE; DIST,SUPPORT RUBBER
(B) L=22 		9-22159-024-0 01 1 0910-
264 TUBE; DIST,SUPPORT RUBBER
EURO5 SPECIFICATION(NT5) (B) L=22 		9-22159-024-0 01 1 0910-
264 TUBE; DIST,SUPPORT RUBBER
(A) L=25 		1-14234-083-0 02 1 0908-
264 TUBE; DIST,SUPPORT RUBBER
(B) L=22 		1-22159-392-0 01 1 0908-0908
264 TUBE; DIST,SUPPORT RUBBER
MZW6P M/T(RSZ) (B) L=22 		1-22159-392-0 01 1 0908-0908
264 TUBE; DIST,SUPPORT RUBBER
EURO5 SPECIFICATION(NT5) (B) L=22 		1-22159-392-0 01 1 0909-0909
264 TUBE; DIST,SUPPORT RUBBER
EURO5 SPECIFICATION(NT5) (B) L=22 		1-22159-392-0 01 1 0909-0909
294 WASHER; PL,CLAMP TO BRKT,EXH PIPE
ID=10.5 		0-91610-510-0 04 1 0908-0908
294 WASHER; PL,CLAMP TO BRKT,EXH PIPE
EURO5 SPECIFICATION(NT5) ID=10.5 		0-91610-510-0 04 1 0909-
296 U-BOLT; FRT EXH PIPE
EURO2 SPECIFICATION(NT2) 		1-22113-101-0 01 1 0909-
296 U-BOLT; FRT EXH PIPE 1-22113-009-0 01 1 0908-0908
296 U-BOLT; FRT EXH PIPE
EURO5 SPECIFICATION(NT5) 		1-22113-009-0 01 1 0909-
297 NUT; U-BOLT,FRT EXH PIPE
M8 		0-91110-508-0 04 1 0908-
422 NUT; PIPE
M8 FLANGE 		0-91180-108-0 20 1 0908-0908
422 NUT; PIPE
EURO5 SPECIFICATION(NT5) M8 FLANGE 		0-91180-108-0 20 1 0909-
423 BOLT; PIPE
M8X35 FLANGE 		0-28650-835-0 20 1 0908-0908
423 BOLT; PIPE
EURO5 SPECIFICATION(NT5) M8X35 FLANGE 		0-28650-835-0 20 1 0909-
467 BOLT; PROTECTOR
M6X16 		8-98019-179-0 14 1 0908-0908
467 BOLT; PROTECTOR
EURO5 SPECIFICATION(NT5) M6X16 		8-98019-179-0 14 1 0909-
483 BOLT; BRKT,HEAT PROTECTOR
M8X30 FLANGE 		0-28650-830-0 02 1 0908-
484 NUT; BRKT,HEAT PROTECTOR
M8 FLANGE 		0-91180-108-0 02 1 0908-
529 NUT; BRKT,EXH PIPE
EURO2 SPECIFICATION(NT2) M10 FLANGE 		0-91180-210-0 06 1 0909-
534 BOLT; CLIP
M6X35 FLANGE 		0-28650-635-0 03 1 0908-0908
534 BOLT; CLIP
EURO5 SPECIFICATION(NT5) M6X35 FLANGE 		0-28650-635-0 03 1 0909-
542 BRACKET
EURO2 SPECIFICATION(NT2) 		8-98133-594-0 01 1 0909-
547 CLIP; PIPE
(A) 		8-97381-635-0 03 1 0908-0908
547 CLIP; PIPE
EURO5 SPECIFICATION(NT5) (A) 		8-97381-635-0 03 1 0909-
547 CLIP; PIPE
(B) 		8-97381-636-0 03 1 0908-0908
547 CLIP; PIPE
EURO5 SPECIFICATION(NT5) (B) 		8-97381-636-0 03 1 0909-
550 BRACKET; DPD
(A) 		8-97611-083-0 01 1 0908-0908
550 BRACKET; DPD
EURO5 SPECIFICATION(NT5) (A) 		8-97611-083-0 01 1 0909-
550 BRACKET; DPD
(B) 		8-97611-084-0 01 1 0908-0908
550 BRACKET; DPD
EURO5 SPECIFICATION(NT5) (B) 		8-97611-084-0 01 1 0909-
550 BRACKET; DPD
(C) 		8-97611-085-0 01 1 0908-0908
550 BRACKET; DPD
EURO5 SPECIFICATION(NT5) (C) 		8-97611-085-0 01 1 0909-
556 DPD ASM 8-97610-536-6 01 1 0908-0908
556 DPD ASM
EURO5 SPECIFICATION(NT5) 		8-97610-536-6 01 1 0909-1010
556 DPD ASM
EURO5 SPECIFICATION(NT5) 		8-97622-891-4 01 1 1011-
557 CATALYST ASM 8-97608-055-8 01 1 0908-0908
557 CATALYST ASM
EURO5 SPECIFICATION(NT5) 		8-97608-055-8 01 1 0909-
558 FILTER ASM 8-97608-057-3 01 1 0908-0908
558 FILTER ASM
EURO5 SPECIFICATION(NT5) 		8-97608-057-3 01 1 0909-
559 COVER; RR 8-97611-078-0 01 1 0908-0908
559 COVER; RR
EURO5 SPECIFICATION(NT5) 		8-97611-078-0 01 1 0909-1010
559 COVER; RR
EURO5 SPECIFICATION(NT5) 		8-97622-887-0 01 1 1011-
560 GASKET; DPD 8-97611-080-0 02 1 0908-0908
560 GASKET; DPD
EURO5 SPECIFICATION(NT5) 		8-97611-080-0 02 1 0909-
561 PIPE; DPD
(A) 		8-97613-324-0 01 1 0908-0908
561 PIPE; DPD
EURO5 SPECIFICATION(NT5) (A) 		8-97613-324-0 01 1 0909-1010
561 PIPE; DPD
EURO5 SPECIFICATION(NT5) (A) 		8-97622-892-0 01 1 1011-
561 PIPE; DPD
(B) 		8-97613-325-0 01 1 0908-0908
561 PIPE; DPD
EURO5 SPECIFICATION(NT5) (B) 		8-97613-325-0 01 1 0909-1010
561 PIPE; DPD
EURO5 SPECIFICATION(NT5) (B) 		8-97622-893-0 01 1 1011-
601 MOUNTING 8-98055-817-0 04 1 0908-0908
601 MOUNTING 8-98055-817-0 02 1 0909-
601 MOUNTING 8-98055-817-0 02 1 0908-0908
601 MOUNTING 8-98055-817-0 04 1 0909-
601 MOUNTING
EURO2 SPECIFICATION(NT2) 		8-98055-817-0 04 1 0909-
601 MOUNTING 8-98055-817-0 14 1 0908-0908
601 MOUNTING
EURO5 SPECIFICATION(NT5) 		8-98055-817-0 14 1 0909-
607 WASHER; BRKT
OD=32 T=6.0 		8-94416-693-0 02 1 0908-0908
607 WASHER; BRKT
EURO5 SPECIFICATION(NT5) OD=32 T=6.0 		8-94416-693-0 02 1 0909-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
