◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 10794 - LT(TAIWAN) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-55 - FRONT LEAF SPRING ▶
4-55 — FRONT LEAF SPRING (#6879) — 267 parça

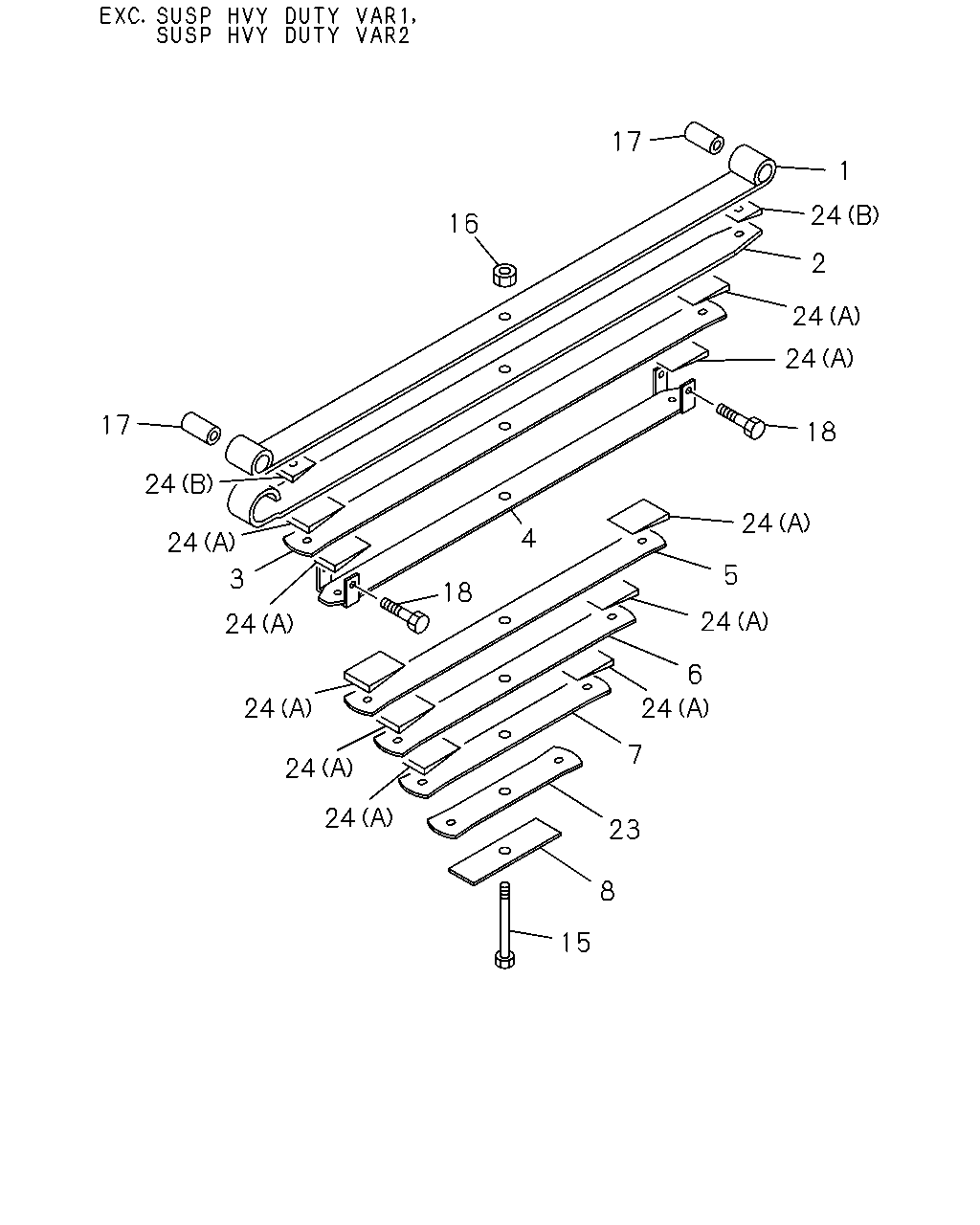

çizim 26721
17 1 24 16 2 24 24 17 18 24 24 4 24 5 3 18 24 24 6 24 24 7 24 24 23 8 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
8 LEAF ASM PART: B = 1-51130-628-0 		1-51111-822-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
9 LEAF ASM PART: C = 1-51130-629-0 		1-51111-824-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
8 LEAF ASM PART: D = 1-51130-630-0 		1-51111-825-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
9 LEAF ASM PART: A = 1-51130-456-1 		1-51131-456-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
8 LEAF ASM PART: E = 1-51130-656-0 		1-51131-656-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
8 LEAF ASM PART: F = 8-97530-528-1 		8-97531-122-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
8 LEAF ASM PART: B = 1-51130-628-0 		1-51112-822-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
9 LEAF ASM PART: C = 1-51130-629-0 		1-51112-824-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
8 LEAF ASM PART: D = 1-51130-630-0 		1-51112-825-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
9 LEAF ASM PART: A = 1-51130-456-1 		1-51132-456-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
8 LEAF ASM PART: E = 1-51130-656-0 		1-51132-656-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
8 LEAF ASM PART: F = 8-97530-528-1 		8-97531-123-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
8 LEAF ASM PART: B = 1-51130-628-0 		1-51113-822-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
9 LEAF ASM PART: C = 1-51130-629-0 		1-51113-824-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
8 LEAF ASM PART: D = 1-51130-630-0 		1-51113-825-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
9 LEAF ASM PART: A = 1-51130-456-1 		1-51133-456-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
8 LEAF ASM PART: E = 1-51130-656-0 		1-51133-656-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
8 LEAF ASM PART: F = 8-97530-528-1 		8-97531-124-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
8 LEAF ASM PART: B = 1-51130-628-0 		1-51114-822-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
9 LEAF ASM PART: C = 1-51130-629-0 		1-51114-824-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
8 LEAF ASM PART: D = 1-51130-630-0 		1-51114-825-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
9 LEAF ASM PART: A = 1-51130-456-1 		1-51134-456-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
8 LEAF ASM PART: E = 1-51130-656-0 		1-51134-656-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
8 LEAP ASM PART: F = 8-97530-528-1 		8-97531-125-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
8 LEAF ASM PART: B = 1-51130-628-0 		1-51115-822-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
9 LEAF ASM PART: C = 1-51130-629-0 		1-51115-824-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
8 LEAF ASM PART: D = 1-51130-630-0 		1-51115-825-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
9 LEAF ASM PART: A = 1-51130-456-1 		1-51135-456-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
8 LEAF ASM PART: E = 1-51130-656-0 		1-51135-656-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
8 LEAF ASM PART: F = 8-97530-528-1 		8-97531-126-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
8 LEAF ASM PART: B = 1-51130-628-0 		1-51116-822-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
9 LEAF ASM PART: C = 1-51130-629-0 		1-51116-824-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
8 LEAF ASM PART: D = 1-51130-630-0 		1-51116-825-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
9 LEAF ASM PART: A = 1-51130-456-1 		1-51136-456-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
8 LEAF ASM PART: E = 1-51130-656-0 		1-51136-656-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
8 LEAF ASM PART: F = 8-97530-528-1 		8-97531-127-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
8 LEAF ASM PART: B = 1-51130-628-0 		1-51117-822-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
9 LEAF ASM PART: C = 1-51130-629-0 		1-51117-824-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
8 LEAF ASM PART: D = 1-51130-630-0 		1-51117-825-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
9 LEAF ASM PART: A = 1-51130-456-1 		1-51137-456-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
8 LEAF ASM PART: E = 1-51130-656-0 		1-51137-656-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
8 LEAF ASM PART: F = 8-97530-528-1 		8-97531-128-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
8 LEAF ASM PART: B = 1-51130-628-0 		1-51118-822-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
9 LEAF ASM PART: C = 1-51130-629-0 		1-51118-824-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
8 LEAF ASM PART: D = 1-51130-630-0 		1-51118-825-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
9 LEAF ASM PART: A = 1-51130-456-1 		1-51138-456-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
8 LEAF ASM PART: E = 1-51130-656-0 		1-51138-656-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
8 LEAF ASM PART: F = 8-97530-528-1 		8-97531-129-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=145 ASM PART: A = 1-51130-456-1 		1-51156-250-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=120 ASM PART: B = 1-51130-628-0 		1-51156-382-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=130 ASM PART: D = 1-51130-630-0, F = 8-97530-528-1 		1-51156-383-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=135 ASM PART: C = 1-51130-629-0, E = 1-51130-656-0 		1-51156-384-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 1-51130-456-1, B = 1-51130-628-0, C = 1-51130-629-0, D = 1-51130-630-0, E = 1-51130-656-0, F = 8-97530-528-1 		1-09400-054-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: F = 8-97530-528-1 		1-51351-009-0 02 1 -0001
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: A = 1-51130-456-1, B = 1-51130-628-0, C = 1-51130-629-0, D = 1-51130-630-0, E = 1-51130-656-0 		1-51351-030-0 02 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: F = 8-97530-528-1 		1-51351-030-0 02 1 0002-
18 BOLT; CLIP,LEAF SPR,FRT
M10X99 ASM PART: C = 1-51130-629-0 		1-09000-328-0 03 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X99 ASM PART: B = 1-51130-628-0, D = 1-51130-630-0, F = 8-97530-528-1 		1-09000-328-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X105 ASM PART: A = 1-51130-456-1 		1-09000-391-0 04 1 -
18 BOLT; CLIP,LEAF SPR,FRT
ASM PART: E = 1-51130-656-0 		9-09801-223-0 04 1 -
23 SPRING; LEAF,INTER
ASM PART: D = 1-51130-630-0, F = 8-97530-528-1 		1-51159-042-0 01 1 -
23 SPRING; LEAF,INTER
ASM PART: E = 1-51130-656-0 		1-51179-016-0 01 1 -
24 LINER; LEAF SPR,FWD FRT
(A) ASM PART: D = 1-51130-630-0, F = 8-97530-528-1 		1-51159-022-0 10 1 -
24 LINER; LEAF SPR,FWD FRT
(A) ASM PART: E = 1-51130-656-0 		1-51159-022-0 08 1 -
24 LINER; LEAF SPR,FWD FRT
(B) ASM PART: E = 1-51130-656-0 		1-51159-023-0 04 1 -
24 LINER; LEAF SPR,FWD FRT
(B) ASM PART: D = 1-51130-630-0 		1-51159-023-0 02 1 -
24 LINER; LEAF SPR,FWD FRT
(B) ASM PART: F = 8-97530-528-1 		1-51159-061-0 02 1 -
çizim 26792
17 1 16 2 3 26 31 18 17 30 4 31 5 18 30 26 26 18 31 30 31 30 18 6 26 7 8 9 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
8 LEAF ASM PART: B = 1-51130-628-0 		1-51111-822-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
9 LEAF ASM PART: C = 1-51130-629-0 		1-51111-824-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
8 LEAF ASM PART: D = 1-51130-630-0 		1-51111-825-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
9 LEAF ASM PART: A = 1-51130-456-1 		1-51131-456-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
8 LEAF ASM PART: E = 1-51130-656-0 		1-51131-656-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
8 LEAF ASM PART: F = 8-97530-528-1 		8-97531-122-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
8 LEAF ASM PART: B = 1-51130-628-0 		1-51112-822-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
9 LEAF ASM PART: C = 1-51130-629-0 		1-51112-824-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
8 LEAF ASM PART: D = 1-51130-630-0 		1-51112-825-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
9 LEAF ASM PART: A = 1-51130-456-1 		1-51132-456-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
8 LEAF ASM PART: E = 1-51130-656-0 		1-51132-656-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
8 LEAF ASM PART: F = 8-97530-528-1 		8-97531-123-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
8 LEAF ASM PART: B = 1-51130-628-0 		1-51113-822-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
9 LEAF ASM PART: C = 1-51130-629-0 		1-51113-824-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
8 LEAF ASM PART: D = 1-51130-630-0 		1-51113-825-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
9 LEAF ASM PART: A = 1-51130-456-1 		1-51133-456-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
8 LEAF ASM PART: E = 1-51130-656-0 		1-51133-656-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
8 LEAF ASM PART: F = 8-97530-528-1 		8-97531-124-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
8 LEAF ASM PART: B = 1-51130-628-0 		1-51114-822-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
9 LEAF ASM PART: C = 1-51130-629-0 		1-51114-824-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
8 LEAF ASM PART: D = 1-51130-630-0 		1-51114-825-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
9 LEAF ASM PART: A = 1-51130-456-1 		1-51134-456-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
8 LEAF ASM PART: E = 1-51130-656-0 		1-51134-656-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
8 LEAP ASM PART: F = 8-97530-528-1 		8-97531-125-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
8 LEAF ASM PART: B = 1-51130-628-0 		1-51115-822-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
9 LEAF ASM PART: C = 1-51130-629-0 		1-51115-824-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
8 LEAF ASM PART: D = 1-51130-630-0 		1-51115-825-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
9 LEAF ASM PART: A = 1-51130-456-1 		1-51135-456-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
8 LEAF ASM PART: E = 1-51130-656-0 		1-51135-656-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
8 LEAF ASM PART: F = 8-97530-528-1 		8-97531-126-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
8 LEAF ASM PART: B = 1-51130-628-0 		1-51116-822-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
9 LEAF ASM PART: C = 1-51130-629-0 		1-51116-824-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
8 LEAF ASM PART: D = 1-51130-630-0 		1-51116-825-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
9 LEAF ASM PART: A = 1-51130-456-1 		1-51136-456-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
8 LEAF ASM PART: E = 1-51130-656-0 		1-51136-656-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
8 LEAF ASM PART: F = 8-97530-528-1 		8-97531-127-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
8 LEAF ASM PART: B = 1-51130-628-0 		1-51117-822-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
9 LEAF ASM PART: C = 1-51130-629-0 		1-51117-824-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
8 LEAF ASM PART: D = 1-51130-630-0 		1-51117-825-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
9 LEAF ASM PART: A = 1-51130-456-1 		1-51137-456-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
8 LEAF ASM PART: E = 1-51130-656-0 		1-51137-656-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
8 LEAF ASM PART: F = 8-97530-528-1 		8-97531-128-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
8 LEAF ASM PART: B = 1-51130-628-0 		1-51118-822-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
9 LEAF ASM PART: C = 1-51130-629-0 		1-51118-824-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
8 LEAF ASM PART: D = 1-51130-630-0 		1-51118-825-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
9 LEAF ASM PART: A = 1-51130-456-1 		1-51138-456-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
8 LEAF ASM PART: E = 1-51130-656-0 		1-51138-656-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
8 LEAF ASM PART: F = 8-97530-528-1 		8-97531-129-0 01 1 -
9 SPRING; LEAF,NO 9,FRT
9 LEAF ASM PART: C = 1-51130-629-0 		1-51119-824-0 01 1 -
9 SPRING; LEAF,NO 9,FRT
9 LEAF ASM PART: A = 1-51130-456-1 		1-51139-456-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=145 ASM PART: A = 1-51130-456-1 		1-51156-250-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=120 ASM PART: B = 1-51130-628-0 		1-51156-382-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=130 ASM PART: D = 1-51130-630-0, F = 8-97530-528-1 		1-51156-383-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=135 ASM PART: C = 1-51130-629-0, E = 1-51130-656-0 		1-51156-384-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 1-51130-456-1, B = 1-51130-628-0, C = 1-51130-629-0, D = 1-51130-630-0, E = 1-51130-656-0, F = 8-97530-528-1 		1-09400-054-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: F = 8-97530-528-1 		1-51351-009-0 02 1 -0001
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: A = 1-51130-456-1, B = 1-51130-628-0, C = 1-51130-629-0, D = 1-51130-630-0, E = 1-51130-656-0 		1-51351-030-0 02 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: F = 8-97530-528-1 		1-51351-030-0 02 1 0002-
18 BOLT; CLIP,LEAF SPR,FRT
M10X99 ASM PART: C = 1-51130-629-0 		1-09000-328-0 03 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X99 ASM PART: B = 1-51130-628-0, D = 1-51130-630-0, F = 8-97530-528-1 		1-09000-328-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X105 ASM PART: A = 1-51130-456-1 		1-09000-391-0 04 1 -
18 BOLT; CLIP,LEAF SPR,FRT
ASM PART: E = 1-51130-656-0 		9-09801-223-0 04 1 -
26 PIPE; CLIP,LEAF SPR,FRT
ASM PART: A = 1-51130-456-1 		1-51353-009-0 04 1 -
26 PIPE; CLIP,LEAF SPR,FRT
ASM PART: E = 1-51130-656-0 		9-51153-009-0 04 1 -
30 WASHER; CLIP,LEAF SPR,FRT
ID=8.2 ASM PART: A = 1-51130-456-1 		9-09150-508-0 04 1 -
31 NUT; CLIP
M8 ASM PART: A = 1-51130-456-1 		9-09110-008-0 04 1 -
31 NUT; CLIP
M10 ASM PART: E = 1-51130-656-0 		9-09110-010-0 04 1 -

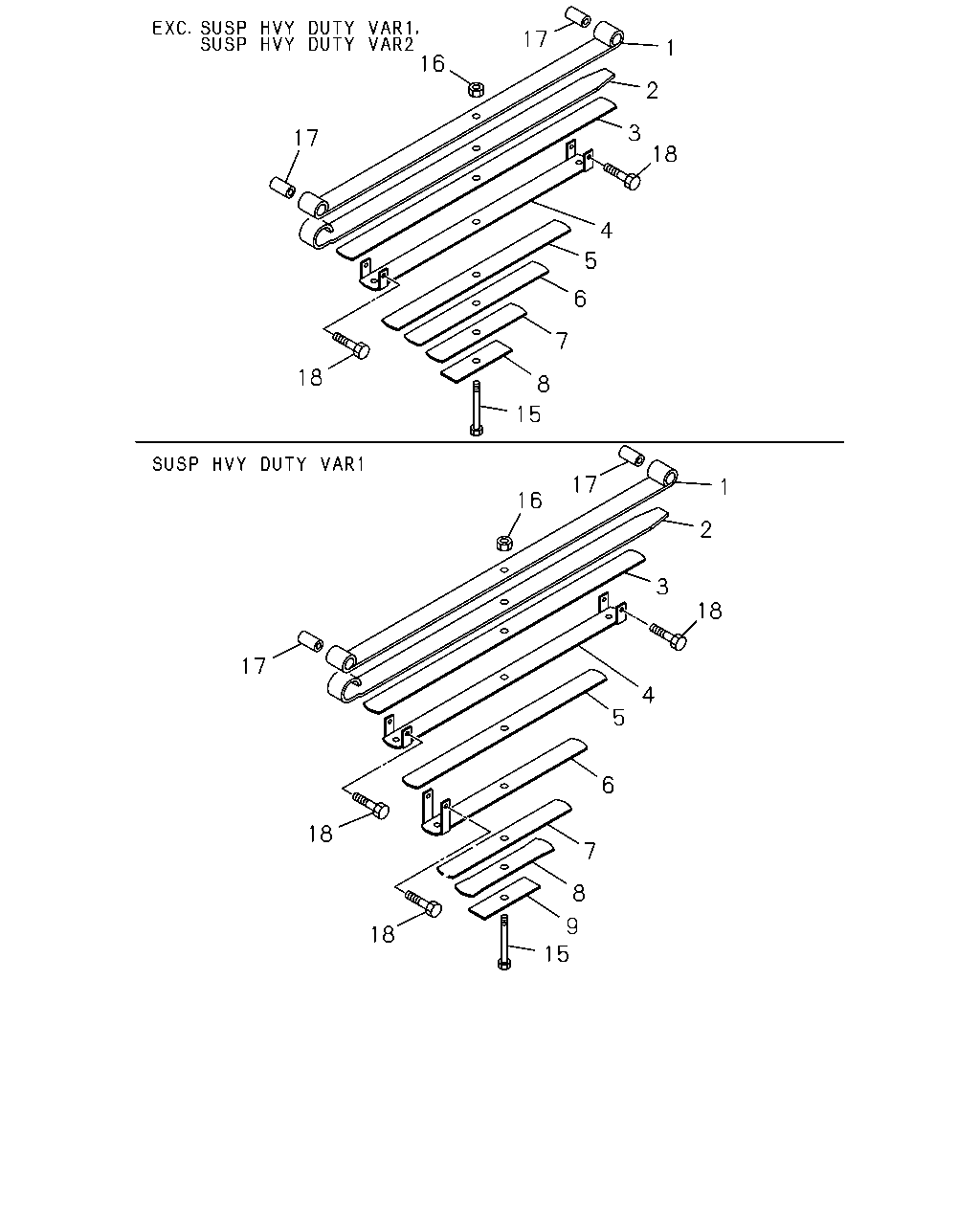

çizim 27034
16 17 1 2 3 17 18 4 5 6 7 18 8 15 17 1 16 2 3 18 17 4 5 6 18 7 8 9 15 18
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
8 LEAF ASM PART: B = 1-51130-628-0 		1-51111-822-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
9 LEAF ASM PART: C = 1-51130-629-0 		1-51111-824-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
8 LEAF ASM PART: D = 1-51130-630-0 		1-51111-825-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
9 LEAF ASM PART: A = 1-51130-456-1 		1-51131-456-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
8 LEAF ASM PART: E = 1-51130-656-0 		1-51131-656-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
8 LEAF ASM PART: F = 8-97530-528-1 		8-97531-122-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
8 LEAF ASM PART: B = 1-51130-628-0 		1-51112-822-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
9 LEAF ASM PART: C = 1-51130-629-0 		1-51112-824-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
8 LEAF ASM PART: D = 1-51130-630-0 		1-51112-825-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
9 LEAF ASM PART: A = 1-51130-456-1 		1-51132-456-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
8 LEAF ASM PART: E = 1-51130-656-0 		1-51132-656-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
8 LEAF ASM PART: F = 8-97530-528-1 		8-97531-123-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
8 LEAF ASM PART: B = 1-51130-628-0 		1-51113-822-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
9 LEAF ASM PART: C = 1-51130-629-0 		1-51113-824-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
8 LEAF ASM PART: D = 1-51130-630-0 		1-51113-825-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
9 LEAF ASM PART: A = 1-51130-456-1 		1-51133-456-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
8 LEAF ASM PART: E = 1-51130-656-0 		1-51133-656-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
8 LEAF ASM PART: F = 8-97530-528-1 		8-97531-124-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
8 LEAF ASM PART: B = 1-51130-628-0 		1-51114-822-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
9 LEAF ASM PART: C = 1-51130-629-0 		1-51114-824-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
8 LEAF ASM PART: D = 1-51130-630-0 		1-51114-825-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
9 LEAF ASM PART: A = 1-51130-456-1 		1-51134-456-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
8 LEAF ASM PART: E = 1-51130-656-0 		1-51134-656-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
8 LEAP ASM PART: F = 8-97530-528-1 		8-97531-125-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
8 LEAF ASM PART: B = 1-51130-628-0 		1-51115-822-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
9 LEAF ASM PART: C = 1-51130-629-0 		1-51115-824-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
8 LEAF ASM PART: D = 1-51130-630-0 		1-51115-825-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
9 LEAF ASM PART: A = 1-51130-456-1 		1-51135-456-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
8 LEAF ASM PART: E = 1-51130-656-0 		1-51135-656-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
8 LEAF ASM PART: F = 8-97530-528-1 		8-97531-126-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
8 LEAF ASM PART: B = 1-51130-628-0 		1-51116-822-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
9 LEAF ASM PART: C = 1-51130-629-0 		1-51116-824-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
8 LEAF ASM PART: D = 1-51130-630-0 		1-51116-825-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
9 LEAF ASM PART: A = 1-51130-456-1 		1-51136-456-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
8 LEAF ASM PART: E = 1-51130-656-0 		1-51136-656-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
8 LEAF ASM PART: F = 8-97530-528-1 		8-97531-127-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
8 LEAF ASM PART: B = 1-51130-628-0 		1-51117-822-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
9 LEAF ASM PART: C = 1-51130-629-0 		1-51117-824-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
8 LEAF ASM PART: D = 1-51130-630-0 		1-51117-825-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
9 LEAF ASM PART: A = 1-51130-456-1 		1-51137-456-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
8 LEAF ASM PART: E = 1-51130-656-0 		1-51137-656-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
8 LEAF ASM PART: F = 8-97530-528-1 		8-97531-128-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
8 LEAF ASM PART: B = 1-51130-628-0 		1-51118-822-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
9 LEAF ASM PART: C = 1-51130-629-0 		1-51118-824-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
8 LEAF ASM PART: D = 1-51130-630-0 		1-51118-825-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
9 LEAF ASM PART: A = 1-51130-456-1 		1-51138-456-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
8 LEAF ASM PART: E = 1-51130-656-0 		1-51138-656-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
8 LEAF ASM PART: F = 8-97530-528-1 		8-97531-129-0 01 1 -
9 SPRING; LEAF,NO 9,FRT
9 LEAF ASM PART: C = 1-51130-629-0 		1-51119-824-0 01 1 -
9 SPRING; LEAF,NO 9,FRT
9 LEAF ASM PART: A = 1-51130-456-1 		1-51139-456-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=145 ASM PART: A = 1-51130-456-1 		1-51156-250-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=120 ASM PART: B = 1-51130-628-0 		1-51156-382-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=130 ASM PART: D = 1-51130-630-0, F = 8-97530-528-1 		1-51156-383-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=135 ASM PART: C = 1-51130-629-0, E = 1-51130-656-0 		1-51156-384-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 1-51130-456-1, B = 1-51130-628-0, C = 1-51130-629-0, D = 1-51130-630-0, E = 1-51130-656-0, F = 8-97530-528-1 		1-09400-054-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: F = 8-97530-528-1 		1-51351-009-0 02 1 -0001
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: A = 1-51130-456-1, B = 1-51130-628-0, C = 1-51130-629-0, D = 1-51130-630-0, E = 1-51130-656-0 		1-51351-030-0 02 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: F = 8-97530-528-1 		1-51351-030-0 02 1 0002-
18 BOLT; CLIP,LEAF SPR,FRT
M10X99 ASM PART: C = 1-51130-629-0 		1-09000-328-0 03 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X99 ASM PART: B = 1-51130-628-0, D = 1-51130-630-0, F = 8-97530-528-1 		1-09000-328-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X105 ASM PART: A = 1-51130-456-1 		1-09000-391-0 04 1 -
18 BOLT; CLIP,LEAF SPR,FRT
ASM PART: E = 1-51130-656-0 		9-09801-223-0 04 1 -

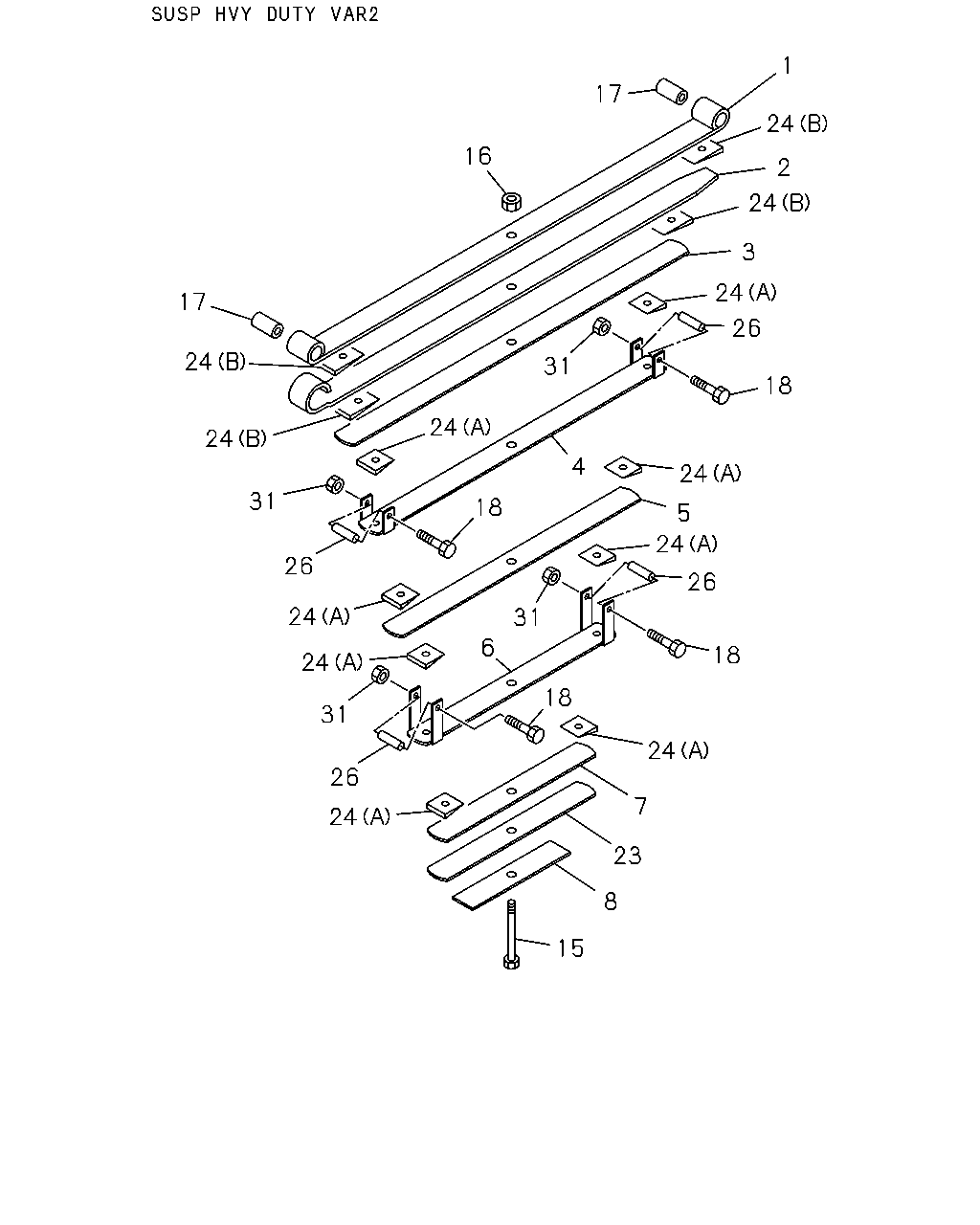

çizim 99244
1 17 24 16 2 24 3 24 17 26 24 31 18 24 24 4 24 31 18 5 24 26 26 24 31 6 18 24 18 31 24 26 7 24 23 8 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
8 LEAF ASM PART: B = 1-51130-628-0 		1-51111-822-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
9 LEAF ASM PART: C = 1-51130-629-0 		1-51111-824-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
8 LEAF ASM PART: D = 1-51130-630-0 		1-51111-825-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
9 LEAF ASM PART: A = 1-51130-456-1 		1-51131-456-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
8 LEAF ASM PART: E = 1-51130-656-0 		1-51131-656-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
8 LEAF ASM PART: F = 8-97530-528-1 		8-97531-122-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
8 LEAF ASM PART: B = 1-51130-628-0 		1-51112-822-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
9 LEAF ASM PART: C = 1-51130-629-0 		1-51112-824-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
8 LEAF ASM PART: D = 1-51130-630-0 		1-51112-825-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
9 LEAF ASM PART: A = 1-51130-456-1 		1-51132-456-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
8 LEAF ASM PART: E = 1-51130-656-0 		1-51132-656-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
8 LEAF ASM PART: F = 8-97530-528-1 		8-97531-123-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
8 LEAF ASM PART: B = 1-51130-628-0 		1-51113-822-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
9 LEAF ASM PART: C = 1-51130-629-0 		1-51113-824-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
8 LEAF ASM PART: D = 1-51130-630-0 		1-51113-825-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
9 LEAF ASM PART: A = 1-51130-456-1 		1-51133-456-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
8 LEAF ASM PART: E = 1-51130-656-0 		1-51133-656-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
8 LEAF ASM PART: F = 8-97530-528-1 		8-97531-124-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
8 LEAF ASM PART: B = 1-51130-628-0 		1-51114-822-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
9 LEAF ASM PART: C = 1-51130-629-0 		1-51114-824-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
8 LEAF ASM PART: D = 1-51130-630-0 		1-51114-825-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
9 LEAF ASM PART: A = 1-51130-456-1 		1-51134-456-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
8 LEAF ASM PART: E = 1-51130-656-0 		1-51134-656-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
8 LEAP ASM PART: F = 8-97530-528-1 		8-97531-125-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
8 LEAF ASM PART: B = 1-51130-628-0 		1-51115-822-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
9 LEAF ASM PART: C = 1-51130-629-0 		1-51115-824-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
8 LEAF ASM PART: D = 1-51130-630-0 		1-51115-825-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
9 LEAF ASM PART: A = 1-51130-456-1 		1-51135-456-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
8 LEAF ASM PART: E = 1-51130-656-0 		1-51135-656-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
8 LEAF ASM PART: F = 8-97530-528-1 		8-97531-126-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
8 LEAF ASM PART: B = 1-51130-628-0 		1-51116-822-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
9 LEAF ASM PART: C = 1-51130-629-0 		1-51116-824-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
8 LEAF ASM PART: D = 1-51130-630-0 		1-51116-825-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
9 LEAF ASM PART: A = 1-51130-456-1 		1-51136-456-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
8 LEAF ASM PART: E = 1-51130-656-0 		1-51136-656-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
8 LEAF ASM PART: F = 8-97530-528-1 		8-97531-127-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
8 LEAF ASM PART: B = 1-51130-628-0 		1-51117-822-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
9 LEAF ASM PART: C = 1-51130-629-0 		1-51117-824-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
8 LEAF ASM PART: D = 1-51130-630-0 		1-51117-825-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
9 LEAF ASM PART: A = 1-51130-456-1 		1-51137-456-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
8 LEAF ASM PART: E = 1-51130-656-0 		1-51137-656-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
8 LEAF ASM PART: F = 8-97530-528-1 		8-97531-128-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
8 LEAF ASM PART: B = 1-51130-628-0 		1-51118-822-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
9 LEAF ASM PART: C = 1-51130-629-0 		1-51118-824-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
8 LEAF ASM PART: D = 1-51130-630-0 		1-51118-825-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
9 LEAF ASM PART: A = 1-51130-456-1 		1-51138-456-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
8 LEAF ASM PART: E = 1-51130-656-0 		1-51138-656-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
8 LEAF ASM PART: F = 8-97530-528-1 		8-97531-129-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=145 ASM PART: A = 1-51130-456-1 		1-51156-250-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=120 ASM PART: B = 1-51130-628-0 		1-51156-382-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=130 ASM PART: D = 1-51130-630-0, F = 8-97530-528-1 		1-51156-383-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=135 ASM PART: C = 1-51130-629-0, E = 1-51130-656-0 		1-51156-384-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 1-51130-456-1, B = 1-51130-628-0, C = 1-51130-629-0, D = 1-51130-630-0, E = 1-51130-656-0, F = 8-97530-528-1 		1-09400-054-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: F = 8-97530-528-1 		1-51351-009-0 02 1 -0001
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: A = 1-51130-456-1, B = 1-51130-628-0, C = 1-51130-629-0, D = 1-51130-630-0, E = 1-51130-656-0 		1-51351-030-0 02 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: F = 8-97530-528-1 		1-51351-030-0 02 1 0002-
18 BOLT; CLIP,LEAF SPR,FRT
M10X99 ASM PART: C = 1-51130-629-0 		1-09000-328-0 03 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X99 ASM PART: B = 1-51130-628-0, D = 1-51130-630-0, F = 8-97530-528-1 		1-09000-328-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X105 ASM PART: A = 1-51130-456-1 		1-09000-391-0 04 1 -
18 BOLT; CLIP,LEAF SPR,FRT
ASM PART: E = 1-51130-656-0 		9-09801-223-0 04 1 -
23 SPRING; LEAF,INTER
ASM PART: D = 1-51130-630-0, F = 8-97530-528-1 		1-51159-042-0 01 1 -
23 SPRING; LEAF,INTER
ASM PART: E = 1-51130-656-0 		1-51179-016-0 01 1 -
24 LINER; LEAF SPR,FWD FRT
(A) ASM PART: D = 1-51130-630-0, F = 8-97530-528-1 		1-51159-022-0 10 1 -
24 LINER; LEAF SPR,FWD FRT
(A) ASM PART: E = 1-51130-656-0 		1-51159-022-0 08 1 -
24 LINER; LEAF SPR,FWD FRT
(B) ASM PART: E = 1-51130-656-0 		1-51159-023-0 04 1 -
24 LINER; LEAF SPR,FWD FRT
(B) ASM PART: D = 1-51130-630-0 		1-51159-023-0 02 1 -
24 LINER; LEAF SPR,FWD FRT
(B) ASM PART: F = 8-97530-528-1 		1-51159-061-0 02 1 -
26 PIPE; CLIP,LEAF SPR,FRT
ASM PART: A = 1-51130-456-1 		1-51353-009-0 04 1 -
26 PIPE; CLIP,LEAF SPR,FRT
ASM PART: E = 1-51130-656-0 		9-51153-009-0 04 1 -
31 NUT; CLIP
M8 ASM PART: A = 1-51130-456-1 		9-09110-008-0 04 1 -
31 NUT; CLIP
M10 ASM PART: E = 1-51130-656-0 		9-09110-010-0 04 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
