4-50 — FRONT SUSPENSION (#6878) — 206 parça

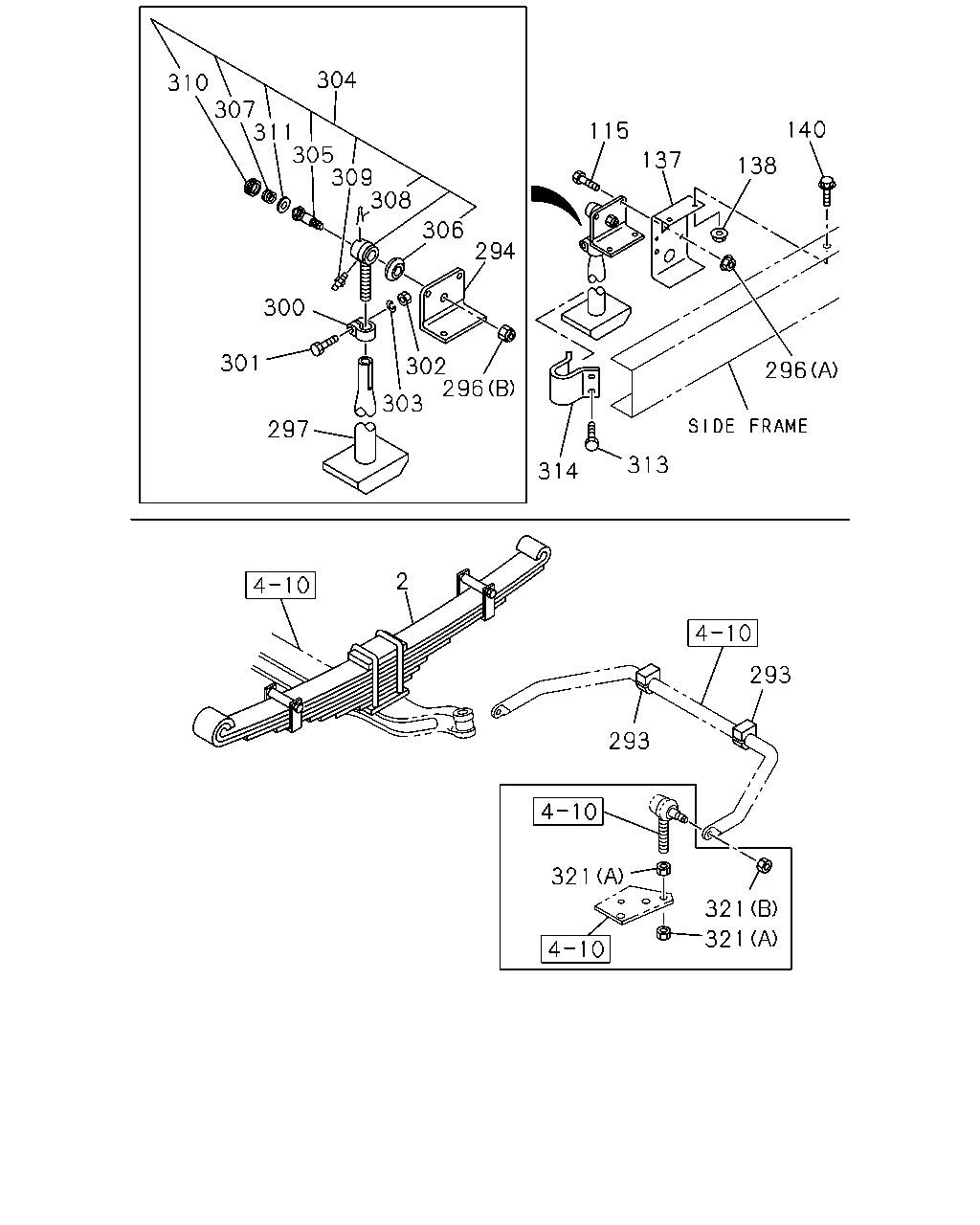

çizim 26048
304 310 307 311 305 309 308 140 115 137 138 306 294 300 301 302 296 296 303 297 313 314 293 293 321 321 321 2
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. LEAF SPR W/SILENT LINER<C1N> SUSP HVY DUTY VAR2<F41> 8 LEAF 		1-51130-656-0 02 1 9901-9911
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. SUSP HVY DUTY VAR2<F41> 8 LEAF 		1-51130-656-0 02 1 9912-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WB 5000MM(50W),WB 5700MM(57W) LEAF SPR W/SILENT LINER<C1N> EXC. SUSP HVY DUTY VAR1<F40> 8 LEAF 		1-51130-630-0 02 1 9806-9808
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. LEAF SPR W/SILENT LINER<C1N> EXC. SUSP HVY DUTY VAR1<F40>,SUSP HVY DUTY VAR2<F41> 8 LEAF 		1-51130-630-0 02 1 9809-9911
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. SUSP HVY DUTY VAR2<F41> 8 LEAF 		8-97530-528-1 02 1 9912-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WB 5000MM(50W),WB 5700MM(57W) EXC. LEAF SPR W/SILENT LINER<C1N>,SUSP HVY DUTY VAR1<F40> 8 LEAF 		1-51130-628-0 02 1 9806-9808
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. LEAF SPR W/SILENT LINER<C1N>,SUSP HVY DUTY VAR1<F40>,SUSP HVY DUTY VAR2<F41> 8 LEAF 		1-51130-628-0 02 1 9809-9911
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WB 5000MM(50W),WB 5700MM(57W) SUSP HVY DUTY VAR1<F40> EXC. LEAF SPR W/SILENT LINER<C1N> 9 LEAF 		1-51130-629-0 02 1 9806-9808
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. SUSP HVY DUTY VAR1<F40> EXC. LEAF SPR W/SILENT LINER<C1N> 9 LEAF 		1-51130-629-0 02 1 9809-9911
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WB 6300MM(63W) EXC. LEAF SPR W/SILENT LINER<C1N> 9 LEAF 		1-51130-456-1 02 1 9806-9808
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. SUSP HVY DUTY VAR2<F41> EXC. LEAF SPR W/SILENT LINER<C1N> 9 LEAF 		1-51130-456-1 02 1 9809-9911
115 BOLT; SUPPORT BRKT TO BODY
STAB SHF<FE6> M12X35 FLANGE 		0-28681-235-0 04 1 0001-0103
115 BOLT; SUPPORT BRKT TO BODY
STAB SHF<FE6> M12X35 FLANGE 		0-28081-235-0 08 1 0104-0306
115 BOLT; SUPPORT BRKT TO BODY
STAB SHF<FE6> M12X40 FLANGE 		0-28681-240-0 04 1 0001-0103
115 BOLT; SUPPORT BRKT TO BODY
STAB SHF<FE6> M12X35 FLANGE 		0-28681-235-0 04 1 9806-9911
115 BOLT; SUPPORT BRKT TO BODY
FRT STAB SHF<F59> M12X35 FLANGE 		0-28681-235-0 04 1 9806-9911
115 BOLT; SUPPORT BRKT TO BODY
STAB SHF<FE6> M12X40 FLANGE 		0-28681-240-0 04 1 9806-9911
115 BOLT; SUPPORT BRKT TO BODY
FRT STAB SHF<F59> M12X40 FLANGE 		0-28681-240-0 04 1 9806-9911
137 BRACKET; STAB BAR TO FRAME
STAB SHF<FE6> 		1-51781-134-0 01 1 0307-
137 BRACKET; STAB BAR TO FRAME
STAB SHF<FE6> 		1-51781-020-4 02 1 0001-0306
137 BRACKET; STAB BAR TO FRAME
STAB SHF<FE6> 		1-51781-112-0 01 1 0307-
137 BRACKET; STAB BAR TO FRAME
STAB SHF<FE6> 		1-51781-020-4 02 1 9806-9911
137 BRACKET; STAB BAR TO FRAME
FRT STAB SHF<F59> 		1-51781-020-4 02 1 9806-9911
138 NUT; BRKT
STAB SHF<FE6> M12 FLANGE 		0-91150-212-0 04 1 0001-0306
138 NUT; BRKT
STAB SHF<FE6> M14 		9-99110-514-0 08 1 0307-0512
138 NUT; BRKT
STAB SHF<FE6> M14 		0-91110-514-0 08 1 0601-
138 NUT; BRKT
STAB SHF<FE6> M12 FLANGE 		0-91150-212-0 04 1 9806-9911
138 NUT; BRKT
FRT STAB SHF<F59> M12 FLANGE 		0-91150-212-0 04 1 9806-9911
140 BOLT; BRKT
STAB SHF<FE6> M12X35 FLANGE 		0-28681-235-0 04 1 0001-0103
140 BOLT; BRKT
STAB SHF<FE6> M12X35 FLANGE 		0-28081-235-0 04 1 0104-0301
140 BOLT; BRKT
STAB SHF<FE6> M12X30 FLANGE 		0-28681-230-0 04 1 0302-0306
140 BOLT; BRKT
STAB SHF<FE6> M14X45 		0-20801-445-0 08 1 0307-
140 BOLT; BRKT
STAB SHF<FE6> M12X35 FLANGE 		0-28681-235-0 04 1 9806-9911
140 BOLT; BRKT
FRT STAB SHF<F59> M12X35 FLANGE 		0-28681-235-0 04 1 9806-9911
293 BUSHING; SUPPORT,STABILIZER
STAB SHF<FE6> 		1-51789-017-0 02 1 0001-0306
293 BUSHING; SUPPORT,STABILIZER
STAB SHF<FE6> 		1-51789-017-0 02 1 9806-9911
293 BUSHING; SUPPORT,STABILIZER
FRT STAB SHF<F59> 		1-51789-017-0 02 1 9806-9911
294 BRACKET; SUPPORT,STABILIZER
STAB SHF<FE6> 		1-51781-037-2 02 1 0001-0306
294 BRACKET; SUPPORT,STABILIZER
STAB SHF<FE6> 		1-51781-037-1 02 1 9806-9911
294 BRACKET; SUPPORT,STABILIZER
FRT STAB SHF<F59> 		1-51781-037-1 02 1 9806-9911
296 NUT; SUPPORT,STABILIZER
STAB SHF<FE6> (A) M12 FLANGE 		0-91150-212-0 08 1 0001-0306
296 NUT; SUPPORT,STABILIZER
STAB SHF<FE6> (B) M16 		1-09449-014-0 02 1 0001-0306
296 NUT; SUPPORT,STABILIZER
STAB SHF<FE6> (A) M12 FLANGE 		0-91150-212-0 08 1 9806-9911
296 NUT; SUPPORT,STABILIZER
FRT STAB SHF<F59> (A) M12 FLANGE 		0-91150-212-0 08 1 9806-9911
296 NUT; SUPPORT,STABILIZER
STAB SHF<FE6> (B) M16 		1-09449-014-0 02 1 9806-9911
296 NUT; SUPPORT,STABILIZER
FRT STAB SHF<F59> (B) M16 		1-09449-014-0 02 1 9806-9911
297 ROD; STABILIZER
STAB SHF<FE6> 		1-51773-046-1 02 1 0001-0306
297 ROD; STABILIZER
STAB SHF<FE6> 		1-51773-046-1 02 1 9806-9911
297 ROD; STABILIZER
FRT STAB SHF<F59> 		1-51773-046-1 02 1 9806-9911
300 CLAMP; ROD END,SUPPORT
STAB SHF<FE6> 		1-43159-002-3 02 1 0001-0306
300 CLAMP; ROD END,SUPPORT
STAB SHF<FE6> 		1-43159-002-2 02 1 9806-9911
300 CLAMP; ROD END,SUPPORT
FRT STAB SHF<F59> 		1-43159-002-2 02 1 9806-9911
301 BOLT; CLAMP,ROD END
STAB SHF<FE6> M12X47 		9-09801-294-0 02 1 0001-0306
301 BOLT; CLAMP,ROD END
STAB SHF<FE6> M12X47 		9-09801-294-0 02 1 9806-9911
301 BOLT; CLAMP,ROD END
FRT STAB SHF<F59> M12X47 		9-09801-294-0 02 1 9806-9911
302 NUT; CLAMP,ROD END
STAB SHF<FE6> M12 		9-99110-512-0 02 1 0001-0306
302 NUT; CLAMP,ROD END
STAB SHF<FE6> M12 		9-99110-512-0 02 1 9806-9911
302 NUT; CLAMP,ROD END
FRT STAB SHF<F59> M12 		9-99110-512-0 02 1 9806-9911
303 WASHER; LK,CLAMP,ROD END
STAB SHF<FE6> ID=12.2 		9-09150-812-0 02 1 0001-0306
303 WASHER; LK,CLAMP,ROD END
STAB SHF<FE6> ID=12.2 		9-09150-812-0 02 1 9806-9911
303 WASHER; LK,CLAMP,ROD END
FRT STAB SHF<F59> ID=12.2 		9-09150-812-0 02 1 9806-9911
304 ROD END ASM; STABILIZER
STAB SHF<FE6> 		1-43150-468-0 02 1 0001-0306
304 ROD END ASM; STABILIZER
STAB SHF<FE6> 		1-43150-468-0 02 1 9806-9911
304 ROD END ASM; STABILIZER
FRT STAB SHF<F59> 		1-43150-468-0 02 1 9806-9911
305 JOINT; BALL,ROD END
STAB SHF<FE6> 		1-87090-211-0 02 1 0001-0306
305 JOINT; BALL,ROD END
STAB SHF<FE6> 		1-87090-211-0 02 1 9806-9911
305 JOINT; BALL,ROD END
FRT STAB SHF<F59> 		1-87090-211-0 02 1 9806-9911
306 BOOT; ROD END,SUPPORT
STAB SHF<FE6> D=18.5,29 		1-43159-036-0 02 1 0001-0306
306 BOOT; ROD END,SUPPORT
STAB SHF<FE6> D=18.5,29 		1-43159-036-0 02 1 9806-9911
306 BOOT; ROD END,SUPPORT
FRT STAB SHF<F59> D=18.5,29 		1-43159-036-0 02 1 9806-9911
307 SPRING; ROD END,SUPPORT
STAB SHF<FE6> 		1-09580-080-0 02 1 0001-0306
307 SPRING; ROD END,SUPPORT
STAB SHF<FE6> 		1-09580-080-0 02 1 9806-9911
307 SPRING; ROD END,SUPPORT
FRT STAB SHF<F59> 		1-09580-080-0 02 1 9806-9911
308 PIN; SPLIT
STAB SHF<FE6> OD=2.8 L=55 		9-08113-055-0 02 1 0001-0306
308 PIN; SPLIT
STAB SHF<FE6> OD=2.8 L=55 		9-08113-055-0 02 1 9806-9911
308 PIN; SPLIT
FRT STAB SHF<F59> OD=2.8 L=55 		9-08113-055-0 02 1 9806-9911
309 NIPPLE; GREASE,ROD END
STAB SHF<FE6> PT1/8 STRAIGHT 		9-09031-010-0 02 1 0001-0306
309 NIPPLE; GREASE,ROD END
STAB SHF<FE6> PT1/8 STRAIGHT 		9-09031-010-0 02 1 9806-9911
309 NIPPLE; GREASE,ROD END
FRT STAB SHF<F59> PT1/8 STRAIGHT 		9-09031-010-0 02 1 9806-9911
310 PLUG; ROD END,SUPPORT
STAB SHF<FE6> 		1-44375-001-0 02 1 0001-0306
310 PLUG; ROD END,SUPPORT
STAB SHF<FE6> 		1-44375-001-0 02 1 9806-9911
310 PLUG; ROD END,SUPPORT
FRT STAB SHF<F59> 		1-44375-001-0 02 1 9806-9911
311 SEAT; JOINT BALL
STAB SHF<FE6> 		1-44373-002-0 02 1 0001-0306
311 SEAT; JOINT BALL
STAB SHF<FE6> 		1-44373-002-0 02 1 9806-9911
311 SEAT; JOINT BALL
FRT STAB SHF<F59> 		1-44373-002-0 02 1 9806-9911
313 BOLT; RET,SUPPORT
STAB SHF<FE6> M10X25 		8-94463-351-0 08 1 0001-0306
313 BOLT; RET,SUPPORT
STAB SHF<FE6> M10X25 		8-94463-351-0 08 1 9806-9911
313 BOLT; RET,SUPPORT
FRT STAB SHF<F59> M10X25 		8-94463-351-0 08 1 9806-9911
314 RETAINER; SUPPORT
STAB SHF<FE6> 		1-51789-015-2 02 1 0001-0306
314 RETAINER; SUPPORT
STAB SHF<FE6> 		1-51789-015-2 02 1 9806-9911
314 RETAINER; SUPPORT
FRT STAB SHF<F59> 		1-51789-015-2 02 1 9806-9911
321 NUT; ROD END,SUPPORT
STAB SHF<FE6> (B) M16 		1-09449-014-0 02 1 0001-0306
321 NUT; ROD END,SUPPORT
STAB SHF<FE6> (A) M20 		9-09840-318-0 02 1 0001-0306
321 NUT; ROD END,SUPPORT
STAB SHF<FE6> (A) M20 		9-99110-520-0 02 1 0001-0306
321 NUT; ROD END,SUPPORT
STAB SHF<FE6> (B) M16 		1-09449-014-0 02 1 9806-9911
321 NUT; ROD END,SUPPORT
FRT STAB SHF<F59> (B) M16 		1-09449-014-0 02 1 9806-9911
321 NUT; ROD END,SUPPORT
STAB SHF<FE6> (A) M20 		9-99110-520-0 02 1 9806-9911
321 NUT; ROD END,SUPPORT
FRT STAB SHF<F59> (A) M20 		9-99110-520-0 02 1 9806-9911
321 NUT; ROD END,SUPPORT
STAB SHF<FE6> (A) M20 		9-09840-318-0 02 1 9806-9911
321 NUT; ROD END,SUPPORT
FRT STAB SHF<F59> (A) M20 		9-09840-318-0 02 1 9806-9911
çizim 26811
73 14 65 65 68 18 18 68 65 75 168 111 211 68 73 68 211 62 209 180 210 211
BalonParca AdiParca NoAdetTipApplied Date
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 9806-
18 WASHER; CENTERING,S/ABS
ID=20.8 		9-51631-041-0 04 1 9806-0505
18 WASHER; CENTERING,S/ABS
ID=24 		1-51631-067-0 04 1 0506-
62 ABSORBER ASM; SHOCK,FRT 1-51630-726-0 02 1 9909-9911
62 ABSORBER ASM; SHOCK,FRT 8-97530-043-0 02 1 9912-0505
62 ABSORBER ASM; SHOCK,FRT 1-51630-417-0 02 1 0506-
65 WASHER; S/ABS
(A) ID=16.5 		9-51631-040-0 04 1 9806-0505
65 WASHER; S/ABS
(A) ID=16.5 		1-51631-068-0 04 1 0506-
65 WASHER; S/ABS
(B) ID=16.5 		1-09503-266-0 02 1 0506-
68 BUSHING; S/ABS
(A) 		9-51631-039-0 04 1 9806-0505
68 BUSHING; S/ABS
(A) ID=16 T=25 		1-51631-069-0 04 1 0506-
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 9806-
73 NUT; BRKT,SHOCK
(B) M20 		9-99110-420-0 02 1 9806-0306
73 NUT; BRKT,SHOCK
(B) M20 		9-99110-520-0 02 1 0307-0512
73 NUT; BRKT,SHOCK
(B) M20 		0-91110-520-0 02 1 0601-
73 NUT; BRKT,SHOCK
(A) M14 		9-99111-414-0 02 1 9806-0512
73 NUT; BRKT,SHOCK
(A) M14 		0-91111-514-0 02 1 0601-
75 BRACKET; FRT S/ABS 1-51681-606-0 01 1 9806-9911
75 BRACKET; FRT S/ABS 8-97530-268-0 01 1 9912-0306
75 BRACKET; FRT S/ABS 1-51681-605-0 01 1 9806-9911
75 BRACKET; FRT S/ABS 8-97530-267-0 01 1 9912-0306
111 SUPPORTER; S/ABS,FRT SUSP
EXC. STAB SHF<FE6> 		1-51681-722-0 01 1 0307-0308
111 SUPPORTER; S/ABS,FRT SUSP
EXC. STAB SHF<FE6> 		1-51681-723-0 01 1 0307-0308
168 BRACKET; S/ABS,FRT SUSP
EXC. STAB SHF<FE6> (B) 		8-97530-267-0 01 1 0309-
168 BRACKET; S/ABS,FRT SUSP
EXC. STAB SHF<FE6> (B) 		8-97530-268-0 01 1 0309-
168 BRACKET; S/ABS,FRT SUSP
(A) 		1-51681-616-0 02 1 9806-9911
168 BRACKET; S/ABS,FRT SUSP
(A) 		8-97530-175-0 02 1 9912-
180 WASHER; PL,PIN
ID=21 		9-09160-520-0 02 1 0307-0605
180 WASHER; PL,PIN
ID=21 		0-91610-520-0 02 1 0606-
209 ABSORBER ASM; SHOCK 1-51630-171-1 02 1 9806-9908
210 WASHER; S/ABS,OUTER
ID=21 		9-09160-520-0 02 1 9909-0306
211 WASHER; BRKT,SHOCK
(C) ID=21 		9-09160-520-0 02 1 9806-9908
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 9806-
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 9806-

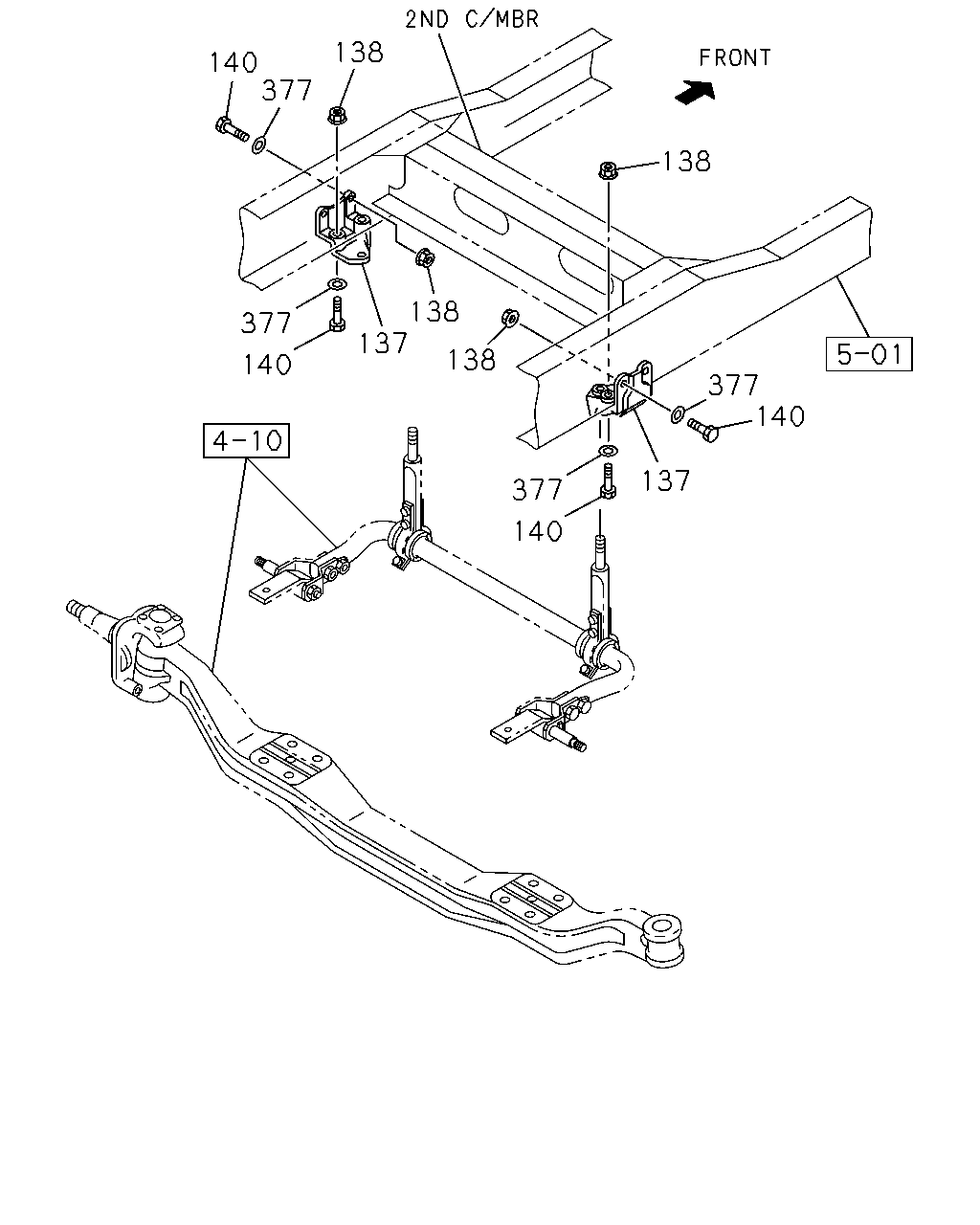

çizim 26945
138 140 377 138 138 137 377 138 140 377 140 137 377 140
BalonParca AdiParca NoAdetTipApplied Date
137 BRACKET; STAB BAR TO FRAME
STAB SHF<FE6> 		1-51781-134-0 01 1 0307-
137 BRACKET; STAB BAR TO FRAME
STAB SHF<FE6> 		1-51781-020-4 02 1 0001-0306
137 BRACKET; STAB BAR TO FRAME
STAB SHF<FE6> 		1-51781-112-0 01 1 0307-
137 BRACKET; STAB BAR TO FRAME
STAB SHF<FE6> 		1-51781-020-4 02 1 9806-9911
137 BRACKET; STAB BAR TO FRAME
FRT STAB SHF<F59> 		1-51781-020-4 02 1 9806-9911
138 NUT; BRKT
STAB SHF<FE6> M12 FLANGE 		0-91150-212-0 04 1 0001-0306
138 NUT; BRKT
STAB SHF<FE6> M14 		9-99110-514-0 08 1 0307-0512
138 NUT; BRKT
STAB SHF<FE6> M14 		0-91110-514-0 08 1 0601-
138 NUT; BRKT
STAB SHF<FE6> M12 FLANGE 		0-91150-212-0 04 1 9806-9911
138 NUT; BRKT
FRT STAB SHF<F59> M12 FLANGE 		0-91150-212-0 04 1 9806-9911
140 BOLT; BRKT
STAB SHF<FE6> M12X35 FLANGE 		0-28681-235-0 04 1 0001-0103
140 BOLT; BRKT
STAB SHF<FE6> M12X35 FLANGE 		0-28081-235-0 04 1 0104-0301
140 BOLT; BRKT
STAB SHF<FE6> M12X30 FLANGE 		0-28681-230-0 04 1 0302-0306
140 BOLT; BRKT
STAB SHF<FE6> M14X45 		0-20801-445-0 08 1 0307-
140 BOLT; BRKT
STAB SHF<FE6> M12X35 FLANGE 		0-28681-235-0 04 1 9806-9911
140 BOLT; BRKT
FRT STAB SHF<F59> M12X35 FLANGE 		0-28681-235-0 04 1 9806-9911
377 WASHER; LK,BRKT
STAB SHF<FE6> ID=14.2 		9-09150-514-0 08 1 0307-0603
377 WASHER; LK,BRKT
STAB SHF<FE6> ID=14.2 		0-91510-514-0 08 1 0604-

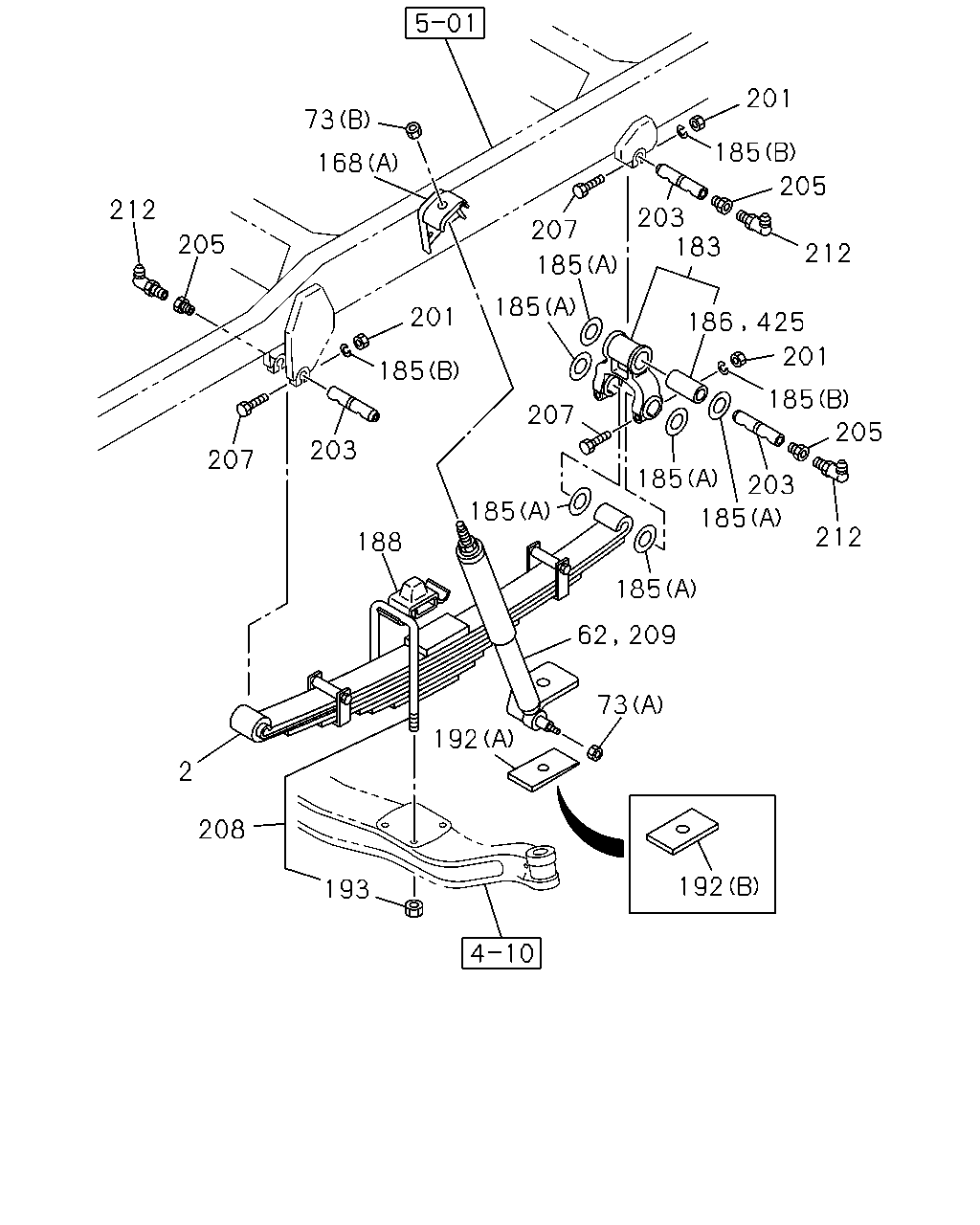

çizim 99246
201 73 185 168 205 212 207 203 183 205 212 185 185 201 201 185 185 205 203 207 185 203 185 185 212 188 185 73 192 2 208 192 193 186 425 62 209 207
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. LEAF SPR W/SILENT LINER<C1N> SUSP HVY DUTY VAR2<F41> 8 LEAF 		1-51130-656-0 02 1 9901-9911
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. SUSP HVY DUTY VAR2<F41> 8 LEAF 		1-51130-656-0 02 1 9912-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WB 5000MM(50W),WB 5700MM(57W) LEAF SPR W/SILENT LINER<C1N> EXC. SUSP HVY DUTY VAR1<F40> 8 LEAF 		1-51130-630-0 02 1 9806-9808
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. LEAF SPR W/SILENT LINER<C1N> EXC. SUSP HVY DUTY VAR1<F40>,SUSP HVY DUTY VAR2<F41> 8 LEAF 		1-51130-630-0 02 1 9809-9911
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. SUSP HVY DUTY VAR2<F41> 8 LEAF 		8-97530-528-1 02 1 9912-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WB 5000MM(50W),WB 5700MM(57W) EXC. LEAF SPR W/SILENT LINER<C1N>,SUSP HVY DUTY VAR1<F40> 8 LEAF 		1-51130-628-0 02 1 9806-9808
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. LEAF SPR W/SILENT LINER<C1N>,SUSP HVY DUTY VAR1<F40>,SUSP HVY DUTY VAR2<F41> 8 LEAF 		1-51130-628-0 02 1 9809-9911
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WB 5000MM(50W),WB 5700MM(57W) SUSP HVY DUTY VAR1<F40> EXC. LEAF SPR W/SILENT LINER<C1N> 9 LEAF 		1-51130-629-0 02 1 9806-9808
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. SUSP HVY DUTY VAR1<F40> EXC. LEAF SPR W/SILENT LINER<C1N> 9 LEAF 		1-51130-629-0 02 1 9809-9911
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WB 6300MM(63W) EXC. LEAF SPR W/SILENT LINER<C1N> 9 LEAF 		1-51130-456-1 02 1 9806-9808
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. SUSP HVY DUTY VAR2<F41> EXC. LEAF SPR W/SILENT LINER<C1N> 9 LEAF 		1-51130-456-1 02 1 9809-9911
62 ABSORBER ASM; SHOCK,FRT 1-51630-726-0 02 1 9909-9911
62 ABSORBER ASM; SHOCK,FRT 8-97530-043-0 02 1 9912-0505
62 ABSORBER ASM; SHOCK,FRT 1-51630-417-0 02 1 0506-
73 NUT; BRKT,SHOCK
(B) M20 		9-99110-420-0 02 1 9806-0306
73 NUT; BRKT,SHOCK
(B) M20 		9-99110-520-0 02 1 0307-0512
73 NUT; BRKT,SHOCK
(B) M20 		0-91110-520-0 02 1 0601-
73 NUT; BRKT,SHOCK
(A) M14 		9-99111-414-0 02 1 9806-0512
73 NUT; BRKT,SHOCK
(A) M14 		0-91111-514-0 02 1 0601-
168 BRACKET; S/ABS,FRT SUSP
EXC. STAB SHF<FE6> (B) 		8-97530-267-0 01 1 0309-
168 BRACKET; S/ABS,FRT SUSP
EXC. STAB SHF<FE6> (B) 		8-97530-268-0 01 1 0309-
168 BRACKET; S/ABS,FRT SUSP
(A) 		1-51681-616-0 02 1 9806-9911
168 BRACKET; S/ABS,FRT SUSP
(A) 		8-97530-175-0 02 1 9912-
183 SHACKLE; FRT SUSP 1-51162-063-0 02 1 9806-9911
183 SHACKLE; FRT SUSP 8-97530-932-1 02 1 9912-
185 WASHER; LK,PIN
(A) 		1-09503-277-0 12 1 9806-
185 WASHER; LK,PIN
(B) ID=12.2 		9-09150-612-0 12 1 9806-0603
185 WASHER; LK,PIN
(B) ID=12.2 		0-91510-612-0 12 1 0604-
186 BUSHING; SHACKLE
OD=38 		1-51351-030-0 02 1 9806-9911
188 RUBBER; CLAMP,U-BOLT,FRT SPR 9-51172-067-1 02 1 9806-
192 PIECE; DIST
(B) 80X148 ID=24.5 		1-51377-022-1 02 1 0309-
192 PIECE; DIST
EXC. STAB SHF<FE6> (A) 80X145 ID=17 		8-97530-214-0 02 1 0309-
192 PIECE; DIST
(B) 80X144 ID=17.5 		1-51177-284-1 01 1 9912-9912
192 PIECE; DIST
(B) 80X144 ID=24.5 		8-97531-221-0 01 1 0001-0001
192 PIECE; DIST
EXC. SUSP HVY DUTY VAR2<F41> (B) 80X144 ID=24.5 		8-97531-221-0 01 1 0002-
192 PIECE; DIST
(A) 80X145 ID=17 		1-51177-238-1 02 1 9806-9911
192 PIECE; DIST
(A) 80X145 ID=17 		8-97530-214-0 02 1 9912-0306
192 PIECE; DIST
WB 5000MM(50W),WB 5700MM(57W) EXC. STAB SHF<FE6>,FRT STAB SHF<F59> (B) 80X148 ID=24.5 		1-51377-022-1 02 1 9806-9808
192 PIECE; DIST
EXC. STAB SHF<FE6>,SUSP HVY DUTY VAR2<F41>,FRT STABSHF<F59> (B) 80X148 ID=24.5 		1-51377-022-1 02 1 9809-9911
192 PIECE; DIST
(B) 80X148 ID=24.5 		1-51377-022-1 02 1 9912-9912
192 PIECE; DIST
EXC. STAB SHF<FE6> (B) 80X148 ID=24.5 		1-51377-022-1 02 1 0001-0306
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 9806-0512
193 NUT; U BOLT
M22 		0-91112-822-0 08 1 0601-
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 9806-0512
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 0601-
203 PIN; SPR TO SHACKLE 1-51161-050-0 06 1 9806-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 9806-
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 9806-0512
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 12 1 0601-
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-309-1 04 1 9806-
209 ABSORBER ASM; SHOCK 1-51630-171-1 02 1 9806-9908
212 NIPPLE; GREASE,ELBOW
PT1/8 ELBOW 67.5? 		9-09031-110-0 06 1 9806-0512
212 NIPPLE; GREASE,ELBOW
PT1/8 ELBOW 67.5? 		0-90301-510-0 06 1 0601-
425 SEAL; DUST
OD=38 		1-51351-030-0 02 1 9912-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
