0-66 — GENERATOR (#68779) — 24 parça

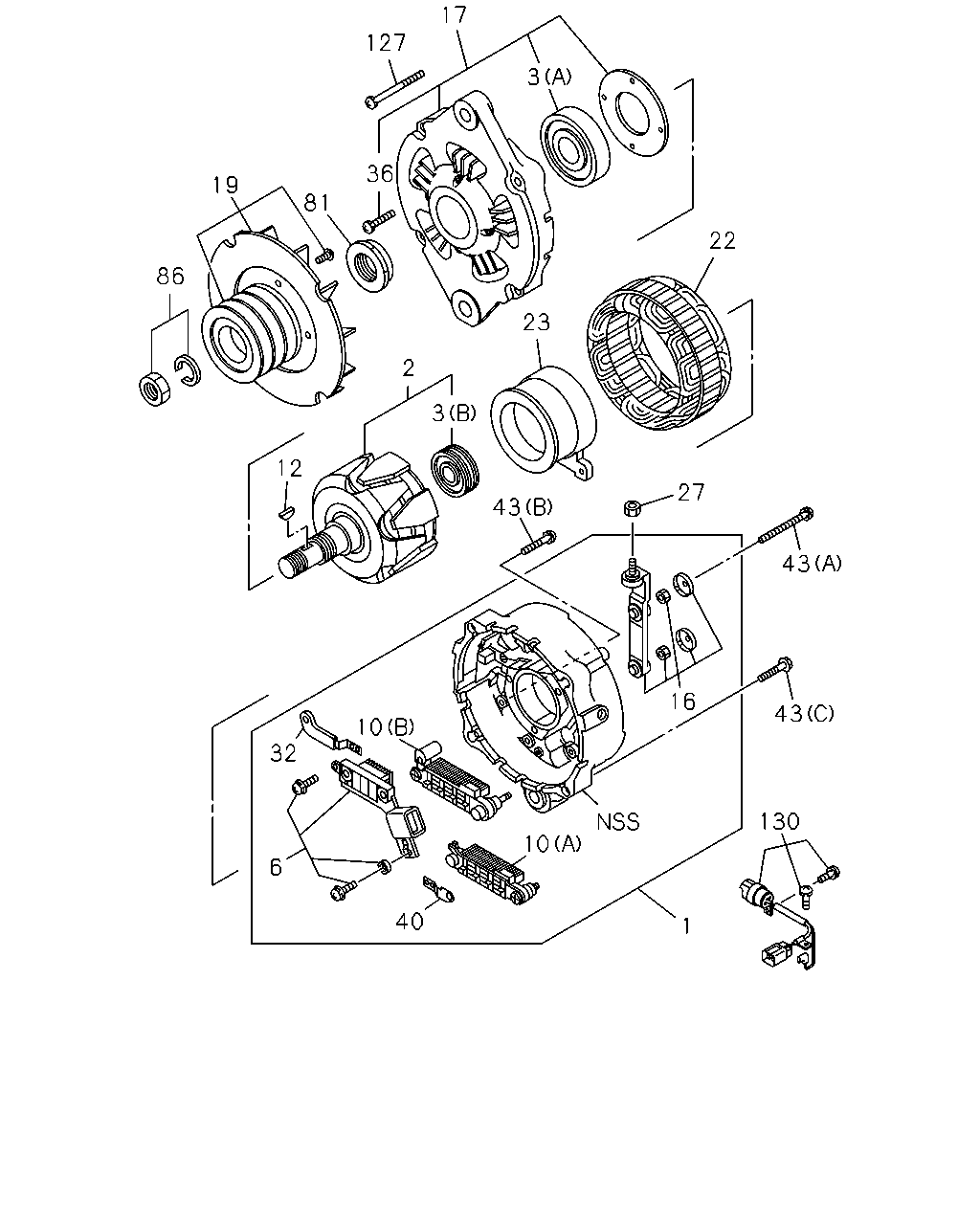

çizim 75216
17 127 19 86 12 2 81 36 23 3 43 3 22 43 27 43 130 1 10 40 6 32 10 16
BalonParca AdiParca NoAdetTipApplied Date
1 COVER ASM; RR,GEN
ASM PART: A = 8-98020-154-2 		8-98047-077-1 01 1 -
2 ROTOR; GEN
ASM PART: A = 8-98020-154-2 		1-81221-106-0 01 1 -
3 BEARING; ROTOR,GEN
(A) ASM PART: A = 8-98020-154-2 		1-81229-815-0 01 1 -
3 BEARING; ROTOR,GEN
(B) ASM PART: A = 8-98020-154-2 		1-81229-816-0 01 1 -
6 REGULATOR ASM; VOLTAGE,GEN
ASM PART: A = 8-98020-154-2 		8-98047-080-0 01 1 -
10 RECTIFIER; GEN
(A) ASM PART: A = 8-98020-154-2 		8-98047-085-0 01 1 -
10 RECTIFIER; GEN
(B) ASM PART: A = 8-98020-154-2 		8-98047-086-0 01 1 -
12 KEY; ROTOR,GEN
ASM PART: A = 8-98020-154-2 		1-81229-822-0 01 1 -
16 TERMINAL ASM; RECTIFIER,GEN
ASM PART: A = 8-98020-154-2 		1-81229-826-0 01 1 -
17 COVER ASM; FRT,GEN
ASM PART: A = 8-98020-154-2 		1-81213-110-0 01 1 -
19 PULLEY; GEN
ASM PART: A = 8-98020-154-2 		1-81222-150-3 01 1 -
22 STATOR; GEN
ASM PART: A = 8-98020-154-2 		1-81211-132-1 01 1 -
23 COIL; ROTOR GEN
ASM PART: A = 8-98020-154-2 		1-81212-020-1 01 1 -
27 NUT; RECTIFIER,GEN
ASM PART: A = 8-98020-154-2 		1-81229-821-0 01 1 -
32 TERMINAL; RECTIFIER,GEN
ASM PART: A = 8-98020-154-2 		8-98047-090-0 01 1 -
36 SCREW; FRT COVER
ASM PART: A = 8-98020-154-2 		1-81229-814-0 01 1 -
40 PLATE; RR COVER
ASM PART: A = 8-98020-154-2 		1-81222-148-0 01 1 -
43 SCREW; RR END COVER
(B) ASM PART: A = 8-98020-154-2 		1-81229-774-0 01 1 -
43 SCREW; RR END COVER
(A) ASM PART: A = 8-98020-154-2 		1-81229-817-0 01 1 -
43 SCREW; RR END COVER
(C) ASM PART: A = 8-98020-154-2 		1-81229-925-0 01 1 -
81 SPACER; ROTOR,GEN
ASM PART: A = 8-98020-154-2 		1-81229-813-0 01 1 -
86 NUT SET; PULLEY,GEN
ASM PART: A = 8-98020-154-2 		8-97178-134-0 01 1 -
127 BOLT SET; GEN
ASM PART: A = 8-98020-154-2 		1-81229-812-0 01 1 -
130 CONNECTOR; GEN
ASM PART: A = 8-98020-154-2 		1-81229-829-0 01 1 -
