0-57 — EMISSION PIPING (#68775) — 111 parça

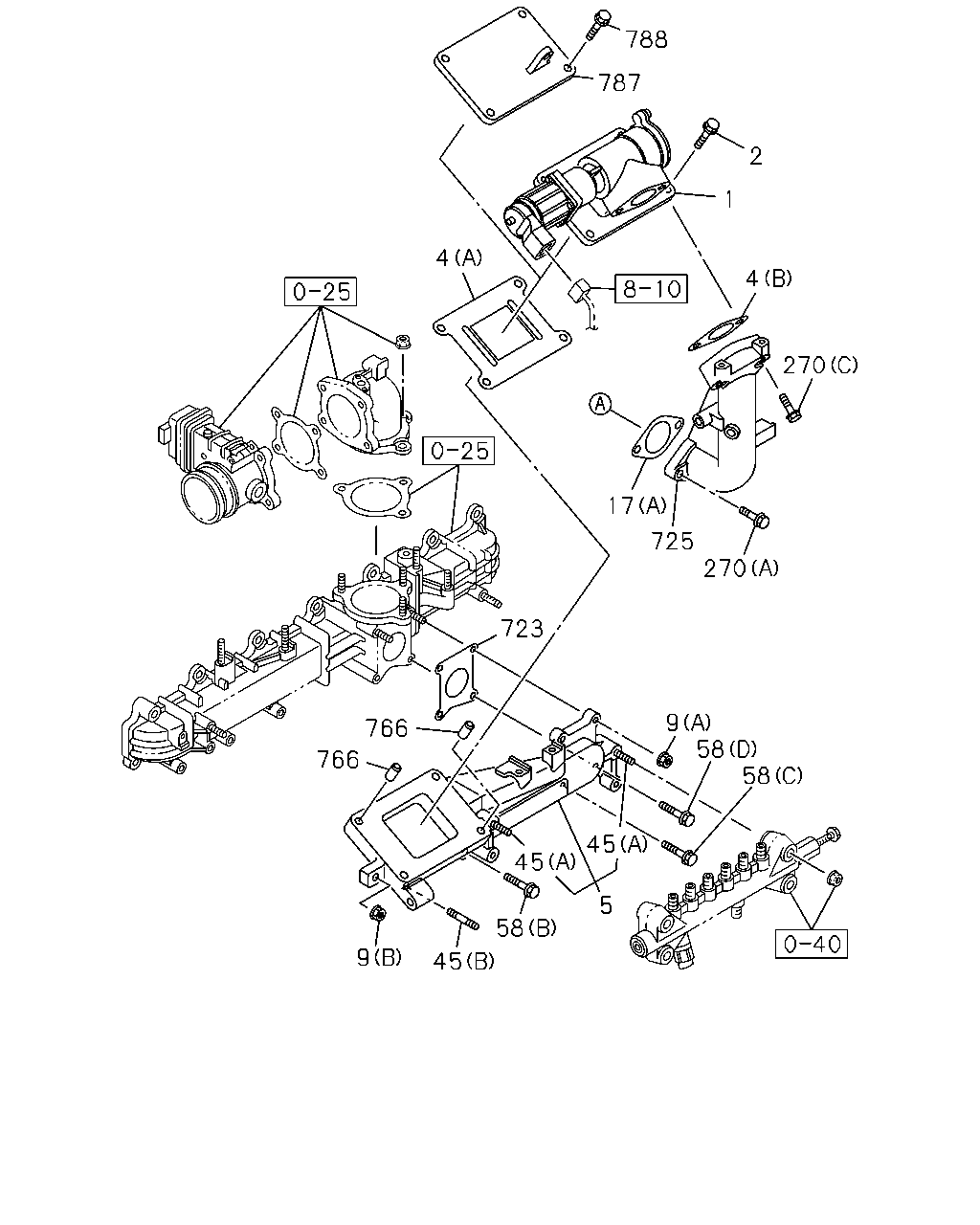

çizim 66125
788 787 2 1 4 4 270 17 725 270 723 9 58 58 766 766 45 45 5 58 9 45
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE; EGR 8-97383-005-8 01 1 0908-0908
1 VALVE; EGR
EURO5 SPECIFICATION(NT5) 		8-97383-005-8 01 1 0909-1410
1 VALVE; EGR
HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> 		8-97383-005-9 01 1 1411-
2 BOLT; EGR VLV
M10X35 FLANGE 		0-28751-035-0 04 1 0908-0908
2 BOLT; EGR VLV
EURO5 SPECIFICATION(NT5) M10X35 FLANGE 		0-28751-035-0 04 1 0909-1410
2 BOLT; EGR VLV
HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> M10X35 FLANGE 		0-28751-035-0 04 1 1411-
4 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-97608-423-0 01 1 0908-
4 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=47 		8-97603-282-0 01 1 0908-0908
4 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). EURO5 SPECIFICATION(NT5) (B) ID=47 		8-97603-282-0 01 1 0909-1410
4 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (B) ID=47 		8-97603-282-0 01 1 1411-
5 ADAPTER ASM 8-97606-201-3 01 1 0908-1305
5 ADAPTER ASM 8-98240-157-0 01 1 1306-
9 NUT; EGR ADAPTER
(A) M8 FLANGE 		0-91180-108-0 02 1 0908-
9 NUT; EGR ADAPTER
(B) M10 FLANGE 		0-91180-110-0 02 1 0908-
17 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=55 		8-97600-167-0 01 1 0908-0908
17 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO5 SPECIFICATION(NT5) (B) ID=55 		8-97600-167-0 01 1 0909-1410
17 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (B) ID=55 		8-97600-167-0 01 1 1411-
17 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=44.5 		8-97601-144-0 02 1 0908-0908
17 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO5 SPECIFICATION(NT5) (A) ID=44.5 		8-97601-144-0 02 1 0909-1410
17 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (A) ID=44.5 		8-97601-144-0 02 1 1411-
45 STUD; ADAPTER,EGR
(B) M10X30 L=45 		0-44011-030-0 01 1 0908-
45 STUD; ADAPTER,EGR
(A) M10X50 L=65 		0-44011-050-0 02 1 0908-
58 BOLT; PIPE
(B) M10X30 FLANGE 		0-28151-030-0 01 1 0908-
58 BOLT; PIPE
(C) M8X30 FLANGE 		0-28650-830-0 01 1 0908-
58 BOLT; PIPE
(D) M8X30 FLANGE 		8-98034-764-0 01 1 0908-
58 BOLT; PIPE
(A) M8X60 FLANGE 		0-28050-860-0 05 1 0908-0908
58 BOLT; PIPE
EURO5 SPECIFICATION(NT5) (A) M8X60 FLANGE 		0-28050-860-0 05 1 0909-1410
58 BOLT; PIPE
HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (A) M8X60 FLANGE 		0-28050-860-0 05 1 1411-
58 BOLT; PIPE
(E) M10X35 FLANGE 		0-28751-035-0 04 1 0908-0908
58 BOLT; PIPE
EURO5 SPECIFICATION(NT5) (E) M10X35 FLANGE 		0-28751-035-0 04 1 0909-1410
58 BOLT; PIPE
HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (E) M10X35 FLANGE 		0-28751-035-0 04 1 1411-
270 BOLT
(A) M8X25 FLANGE 		0-28050-825-0 02 1 0908-0908
270 BOLT
EURO5 SPECIFICATION(NT5) (A) M8X25 FLANGE 		0-28050-825-0 02 1 0909-1410
270 BOLT
HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (A) M8X25 FLANGE 		0-28050-825-0 02 1 1411-
270 BOLT
(B) M8X35 FLANGE 		0-28050-835-0 02 1 0908-0908
270 BOLT
EURO5 SPECIFICATION(NT5) (B) M8X35 FLANGE 		0-28050-835-0 02 1 0909-1410
270 BOLT
HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (B) M8X35 FLANGE 		0-28050-835-0 02 1 1411-
270 BOLT
(C) M10X45 FLANGE 		0-28151-045-0 02 1 0908-0908
270 BOLT
EURO5 SPECIFICATION(NT5) (C) M10X45 FLANGE 		0-28151-045-0 02 1 0909-1410
270 BOLT
HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (C) M10X45 FLANGE 		0-28151-045-0 02 1 1411-
270 BOLT
(D) M8X28 FLANGE 		8-98043-528-0 03 1 0908-0908
270 BOLT
EURO5 SPECIFICATION(NT5) (D) M8X28 FLANGE 		8-98043-528-0 03 1 0909-1410
270 BOLT
HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (D) M8X28 FLANGE 		8-98043-528-0 03 1 1411-
723 GASKET; REED VLV
ALSO INCLUDED IN GASKET SET(ENGINE). ID=52 		8-97605-995-0 01 1 0908-
725 DUCT; EGR VLV 8-97604-972-2 01 1 0908-0908
725 DUCT; EGR VLV
EURO5 SPECIFICATION(NT5) 		8-97604-972-2 01 1 0909-1305
725 DUCT; EGR VLV
EURO5 SPECIFICATION(NT5) 		8-98240-120-0 01 1 1306-1410
725 DUCT; EGR VLV
HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> 		8-98240-120-0 01 1 1411-
766 DOWEL; EGR VLV
OD=14 L=10 		9-11319-065-3 02 1 0908-0908
766 DOWEL; EGR VLV
EURO5 SPECIFICATION(NT5) OD=14 L=10 		9-11319-065-3 02 1 0909-1410
766 DOWEL; EGR VLV
HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> OD=14 L=10 		9-11319-065-3 02 1 1411-
787 COVER; DUCT,EGR VLV
EURO2 SPECIFICATION(NT2) 		8-98058-709-0 01 1 0909-1402
787 COVER; DUCT,EGR VLV
EURO2 SPECIFICATION(NT2) 		8-98238-416-0 01 1 1403-
788 BOLT; COVER
EURO2 SPECIFICATION(NT2) M10X35 FLANGE 		0-28751-035-0 04 1 0909-1402
788 BOLT; COVER
EURO2 SPECIFICATION(NT2) M10X25 FLANGE 		0-28751-025-0 04 1 1403-

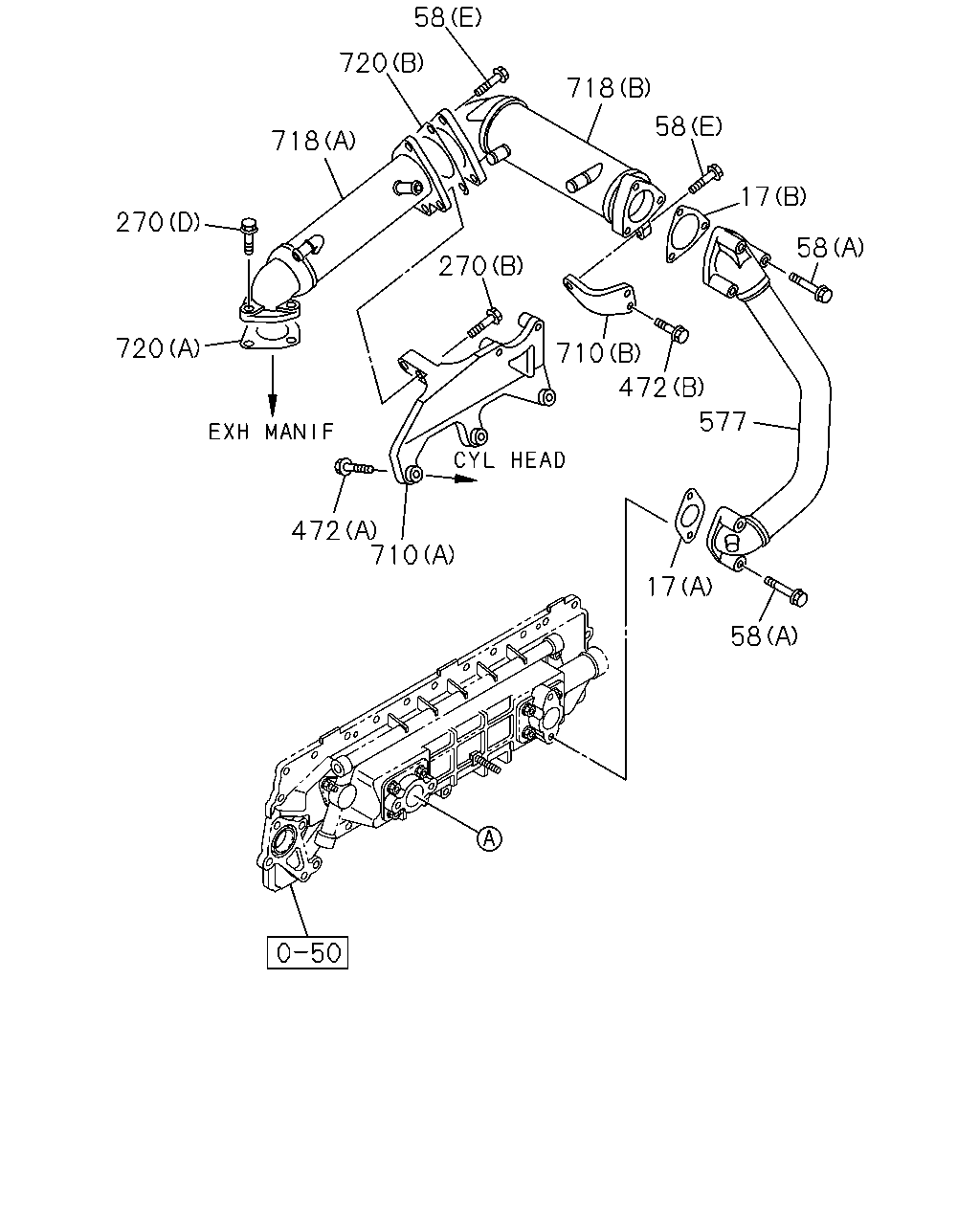

çizim 66492
58 720 718 58 718 17 270 58 270 720 710 472 577 472 710 17 58
BalonParca AdiParca NoAdetTipApplied Date
17 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=55 		8-97600-167-0 01 1 0908-0908
17 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO5 SPECIFICATION(NT5) (B) ID=55 		8-97600-167-0 01 1 0909-1410
17 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (B) ID=55 		8-97600-167-0 01 1 1411-
17 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=44.5 		8-97601-144-0 02 1 0908-0908
17 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO5 SPECIFICATION(NT5) (A) ID=44.5 		8-97601-144-0 02 1 0909-1410
17 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (A) ID=44.5 		8-97601-144-0 02 1 1411-
58 BOLT; PIPE
(B) M10X30 FLANGE 		0-28151-030-0 01 1 0908-
58 BOLT; PIPE
(C) M8X30 FLANGE 		0-28650-830-0 01 1 0908-
58 BOLT; PIPE
(D) M8X30 FLANGE 		8-98034-764-0 01 1 0908-
58 BOLT; PIPE
(A) M8X60 FLANGE 		0-28050-860-0 05 1 0908-0908
58 BOLT; PIPE
EURO5 SPECIFICATION(NT5) (A) M8X60 FLANGE 		0-28050-860-0 05 1 0909-1410
58 BOLT; PIPE
HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (A) M8X60 FLANGE 		0-28050-860-0 05 1 1411-
58 BOLT; PIPE
(E) M10X35 FLANGE 		0-28751-035-0 04 1 0908-0908
58 BOLT; PIPE
EURO5 SPECIFICATION(NT5) (E) M10X35 FLANGE 		0-28751-035-0 04 1 0909-1410
58 BOLT; PIPE
HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (E) M10X35 FLANGE 		0-28751-035-0 04 1 1411-
270 BOLT
(A) M8X25 FLANGE 		0-28050-825-0 02 1 0908-0908
270 BOLT
EURO5 SPECIFICATION(NT5) (A) M8X25 FLANGE 		0-28050-825-0 02 1 0909-1410
270 BOLT
HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (A) M8X25 FLANGE 		0-28050-825-0 02 1 1411-
270 BOLT
(B) M8X35 FLANGE 		0-28050-835-0 02 1 0908-0908
270 BOLT
EURO5 SPECIFICATION(NT5) (B) M8X35 FLANGE 		0-28050-835-0 02 1 0909-1410
270 BOLT
HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (B) M8X35 FLANGE 		0-28050-835-0 02 1 1411-
270 BOLT
(C) M10X45 FLANGE 		0-28151-045-0 02 1 0908-0908
270 BOLT
EURO5 SPECIFICATION(NT5) (C) M10X45 FLANGE 		0-28151-045-0 02 1 0909-1410
270 BOLT
HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (C) M10X45 FLANGE 		0-28151-045-0 02 1 1411-
270 BOLT
(D) M8X28 FLANGE 		8-98043-528-0 03 1 0908-0908
270 BOLT
EURO5 SPECIFICATION(NT5) (D) M8X28 FLANGE 		8-98043-528-0 03 1 0909-1410
270 BOLT
HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (D) M8X28 FLANGE 		8-98043-528-0 03 1 1411-
472 BOLT; BRKT
(B) M8X30 FLANGE 		0-28050-830-0 02 1 0908-0908
472 BOLT; BRKT
EURO5 SPECIFICATION(NT5) (B) M8X30 FLANGE 		0-28050-830-0 02 1 0909-1410
472 BOLT; BRKT
HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (B) M8X30 FLANGE 		0-28050-830-0 02 1 1411-
472 BOLT; BRKT
(A) M8X35 FLANGE 		0-28060-835-0 03 1 0908-0908
472 BOLT; BRKT
EURO5 SPECIFICATION(NT5) (A) M8X35 FLANGE 		0-28060-835-0 03 1 0909-1410
472 BOLT; BRKT
HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (A) M8X35 FLANGE 		0-28060-835-0 03 1 1411-
577 PIPE; AIR,EGR 8-97604-968-1 01 1 0908-0908
577 PIPE; AIR,EGR
EURO5 SPECIFICATION(NT5) 		8-97604-968-1 01 1 0909-1410
577 PIPE; AIR,EGR
HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> 		8-97604-968-1 01 1 1411-
710 BRACKET; EGR COOLER
(B) 		8-98030-584-0 01 1 0908-0908
710 BRACKET; EGR COOLER
EURO5 SPECIFICATION(NT5) (B) 		8-98030-584-0 01 1 0909-1410
710 BRACKET; EGR COOLER
HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (B) 		8-98030-584-0 01 1 1411-
710 BRACKET; EGR COOLER
(A) 		8-98125-359-0 01 1 0908-0908
710 BRACKET; EGR COOLER
EURO5 SPECIFICATION(NT5) (A) 		8-98125-359-0 01 1 0909-1202
710 BRACKET; EGR COOLER
EURO5 SPECIFICATION(NT5) (A) 		8-98186-437-0 01 1 1203-1410
710 BRACKET; EGR COOLER
HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (A) 		8-98186-437-0 01 1 1411-
718 COOLER; EGR
(A) 		8-98030-582-3 01 1 0908-0908
718 COOLER; EGR
EURO5 SPECIFICATION(NT5) (A) 		8-98030-582-3 01 1 0909-1401
718 COOLER; EGR
EURO5 SPECIFICATION(NT5) (A) 		8-98250-860-0 01 1 1402-1410
718 COOLER; EGR
HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (A) 		8-98250-860-0 01 1 1411-
718 COOLER; EGR
(B) 		8-98030-583-1 01 1 0908-0908
718 COOLER; EGR
EURO5 SPECIFICATION(NT5) (B) 		8-98030-583-1 01 1 0909-1410
718 COOLER; EGR
HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (B) 		8-98030-583-1 01 1 1411-
720 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=80 		8-97603-889-0 01 1 0908-0908
720 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). EURO5 SPECIFICATION(NT5) (B) ID=80 		8-97603-889-0 01 1 0909-1410
720 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (B) ID=80 		8-97603-889-0 01 1 1411-
720 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=51.5 		8-98046-192-1 01 1 0908-0908
720 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). EURO5 SPECIFICATION(NT5) (A) ID=51.5 		8-98046-192-1 01 1 0909-1410
720 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (A) ID=51.5 		8-98046-192-1 01 1 1411-
