Sayfa 0-52 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 11207 - LT134(RHD) EURO2/5 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-52 - OIL AND VACUUM PIPING; ENGINE ▶

0-52 — OIL AND VACUUM PIPING; ENGINE (#68774) — 124 parça

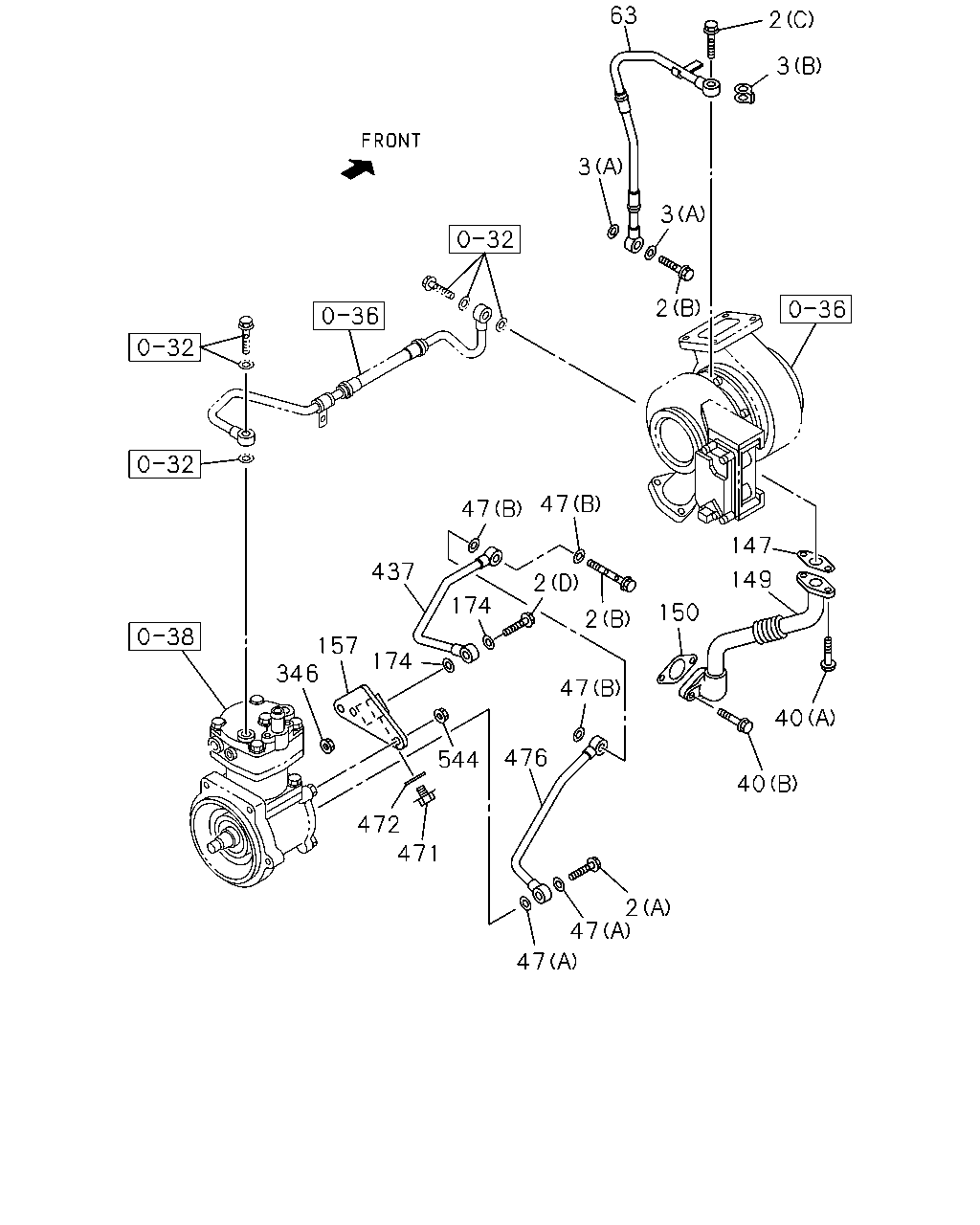

63 2 3 3 3 2 47 47 147 437 149 2 174 150 2 157 346 174 47 40 476 544 40 472 471 2 47 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	BOLT; EYE,OIL PIPE EURO2 SPECIFICATION(NT2) (C) M12X25	5-09675-006-1	01	1	0909-
2	BOLT; EYE,OIL PIPE EURO2 SPECIFICATION(NT2) (A) M10X21 FLANGE	8-97372-238-0	01	1	0909-
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	01	1	0908-
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	02	1	0908-0908
2	BOLT; EYE,OIL PIPE EURO5 SPECIFICATION(NT5) (A) M10X21 FLANGE	8-97372-238-0	02	1	0909-1410
2	BOLT; EYE,OIL PIPE HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (A) M10X21 FLANGE	8-97372-238-0	02	1	1411-
2	BOLT; EYE,OIL PIPE (C) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0908-0908
2	BOLT; EYE,OIL PIPE EURO5 SPECIFICATION(NT5) (C) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0909-1410
2	BOLT; EYE,OIL PIPE HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (C) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	1411-
2	BOLT; EYE,OIL PIPE (D) M14X43 EYE-BOLT	8-98037-829-0	01	1	0908-0908
2	BOLT; EYE,OIL PIPE EURO5 SPECIFICATION(NT5) (D) M14X43 EYE-BOLT	8-98037-829-0	01	1	0909-1410
2	BOLT; EYE,OIL PIPE HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (D) M14X43 EYE-BOLT	8-98037-829-0	01	1	1411-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0909-1312
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0908-0908
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2) (C) ID=12.2	1-09630-084-0	02	1	0909-1312
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2) (C) ID=12.2	8-98251-344-0	02	1	1401-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.6	8-97331-137-1	01	1	0908-0908
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO5 SPECIFICATION(NT5) (B) ID=12.6	8-97331-137-1	01	1	0909-1410
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (B) ID=12.6	8-97331-137-1	01	1	1411-
40	BOLT; OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	02	1	0909-
40	BOLT; OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	02	1	0908-0908
40	BOLT; OIL PIPE EURO2 SPECIFICATION(NT2) (A) M10X30 FLANGE	0-28151-030-0	02	1	0909-
40	BOLT; OIL PIPE (A) M8X30 FLANGE	0-28650-830-0	02	1	0908-0908
40	BOLT; OIL PIPE EURO5 SPECIFICATION(NT5) (A) M8X30 FLANGE	0-28650-830-0	02	1	0909-1410
40	BOLT; OIL PIPE HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (A) M8X30 FLANGE	0-28650-830-0	02	1	1411-
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0908-0908
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION(NT2) (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0909-1312
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION(NT2) (B) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0909-
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	1-09630-085-0	03	1	0908-0908
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO5 SPECIFICATION(NT5) (B) ID=14.2 OD=19.2	1-09630-085-0	03	1	0909-1312
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO5 SPECIFICATION(NT5) (B) ID=14.2 OD=19.2	8-98251-345-0	03	1	1401-1410
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (B) ID=14.2 OD=19.2	8-98251-345-0	03	1	1411-
63	PIPE; OIL,TURBOCHARGER FEED EURO2 SPECIFICATION(NT2)	8-98074-254-0	01	1	0909-
63	PIPE; OIL,TURBOCHARGER FEED	8-97606-204-0	01	1	0908-0908
63	PIPE; OIL,TURBOCHARGER FEED EURO5 SPECIFICATION(NT5)	8-97606-204-0	01	1	0909-1410
63	PIPE; OIL,TURBOCHARGER FEED HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA>	8-97606-204-0	01	1	1411-
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2)	1-09637-058-2	01	1	0909-
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	8-94390-641-1	01	1	0908-0908
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EURO5 SPECIFICATION(NT5)	8-94390-641-1	01	1	0909-1410
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA>	8-94390-641-1	01	1	1411-
149	PIPE; OIL RETURN,TURBOCHARGER EURO2 SPECIFICATION(NT2)	8-98147-092-0	01	1	0909-
149	PIPE; OIL RETURN,TURBOCHARGER	8-97606-205-3	01	1	0908-0908
149	PIPE; OIL RETURN,TURBOCHARGER EURO5 SPECIFICATION(NT5)	8-97606-205-3	01	1	0909-1410
149	PIPE; OIL RETURN,TURBOCHARGER HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA>	8-97606-205-3	01	1	1411-
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	0908-
157	BRACKET; OIL PIPE	8-98053-248-0	01	1	0908-0908
157	BRACKET; OIL PIPE EURO5 SPECIFICATION(NT5)	8-98053-248-0	01	1	0909-1410
157	BRACKET; OIL PIPE HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA>	8-98053-248-0	01	1	1411-
174	GASKET; OIL PIPE,VLV OVERFLOW ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	02	1	0908-0908
174	GASKET; OIL PIPE,VLV OVERFLOW ALSO INCLUDED IN GASKET SET(ENGINE). EURO5 SPECIFICATION(NT5) ID=10.2 OD=15.2	1-09630-083-0	02	1	0909-1410
174	GASKET; OIL PIPE,VLV OVERFLOW ALSO INCLUDED IN GASKET SET(ENGINE). HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> ID=10.2 OD=15.2	1-09630-083-0	02	1	1411-
346	NUT; CONNECTOR EURO5 SPECIFICATION(NT5) M10 FLANGE	0-91180-210-0	01	1	0908-
437	PIPE; OIL	8-98053-119-0	01	1	0908-0908
437	PIPE; OIL EURO5 SPECIFICATION(NT5)	8-98053-119-0	01	1	0909-1410
437	PIPE; OIL HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA>	8-98053-119-0	01	1	1411-
471	PLUG; OIL M14X14	9-09862-156-0	01	1	0908-0908
471	PLUG; OIL EURO5 SPECIFICATION(NT5) M14X14	9-09862-156-0	01	1	0909-1410
471	PLUG; OIL HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> M14X14	9-09862-156-0	01	1	1411-
472	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	01	1	0908-0908
472	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). EURO5 SPECIFICATION(NT5) ID=14.2 OD=19.2	1-09630-085-0	01	1	0909-1312
472	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). EURO5 SPECIFICATION(NT5) ID=14.2 OD=19.2	8-98251-345-0	01	1	1401-1410
472	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> ID=14.2 OD=19.2	8-98251-345-0	01	1	1411-
476	PIPE; OIL,C/BL TO AIR CMPR	8-97608-935-0	01	1	0908-
544	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0908-0908
544	NUT; BRKT EURO5 SPECIFICATION(NT5) M8 FLANGE	0-91180-108-0	02	1	0909-1410
544	NUT; BRKT HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> M8 FLANGE	0-91180-108-0	02	1	1411-

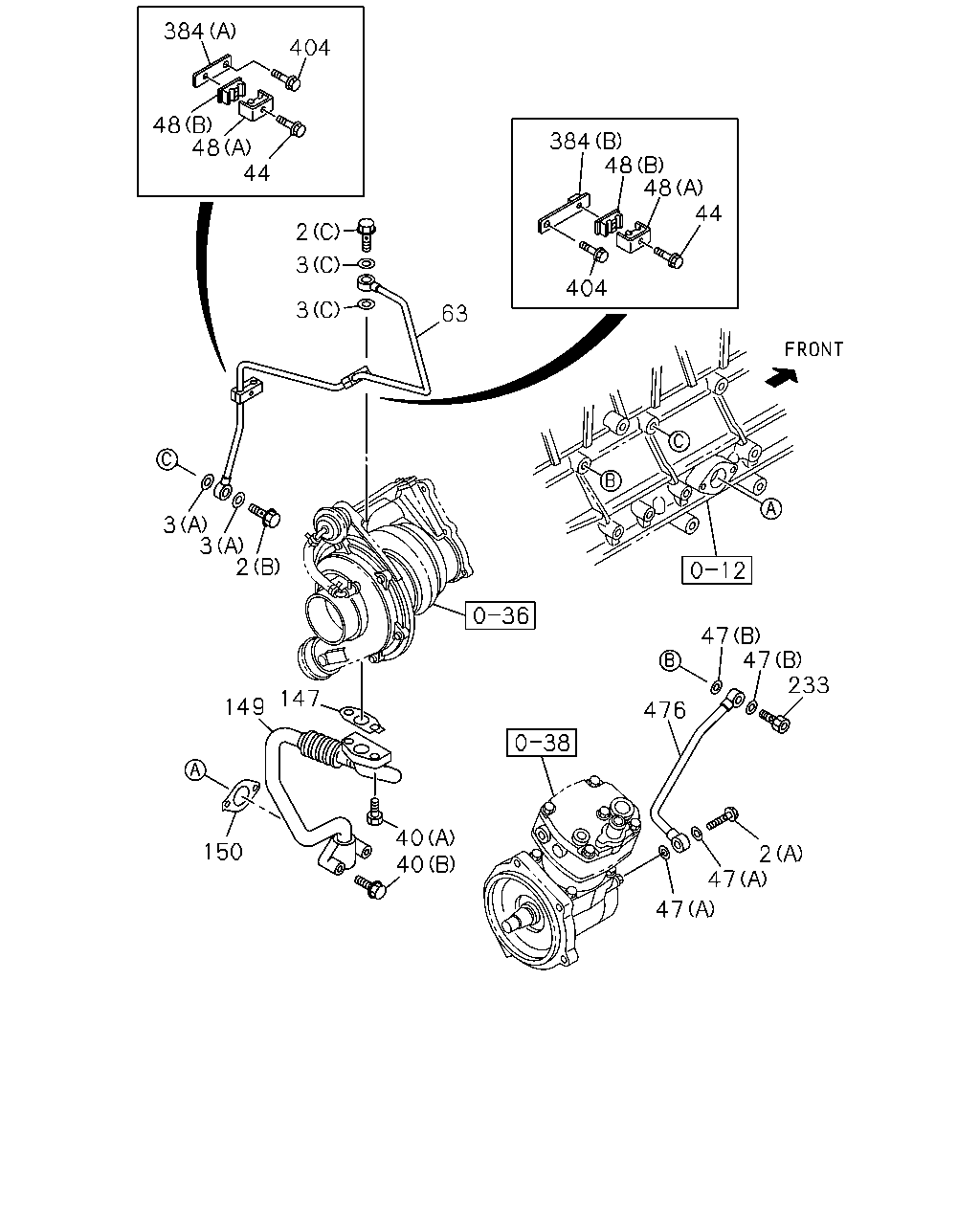

384 404 48 48 384 48 48 44 44 2 3 404 3 63 3 3 2 47 47 233 147 149 476 40 40 150 2 47 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	BOLT; EYE,OIL PIPE EURO2 SPECIFICATION(NT2) (C) M12X25	5-09675-006-1	01	1	0909-
2	BOLT; EYE,OIL PIPE EURO2 SPECIFICATION(NT2) (A) M10X21 FLANGE	8-97372-238-0	01	1	0909-
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	01	1	0908-
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	02	1	0908-0908
2	BOLT; EYE,OIL PIPE EURO5 SPECIFICATION(NT5) (A) M10X21 FLANGE	8-97372-238-0	02	1	0909-1410
2	BOLT; EYE,OIL PIPE HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (A) M10X21 FLANGE	8-97372-238-0	02	1	1411-
2	BOLT; EYE,OIL PIPE (C) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0908-0908
2	BOLT; EYE,OIL PIPE EURO5 SPECIFICATION(NT5) (C) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0909-1410
2	BOLT; EYE,OIL PIPE HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (C) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	1411-
2	BOLT; EYE,OIL PIPE (D) M14X43 EYE-BOLT	8-98037-829-0	01	1	0908-0908
2	BOLT; EYE,OIL PIPE EURO5 SPECIFICATION(NT5) (D) M14X43 EYE-BOLT	8-98037-829-0	01	1	0909-1410
2	BOLT; EYE,OIL PIPE HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (D) M14X43 EYE-BOLT	8-98037-829-0	01	1	1411-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0909-1312
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0908-0908
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2) (C) ID=12.2	1-09630-084-0	02	1	0909-1312
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2) (C) ID=12.2	8-98251-344-0	02	1	1401-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.6	8-97331-137-1	01	1	0908-0908
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO5 SPECIFICATION(NT5) (B) ID=12.6	8-97331-137-1	01	1	0909-1410
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (B) ID=12.6	8-97331-137-1	01	1	1411-
40	BOLT; OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	02	1	0909-
40	BOLT; OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	02	1	0908-0908
40	BOLT; OIL PIPE EURO2 SPECIFICATION(NT2) (A) M10X30 FLANGE	0-28151-030-0	02	1	0909-
40	BOLT; OIL PIPE (A) M8X30 FLANGE	0-28650-830-0	02	1	0908-0908
40	BOLT; OIL PIPE EURO5 SPECIFICATION(NT5) (A) M8X30 FLANGE	0-28650-830-0	02	1	0909-1410
40	BOLT; OIL PIPE HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (A) M8X30 FLANGE	0-28650-830-0	02	1	1411-
44	BOLT; CLIP,OIL PIPE EURO2 SPECIFICATION(NT2) M6X30 FLANGE	0-28050-630-0	02	1	0909-
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0908-0908
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION(NT2) (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0909-1312
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION(NT2) (B) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0909-
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	1-09630-085-0	03	1	0908-0908
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO5 SPECIFICATION(NT5) (B) ID=14.2 OD=19.2	1-09630-085-0	03	1	0909-1312
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO5 SPECIFICATION(NT5) (B) ID=14.2 OD=19.2	8-98251-345-0	03	1	1401-1410
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (B) ID=14.2 OD=19.2	8-98251-345-0	03	1	1411-
48	CLIP; OIL PIPE EURO2 SPECIFICATION(NT2) (A) ID=7 & 9 L=25	1-09701-228-3	02	1	0909-
48	CLIP; OIL PIPE EURO2 SPECIFICATION(NT2) (B) ID=7 & 9 L=25	1-09701-229-2	02	1	0909-
63	PIPE; OIL,TURBOCHARGER FEED EURO2 SPECIFICATION(NT2)	8-98074-254-0	01	1	0909-
63	PIPE; OIL,TURBOCHARGER FEED	8-97606-204-0	01	1	0908-0908
63	PIPE; OIL,TURBOCHARGER FEED EURO5 SPECIFICATION(NT5)	8-97606-204-0	01	1	0909-1410
63	PIPE; OIL,TURBOCHARGER FEED HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA>	8-97606-204-0	01	1	1411-
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2)	1-09637-058-2	01	1	0909-
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	8-94390-641-1	01	1	0908-0908
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EURO5 SPECIFICATION(NT5)	8-94390-641-1	01	1	0909-1410
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA>	8-94390-641-1	01	1	1411-
149	PIPE; OIL RETURN,TURBOCHARGER EURO2 SPECIFICATION(NT2)	8-98147-092-0	01	1	0909-
149	PIPE; OIL RETURN,TURBOCHARGER	8-97606-205-3	01	1	0908-0908
149	PIPE; OIL RETURN,TURBOCHARGER EURO5 SPECIFICATION(NT5)	8-97606-205-3	01	1	0909-1410
149	PIPE; OIL RETURN,TURBOCHARGER HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA>	8-97606-205-3	01	1	1411-
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	0908-
233	BOLT; EYE EURO2 SPECIFICATION(NT2)	8-98046-713-0	01	1	0909-
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER EURO2 SPECIFICATION(NT2) (A)	1-13319-020-0	01	1	0909-
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER EURO2 SPECIFICATION(NT2) (B)	1-13319-041-0	01	1	0909-
404	BOLT; BRKT EURO2 SPECIFICATION(NT2) M8X20	0-20950-820-0	01	1	0909-
404	BOLT; BRKT EURO2 SPECIFICATION(NT2) M8X15	1-09000-114-0	01	1	0909-
476	PIPE; OIL,C/BL TO AIR CMPR	8-97608-935-0	01	1	0908-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
