0-50 — OIL COOLER AND OIL FILTER (#68772) — 88 parça

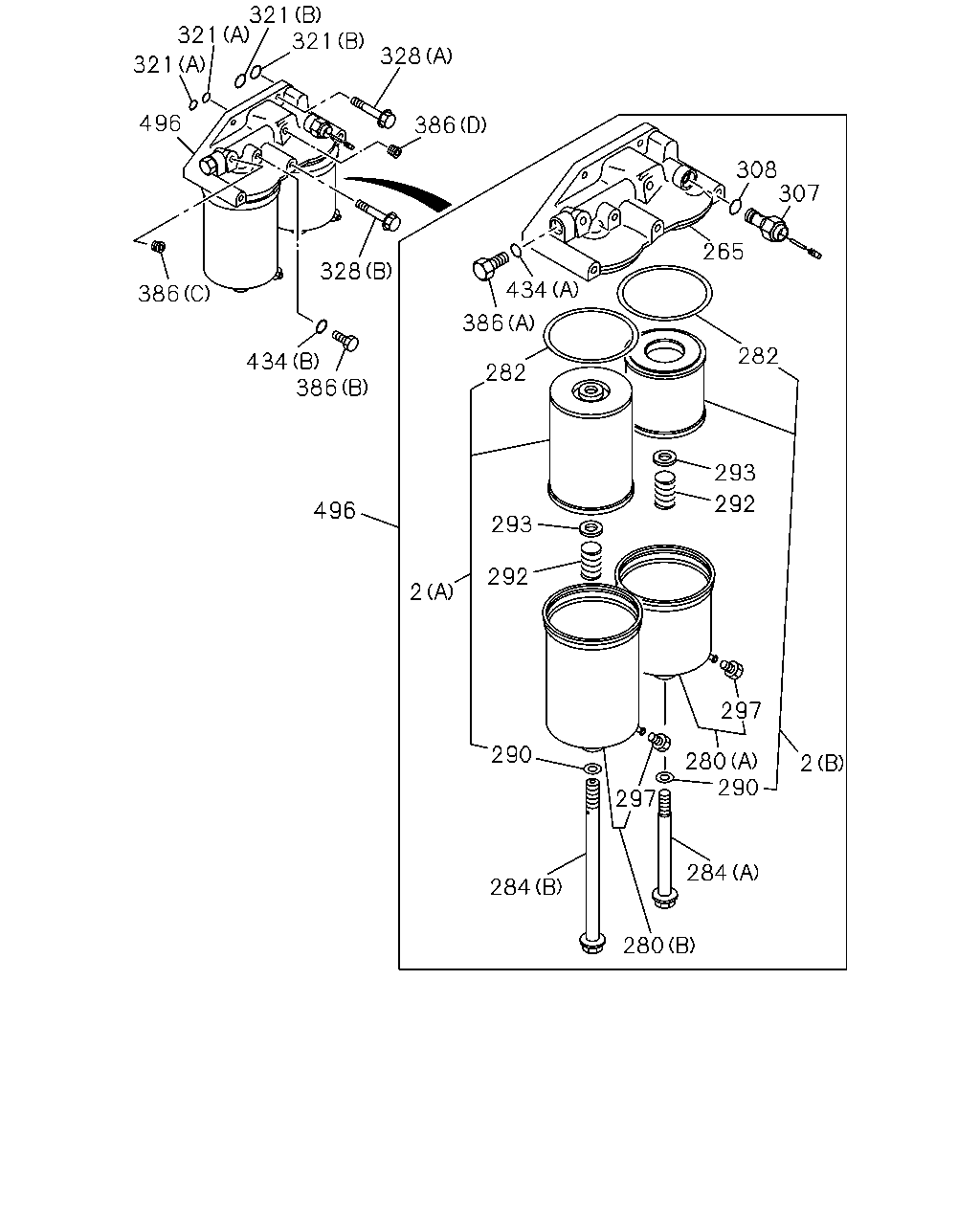

321 321 321 328 321 496 386 308 307 265 328 434 386 386 282 434 386 282 293 292 496 293 292 2 297 290 280 290 297 2 284 284 280

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	ELEMENT; OIL FILTER (A)	8-98140-515-0	01	1	0908-1406
2	ELEMENT; OIL FILTER (A)	8-98274-487-0	01	1	1407-
2	ELEMENT; OIL FILTER (B)	1-87810-372-1	01	1	0908-1406
2	ELEMENT; OIL FILTER (B)	8-98274-486-0	01	1	1407-
265	BODY; OIL FILTER	1-13212-169-0	01	1	0908-
280	CASE ASM; OIL FILTER (A)	8-94393-504-1	01	1	0908-
280	CASE ASM; OIL FILTER (B)	8-94393-505-1	01	1	0908-
282	GASKET; BODY TO CASE	9-09920-311-0	02	1	0908-1406
282	GASKET; BODY TO CASE	8-98274-489-0	02	1	1407-
284	BOLT; CENTER,OIL FILTER (A)	1-13231-069-0	01	1	0908-
284	BOLT; CENTER,OIL FILTER (B)	1-13231-070-1	01	1	0908-
290	GASKET; PLUG,OIL DRAIN ID=15.5	9-09920-694-0	02	1	0908-1406
290	GASKET; PLUG,OIL DRAIN ID=15.5	8-98274-488-0	02	1	1407-
292	SPRING; ELEMENT	9-09941-283-0	02	1	0908-
293	SEAT; SPR	9-13239-025-0	02	1	0908-
297	PLUG; COVER	1-13219-275-0	02	1	0908-
307	VALVE; OVERFLOW	8-97073-740-0	01	1	0908-
308	GASKET; VLV,OVERFLOW ID=15.8	1-09623-163-0	01	1	0908-
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=9.8	8-94399-339-0	02	1	0908-
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=22.1	8-94399-399-0	02	1	0908-
328	BOLT; OIL FILTER (A) M10X30 FLANGE	0-28151-030-0	02	1	0908-
328	BOLT; OIL FILTER (B) M10X135	8-94397-139-1	03	1	0908-
386	PLUG; OIL FILTER (B) M10X10	1-09604-074-0	01	1	0908-
386	PLUG; OIL FILTER (C)	8-97320-204-0	01	1	0908-
386	PLUG; OIL FILTER (D) PT1/8	8-97369-552-1	01	1	0908-
386	PLUG; OIL FILTER (A) M16X9	9-13226-011-0	01	1	0908-
434	GASKET; PLUG,OIL FILTER (B) ID=10.2 OD=15.2	1-09630-083-0	01	1	0908-
434	GASKET; PLUG,OIL FILTER (A)	9-09920-526-0	01	1	0908-
496	FILTER ASM; OIL	8-98140-514-0	01	1	0908-1406
496	FILTER ASM; OIL	8-98274-484-0	01	1	1407-

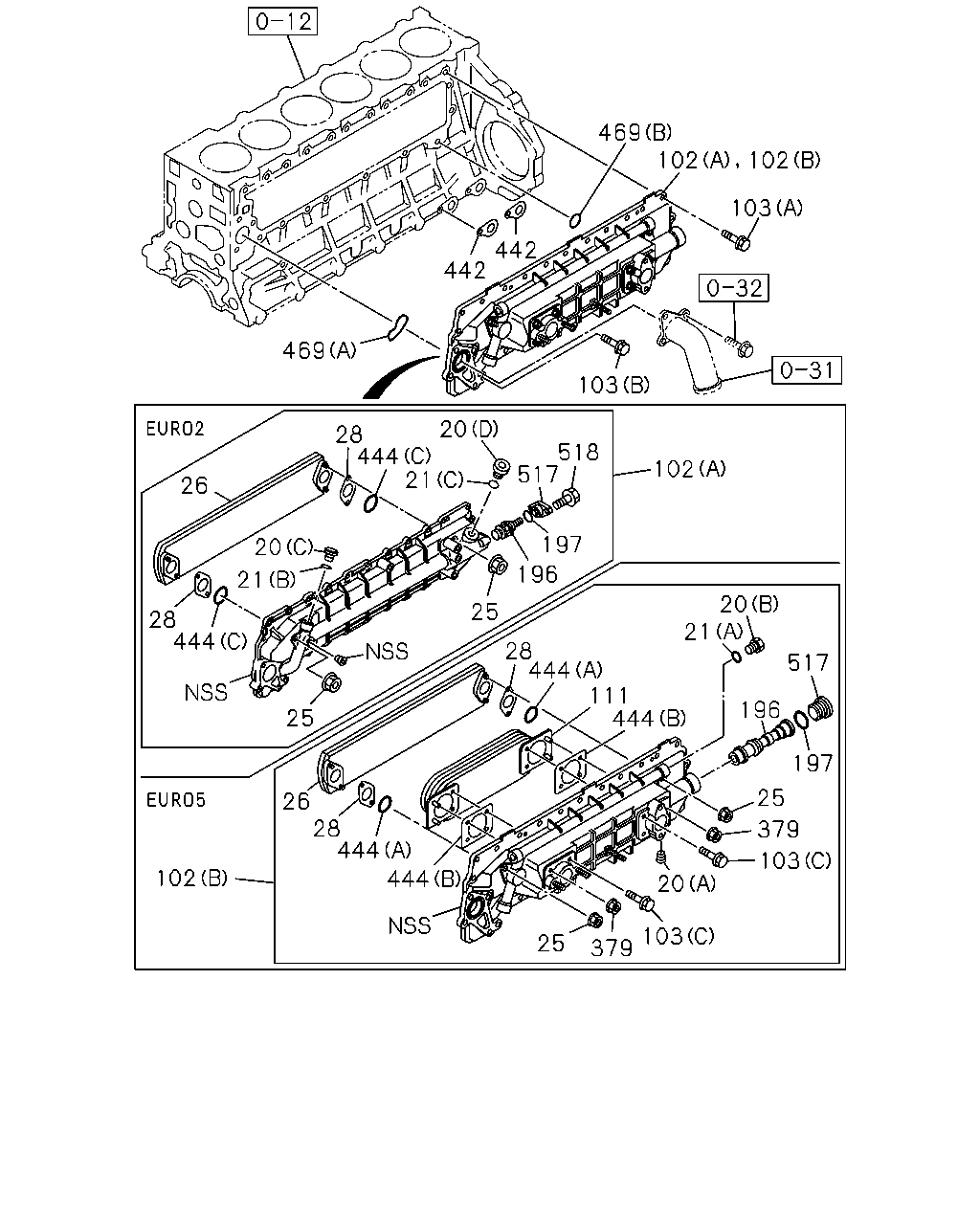

469 442 442 469 402 103 103 28 20 102 518 517 197 196 25 20 26 28 444 25 26 28 444 444 25 379 20 103 103 197 25 379 444 111 444 28 21 20 517 196 444 102 21 21 102

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
20	PLUG; COOLER BODY EURO2 SPECIFICATION(NT2) (C)	8-94393-604-0	01	1	0909-
20	PLUG; COOLER BODY EURO2 SPECIFICATION(NT2) (D)	8-94396-753-0	01	1	0909-
20	PLUG; COOLER BODY (A)	1-13219-240-0	02	1	0908-0908
20	PLUG; COOLER BODY EURO5 SPECIFICATION(NT5) (A)	1-13219-240-0	02	1	0909-1410
20	PLUG; COOLER BODY HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (A)	1-13219-240-0	02	1	1411-
20	PLUG; COOLER BODY (B)	8-97608-567-0	02	1	0908-0908
20	PLUG; COOLER BODY EURO5 SPECIFICATION(NT5) (B)	8-97608-567-0	02	1	0909-1410
20	PLUG; COOLER BODY HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (B)	8-97608-567-0	02	1	1411-
21	GASKET; PLUG EURO2 SPECIFICATION(NT2) (B)	1-13219-253-0	01	1	0909-
21	GASKET; PLUG EURO2 SPECIFICATION(NT2) (C) M24	8-94396-755-0	01	1	0909-
21	GASKET; PLUG (A) ID=17.8	8-97608-568-0	02	1	0908-0908
21	GASKET; PLUG EURO5 SPECIFICATION(NT5) (A) ID=17.8	8-97608-568-0	02	1	0909-1410
21	GASKET; PLUG HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (A) ID=17.8	8-97608-568-0	02	1	1411-
25	NUT; CORE TO BODY M10 FLANGE	1-13219-324-0	04	1	0908-
26	CORE ASM; OIL COOLER EURO2 SPECIFICATION(NT2)	8-94391-738-1	01	1	0909-
26	CORE ASM; OIL COOLER	8-98062-207-0	01	1	0908-0908
26	CORE ASM; OIL COOLER EURO5 SPECIFICATION(NT5)	8-98062-207-0	01	1	0909-1410
26	CORE ASM; OIL COOLER HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA>	8-98062-207-0	01	1	1411-
28	GASKET; CORE TO BODY EURO2 SPECIFICATION(NT2)	8-94394-930-0	02	1	0909-1004
28	GASKET; CORE TO BODY	8-94394-930-0	02	1	1005-
28	GASKET; CORE TO BODY	8-98063-865-0	02	1	0908-0908
28	GASKET; CORE TO BODY EURO5 SPECIFICATION(NT5)	8-98063-865-0	02	1	0909-1004
102	COOLER ASM; OIL EURO2 SPECIFICATION(NT2) (A)	8-97600-156-1	01	1	0909-
102	COOLER ASM; OIL (B)	8-98130-995-0	01	1	0908-0908
102	COOLER ASM; OIL EURO5 SPECIFICATION(NT5) (B)	8-98130-995-0	01	1	0909-1307
102	COOLER ASM; OIL EURO5 SPECIFICATION(NT5) (B)	8-98236-650-0	01	1	1308-1410
102	COOLER ASM; OIL HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (B)	8-98236-650-0	01	1	1411-
103	BOLT; OIL COOLER EURO5 SPECIFICATION(NT5) (C) M8X18 FLANGE	8-98251-758-0	04	1	1309-1410
103	BOLT; OIL COOLER HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (C) M8X18 FLANGE	8-98251-758-0	04	1	1411-
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	03	1	0909-
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	03	1	0908-0908
103	BOLT; OIL COOLER EURO2 SPECIFICATION(NT2) (A) M8X22 FLANGE	0-28080-822-0	24	1	0909-
103	BOLT; OIL COOLER (A) M8X30 FLANGE	0-28650-830-0	24	1	0908-0908
103	BOLT; OIL COOLER EURO5 SPECIFICATION(NT5) (A) M8X30 FLANGE	0-28650-830-0	24	1	0909-1410
103	BOLT; OIL COOLER HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (A) M8X30 FLANGE	0-28650-830-0	24	1	1411-
111	CORE; OIL COOLER EURO5 SPECIFICATION(NT5)	8-98063-863-0	01	1	1309-1410
111	CORE; OIL COOLER HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA>	8-98063-863-0	01	1	1411-
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-97600-936-0	01	1	0908-
197	GASKET; THERMOSTAT EURO2 SPECIFICATION(NT2) ID=25.7	8-94399-279-0	01	1	0909-
197	GASKET; THERMOSTAT	8-94391-728-0	01	1	0908-0908
197	GASKET; THERMOSTAT EURO5 SPECIFICATION(NT5)	8-94391-728-0	01	1	0909-1410
197	GASKET; THERMOSTAT HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA>	8-94391-728-0	01	1	1411-
379	NUT; OIL COOLER EURO5 SPECIFICATION(NT5) M8 FLANGE	0-91180-108-0	04	1	1309-1410
379	NUT; OIL COOLER HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> M8 FLANGE	0-91180-108-0	04	1	1411-
442	BRACKET; HARNESS,OIL FILTER	8-97601-310-0	02	1	0908-
444	GASKET; ELEMENT TO BODY EURO5 SPECIFICATION(NT5) (B)	8-97601-801-0	02	1	1309-1410
444	GASKET; ELEMENT TO BODY HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (B)	8-97601-801-0	02	1	1411-
444	GASKET; ELEMENT TO BODY EURO2 SPECIFICATION(NT2) (C)	8-94396-810-0	02	1	0909-
444	GASKET; ELEMENT TO BODY (A) ID=38.7	1-09623-299-0	02	1	0908-0908
444	GASKET; ELEMENT TO BODY EURO5 SPECIFICATION(NT5) (A) ID=38.7	1-09623-299-0	02	1	0909-1410
444	GASKET; ELEMENT TO BODY HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (A) ID=38.7	1-09623-299-0	02	1	1411-
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	0908-
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=20	8-98045-449-0	01	1	0908-
517	PLUG; THERMOSTAT,OIL COOLER EURO2 SPECIFICATION(NT2)	8-94391-740-0	01	1	0909-
517	PLUG; THERMOSTAT,OIL COOLER	8-94391-731-0	01	1	0908-0908
517	PLUG; THERMOSTAT,OIL COOLER EURO5 SPECIFICATION(NT5)	8-94391-731-0	01	1	0909-1410
517	PLUG; THERMOSTAT,OIL COOLER HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA>	8-94391-731-0	01	1	1411-
518	BOLT; PLUG,THERMOSTAT EURO2 SPECIFICATION(NT2) M8X16 FLANGE	0-28050-816-0	02	1	0909-
