Isuzu WW
▶
BUSES
▶
LT
▶
11207 - LT134(RHD) EURO2/5
▶
0 - Engine, Emission, Engine Electrical
▶
0-38 - AIR COMPRESSOR PIPING; ENGINE SIDE
▶

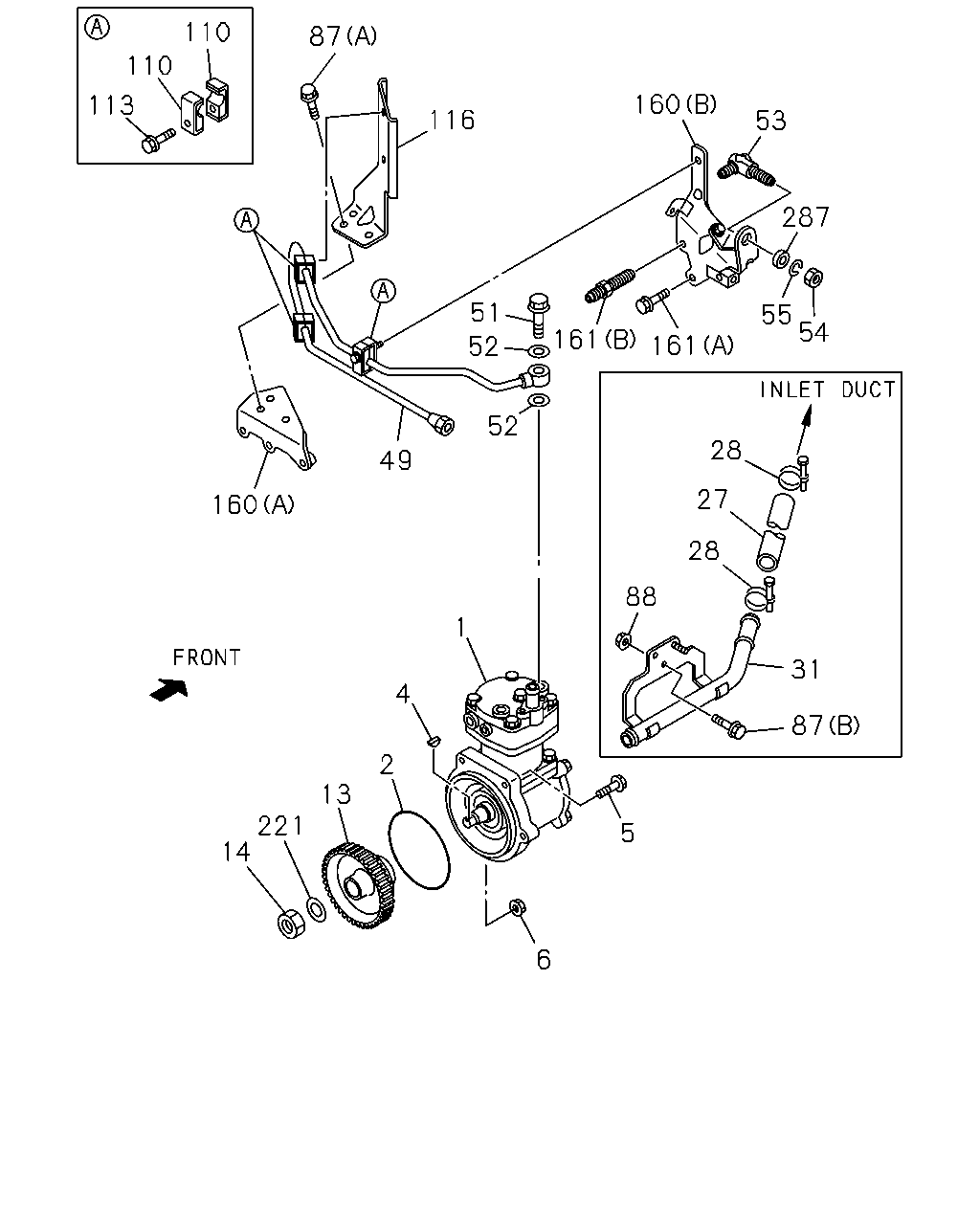

0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE
(#68768) — 29 parça
110
87
110
160
113
116
53
287
51
55
54
161
161
52
52
28
49
27
160
28
88
1
31
4
87
2
13
221
14
5
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT.
8-98055-879-2
01
1
0908-1107
1
COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT.
8-98187-303-0
01
1
1108-
2
GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=162
1-09623-570-0
01
1
0908-
4
KEY; INJ PUMP GEAR
9-08055-516-0
01
1
0908-
5
BOLT; AIR CMPR FIX
M12X70 FLANGE
0-28151-270-0
03
1
0908-
6
NUT; AIR CMPR
M12 FLANGE
0-91180-212-0
01
1
0908-
13
GEAR; AIR CMPR DRIVE
Z=49
8-94394-511-4
01
1
0908-
14
NUT; GEAR
M20
0-91110-520-0
01
1
0908-
27
HOSE; AIR CMPR,SUCTION
8-98043-670-0
01
1
0908-
28
CLIP; HOSE,AIR CMPR
ID=36
1-09704-094-0
02
1
0908-
31
PIPE; AIR,AIR CMPR SUCTION
8-98043-368-1
01
1
0908-
49
PIPE; AIR,CHARGE
8-98042-002-0
01
1
0908-
51
BOLT; EYE,AIR PIPE TO CMPR
M24X39
1-09675-175-2
01
1
0908-
52
GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32
9-09571-424-0
02
1
0908-
53
UNION; CHARGE PIPE
M22 & M26 ELBOW
8-98008-887-2
01
1
0908-
54
NUT; PIPE UNION
M26
8-98049-390-0
01
1
0908-
55
WASHER; LK,PIPE UNION
ID=27.5
0-91510-527-0
01
1
0908-
87
BOLT; BRKT FIX
(A) M8X20 FLANGE
0-28050-820-0
03
1
0908-
87
BOLT; BRKT FIX
(B) M8X25 FLANGE
0-28650-825-0
01
1
0908-
88
NUT; BRKT FIX
M8 FLANGE
0-91180-108-0
02
1
0908-
110
CLIP; AIR PIPE
ID=17 L=17
1-09701-284-0
06
1
0908-
113
BOLT; CLIP,AIR PIPE
M8X45 FLANGE
0-28050-845-0
03
1
0908-
116
BRACKET; AIR PIPE
8-97614-183-1
01
1
0908-
160
BRACKET; AIR PIPE
(A)
8-97614-182-2
01
1
0908-
160
BRACKET; AIR PIPE
(B)
8-97615-888-3
01
1
0908-
161
BOLT; BRKT,AIR PIPE
(A) M8X16 FLANGE
0-28050-816-0
01
1
0908-
161
BOLT; BRKT,AIR PIPE
(B) M8X14,M8X14 L=33
1-09300-058-1
01
1
0908-
221
WASHER; PL,GEAR
ID=21
0-91610-520-0
01
1
0908-
287
SPACER
8-98049-065-1
01
1
0908-
