Sayfa 0-36 - Isuzu EPC

0-36 — TURBOCHARGER SYSTEM (#68766) — 185 parça

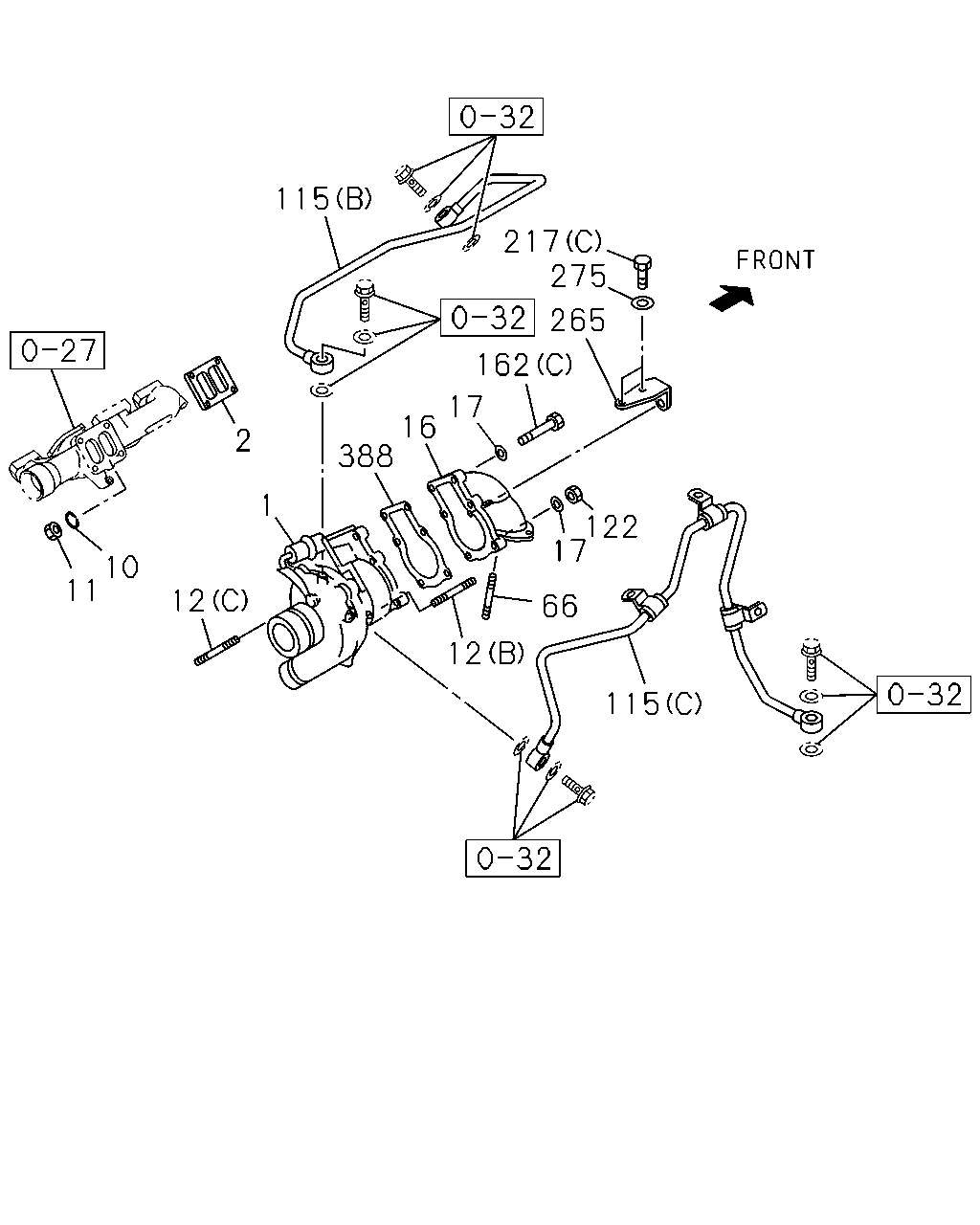

115 217 275 265 162 17 16 388 2 122 17 1 10 11 12 66 12 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TURBOCHARGER ASM EURO2 SPECIFICATION(NT2) SEE FIG-NO 0-37 FOR COMPONENT.	8-98138-426-0	01	1	0909-1202
1	TURBOCHARGER ASM EURO2 SPECIFICATION(NT2) SEE FIG-NO 0-37 FOR COMPONENT.	8-98139-615-0	01	1	1203-
1	TURBOCHARGER ASM	8-97604-975-9	01	1	0908-0908
1	TURBOCHARGER ASM EURO5 SPECIFICATION(NT5)	8-97604-975-9	01	1	0909-1410
1	TURBOCHARGER ASM HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> SEE FIG-NO 0-37 FOR COMPONENT.	8-97604-975-9	01	1	1411-
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION(NT2)	8-94390-044-0	01	1	0909-
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97024-124-0	01	1	0908-0908
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO5 SPECIFICATION(NT5)	8-97024-124-0	01	1	0909-1410
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA>	8-97024-124-0	01	1	1411-
10	WASHER; LK,TURBOCHARGER EURO2 SPECIFICATION(NT2) T=2.2	1-09556-015-0	02	1	0909-
10	WASHER; LK,TURBOCHARGER T=2.2	1-09556-015-0	04	1	0908-0908
10	WASHER; LK,TURBOCHARGER EURO5 SPECIFICATION(NT5) T=2.2	1-09556-015-0	04	1	0909-1410
10	WASHER; LK,TURBOCHARGER HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> T=2.2	1-09556-015-0	04	1	1411-
11	NUT; TURBOCHARGER EURO2 SPECIFICATION(NT2) M10	1-09420-005-0	04	1	0909-
12	STUD; TURBOCHARGER EURO2 SPECIFICATION(NT2) (B) M8X25	9-04130-825-0	01	1	0909-
12	STUD; TURBOCHARGER EURO2 SPECIFICATION(NT2) (C) M10X80	9-04731-080-0	02	1	0909-
12	STUD; TURBOCHARGER (A) M8X25 L=36	8-94476-282-0	02	1	0908-0908
12	STUD; TURBOCHARGER EURO5 SPECIFICATION(NT5) (A) M8X25 L=36	8-94476-282-0	02	1	0909-1410
12	STUD; TURBOCHARGER HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (A) M8X25 L=36	8-94476-282-0	02	1	1411-
16	ADAPTER; EXH PIPE EURO2 SPECIFICATION(NT2)	8-98069-083-0	01	1	0909-
16	ADAPTER; EXH PIPE	8-98018-241-1	01	1	0908-0908
16	ADAPTER; EXH PIPE EURO5 SPECIFICATION(NT5)	8-98018-241-1	01	1	0909-1410
16	ADAPTER; EXH PIPE HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA>	8-98018-241-1	01	1	1411-
17	WASHER; PL,ADAPTER EURO2 SPECIFICATION(NT2) T=1.9	5-09500-012-0	06	1	0909-
17	WASHER; PL,ADAPTER T=1.9	5-09500-012-0	04	1	0908-0908
17	WASHER; PL,ADAPTER EURO5 SPECIFICATION(NT5) T=1.9	5-09500-012-0	04	1	0909-1410
17	WASHER; PL,ADAPTER HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> T=1.9	5-09500-012-0	04	1	1411-
66	STUD; EXH PIPE EURO2 SPECIFICATION(NT2) M12X30 L=48	8-98059-951-0	03	1	0909-
115	PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION(NT2) (B)	8-98123-401-0	01	1	0909-
115	PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION(NT2) (C)	8-98137-196-0	01	1	0909-
115	PIPE; WATER,TURBOCHARGER OUT (A)	8-97615-877-0	01	1	0908-0908
115	PIPE; WATER,TURBOCHARGER OUT EURO5 SPECIFICATION(NT5) (A)	8-97615-877-0	01	1	0909-1410
115	PIPE; WATER,TURBOCHARGER OUT HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (A)	8-97615-877-0	01	1	1411-
122	NUT; ADAPTER EURO2 SPECIFICATION(NT2) M8	1-09400-118-1	01	1	0909-
122	NUT; ADAPTER M8	1-09400-118-1	02	1	0908-0908
122	NUT; ADAPTER EURO5 SPECIFICATION(NT5) M8	1-09400-118-1	02	1	0909-1410
122	NUT; ADAPTER HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> M8	1-09400-118-1	02	1	1411-
162	BOLT; ADAPTER EURO2 SPECIFICATION(NT2) (C) M8X57	5-09000-275-0	05	1	0909-
162	BOLT; ADAPTER (A) M10X60 FLANGE	0-28051-060-0	01	1	0908-0908
162	BOLT; ADAPTER EURO5 SPECIFICATION(NT5) (A) M10X60 FLANGE	0-28051-060-0	01	1	0909-1410
162	BOLT; ADAPTER HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (A) M10X60 FLANGE	0-28051-060-0	01	1	1411-
162	BOLT; ADAPTER (B) M8X60	1-09000-464-0	02	1	0908-0908
162	BOLT; ADAPTER EURO5 SPECIFICATION(NT5) (B) M8X60	1-09000-464-0	02	1	0909-0910
162	BOLT; ADAPTER EURO5 SPECIFICATION(NT5) (B) M8X60	8-98158-604-0	02	1	0911-1410
162	BOLT; ADAPTER HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (B) M8X60	8-98158-604-0	02	1	1411-
217	BOLT; BRKT EURO2 SPECIFICATION(NT2) (C) M12X30	8-94394-324-0	03	1	0909-
217	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	01	1	0908-0908
217	BOLT; BRKT EURO5 SPECIFICATION(NT5) (A) M8X20 FLANGE	0-28650-820-0	01	1	0909-1410
217	BOLT; BRKT HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (A) M8X20 FLANGE	0-28650-820-0	01	1	1411-
217	BOLT; BRKT (B) M10X25 FLANGE	0-28751-025-0	01	1	0908-0908
217	BOLT; BRKT EURO5 SPECIFICATION(NT5) (B) M10X25 FLANGE	0-28751-025-0	01	1	0909-1410
217	BOLT; BRKT HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (B) M10X25 FLANGE	0-28751-025-0	01	1	1411-
265	BRACKET; EXH PIPE	8-98260-415-0	01	1	0908-0908
265	BRACKET; EXH PIPE EURO5 SPECIFICATION(NT5)	8-98260-415-0	01	1	0909-1410
265	BRACKET; EXH PIPE HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA>	8-98260-415-0	01	1	1411-
265	BRACKET; EXH PIPE EURO2 SPECIFICATION(NT2)	8-94395-764-2	01	1	0909-
275	WASHER; PL EURO2 SPECIFICATION(NT2) ID=12.2	1-09503-008-0	03	1	0909-
388	GASKET; EXH PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION(NT2)	8-94394-248-2	01	1	0909-

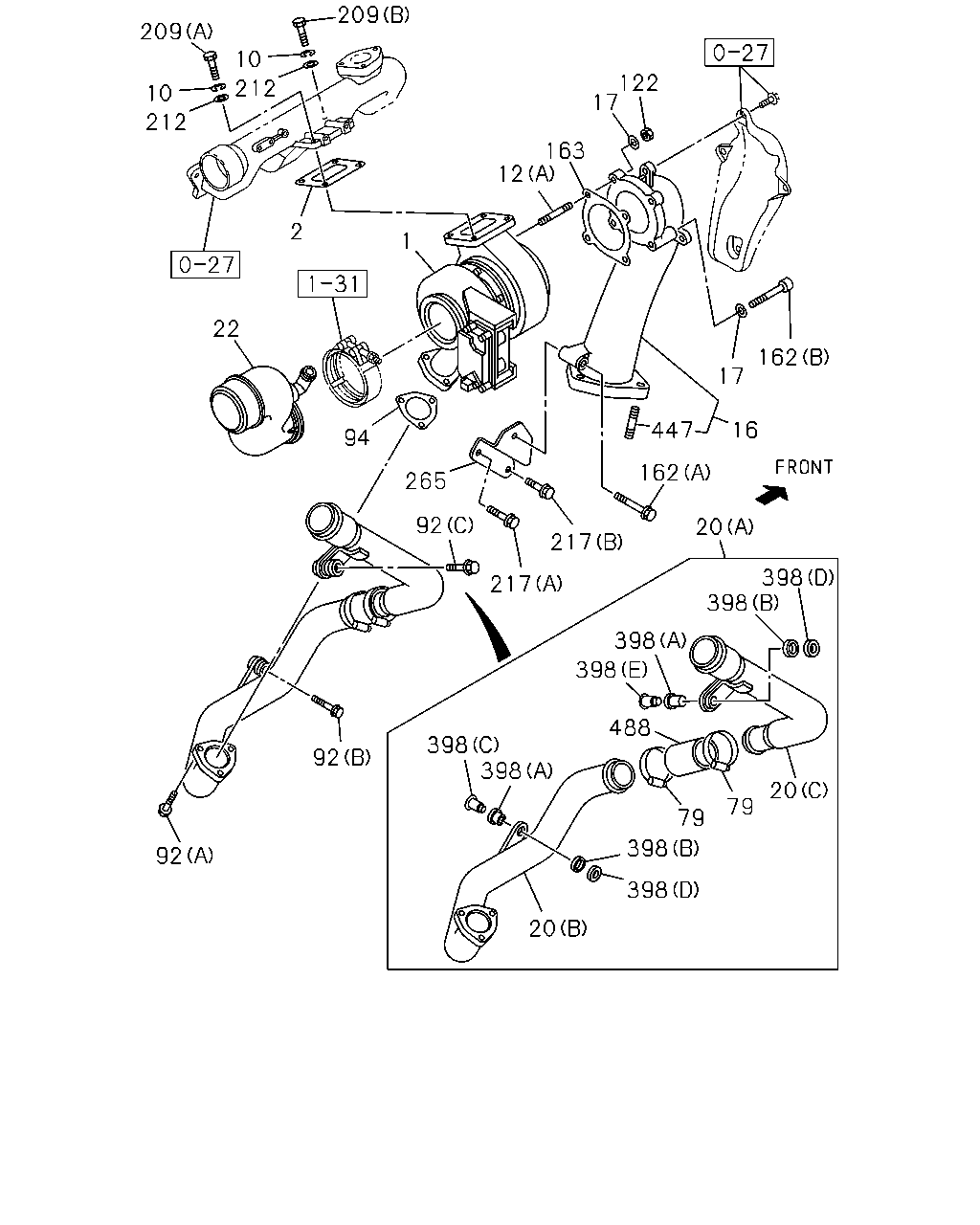

209 209 10 122 17 212 10 212 163 12 2 1 22 162 17 447 16 94 162 265 92 20 217 398 398 217 398 398 488 398 398 92 20 79 79 398 92 398 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TURBOCHARGER ASM EURO2 SPECIFICATION(NT2) SEE FIG-NO 0-37 FOR COMPONENT.	8-98138-426-0	01	1	0909-1202
1	TURBOCHARGER ASM EURO2 SPECIFICATION(NT2) SEE FIG-NO 0-37 FOR COMPONENT.	8-98139-615-0	01	1	1203-
1	TURBOCHARGER ASM	8-97604-975-9	01	1	0908-0908
1	TURBOCHARGER ASM EURO5 SPECIFICATION(NT5)	8-97604-975-9	01	1	0909-1410
1	TURBOCHARGER ASM HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> SEE FIG-NO 0-37 FOR COMPONENT.	8-97604-975-9	01	1	1411-
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION(NT2)	8-94390-044-0	01	1	0909-
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97024-124-0	01	1	0908-0908
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO5 SPECIFICATION(NT5)	8-97024-124-0	01	1	0909-1410
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA>	8-97024-124-0	01	1	1411-
10	WASHER; LK,TURBOCHARGER EURO2 SPECIFICATION(NT2) T=2.2	1-09556-015-0	02	1	0909-
10	WASHER; LK,TURBOCHARGER T=2.2	1-09556-015-0	04	1	0908-0908
10	WASHER; LK,TURBOCHARGER EURO5 SPECIFICATION(NT5) T=2.2	1-09556-015-0	04	1	0909-1410
10	WASHER; LK,TURBOCHARGER HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> T=2.2	1-09556-015-0	04	1	1411-
12	STUD; TURBOCHARGER EURO2 SPECIFICATION(NT2) (B) M8X25	9-04130-825-0	01	1	0909-
12	STUD; TURBOCHARGER EURO2 SPECIFICATION(NT2) (C) M10X80	9-04731-080-0	02	1	0909-
12	STUD; TURBOCHARGER (A) M8X25 L=36	8-94476-282-0	02	1	0908-0908
12	STUD; TURBOCHARGER EURO5 SPECIFICATION(NT5) (A) M8X25 L=36	8-94476-282-0	02	1	0909-1410
12	STUD; TURBOCHARGER HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (A) M8X25 L=36	8-94476-282-0	02	1	1411-
16	ADAPTER; EXH PIPE EURO2 SPECIFICATION(NT2)	8-98069-083-0	01	1	0909-
16	ADAPTER; EXH PIPE	8-98018-241-1	01	1	0908-0908
16	ADAPTER; EXH PIPE EURO5 SPECIFICATION(NT5)	8-98018-241-1	01	1	0909-1410
16	ADAPTER; EXH PIPE HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA>	8-98018-241-1	01	1	1411-
17	WASHER; PL,ADAPTER EURO2 SPECIFICATION(NT2) T=1.9	5-09500-012-0	06	1	0909-
17	WASHER; PL,ADAPTER T=1.9	5-09500-012-0	04	1	0908-0908
17	WASHER; PL,ADAPTER EURO5 SPECIFICATION(NT5) T=1.9	5-09500-012-0	04	1	0909-1410
17	WASHER; PL,ADAPTER HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> T=1.9	5-09500-012-0	04	1	1411-
20	PIPE; INL,TURBOCHARGER OUT (A)	8-98048-811-4	01	1	0908-0908
20	PIPE; INL,TURBOCHARGER OUT EURO5 SPECIFICATION(NT5) (A)	8-98048-811-4	01	1	0909-1408
20	PIPE; INL,TURBOCHARGER OUT EURO5 SPECIFICATION(NT5) (A)	8-98251-583-0	01	1	1409-1410
20	PIPE; INL,TURBOCHARGER OUT HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (A)	8-98251-583-0	01	1	1411-
20	PIPE; INL,TURBOCHARGER OUT (B)	8-98048-812-1	01	1	0908-0908
20	PIPE; INL,TURBOCHARGER OUT EURO5 SPECIFICATION(NT5) (B)	8-98048-812-1	01	1	0909-1410
20	PIPE; INL,TURBOCHARGER OUT HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (B)	8-98048-812-1	01	1	1411-
20	PIPE; INL,TURBOCHARGER OUT (C)	8-98048-813-2	01	1	0908-0908
20	PIPE; INL,TURBOCHARGER OUT EURO5 SPECIFICATION(NT5) (C)	8-98048-813-2	01	1	0909-1410
20	PIPE; INL,TURBOCHARGER OUT HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (C)	8-98048-813-2	01	1	1411-
22	DUCT; INL,ACL TO TURBOCHARGER	8-98036-881-1	01	1	0908-0908
22	DUCT; INL,ACL TO TURBOCHARGER EURO5 SPECIFICATION(NT5)	8-98036-881-1	01	1	0909-1410
22	DUCT; INL,ACL TO TURBOCHARGER HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA>	8-98036-881-1	01	1	1411-
79	CLIP; RUBBER HOSE ID=58-79	1-09707-136-0	02	1	0908-0908
79	CLIP; RUBBER HOSE EURO5 SPECIFICATION(NT5) ID=58-79	1-09707-136-0	02	1	0909-1410
79	CLIP; RUBBER HOSE HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> ID=58-79	1-09707-136-0	02	1	1411-
92	BOLT; INL PIPE (A) M8X30 FLANGE	0-28650-830-0	03	1	0908-0908
92	BOLT; INL PIPE EURO5 SPECIFICATION(NT5) (A) M8X30 FLANGE	0-28650-830-0	03	1	0909-1410
92	BOLT; INL PIPE HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (A) M8X30 FLANGE	0-28650-830-0	03	1	1411-
92	BOLT; INL PIPE (B) M8X35 FLANGE	0-28650-835-0	01	1	0908-0908
92	BOLT; INL PIPE EURO5 SPECIFICATION(NT5) (B) M8X35 FLANGE	0-28650-835-0	01	1	0909-1410
92	BOLT; INL PIPE HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (B) M8X35 FLANGE	0-28650-835-0	01	1	1411-
92	BOLT; INL PIPE (C) M8X40 FLANGE	0-28650-840-0	01	1	0908-0908
92	BOLT; INL PIPE EURO5 SPECIFICATION(NT5) (C) M8X40 FLANGE	0-28650-840-0	01	1	0909-1410
92	BOLT; INL PIPE HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (C) M8X40 FLANGE	0-28650-840-0	01	1	1411-
94	GASKET; INL PIPE ID=55	8-98053-830-0	01	1	0908-0908
94	GASKET; INL PIPE EURO5 SPECIFICATION(NT5) ID=55	8-98053-830-0	01	1	0909-1410
94	GASKET; INL PIPE HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> ID=55	8-98053-830-0	01	1	1411-
122	NUT; ADAPTER EURO2 SPECIFICATION(NT2) M8	1-09400-118-1	01	1	0909-
122	NUT; ADAPTER M8	1-09400-118-1	02	1	0908-0908
122	NUT; ADAPTER EURO5 SPECIFICATION(NT5) M8	1-09400-118-1	02	1	0909-1410
122	NUT; ADAPTER HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> M8	1-09400-118-1	02	1	1411-
162	BOLT; ADAPTER EURO2 SPECIFICATION(NT2) (C) M8X57	5-09000-275-0	05	1	0909-
162	BOLT; ADAPTER (A) M10X60 FLANGE	0-28051-060-0	01	1	0908-0908
162	BOLT; ADAPTER EURO5 SPECIFICATION(NT5) (A) M10X60 FLANGE	0-28051-060-0	01	1	0909-1410
162	BOLT; ADAPTER HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (A) M10X60 FLANGE	0-28051-060-0	01	1	1411-
162	BOLT; ADAPTER (B) M8X60	1-09000-464-0	02	1	0908-0908
162	BOLT; ADAPTER EURO5 SPECIFICATION(NT5) (B) M8X60	1-09000-464-0	02	1	0909-0910
162	BOLT; ADAPTER EURO5 SPECIFICATION(NT5) (B) M8X60	8-98158-604-0	02	1	0911-1410
162	BOLT; ADAPTER HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (B) M8X60	8-98158-604-0	02	1	1411-
163	GASKET; ADAPTER TO EXH PIPE ID=83	8-94392-553-2	01	1	0908-0908
163	GASKET; ADAPTER TO EXH PIPE EURO5 SPECIFICATION(NT5) ID=83	8-94392-553-2	01	1	0909-1410
163	GASKET; ADAPTER TO EXH PIPE HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> ID=83	8-94392-553-2	01	1	1411-
209	BOLT; BRACE,TURBOCHARGER (B) M10X80	8-98049-825-0	02	1	0908-0908
209	BOLT; BRACE,TURBOCHARGER EURO5 SPECIFICATION(NT5) (B) M10X80	8-98049-825-0	02	1	0909-1410
209	BOLT; BRACE,TURBOCHARGER HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (B) M10X80	8-98049-825-0	02	1	1411-
209	BOLT; BRACE,TURBOCHARGER (A) M10X40	9-09604-007-1	02	1	0908-0908
209	BOLT; BRACE,TURBOCHARGER EURO5 SPECIFICATION(NT5) (A) M10X40	9-09604-007-1	02	1	0909-1410
209	BOLT; BRACE,TURBOCHARGER HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (A) M10X40	9-09604-007-1	02	1	1411-
212	WASHER; PL,TURBOCHARGER ID=10	1-09503-033-1	04	1	0908-
217	BOLT; BRKT EURO2 SPECIFICATION(NT2) (C) M12X30	8-94394-324-0	03	1	0909-
217	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	01	1	0908-0908
217	BOLT; BRKT EURO5 SPECIFICATION(NT5) (A) M8X20 FLANGE	0-28650-820-0	01	1	0909-1410
217	BOLT; BRKT HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (A) M8X20 FLANGE	0-28650-820-0	01	1	1411-
217	BOLT; BRKT (B) M10X25 FLANGE	0-28751-025-0	01	1	0908-0908
217	BOLT; BRKT EURO5 SPECIFICATION(NT5) (B) M10X25 FLANGE	0-28751-025-0	01	1	0909-1410
217	BOLT; BRKT HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (B) M10X25 FLANGE	0-28751-025-0	01	1	1411-
265	BRACKET; EXH PIPE	8-98260-415-0	01	1	0908-0908
265	BRACKET; EXH PIPE EURO5 SPECIFICATION(NT5)	8-98260-415-0	01	1	0909-1410
265	BRACKET; EXH PIPE HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA>	8-98260-415-0	01	1	1411-
265	BRACKET; EXH PIPE EURO2 SPECIFICATION(NT2)	8-94395-764-2	01	1	0909-
398	MOUNTING (B) ID=19 OD=26	8-94160-177-0	02	1	0908-0908
398	MOUNTING EURO5 SPECIFICATION(NT5) (B) ID=19 OD=26	8-94160-177-0	02	1	0909-1410
398	MOUNTING HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (B) ID=19 OD=26	8-94160-177-0	02	1	1411-
398	MOUNTING (C) OD=28	8-94390-551-1	01	1	0908-0908
398	MOUNTING EURO5 SPECIFICATION(NT5) (C) OD=28	8-94390-551-1	01	1	0909-1410
398	MOUNTING HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (C) OD=28	8-94390-551-1	01	1	1411-
398	MOUNTING (D) ID=13 OD=28	8-94394-504-0	02	1	0908-0908
398	MOUNTING EURO5 SPECIFICATION(NT5) (D) ID=13 OD=28	8-94394-504-0	02	1	0909-1410
398	MOUNTING HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (D) ID=13 OD=28	8-94394-504-0	02	1	1411-
398	MOUNTING (A) OD=26	8-94394-529-0	02	1	0908-0908
398	MOUNTING EURO5 SPECIFICATION(NT5) (A) OD=26	8-94394-529-0	02	1	0909-1410
398	MOUNTING HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (A) OD=26	8-94394-529-0	02	1	1411-
398	MOUNTING (E)	8-98048-939-0	01	1	0908-0908
398	MOUNTING EURO5 SPECIFICATION(NT5) (E)	8-98048-939-0	01	1	0909-1410
398	MOUNTING HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (E)	8-98048-939-0	01	1	1411-
447	STUD; ADAPTER M12X30 L=48	0-44011-230-0	03	1	0908-0908
447	STUD; ADAPTER EURO5 SPECIFICATION(NT5) M12X30 L=48	0-44011-230-0	03	1	0909-1410
447	STUD; ADAPTER HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> M12X30 L=48	0-44011-230-0	03	1	1411-
488	HOSE; RUBBER	8-98046-356-0	01	1	0908-0908
488	HOSE; RUBBER EURO5 SPECIFICATION(NT5)	8-98046-356-0	01	1	0909-1408
488	HOSE; RUBBER EURO5 SPECIFICATION(NT5) ID=52.5 L=70	8-98245-242-0	01	1	1409-1410
488	HOSE; RUBBER HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> ID=52.5 L=70	8-98245-242-0	01	1	1411-

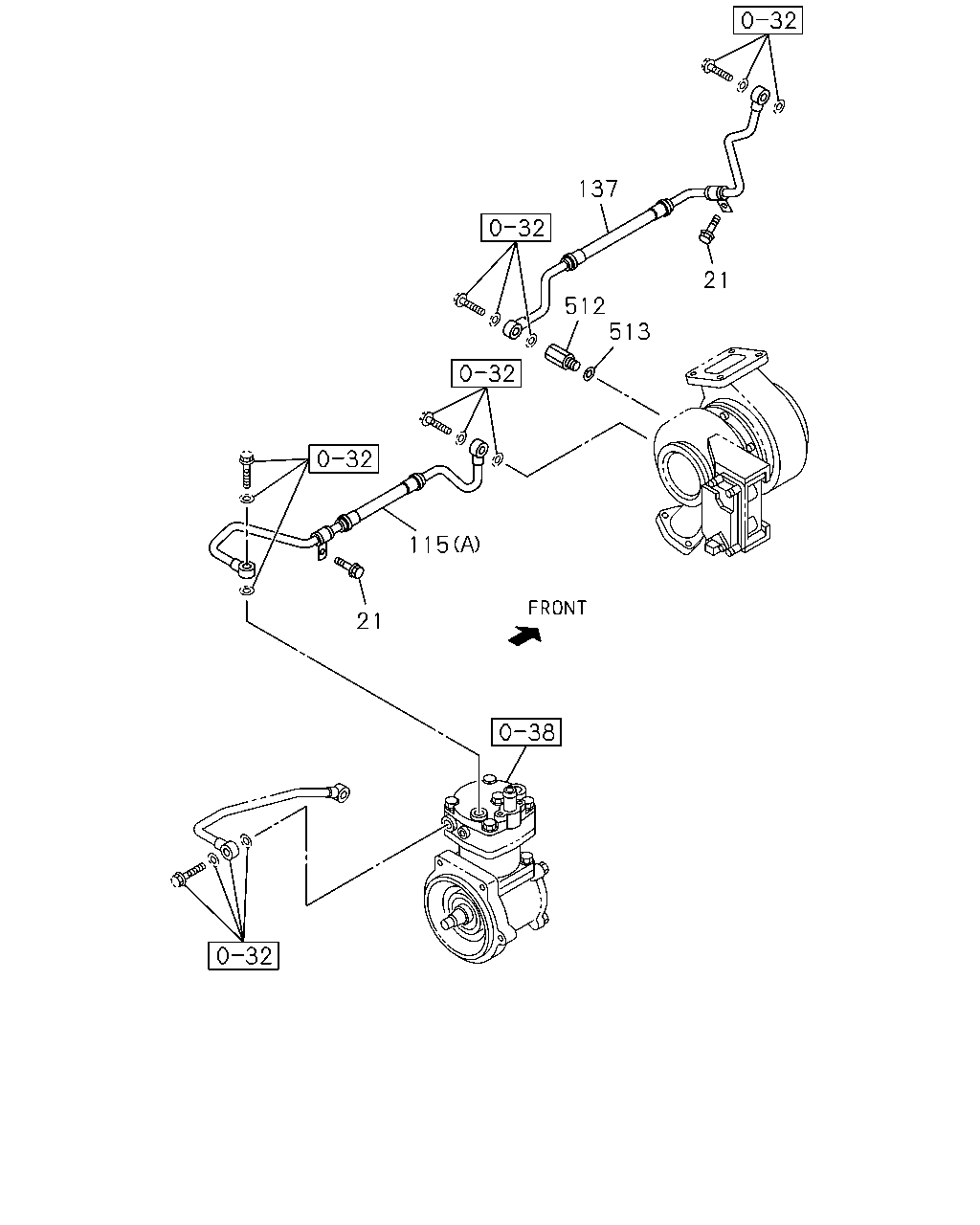

137 21 512 513 115 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
21	BOLT; PIPE M8X16 FLANGE	0-28050-816-0	02	1	0908-0908
21	BOLT; PIPE EURO5 SPECIFICATION(NT5) M8X16 FLANGE	0-28050-816-0	02	1	0909-1410
21	BOLT; PIPE HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> M8X16 FLANGE	0-28050-816-0	02	1	1411-
115	PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION(NT2) (B)	8-98123-401-0	01	1	0909-
115	PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION(NT2) (C)	8-98137-196-0	01	1	0909-
115	PIPE; WATER,TURBOCHARGER OUT (A)	8-97615-877-0	01	1	0908-0908
115	PIPE; WATER,TURBOCHARGER OUT EURO5 SPECIFICATION(NT5) (A)	8-97615-877-0	01	1	0909-1410
115	PIPE; WATER,TURBOCHARGER OUT HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (A)	8-97615-877-0	01	1	1411-
137	PIPE; WATER,TURBOCHARGER IN	8-98046-783-0	01	1	0908-0908
137	PIPE; WATER,TURBOCHARGER IN EURO5 SPECIFICATION(NT5)	8-98046-783-0	01	1	0909-1410
137	PIPE; WATER,TURBOCHARGER IN HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA>	8-98046-783-0	01	1	1411-
512	CONNECTOR; TURBO	8-98031-856-0	01	1	0908-0908
512	CONNECTOR; TURBO EURO5 SPECIFICATION(NT5)	8-98031-856-0	01	1	0909-1410
512	CONNECTOR; TURBO HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA>	8-98031-856-0	01	1	1411-
513	GASKET; CONNECTOR ID=14.2 OD=19.2	1-09630-085-0	01	1	0908-0908
513	GASKET; CONNECTOR EURO5 SPECIFICATION(NT5) ID=14.2 OD=19.2	1-09630-085-0	01	1	0909-1312
513	GASKET; CONNECTOR EURO5 SPECIFICATION(NT5) ID=14.2 OD=19.2	8-98251-345-0	01	1	1401-1410
513	GASKET; CONNECTOR HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> ID=14.2 OD=19.2	8-98251-345-0	01	1	1411-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
