0-32 — WATER PIPING; ENGINE (#68764) — 115 parça

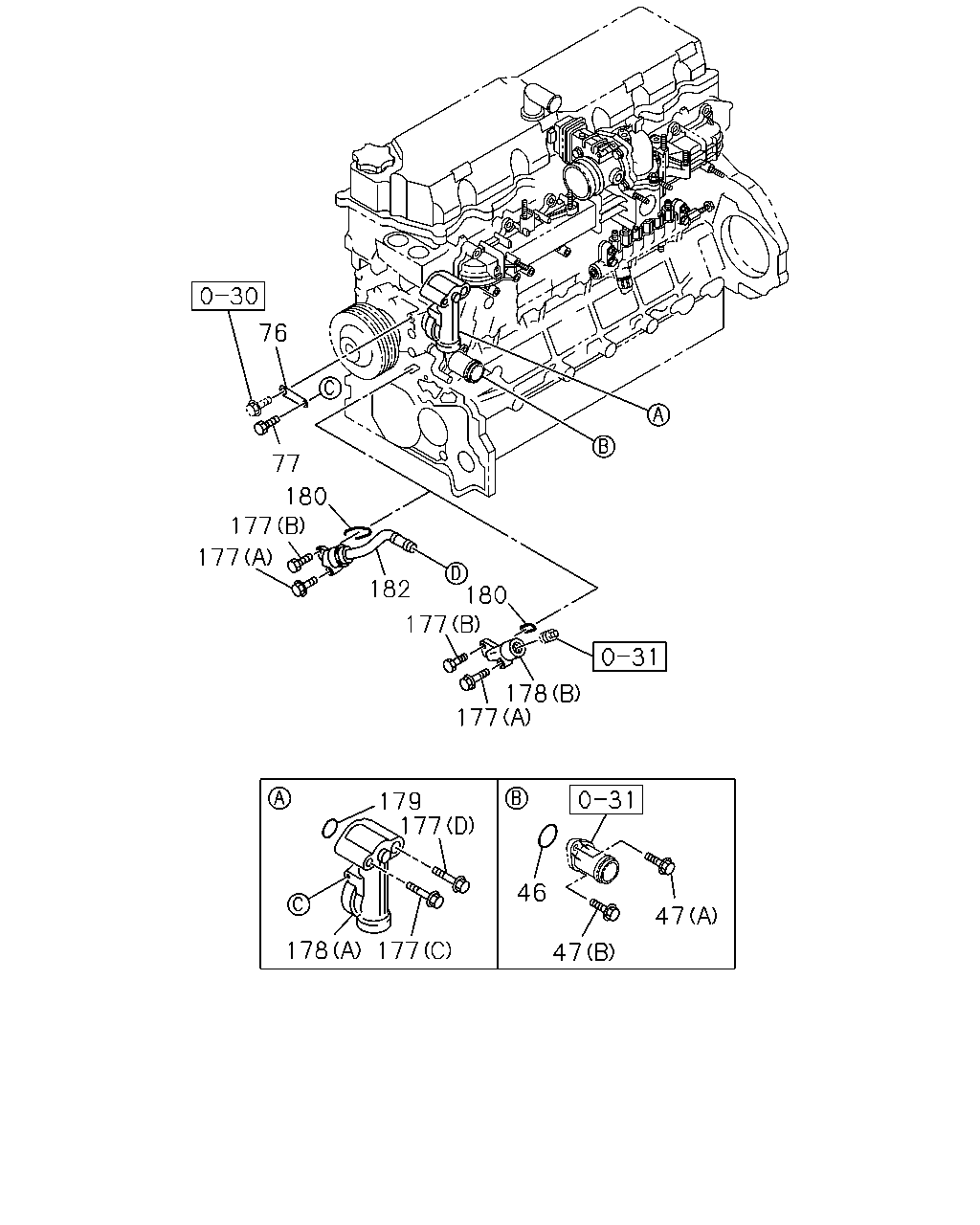

47 47 46 177 179 177 178 177 177 178 180 182 180 177 77 177 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
46	GASKET; WATER DUCT,TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3	8-94396-680-2	01	1	0908-
47	BOLT; DUCT,TO OIL COOLER (A) M8X45 FLANGE	0-28050-845-0	01	1	0908-
47	BOLT; DUCT,TO OIL COOLER (B) M8X25 FLANGE	0-28650-825-0	01	1	0908-
76	BRACKET; WATER DUCT,PUMP	8-94394-784-0	01	1	0908-
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28050-850-0	01	1	0908-
177	BOLT; WATER DUCT (C) M8X80 FLANGE	0-28050-880-0	01	1	0908-
177	BOLT; WATER DUCT (B) M8X25 FLANGE	0-28650-825-0	01	1	0908-
177	BOLT; WATER DUCT (A) M8X65 FLANGE	1-09044-072-1	01	1	0908-
177	BOLT; WATER DUCT (D) M16X75 FLANGE	8-94397-360-1	01	1	0908-
178	DUCT; WATER,BYPASS (A)	8-94396-627-3	01	1	0909-
178	DUCT; WATER,BYPASS (A)	8-94396-627-2	01	1	0908-0908
178	DUCT; WATER,BYPASS EURO2 SPECIFICATION(NT2) (B)	8-94390-644-0	01	1	0909-
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-94396-679-0	01	1	0908-1408
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-98276-756-0	01	1	1409-
180	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94396-720-1	01	1	0908-
182	DUCT; WATER,HTR	8-94396-724-4	01	1	0908-0908
182	DUCT; WATER,HTR EURO5 SPECIFICATION(NT5)	8-94396-724-4	01	1	0909-1410
182	DUCT; WATER,HTR HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA>	8-94396-724-4	01	1	1411-

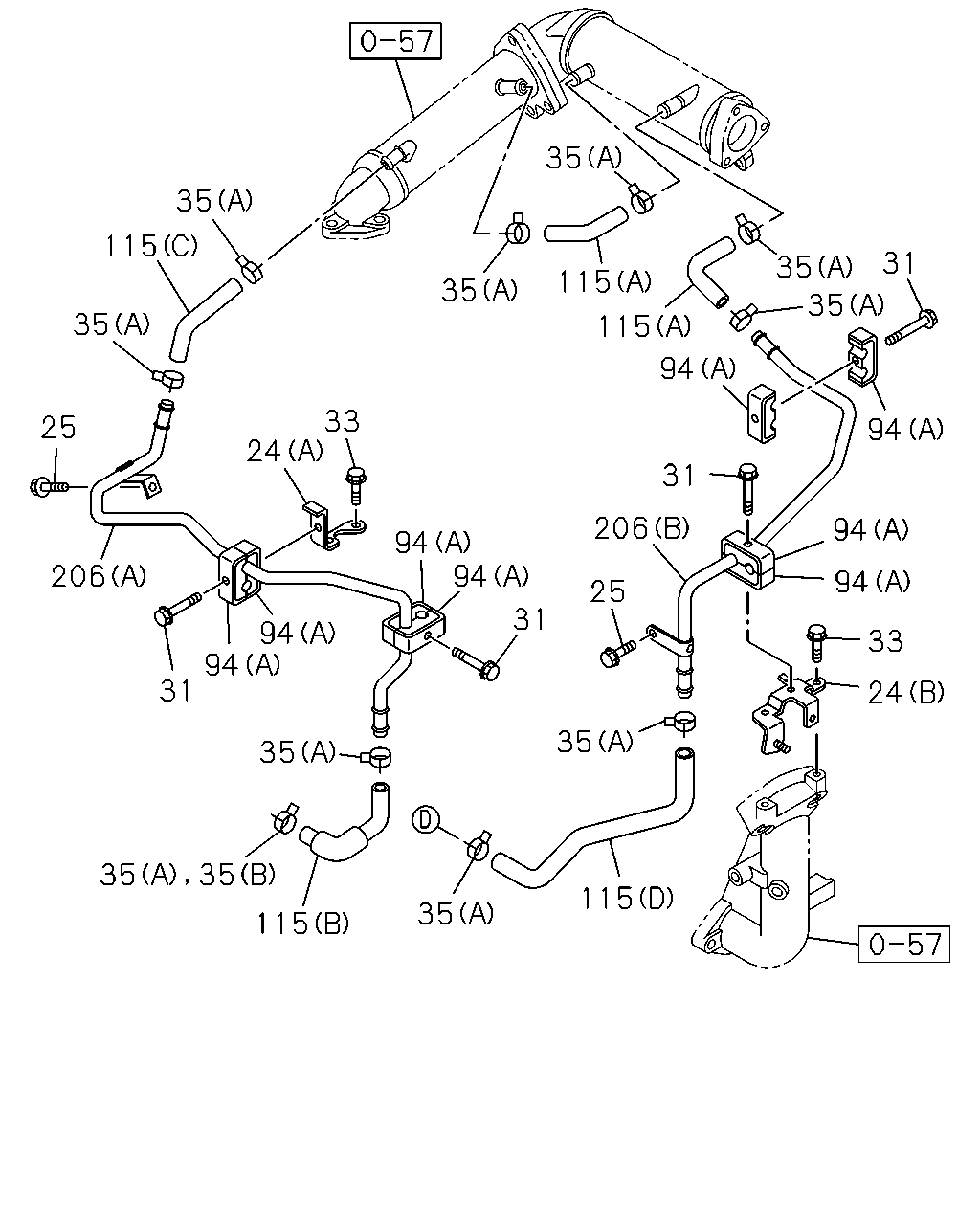

25 35 115 35 35 35 115 115 31 94 206 35 33 24 94 206 31 94 35 94 35 35 115 35 115 35 31 94 25 94 35 31 94 94 33 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	BRACKET; WATER PIPE (A)	8-98000-557-2	01	1	0908-0908
24	BRACKET; WATER PIPE EURO5 SPECIFICATION(NT5) (A)	8-98000-557-2	01	1	0909-1410
24	BRACKET; WATER PIPE HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (A)	8-98000-557-2	01	1	1411-
24	BRACKET; WATER PIPE (B)	8-98000-558-3	01	1	0908-0908
24	BRACKET; WATER PIPE EURO5 SPECIFICATION(NT5) (B)	8-98000-558-3	01	1	0909-1410
24	BRACKET; WATER PIPE HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (B)	8-98000-558-3	01	1	1411-
25	BOLT; WATER PIPE M8X12 FLANGE	0-28050-812-0	01	1	0908-0908
25	BOLT; WATER PIPE EURO5 SPECIFICATION(NT5) M8X12 FLANGE	0-28050-812-0	01	1	0909-1410
25	BOLT; WATER PIPE HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> M8X12 FLANGE	0-28050-812-0	01	1	1411-
25	BOLT; WATER PIPE M8X20 FLANGE	0-28650-820-0	01	1	0908-0908
25	BOLT; WATER PIPE EURO5 SPECIFICATION(NT5) M8X20 FLANGE	0-28650-820-0	01	1	0909-1410
25	BOLT; WATER PIPE HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> M8X20 FLANGE	0-28650-820-0	01	1	1411-
31	BOLT; CLIP EURO2 SPECIFICATION(NT2) M6X35 FLANGE	0-28650-635-0	01	1	0909-
31	BOLT; CLIP M6X45 FLANGE	0-28050-645-0	01	1	0908-0908
31	BOLT; CLIP EURO5 SPECIFICATION(NT5) M6X45 FLANGE	0-28050-645-0	01	1	0909-1410
31	BOLT; CLIP HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> M6X45 FLANGE	0-28050-645-0	01	1	1411-
31	BOLT; CLIP M6X40 FLANGE	0-28650-640-0	03	1	0908-0908
31	BOLT; CLIP EURO5 SPECIFICATION(NT5) M6X40 FLANGE	0-28650-640-0	03	1	0909-1410
31	BOLT; CLIP HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> M6X40 FLANGE	0-28650-640-0	03	1	1411-
33	BOLT; BRKT EURO2 SPECIFICATION(NT2) M8X16 FLANGE	0-28050-816-0	02	1	0909-
33	BOLT; BRKT EURO2 SPECIFICATION(NT2) M8X20 FLANGE	0-28050-820-0	02	1	0909-
33	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	01	1	0908-0908
33	BOLT; BRKT EURO5 SPECIFICATION(NT5) M8X16 FLANGE	0-28050-816-0	01	1	0909-1410
33	BOLT; BRKT HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> M8X16 FLANGE	0-28050-816-0	01	1	1411-
33	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	03	1	0908-0908
33	BOLT; BRKT EURO5 SPECIFICATION(NT5) M8X20 FLANGE	0-28650-820-0	03	1	0909-1410
33	BOLT; BRKT HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> M8X20 FLANGE	0-28650-820-0	03	1	1411-
35	CLIP; RUBBER HOSE (B) ID=20.8	8-94125-862-1	01	1	0908-0908
35	CLIP; RUBBER HOSE EURO5 SPECIFICATION(NT5) (B) ID=20.8	8-94125-862-1	01	1	0909-1410
35	CLIP; RUBBER HOSE HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (B) ID=20.8	8-94125-862-1	01	1	1411-
35	CLIP; RUBBER HOSE (A) ID=20	8-98127-648-0	09	1	0908-0908
35	CLIP; RUBBER HOSE EURO5 SPECIFICATION(NT5) (A) ID=20	8-98127-648-0	09	1	0909-1104
35	CLIP; RUBBER HOSE EURO5 SPECIFICATION(NT5) (A) ID=20	8-98127-648-0	10	1	1105-1410
35	CLIP; RUBBER HOSE HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (A) ID=20	8-98127-648-0	10	1	1411-
94	CLIP; WATER PIPE EURO2 SPECIFICATION(NT2) (B)	8-94396-860-0	01	1	0909-
94	CLIP; WATER PIPE (A)	8-97605-129-1	08	1	0908-0908
94	CLIP; WATER PIPE EURO5 SPECIFICATION(NT5) (A)	8-97605-129-1	08	1	0909-1410
94	CLIP; WATER PIPE HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (A)	8-97605-129-1	08	1	1411-
115	HOSE; RUBBER (B)	8-97606-735-1	01	1	0908-0908
115	HOSE; RUBBER EURO5 SPECIFICATION(NT5) (B)	8-97606-735-1	01	1	0909-1410
115	HOSE; RUBBER HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (B)	8-97606-735-1	01	1	1411-
115	HOSE; RUBBER (A)	8-97606-749-0	02	1	0908-0908
115	HOSE; RUBBER EURO5 SPECIFICATION(NT5) (A)	8-97606-749-0	02	1	0909-1410
115	HOSE; RUBBER HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (A)	8-97606-749-0	02	1	1411-
115	HOSE; RUBBER (D)	8-97607-488-1	01	1	0908-0908
115	HOSE; RUBBER EURO5 SPECIFICATION(NT5) (D)	8-97607-488-1	01	1	0909-1410
115	HOSE; RUBBER HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (D)	8-97607-488-1	01	1	1411-
115	HOSE; RUBBER (C)	8-98043-192-0	01	1	0908-0908
115	HOSE; RUBBER EURO5 SPECIFICATION(NT5) (C)	8-98043-192-0	01	1	0909-1410
115	HOSE; RUBBER HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (C)	8-98043-192-0	01	1	1411-
206	PIPE; WATER,EGR COOLER (A)	8-97604-928-2	01	1	0908-0908
206	PIPE; WATER,EGR COOLER EURO5 SPECIFICATION(NT5) (A)	8-97604-928-2	01	1	0909-1410
206	PIPE; WATER,EGR COOLER HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (A)	8-97604-928-2	01	1	1411-
206	PIPE; WATER,EGR COOLER (B)	8-98000-480-1	01	1	0908-0908
206	PIPE; WATER,EGR COOLER EURO5 SPECIFICATION(NT5) (B)	8-98000-480-1	01	1	0909-1410
206	PIPE; WATER,EGR COOLER HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (B)	8-98000-480-1	01	1	1411-

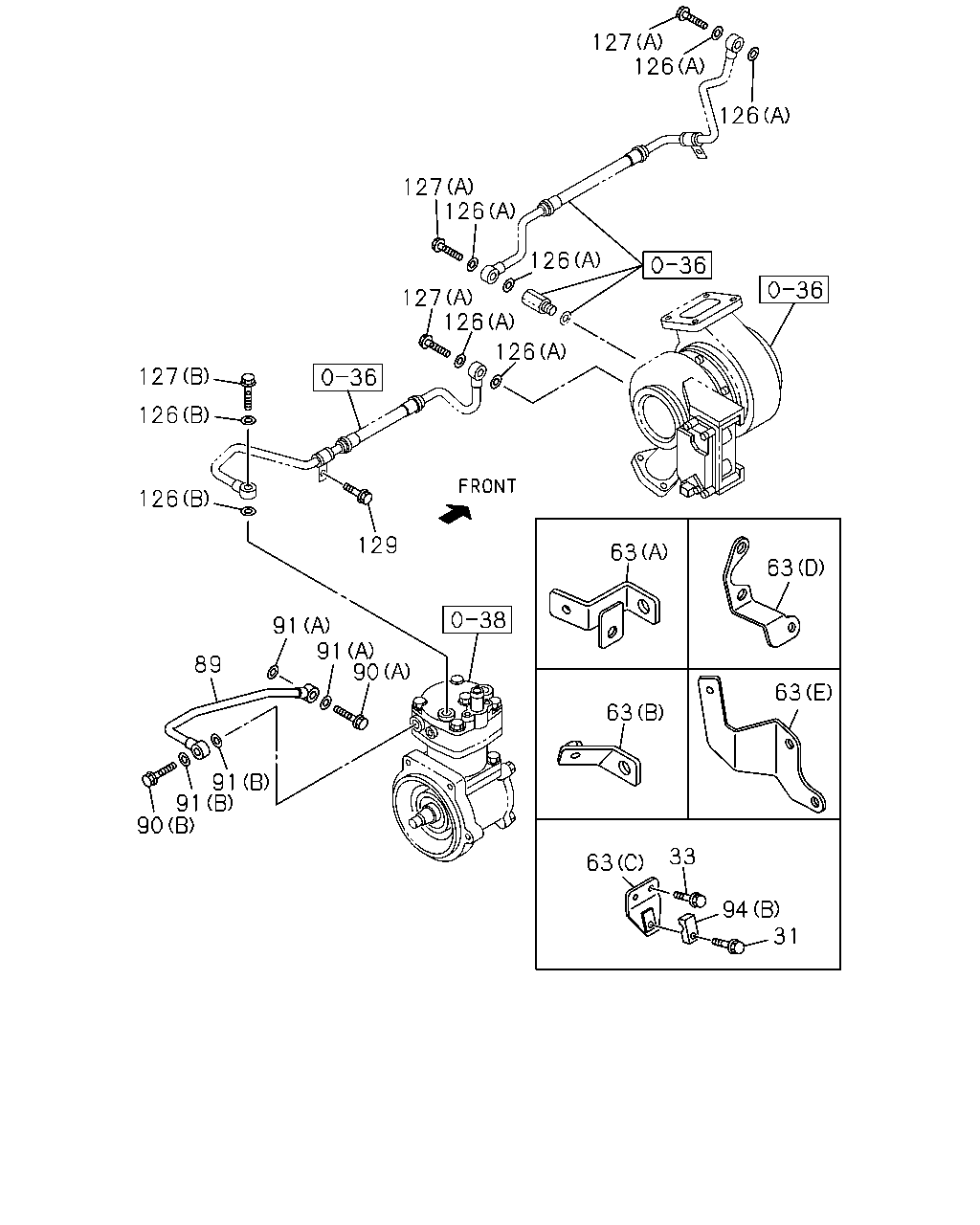

127 126 126 127 126 126 127 126 126 127 126 126 129 63 63 91 91 90 89 63 63 91 91 90 33 63 94 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	BOLT; CLIP EURO2 SPECIFICATION(NT2) M6X35 FLANGE	0-28650-635-0	01	1	0909-
31	BOLT; CLIP M6X45 FLANGE	0-28050-645-0	01	1	0908-0908
31	BOLT; CLIP EURO5 SPECIFICATION(NT5) M6X45 FLANGE	0-28050-645-0	01	1	0909-1410
31	BOLT; CLIP HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> M6X45 FLANGE	0-28050-645-0	01	1	1411-
31	BOLT; CLIP M6X40 FLANGE	0-28650-640-0	03	1	0908-0908
31	BOLT; CLIP EURO5 SPECIFICATION(NT5) M6X40 FLANGE	0-28650-640-0	03	1	0909-1410
31	BOLT; CLIP HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> M6X40 FLANGE	0-28650-640-0	03	1	1411-
33	BOLT; BRKT EURO2 SPECIFICATION(NT2) M8X16 FLANGE	0-28050-816-0	02	1	0909-
33	BOLT; BRKT EURO2 SPECIFICATION(NT2) M8X20 FLANGE	0-28050-820-0	02	1	0909-
33	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	01	1	0908-0908
33	BOLT; BRKT EURO5 SPECIFICATION(NT5) M8X16 FLANGE	0-28050-816-0	01	1	0909-1410
33	BOLT; BRKT HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> M8X16 FLANGE	0-28050-816-0	01	1	1411-
33	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	03	1	0908-0908
33	BOLT; BRKT EURO5 SPECIFICATION(NT5) M8X20 FLANGE	0-28650-820-0	03	1	0909-1410
33	BOLT; BRKT HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> M8X20 FLANGE	0-28650-820-0	03	1	1411-
63	BRACKET; WATER PIPE EURO2 SPECIFICATION(NT2) (C)	8-94392-951-0	01	1	0909-
63	BRACKET; WATER PIPE EURO2 SPECIFICATION(NT2) (D)	8-98074-252-0	01	1	0909-
63	BRACKET; WATER PIPE EURO2 SPECIFICATION(NT2) (E)	8-98074-253-0	01	1	0909-
63	BRACKET; WATER PIPE (A)	8-97615-878-0	01	1	0908-0908
63	BRACKET; WATER PIPE EURO5 SPECIFICATION(NT5) (A)	8-97615-878-0	01	1	0909-1001
63	BRACKET; WATER PIPE EURO5 SPECIFICATION(NT5) (A)	8-98153-457-0	01	1	1002-1410
63	BRACKET; WATER PIPE HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (A)	8-98153-457-0	01	1	1411-
63	BRACKET; WATER PIPE (B)	8-98046-784-0	01	1	0908-0908
63	BRACKET; WATER PIPE EURO5 SPECIFICATION(NT5) (B)	8-98046-784-0	01	1	0909-1410
63	BRACKET; WATER PIPE HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (B)	8-98046-784-0	01	1	1411-
89	PIPE; WATER,AIR CMPR,IN	8-97611-095-0	01	1	0908-
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	01	1	0908-
90	BOLT; EYE,WATER PIPE,AIR CMPR (B) M16X28	8-94383-489-0	01	1	0908-
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0908-1312
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	0908-
94	CLIP; WATER PIPE EURO2 SPECIFICATION(NT2) (B)	8-94396-860-0	01	1	0909-
94	CLIP; WATER PIPE (A)	8-97605-129-1	08	1	0908-0908
94	CLIP; WATER PIPE EURO5 SPECIFICATION(NT5) (A)	8-97605-129-1	08	1	0909-1410
94	CLIP; WATER PIPE HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (A)	8-97605-129-1	08	1	1411-
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	06	1	0908-1312
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	8-98251-345-0	06	1	1401-
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	02	1	0908-
127	BOLT; EYE (A) M14X27 EYE-BOLT	1-09675-193-0	03	1	0908-
127	BOLT; EYE (B) M16X28	8-94383-489-0	01	1	0908-
129	BOLT; WATER PIPE TO BRKT EURO2 SPECIFICATION(NT2) M8X16 FLANGE	0-28050-816-0	03	1	0909-
