11207 - LT134(RHD) EURO2/5
▶
0 - Engine, Emission, Engine Electrical
▶
0-30 - WATER PUMP AND CORROSION RESISTOR
▶

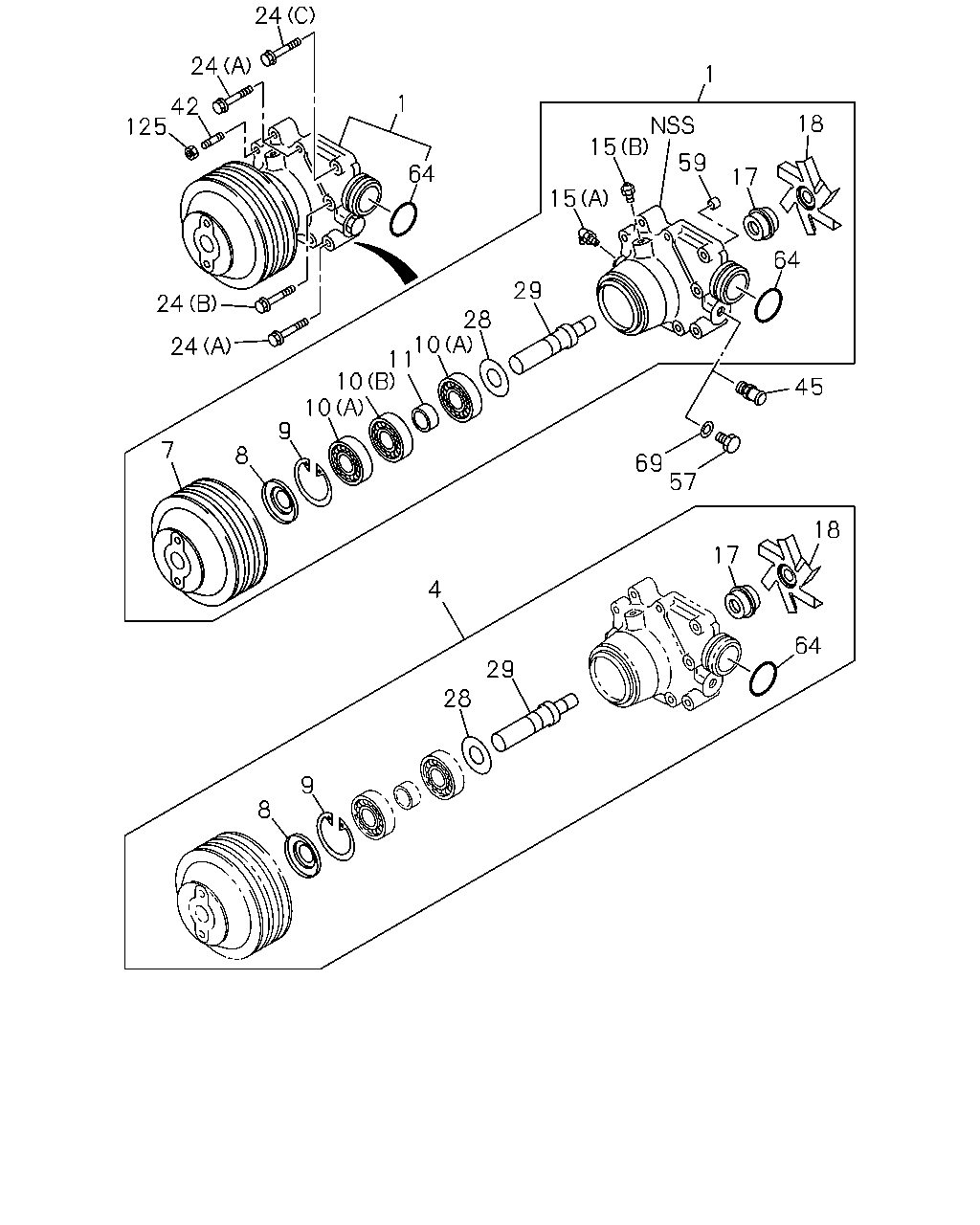

0-30 — WATER PUMP AND CORROSION RESISTOR
(#68762) — 40 parça
24
24
1
1
42
125
18
15
59
64
17
15
64
29
24
28
10
11
10
10
24
45
9
7
8
69
57
18
17
4
64
29
28
9
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PUMP ASM; WATER,W/GASKET
8-97602-779-2
01
1
0908-1208
1
PUMP ASM; WATER,W/GASKET
1-87310-838-0
01
1
1209-1302
1
PUMP ASM; WATER,W/GASKET
1-87310-889-0
01
1
1303-1312
1
PUMP ASM; WATER,W/GASKET
1-87310-910-0
01
1
1401-1405
1
PUMP ASM; WATER,W/GASKET
1-87310-982-0
01
1
1406-
4
REPAIR KIT; WATER PUMP
1-87812-040-1
01
1
0908-1208
4
REPAIR KIT; WATER PUMP
1-87813-949-0
01
1
1209-1302
4
REPAIR KIT; WATER PUMP
1-87814-008-0
01
1
1303-1312
4
REPAIR KIT; WATER PUMP
EURO2 SPECIFICATION(NT2)
1-87814-008-0
01
1
1401-1401
4
REPAIR KIT; WATER PUMP
1-87814-170-0
01
1
1401-1405
4
REPAIR KIT; WATER PUMP
1-87814-610-0
01
1
1406-
7
PULLEY; WATER PUMP
3-GROOVE
8-94396-133-0
01
1
0908-1302
7
PULLEY; WATER PUMP
3-GROOVE
8-98235-214-0
01
1
1303-
8
THROWER; DUST,WATER PUMP
8-94399-457-0
01
1
0908-
9
RING; SNAP,WATER PUMP
ID=57.9
9-09180-162-0
01
1
0908-
10
BEARING; WATER PUMP
(A)
8-94391-298-0
02
1
0908-
10
BEARING; WATER PUMP
(B)
8-94391-299-0
01
1
0908-
11
SPACER; BRG,WATER PUMP
1-13634-040-0
01
1
0908-
15
NIPPLE; GREASE,WATER PUMP
(A) PT1/8 ELBOW 67.5 DEGREES
0-90301-510-0
01
1
0908-
15
NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT
1-09380-002-0
01
1
0908-
17
SEAL UNIT; WATER PUMP
8-94392-090-0
01
1
0908-1208
17
SEAL UNIT; WATER PUMP
8-98221-159-0
01
1
1209-1312
17
SEAL UNIT; WATER PUMP
8-94392-090-0
01
1
1401-1405
17
SEAL UNIT; WATER PUMP
8-98272-791-0
01
1
1406-
18
IMPELLER; WATER PUMP
8-94392-922-0
01
1
0908-
24
BOLT; WATER PUMP
(B) M8X80 FLANGE
0-28050-880-0
01
1
0908-
24
BOLT; WATER PUMP
(A) M8X58 FLANGE
8-94130-055-1
03
1
0908-
24
BOLT; WATER PUMP
(C) M10X85 FLANGE
8-94397-359-1
01
1
0908-
28
WASHER; WATER PUMP
ID=25.5 OD=50
8-94397-097-0
01
1
0908-
29
SHAFT; WATER PUMP
8-94396-130-1
01
1
0908-1302
29
SHAFT; WATER PUMP
8-98235-498-0
01
1
1303-
42
STUD; WATER PUMP
M8X30 L=46
0-40110-830-0
01
1
0908-
45
JOINT; HTR HOSE,WATER PUMP
8-94396-180-0
01
1
0908-0908
45
JOINT; HTR HOSE,WATER PUMP
EURO5 SPECIFICATION(NT5)
8-94396-180-0
01
1
0909-1410
45
JOINT; HTR HOSE,WATER PUMP
HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA>
8-94396-180-0
01
1
1411-
57
PLUG; HTR,WATER PUMP
EURO2 SPECIFICATION(NT2) M20
9-99202-320-0
01
1
0909-
59
DOWEL; WATER PUMP
OD=12 L=9
1-13119-003-0
02
1
0908-
64
GASKET; WATER PUMP TO DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7
1-09623-383-0
01
1
0908-
69
GASKET; PLUG,HTR
EURO2 SPECIFICATION(NT2) ID=20.5 OD=28.0
9-09571-420-0
01
1
0909-
125
NUT; WATER PUMP
M8 FLANGE
0-91180-108-0
04
1
0908-
