0-28 — VENTILATION SYSTEM (#68761) — 88 parça

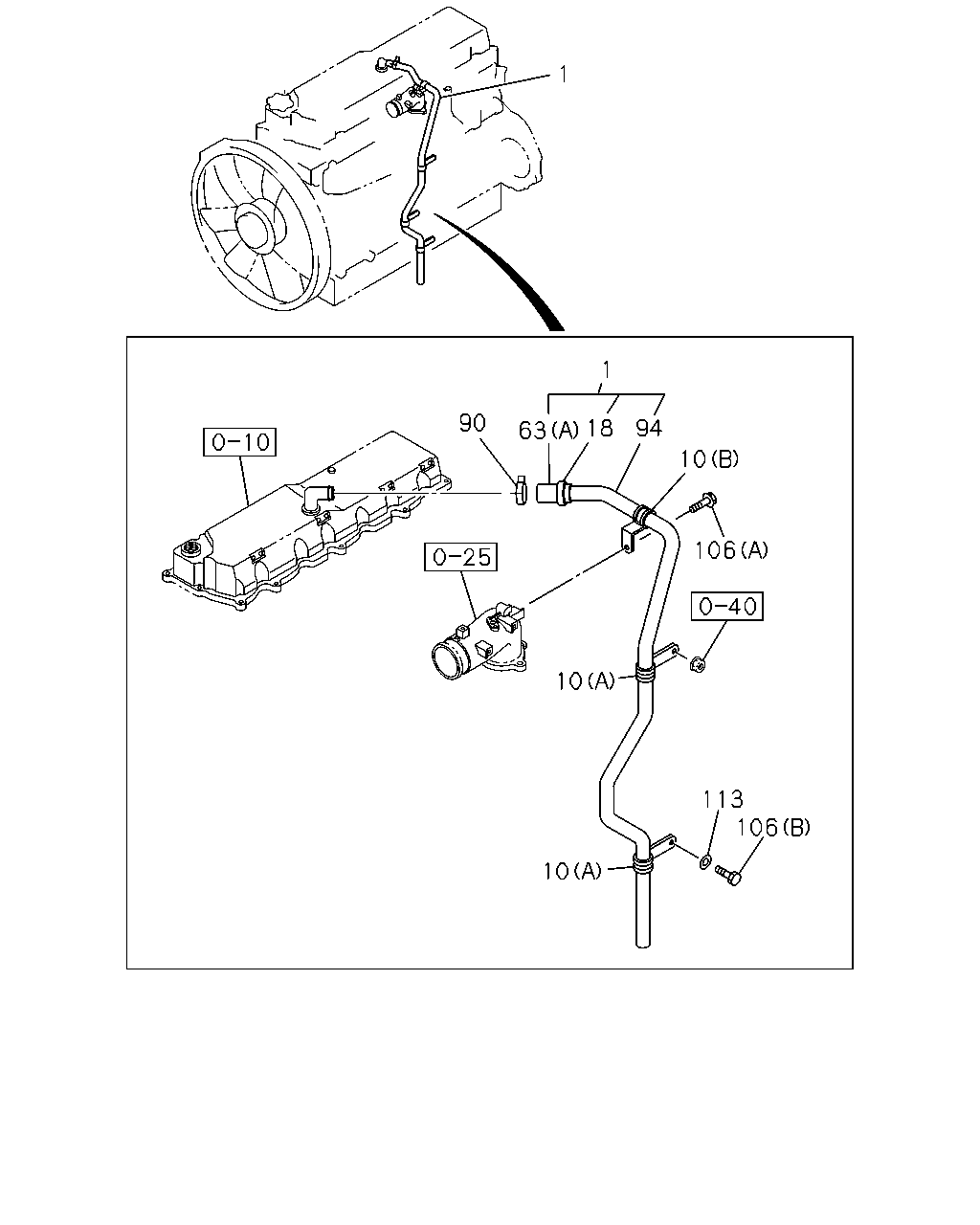

1 1 90 18 94 63 10 106 10 113 106 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BREATHER; AIR EURO2 SPECIFICATION(NT2)	8-94392-083-3	01	1	0909-
10	CLIP; AIR BREATHER EURO2 SPECIFICATION(NT2) (A) ID=32 L=75	1-09700-704-1	02	1	0909-
10	CLIP; AIR BREATHER EURO2 SPECIFICATION(NT2) (B) ID=31 H=30 L=35	1-09700-994-0	01	1	0909-
18	CLIP; RUBBER HOSE,AIR BREATHER EURO2 SPECIFICATION(NT2) ID=33.6	8-94362-518-0	01	1	0909-
63	HOSE; RUBBER,AIR BREATHER (A) L=70	0-02828-070-0	01	1	0908-1005
63	HOSE; RUBBER,AIR BREATHER (A) L=70	0-02728-070-0	01	1	1006-
63	HOSE; RUBBER,AIR BREATHER (B)	1-09360-925-0	03	1	0908-0908
63	HOSE; RUBBER,AIR BREATHER EURO5 SPECIFICATION(NT5) (B)	1-09360-925-0	03	1	0909-1410
63	HOSE; RUBBER,AIR BREATHER HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (B)	1-09360-925-0	03	1	1411-
90	CLIP; RUBBER HOSE EURO2 SPECIFICATION(NT2) ID=33.6	8-94362-518-0	01	1	0909-
90	CLIP; RUBBER HOSE ID=14	1-09704-102-0	02	1	0908-0908
90	CLIP; RUBBER HOSE EURO5 SPECIFICATION(NT5) ID=14	1-09704-102-0	02	1	0909-1410
90	CLIP; RUBBER HOSE HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> ID=14	1-09704-102-0	02	1	1411-
94	HOSE; BREATHER TO PIPE EURO2 SPECIFICATION(NT2) L=1260	8-94392-082-0	01	1	0909-
106	BOLT; DRAIN PIPE EURO2 SPECIFICATION(NT2) (A) M6X12 FLANGE	0-28050-612-0	01	1	0909-
106	BOLT; DRAIN PIPE EURO2 SPECIFICATION(NT2) (B) M10X16 FLANGE	0-28151-016-0	02	1	0909-
113	WASHER; PL,CLIP EURO2 SPECIFICATION(NT2) ID=10.5	0-91610-510-0	02	1	0909-

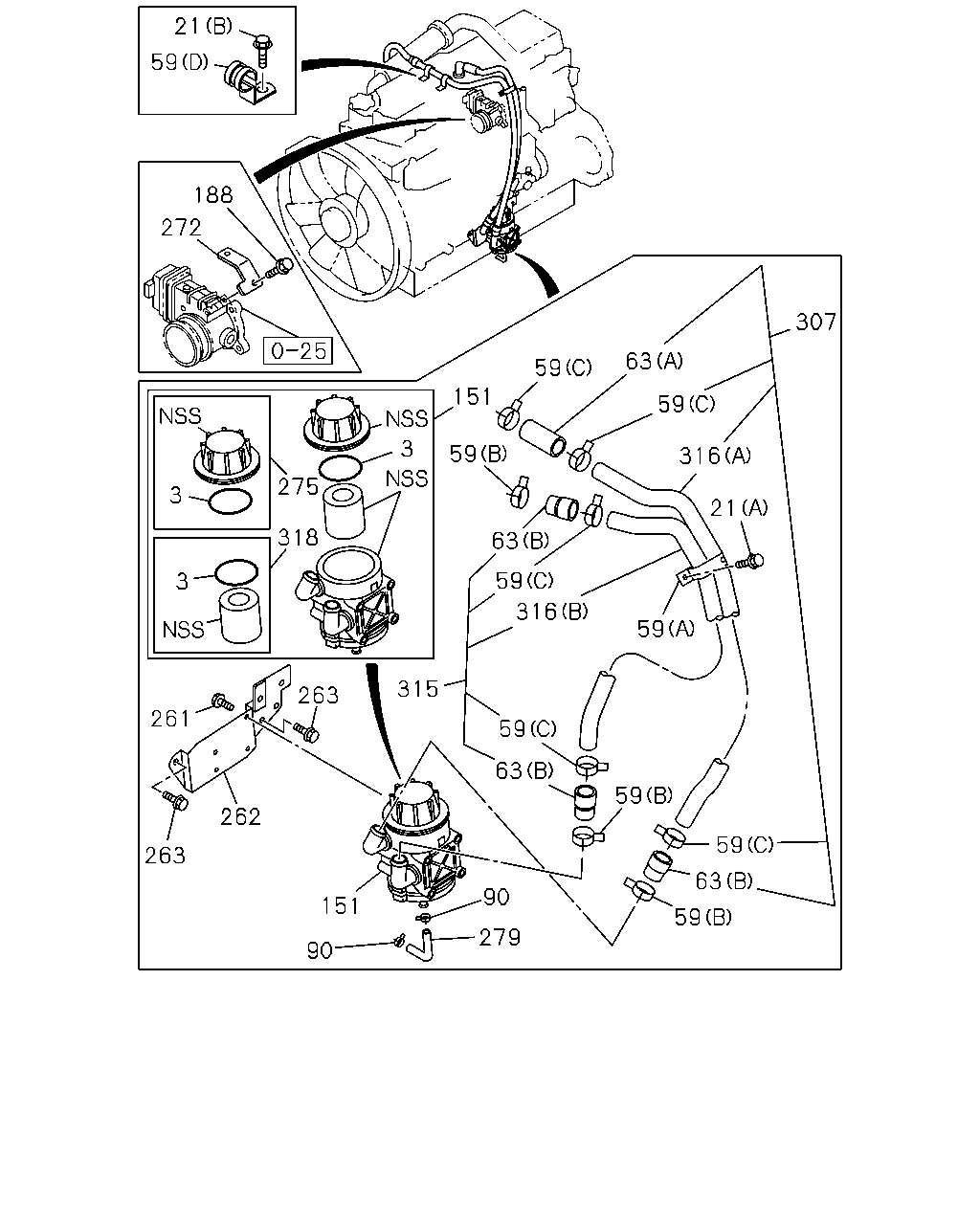

21 59 188 272 3 3 261 263 262 263 315 318 275 3 151 59 59 63 59 316 21 63 59 316 59 59 63 59 59 63 59 90 279 151 90 307

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	GASKET; BODY TO CAP	8-97385-921-0	01	1	0908-0908
3	GASKET; BODY TO CAP EURO5 SPECIFICATION(NT5)	8-97385-921-0	01	1	0909-1410
3	GASKET; BODY TO CAP HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA>	8-97385-921-0	01	1	1411-
21	BOLT; CLIP (A) M6X12 FLANGE	0-28050-612-0	01	1	0908-0908
21	BOLT; CLIP EURO5 SPECIFICATION(NT5) (A) M6X12 FLANGE	0-28050-612-0	01	1	0909-1410
21	BOLT; CLIP HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (A) M6X12 FLANGE	0-28050-612-0	01	1	1411-
21	BOLT; CLIP (B) M8X12 FLANGE	0-28050-812-0	02	1	0908-0908
21	BOLT; CLIP EURO5 SPECIFICATION(NT5) (B) M8X12 FLANGE	0-28050-812-0	02	1	0909-1410
21	BOLT; CLIP HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (B) M8X12 FLANGE	0-28050-812-0	02	1	1411-
59	CLIP; HOSE (D) ID=31 H=30 L=35	1-09700-994-0	02	1	0908-0908
59	CLIP; HOSE EURO5 SPECIFICATION(NT5) (D) ID=31 H=30 L=35	1-09700-994-0	02	1	0909-1410
59	CLIP; HOSE HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (D) ID=31 H=30 L=35	1-09700-994-0	02	1	1411-
59	CLIP; HOSE (A) ID=30X2 L=28	1-09701-266-0	01	1	0908-0908
59	CLIP; HOSE EURO5 SPECIFICATION(NT5) (A) ID=30X2 L=28	1-09701-266-0	01	1	0909-1410
59	CLIP; HOSE HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (A) ID=30X2 L=28	1-09701-266-0	01	1	1411-
59	CLIP; HOSE (B) ID=28.5	1-09707-150-0	03	1	0908-0908
59	CLIP; HOSE EURO5 SPECIFICATION(NT5) (B) ID=28.5	1-09707-150-0	03	1	0909-1410
59	CLIP; HOSE HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (B) ID=28.5	1-09707-150-0	03	1	1411-
59	CLIP; HOSE (C) ID=33.6	8-94362-518-0	05	1	0908-0908
59	CLIP; HOSE EURO5 SPECIFICATION(NT5) (C) ID=33.6	8-94362-518-0	05	1	0909-1410
59	CLIP; HOSE HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (C) ID=33.6	8-94362-518-0	05	1	1411-
63	HOSE; RUBBER,AIR BREATHER (A) L=70	0-02828-070-0	01	1	0908-1005
63	HOSE; RUBBER,AIR BREATHER (A) L=70	0-02728-070-0	01	1	1006-
63	HOSE; RUBBER,AIR BREATHER (B)	1-09360-925-0	03	1	0908-0908
63	HOSE; RUBBER,AIR BREATHER EURO5 SPECIFICATION(NT5) (B)	1-09360-925-0	03	1	0909-1410
63	HOSE; RUBBER,AIR BREATHER HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (B)	1-09360-925-0	03	1	1411-
90	CLIP; RUBBER HOSE EURO2 SPECIFICATION(NT2) ID=33.6	8-94362-518-0	01	1	0909-
90	CLIP; RUBBER HOSE ID=14	1-09704-102-0	02	1	0908-0908
90	CLIP; RUBBER HOSE EURO5 SPECIFICATION(NT5) ID=14	1-09704-102-0	02	1	0909-1410
90	CLIP; RUBBER HOSE HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> ID=14	1-09704-102-0	02	1	1411-
151	SEPARATOR; OIL,PCV	8-97602-262-2	01	1	0908-0908
151	SEPARATOR; OIL,PCV EURO5 SPECIFICATION(NT5)	8-97602-262-2	01	1	0909-1410
151	SEPARATOR; OIL,PCV HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA>	8-97602-262-2	01	1	1411-
188	BOLT; BRKT M6X12 FLANGE	0-28050-612-0	01	1	0908-0908
188	BOLT; BRKT EURO5 SPECIFICATION(NT5) M6X12 FLANGE	0-28050-612-0	01	1	0909-1410
188	BOLT; BRKT HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> M6X12 FLANGE	0-28050-612-0	01	1	1411-
261	BOLT; SEPARETOR M8X16 FLANGE	0-28050-816-0	04	1	0908-0908
261	BOLT; SEPARETOR EURO5 SPECIFICATION(NT5) M8X16 FLANGE	0-28050-816-0	04	1	0909-1410
261	BOLT; SEPARETOR HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> M8X16 FLANGE	0-28050-816-0	04	1	1411-
262	BRACKET; OIL SEPARETOR	8-97610-919-1	01	1	0908-0908
262	BRACKET; OIL SEPARETOR EURO5 SPECIFICATION(NT5)	8-97610-919-1	01	1	0909-1410
262	BRACKET; OIL SEPARETOR HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA>	8-97610-919-1	01	1	1411-
263	BOLT; BRKT,OIL SEPARETOR M10X25 FLANGE	0-28751-025-0	02	1	0908-0908
263	BOLT; BRKT,OIL SEPARETOR EURO5 SPECIFICATION(NT5) M10X25 FLANGE	0-28751-025-0	02	1	0909-1410
263	BOLT; BRKT,OIL SEPARETOR HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> M10X25 FLANGE	0-28751-025-0	02	1	1411-
272	BRACKET; PIPE	8-97607-397-0	01	1	0908-0908
272	BRACKET; PIPE EURO5 SPECIFICATION(NT5)	8-97607-397-0	01	1	0909-1410
272	BRACKET; PIPE HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA>	8-97607-397-0	01	1	1411-
275	CAP; PCV	8-97606-319-0	01	1	0908-0908
275	CAP; PCV EURO5 SPECIFICATION(NT5)	8-97606-319-0	01	1	0909-1410
275	CAP; PCV HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA>	8-97606-319-0	01	1	1411-
279	HOSE; RUBBER,OIL DRAIN L=210 SERVICED BY L=1000	0-02759-100-0	01	1	0908-0908
279	HOSE; RUBBER,OIL DRAIN EURO5 SPECIFICATION(NT5) L=210 SERVICED BY L=1000	0-02759-100-0	01	1	0909-1410
279	HOSE; RUBBER,OIL DRAIN HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> L=210 SERVICED BY L=1000	0-02759-100-0	01	1	1411-
307	HOSE; RUBBER,HEAD COVER TO OIL SEPARAT	8-98055-316-2	01	1	0908-0908
307	HOSE; RUBBER,HEAD COVER TO OIL SEPARAT EURO5 SPECIFICATION(NT5)	8-98055-316-2	01	1	0909-1208
307	HOSE; RUBBER,HEAD COVER TO OIL SEPARAT EURO5 SPECIFICATION(NT5)	8-98218-154-0	01	1	1209-1410
307	HOSE; RUBBER,HEAD COVER TO OIL SEPARAT HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA>	8-98218-154-0	01	1	1411-
315	HOSE; RUBBER	8-97615-918-1	01	1	0908-0908
315	HOSE; RUBBER EURO5 SPECIFICATION(NT5)	8-97615-918-1	01	1	0909-1006
315	HOSE; RUBBER EURO5 SPECIFICATION(NT5)	8-98154-176-1	01	1	1007-1410
315	HOSE; RUBBER HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA>	8-98154-176-1	01	1	1411-
316	HOSE; BREATHER (B) L=1320	8-97600-189-0	01	1	0908-0908
316	HOSE; BREATHER EURO5 SPECIFICATION(NT5) (B) L=1320	8-97600-189-0	01	1	0909-1410
316	HOSE; BREATHER HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (B) L=1320	8-97600-189-0	01	1	1411-
316	HOSE; BREATHER (A) L=800	8-97602-932-0	01	1	0908-0908
316	HOSE; BREATHER EURO5 SPECIFICATION(NT5) (A) L=800	8-97602-932-0	01	1	0909-1410
316	HOSE; BREATHER HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (A) L=800	8-97602-932-0	01	1	1411-
318	ELEMENT KIT; PCV	8-97606-318-0	01	1	0908-0908
318	ELEMENT KIT; PCV EURO5 SPECIFICATION(NT5)	8-97606-318-0	01	1	0909-1410
318	ELEMENT KIT; PCV HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA>	8-97606-318-0	01	1	1411-
