0-12 — CYLINDER BLOCK (#68753) — 88 parça

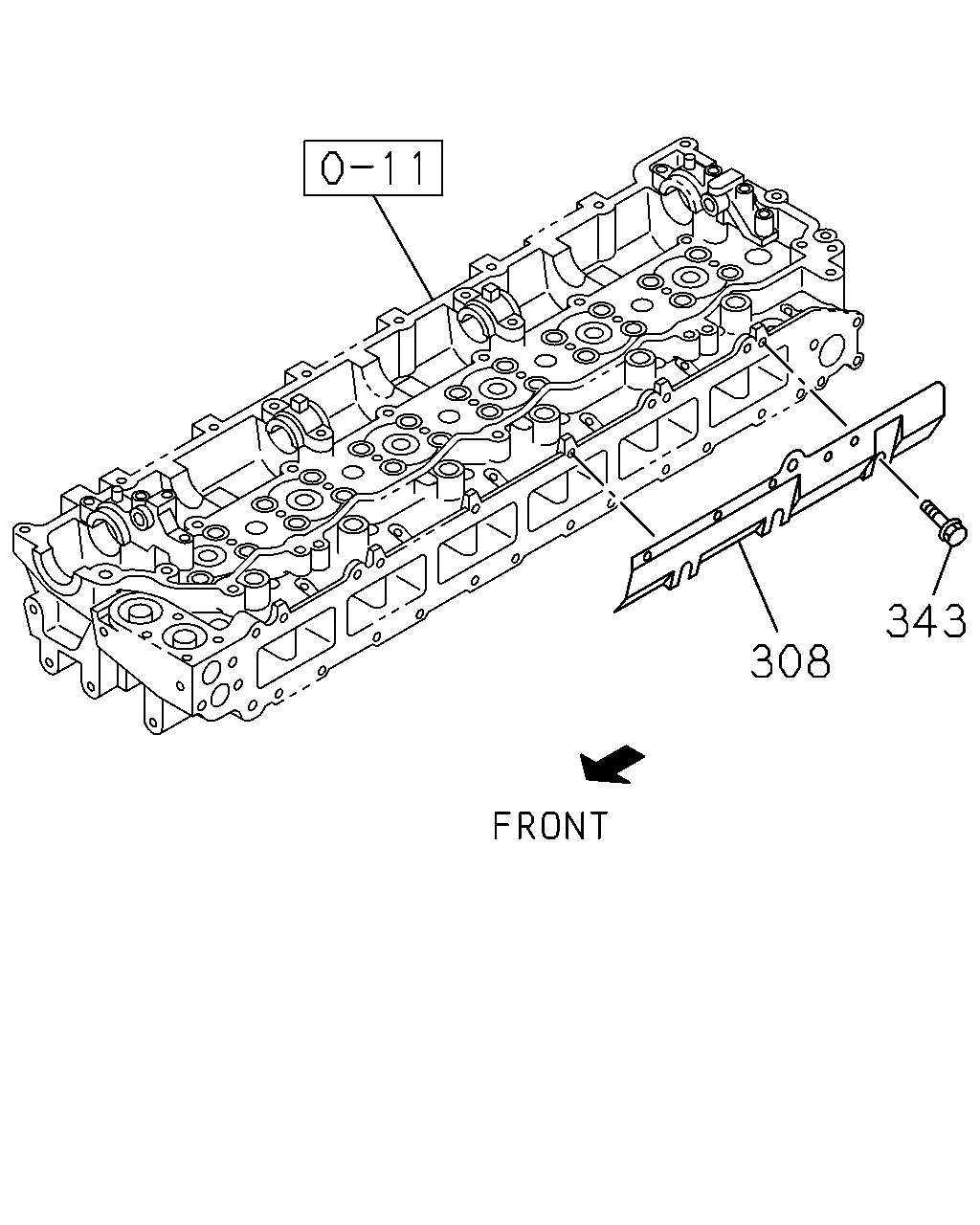

343 308

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	308	PROTECTOR; HEAT,HD COVER EURO2 SPECIFICATION(NT2)	8-94390-997-0	01	1	0909-
	343	BOLT; HEAT PROTECTOR EURO2 SPECIFICATION(NT2) M8X12 FLANGE	0-28050-812-0	03	1	0909-

163 215 214 2 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	LINER SET; ENG CYL GRADE=1X	1-87813-119-6	06	1	0908-
2	LINER SET; ENG CYL GRADE=3X	1-87813-120-6	06	1	0908-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-98014-046-1	06	1	0908-1410
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-98014-046-1	12	1	1411-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-98014-047-1	06	1	0908-1410
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-98014-047-1	12	1	1411-
163	COVER ASM; C/BL SKIRT	8-97601-248-0	01	1	0908-0908
163	COVER ASM; C/BL SKIRT EURO5 SPECIFICATION(NT5)	8-97601-248-0	01	1	0909-1410
163	COVER ASM; C/BL SKIRT HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA>	8-97601-248-0	01	1	1411-
214	BOLT; NOISE COVER M10X16 FLANGE	0-28151-016-0	02	1	0908-0908
214	BOLT; NOISE COVER EURO5 SPECIFICATION(NT5) M10X16 FLANGE	0-28151-016-0	02	1	0909-1410
214	BOLT; NOISE COVER HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> M10X16 FLANGE	0-28151-016-0	02	1	1411-
215	WASHER; PL,NOISE COVER ID=10.5 OD=32	0-91614-810-0	01	1	0908-0908
215	WASHER; PL,NOISE COVER EURO5 SPECIFICATION(NT5) ID=10.5 OD=32	0-91614-810-0	01	1	0909-1410
215	WASHER; PL,NOISE COVER HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> ID=10.5 OD=32	0-91614-810-0	01	1	1411-

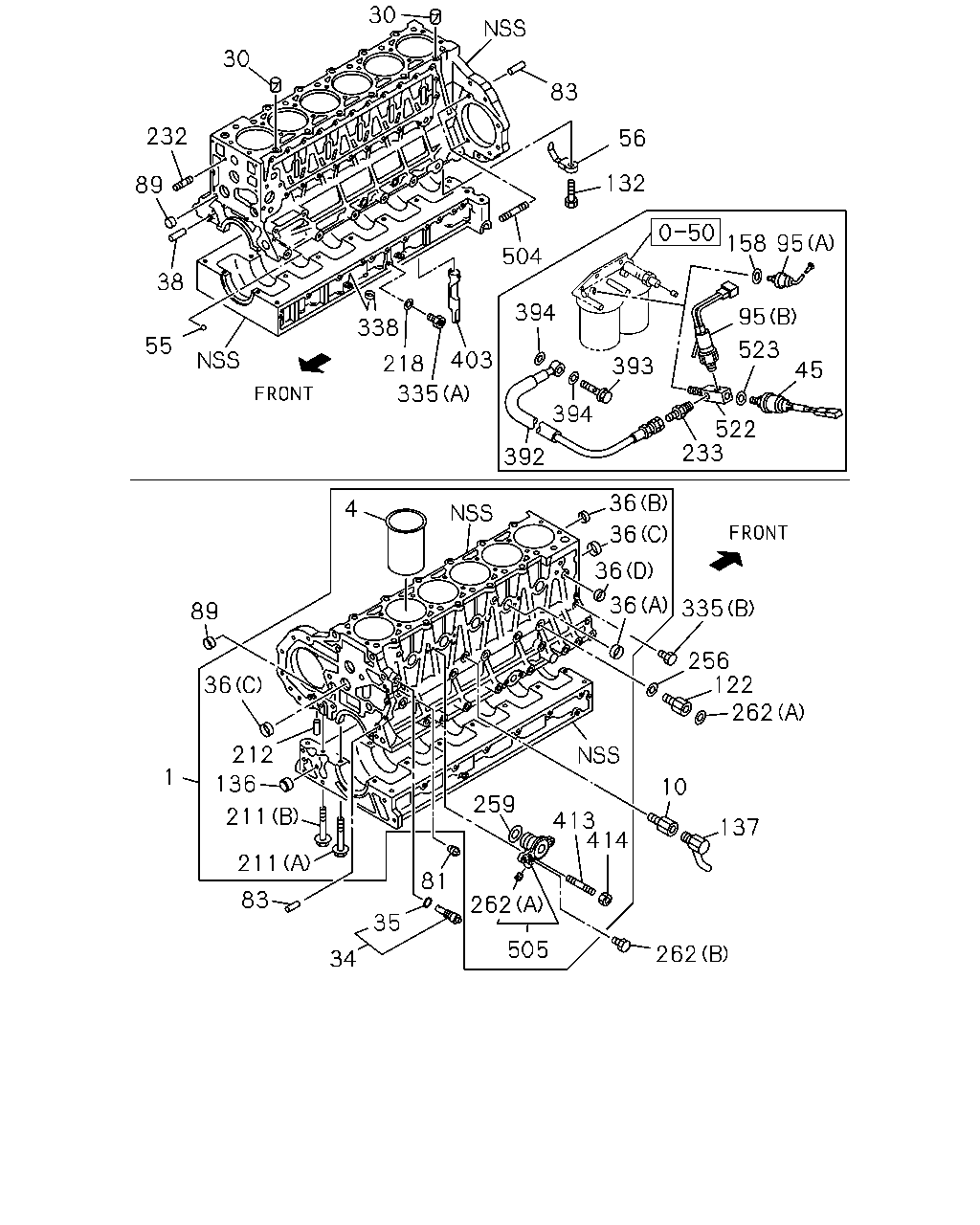

30 232 89 38 55 338 335 218 403 504 132 56 83 394 393 392 394 233 522 45 523 95 158 95 36 36 36 36 335 256 122 262 137 10 413 414 262 505 262 81 35 34 83 211 211 136 212 1 36 89 4 259 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BLOCK ASM; CYL EURO2 SPECIFICATION(NT2)	8-98206-966-0	01	1	1210-
1	BLOCK ASM; CYL EURO2 SPECIFICATION(NT2)	8-97618-663-3	01	1	0909-1209
1	BLOCK ASM; CYL EURO2 SPECIFICATION(NT2)	8-98206-946-0	01	1	1210-
1	BLOCK ASM; CYL	8-97618-664-3	01	1	0908-0908
1	BLOCK ASM; CYL EURO5 SPECIFICATION(NT5)	8-97618-664-3	01	1	0909-1209
1	BLOCK ASM; CYL EURO5 SPECIFICATION(NT5)	8-98206-967-0	01	1	1210-1410
1	BLOCK ASM; CYL HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA>	8-98206-967-0	01	1	1411-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-98014-046-1	06	1	0908-1410
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-98014-046-1	12	1	1411-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-98014-047-1	06	1	0908-1410
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-98014-047-1	12	1	1411-
10	CONNECTOR; WATER DRAIN	8-94396-378-0	01	1	0908-
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	0908-
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	0908-
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	0908-
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	04	1	0908-
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	0908-
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	0908-
36	CUP; SEALING,WATER JACKET (C) OD=40	8-97096-824-0	04	1	0908-
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	0908-
45	SWITCH; OIL PRESSURE EURO5 SPECIFICATION(NT5)	8-98057-620-0	01	1	0908-
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	01	1	0908-
56	JET; OIL,PISTON COOLING	8-98020-649-0	06	1	0908-1007
56	JET; OIL,PISTON COOLING	8-98173-342-0	06	1	1008-
81	PLUG; WATER JACKET PT3/8	8-94397-338-0	01	1	0908-
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0908-
89	CUP; SEALING,OIL GALLERY OD=20	9-11219-192-0	03	1	0908-0908
89	CUP; SEALING,OIL GALLERY OD=20	9-11129-128-0	03	1	0909-
95	PRESSURE UNIT; OIL EURO2 SPECIFICATION(NT2) (A)	1-83151-041-0	01	1	0909-
95	PRESSURE UNIT; OIL EURO5 SPECIFICATION(NT5) (B)	1-82410-170-1	01	1	0908-
122	ADAPTER; OIL PRESSURE SWITCH EURO2 SPECIFICATION(NT2)	8-97603-667-0	01	1	0909-
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	0908-
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-98091-566-0	02	1	0908-
137	COCK; DRAIN,WATER	8-94393-716-1	01	1	0908-
158	GASKET; OIL PRESS UNIT ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2) ID=10.2 OD=15.2	1-09630-083-0	01	1	0909-
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	0908-
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-97077-638-0	14	1	0908-
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	0908-
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2	1-09630-084-0	01	1	0908-1312
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2	8-98251-344-0	01	1	1401-
232	STUD; WATER PUMP M8X55 L=67	0-41010-855-0	03	1	0908-
233	STUD; BODY TO STEP MOTOR EURO5 SPECIFICATION(NT5) M16 & PT1/4 STRAIGHT	1-09660-129-0	01	1	0908-
256	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2) ID=14.2 OD=25	1-09630-141-0	01	1	0909-
259	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7	1-09623-184-0	01	1	0908-
262	PLUG; ADAPTER EURO5 SPECIFICATION(NT5) (A)	1-13163-002-0	02	1	1101-1410
262	PLUG; ADAPTER HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (A)	1-13163-002-0	02	1	1411-
262	PLUG; ADAPTER EURO5 SPECIFICATION(NT5) (B) M14	8-94399-225-0	01	1	1101-1410
262	PLUG; ADAPTER HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (B) M14	8-94399-225-0	01	1	1411-
262	PLUG; ADAPTER EURO2 SPECIFICATION(NT2) (A) M14X14	9-09862-156-0	01	1	0909-
335	PLUG; C/BL,SIDE (A) M12X10	5-13265-001-0	01	1	0909-
335	PLUG; C/BL,SIDE (A) M12X10	5-13265-001-0	01	1	0908-0908
335	PLUG; C/BL,SIDE EURO2 SPECIFICATION(NT2) (B) M14X16.5	8-97329-617-0	02	1	0909-
335	PLUG; C/BL,SIDE (B) M14X16.5	8-97329-617-0	03	1	0908-0908
335	PLUG; C/BL,SIDE EURO5 SPECIFICATION(NT5) (B) M14X16.5	8-97329-617-0	03	1	0909-1410
335	PLUG; C/BL,SIDE HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA> (B) M14X16.5	8-97329-617-0	03	1	1411-
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	02	1	0908-
392	HOSE; FLEX,OIL PRESS UNIT EURO5 SPECIFICATION(NT5)	8-98057-711-0	01	1	0908-
393	BOLT; EYE,FLEX HOSE EURO5 SPECIFICATION(NT5) M14X30 EYE-BOLT	8-98037-827-0	01	1	0908-
394	GASKET; EYE BOLT EURO5 SPECIFICATION(NT5) ID=14.2 OD=19.2	1-09630-085-0	02	1	0908-1312
394	GASKET; EYE BOLT EURO5 SPECIFICATION(NT5) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
403	GUIDE; GALLERY	8-94395-351-1	01	1	0908-
413	STUD; ADAPTER M8X30 L=41	0-41010-830-0	02	1	0908-
414	NUT; ADAPTER M8 FLANGE	0-91180-208-0	02	1	0908-
504	STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0908-
505	ADAPTER; WATER FEED EURO2 SPECIFICATION(NT2)	8-97611-854-0	01	1	0909-
505	ADAPTER; WATER FEED	8-97607-409-0	01	1	0908-0908
505	ADAPTER; WATER FEED EURO5 SPECIFICATION(NT5)	8-97607-409-0	01	1	0909-1012
505	ADAPTER; WATER FEED EURO5 SPECIFICATION(NT5)	8-98145-412-1	01	1	1101-1410
505	ADAPTER; WATER FEED HONG KONG EQUIPMENT(PQ1) EXC. KD ENGINE<KDA>	8-98145-412-1	01	1	1411-
522	UNION EURO5 SPECIFICATION(NT5) M10 & PT1/4 & PT1/8 STRAIGHT	8-98052-976-0	01	1	0908-
523	GASKET EURO5 SPECIFICATION(NT5) ID=10.2 OD=15.2	1-09630-083-0	01	1	0908-
