4-36 — POWER STEERING CONTROL; ENGINE SIDE (#6875) — 28 parça

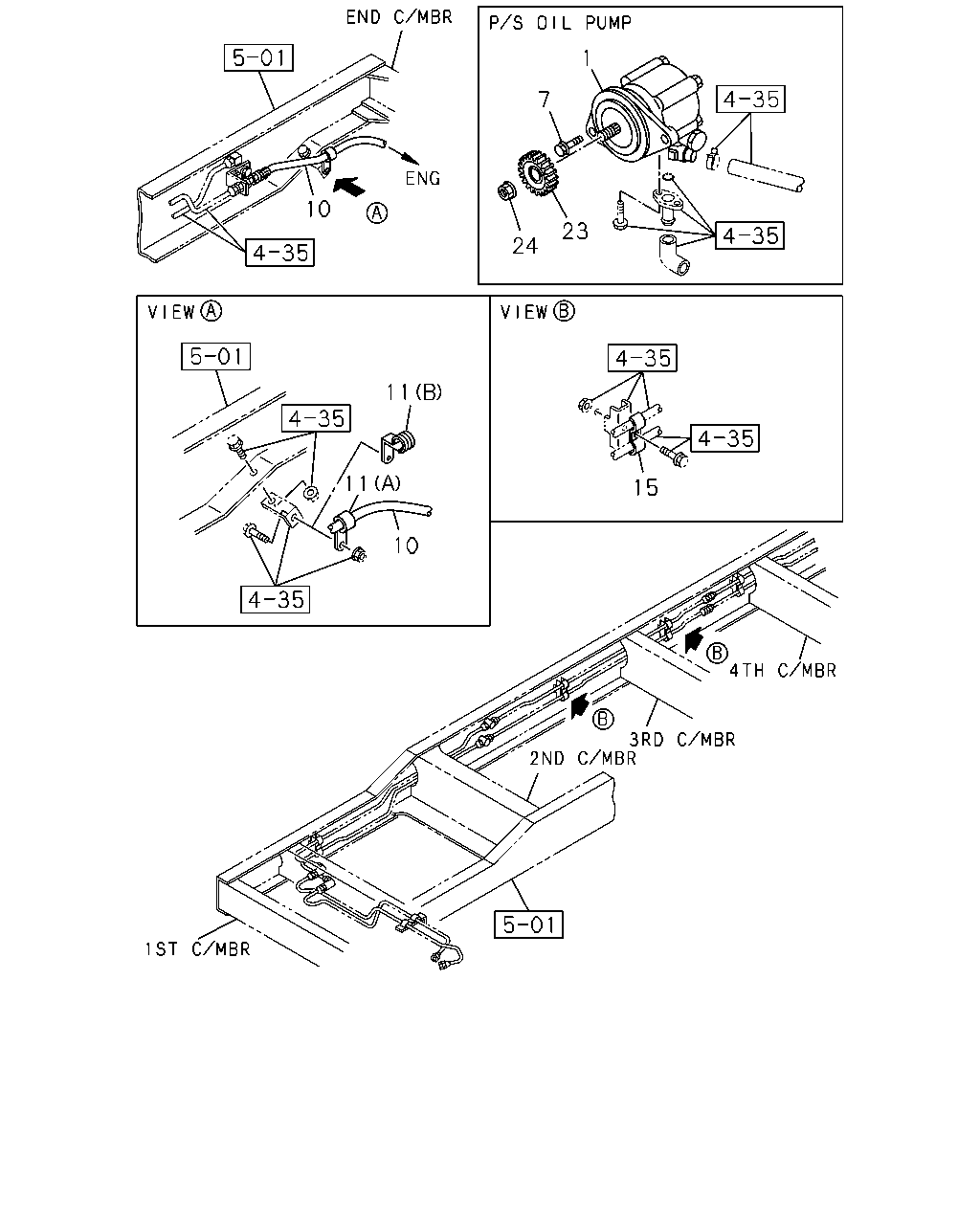

çizim 26944
1 7 10 23 24 11 11 10 15
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-532-0 01 1 9806-9911
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-573-0 01 1 9912-
7 BOLT; OIL PUMP,P/S
M10X55 FLANGE 		8-94399-863-1 02 1 9806-
10 HOSE; FLEX,P/S OIL PUMP,INL 0-09546-550-0 01 1 9806-9911
10 HOSE; FLEX,P/S OIL PUMP,INL 1-09365-033-0 01 1 9912-
11 CLIP; FLEX HOSE
(A) ID=18 H=23 L=28 		1-09700-860-0 01 1 9806-9911
11 CLIP; FLEX HOSE
(A) ID=18 L=50 		1-09701-072-0 01 1 9912-0108
11 CLIP; FLEX HOSE
(A) ID=19 L=50 		9-09525-886-0 01 1 0109-0401
11 CLIP; FLEX HOSE
(B) ID=18 H=23 L=28 		1-09700-860-0 01 1 0402-
15 CLIP; OIL PIPE SUCTION
ID=16 & 13 L=21.5 & 21.5 		1-09700-668-0 02 1 9806-
23 GEAR; OIL PUMP
Z=30 		8-94396-957-3 01 1 9806-
24 NUT; GEAR,P/S PUMP
M14 FLANGE 		0-91150-114-0 01 1 9806-9911
24 NUT; GEAR,P/S PUMP
M12 FLANGE 		0-91150-112-0 01 1 9912-0602
24 NUT; GEAR,P/S PUMP
M12 FLANGE 		0-91180-112-0 01 1 0603-

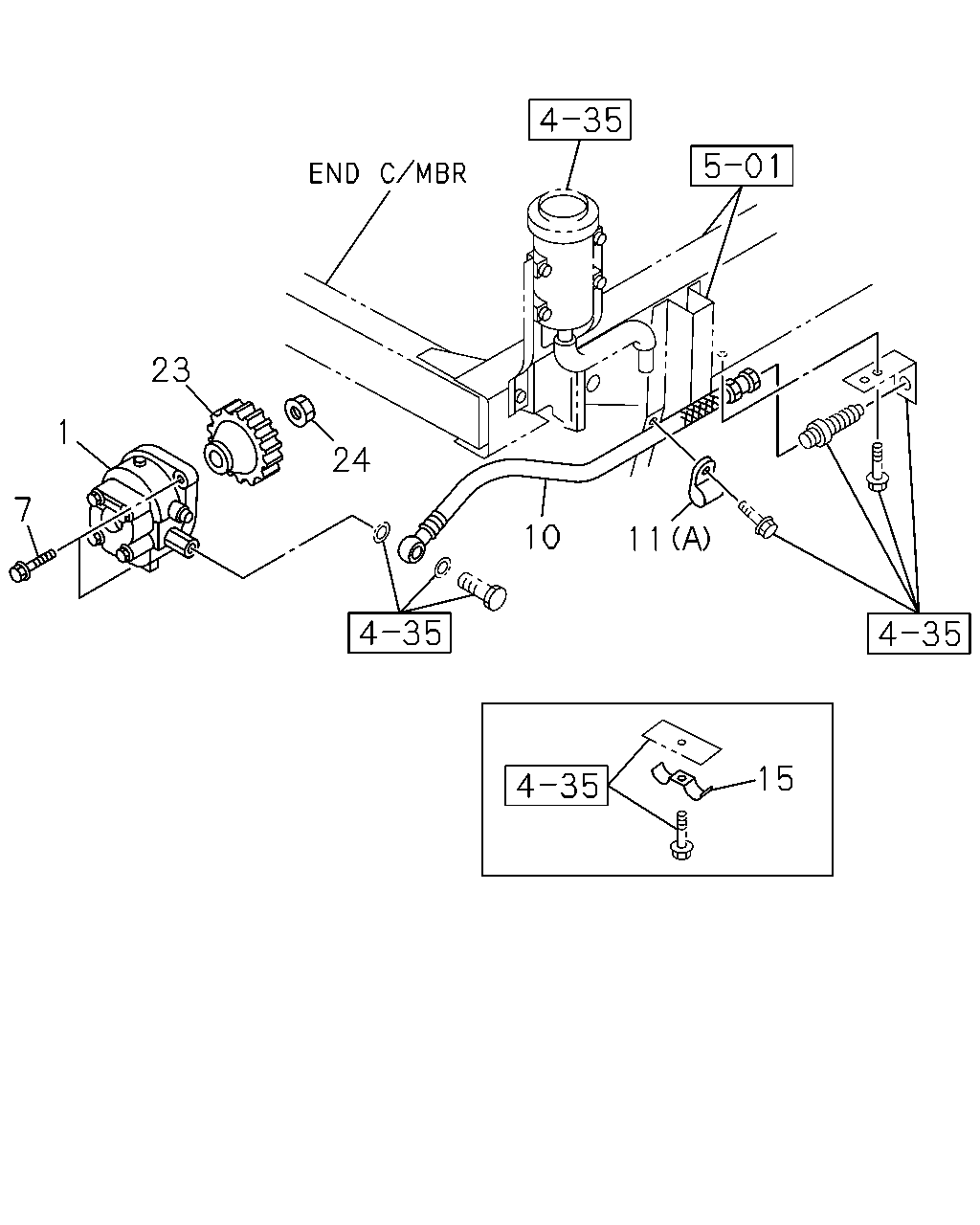

çizim 99190
23 1 24 7 10 11 15
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-532-0 01 1 9806-9911
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-573-0 01 1 9912-
7 BOLT; OIL PUMP,P/S
M10X55 FLANGE 		8-94399-863-1 02 1 9806-
10 HOSE; FLEX,P/S OIL PUMP,INL 0-09546-550-0 01 1 9806-9911
10 HOSE; FLEX,P/S OIL PUMP,INL 1-09365-033-0 01 1 9912-
11 CLIP; FLEX HOSE
(A) ID=18 H=23 L=28 		1-09700-860-0 01 1 9806-9911
11 CLIP; FLEX HOSE
(A) ID=18 L=50 		1-09701-072-0 01 1 9912-0108
11 CLIP; FLEX HOSE
(A) ID=19 L=50 		9-09525-886-0 01 1 0109-0401
11 CLIP; FLEX HOSE
(B) ID=18 H=23 L=28 		1-09700-860-0 01 1 0402-
15 CLIP; OIL PIPE SUCTION
ID=16 & 13 L=21.5 & 21.5 		1-09700-668-0 02 1 9806-
23 GEAR; OIL PUMP
Z=30 		8-94396-957-3 01 1 9806-
24 NUT; GEAR,P/S PUMP
M14 FLANGE 		0-91150-114-0 01 1 9806-9911
24 NUT; GEAR,P/S PUMP
M12 FLANGE 		0-91150-112-0 01 1 9912-0602
24 NUT; GEAR,P/S PUMP
M12 FLANGE 		0-91180-112-0 01 1 0603-
