Isuzu WW
▶
TRUCKS
▶
EXY
▶
11201 - EXY NEW ZEALAND EURO4
▶
9 - Tools
▶
9-01 - TOOLS
▶
9-01 — TOOLS
(#68748) — 88 parça
◀
[901A] NO.2 (25 parça)
[901A] NO.3 (17 parça)
[901A] NO.1 (36 parça)
[901A] NO.4 (10 parça)
▶
12
43
141
108
124
125
126
127
128
129
130
135
143
144
146
151
153
154
156
158
163
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
HANDLE; WRENCH,WHEEL PIN
OD=25 L=480
1-85116-011-0
01
1
0904-1501
12
HANDLE; WRENCH,WHEEL PIN
OD=25 L=480
8-98257-407-0
01
1
1502-
43
BAR; EXTENSION,SOCKET WRENCH
(B) OD=25 L=480
8-98257-407-0
01
1
1502-
43
BAR; EXTENSION,SOCKET WRENCH
(A)
1-85000-501-0
01
1
0904-
108
WRENCH; SOCKET
9-85113-132-0
01
1
0904-
124
PULLER ASM; BRG DIFF
9-85210-131-0
01
1
0904-
125
PULLER ASM; KING PIN
L=450
1-85210-009-0
01
1
0904-
126
WRENCH; FRT HUB BRG NUT
L=350 B=75
1-85110-002-1
01
1
0904-
127
WRENCH ASM; HUB BRG NUT
L=400 B=116
8-98119-000-1
01
1
0904-
128
PULLER ASM; STRG WHEEL
1-85210-078-0
01
1
0904-
129
PULLER ASM; PITMAN ARM
1-85210-011-0
01
1
0904-
130
WRENCH; BOX
B=63
9-85111-368-0
01
1
0904-
135
COVER; ENG MTG,FRT
9-85595-016-0
02
1
0904-
141
HANDLE; WRENCH
OD=25 L=480
1-85116-011-0
01
1
0904-0910
141
HANDLE; WRENCH
OD=16 L=200
9-85111-934-0
01
1
0904-
143
GUIDE; BOOT,TIE ROD END
1-85229-013-0
01
1
0904-
144
BASE; BOOT GUIDE,TIE ROD END
1-85229-009-0
01
1
0904-
146
REPLACER KIT; LEAF SPR
9-85231-556-0
01
1
0904-
151
REMOVER; OIL BRK,FRT RETURN SPR
ID=16
1-85237-002-0
01
1
0904-
153
DRIVER; WASHER,THRUST WASHER
1-85238-002-0
01
1
0904-
154
SLEEPER; KING PIN
1-85238-003-0
01
1
0904-
156
PULLER; ANCHOR PIN
1-85210-025-0
01
1
0904-
158
SETTING TOOL; RETURN SPR
9-85221-231-0
01
1
0904-0909
163
TOOL; SETTING
L=195
1-85221-162-1
01
1
0904-
163
TOOL; SETTING
9-85221-231-0
01
1
0910-

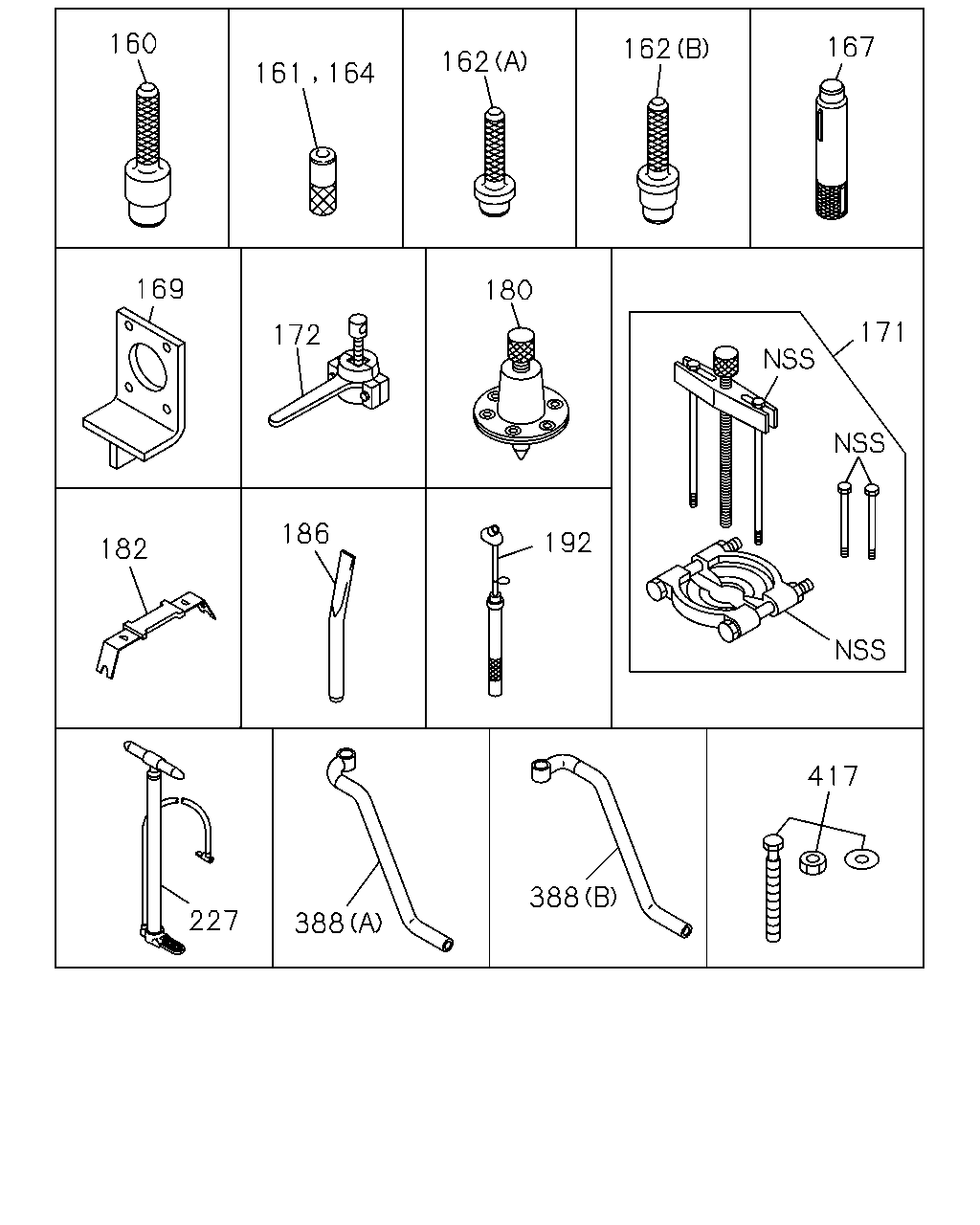

160
167
162
162
161
164
169
180
171
172
186
192
182
417
388
227
388
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
160
REMOVER; NEEDLE BRG
L=220
1-85238-001-0
01
1
0904-
161
REMOVER; TIE ROD ARM
1-85176-001-0
01
1
0904-0909
162
SETTING TOOL; NEEDLE BRG
(A) L=181
1-85238-008-0
01
1
0904-
162
SETTING TOOL; NEEDLE BRG
(B) L=213
1-85238-009-0
01
1
0904-
164
GUIDE; SNAP RING PILOT BRG
1-85176-001-0
01
1
0910-
167
ALIGNER; CLU PILOT
L=300 OD=52.5
1-85253-025-0
01
1
0904-
169
BRACKET; SPLINE YOKE
1-85221-317-0
01
1
0904-
171
PULLER ASM; PINION BRG
9-85210-152-0
01
1
0904-
172
PULLER ASM; BRG DIFF PILOT
9-85210-182-0
01
1
0904-
180
PULLER; FRT & RR HUB
1-85210-002-0
01
1
0904-
182
REMOVER ASM
1-85239-008-0
01
1
0904-
186
ADJUSTER; BRAKE
1-85269-008-0
01
1
0904-
192
GAUGE; TIRE PRESSURE
1-85315-002-0
01
1
0904-
227
PUMP ASM; TIRE
9-85521-132-0
01
1
0904-
388
WRENCH; U-BOLT
(A)
9-85111-954-0
01
1
0904-
388
WRENCH; U-BOLT
(B)
9-85111-955-0
01
1
0904-
417
BOLT; CHAMBER RELEASE
1/2-13 UNC L=124 4-SETS
1-85576-331-1
01
1
0904-

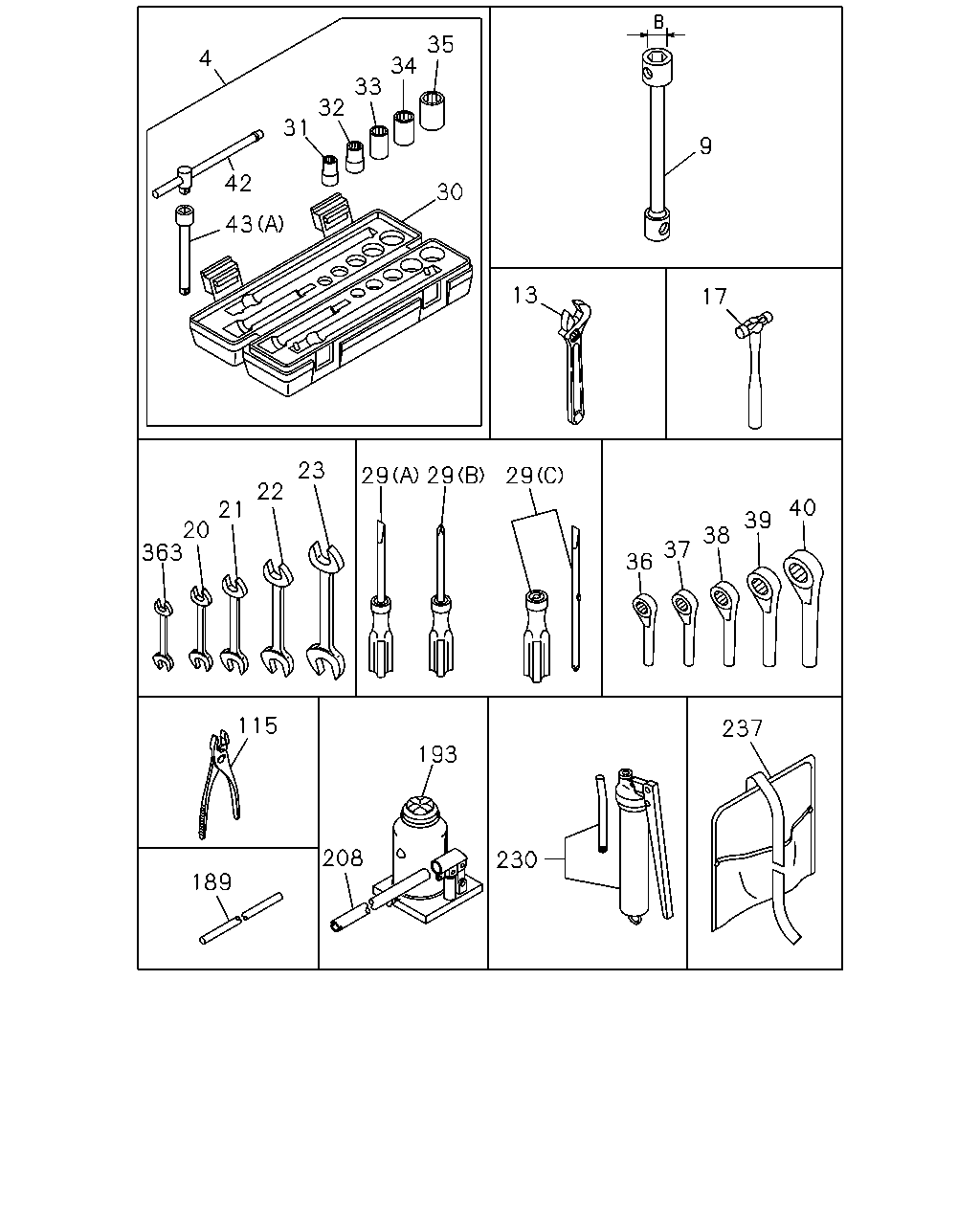

35
34
33
32
31
4
42
30
43
29
29
29
23
22
21
20
363
40
39
38
37
36
17
9
13
237
230
193
115
189
208
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
WRENCH KIT; SOCKET
1-85000-491-0
01
1
0904-
9
WRENCH; WHEEL PIN
B=33X30 L=450
1-85111-033-1
01
1
0904-
13
WRENCH; MONKEY
L=255
1-85117-002-1
01
1
0904-0907
13
WRENCH; MONKEY
L=247
1-85117-006-0
01
1
0908-1407
13
WRENCH; MONKEY
L=255
8-98270-303-0
01
1
1408-
17
HAMMER
9-85121-406-0
01
1
0904-
20
WRENCH; 10X12
10X12
0-95902-510-0
01
1
0904-
21
WRENCH; 14X17
14X17
0-95902-514-0
01
1
0904-
22
WRENCH; 19X22
19X22
0-95902-519-0
01
1
0904-
23
WRENCH; 24X27
24X27
0-95902-524-0
01
1
0904-
29
DRIVER; SCREW
(A) <-> L=285
1-85151-004-0
01
1
0904-
29
DRIVER; SCREW
(C) <+>,<-> L=160
8-94242-798-1
01
1
0904-
29
DRIVER; SCREW
(B) <+> L=275
9-09595-023-0
01
1
0904-
30
BOX; SOCKET WRENCH
1-85000-492-0
01
1
0904-
31
WRENCH; 12
1-85000-495-0
01
1
0904-
32
WRENCH; 14
1-85000-496-0
01
1
0904-
33
WRENCH; 17
1-85000-497-0
01
1
0904-
34
WRENCH; 19
1-85000-498-0
01
1
0904-
35
WRENCH; 22
1-85000-499-0
01
1
0904-
36
WRENCH; 24
9-85111-377-0
01
1
0904-
37
WRENCH; 27
9-85111-375-0
01
1
0904-
38
WRENCH; 32
9-85111-358-0
01
1
0904-
39
WRENCH; 36
9-85111-374-0
01
1
0904-
40
WRENCH; 41
9-85111-356-0
01
1
0904-
42
HANDLE; SLIDING
1-85000-500-0
01
1
0904-
43
BAR; EXTENSION,SOCKET WRENCH
(B) OD=25 L=480
8-98257-407-0
01
1
1502-
43
BAR; EXTENSION,SOCKET WRENCH
(A)
1-85000-501-0
01
1
0904-
115
PLIER
5-85171-002-0
01
1
0904-1410
115
PLIER
8-98282-845-0
01
1
1411-
189
TUBE; AIR BREATHER
L=460
9-85291-414-0
01
1
0904-
193
JACK ASM
15TON
1-85510-019-2
01
1
0904-
208
HANDLE; JACK
L=600
1-85515-009-0
01
1
0904-1107
208
HANDLE; JACK
L=600
8-98181-437-0
01
1
1108-
230
PUMP; GREASE
1-85556-007-5
01
1
0904-
237
BAG; TOOL
8-97130-902-1
01
1
0904-
363
WRENCH; OPEN END 8X10
8X10
0-95902-508-0
01
1
0904-
122
121
120
191
405
407
447
404
408
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
120
PULLER ASM; MAIN REAR BRG
L=285
9-85210-184-0
01
1
0904-
121
PULLER ASM; COUNTER REAR
1-85210-069-0
01
1
0904-
122
PULLER ASM; COUNTER FRT
9-85210-195-0
01
1
0904-
191
ADAPTER
1-85216-009-0
01
1
0904-
404
TOOL; SETTING,MAIN COUNTER
1-85221-262-0
02
1
0904-0910
405
GUIDE; COUNTER
1-85221-264-0
01
1
0904-
407
SOCKET; SW
1-85221-267-1
01
1
0904-
408
TOOL; SETTING,SHIFT ASSISTER
1-85221-262-0
02
1
0911-
447
REPLACER KIT; BUSH,STABILIZER BAR
ID=65 OD=90 L=65
8-97608-200-0
01
1
0904-
447
REPLACER KIT; BUSH,STABILIZER BAR
ID=43.1 OD=48.6 L=65
8-97608-274-0
01
1
0904-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
