◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 11201 - EXY NEW ZEALAND EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-75 - CONDENSER ▶
8-75 — CONDENSER (#68745) — 31 parça

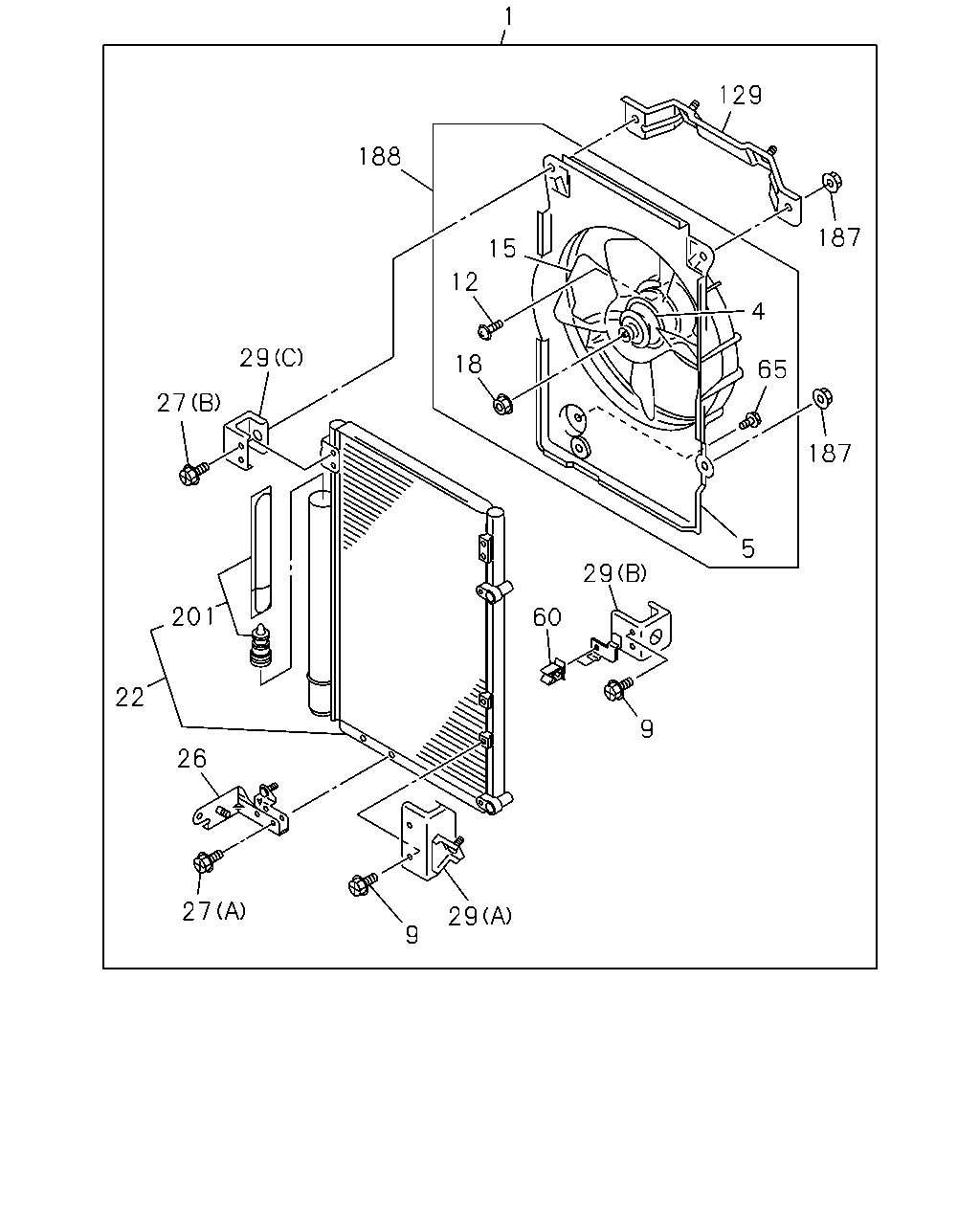

çizim 158073
1 129 188 187 15 12 4 29 18 65 27 187 5 29 201 60 22 9 26 27 29 9
BalonParca AdiParca NoAdetTipApplied Date
1 CONDENSER; A/C 8-98076-087-2 01 1 0904-
4 MOTOR ASM; FAN 8-98078-763-0 01 1 0904-
5 SHROUD; FAN MOTOR 8-98076-093-0 01 1 0904-
9 BOLT; BRKT
M6X14 		1-83539-382-0 04 1 0904-
12 BOLT; FAN MOTOR 8-98290-384-0 03 1 0904-1201
12 BOLT; FAN MOTOR 8-98290-384-0 01 1 1202-1409
12 BOLT; FAN MOTOR 8-98290-384-0 03 1 1410-
15 FAN; MOTOR 8-98076-092-0 01 1 0904-
18 NUT; FAN,CENTER 1-83539-313-0 01 1 0904-
22 CONDENSER ASM; A/C 1-83534-261-0 01 1 0904-1409
22 CONDENSER ASM; A/C 8-98275-189-0 01 1 1410-
26 BRACKET; LOW 1-83573-281-0 01 1 0904-
27 BOLT; BRKT,LOW SIDE
(B) M6X14 		1-83539-382-0 02 1 0904-
27 BOLT; BRKT,LOW SIDE
(A) M5X25 		8-97178-770-0 02 1 0904-
29 BRACKET; SIDE
(C) 		1-83573-278-0 01 1 0904-
29 BRACKET; SIDE
(B) 		1-83573-279-0 01 1 0904-
29 BRACKET; SIDE
(A) 		1-83573-280-0 01 1 0904-
60 CLIP; PIPE 1-83574-266-0 01 1 0904-
65 BOLT; SHROUD
M6X16 		8-97096-525-0 01 1 0904-
129 BRACKET; UPR 1-83573-129-0 01 1 0904-
187 NUT; SHROUD
M6 		1-83539-354-0 04 1 0904-
188 BLOWER ASM; SHROUD 8-98078-760-1 01 1 0904-
201 DRYER ASM; CONDENSER 1-83535-097-0 01 1 0904-1409
201 DRYER ASM; CONDENSER 8-98282-482-0 01 1 1410-

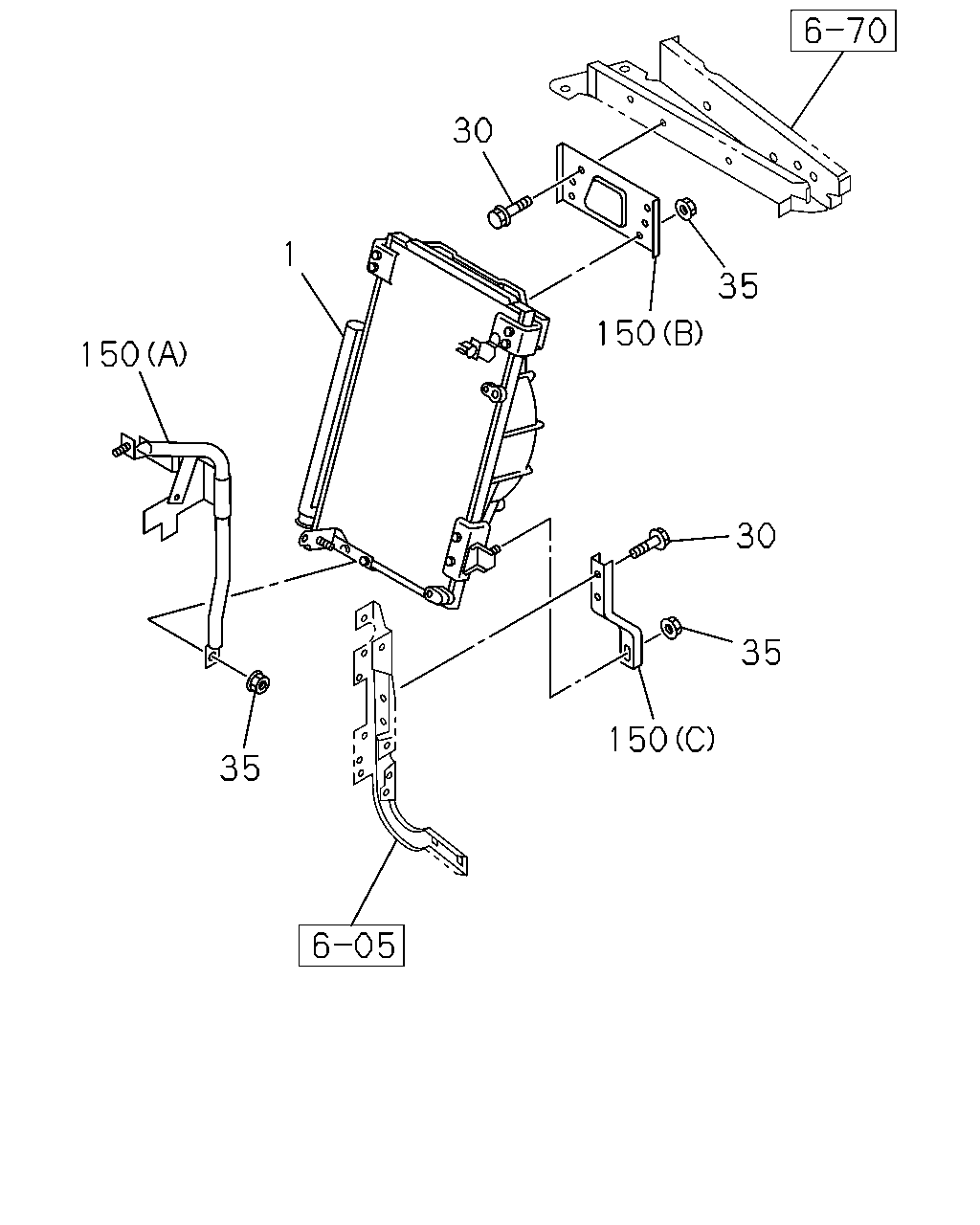

çizim 158095
30 1 35 150 150 30 35 150 35
BalonParca AdiParca NoAdetTipApplied Date
1 CONDENSER; A/C 8-98076-087-2 01 1 0904-
30 BOLT; CONDENSER,A/C
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0904-0904
30 BOLT; CONDENSER,A/C
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905-
35 NUT; CONDENSER,A/C
M8 FLANGE 		0-91180-108-0 05 1 0904-
150 BRACKET; CONDENSER,MTG
(B) 		1-83571-984-0 01 1 0904-
150 BRACKET; CONDENSER,MTG
(C) 		1-83571-985-0 01 1 0904-
150 BRACKET; CONDENSER,MTG
(A) 		1-83573-242-1 01 1 0904-
