Sayfa 4-35 - Isuzu EPC

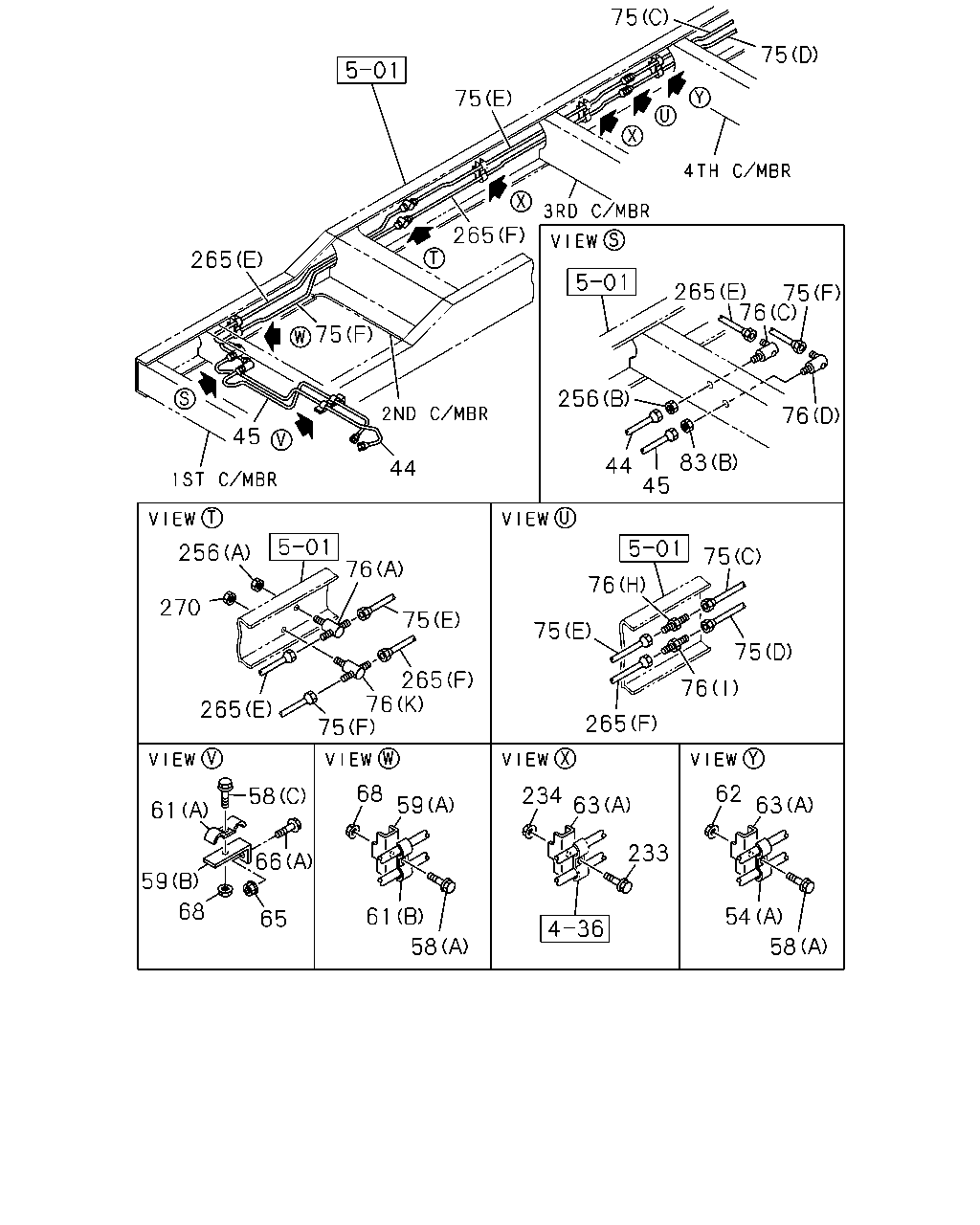

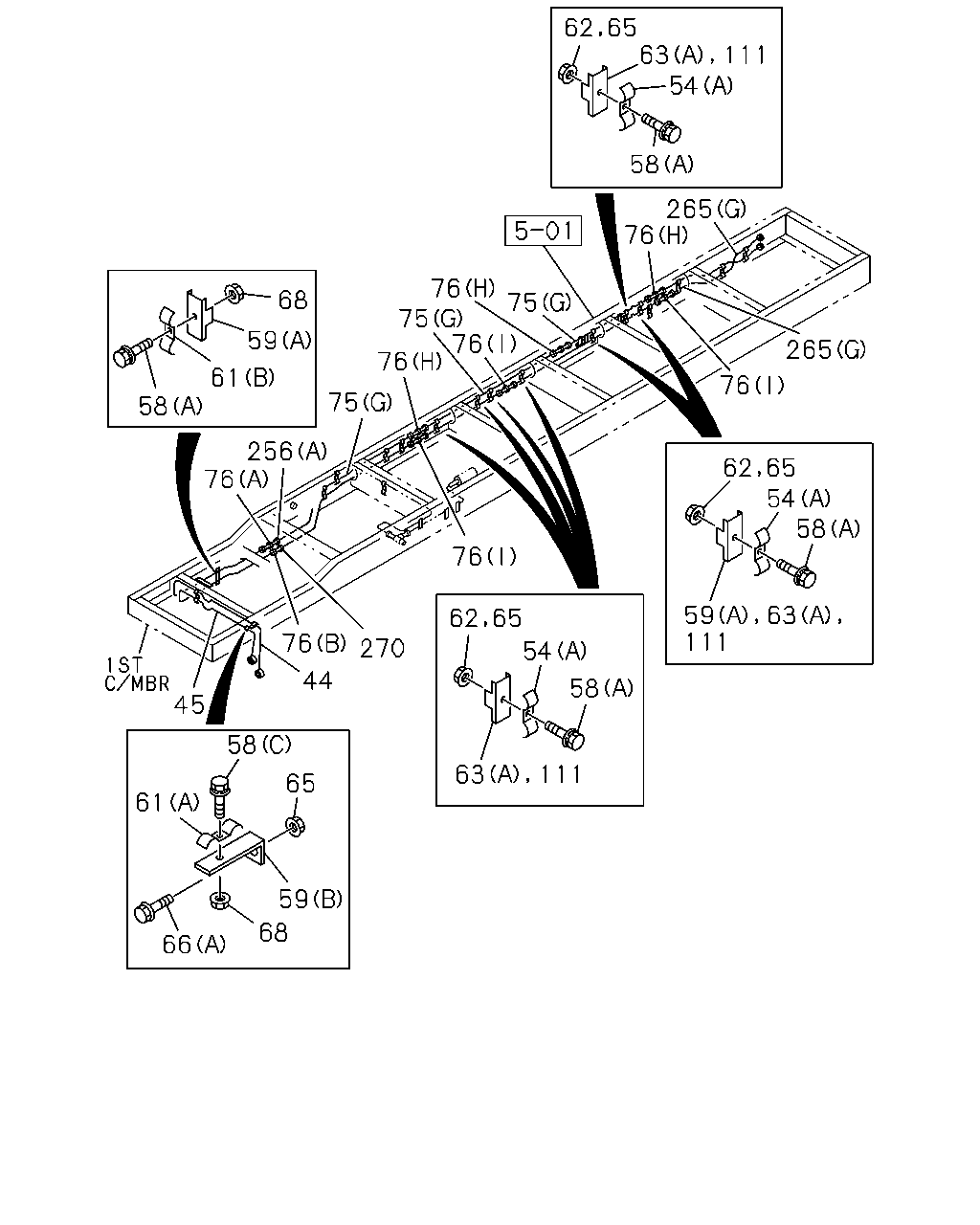

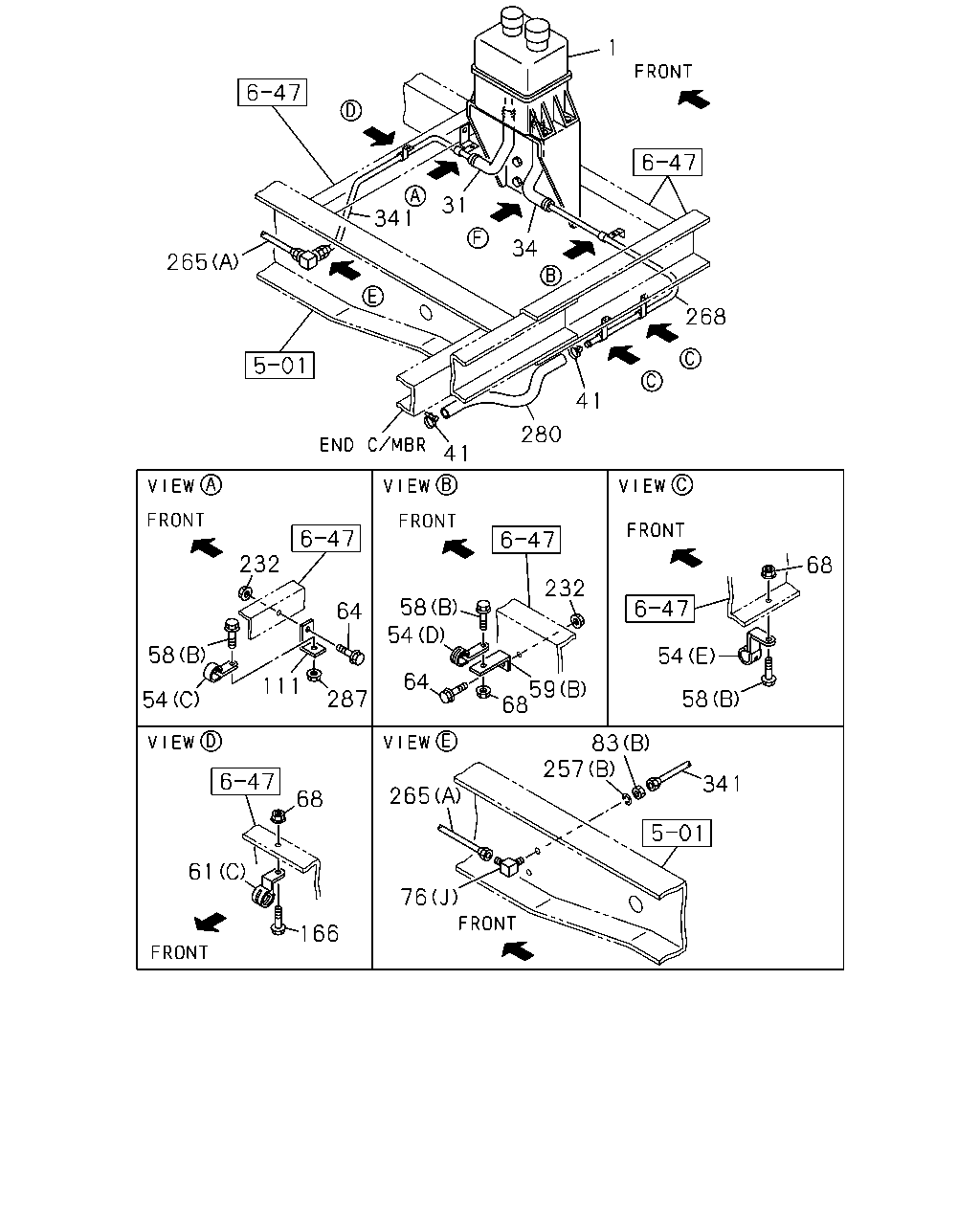

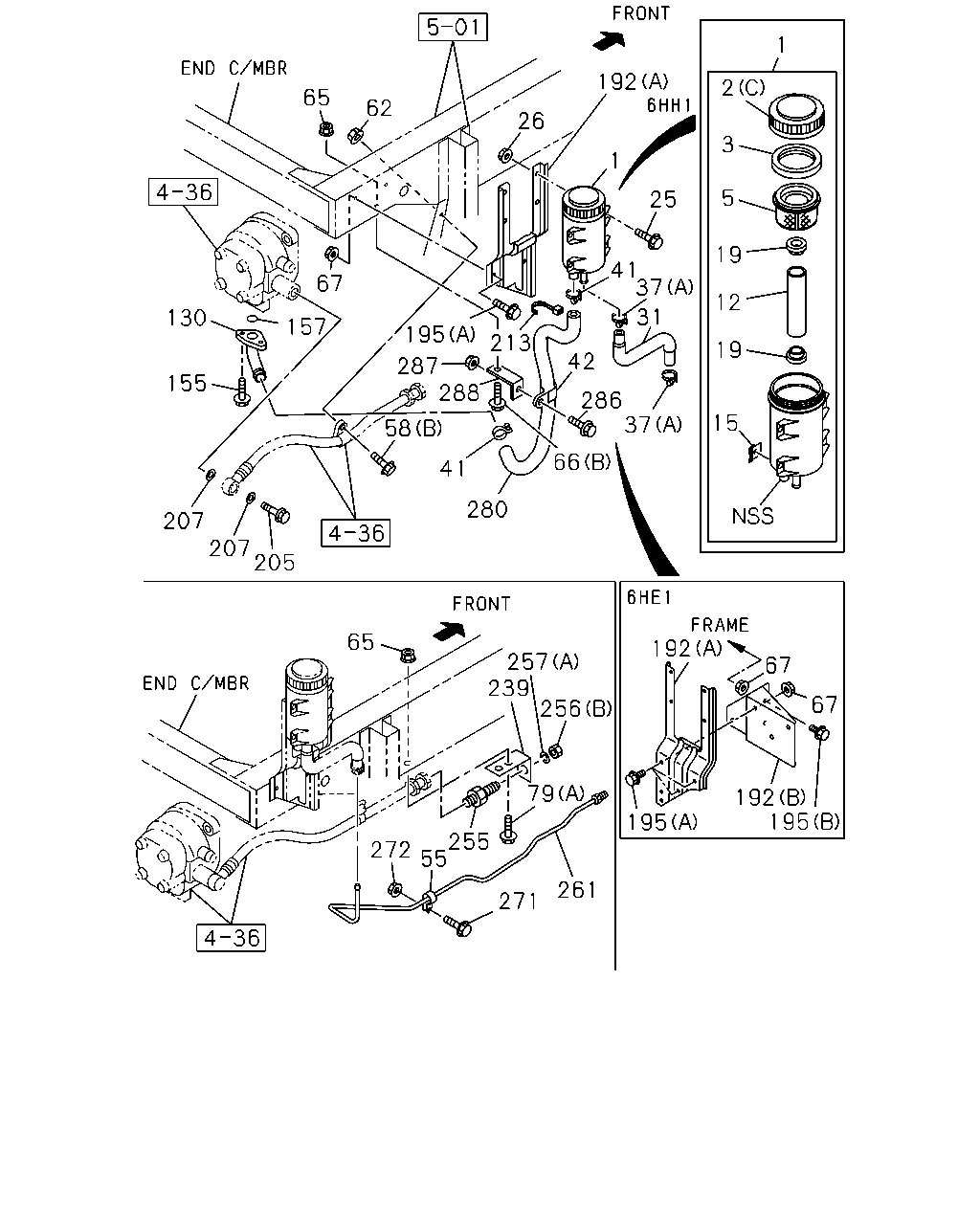

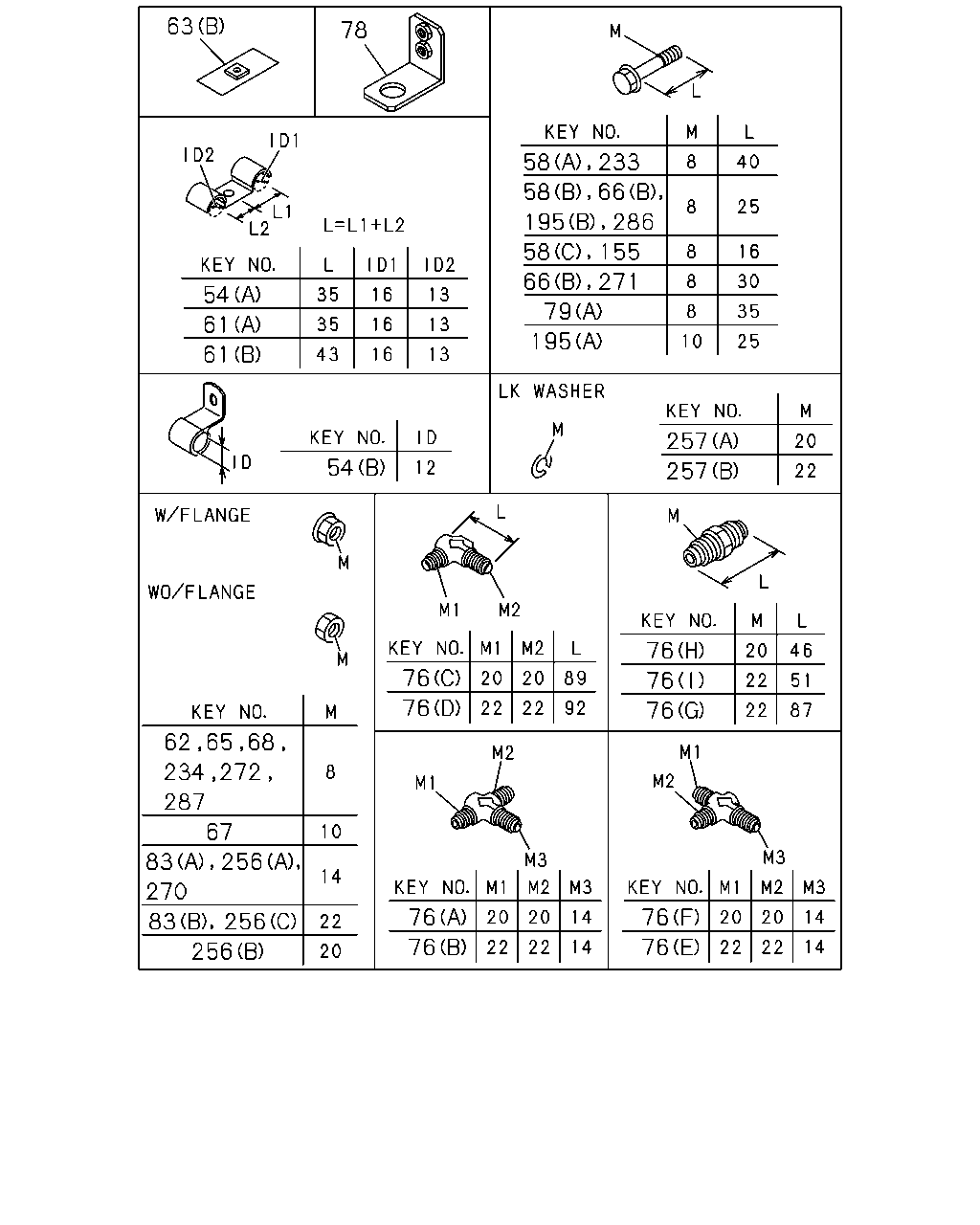

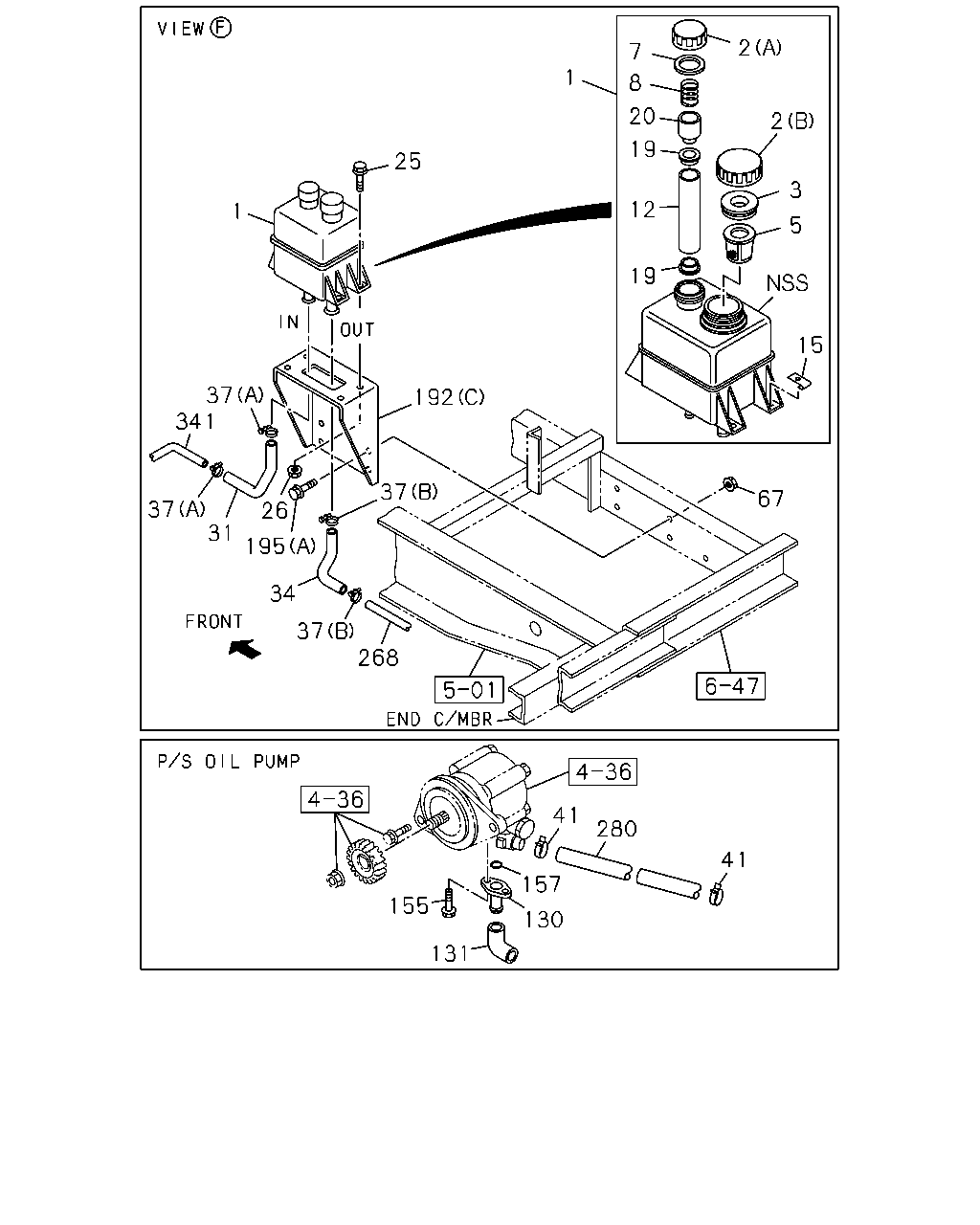

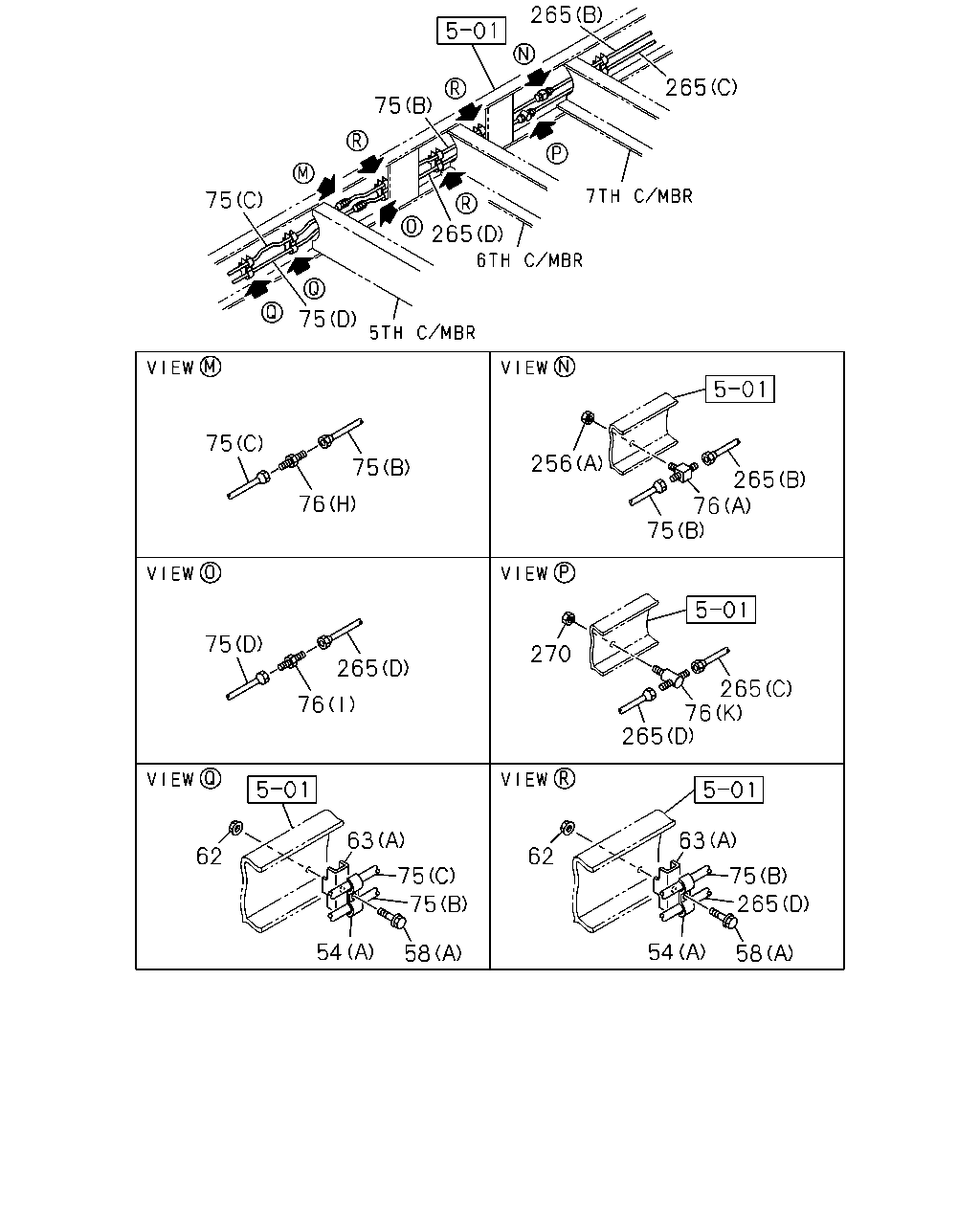

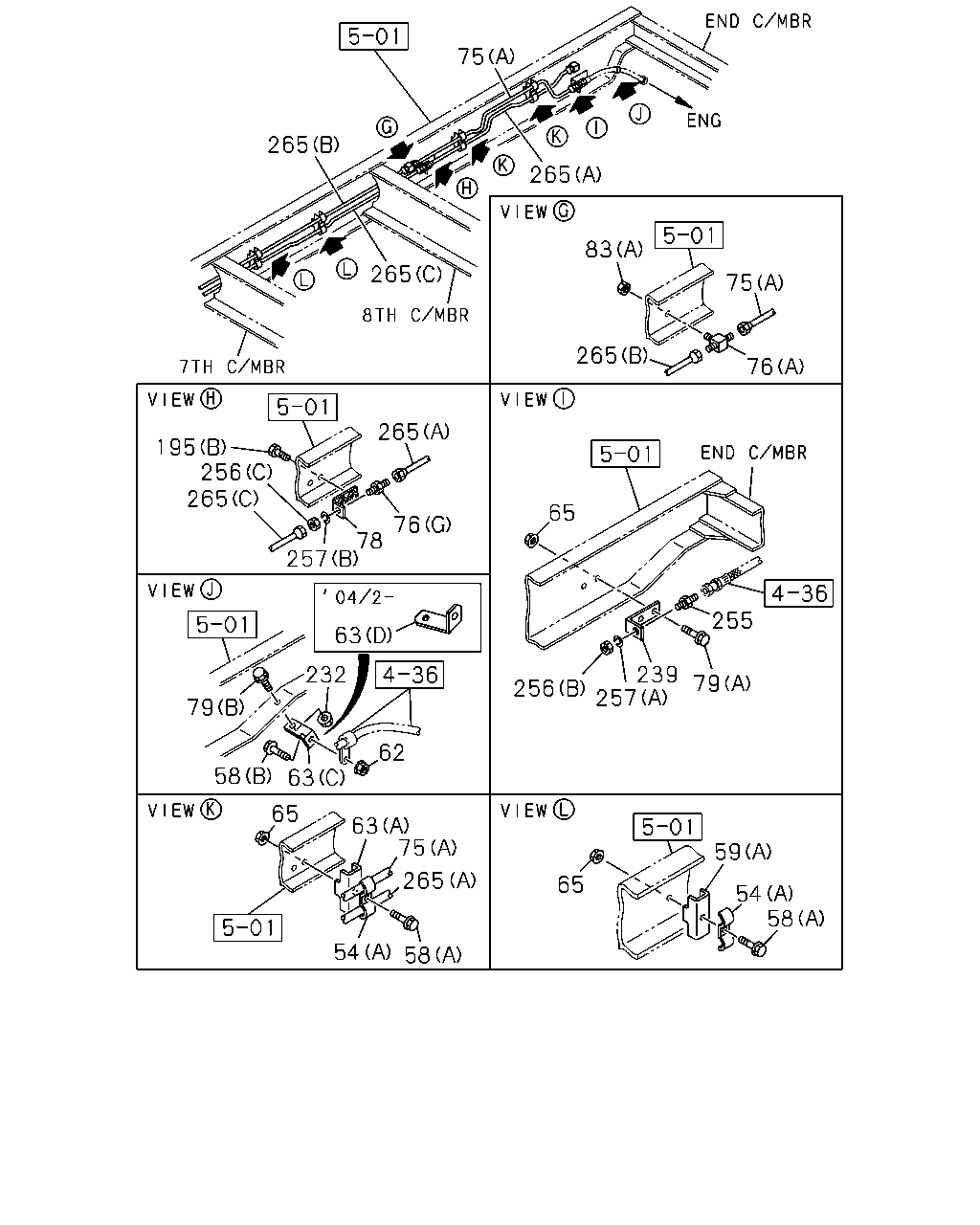

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#6874) — 1277 parça

2 7 1 8 20 2 19 25 3 12 1 5 19 15 37 341 192 37 67 37 31 26 195 34 37 268 41 280 41 157 155 130 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-152-6	01	1	9806-9911
1	TANK ASM; OIL,P/S	1-21210-194-1	01	1	9912-0508
1	TANK ASM; OIL,P/S	1-21210-234-1	01	1	0509-
2	CAP; OIL TANK,P/S (C)	1-21241-004-3	01	1	9806-9911
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-6	01	1	9912-
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-4	01	1	9912-
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	9806-9911
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	9912-
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	9806-9911
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	9912-
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	9912-
8	SPRING; OIL TANK,P/S	1-09580-319-1	01	1	9912-0508
8	SPRING; OIL TANK,P/S	1-09580-599-0	01	1	0509-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	9806-
15	PLATE; FILTER,OIL TANK	1-21249-007-1	04	1	9806-9911
15	PLATE; FILTER,OIL TANK	1-21249-009-0	04	1	9912-0508
15	PLATE; FILTER,OIL TANK	1-21249-017-0	04	1	0509-
19	SEAT; OIL TANK	1-21249-004-0	02	1	9806-9911
19	SEAT; OIL TANK	1-21262-001-0	02	1	9912-
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	9912-
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28680-825-0	04	1	9806-0512
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	04	1	0601-
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91150-108-0	04	1	9806-9911
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91150-108-0	04	1	9912-
31	HOSE; P/S OIL TANK,INL 6HE1-TC ENG(57L)	1-21116-041-1	01	1	9806-9911
31	HOSE; P/S OIL TANK,INL	8-97531-114-0	01	1	9912-
31	HOSE; P/S OIL TANK,INL 6HH1-S ENG(65L)	1-21115-122-0	01	1	9806-9911
34	HOSE; P/S OIL TANK,OUTLET	1-21116-455-0	01	1	9912-
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	9806-
37	CLIP; HOSE,P/S (B) ID=36	1-09704-094-0	02	1	9912-
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	9806-9911
41	CLIP; HOSE,P/S ID=36	1-09704-094-0	02	1	9912-
67	NUT; BRKT M10 FLANGE	0-91150-210-0	03	1	9806-9911
67	NUT; BRKT M10 FLANGE	0-91150-210-0	04	1	9912-0602
67	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0603-
67	NUT; BRKT 6HE1-TC ENG(57L) M10 FLANGE	0-91150-210-0	04	1	9806-9911
130	ADAPTER; P/S PUMP	8-94397-227-0	01	1	9806-9911
130	ADAPTER; P/S PUMP	1-21122-022-0	01	1	9912-
131	HOSE; RUBBER,P/S	8-94396-331-1	01	1	9912-
155	BOLT; CONNECTOR M8X16 FLANGE	0-28080-816-0	02	1	9806-0512
155	BOLT; CONNECTOR M8X16 FLANGE	0-28050-816-0	02	1	0601-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-178-0	01	1	9806-
192	BRACKET; P/S OIL TANK (A)	1-21219-093-2	01	1	9806-9911
192	BRACKET; P/S OIL TANK (C)	8-97531-115-0	01	1	9912-
192	BRACKET; P/S OIL TANK 6HE1-TC ENG(57L) (B)	1-47478-136-0	01	1	9806-9911
195	BOLT; BRKT (A) M10X25 FLANGE	0-28681-025-0	03	1	9806-9911
195	BOLT; BRKT (A) M10X25 FLANGE	0-28681-025-0	04	1	9912-0512
195	BOLT; BRKT (A) M10X25 FLANGE	0-28651-025-0	04	1	0601-
195	BOLT; BRKT 6HE1-TC ENG(57L) (B) M8X30 FLANGE	0-28680-830-0	02	1	9806-9911
195	BOLT; BRKT 6HE1-TC ENG(57L) (A) M10X25 FLANGE	0-28681-025-0	04	1	9806-9911
195	BOLT; BRKT (B) M8X30 FLANGE	0-28680-830-0	02	1	9912-0512
195	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0601-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	1-21116-453-0	01	1	9912-
280	HOSE; P/S OIL PUMP,INL	1-21114-941-0	01	1	9806-9808
280	HOSE; P/S OIL PUMP,INL 6HH1-S ENG(65L)	1-21114-941-0	01	1	9809-9911
280	HOSE; P/S OIL PUMP,INL 6HE1-TC ENG(57L)	1-21116-042-0	01	1	9806-9808
280	HOSE; P/S OIL PUMP,INL 6HE1-TC ENG(57L)	1-21116-042-0	01	1	9809-9911
280	HOSE; P/S OIL PUMP,INL	1-21116-456-0	01	1	9912-
341	PIPE; OIL,UNION TO OIL TANK	1-21116-452-0	01	1	9912-

265 265 75 7 75 265 75 75 256 75 265 76 75 76 75 270 265 265 76 265 76 63 63 62 62 75 75 265 75 54 54 58 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	9912-
54	CLIP; OIL PIPE (A) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9912-
54	CLIP; OIL PIPE WB 5000MM(50W) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9806-9911
54	CLIP; OIL PIPE 6HH1-S ENG(65L) CTR SPLIT FRAME<TLW> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9806-9911
54	CLIP; OIL PIPE WB 5000MM(50W) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9912-
54	CLIP; OIL PIPE WB 5700MM(57W) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	9806-9911
54	CLIP; OIL PIPE WB 5700MM(57W) CTR SPLIT FRAME<TLW> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	9806-9911
54	CLIP; OIL PIPE (C) ID=16 L=20	9-09525-536-0	01	1	9912-0606
54	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	01	1	0607-
54	CLIP; OIL PIPE WB 6300MM(63W) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	04	1	9806-9911
54	CLIP; OIL PIPE 6HH1-S ENG(65L) EXC. CTR SPLIT FRAME<TLW> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	04	1	9806-9911
54	CLIP; OIL PIPE 6HH1-S ENG(65L) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	04	1	9806-9911
54	CLIP; OIL PIPE (E) ID=24.5 H=35 L=25	1-09700-990-0	02	1	9912-
54	CLIP; OIL PIPE 6HE1-TC ENG(57L) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	05	1	9806-9911
54	CLIP; OIL PIPE WB 5700MM(57W) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	9912-
54	CLIP; OIL PIPE 6HE1-TC ENG(57L) EXC. CTR SPLIT FRAME<TLW> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	9806-9911
54	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	06	1	9912-
54	CLIP; OIL PIPE 6HH1-S ENG(65L) (B) ID=12 H=24 L=20	1-09700-605-0	01	1	9806-9911
54	CLIP; OIL PIPE (D) ID=24 L=24	1-09701-001-1	01	1	9912-
58	BOLT; CLIP (A) M8X45 FLANGE	0-28080-845-0	03	1	0012-0512
58	BOLT; CLIP (A) M8X45 FLANGE	0-28050-845-0	03	1	0601-
58	BOLT; CLIP (C) M8X16 FLANGE	0-28080-816-0	01	1	9806-0512
58	BOLT; CLIP (C) M8X16 FLANGE	0-28050-816-0	01	1	0601-
58	BOLT; CLIP (B) M8X25 FLANGE	0-28680-825-0	01	1	9806-9911
58	BOLT; CLIP 6HE1-TC ENG(57L) CTR SPLIT FRAME<TLW> (B) M8X25 FLANGE	0-28680-825-0	01	1	9806-9911
58	BOLT; CLIP 6HH1-S ENG(65L) EXC. CTR SPLIT FRAME<TLW> (B) M8X25 FLANGE	0-28680-825-0	01	1	9806-9911
58	BOLT; CLIP (A) M8X40 FLANGE	0-28680-840-0	01	1	9806-9911
58	BOLT; CLIP WB 5000MM(50W) (A) M8X40 FLANGE	0-28680-840-0	01	1	9806-9911
58	BOLT; CLIP WB 5000MM(50W) (A) M8X40 FLANGE	0-28680-840-0	01	1	9912-0512
58	BOLT; CLIP WB 5000MM(50W) (A) M8X40 FLANGE	0-28650-840-0	01	1	0601-
58	BOLT; CLIP WB 5700MM(57W) (A) M8X40 FLANGE	0-28680-840-0	03	1	9806-9911
58	BOLT; CLIP WB 5700MM(57W) CTR SPLIT FRAME<TLW> (A) M8X40 FLANGE	0-28680-840-0	03	1	9806-9911
58	BOLT; CLIP WB 6300MM(63W) (A) M8X40 FLANGE	0-28680-840-0	04	1	9806-9911
58	BOLT; CLIP 6HH1-S ENG(65L) EXC. CTR SPLIT FRAME<TLW> (A) M8X40 FLANGE	0-28680-840-0	04	1	9806-9911
58	BOLT; CLIP 6HH1-S ENG(65L) (A) M8X40 FLANGE	0-28680-840-0	04	1	9806-9911
58	BOLT; CLIP 6HE1-TC ENG(57L) (A) M8X40 FLANGE	0-28680-840-0	02	1	9806-9911
58	BOLT; CLIP 6HE1-TC ENG(57L) CTR SPLIT FRAME<TLW> (A) M8X40 FLANGE	0-28680-840-0	02	1	9806-9911
58	BOLT; CLIP WB 5700MM(57W) (A) M8X40 FLANGE	0-28680-840-0	03	1	9912-0512
58	BOLT; CLIP WB 5700MM(57W) (A) M8X40 FLANGE	0-28650-840-0	03	1	0601-
58	BOLT; CLIP 6HE1-TC ENG(57L) EXC. CTR SPLIT FRAME<TLW> (A) M8X40 FLANGE	0-28680-840-0	05	1	9806-9911
58	BOLT; CLIP (A) M8X40 FLANGE	0-28680-840-0	08	1	9912-0011
58	BOLT; CLIP (A) M8X40 FLANGE	0-28680-840-0	05	1	0012-0512
58	BOLT; CLIP (A) M8X40 FLANGE	0-28650-840-0	05	1	0601-
58	BOLT; CLIP 6HH1-S ENG(65L) CTR SPLIT FRAME<TLW> (B) M8X25 FLANGE	0-28680-825-0	02	1	9806-9911
58	BOLT; CLIP (B) M8X25 FLANGE	0-28680-825-0	05	1	9912-0512
58	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	05	1	0601-
62	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	01	1	9806-9911
62	NUT; CLIP FIX WB 5000MM(50W) M8 FLANGE	0-91150-108-0	01	1	9806-9911
62	NUT; CLIP FIX WB 5000MM(50W) M8 FLANGE	0-91150-108-0	01	1	9912-0602
62	NUT; CLIP FIX WB 5000MM(50W) M8 FLANGE	0-91180-108-0	01	1	0603-
62	NUT; CLIP FIX WB 5700MM(57W) M8 FLANGE	0-91150-108-0	03	1	9806-9911
62	NUT; CLIP FIX WB 5700MM(57W) CTR SPLIT FRAME<TLW> M8 FLANGE	0-91150-108-0	03	1	9806-9911
62	NUT; CLIP FIX 6HE1-TC ENG(57L) M8 FLANGE	0-91150-108-0	03	1	9806-9911
62	NUT; CLIP FIX WB 5700MM(57W) M8 FLANGE	0-91150-108-0	03	1	9912-0602
62	NUT; CLIP FIX WB 5700MM(57W) M8 FLANGE	0-91180-108-0	03	1	0603-
62	NUT; CLIP FIX WB 6300MM(63W) M8 FLANGE	0-91150-108-0	04	1	9806-9911
62	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	04	1	9912-0602
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	04	1	0603-
62	NUT; CLIP FIX 6HH1-S ENG(65L) CTR SPLIT FRAME<TLW> M8 FLANGE	0-91150-108-0	02	1	9806-9911
62	NUT; CLIP FIX 6HH1-S ENG(65L) EXC. CTR SPLIT FRAME<TLW> M8 FLANGE	0-91150-108-0	05	1	9806-9911
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	02	1	9806-9911
63	BRACKET; CLIP,P/S 6HE1-TC ENG(57L) (A)	1-47475-427-1	02	1	9806-9911
63	BRACKET; CLIP,P/S 6HE1-TC ENG(57L) CTR SPLIT FRAME<TLW> (A)	1-47475-427-1	02	1	9806-9911
63	BRACKET; CLIP,P/S WB 5700MM(57W) (A)	1-47475-427-1	03	1	9912-
63	BRACKET; CLIP,P/S CTR SPLIT FRAME<TLW> (B) L=50	1-47475-299-2	01	1	9806-9911
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	07	1	9912-
63	BRACKET; CLIP,P/S WB 5000MM(50W) (A)	1-47475-427-1	01	1	9806-
63	BRACKET; CLIP,P/S WB 5700MM(57W) (A)	1-47475-427-1	03	1	9806-9911
63	BRACKET; CLIP,P/S 6HE1-TC ENG(57L) EXC. CTR SPLIT FRAME<TLW> (A)	1-47475-427-1	03	1	9806-9911
63	BRACKET; CLIP,P/S (C)	1-47477-119-0	01	1	9912-0401
63	BRACKET; CLIP,P/S (D)	1-82699-199-0	01	1	0402-
63	BRACKET; CLIP,P/S WB 6300MM(63W) (A)	1-47475-427-1	04	1	9806-9911
63	BRACKET; CLIP,P/S 6HH1-S ENG(65L) EXC. CTR SPLIT FRAME<TLW> (A)	1-47475-427-1	04	1	9806-9911
63	BRACKET; CLIP,P/S 6HH1-S ENG(65L) (A)	1-47475-427-1	04	1	9806-9911
75	PIPE; OIL,P/S,UNION TO UNION (G) L=1191	1-21115-458-0	01	1	9806-9911
75	PIPE; OIL,P/S,UNION TO UNION (B) L=1812	1-21115-923-0	01	1	9912-0001
75	PIPE; OIL,P/S,UNION TO UNION (B)	1-21116-694-0	01	1	0002-0106
75	PIPE; OIL,P/S,UNION TO UNION (B) L=1817	1-21117-120-0	01	1	0107-
75	PIPE; OIL,P/S,UNION TO UNION CTR SPLIT FRAME<TLW> (G) L=1798	1-21115-874-0	01	1	9806-9911
75	PIPE; OIL,P/S,UNION TO UNION (E) L=1498	8-97530-084-0	01	1	9912-
75	PIPE; OIL,P/S,UNION TO UNION EXC. CTR SPLIT FRAME<TLW> (G) L=1498	1-21115-403-0	01	1	9806-9911
75	PIPE; OIL,P/S,UNION TO UNION WB 5000MM(50W) (G) L=819	1-21115-402-0	01	1	9806-9911
75	PIPE; OIL,P/S,UNION TO UNION WB 5000MM(50W) (C) L=1819	8-97530-082-0	01	1	9912-
75	PIPE; OIL,P/S,UNION TO UNION WB 5000MM(50W) (G) L=899	1-21115-407-0	01	1	9806-9911
75	PIPE; OIL,P/S,UNION TO UNION WB 5000MM(50W) (D) L=900	8-97530-090-0	01	1	9912-
75	PIPE; OIL,P/S,UNION TO UNION WB 5700MM(57W) CTR SPLIT FRAME<TLW> (G) L=1699	1-21115-872-0	02	1	9806-9911
75	PIPE; OIL,P/S,UNION TO UNION WB 5700MM(57W) (C) L=1522	8-97530-083-0	01	1	9912-
75	PIPE; OIL,P/S,UNION TO UNION WB 5700MM(57W) CTR SPLIT FRAME<TLW> (G) L=1648	1-21115-876-0	01	1	9806-9911
75	PIPE; OIL,P/S,UNION TO UNION WB 5700MM(57W) (D) L=1603	8-97530-091-0	01	1	9912-
75	PIPE; OIL,P/S,UNION TO UNION WB 5700MM(57W) EXC. CTR SPLIT FRAME<TLW> (G) L=1522	1-21115-401-0	01	1	9806-9911
75	PIPE; OIL,P/S,UNION TO UNION WB 5700MM(57W) EXC. CTR SPLIT FRAME<TLW> (G) L=1602	1-21115-408-0	01	1	9806-9911
75	PIPE; OIL,P/S,UNION TO UNION WB 6300MM(63W) (G) L=2124	1-21115-459-0	01	1	9806-9911
75	PIPE; OIL,P/S,UNION TO UNION (F) L=1191	8-97531-204-0	01	1	9912-
75	PIPE; OIL,P/S,UNION TO UNION WB 6300MM(63W) (G) L=1203	1-21115-460-0	01	1	9806-9911
75	PIPE; OIL,P/S,UNION TO UNION 6HE1-TC ENG(57L) (G) L=1331	1-21115-921-0	01	1	9806-9911
75	PIPE; OIL,P/S,UNION TO UNION 6HE1-TC ENG(57L) CTR SPLIT FRAME<TLW> (G) L=2494	1-21115-926-0	01	1	9806-9911
75	PIPE; OIL,P/S,UNION TO UNION (A) L=1249	8-97531-173-0	01	1	9912-
75	PIPE; OIL,P/S,UNION TO UNION 6HE1-TC ENG(57L) EXC. CTR SPLIT FRAME<TLW> (G) L=1812	1-21115-923-0	01	1	9806-9911
75	PIPE; OIL,P/S,UNION TO UNION 6HH1-S ENG(65L) CTR SPLIT FRAME<TLW> (G) L=2974	1-21115-971-0	01	1	9806-9911
75	PIPE; OIL,P/S,UNION TO UNION 6HH1-S ENG(65L) CTR SPLIT FRAME<TLW> (G) L=940	1-21116-013-0	01	1	9806-9911
75	PIPE; OIL,P/S,UNION TO UNION 6HH1-S ENG(65L) EXC. CTR SPLIT FRAME<TLW> (G) L=2572	1-21115-399-0	01	1	9806-9911
75	PIPE; OIL,P/S,UNION TO UNION 6HH1-S ENG(65L) EXC. CTR SPLIT FRAME<TLW> (G) L=2282	1-21115-400-0	01	1	9806-9911
76	UNION; OIL PIPE (A) M20 2WAY	1-09654-138-1	01	1	9806-9911
76	UNION; OIL PIPE 6HE1-TC ENG(57L) (A) M20 2WAY	1-09654-138-1	01	1	9806-9911
76	UNION; OIL PIPE 6HE1-TC ENG(57L) EXC. CTR SPLIT FRAME<TLW> (A) M20 2WAY	1-09654-138-1	01	1	9806-9911
76	UNION; OIL PIPE (B) M22 2WAY	1-09654-212-1	01	1	9806-9911
76	UNION; OIL PIPE EXC. CTR SPLIT FRAME<TLW> (B) M22 2WAY	1-09654-212-1	01	1	9806-9911
76	UNION; OIL PIPE 6HH1-S ENG(65L) CTR SPLIT FRAME<TLW> (B) M22 2WAY	1-09654-212-1	01	1	9806-9911
76	UNION; OIL PIPE (J) M22	9-09235-215-1	01	1	9912-0607
76	UNION; OIL PIPE (J) M22	0-92135-215-0	01	1	0608-
76	UNION; OIL PIPE (D) M22 & M22 & M14	9-09225-115-1	01	1	9806-
76	UNION; OIL PIPE (H) M20 STRAIGHT	9-09233-012-1	01	1	9806-9911
76	UNION; OIL PIPE EXC. CTR SPLIT FRAME<TLW> (H) M20 STRAIGHT	9-09233-012-1	01	1	9806-9911
76	UNION; OIL PIPE 6HH1-S ENG(65L) (H) M20 STRAIGHT	9-09233-012-1	01	1	9806-9911
76	UNION; OIL PIPE (H) M20 STRAIGHT	9-09233-012-1	02	1	9912-0607
76	UNION; OIL PIPE (H) M20 STRAIGHT	0-92123-012-0	02	1	0608-
76	UNION; OIL PIPE (I) M22	9-09233-015-1	01	1	9806-9911
76	UNION; OIL PIPE EXC. CTR SPLIT FRAME<TLW> (I) M22	9-09233-015-1	01	1	9806-9911
76	UNION; OIL PIPE 6HH1-S ENG(65L) (I) M22	9-09233-015-1	01	1	9806-9911
76	UNION; OIL PIPE (I) M22	9-09233-015-1	02	1	9912-0607
76	UNION; OIL PIPE (I) M22	0-92123-015-0	02	1	0608-
76	UNION; OIL PIPE (C) M20 ELBOW	9-09235-112-1	01	1	9806-0607
76	UNION; OIL PIPE (C) M20 ELBOW	0-92135-112-0	01	1	0608-
76	UNION; OIL PIPE CTR SPLIT FRAME<TLW> (E) M22	1-09650-172-1	02	1	9806-9911
76	UNION; OIL PIPE (K) M22 2WAY	1-09654-212-1	02	1	9912-
76	UNION; OIL PIPE CTR SPLIT FRAME<TLW> (F) M20 2WAY	1-09654-218-1	02	1	9806-9911
76	UNION; OIL PIPE (A) M20 2WAY	1-09654-138-1	03	1	9912-
76	UNION; OIL PIPE 6HE1-TC ENG(57L) (G) M22	9-09233-315-1	01	1	9806-9911
76	UNION; OIL PIPE (G) M22	9-09233-315-1	01	1	9912-0607
76	UNION; OIL PIPE (G) M22	0-92123-315-0	01	1	0608-
256	NUT; UNION (A) M14	9-99111-414-0	01	1	9806-9911
256	NUT; UNION 6HH1-S ENG(65L) CTR SPLIT FRAME<TLW> (A) M14	9-99111-414-0	01	1	9806-9911
256	NUT; UNION 6HE1-TC ENG(57L) EXC. CTR SPLIT FRAME<TLW> (A) M14	9-99111-414-0	01	1	9806-9911
256	NUT; UNION (B) M20	9-99111-420-0	02	1	9806-0512
256	NUT; UNION (B) M20	0-91111-520-0	02	1	0601-
256	NUT; UNION CTR SPLIT FRAME<TLW> (A) M14	9-99111-414-0	03	1	9806-9911
256	NUT; UNION (A) M14	9-99111-414-0	02	1	9912-0512
256	NUT; UNION (A) M14	0-91111-514-0	02	1	0601-
256	NUT; UNION 6HE1-TC ENG(57L) (C) M22	9-09111-422-0	01	1	9806-9911
256	NUT; UNION (C) M22	9-09111-422-0	01	1	9912-0512
256	NUT; UNION (C) M22	0-91111-522-0	01	1	0601-
265	PIPE; OIL,UNION TO UNION (G) L=1239	1-21115-457-0	01	1	9806-9911
265	PIPE; OIL,UNION TO UNION (E) L=1238	8-97531-203-0	01	1	9912-0012
265	PIPE; OIL,UNION TO UNION (E) L=1238	8-97531-269-0	01	1	0101-
265	PIPE; OIL,UNION TO UNION CTR SPLIT FRAME<TLW> (G) L=2023	1-21115-916-0	01	1	9806-9911
265	PIPE; OIL,UNION TO UNION (F) L=1570	8-97530-089-0	01	1	9912-
265	PIPE; OIL,UNION TO UNION EXC. CTR SPLIT FRAME<TLW> (G) L=1570	1-21115-406-0	01	1	9806-9911
265	PIPE; OIL,UNION TO UNION (A) L=1237	8-97531-111-0	01	1	9912-9912
265	PIPE; OIL,UNION TO UNION (A) L=1230	8-97531-227-0	01	1	0001-
265	PIPE; OIL,UNION TO UNION WB 5700MM(57W) CTR SPLIT FRAME<TLW> (G) L=1648	1-21115-876-0	01	1	9806-9911
265	PIPE; OIL,UNION TO UNION 6HE1-TC ENG(57L) CTR SPLIT FRAME<TLW> (G) L=2688	1-21115-927-0	01	1	9806-9911
265	PIPE; OIL,UNION TO UNION (B) L=2061	8-97530-834-0	01	1	9912-0012
265	PIPE; OIL,UNION TO UNION (B) L=2067	8-97531-270-0	01	1	0101-
265	PIPE; OIL,UNION TO UNION 6HE1-TC ENG(57L) EXC. CTR SPLIT FRAME<TLW> (G) L=1505	1-21115-804-0	01	1	9806-9812
265	PIPE; OIL,UNION TO UNION 6HE1-TC ENG(57L) EXC. CTR SPLIT FRAME<TLW> (G) L=1505	1-21116-236-0	01	1	9901-9911
265	PIPE; OIL,UNION TO UNION 6HE1-TC ENG(57L) EXC. CTR SPLIT FRAME<TLW> (G) L=2061	1-21115-922-0	01	1	9806-9911
265	PIPE; OIL,UNION TO UNION 6HE1-TC ENG(57L) EXC. CTR SPLIT FRAME<TLW> (G) L=2552	1-21115-924-0	01	1	9806-9911
265	PIPE; OIL,UNION TO UNION 6HH1-S ENG(65L) CTR SPLIT FRAME<TLW> (G) L=1168	1-21115-973-0	01	1	9806-9911
265	PIPE; OIL,UNION TO UNION (D) L=1505	8-97530-836-0	01	1	9912-0001
265	PIPE; OIL,UNION TO UNION (D) L=1507	8-97531-231-0	01	1	0002-
265	PIPE; OIL,UNION TO UNION 6HH1-S ENG(65L) CTR SPLIT FRAME<TLW> (G) L=2193	1-21116-014-0	01	1	9806-9911
265	PIPE; OIL,UNION TO UNION (C) L=2352	8-97530-837-0	01	1	9912-0012
265	PIPE; OIL,UNION TO UNION (C) L=2353	8-97531-271-0	01	1	0101-0401
265	PIPE; OIL,UNION TO UNION (C) L=2371	8-97531-300-0	01	1	0402-
265	PIPE; OIL,UNION TO UNION 6HH1-S ENG(65L) EXC. CTR SPLIT FRAME<TLW> (G) L=2431	1-21115-409-0	01	1	9806-9911
265	PIPE; OIL,UNION TO UNION 6HH1-S ENG(65L) EXC. CTR SPLIT FRAME<TLW> (G) L=2168	1-21115-479-0	01	1	9806-9911
270	NUT; UNION TO OIL PIPE M14	9-99111-414-0	02	1	9806-0512
270	NUT; UNION TO OIL PIPE M14	0-91111-514-0	02	1	0601-

1 341 31 34 265 268 41 280 41 68 232 232 58 54 64 58 54 64 111 59 68 287 58 54 83 257 341 265 68 61 76 166

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-152-6	01	1	9806-9911
1	TANK ASM; OIL,P/S	1-21210-194-1	01	1	9912-0508
1	TANK ASM; OIL,P/S	1-21210-234-1	01	1	0509-
31	HOSE; P/S OIL TANK,INL 6HE1-TC ENG(57L)	1-21116-041-1	01	1	9806-9911
31	HOSE; P/S OIL TANK,INL	8-97531-114-0	01	1	9912-
31	HOSE; P/S OIL TANK,INL 6HH1-S ENG(65L)	1-21115-122-0	01	1	9806-9911
34	HOSE; P/S OIL TANK,OUTLET	1-21116-455-0	01	1	9912-
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	9806-9911
41	CLIP; HOSE,P/S ID=36	1-09704-094-0	02	1	9912-
54	CLIP; OIL PIPE (A) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9912-
54	CLIP; OIL PIPE WB 5000MM(50W) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9806-9911
54	CLIP; OIL PIPE 6HH1-S ENG(65L) CTR SPLIT FRAME<TLW> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9806-9911
54	CLIP; OIL PIPE WB 5000MM(50W) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9912-
54	CLIP; OIL PIPE WB 5700MM(57W) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	9806-9911
54	CLIP; OIL PIPE WB 5700MM(57W) CTR SPLIT FRAME<TLW> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	9806-9911
54	CLIP; OIL PIPE (C) ID=16 L=20	9-09525-536-0	01	1	9912-0606
54	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	01	1	0607-
54	CLIP; OIL PIPE WB 6300MM(63W) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	04	1	9806-9911
54	CLIP; OIL PIPE 6HH1-S ENG(65L) EXC. CTR SPLIT FRAME<TLW> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	04	1	9806-9911
54	CLIP; OIL PIPE 6HH1-S ENG(65L) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	04	1	9806-9911
54	CLIP; OIL PIPE (E) ID=24.5 H=35 L=25	1-09700-990-0	02	1	9912-
54	CLIP; OIL PIPE 6HE1-TC ENG(57L) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	05	1	9806-9911
54	CLIP; OIL PIPE WB 5700MM(57W) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	9912-
54	CLIP; OIL PIPE 6HE1-TC ENG(57L) EXC. CTR SPLIT FRAME<TLW> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	9806-9911
54	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	06	1	9912-
54	CLIP; OIL PIPE 6HH1-S ENG(65L) (B) ID=12 H=24 L=20	1-09700-605-0	01	1	9806-9911
54	CLIP; OIL PIPE (D) ID=24 L=24	1-09701-001-1	01	1	9912-
58	BOLT; CLIP (A) M8X45 FLANGE	0-28080-845-0	03	1	0012-0512
58	BOLT; CLIP (A) M8X45 FLANGE	0-28050-845-0	03	1	0601-
58	BOLT; CLIP (C) M8X16 FLANGE	0-28080-816-0	01	1	9806-0512
58	BOLT; CLIP (C) M8X16 FLANGE	0-28050-816-0	01	1	0601-
58	BOLT; CLIP (B) M8X25 FLANGE	0-28680-825-0	01	1	9806-9911
58	BOLT; CLIP 6HE1-TC ENG(57L) CTR SPLIT FRAME<TLW> (B) M8X25 FLANGE	0-28680-825-0	01	1	9806-9911
58	BOLT; CLIP 6HH1-S ENG(65L) EXC. CTR SPLIT FRAME<TLW> (B) M8X25 FLANGE	0-28680-825-0	01	1	9806-9911
58	BOLT; CLIP (A) M8X40 FLANGE	0-28680-840-0	01	1	9806-9911
58	BOLT; CLIP WB 5000MM(50W) (A) M8X40 FLANGE	0-28680-840-0	01	1	9806-9911
58	BOLT; CLIP WB 5000MM(50W) (A) M8X40 FLANGE	0-28680-840-0	01	1	9912-0512
58	BOLT; CLIP WB 5000MM(50W) (A) M8X40 FLANGE	0-28650-840-0	01	1	0601-
58	BOLT; CLIP WB 5700MM(57W) (A) M8X40 FLANGE	0-28680-840-0	03	1	9806-9911
58	BOLT; CLIP WB 5700MM(57W) CTR SPLIT FRAME<TLW> (A) M8X40 FLANGE	0-28680-840-0	03	1	9806-9911
58	BOLT; CLIP WB 6300MM(63W) (A) M8X40 FLANGE	0-28680-840-0	04	1	9806-9911
58	BOLT; CLIP 6HH1-S ENG(65L) EXC. CTR SPLIT FRAME<TLW> (A) M8X40 FLANGE	0-28680-840-0	04	1	9806-9911
58	BOLT; CLIP 6HH1-S ENG(65L) (A) M8X40 FLANGE	0-28680-840-0	04	1	9806-9911
58	BOLT; CLIP 6HE1-TC ENG(57L) (A) M8X40 FLANGE	0-28680-840-0	02	1	9806-9911
58	BOLT; CLIP 6HE1-TC ENG(57L) CTR SPLIT FRAME<TLW> (A) M8X40 FLANGE	0-28680-840-0	02	1	9806-9911
58	BOLT; CLIP WB 5700MM(57W) (A) M8X40 FLANGE	0-28680-840-0	03	1	9912-0512
58	BOLT; CLIP WB 5700MM(57W) (A) M8X40 FLANGE	0-28650-840-0	03	1	0601-
58	BOLT; CLIP 6HE1-TC ENG(57L) EXC. CTR SPLIT FRAME<TLW> (A) M8X40 FLANGE	0-28680-840-0	05	1	9806-9911
58	BOLT; CLIP (A) M8X40 FLANGE	0-28680-840-0	08	1	9912-0011
58	BOLT; CLIP (A) M8X40 FLANGE	0-28680-840-0	05	1	0012-0512
58	BOLT; CLIP (A) M8X40 FLANGE	0-28650-840-0	05	1	0601-
58	BOLT; CLIP 6HH1-S ENG(65L) CTR SPLIT FRAME<TLW> (B) M8X25 FLANGE	0-28680-825-0	02	1	9806-9911
58	BOLT; CLIP (B) M8X25 FLANGE	0-28680-825-0	05	1	9912-0512
58	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	05	1	0601-
59	BRACKET; CLIP,OIL PIPE (A)	1-47475-427-1	01	1	9806-9911
59	BRACKET; CLIP,OIL PIPE (A)	1-47475-427-1	03	1	9912-
59	BRACKET; CLIP,OIL PIPE (B) L=76	1-47475-588-0	01	1	9806-9911
59	BRACKET; CLIP,OIL PIPE (B) L=76	1-47475-588-0	02	1	9912-
59	BRACKET; CLIP,OIL PIPE 6HE1-TC ENG(57L) EXC. CTR SPLIT FRAME<TLW> (A)	1-47475-427-1	02	1	9806-9911
61	CLIP; OIL PIPE (A) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9806-
61	CLIP; OIL PIPE (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9806-
61	CLIP; OIL PIPE (C) ID=15 H=24 L=20	1-09700-606-0	01	1	9912-
64	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	02	1	9912-0512
64	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	9806-9911
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	06	1	9912-0602
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	06	1	0603-
76	UNION; OIL PIPE (A) M20 2WAY	1-09654-138-1	01	1	9806-9911
76	UNION; OIL PIPE 6HE1-TC ENG(57L) (A) M20 2WAY	1-09654-138-1	01	1	9806-9911
76	UNION; OIL PIPE 6HE1-TC ENG(57L) EXC. CTR SPLIT FRAME<TLW> (A) M20 2WAY	1-09654-138-1	01	1	9806-9911
76	UNION; OIL PIPE (B) M22 2WAY	1-09654-212-1	01	1	9806-9911
76	UNION; OIL PIPE EXC. CTR SPLIT FRAME<TLW> (B) M22 2WAY	1-09654-212-1	01	1	9806-9911
76	UNION; OIL PIPE 6HH1-S ENG(65L) CTR SPLIT FRAME<TLW> (B) M22 2WAY	1-09654-212-1	01	1	9806-9911
76	UNION; OIL PIPE (J) M22	9-09235-215-1	01	1	9912-0607
76	UNION; OIL PIPE (J) M22	0-92135-215-0	01	1	0608-
76	UNION; OIL PIPE (D) M22 & M22 & M14	9-09225-115-1	01	1	9806-
76	UNION; OIL PIPE (H) M20 STRAIGHT	9-09233-012-1	01	1	9806-9911
76	UNION; OIL PIPE EXC. CTR SPLIT FRAME<TLW> (H) M20 STRAIGHT	9-09233-012-1	01	1	9806-9911
76	UNION; OIL PIPE 6HH1-S ENG(65L) (H) M20 STRAIGHT	9-09233-012-1	01	1	9806-9911
76	UNION; OIL PIPE (H) M20 STRAIGHT	9-09233-012-1	02	1	9912-0607
76	UNION; OIL PIPE (H) M20 STRAIGHT	0-92123-012-0	02	1	0608-
76	UNION; OIL PIPE (I) M22	9-09233-015-1	01	1	9806-9911
76	UNION; OIL PIPE EXC. CTR SPLIT FRAME<TLW> (I) M22	9-09233-015-1	01	1	9806-9911
76	UNION; OIL PIPE 6HH1-S ENG(65L) (I) M22	9-09233-015-1	01	1	9806-9911
76	UNION; OIL PIPE (I) M22	9-09233-015-1	02	1	9912-0607
76	UNION; OIL PIPE (I) M22	0-92123-015-0	02	1	0608-
76	UNION; OIL PIPE (C) M20 ELBOW	9-09235-112-1	01	1	9806-0607
76	UNION; OIL PIPE (C) M20 ELBOW	0-92135-112-0	01	1	0608-
76	UNION; OIL PIPE CTR SPLIT FRAME<TLW> (E) M22	1-09650-172-1	02	1	9806-9911
76	UNION; OIL PIPE (K) M22 2WAY	1-09654-212-1	02	1	9912-
76	UNION; OIL PIPE CTR SPLIT FRAME<TLW> (F) M20 2WAY	1-09654-218-1	02	1	9806-9911
76	UNION; OIL PIPE (A) M20 2WAY	1-09654-138-1	03	1	9912-
76	UNION; OIL PIPE 6HE1-TC ENG(57L) (G) M22	9-09233-315-1	01	1	9806-9911
76	UNION; OIL PIPE (G) M22	9-09233-315-1	01	1	9912-0607
76	UNION; OIL PIPE (G) M22	0-92123-315-0	01	1	0608-
83	NUT; UNION,OIL PIPE (B) M22	9-09111-422-0	01	1	9806-9911
83	NUT; UNION,OIL PIPE (B) M22	9-09111-422-0	02	1	9912-0512
83	NUT; UNION,OIL PIPE (B) M22	0-91111-522-0	02	1	0601-
83	NUT; UNION,OIL PIPE 6HE1-TC ENG(57L) (A) M14	9-99111-414-0	01	1	9806-9911
83	NUT; UNION,OIL PIPE (A) M14	9-99111-414-0	01	1	9912-0512
83	NUT; UNION,OIL PIPE (A) M14	0-91111-514-0	01	1	0601-
111	BRACKET; OIL PIPE WB 5700MM(57W) CTR SPLIT FRAME<TLW>	1-47475-427-1	03	1	9806-9911
111	BRACKET; OIL PIPE L=76	1-47475-588-0	01	1	9912-
166	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	9912-0512
166	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	0601-
232	NUT; BRKT M8 FLANGE	0-91150-108-0	03	1	9912-0602
232	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0603-
257	WASHER; LK,UNION (A) ID=20.2	9-09150-520-0	01	1	9806-0603
257	WASHER; LK,UNION (A) ID=20.2	0-91510-520-0	01	1	0604-
257	WASHER; LK,UNION 6HE1-TC ENG(57L) (B) ID=22.5	9-09150-522-0	01	1	9806-9911
257	WASHER; LK,UNION (B) ID=22.5	9-09150-522-0	02	1	9912-0603
257	WASHER; LK,UNION (B) ID=22.5	0-91510-522-0	02	1	0604-
265	PIPE; OIL,UNION TO UNION (G) L=1239	1-21115-457-0	01	1	9806-9911
265	PIPE; OIL,UNION TO UNION (E) L=1238	8-97531-203-0	01	1	9912-0012
265	PIPE; OIL,UNION TO UNION (E) L=1238	8-97531-269-0	01	1	0101-
265	PIPE; OIL,UNION TO UNION CTR SPLIT FRAME<TLW> (G) L=2023	1-21115-916-0	01	1	9806-9911
265	PIPE; OIL,UNION TO UNION (F) L=1570	8-97530-089-0	01	1	9912-
265	PIPE; OIL,UNION TO UNION EXC. CTR SPLIT FRAME<TLW> (G) L=1570	1-21115-406-0	01	1	9806-9911
265	PIPE; OIL,UNION TO UNION (A) L=1237	8-97531-111-0	01	1	9912-9912
265	PIPE; OIL,UNION TO UNION (A) L=1230	8-97531-227-0	01	1	0001-
265	PIPE; OIL,UNION TO UNION WB 5700MM(57W) CTR SPLIT FRAME<TLW> (G) L=1648	1-21115-876-0	01	1	9806-9911
265	PIPE; OIL,UNION TO UNION 6HE1-TC ENG(57L) CTR SPLIT FRAME<TLW> (G) L=2688	1-21115-927-0	01	1	9806-9911
265	PIPE; OIL,UNION TO UNION (B) L=2061	8-97530-834-0	01	1	9912-0012
265	PIPE; OIL,UNION TO UNION (B) L=2067	8-97531-270-0	01	1	0101-
265	PIPE; OIL,UNION TO UNION 6HE1-TC ENG(57L) EXC. CTR SPLIT FRAME<TLW> (G) L=1505	1-21115-804-0	01	1	9806-9812
265	PIPE; OIL,UNION TO UNION 6HE1-TC ENG(57L) EXC. CTR SPLIT FRAME<TLW> (G) L=1505	1-21116-236-0	01	1	9901-9911
265	PIPE; OIL,UNION TO UNION 6HE1-TC ENG(57L) EXC. CTR SPLIT FRAME<TLW> (G) L=2061	1-21115-922-0	01	1	9806-9911
265	PIPE; OIL,UNION TO UNION 6HE1-TC ENG(57L) EXC. CTR SPLIT FRAME<TLW> (G) L=2552	1-21115-924-0	01	1	9806-9911
265	PIPE; OIL,UNION TO UNION 6HH1-S ENG(65L) CTR SPLIT FRAME<TLW> (G) L=1168	1-21115-973-0	01	1	9806-9911
265	PIPE; OIL,UNION TO UNION (D) L=1505	8-97530-836-0	01	1	9912-0001
265	PIPE; OIL,UNION TO UNION (D) L=1507	8-97531-231-0	01	1	0002-
265	PIPE; OIL,UNION TO UNION 6HH1-S ENG(65L) CTR SPLIT FRAME<TLW> (G) L=2193	1-21116-014-0	01	1	9806-9911
265	PIPE; OIL,UNION TO UNION (C) L=2352	8-97530-837-0	01	1	9912-0012
265	PIPE; OIL,UNION TO UNION (C) L=2353	8-97531-271-0	01	1	0101-0401
265	PIPE; OIL,UNION TO UNION (C) L=2371	8-97531-300-0	01	1	0402-
265	PIPE; OIL,UNION TO UNION 6HH1-S ENG(65L) EXC. CTR SPLIT FRAME<TLW> (G) L=2431	1-21115-409-0	01	1	9806-9911
265	PIPE; OIL,UNION TO UNION 6HH1-S ENG(65L) EXC. CTR SPLIT FRAME<TLW> (G) L=2168	1-21115-479-0	01	1	9806-9911
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	1-21116-453-0	01	1	9912-
280	HOSE; P/S OIL PUMP,INL	1-21114-941-0	01	1	9806-9808
280	HOSE; P/S OIL PUMP,INL 6HH1-S ENG(65L)	1-21114-941-0	01	1	9809-9911
280	HOSE; P/S OIL PUMP,INL 6HE1-TC ENG(57L)	1-21116-042-0	01	1	9806-9808
280	HOSE; P/S OIL PUMP,INL 6HE1-TC ENG(57L)	1-21116-042-0	01	1	9809-9911
280	HOSE; P/S OIL PUMP,INL	1-21116-456-0	01	1	9912-
287	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9806-0602
287	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-
341	PIPE; OIL,UNION TO OIL TANK	1-21116-452-0	01	1	9912-

63 78 58 233 155 58 54 79 61 195 61 257 54 257 76 76 76 76 76 65 287 67 83 256 270 76 76 256 83 76 76 256 58 66 195 286 66 271 62 68 234 272

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
54	CLIP; OIL PIPE (A) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9912-
54	CLIP; OIL PIPE WB 5000MM(50W) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9806-9911
54	CLIP; OIL PIPE 6HH1-S ENG(65L) CTR SPLIT FRAME<TLW> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9806-9911
54	CLIP; OIL PIPE WB 5000MM(50W) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9912-
54	CLIP; OIL PIPE WB 5700MM(57W) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	9806-9911
54	CLIP; OIL PIPE WB 5700MM(57W) CTR SPLIT FRAME<TLW> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	9806-9911
54	CLIP; OIL PIPE (C) ID=16 L=20	9-09525-536-0	01	1	9912-0606
54	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	01	1	0607-
54	CLIP; OIL PIPE WB 6300MM(63W) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	04	1	9806-9911
54	CLIP; OIL PIPE 6HH1-S ENG(65L) EXC. CTR SPLIT FRAME<TLW> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	04	1	9806-9911
54	CLIP; OIL PIPE 6HH1-S ENG(65L) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	04	1	9806-9911
54	CLIP; OIL PIPE (E) ID=24.5 H=35 L=25	1-09700-990-0	02	1	9912-
54	CLIP; OIL PIPE 6HE1-TC ENG(57L) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	05	1	9806-9911
54	CLIP; OIL PIPE WB 5700MM(57W) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	9912-
54	CLIP; OIL PIPE 6HE1-TC ENG(57L) EXC. CTR SPLIT FRAME<TLW> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	9806-9911
54	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	06	1	9912-
54	CLIP; OIL PIPE 6HH1-S ENG(65L) (B) ID=12 H=24 L=20	1-09700-605-0	01	1	9806-9911
54	CLIP; OIL PIPE (D) ID=24 L=24	1-09701-001-1	01	1	9912-
58	BOLT; CLIP (A) M8X45 FLANGE	0-28080-845-0	03	1	0012-0512
58	BOLT; CLIP (A) M8X45 FLANGE	0-28050-845-0	03	1	0601-
58	BOLT; CLIP (C) M8X16 FLANGE	0-28080-816-0	01	1	9806-0512
58	BOLT; CLIP (C) M8X16 FLANGE	0-28050-816-0	01	1	0601-
58	BOLT; CLIP (B) M8X25 FLANGE	0-28680-825-0	01	1	9806-9911
58	BOLT; CLIP 6HE1-TC ENG(57L) CTR SPLIT FRAME<TLW> (B) M8X25 FLANGE	0-28680-825-0	01	1	9806-9911
58	BOLT; CLIP 6HH1-S ENG(65L) EXC. CTR SPLIT FRAME<TLW> (B) M8X25 FLANGE	0-28680-825-0	01	1	9806-9911
58	BOLT; CLIP (A) M8X40 FLANGE	0-28680-840-0	01	1	9806-9911
58	BOLT; CLIP WB 5000MM(50W) (A) M8X40 FLANGE	0-28680-840-0	01	1	9806-9911
58	BOLT; CLIP WB 5000MM(50W) (A) M8X40 FLANGE	0-28680-840-0	01	1	9912-0512
58	BOLT; CLIP WB 5000MM(50W) (A) M8X40 FLANGE	0-28650-840-0	01	1	0601-
58	BOLT; CLIP WB 5700MM(57W) (A) M8X40 FLANGE	0-28680-840-0	03	1	9806-9911
58	BOLT; CLIP WB 5700MM(57W) CTR SPLIT FRAME<TLW> (A) M8X40 FLANGE	0-28680-840-0	03	1	9806-9911
58	BOLT; CLIP WB 6300MM(63W) (A) M8X40 FLANGE	0-28680-840-0	04	1	9806-9911
58	BOLT; CLIP 6HH1-S ENG(65L) EXC. CTR SPLIT FRAME<TLW> (A) M8X40 FLANGE	0-28680-840-0	04	1	9806-9911
58	BOLT; CLIP 6HH1-S ENG(65L) (A) M8X40 FLANGE	0-28680-840-0	04	1	9806-9911
58	BOLT; CLIP 6HE1-TC ENG(57L) (A) M8X40 FLANGE	0-28680-840-0	02	1	9806-9911
58	BOLT; CLIP 6HE1-TC ENG(57L) CTR SPLIT FRAME<TLW> (A) M8X40 FLANGE	0-28680-840-0	02	1	9806-9911
58	BOLT; CLIP WB 5700MM(57W) (A) M8X40 FLANGE	0-28680-840-0	03	1	9912-0512
58	BOLT; CLIP WB 5700MM(57W) (A) M8X40 FLANGE	0-28650-840-0	03	1	0601-
58	BOLT; CLIP 6HE1-TC ENG(57L) EXC. CTR SPLIT FRAME<TLW> (A) M8X40 FLANGE	0-28680-840-0	05	1	9806-9911
58	BOLT; CLIP (A) M8X40 FLANGE	0-28680-840-0	08	1	9912-0011
58	BOLT; CLIP (A) M8X40 FLANGE	0-28680-840-0	05	1	0012-0512
58	BOLT; CLIP (A) M8X40 FLANGE	0-28650-840-0	05	1	0601-
58	BOLT; CLIP 6HH1-S ENG(65L) CTR SPLIT FRAME<TLW> (B) M8X25 FLANGE	0-28680-825-0	02	1	9806-9911
58	BOLT; CLIP (B) M8X25 FLANGE	0-28680-825-0	05	1	9912-0512
58	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	05	1	0601-
61	CLIP; OIL PIPE (A) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9806-
61	CLIP; OIL PIPE (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9806-
61	CLIP; OIL PIPE (C) ID=15 H=24 L=20	1-09700-606-0	01	1	9912-
62	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	01	1	9806-9911
62	NUT; CLIP FIX WB 5000MM(50W) M8 FLANGE	0-91150-108-0	01	1	9806-9911
62	NUT; CLIP FIX WB 5000MM(50W) M8 FLANGE	0-91150-108-0	01	1	9912-0602
62	NUT; CLIP FIX WB 5000MM(50W) M8 FLANGE	0-91180-108-0	01	1	0603-
62	NUT; CLIP FIX WB 5700MM(57W) M8 FLANGE	0-91150-108-0	03	1	9806-9911
62	NUT; CLIP FIX WB 5700MM(57W) CTR SPLIT FRAME<TLW> M8 FLANGE	0-91150-108-0	03	1	9806-9911
62	NUT; CLIP FIX 6HE1-TC ENG(57L) M8 FLANGE	0-91150-108-0	03	1	9806-9911
62	NUT; CLIP FIX WB 5700MM(57W) M8 FLANGE	0-91150-108-0	03	1	9912-0602
62	NUT; CLIP FIX WB 5700MM(57W) M8 FLANGE	0-91180-108-0	03	1	0603-
62	NUT; CLIP FIX WB 6300MM(63W) M8 FLANGE	0-91150-108-0	04	1	9806-9911
62	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	04	1	9912-0602
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	04	1	0603-
62	NUT; CLIP FIX 6HH1-S ENG(65L) CTR SPLIT FRAME<TLW> M8 FLANGE	0-91150-108-0	02	1	9806-9911
62	NUT; CLIP FIX 6HH1-S ENG(65L) EXC. CTR SPLIT FRAME<TLW> M8 FLANGE	0-91150-108-0	05	1	9806-9911
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	02	1	9806-9911
63	BRACKET; CLIP,P/S 6HE1-TC ENG(57L) (A)	1-47475-427-1	02	1	9806-9911
63	BRACKET; CLIP,P/S 6HE1-TC ENG(57L) CTR SPLIT FRAME<TLW> (A)	1-47475-427-1	02	1	9806-9911
63	BRACKET; CLIP,P/S WB 5700MM(57W) (A)	1-47475-427-1	03	1	9912-
63	BRACKET; CLIP,P/S CTR SPLIT FRAME<TLW> (B) L=50	1-47475-299-2	01	1	9806-9911
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	07	1	9912-
63	BRACKET; CLIP,P/S WB 5000MM(50W) (A)	1-47475-427-1	01	1	9806-
63	BRACKET; CLIP,P/S WB 5700MM(57W) (A)	1-47475-427-1	03	1	9806-9911
63	BRACKET; CLIP,P/S 6HE1-TC ENG(57L) EXC. CTR SPLIT FRAME<TLW> (A)	1-47475-427-1	03	1	9806-9911
63	BRACKET; CLIP,P/S (C)	1-47477-119-0	01	1	9912-0401
63	BRACKET; CLIP,P/S (D)	1-82699-199-0	01	1	0402-
63	BRACKET; CLIP,P/S WB 6300MM(63W) (A)	1-47475-427-1	04	1	9806-9911
63	BRACKET; CLIP,P/S 6HH1-S ENG(65L) EXC. CTR SPLIT FRAME<TLW> (A)	1-47475-427-1	04	1	9806-9911
63	BRACKET; CLIP,P/S 6HH1-S ENG(65L) (A)	1-47475-427-1	04	1	9806-9911
65	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	9806-9911
65	NUT; BRKT 6HH1-S ENG(65L) M8 FLANGE	0-91150-108-0	04	1	9806-9911
65	NUT; BRKT 6HE1-TC ENG(57L) M8 FLANGE	0-91150-108-0	02	1	9806-9911
65	NUT; BRKT 6HE1-TC ENG(57L) EXC. CTR SPLIT FRAME<TLW> M8 FLANGE	0-91150-108-0	02	1	9806-9911
65	NUT; BRKT M8 FLANGE	0-91150-108-0	07	1	9912-0602
65	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	0603-
66	BOLT; BRKT,OIL PIPE (A) M8X25 FLANGE	0-28680-825-0	01	1	9806-0512
66	BOLT; BRKT,OIL PIPE (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-
66	BOLT; BRKT,OIL PIPE (B) M8X30 FLANGE	0-28680-830-0	01	1	9806-9911
67	NUT; BRKT M10 FLANGE	0-91150-210-0	03	1	9806-9911
67	NUT; BRKT M10 FLANGE	0-91150-210-0	04	1	9912-0602
67	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0603-
67	NUT; BRKT 6HE1-TC ENG(57L) M10 FLANGE	0-91150-210-0	04	1	9806-9911
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	9806-9911
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	06	1	9912-0602
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	06	1	0603-
76	UNION; OIL PIPE (A) M20 2WAY	1-09654-138-1	01	1	9806-9911
76	UNION; OIL PIPE 6HE1-TC ENG(57L) (A) M20 2WAY	1-09654-138-1	01	1	9806-9911
76	UNION; OIL PIPE 6HE1-TC ENG(57L) EXC. CTR SPLIT FRAME<TLW> (A) M20 2WAY	1-09654-138-1	01	1	9806-9911
76	UNION; OIL PIPE (B) M22 2WAY	1-09654-212-1	01	1	9806-9911
76	UNION; OIL PIPE EXC. CTR SPLIT FRAME<TLW> (B) M22 2WAY	1-09654-212-1	01	1	9806-9911
76	UNION; OIL PIPE 6HH1-S ENG(65L) CTR SPLIT FRAME<TLW> (B) M22 2WAY	1-09654-212-1	01	1	9806-9911
76	UNION; OIL PIPE (J) M22	9-09235-215-1	01	1	9912-0607
76	UNION; OIL PIPE (J) M22	0-92135-215-0	01	1	0608-
76	UNION; OIL PIPE (D) M22 & M22 & M14	9-09225-115-1	01	1	9806-
76	UNION; OIL PIPE (H) M20 STRAIGHT	9-09233-012-1	01	1	9806-9911
76	UNION; OIL PIPE EXC. CTR SPLIT FRAME<TLW> (H) M20 STRAIGHT	9-09233-012-1	01	1	9806-9911
76	UNION; OIL PIPE 6HH1-S ENG(65L) (H) M20 STRAIGHT	9-09233-012-1	01	1	9806-9911
76	UNION; OIL PIPE (H) M20 STRAIGHT	9-09233-012-1	02	1	9912-0607
76	UNION; OIL PIPE (H) M20 STRAIGHT	0-92123-012-0	02	1	0608-
76	UNION; OIL PIPE (I) M22	9-09233-015-1	01	1	9806-9911
76	UNION; OIL PIPE EXC. CTR SPLIT FRAME<TLW> (I) M22	9-09233-015-1	01	1	9806-9911
76	UNION; OIL PIPE 6HH1-S ENG(65L) (I) M22	9-09233-015-1	01	1	9806-9911
76	UNION; OIL PIPE (I) M22	9-09233-015-1	02	1	9912-0607
76	UNION; OIL PIPE (I) M22	0-92123-015-0	02	1	0608-
76	UNION; OIL PIPE (C) M20 ELBOW	9-09235-112-1	01	1	9806-0607
76	UNION; OIL PIPE (C) M20 ELBOW	0-92135-112-0	01	1	0608-
76	UNION; OIL PIPE CTR SPLIT FRAME<TLW> (E) M22	1-09650-172-1	02	1	9806-9911
76	UNION; OIL PIPE (K) M22 2WAY	1-09654-212-1	02	1	9912-
76	UNION; OIL PIPE CTR SPLIT FRAME<TLW> (F) M20 2WAY	1-09654-218-1	02	1	9806-9911
76	UNION; OIL PIPE (A) M20 2WAY	1-09654-138-1	03	1	9912-
76	UNION; OIL PIPE 6HE1-TC ENG(57L) (G) M22	9-09233-315-1	01	1	9806-9911
76	UNION; OIL PIPE (G) M22	9-09233-315-1	01	1	9912-0607
76	UNION; OIL PIPE (G) M22	0-92123-315-0	01	1	0608-
78	BRACKET; UNION 6HE1-TC ENG(57L)	1-47476-729-1	01	1	9806-9911
78	BRACKET; UNION	1-47476-729-1	01	1	9912-
79	BOLT; BRKT (A) M8X35 FLANGE	0-28680-835-0	02	1	9806-0512
79	BOLT; BRKT (A) M8X35 FLANGE	0-28650-835-0	02	1	0601-
79	BOLT; BRKT (B) M8X25 FLANGE	0-28680-825-0	01	1	9912-0512
79	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-
83	NUT; UNION,OIL PIPE (B) M22	9-09111-422-0	01	1	9806-9911
83	NUT; UNION,OIL PIPE (B) M22	9-09111-422-0	02	1	9912-0512
83	NUT; UNION,OIL PIPE (B) M22	0-91111-522-0	02	1	0601-
83	NUT; UNION,OIL PIPE 6HE1-TC ENG(57L) (A) M14	9-99111-414-0	01	1	9806-9911
83	NUT; UNION,OIL PIPE (A) M14	9-99111-414-0	01	1	9912-0512
83	NUT; UNION,OIL PIPE (A) M14	0-91111-514-0	01	1	0601-
155	BOLT; CONNECTOR M8X16 FLANGE	0-28080-816-0	02	1	9806-0512
155	BOLT; CONNECTOR M8X16 FLANGE	0-28050-816-0	02	1	0601-
195	BOLT; BRKT (A) M10X25 FLANGE	0-28681-025-0	03	1	9806-9911
195	BOLT; BRKT (A) M10X25 FLANGE	0-28681-025-0	04	1	9912-0512
195	BOLT; BRKT (A) M10X25 FLANGE	0-28651-025-0	04	1	0601-
195	BOLT; BRKT 6HE1-TC ENG(57L) (B) M8X30 FLANGE	0-28680-830-0	02	1	9806-9911
195	BOLT; BRKT 6HE1-TC ENG(57L) (A) M10X25 FLANGE	0-28681-025-0	04	1	9806-9911
195	BOLT; BRKT (B) M8X30 FLANGE	0-28680-830-0	02	1	9912-0512
195	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0601-
233	BOLT; PIPE CLIP,P/S M8X40 FLANGE	0-28680-840-0	02	1	9806-0512
233	BOLT; PIPE CLIP,P/S M8X40 FLANGE	0-28650-840-0	02	1	0601-
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91150-108-0	02	1	9806-0602
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	02	1	0603-
256	NUT; UNION (A) M14	9-99111-414-0	01	1	9806-9911
256	NUT; UNION 6HH1-S ENG(65L) CTR SPLIT FRAME<TLW> (A) M14	9-99111-414-0	01	1	9806-9911
256	NUT; UNION 6HE1-TC ENG(57L) EXC. CTR SPLIT FRAME<TLW> (A) M14	9-99111-414-0	01	1	9806-9911
256	NUT; UNION (B) M20	9-99111-420-0	02	1	9806-0512
256	NUT; UNION (B) M20	0-91111-520-0	02	1	0601-
256	NUT; UNION CTR SPLIT FRAME<TLW> (A) M14	9-99111-414-0	03	1	9806-9911
256	NUT; UNION (A) M14	9-99111-414-0	02	1	9912-0512
256	NUT; UNION (A) M14	0-91111-514-0	02	1	0601-
256	NUT; UNION 6HE1-TC ENG(57L) (C) M22	9-09111-422-0	01	1	9806-9911
256	NUT; UNION (C) M22	9-09111-422-0	01	1	9912-0512
256	NUT; UNION (C) M22	0-91111-522-0	01	1	0601-
257	WASHER; LK,UNION (A) ID=20.2	9-09150-520-0	01	1	9806-0603
257	WASHER; LK,UNION (A) ID=20.2	0-91510-520-0	01	1	0604-
257	WASHER; LK,UNION 6HE1-TC ENG(57L) (B) ID=22.5	9-09150-522-0	01	1	9806-9911
257	WASHER; LK,UNION (B) ID=22.5	9-09150-522-0	02	1	9912-0603
257	WASHER; LK,UNION (B) ID=22.5	0-91510-522-0	02	1	0604-
270	NUT; UNION TO OIL PIPE M14	9-99111-414-0	02	1	9806-0512
270	NUT; UNION TO OIL PIPE M14	0-91111-514-0	02	1	0601-
271	BOLT; P/S OIL PIPE FIX M8X30 FLANGE	0-28680-830-0	01	1	9806-9911
272	NUT; P/S OIL PIPE FIX M8 FLANGE	0-91150-108-0	01	1	9806-9911
286	BOLT; CLIP,P/S HOSE M8X25 FLANGE	0-28680-825-0	01	1	9806-9911
287	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9806-0602
287	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-

63 54 111 58 265 76 76 75 76 76 68 75 59 265 61 76 75 58 256 76 54 58 76 59 111 63 76 270 54 45 44 58 58 63 111 65 61 59 68 66 62 65 62 65 65 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	PIPE; OIL,P/S UNIT TO NIPPLE	1-21114-927-0	01	1	9806-9911
44	PIPE; OIL,P/S UNIT TO NIPPLE	8-97530-086-0	01	1	9912-
45	PIPE; OIL,P/S UNIT TO UNION	1-21114-928-0	01	1	9806-9911
45	PIPE; OIL,P/S UNIT TO UNION	8-97530-087-0	01	1	9912-
54	CLIP; OIL PIPE (A) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9912-
54	CLIP; OIL PIPE WB 5000MM(50W) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9806-9911
54	CLIP; OIL PIPE 6HH1-S ENG(65L) CTR SPLIT FRAME<TLW> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9806-9911
54	CLIP; OIL PIPE WB 5000MM(50W) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9912-
54	CLIP; OIL PIPE WB 5700MM(57W) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	9806-9911
54	CLIP; OIL PIPE WB 5700MM(57W) CTR SPLIT FRAME<TLW> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	9806-9911
54	CLIP; OIL PIPE (C) ID=16 L=20	9-09525-536-0	01	1	9912-0606
54	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	01	1	0607-
54	CLIP; OIL PIPE WB 6300MM(63W) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	04	1	9806-9911
54	CLIP; OIL PIPE 6HH1-S ENG(65L) EXC. CTR SPLIT FRAME<TLW> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	04	1	9806-9911
54	CLIP; OIL PIPE 6HH1-S ENG(65L) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	04	1	9806-9911
54	CLIP; OIL PIPE (E) ID=24.5 H=35 L=25	1-09700-990-0	02	1	9912-
54	CLIP; OIL PIPE 6HE1-TC ENG(57L) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	05	1	9806-9911
54	CLIP; OIL PIPE WB 5700MM(57W) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	9912-
54	CLIP; OIL PIPE 6HE1-TC ENG(57L) EXC. CTR SPLIT FRAME<TLW> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	9806-9911
54	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	06	1	9912-
54	CLIP; OIL PIPE 6HH1-S ENG(65L) (B) ID=12 H=24 L=20	1-09700-605-0	01	1	9806-9911
54	CLIP; OIL PIPE (D) ID=24 L=24	1-09701-001-1	01	1	9912-
58	BOLT; CLIP (A) M8X45 FLANGE	0-28080-845-0	03	1	0012-0512
58	BOLT; CLIP (A) M8X45 FLANGE	0-28050-845-0	03	1	0601-
58	BOLT; CLIP (C) M8X16 FLANGE	0-28080-816-0	01	1	9806-0512
58	BOLT; CLIP (C) M8X16 FLANGE	0-28050-816-0	01	1	0601-
58	BOLT; CLIP (B) M8X25 FLANGE	0-28680-825-0	01	1	9806-9911
58	BOLT; CLIP 6HE1-TC ENG(57L) CTR SPLIT FRAME<TLW> (B) M8X25 FLANGE	0-28680-825-0	01	1	9806-9911
58	BOLT; CLIP 6HH1-S ENG(65L) EXC. CTR SPLIT FRAME<TLW> (B) M8X25 FLANGE	0-28680-825-0	01	1	9806-9911
58	BOLT; CLIP (A) M8X40 FLANGE	0-28680-840-0	01	1	9806-9911
58	BOLT; CLIP WB 5000MM(50W) (A) M8X40 FLANGE	0-28680-840-0	01	1	9806-9911
58	BOLT; CLIP WB 5000MM(50W) (A) M8X40 FLANGE	0-28680-840-0	01	1	9912-0512
58	BOLT; CLIP WB 5000MM(50W) (A) M8X40 FLANGE	0-28650-840-0	01	1	0601-
58	BOLT; CLIP WB 5700MM(57W) (A) M8X40 FLANGE	0-28680-840-0	03	1	9806-9911
58	BOLT; CLIP WB 5700MM(57W) CTR SPLIT FRAME<TLW> (A) M8X40 FLANGE	0-28680-840-0	03	1	9806-9911
58	BOLT; CLIP WB 6300MM(63W) (A) M8X40 FLANGE	0-28680-840-0	04	1	9806-9911
58	BOLT; CLIP 6HH1-S ENG(65L) EXC. CTR SPLIT FRAME<TLW> (A) M8X40 FLANGE	0-28680-840-0	04	1	9806-9911
58	BOLT; CLIP 6HH1-S ENG(65L) (A) M8X40 FLANGE	0-28680-840-0	04	1	9806-9911
58	BOLT; CLIP 6HE1-TC ENG(57L) (A) M8X40 FLANGE	0-28680-840-0	02	1	9806-9911
58	BOLT; CLIP 6HE1-TC ENG(57L) CTR SPLIT FRAME<TLW> (A) M8X40 FLANGE	0-28680-840-0	02	1	9806-9911
58	BOLT; CLIP WB 5700MM(57W) (A) M8X40 FLANGE	0-28680-840-0	03	1	9912-0512
58	BOLT; CLIP WB 5700MM(57W) (A) M8X40 FLANGE	0-28650-840-0	03	1	0601-
58	BOLT; CLIP 6HE1-TC ENG(57L) EXC. CTR SPLIT FRAME<TLW> (A) M8X40 FLANGE	0-28680-840-0	05	1	9806-9911
58	BOLT; CLIP (A) M8X40 FLANGE	0-28680-840-0	08	1	9912-0011
58	BOLT; CLIP (A) M8X40 FLANGE	0-28680-840-0	05	1	0012-0512
58	BOLT; CLIP (A) M8X40 FLANGE	0-28650-840-0	05	1	0601-
58	BOLT; CLIP 6HH1-S ENG(65L) CTR SPLIT FRAME<TLW> (B) M8X25 FLANGE	0-28680-825-0	02	1	9806-9911
58	BOLT; CLIP (B) M8X25 FLANGE	0-28680-825-0	05	1	9912-0512
58	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	05	1	0601-
59	BRACKET; CLIP,OIL PIPE (A)	1-47475-427-1	01	1	9806-9911
59	BRACKET; CLIP,OIL PIPE (A)	1-47475-427-1	03	1	9912-
59	BRACKET; CLIP,OIL PIPE (B) L=76	1-47475-588-0	01	1	9806-9911
59	BRACKET; CLIP,OIL PIPE (B) L=76	1-47475-588-0	02	1	9912-
59	BRACKET; CLIP,OIL PIPE 6HE1-TC ENG(57L) EXC. CTR SPLIT FRAME<TLW> (A)	1-47475-427-1	02	1	9806-9911
61	CLIP; OIL PIPE (A) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9806-
61	CLIP; OIL PIPE (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9806-
61	CLIP; OIL PIPE (C) ID=15 H=24 L=20	1-09700-606-0	01	1	9912-
62	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	01	1	9806-9911
62	NUT; CLIP FIX WB 5000MM(50W) M8 FLANGE	0-91150-108-0	01	1	9806-9911
62	NUT; CLIP FIX WB 5000MM(50W) M8 FLANGE	0-91150-108-0	01	1	9912-0602
62	NUT; CLIP FIX WB 5000MM(50W) M8 FLANGE	0-91180-108-0	01	1	0603-
62	NUT; CLIP FIX WB 5700MM(57W) M8 FLANGE	0-91150-108-0	03	1	9806-9911
62	NUT; CLIP FIX WB 5700MM(57W) CTR SPLIT FRAME<TLW> M8 FLANGE	0-91150-108-0	03	1	9806-9911
62	NUT; CLIP FIX 6HE1-TC ENG(57L) M8 FLANGE	0-91150-108-0	03	1	9806-9911
62	NUT; CLIP FIX WB 5700MM(57W) M8 FLANGE	0-91150-108-0	03	1	9912-0602
62	NUT; CLIP FIX WB 5700MM(57W) M8 FLANGE	0-91180-108-0	03	1	0603-
62	NUT; CLIP FIX WB 6300MM(63W) M8 FLANGE	0-91150-108-0	04	1	9806-9911
62	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	04	1	9912-0602
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	04	1	0603-
62	NUT; CLIP FIX 6HH1-S ENG(65L) CTR SPLIT FRAME<TLW> M8 FLANGE	0-91150-108-0	02	1	9806-9911
62	NUT; CLIP FIX 6HH1-S ENG(65L) EXC. CTR SPLIT FRAME<TLW> M8 FLANGE	0-91150-108-0	05	1	9806-9911
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	02	1	9806-9911
63	BRACKET; CLIP,P/S 6HE1-TC ENG(57L) (A)	1-47475-427-1	02	1	9806-9911
63	BRACKET; CLIP,P/S 6HE1-TC ENG(57L) CTR SPLIT FRAME<TLW> (A)	1-47475-427-1	02	1	9806-9911
63	BRACKET; CLIP,P/S WB 5700MM(57W) (A)	1-47475-427-1	03	1	9912-
63	BRACKET; CLIP,P/S CTR SPLIT FRAME<TLW> (B) L=50	1-47475-299-2	01	1	9806-9911
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	07	1	9912-
63	BRACKET; CLIP,P/S WB 5000MM(50W) (A)	1-47475-427-1	01	1	9806-
63	BRACKET; CLIP,P/S WB 5700MM(57W) (A)	1-47475-427-1	03	1	9806-9911
63	BRACKET; CLIP,P/S 6HE1-TC ENG(57L) EXC. CTR SPLIT FRAME<TLW> (A)	1-47475-427-1	03	1	9806-9911
63	BRACKET; CLIP,P/S (C)	1-47477-119-0	01	1	9912-0401
63	BRACKET; CLIP,P/S (D)	1-82699-199-0	01	1	0402-
63	BRACKET; CLIP,P/S WB 6300MM(63W) (A)	1-47475-427-1	04	1	9806-9911
63	BRACKET; CLIP,P/S 6HH1-S ENG(65L) EXC. CTR SPLIT FRAME<TLW> (A)	1-47475-427-1	04	1	9806-9911
63	BRACKET; CLIP,P/S 6HH1-S ENG(65L) (A)	1-47475-427-1	04	1	9806-9911
65	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	9806-9911
65	NUT; BRKT 6HH1-S ENG(65L) M8 FLANGE	0-91150-108-0	04	1	9806-9911
65	NUT; BRKT 6HE1-TC ENG(57L) M8 FLANGE	0-91150-108-0	02	1	9806-9911
65	NUT; BRKT 6HE1-TC ENG(57L) EXC. CTR SPLIT FRAME<TLW> M8 FLANGE	0-91150-108-0	02	1	9806-9911
65	NUT; BRKT M8 FLANGE	0-91150-108-0	07	1	9912-0602
65	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	0603-
66	BOLT; BRKT,OIL PIPE (A) M8X25 FLANGE	0-28680-825-0	01	1	9806-0512
66	BOLT; BRKT,OIL PIPE (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-
66	BOLT; BRKT,OIL PIPE (B) M8X30 FLANGE	0-28680-830-0	01	1	9806-9911
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	9806-9911
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	06	1	9912-0602
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	06	1	0603-
75	PIPE; OIL,P/S,UNION TO UNION (G) L=1191	1-21115-458-0	01	1	9806-9911
75	PIPE; OIL,P/S,UNION TO UNION (B) L=1812	1-21115-923-0	01	1	9912-0001
75	PIPE; OIL,P/S,UNION TO UNION (B)	1-21116-694-0	01	1	0002-0106
75	PIPE; OIL,P/S,UNION TO UNION (B) L=1817	1-21117-120-0	01	1	0107-
75	PIPE; OIL,P/S,UNION TO UNION CTR SPLIT FRAME<TLW> (G) L=1798	1-21115-874-0	01	1	9806-9911
75	PIPE; OIL,P/S,UNION TO UNION (E) L=1498	8-97530-084-0	01	1	9912-
75	PIPE; OIL,P/S,UNION TO UNION EXC. CTR SPLIT FRAME<TLW> (G) L=1498	1-21115-403-0	01	1	9806-9911
75	PIPE; OIL,P/S,UNION TO UNION WB 5000MM(50W) (G) L=819	1-21115-402-0	01	1	9806-9911
75	PIPE; OIL,P/S,UNION TO UNION WB 5000MM(50W) (C) L=1819	8-97530-082-0	01	1	9912-
75	PIPE; OIL,P/S,UNION TO UNION WB 5000MM(50W) (G) L=899	1-21115-407-0	01	1	9806-9911
75	PIPE; OIL,P/S,UNION TO UNION WB 5000MM(50W) (D) L=900	8-97530-090-0	01	1	9912-
75	PIPE; OIL,P/S,UNION TO UNION WB 5700MM(57W) CTR SPLIT FRAME<TLW> (G) L=1699	1-21115-872-0	02	1	9806-9911
75	PIPE; OIL,P/S,UNION TO UNION WB 5700MM(57W) (C) L=1522	8-97530-083-0	01	1	9912-
75	PIPE; OIL,P/S,UNION TO UNION WB 5700MM(57W) CTR SPLIT FRAME<TLW> (G) L=1648	1-21115-876-0	01	1	9806-9911
75	PIPE; OIL,P/S,UNION TO UNION WB 5700MM(57W) (D) L=1603	8-97530-091-0	01	1	9912-
75	PIPE; OIL,P/S,UNION TO UNION WB 5700MM(57W) EXC. CTR SPLIT FRAME<TLW> (G) L=1522	1-21115-401-0	01	1	9806-9911
75	PIPE; OIL,P/S,UNION TO UNION WB 5700MM(57W) EXC. CTR SPLIT FRAME<TLW> (G) L=1602	1-21115-408-0	01	1	9806-9911
75	PIPE; OIL,P/S,UNION TO UNION WB 6300MM(63W) (G) L=2124	1-21115-459-0	01	1	9806-9911
75	PIPE; OIL,P/S,UNION TO UNION (F) L=1191	8-97531-204-0	01	1	9912-
75	PIPE; OIL,P/S,UNION TO UNION WB 6300MM(63W) (G) L=1203	1-21115-460-0	01	1	9806-9911
75	PIPE; OIL,P/S,UNION TO UNION 6HE1-TC ENG(57L) (G) L=1331	1-21115-921-0	01	1	9806-9911
75	PIPE; OIL,P/S,UNION TO UNION 6HE1-TC ENG(57L) CTR SPLIT FRAME<TLW> (G) L=2494	1-21115-926-0	01	1	9806-9911
75	PIPE; OIL,P/S,UNION TO UNION (A) L=1249	8-97531-173-0	01	1	9912-
75	PIPE; OIL,P/S,UNION TO UNION 6HE1-TC ENG(57L) EXC. CTR SPLIT FRAME<TLW> (G) L=1812	1-21115-923-0	01	1	9806-9911
75	PIPE; OIL,P/S,UNION TO UNION 6HH1-S ENG(65L) CTR SPLIT FRAME<TLW> (G) L=2974	1-21115-971-0	01	1	9806-9911
75	PIPE; OIL,P/S,UNION TO UNION 6HH1-S ENG(65L) CTR SPLIT FRAME<TLW> (G) L=940	1-21116-013-0	01	1	9806-9911
75	PIPE; OIL,P/S,UNION TO UNION 6HH1-S ENG(65L) EXC. CTR SPLIT FRAME<TLW> (G) L=2572	1-21115-399-0	01	1	9806-9911
75	PIPE; OIL,P/S,UNION TO UNION 6HH1-S ENG(65L) EXC. CTR SPLIT FRAME<TLW> (G) L=2282	1-21115-400-0	01	1	9806-9911
76	UNION; OIL PIPE (A) M20 2WAY	1-09654-138-1	01	1	9806-9911
76	UNION; OIL PIPE 6HE1-TC ENG(57L) (A) M20 2WAY	1-09654-138-1	01	1	9806-9911
76	UNION; OIL PIPE 6HE1-TC ENG(57L) EXC. CTR SPLIT FRAME<TLW> (A) M20 2WAY	1-09654-138-1	01	1	9806-9911
76	UNION; OIL PIPE (B) M22 2WAY	1-09654-212-1	01	1	9806-9911
76	UNION; OIL PIPE EXC. CTR SPLIT FRAME<TLW> (B) M22 2WAY	1-09654-212-1	01	1	9806-9911
76	UNION; OIL PIPE 6HH1-S ENG(65L) CTR SPLIT FRAME<TLW> (B) M22 2WAY	1-09654-212-1	01	1	9806-9911
76	UNION; OIL PIPE (J) M22	9-09235-215-1	01	1	9912-0607
76	UNION; OIL PIPE (J) M22	0-92135-215-0	01	1	0608-
76	UNION; OIL PIPE (D) M22 & M22 & M14	9-09225-115-1	01	1	9806-
76	UNION; OIL PIPE (H) M20 STRAIGHT	9-09233-012-1	01	1	9806-9911
76	UNION; OIL PIPE EXC. CTR SPLIT FRAME<TLW> (H) M20 STRAIGHT	9-09233-012-1	01	1	9806-9911
76	UNION; OIL PIPE 6HH1-S ENG(65L) (H) M20 STRAIGHT	9-09233-012-1	01	1	9806-9911
76	UNION; OIL PIPE (H) M20 STRAIGHT	9-09233-012-1	02	1	9912-0607
76	UNION; OIL PIPE (H) M20 STRAIGHT	0-92123-012-0	02	1	0608-
76	UNION; OIL PIPE (I) M22	9-09233-015-1	01	1	9806-9911
76	UNION; OIL PIPE EXC. CTR SPLIT FRAME<TLW> (I) M22	9-09233-015-1	01	1	9806-9911
76	UNION; OIL PIPE 6HH1-S ENG(65L) (I) M22	9-09233-015-1	01	1	9806-9911
76	UNION; OIL PIPE (I) M22	9-09233-015-1	02	1	9912-0607
76	UNION; OIL PIPE (I) M22	0-92123-015-0	02	1	0608-
76	UNION; OIL PIPE (C) M20 ELBOW	9-09235-112-1	01	1	9806-0607
76	UNION; OIL PIPE (C) M20 ELBOW	0-92135-112-0	01	1	0608-
76	UNION; OIL PIPE CTR SPLIT FRAME<TLW> (E) M22	1-09650-172-1	02	1	9806-9911
76	UNION; OIL PIPE (K) M22 2WAY	1-09654-212-1	02	1	9912-
76	UNION; OIL PIPE CTR SPLIT FRAME<TLW> (F) M20 2WAY	1-09654-218-1	02	1	9806-9911
76	UNION; OIL PIPE (A) M20 2WAY	1-09654-138-1	03	1	9912-
76	UNION; OIL PIPE 6HE1-TC ENG(57L) (G) M22	9-09233-315-1	01	1	9806-9911
76	UNION; OIL PIPE (G) M22	9-09233-315-1	01	1	9912-0607
76	UNION; OIL PIPE (G) M22	0-92123-315-0	01	1	0608-
111	BRACKET; OIL PIPE WB 5700MM(57W) CTR SPLIT FRAME<TLW>	1-47475-427-1	03	1	9806-9911
111	BRACKET; OIL PIPE L=76	1-47475-588-0	01	1	9912-
256	NUT; UNION (A) M14	9-99111-414-0	01	1	9806-9911
256	NUT; UNION 6HH1-S ENG(65L) CTR SPLIT FRAME<TLW> (A) M14	9-99111-414-0	01	1	9806-9911
256	NUT; UNION 6HE1-TC ENG(57L) EXC. CTR SPLIT FRAME<TLW> (A) M14	9-99111-414-0	01	1	9806-9911
256	NUT; UNION (B) M20	9-99111-420-0	02	1	9806-0512
256	NUT; UNION (B) M20	0-91111-520-0	02	1	0601-
256	NUT; UNION CTR SPLIT FRAME<TLW> (A) M14	9-99111-414-0	03	1	9806-9911
256	NUT; UNION (A) M14	9-99111-414-0	02	1	9912-0512
256	NUT; UNION (A) M14	0-91111-514-0	02	1	0601-
256	NUT; UNION 6HE1-TC ENG(57L) (C) M22	9-09111-422-0	01	1	9806-9911
256	NUT; UNION (C) M22	9-09111-422-0	01	1	9912-0512
256	NUT; UNION (C) M22	0-91111-522-0	01	1	0601-
265	PIPE; OIL,UNION TO UNION (G) L=1239	1-21115-457-0	01	1	9806-9911
265	PIPE; OIL,UNION TO UNION (E) L=1238	8-97531-203-0	01	1	9912-0012
265	PIPE; OIL,UNION TO UNION (E) L=1238	8-97531-269-0	01	1	0101-
265	PIPE; OIL,UNION TO UNION CTR SPLIT FRAME<TLW> (G) L=2023	1-21115-916-0	01	1	9806-9911
265	PIPE; OIL,UNION TO UNION (F) L=1570	8-97530-089-0	01	1	9912-
265	PIPE; OIL,UNION TO UNION EXC. CTR SPLIT FRAME<TLW> (G) L=1570	1-21115-406-0	01	1	9806-9911
265	PIPE; OIL,UNION TO UNION (A) L=1237	8-97531-111-0	01	1	9912-9912
265	PIPE; OIL,UNION TO UNION (A) L=1230	8-97531-227-0	01	1	0001-
265	PIPE; OIL,UNION TO UNION WB 5700MM(57W) CTR SPLIT FRAME<TLW> (G) L=1648	1-21115-876-0	01	1	9806-9911
265	PIPE; OIL,UNION TO UNION 6HE1-TC ENG(57L) CTR SPLIT FRAME<TLW> (G) L=2688	1-21115-927-0	01	1	9806-9911
265	PIPE; OIL,UNION TO UNION (B) L=2061	8-97530-834-0	01	1	9912-0012
265	PIPE; OIL,UNION TO UNION (B) L=2067	8-97531-270-0	01	1	0101-
265	PIPE; OIL,UNION TO UNION 6HE1-TC ENG(57L) EXC. CTR SPLIT FRAME<TLW> (G) L=1505	1-21115-804-0	01	1	9806-9812
265	PIPE; OIL,UNION TO UNION 6HE1-TC ENG(57L) EXC. CTR SPLIT FRAME<TLW> (G) L=1505	1-21116-236-0	01	1	9901-9911
265	PIPE; OIL,UNION TO UNION 6HE1-TC ENG(57L) EXC. CTR SPLIT FRAME<TLW> (G) L=2061	1-21115-922-0	01	1	9806-9911
265	PIPE; OIL,UNION TO UNION 6HE1-TC ENG(57L) EXC. CTR SPLIT FRAME<TLW> (G) L=2552	1-21115-924-0	01	1	9806-9911
265	PIPE; OIL,UNION TO UNION 6HH1-S ENG(65L) CTR SPLIT FRAME<TLW> (G) L=1168	1-21115-973-0	01	1	9806-9911
265	PIPE; OIL,UNION TO UNION (D) L=1505	8-97530-836-0	01	1	9912-0001
265	PIPE; OIL,UNION TO UNION (D) L=1507	8-97531-231-0	01	1	0002-
265	PIPE; OIL,UNION TO UNION 6HH1-S ENG(65L) CTR SPLIT FRAME<TLW> (G) L=2193	1-21116-014-0	01	1	9806-9911
265	PIPE; OIL,UNION TO UNION (C) L=2352	8-97530-837-0	01	1	9912-0012
265	PIPE; OIL,UNION TO UNION (C) L=2353	8-97531-271-0	01	1	0101-0401
265	PIPE; OIL,UNION TO UNION (C) L=2371	8-97531-300-0	01	1	0402-
265	PIPE; OIL,UNION TO UNION 6HH1-S ENG(65L) EXC. CTR SPLIT FRAME<TLW> (G) L=2431	1-21115-409-0	01	1	9806-9911
265	PIPE; OIL,UNION TO UNION 6HH1-S ENG(65L) EXC. CTR SPLIT FRAME<TLW> (G) L=2168	1-21115-479-0	01	1	9806-9911
270	NUT; UNION TO OIL PIPE M14	9-99111-414-0	02	1	9806-0512
270	NUT; UNION TO OIL PIPE M14	0-91111-514-0	02	1	0601-

1 192 2 65 62 26 3 1 5 25 19 41 37 67 12 31 130 157 195 213 19 42 287 288 58 155 286 37 15 66 41 280 207 207 205 192 65 257 239 67 67 256 79 195 192 195 255 55 272 261 271

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-152-6	01	1	9806-9911
1	TANK ASM; OIL,P/S	1-21210-194-1	01	1	9912-0508
1	TANK ASM; OIL,P/S	1-21210-234-1	01	1	0509-
2	CAP; OIL TANK,P/S (C)	1-21241-004-3	01	1	9806-9911
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-6	01	1	9912-
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-4	01	1	9912-
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	9806-9911
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	9912-
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	9806-9911
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	9912-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	9806-
15	PLATE; FILTER,OIL TANK	1-21249-007-1	04	1	9806-9911
15	PLATE; FILTER,OIL TANK	1-21249-009-0	04	1	9912-0508
15	PLATE; FILTER,OIL TANK	1-21249-017-0	04	1	0509-
19	SEAT; OIL TANK	1-21249-004-0	02	1	9806-9911
19	SEAT; OIL TANK	1-21262-001-0	02	1	9912-
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28680-825-0	04	1	9806-0512
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	04	1	0601-
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91150-108-0	04	1	9806-9911
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91150-108-0	04	1	9912-
31	HOSE; P/S OIL TANK,INL 6HE1-TC ENG(57L)	1-21116-041-1	01	1	9806-9911
31	HOSE; P/S OIL TANK,INL	8-97531-114-0	01	1	9912-
31	HOSE; P/S OIL TANK,INL 6HH1-S ENG(65L)	1-21115-122-0	01	1	9806-9911
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	9806-
37	CLIP; HOSE,P/S (B) ID=36	1-09704-094-0	02	1	9912-
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	9806-9911
41	CLIP; HOSE,P/S ID=36	1-09704-094-0	02	1	9912-
42	CLIP; HOSE,P/S ID=31 L=30	1-09700-969-0	01	1	9806-9911
55	CLIP; P/S RUBBER HOSE ID=15 H=24 L=20	1-09700-606-0	01	1	9806-9911
58	BOLT; CLIP (A) M8X45 FLANGE	0-28080-845-0	03	1	0012-0512
58	BOLT; CLIP (A) M8X45 FLANGE	0-28050-845-0	03	1	0601-
58	BOLT; CLIP (C) M8X16 FLANGE	0-28080-816-0	01	1	9806-0512
58	BOLT; CLIP (C) M8X16 FLANGE	0-28050-816-0	01	1	0601-
58	BOLT; CLIP (B) M8X25 FLANGE	0-28680-825-0	01	1	9806-9911
58	BOLT; CLIP 6HE1-TC ENG(57L) CTR SPLIT FRAME<TLW> (B) M8X25 FLANGE	0-28680-825-0	01	1	9806-9911
58	BOLT; CLIP 6HH1-S ENG(65L) EXC. CTR SPLIT FRAME<TLW> (B) M8X25 FLANGE	0-28680-825-0	01	1	9806-9911
58	BOLT; CLIP (A) M8X40 FLANGE	0-28680-840-0	01	1	9806-9911
58	BOLT; CLIP WB 5000MM(50W) (A) M8X40 FLANGE	0-28680-840-0	01	1	9806-9911
58	BOLT; CLIP WB 5000MM(50W) (A) M8X40 FLANGE	0-28680-840-0	01	1	9912-0512
58	BOLT; CLIP WB 5000MM(50W) (A) M8X40 FLANGE	0-28650-840-0	01	1	0601-
58	BOLT; CLIP WB 5700MM(57W) (A) M8X40 FLANGE	0-28680-840-0	03	1	9806-9911
58	BOLT; CLIP WB 5700MM(57W) CTR SPLIT FRAME<TLW> (A) M8X40 FLANGE	0-28680-840-0	03	1	9806-9911
58	BOLT; CLIP WB 6300MM(63W) (A) M8X40 FLANGE	0-28680-840-0	04	1	9806-9911
58	BOLT; CLIP 6HH1-S ENG(65L) EXC. CTR SPLIT FRAME<TLW> (A) M8X40 FLANGE	0-28680-840-0	04	1	9806-9911
58	BOLT; CLIP 6HH1-S ENG(65L) (A) M8X40 FLANGE	0-28680-840-0	04	1	9806-9911
58	BOLT; CLIP 6HE1-TC ENG(57L) (A) M8X40 FLANGE	0-28680-840-0	02	1	9806-9911
58	BOLT; CLIP 6HE1-TC ENG(57L) CTR SPLIT FRAME<TLW> (A) M8X40 FLANGE	0-28680-840-0	02	1	9806-9911
58	BOLT; CLIP WB 5700MM(57W) (A) M8X40 FLANGE	0-28680-840-0	03	1	9912-0512
58	BOLT; CLIP WB 5700MM(57W) (A) M8X40 FLANGE	0-28650-840-0	03	1	0601-
58	BOLT; CLIP 6HE1-TC ENG(57L) EXC. CTR SPLIT FRAME<TLW> (A) M8X40 FLANGE	0-28680-840-0	05	1	9806-9911
58	BOLT; CLIP (A) M8X40 FLANGE	0-28680-840-0	08	1	9912-0011
58	BOLT; CLIP (A) M8X40 FLANGE	0-28680-840-0	05	1	0012-0512
58	BOLT; CLIP (A) M8X40 FLANGE	0-28650-840-0	05	1	0601-
58	BOLT; CLIP 6HH1-S ENG(65L) CTR SPLIT FRAME<TLW> (B) M8X25 FLANGE	0-28680-825-0	02	1	9806-9911
58	BOLT; CLIP (B) M8X25 FLANGE	0-28680-825-0	05	1	9912-0512
58	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	05	1	0601-
62	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	01	1	9806-9911
62	NUT; CLIP FIX WB 5000MM(50W) M8 FLANGE	0-91150-108-0	01	1	9806-9911
62	NUT; CLIP FIX WB 5000MM(50W) M8 FLANGE	0-91150-108-0	01	1	9912-0602
62	NUT; CLIP FIX WB 5000MM(50W) M8 FLANGE	0-91180-108-0	01	1	0603-
62	NUT; CLIP FIX WB 5700MM(57W) M8 FLANGE	0-91150-108-0	03	1	9806-9911
62	NUT; CLIP FIX WB 5700MM(57W) CTR SPLIT FRAME<TLW> M8 FLANGE	0-91150-108-0	03	1	9806-9911
62	NUT; CLIP FIX 6HE1-TC ENG(57L) M8 FLANGE	0-91150-108-0	03	1	9806-9911
62	NUT; CLIP FIX WB 5700MM(57W) M8 FLANGE	0-91150-108-0	03	1	9912-0602
62	NUT; CLIP FIX WB 5700MM(57W) M8 FLANGE	0-91180-108-0	03	1	0603-
62	NUT; CLIP FIX WB 6300MM(63W) M8 FLANGE	0-91150-108-0	04	1	9806-9911
62	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	04	1	9912-0602
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	04	1	0603-
62	NUT; CLIP FIX 6HH1-S ENG(65L) CTR SPLIT FRAME<TLW> M8 FLANGE	0-91150-108-0	02	1	9806-9911
62	NUT; CLIP FIX 6HH1-S ENG(65L) EXC. CTR SPLIT FRAME<TLW> M8 FLANGE	0-91150-108-0	05	1	9806-9911
65	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	9806-9911
65	NUT; BRKT 6HH1-S ENG(65L) M8 FLANGE	0-91150-108-0	04	1	9806-9911
65	NUT; BRKT 6HE1-TC ENG(57L) M8 FLANGE	0-91150-108-0	02	1	9806-9911
65	NUT; BRKT 6HE1-TC ENG(57L) EXC. CTR SPLIT FRAME<TLW> M8 FLANGE	0-91150-108-0	02	1	9806-9911
65	NUT; BRKT M8 FLANGE	0-91150-108-0	07	1	9912-0602
65	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	0603-
66	BOLT; BRKT,OIL PIPE (A) M8X25 FLANGE	0-28680-825-0	01	1	9806-0512
66	BOLT; BRKT,OIL PIPE (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-
66	BOLT; BRKT,OIL PIPE (B) M8X30 FLANGE	0-28680-830-0	01	1	9806-9911
67	NUT; BRKT M10 FLANGE	0-91150-210-0	03	1	9806-9911
67	NUT; BRKT M10 FLANGE	0-91150-210-0	04	1	9912-0602
67	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0603-
67	NUT; BRKT 6HE1-TC ENG(57L) M10 FLANGE	0-91150-210-0	04	1	9806-9911
79	BOLT; BRKT (A) M8X35 FLANGE	0-28680-835-0	02	1	9806-0512
79	BOLT; BRKT (A) M8X35 FLANGE	0-28650-835-0	02	1	0601-
79	BOLT; BRKT (B) M8X25 FLANGE	0-28680-825-0	01	1	9912-0512
79	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-
130	ADAPTER; P/S PUMP	8-94397-227-0	01	1	9806-9911
130	ADAPTER; P/S PUMP	1-21122-022-0	01	1	9912-
155	BOLT; CONNECTOR M8X16 FLANGE	0-28080-816-0	02	1	9806-0512
155	BOLT; CONNECTOR M8X16 FLANGE	0-28050-816-0	02	1	0601-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-178-0	01	1	9806-
192	BRACKET; P/S OIL TANK (A)	1-21219-093-2	01	1	9806-9911
192	BRACKET; P/S OIL TANK (C)	8-97531-115-0	01	1	9912-
192	BRACKET; P/S OIL TANK 6HE1-TC ENG(57L) (B)	1-47478-136-0	01	1	9806-9911
195	BOLT; BRKT (A) M10X25 FLANGE	0-28681-025-0	03	1	9806-9911
195	BOLT; BRKT (A) M10X25 FLANGE	0-28681-025-0	04	1	9912-0512
195	BOLT; BRKT (A) M10X25 FLANGE	0-28651-025-0	04	1	0601-
195	BOLT; BRKT 6HE1-TC ENG(57L) (B) M8X30 FLANGE	0-28680-830-0	02	1	9806-9911
195	BOLT; BRKT 6HE1-TC ENG(57L) (A) M10X25 FLANGE	0-28681-025-0	04	1	9806-9911
195	BOLT; BRKT (B) M8X30 FLANGE	0-28680-830-0	02	1	9912-0512
195	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0601-
205	BOLT; EYE,FLEX HOSE,P/S M18X36	1-09675-205-0	01	1	9806-9911
207	GASKET; FLEX HOSE,P/S PUMP ID=18	9-09571-418-0	02	1	9806-9911
213	CLIP; BAND,RUBBER SLEEVE 6HE1-TC ENG(57L) L=175	1-09707-178-0	01	1	9806-9911
239	BRACKET; FLEX HOSE	1-47477-477-0	01	1	9806-9911
239	BRACKET; FLEX HOSE	8-97530-832-0	01	1	9912-
255	UNION; FLEX HOSE M20,M22 L=73	1-09650-045-1	01	1	9806-
256	NUT; UNION (A) M14	9-99111-414-0	01	1	9806-9911
256	NUT; UNION 6HH1-S ENG(65L) CTR SPLIT FRAME<TLW> (A) M14	9-99111-414-0	01	1	9806-9911
256	NUT; UNION 6HE1-TC ENG(57L) EXC. CTR SPLIT FRAME<TLW> (A) M14	9-99111-414-0	01	1	9806-9911
256	NUT; UNION (B) M20	9-99111-420-0	02	1	9806-0512
256	NUT; UNION (B) M20	0-91111-520-0	02	1	0601-
256	NUT; UNION CTR SPLIT FRAME<TLW> (A) M14	9-99111-414-0	03	1	9806-9911
256	NUT; UNION (A) M14	9-99111-414-0	02	1	9912-0512
256	NUT; UNION (A) M14	0-91111-514-0	02	1	0601-
256	NUT; UNION 6HE1-TC ENG(57L) (C) M22	9-09111-422-0	01	1	9806-9911
256	NUT; UNION (C) M22	9-09111-422-0	01	1	9912-0512
256	NUT; UNION (C) M22	0-91111-522-0	01	1	0601-
257	WASHER; LK,UNION (A) ID=20.2	9-09150-520-0	01	1	9806-0603
257	WASHER; LK,UNION (A) ID=20.2	0-91510-520-0	01	1	0604-
257	WASHER; LK,UNION 6HE1-TC ENG(57L) (B) ID=22.5	9-09150-522-0	01	1	9806-9911
257	WASHER; LK,UNION (B) ID=22.5	9-09150-522-0	02	1	9912-0603
257	WASHER; LK,UNION (B) ID=22.5	0-91510-522-0	02	1	0604-
261	PIPE; OIL,UNION TO HOSE 6HE1-TC ENG(57L)	1-21116-038-0	01	1	9806-9911
261	PIPE; OIL,UNION TO HOSE 6HH1-S ENG(65L)	1-21115-411-0	01	1	9806-9911
271	BOLT; P/S OIL PIPE FIX M8X30 FLANGE	0-28680-830-0	01	1	9806-9911
272	NUT; P/S OIL PIPE FIX M8 FLANGE	0-91150-108-0	01	1	9806-9911
280	HOSE; P/S OIL PUMP,INL	1-21114-941-0	01	1	9806-9808
280	HOSE; P/S OIL PUMP,INL 6HH1-S ENG(65L)	1-21114-941-0	01	1	9809-9911
280	HOSE; P/S OIL PUMP,INL 6HE1-TC ENG(57L)	1-21116-042-0	01	1	9806-9808
280	HOSE; P/S OIL PUMP,INL 6HE1-TC ENG(57L)	1-21116-042-0	01	1	9809-9911
280	HOSE; P/S OIL PUMP,INL	1-21116-456-0	01	1	9912-
286	BOLT; CLIP,P/S HOSE M8X25 FLANGE	0-28680-825-0	01	1	9806-9911
287	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9806-0602
287	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-
288	BRACKET; CLIP,P/S L=55	1-47475-304-0	01	1	9806-9911

75 265 265 83 265 75 265 76 265 195 256 265 65 76 78 257 255 63 239 257 232 79 256 79 62 63 58 65 63 75 59 265 65 54 58 54 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
54	CLIP; OIL PIPE (A) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9912-
54	CLIP; OIL PIPE WB 5000MM(50W) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9806-9911
54	CLIP; OIL PIPE 6HH1-S ENG(65L) CTR SPLIT FRAME<TLW> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9806-9911
54	CLIP; OIL PIPE WB 5000MM(50W) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9912-
54	CLIP; OIL PIPE WB 5700MM(57W) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	9806-9911
54	CLIP; OIL PIPE WB 5700MM(57W) CTR SPLIT FRAME<TLW> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	9806-9911
54	CLIP; OIL PIPE (C) ID=16 L=20	9-09525-536-0	01	1	9912-0606
54	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	01	1	0607-
54	CLIP; OIL PIPE WB 6300MM(63W) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	04	1	9806-9911
54	CLIP; OIL PIPE 6HH1-S ENG(65L) EXC. CTR SPLIT FRAME<TLW> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	04	1	9806-9911
54	CLIP; OIL PIPE 6HH1-S ENG(65L) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	04	1	9806-9911
54	CLIP; OIL PIPE (E) ID=24.5 H=35 L=25	1-09700-990-0	02	1	9912-
54	CLIP; OIL PIPE 6HE1-TC ENG(57L) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	05	1	9806-9911
54	CLIP; OIL PIPE WB 5700MM(57W) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	9912-
54	CLIP; OIL PIPE 6HE1-TC ENG(57L) EXC. CTR SPLIT FRAME<TLW> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	9806-9911
54	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	06	1	9912-
54	CLIP; OIL PIPE 6HH1-S ENG(65L) (B) ID=12 H=24 L=20	1-09700-605-0	01	1	9806-9911
54	CLIP; OIL PIPE (D) ID=24 L=24	1-09701-001-1	01	1	9912-
58	BOLT; CLIP (A) M8X45 FLANGE	0-28080-845-0	03	1	0012-0512
58	BOLT; CLIP (A) M8X45 FLANGE	0-28050-845-0	03	1	0601-
58	BOLT; CLIP (C) M8X16 FLANGE	0-28080-816-0	01	1	9806-0512
58	BOLT; CLIP (C) M8X16 FLANGE	0-28050-816-0	01	1	0601-
58	BOLT; CLIP (B) M8X25 FLANGE	0-28680-825-0	01	1	9806-9911
58	BOLT; CLIP 6HE1-TC ENG(57L) CTR SPLIT FRAME<TLW> (B) M8X25 FLANGE	0-28680-825-0	01	1	9806-9911
58	BOLT; CLIP 6HH1-S ENG(65L) EXC. CTR SPLIT FRAME<TLW> (B) M8X25 FLANGE	0-28680-825-0	01	1	9806-9911
58	BOLT; CLIP (A) M8X40 FLANGE	0-28680-840-0	01	1	9806-9911
58	BOLT; CLIP WB 5000MM(50W) (A) M8X40 FLANGE	0-28680-840-0	01	1	9806-9911
58	BOLT; CLIP WB 5000MM(50W) (A) M8X40 FLANGE	0-28680-840-0	01	1	9912-0512
58	BOLT; CLIP WB 5000MM(50W) (A) M8X40 FLANGE	0-28650-840-0	01	1	0601-
58	BOLT; CLIP WB 5700MM(57W) (A) M8X40 FLANGE	0-28680-840-0	03	1	9806-9911
58	BOLT; CLIP WB 5700MM(57W) CTR SPLIT FRAME<TLW> (A) M8X40 FLANGE	0-28680-840-0	03	1	9806-9911
58	BOLT; CLIP WB 6300MM(63W) (A) M8X40 FLANGE	0-28680-840-0	04	1	9806-9911
58	BOLT; CLIP 6HH1-S ENG(65L) EXC. CTR SPLIT FRAME<TLW> (A) M8X40 FLANGE	0-28680-840-0	04	1	9806-9911
58	BOLT; CLIP 6HH1-S ENG(65L) (A) M8X40 FLANGE	0-28680-840-0	04	1	9806-9911
58	BOLT; CLIP 6HE1-TC ENG(57L) (A) M8X40 FLANGE	0-28680-840-0	02	1	9806-9911
58	BOLT; CLIP 6HE1-TC ENG(57L) CTR SPLIT FRAME<TLW> (A) M8X40 FLANGE	0-28680-840-0	02	1	9806-9911
58	BOLT; CLIP WB 5700MM(57W) (A) M8X40 FLANGE	0-28680-840-0	03	1	9912-0512
58	BOLT; CLIP WB 5700MM(57W) (A) M8X40 FLANGE	0-28650-840-0	03	1	0601-
58	BOLT; CLIP 6HE1-TC ENG(57L) EXC. CTR SPLIT FRAME<TLW> (A) M8X40 FLANGE	0-28680-840-0	05	1	9806-9911
58	BOLT; CLIP (A) M8X40 FLANGE	0-28680-840-0	08	1	9912-0011
58	BOLT; CLIP (A) M8X40 FLANGE	0-28680-840-0	05	1	0012-0512
58	BOLT; CLIP (A) M8X40 FLANGE	0-28650-840-0	05	1	0601-
58	BOLT; CLIP 6HH1-S ENG(65L) CTR SPLIT FRAME<TLW> (B) M8X25 FLANGE	0-28680-825-0	02	1	9806-9911
58	BOLT; CLIP (B) M8X25 FLANGE	0-28680-825-0	05	1	9912-0512
58	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	05	1	0601-
59	BRACKET; CLIP,OIL PIPE (A)	1-47475-427-1	01	1	9806-9911
59	BRACKET; CLIP,OIL PIPE (A)	1-47475-427-1	03	1	9912-
59	BRACKET; CLIP,OIL PIPE (B) L=76	1-47475-588-0	01	1	9806-9911
59	BRACKET; CLIP,OIL PIPE (B) L=76	1-47475-588-0	02	1	9912-
59	BRACKET; CLIP,OIL PIPE 6HE1-TC ENG(57L) EXC. CTR SPLIT FRAME<TLW> (A)	1-47475-427-1	02	1	9806-9911
62	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	01	1	9806-9911
62	NUT; CLIP FIX WB 5000MM(50W) M8 FLANGE	0-91150-108-0	01	1	9806-9911
62	NUT; CLIP FIX WB 5000MM(50W) M8 FLANGE	0-91150-108-0	01	1	9912-0602
62	NUT; CLIP FIX WB 5000MM(50W) M8 FLANGE	0-91180-108-0	01	1	0603-
62	NUT; CLIP FIX WB 5700MM(57W) M8 FLANGE	0-91150-108-0	03	1	9806-9911
62	NUT; CLIP FIX WB 5700MM(57W) CTR SPLIT FRAME<TLW> M8 FLANGE	0-91150-108-0	03	1	9806-9911
62	NUT; CLIP FIX 6HE1-TC ENG(57L) M8 FLANGE	0-91150-108-0	03	1	9806-9911
62	NUT; CLIP FIX WB 5700MM(57W) M8 FLANGE	0-91150-108-0	03	1	9912-0602
62	NUT; CLIP FIX WB 5700MM(57W) M8 FLANGE	0-91180-108-0	03	1	0603-
62	NUT; CLIP FIX WB 6300MM(63W) M8 FLANGE	0-91150-108-0	04	1	9806-9911
62	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	04	1	9912-0602
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	04	1	0603-
62	NUT; CLIP FIX 6HH1-S ENG(65L) CTR SPLIT FRAME<TLW> M8 FLANGE	0-91150-108-0	02	1	9806-9911
62	NUT; CLIP FIX 6HH1-S ENG(65L) EXC. CTR SPLIT FRAME<TLW> M8 FLANGE	0-91150-108-0	05	1	9806-9911
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	02	1	9806-9911
63	BRACKET; CLIP,P/S 6HE1-TC ENG(57L) (A)	1-47475-427-1	02	1	9806-9911
63	BRACKET; CLIP,P/S 6HE1-TC ENG(57L) CTR SPLIT FRAME<TLW> (A)	1-47475-427-1	02	1	9806-9911
63	BRACKET; CLIP,P/S WB 5700MM(57W) (A)	1-47475-427-1	03	1	9912-
63	BRACKET; CLIP,P/S CTR SPLIT FRAME<TLW> (B) L=50	1-47475-299-2	01	1	9806-9911
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	07	1	9912-
63	BRACKET; CLIP,P/S WB 5000MM(50W) (A)	1-47475-427-1	01	1	9806-
63	BRACKET; CLIP,P/S WB 5700MM(57W) (A)	1-47475-427-1	03	1	9806-9911
63	BRACKET; CLIP,P/S 6HE1-TC ENG(57L) EXC. CTR SPLIT FRAME<TLW> (A)	1-47475-427-1	03	1	9806-9911
63	BRACKET; CLIP,P/S (C)	1-47477-119-0	01	1	9912-0401
63	BRACKET; CLIP,P/S (D)	1-82699-199-0	01	1	0402-
63	BRACKET; CLIP,P/S WB 6300MM(63W) (A)	1-47475-427-1	04	1	9806-9911
63	BRACKET; CLIP,P/S 6HH1-S ENG(65L) EXC. CTR SPLIT FRAME<TLW> (A)	1-47475-427-1	04	1	9806-9911
63	BRACKET; CLIP,P/S 6HH1-S ENG(65L) (A)	1-47475-427-1	04	1	9806-9911
65	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	9806-9911
65	NUT; BRKT 6HH1-S ENG(65L) M8 FLANGE	0-91150-108-0	04	1	9806-9911
65	NUT; BRKT 6HE1-TC ENG(57L) M8 FLANGE	0-91150-108-0	02	1	9806-9911
65	NUT; BRKT 6HE1-TC ENG(57L) EXC. CTR SPLIT FRAME<TLW> M8 FLANGE	0-91150-108-0	02	1	9806-9911
65	NUT; BRKT M8 FLANGE	0-91150-108-0	07	1	9912-0602
65	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	0603-
75	PIPE; OIL,P/S,UNION TO UNION (G) L=1191	1-21115-458-0	01	1	9806-9911
75	PIPE; OIL,P/S,UNION TO UNION (B) L=1812	1-21115-923-0	01	1	9912-0001
75	PIPE; OIL,P/S,UNION TO UNION (B)	1-21116-694-0	01	1	0002-0106
75	PIPE; OIL,P/S,UNION TO UNION (B) L=1817	1-21117-120-0	01	1	0107-
75	PIPE; OIL,P/S,UNION TO UNION CTR SPLIT FRAME<TLW> (G) L=1798	1-21115-874-0	01	1	9806-9911
75	PIPE; OIL,P/S,UNION TO UNION (E) L=1498	8-97530-084-0	01	1	9912-
75	PIPE; OIL,P/S,UNION TO UNION EXC. CTR SPLIT FRAME<TLW> (G) L=1498	1-21115-403-0	01	1	9806-9911
75	PIPE; OIL,P/S,UNION TO UNION WB 5000MM(50W) (G) L=819	1-21115-402-0	01	1	9806-9911
75	PIPE; OIL,P/S,UNION TO UNION WB 5000MM(50W) (C) L=1819	8-97530-082-0	01	1	9912-
75	PIPE; OIL,P/S,UNION TO UNION WB 5000MM(50W) (G) L=899	1-21115-407-0	01	1	9806-9911
75	PIPE; OIL,P/S,UNION TO UNION WB 5000MM(50W) (D) L=900	8-97530-090-0	01	1	9912-
75	PIPE; OIL,P/S,UNION TO UNION WB 5700MM(57W) CTR SPLIT FRAME<TLW> (G) L=1699	1-21115-872-0	02	1	9806-9911
75	PIPE; OIL,P/S,UNION TO UNION WB 5700MM(57W) (C) L=1522	8-97530-083-0	01	1	9912-
75	PIPE; OIL,P/S,UNION TO UNION WB 5700MM(57W) CTR SPLIT FRAME<TLW> (G) L=1648	1-21115-876-0	01	1	9806-9911
75	PIPE; OIL,P/S,UNION TO UNION WB 5700MM(57W) (D) L=1603	8-97530-091-0	01	1	9912-
75	PIPE; OIL,P/S,UNION TO UNION WB 5700MM(57W) EXC. CTR SPLIT FRAME<TLW> (G) L=1522	1-21115-401-0	01	1	9806-9911
75	PIPE; OIL,P/S,UNION TO UNION WB 5700MM(57W) EXC. CTR SPLIT FRAME<TLW> (G) L=1602	1-21115-408-0	01	1	9806-9911
75	PIPE; OIL,P/S,UNION TO UNION WB 6300MM(63W) (G) L=2124	1-21115-459-0	01	1	9806-9911
75	PIPE; OIL,P/S,UNION TO UNION (F) L=1191	8-97531-204-0	01	1	9912-
75	PIPE; OIL,P/S,UNION TO UNION WB 6300MM(63W) (G) L=1203	1-21115-460-0	01	1	9806-9911
75	PIPE; OIL,P/S,UNION TO UNION 6HE1-TC ENG(57L) (G) L=1331	1-21115-921-0	01	1	9806-9911
75	PIPE; OIL,P/S,UNION TO UNION 6HE1-TC ENG(57L) CTR SPLIT FRAME<TLW> (G) L=2494	1-21115-926-0	01	1	9806-9911
75	PIPE; OIL,P/S,UNION TO UNION (A) L=1249	8-97531-173-0	01	1	9912-
75	PIPE; OIL,P/S,UNION TO UNION 6HE1-TC ENG(57L) EXC. CTR SPLIT FRAME<TLW> (G) L=1812	1-21115-923-0	01	1	9806-9911
75	PIPE; OIL,P/S,UNION TO UNION 6HH1-S ENG(65L) CTR SPLIT FRAME<TLW> (G) L=2974	1-21115-971-0	01	1	9806-9911
75	PIPE; OIL,P/S,UNION TO UNION 6HH1-S ENG(65L) CTR SPLIT FRAME<TLW> (G) L=940	1-21116-013-0	01	1	9806-9911
75	PIPE; OIL,P/S,UNION TO UNION 6HH1-S ENG(65L) EXC. CTR SPLIT FRAME<TLW> (G) L=2572	1-21115-399-0	01	1	9806-9911
75	PIPE; OIL,P/S,UNION TO UNION 6HH1-S ENG(65L) EXC. CTR SPLIT FRAME<TLW> (G) L=2282	1-21115-400-0	01	1	9806-9911
76	UNION; OIL PIPE (A) M20 2WAY	1-09654-138-1	01	1	9806-9911
76	UNION; OIL PIPE 6HE1-TC ENG(57L) (A) M20 2WAY	1-09654-138-1	01	1	9806-9911
76	UNION; OIL PIPE 6HE1-TC ENG(57L) EXC. CTR SPLIT FRAME<TLW> (A) M20 2WAY	1-09654-138-1	01	1	9806-9911
76	UNION; OIL PIPE (B) M22 2WAY	1-09654-212-1	01	1	9806-9911
76	UNION; OIL PIPE EXC. CTR SPLIT FRAME<TLW> (B) M22 2WAY	1-09654-212-1	01	1	9806-9911
76	UNION; OIL PIPE 6HH1-S ENG(65L) CTR SPLIT FRAME<TLW> (B) M22 2WAY	1-09654-212-1	01	1	9806-9911
76	UNION; OIL PIPE (J) M22	9-09235-215-1	01	1	9912-0607
76	UNION; OIL PIPE (J) M22	0-92135-215-0	01	1	0608-
76	UNION; OIL PIPE (D) M22 & M22 & M14	9-09225-115-1	01	1	9806-
76	UNION; OIL PIPE (H) M20 STRAIGHT	9-09233-012-1	01	1	9806-9911
76	UNION; OIL PIPE EXC. CTR SPLIT FRAME<TLW> (H) M20 STRAIGHT	9-09233-012-1	01	1	9806-9911
76	UNION; OIL PIPE 6HH1-S ENG(65L) (H) M20 STRAIGHT	9-09233-012-1	01	1	9806-9911
76	UNION; OIL PIPE (H) M20 STRAIGHT	9-09233-012-1	02	1	9912-0607
76	UNION; OIL PIPE (H) M20 STRAIGHT	0-92123-012-0	02	1	0608-
76	UNION; OIL PIPE (I) M22	9-09233-015-1	01	1	9806-9911
76	UNION; OIL PIPE EXC. CTR SPLIT FRAME<TLW> (I) M22	9-09233-015-1	01	1	9806-9911
76	UNION; OIL PIPE 6HH1-S ENG(65L) (I) M22	9-09233-015-1	01	1	9806-9911
76	UNION; OIL PIPE (I) M22	9-09233-015-1	02	1	9912-0607
76	UNION; OIL PIPE (I) M22	0-92123-015-0	02	1	0608-
76	UNION; OIL PIPE (C) M20 ELBOW	9-09235-112-1	01	1	9806-0607
76	UNION; OIL PIPE (C) M20 ELBOW	0-92135-112-0	01	1	0608-
76	UNION; OIL PIPE CTR SPLIT FRAME<TLW> (E) M22	1-09650-172-1	02	1	9806-9911
76	UNION; OIL PIPE (K) M22 2WAY	1-09654-212-1	02	1	9912-
76	UNION; OIL PIPE CTR SPLIT FRAME<TLW> (F) M20 2WAY	1-09654-218-1	02	1	9806-9911
76	UNION; OIL PIPE (A) M20 2WAY	1-09654-138-1	03	1	9912-
76	UNION; OIL PIPE 6HE1-TC ENG(57L) (G) M22	9-09233-315-1	01	1	9806-9911
76	UNION; OIL PIPE (G) M22	9-09233-315-1	01	1	9912-0607
76	UNION; OIL PIPE (G) M22	0-92123-315-0	01	1	0608-
78	BRACKET; UNION 6HE1-TC ENG(57L)	1-47476-729-1	01	1	9806-9911
78	BRACKET; UNION	1-47476-729-1	01	1	9912-
79	BOLT; BRKT (A) M8X35 FLANGE	0-28680-835-0	02	1	9806-0512
79	BOLT; BRKT (A) M8X35 FLANGE	0-28650-835-0	02	1	0601-
79	BOLT; BRKT (B) M8X25 FLANGE	0-28680-825-0	01	1	9912-0512
79	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-
83	NUT; UNION,OIL PIPE (B) M22	9-09111-422-0	01	1	9806-9911
83	NUT; UNION,OIL PIPE (B) M22	9-09111-422-0	02	1	9912-0512
83	NUT; UNION,OIL PIPE (B) M22	0-91111-522-0	02	1	0601-
83	NUT; UNION,OIL PIPE 6HE1-TC ENG(57L) (A) M14	9-99111-414-0	01	1	9806-9911
83	NUT; UNION,OIL PIPE (A) M14	9-99111-414-0	01	1	9912-0512
83	NUT; UNION,OIL PIPE (A) M14	0-91111-514-0	01	1	0601-
195	BOLT; BRKT (A) M10X25 FLANGE	0-28681-025-0	03	1	9806-9911
195	BOLT; BRKT (A) M10X25 FLANGE	0-28681-025-0	04	1	9912-0512
195	BOLT; BRKT (A) M10X25 FLANGE	0-28651-025-0	04	1	0601-
195	BOLT; BRKT 6HE1-TC ENG(57L) (B) M8X30 FLANGE	0-28680-830-0	02	1	9806-9911
195	BOLT; BRKT 6HE1-TC ENG(57L) (A) M10X25 FLANGE	0-28681-025-0	04	1	9806-9911
195	BOLT; BRKT (B) M8X30 FLANGE	0-28680-830-0	02	1	9912-0512
195	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0601-
232	NUT; BRKT M8 FLANGE	0-91150-108-0	03	1	9912-0602
232	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0603-
239	BRACKET; FLEX HOSE	1-47477-477-0	01	1	9806-9911
239	BRACKET; FLEX HOSE	8-97530-832-0	01	1	9912-
255	UNION; FLEX HOSE M20,M22 L=73	1-09650-045-1	01	1	9806-
256	NUT; UNION (A) M14	9-99111-414-0	01	1	9806-9911
256	NUT; UNION 6HH1-S ENG(65L) CTR SPLIT FRAME<TLW> (A) M14	9-99111-414-0	01	1	9806-9911
256	NUT; UNION 6HE1-TC ENG(57L) EXC. CTR SPLIT FRAME<TLW> (A) M14	9-99111-414-0	01	1	9806-9911
256	NUT; UNION (B) M20	9-99111-420-0	02	1	9806-0512
256	NUT; UNION (B) M20	0-91111-520-0	02	1	0601-
256	NUT; UNION CTR SPLIT FRAME<TLW> (A) M14	9-99111-414-0	03	1	9806-9911
256	NUT; UNION (A) M14	9-99111-414-0	02	1	9912-0512
256	NUT; UNION (A) M14	0-91111-514-0	02	1	0601-
256	NUT; UNION 6HE1-TC ENG(57L) (C) M22	9-09111-422-0	01	1	9806-9911
256	NUT; UNION (C) M22	9-09111-422-0	01	1	9912-0512
256	NUT; UNION (C) M22	0-91111-522-0	01	1	0601-
257	WASHER; LK,UNION (A) ID=20.2	9-09150-520-0	01	1	9806-0603
257	WASHER; LK,UNION (A) ID=20.2	0-91510-520-0	01	1	0604-
257	WASHER; LK,UNION 6HE1-TC ENG(57L) (B) ID=22.5	9-09150-522-0	01	1	9806-9911
257	WASHER; LK,UNION (B) ID=22.5	9-09150-522-0	02	1	9912-0603
257	WASHER; LK,UNION (B) ID=22.5	0-91510-522-0	02	1	0604-
265	PIPE; OIL,UNION TO UNION (G) L=1239	1-21115-457-0	01	1	9806-9911
265	PIPE; OIL,UNION TO UNION (E) L=1238	8-97531-203-0	01	1	9912-0012
265	PIPE; OIL,UNION TO UNION (E) L=1238	8-97531-269-0	01	1	0101-
265	PIPE; OIL,UNION TO UNION CTR SPLIT FRAME<TLW> (G) L=2023	1-21115-916-0	01	1	9806-9911
265	PIPE; OIL,UNION TO UNION (F) L=1570	8-97530-089-0	01	1	9912-
265	PIPE; OIL,UNION TO UNION EXC. CTR SPLIT FRAME<TLW> (G) L=1570	1-21115-406-0	01	1	9806-9911
265	PIPE; OIL,UNION TO UNION (A) L=1237	8-97531-111-0	01	1	9912-9912
265	PIPE; OIL,UNION TO UNION (A) L=1230	8-97531-227-0	01	1	0001-
265	PIPE; OIL,UNION TO UNION WB 5700MM(57W) CTR SPLIT FRAME<TLW> (G) L=1648	1-21115-876-0	01	1	9806-9911
265	PIPE; OIL,UNION TO UNION 6HE1-TC ENG(57L) CTR SPLIT FRAME<TLW> (G) L=2688	1-21115-927-0	01	1	9806-9911
265	PIPE; OIL,UNION TO UNION (B) L=2061	8-97530-834-0	01	1	9912-0012
265	PIPE; OIL,UNION TO UNION (B) L=2067	8-97531-270-0	01	1	0101-
265	PIPE; OIL,UNION TO UNION 6HE1-TC ENG(57L) EXC. CTR SPLIT FRAME<TLW> (G) L=1505	1-21115-804-0	01	1	9806-9812
265	PIPE; OIL,UNION TO UNION 6HE1-TC ENG(57L) EXC. CTR SPLIT FRAME<TLW> (G) L=1505	1-21116-236-0	01	1	9901-9911
265	PIPE; OIL,UNION TO UNION 6HE1-TC ENG(57L) EXC. CTR SPLIT FRAME<TLW> (G) L=2061	1-21115-922-0	01	1	9806-9911
265	PIPE; OIL,UNION TO UNION 6HE1-TC ENG(57L) EXC. CTR SPLIT FRAME<TLW> (G) L=2552	1-21115-924-0	01	1	9806-9911
265	PIPE; OIL,UNION TO UNION 6HH1-S ENG(65L) CTR SPLIT FRAME<TLW> (G) L=1168	1-21115-973-0	01	1	9806-9911
265	PIPE; OIL,UNION TO UNION (D) L=1505	8-97530-836-0	01	1	9912-0001
265	PIPE; OIL,UNION TO UNION (D) L=1507	8-97531-231-0	01	1	0002-
265	PIPE; OIL,UNION TO UNION 6HH1-S ENG(65L) CTR SPLIT FRAME<TLW> (G) L=2193	1-21116-014-0	01	1	9806-9911
265	PIPE; OIL,UNION TO UNION (C) L=2352	8-97530-837-0	01	1	9912-0012
265	PIPE; OIL,UNION TO UNION (C) L=2353	8-97531-271-0	01	1	0101-0401
265	PIPE; OIL,UNION TO UNION (C) L=2371	8-97531-300-0	01	1	0402-
265	PIPE; OIL,UNION TO UNION 6HH1-S ENG(65L) EXC. CTR SPLIT FRAME<TLW> (G) L=2431	1-21115-409-0	01	1	9806-9911
265	PIPE; OIL,UNION TO UNION 6HH1-S ENG(65L) EXC. CTR SPLIT FRAME<TLW> (G) L=2168	1-21115-479-0	01	1	9806-9911

75 75 75 265 265 265 75 76 75 256 76 45 83 44 45 44 256 75 76 76 270 75 75 75 76 265 76 75 265 265 68 62 234 58 59 63 63 61 66 233 59 68 61 54 65 58 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	PIPE; OIL,P/S UNIT TO NIPPLE	1-21114-927-0	01	1	9806-9911
44	PIPE; OIL,P/S UNIT TO NIPPLE	8-97530-086-0	01	1	9912-
45	PIPE; OIL,P/S UNIT TO UNION	1-21114-928-0	01	1	9806-9911
45	PIPE; OIL,P/S UNIT TO UNION	8-97530-087-0	01	1	9912-
54	CLIP; OIL PIPE (A) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9912-
54	CLIP; OIL PIPE WB 5000MM(50W) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9806-9911
54	CLIP; OIL PIPE 6HH1-S ENG(65L) CTR SPLIT FRAME<TLW> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9806-9911
54	CLIP; OIL PIPE WB 5000MM(50W) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9912-
54	CLIP; OIL PIPE WB 5700MM(57W) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	9806-9911
54	CLIP; OIL PIPE WB 5700MM(57W) CTR SPLIT FRAME<TLW> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	9806-9911
54	CLIP; OIL PIPE (C) ID=16 L=20	9-09525-536-0	01	1	9912-0606
54	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	01	1	0607-
54	CLIP; OIL PIPE WB 6300MM(63W) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	04	1	9806-9911
54	CLIP; OIL PIPE 6HH1-S ENG(65L) EXC. CTR SPLIT FRAME<TLW> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	04	1	9806-9911
54	CLIP; OIL PIPE 6HH1-S ENG(65L) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	04	1	9806-9911
54	CLIP; OIL PIPE (E) ID=24.5 H=35 L=25	1-09700-990-0	02	1	9912-
54	CLIP; OIL PIPE 6HE1-TC ENG(57L) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	05	1	9806-9911
54	CLIP; OIL PIPE WB 5700MM(57W) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	9912-
54	CLIP; OIL PIPE 6HE1-TC ENG(57L) EXC. CTR SPLIT FRAME<TLW> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	9806-9911
54	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	06	1	9912-
54	CLIP; OIL PIPE 6HH1-S ENG(65L) (B) ID=12 H=24 L=20	1-09700-605-0	01	1	9806-9911
54	CLIP; OIL PIPE (D) ID=24 L=24	1-09701-001-1	01	1	9912-
58	BOLT; CLIP (A) M8X45 FLANGE	0-28080-845-0	03	1	0012-0512
58	BOLT; CLIP (A) M8X45 FLANGE	0-28050-845-0	03	1	0601-
58	BOLT; CLIP (C) M8X16 FLANGE	0-28080-816-0	01	1	9806-0512
58	BOLT; CLIP (C) M8X16 FLANGE	0-28050-816-0	01	1	0601-
58	BOLT; CLIP (B) M8X25 FLANGE	0-28680-825-0	01	1	9806-9911
58	BOLT; CLIP 6HE1-TC ENG(57L) CTR SPLIT FRAME<TLW> (B) M8X25 FLANGE	0-28680-825-0	01	1	9806-9911
58	BOLT; CLIP 6HH1-S ENG(65L) EXC. CTR SPLIT FRAME<TLW> (B) M8X25 FLANGE	0-28680-825-0	01	1	9806-9911
58	BOLT; CLIP (A) M8X40 FLANGE	0-28680-840-0	01	1	9806-9911
58	BOLT; CLIP WB 5000MM(50W) (A) M8X40 FLANGE	0-28680-840-0	01	1	9806-9911
58	BOLT; CLIP WB 5000MM(50W) (A) M8X40 FLANGE	0-28680-840-0	01	1	9912-0512
58	BOLT; CLIP WB 5000MM(50W) (A) M8X40 FLANGE	0-28650-840-0	01	1	0601-
58	BOLT; CLIP WB 5700MM(57W) (A) M8X40 FLANGE	0-28680-840-0	03	1	9806-9911
58	BOLT; CLIP WB 5700MM(57W) CTR SPLIT FRAME<TLW> (A) M8X40 FLANGE	0-28680-840-0	03	1	9806-9911
58	BOLT; CLIP WB 6300MM(63W) (A) M8X40 FLANGE	0-28680-840-0	04	1	9806-9911
58	BOLT; CLIP 6HH1-S ENG(65L) EXC. CTR SPLIT FRAME<TLW> (A) M8X40 FLANGE	0-28680-840-0	04	1	9806-9911
58	BOLT; CLIP 6HH1-S ENG(65L) (A) M8X40 FLANGE	0-28680-840-0	04	1	9806-9911
58	BOLT; CLIP 6HE1-TC ENG(57L) (A) M8X40 FLANGE	0-28680-840-0	02	1	9806-9911
58	BOLT; CLIP 6HE1-TC ENG(57L) CTR SPLIT FRAME<TLW> (A) M8X40 FLANGE	0-28680-840-0	02	1	9806-9911
58	BOLT; CLIP WB 5700MM(57W) (A) M8X40 FLANGE	0-28680-840-0	03	1	9912-0512
58	BOLT; CLIP WB 5700MM(57W) (A) M8X40 FLANGE	0-28650-840-0	03	1	0601-
58	BOLT; CLIP 6HE1-TC ENG(57L) EXC. CTR SPLIT FRAME<TLW> (A) M8X40 FLANGE	0-28680-840-0	05	1	9806-9911
58	BOLT; CLIP (A) M8X40 FLANGE	0-28680-840-0	08	1	9912-0011
58	BOLT; CLIP (A) M8X40 FLANGE	0-28680-840-0	05	1	0012-0512
58	BOLT; CLIP (A) M8X40 FLANGE	0-28650-840-0	05	1	0601-
58	BOLT; CLIP 6HH1-S ENG(65L) CTR SPLIT FRAME<TLW> (B) M8X25 FLANGE	0-28680-825-0	02	1	9806-9911
58	BOLT; CLIP (B) M8X25 FLANGE	0-28680-825-0	05	1	9912-0512
58	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	05	1	0601-
59	BRACKET; CLIP,OIL PIPE (A)	1-47475-427-1	01	1	9806-9911
59	BRACKET; CLIP,OIL PIPE (A)	1-47475-427-1	03	1	9912-
59	BRACKET; CLIP,OIL PIPE (B) L=76	1-47475-588-0	01	1	9806-9911
59	BRACKET; CLIP,OIL PIPE (B) L=76	1-47475-588-0	02	1	9912-
59	BRACKET; CLIP,OIL PIPE 6HE1-TC ENG(57L) EXC. CTR SPLIT FRAME<TLW> (A)	1-47475-427-1	02	1	9806-9911
61	CLIP; OIL PIPE (A) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9806-
61	CLIP; OIL PIPE (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9806-
61	CLIP; OIL PIPE (C) ID=15 H=24 L=20	1-09700-606-0	01	1	9912-
62	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	01	1	9806-9911
62	NUT; CLIP FIX WB 5000MM(50W) M8 FLANGE	0-91150-108-0	01	1	9806-9911
62	NUT; CLIP FIX WB 5000MM(50W) M8 FLANGE	0-91150-108-0	01	1	9912-0602
62	NUT; CLIP FIX WB 5000MM(50W) M8 FLANGE	0-91180-108-0	01	1	0603-
62	NUT; CLIP FIX WB 5700MM(57W) M8 FLANGE	0-91150-108-0	03	1	9806-9911
62	NUT; CLIP FIX WB 5700MM(57W) CTR SPLIT FRAME<TLW> M8 FLANGE	0-91150-108-0	03	1	9806-9911
62	NUT; CLIP FIX 6HE1-TC ENG(57L) M8 FLANGE	0-91150-108-0	03	1	9806-9911
62	NUT; CLIP FIX WB 5700MM(57W) M8 FLANGE	0-91150-108-0	03	1	9912-0602
62	NUT; CLIP FIX WB 5700MM(57W) M8 FLANGE	0-91180-108-0	03	1	0603-
62	NUT; CLIP FIX WB 6300MM(63W) M8 FLANGE	0-91150-108-0	04	1	9806-9911
62	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	04	1	9912-0602
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	04	1	0603-
62	NUT; CLIP FIX 6HH1-S ENG(65L) CTR SPLIT FRAME<TLW> M8 FLANGE	0-91150-108-0	02	1	9806-9911
62	NUT; CLIP FIX 6HH1-S ENG(65L) EXC. CTR SPLIT FRAME<TLW> M8 FLANGE	0-91150-108-0	05	1	9806-9911
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	02	1	9806-9911
63	BRACKET; CLIP,P/S 6HE1-TC ENG(57L) (A)	1-47475-427-1	02	1	9806-9911
63	BRACKET; CLIP,P/S 6HE1-TC ENG(57L) CTR SPLIT FRAME<TLW> (A)	1-47475-427-1	02	1	9806-9911
63	BRACKET; CLIP,P/S WB 5700MM(57W) (A)	1-47475-427-1	03	1	9912-
63	BRACKET; CLIP,P/S CTR SPLIT FRAME<TLW> (B) L=50	1-47475-299-2	01	1	9806-9911
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	07	1	9912-
63	BRACKET; CLIP,P/S WB 5000MM(50W) (A)	1-47475-427-1	01	1	9806-
63	BRACKET; CLIP,P/S WB 5700MM(57W) (A)	1-47475-427-1	03	1	9806-9911
63	BRACKET; CLIP,P/S 6HE1-TC ENG(57L) EXC. CTR SPLIT FRAME<TLW> (A)	1-47475-427-1	03	1	9806-9911
63	BRACKET; CLIP,P/S (C)	1-47477-119-0	01	1	9912-0401
63	BRACKET; CLIP,P/S (D)	1-82699-199-0	01	1	0402-
63	BRACKET; CLIP,P/S WB 6300MM(63W) (A)	1-47475-427-1	04	1	9806-9911
63	BRACKET; CLIP,P/S 6HH1-S ENG(65L) EXC. CTR SPLIT FRAME<TLW> (A)	1-47475-427-1	04	1	9806-9911
63	BRACKET; CLIP,P/S 6HH1-S ENG(65L) (A)	1-47475-427-1	04	1	9806-9911
65	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	9806-9911
65	NUT; BRKT 6HH1-S ENG(65L) M8 FLANGE	0-91150-108-0	04	1	9806-9911
65	NUT; BRKT 6HE1-TC ENG(57L) M8 FLANGE	0-91150-108-0	02	1	9806-9911
65	NUT; BRKT 6HE1-TC ENG(57L) EXC. CTR SPLIT FRAME<TLW> M8 FLANGE	0-91150-108-0	02	1	9806-9911
65	NUT; BRKT M8 FLANGE	0-91150-108-0	07	1	9912-0602
65	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	0603-
66	BOLT; BRKT,OIL PIPE (A) M8X25 FLANGE	0-28680-825-0	01	1	9806-0512
66	BOLT; BRKT,OIL PIPE (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-
66	BOLT; BRKT,OIL PIPE (B) M8X30 FLANGE	0-28680-830-0	01	1	9806-9911
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	9806-9911
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	06	1	9912-0602
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	06	1	0603-
75	PIPE; OIL,P/S,UNION TO UNION (G) L=1191	1-21115-458-0	01	1	9806-9911
75	PIPE; OIL,P/S,UNION TO UNION (B) L=1812	1-21115-923-0	01	1	9912-0001
75	PIPE; OIL,P/S,UNION TO UNION (B)	1-21116-694-0	01	1	0002-0106
75	PIPE; OIL,P/S,UNION TO UNION (B) L=1817	1-21117-120-0	01	1	0107-
75	PIPE; OIL,P/S,UNION TO UNION CTR SPLIT FRAME<TLW> (G) L=1798	1-21115-874-0	01	1	9806-9911
75	PIPE; OIL,P/S,UNION TO UNION (E) L=1498	8-97530-084-0	01	1	9912-
75	PIPE; OIL,P/S,UNION TO UNION EXC. CTR SPLIT FRAME<TLW> (G) L=1498	1-21115-403-0	01	1	9806-9911
75	PIPE; OIL,P/S,UNION TO UNION WB 5000MM(50W) (G) L=819	1-21115-402-0	01	1	9806-9911
75	PIPE; OIL,P/S,UNION TO UNION WB 5000MM(50W) (C) L=1819	8-97530-082-0	01	1	9912-
75	PIPE; OIL,P/S,UNION TO UNION WB 5000MM(50W) (G) L=899	1-21115-407-0	01	1	9806-9911
75	PIPE; OIL,P/S,UNION TO UNION WB 5000MM(50W) (D) L=900	8-97530-090-0	01	1	9912-
75	PIPE; OIL,P/S,UNION TO UNION WB 5700MM(57W) CTR SPLIT FRAME<TLW> (G) L=1699	1-21115-872-0	02	1	9806-9911
75	PIPE; OIL,P/S,UNION TO UNION WB 5700MM(57W) (C) L=1522	8-97530-083-0	01	1	9912-
75	PIPE; OIL,P/S,UNION TO UNION WB 5700MM(57W) CTR SPLIT FRAME<TLW> (G) L=1648	1-21115-876-0	01	1	9806-9911
75	PIPE; OIL,P/S,UNION TO UNION WB 5700MM(57W) (D) L=1603	8-97530-091-0	01	1	9912-
75	PIPE; OIL,P/S,UNION TO UNION WB 5700MM(57W) EXC. CTR SPLIT FRAME<TLW> (G) L=1522	1-21115-401-0	01	1	9806-9911
75	PIPE; OIL,P/S,UNION TO UNION WB 5700MM(57W) EXC. CTR SPLIT FRAME<TLW> (G) L=1602	1-21115-408-0	01	1	9806-9911
75	PIPE; OIL,P/S,UNION TO UNION WB 6300MM(63W) (G) L=2124	1-21115-459-0	01	1	9806-9911
75	PIPE; OIL,P/S,UNION TO UNION (F) L=1191	8-97531-204-0	01	1	9912-
75	PIPE; OIL,P/S,UNION TO UNION WB 6300MM(63W) (G) L=1203	1-21115-460-0	01	1	9806-9911
75	PIPE; OIL,P/S,UNION TO UNION 6HE1-TC ENG(57L) (G) L=1331	1-21115-921-0	01	1	9806-9911
75	PIPE; OIL,P/S,UNION TO UNION 6HE1-TC ENG(57L) CTR SPLIT FRAME<TLW> (G) L=2494	1-21115-926-0	01	1	9806-9911
75	PIPE; OIL,P/S,UNION TO UNION (A) L=1249	8-97531-173-0	01	1	9912-
75	PIPE; OIL,P/S,UNION TO UNION 6HE1-TC ENG(57L) EXC. CTR SPLIT FRAME<TLW> (G) L=1812	1-21115-923-0	01	1	9806-9911
75	PIPE; OIL,P/S,UNION TO UNION 6HH1-S ENG(65L) CTR SPLIT FRAME<TLW> (G) L=2974	1-21115-971-0	01	1	9806-9911
75	PIPE; OIL,P/S,UNION TO UNION 6HH1-S ENG(65L) CTR SPLIT FRAME<TLW> (G) L=940	1-21116-013-0	01	1	9806-9911
75	PIPE; OIL,P/S,UNION TO UNION 6HH1-S ENG(65L) EXC. CTR SPLIT FRAME<TLW> (G) L=2572	1-21115-399-0	01	1	9806-9911
75	PIPE; OIL,P/S,UNION TO UNION 6HH1-S ENG(65L) EXC. CTR SPLIT FRAME<TLW> (G) L=2282	1-21115-400-0	01	1	9806-9911
76	UNION; OIL PIPE (A) M20 2WAY	1-09654-138-1	01	1	9806-9911
76	UNION; OIL PIPE 6HE1-TC ENG(57L) (A) M20 2WAY	1-09654-138-1	01	1	9806-9911
76	UNION; OIL PIPE 6HE1-TC ENG(57L) EXC. CTR SPLIT FRAME<TLW> (A) M20 2WAY	1-09654-138-1	01	1	9806-9911
76	UNION; OIL PIPE (B) M22 2WAY	1-09654-212-1	01	1	9806-9911
76	UNION; OIL PIPE EXC. CTR SPLIT FRAME<TLW> (B) M22 2WAY	1-09654-212-1	01	1	9806-9911
76	UNION; OIL PIPE 6HH1-S ENG(65L) CTR SPLIT FRAME<TLW> (B) M22 2WAY	1-09654-212-1	01	1	9806-9911
76	UNION; OIL PIPE (J) M22	9-09235-215-1	01	1	9912-0607
76	UNION; OIL PIPE (J) M22	0-92135-215-0	01	1	0608-
76	UNION; OIL PIPE (D) M22 & M22 & M14	9-09225-115-1	01	1	9806-
76	UNION; OIL PIPE (H) M20 STRAIGHT	9-09233-012-1	01	1	9806-9911
76	UNION; OIL PIPE EXC. CTR SPLIT FRAME<TLW> (H) M20 STRAIGHT	9-09233-012-1	01	1	9806-9911
76	UNION; OIL PIPE 6HH1-S ENG(65L) (H) M20 STRAIGHT	9-09233-012-1	01	1	9806-9911
76	UNION; OIL PIPE (H) M20 STRAIGHT	9-09233-012-1	02	1	9912-0607
76	UNION; OIL PIPE (H) M20 STRAIGHT	0-92123-012-0	02	1	0608-
76	UNION; OIL PIPE (I) M22	9-09233-015-1	01	1	9806-9911
76	UNION; OIL PIPE EXC. CTR SPLIT FRAME<TLW> (I) M22	9-09233-015-1	01	1	9806-9911
76	UNION; OIL PIPE 6HH1-S ENG(65L) (I) M22	9-09233-015-1	01	1	9806-9911
76	UNION; OIL PIPE (I) M22	9-09233-015-1	02	1	9912-0607
76	UNION; OIL PIPE (I) M22	0-92123-015-0	02	1	0608-
76	UNION; OIL PIPE (C) M20 ELBOW	9-09235-112-1	01	1	9806-0607
76	UNION; OIL PIPE (C) M20 ELBOW	0-92135-112-0	01	1	0608-
76	UNION; OIL PIPE CTR SPLIT FRAME<TLW> (E) M22	1-09650-172-1	02	1	9806-9911
76	UNION; OIL PIPE (K) M22 2WAY	1-09654-212-1	02	1	9912-
76	UNION; OIL PIPE CTR SPLIT FRAME<TLW> (F) M20 2WAY	1-09654-218-1	02	1	9806-9911
76	UNION; OIL PIPE (A) M20 2WAY	1-09654-138-1	03	1	9912-
76	UNION; OIL PIPE 6HE1-TC ENG(57L) (G) M22	9-09233-315-1	01	1	9806-9911
76	UNION; OIL PIPE (G) M22	9-09233-315-1	01	1	9912-0607
76	UNION; OIL PIPE (G) M22	0-92123-315-0	01	1	0608-
83	NUT; UNION,OIL PIPE (B) M22	9-09111-422-0	01	1	9806-9911
83	NUT; UNION,OIL PIPE (B) M22	9-09111-422-0	02	1	9912-0512
83	NUT; UNION,OIL PIPE (B) M22	0-91111-522-0	02	1	0601-
83	NUT; UNION,OIL PIPE 6HE1-TC ENG(57L) (A) M14	9-99111-414-0	01	1	9806-9911
83	NUT; UNION,OIL PIPE (A) M14	9-99111-414-0	01	1	9912-0512
83	NUT; UNION,OIL PIPE (A) M14	0-91111-514-0	01	1	0601-
233	BOLT; PIPE CLIP,P/S M8X40 FLANGE	0-28680-840-0	02	1	9806-0512
233	BOLT; PIPE CLIP,P/S M8X40 FLANGE	0-28650-840-0	02	1	0601-
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91150-108-0	02	1	9806-0602
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	02	1	0603-
256	NUT; UNION (A) M14	9-99111-414-0	01	1	9806-9911
256	NUT; UNION 6HH1-S ENG(65L) CTR SPLIT FRAME<TLW> (A) M14	9-99111-414-0	01	1	9806-9911
256	NUT; UNION 6HE1-TC ENG(57L) EXC. CTR SPLIT FRAME<TLW> (A) M14	9-99111-414-0	01	1	9806-9911
256	NUT; UNION (B) M20	9-99111-420-0	02	1	9806-0512
256	NUT; UNION (B) M20	0-91111-520-0	02	1	0601-
256	NUT; UNION CTR SPLIT FRAME<TLW> (A) M14	9-99111-414-0	03	1	9806-9911
256	NUT; UNION (A) M14	9-99111-414-0	02	1	9912-0512
256	NUT; UNION (A) M14	0-91111-514-0	02	1	0601-
256	NUT; UNION 6HE1-TC ENG(57L) (C) M22	9-09111-422-0	01	1	9806-9911
256	NUT; UNION (C) M22	9-09111-422-0	01	1	9912-0512
256	NUT; UNION (C) M22	0-91111-522-0	01	1	0601-
265	PIPE; OIL,UNION TO UNION (G) L=1239	1-21115-457-0	01	1	9806-9911
265	PIPE; OIL,UNION TO UNION (E) L=1238	8-97531-203-0	01	1	9912-0012
265	PIPE; OIL,UNION TO UNION (E) L=1238	8-97531-269-0	01	1	0101-
265	PIPE; OIL,UNION TO UNION CTR SPLIT FRAME<TLW> (G) L=2023	1-21115-916-0	01	1	9806-9911
265	PIPE; OIL,UNION TO UNION (F) L=1570	8-97530-089-0	01	1	9912-
265	PIPE; OIL,UNION TO UNION EXC. CTR SPLIT FRAME<TLW> (G) L=1570	1-21115-406-0	01	1	9806-9911
265	PIPE; OIL,UNION TO UNION (A) L=1237	8-97531-111-0	01	1	9912-9912
265	PIPE; OIL,UNION TO UNION (A) L=1230	8-97531-227-0	01	1	0001-
265	PIPE; OIL,UNION TO UNION WB 5700MM(57W) CTR SPLIT FRAME<TLW> (G) L=1648	1-21115-876-0	01	1	9806-9911
265	PIPE; OIL,UNION TO UNION 6HE1-TC ENG(57L) CTR SPLIT FRAME<TLW> (G) L=2688	1-21115-927-0	01	1	9806-9911
265	PIPE; OIL,UNION TO UNION (B) L=2061	8-97530-834-0	01	1	9912-0012
265	PIPE; OIL,UNION TO UNION (B) L=2067	8-97531-270-0	01	1	0101-
265	PIPE; OIL,UNION TO UNION 6HE1-TC ENG(57L) EXC. CTR SPLIT FRAME<TLW> (G) L=1505	1-21115-804-0	01	1	9806-9812
265	PIPE; OIL,UNION TO UNION 6HE1-TC ENG(57L) EXC. CTR SPLIT FRAME<TLW> (G) L=1505	1-21116-236-0	01	1	9901-9911
265	PIPE; OIL,UNION TO UNION 6HE1-TC ENG(57L) EXC. CTR SPLIT FRAME<TLW> (G) L=2061	1-21115-922-0	01	1	9806-9911
265	PIPE; OIL,UNION TO UNION 6HE1-TC ENG(57L) EXC. CTR SPLIT FRAME<TLW> (G) L=2552	1-21115-924-0	01	1	9806-9911
265	PIPE; OIL,UNION TO UNION 6HH1-S ENG(65L) CTR SPLIT FRAME<TLW> (G) L=1168	1-21115-973-0	01	1	9806-9911
265	PIPE; OIL,UNION TO UNION (D) L=1505	8-97530-836-0	01	1	9912-0001
265	PIPE; OIL,UNION TO UNION (D) L=1507	8-97531-231-0	01	1	0002-
265	PIPE; OIL,UNION TO UNION 6HH1-S ENG(65L) CTR SPLIT FRAME<TLW> (G) L=2193	1-21116-014-0	01	1	9806-9911
265	PIPE; OIL,UNION TO UNION (C) L=2352	8-97530-837-0	01	1	9912-0012
265	PIPE; OIL,UNION TO UNION (C) L=2353	8-97531-271-0	01	1	0101-0401
265	PIPE; OIL,UNION TO UNION (C) L=2371	8-97531-300-0	01	1	0402-
265	PIPE; OIL,UNION TO UNION 6HH1-S ENG(65L) EXC. CTR SPLIT FRAME<TLW> (G) L=2431	1-21115-409-0	01	1	9806-9911
265	PIPE; OIL,UNION TO UNION 6HH1-S ENG(65L) EXC. CTR SPLIT FRAME<TLW> (G) L=2168	1-21115-479-0	01	1	9806-9911
270	NUT; UNION TO OIL PIPE M14	9-99111-414-0	02	1	9806-0512
270	NUT; UNION TO OIL PIPE M14	0-91111-514-0	02	1	0601-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
