◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 11201 - EXY NEW ZEALAND EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#68736) — 311 parça

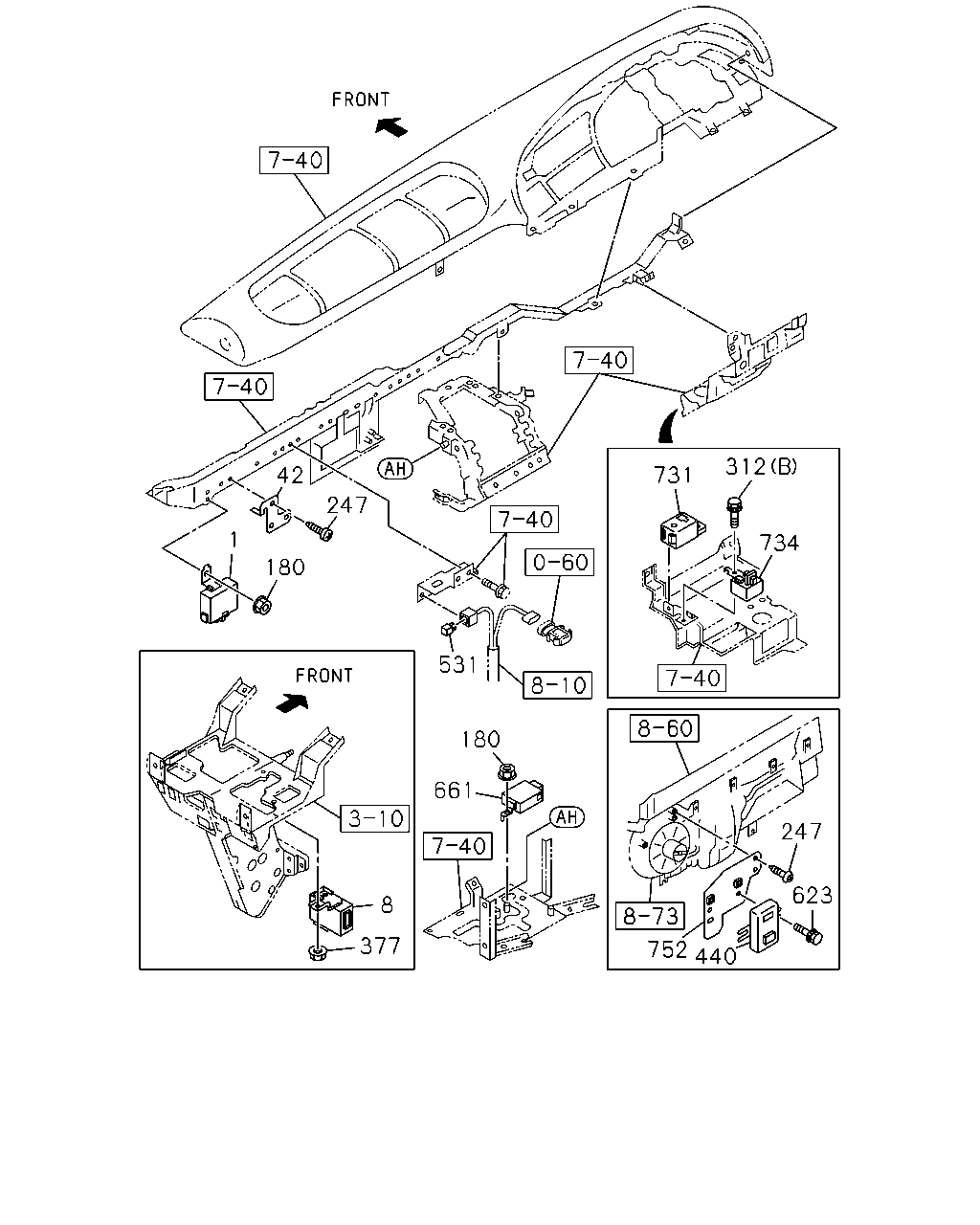

çizim 143619
42 312 731 247 1 734 180 531 180 661 247 623 8 377 752 440
BalonParca AdiParca NoAdetTipApplied Date
1 UNIT; FLASHER 8-97613-970-1 01 1 0904-
8 RELAY; WIPER 1-83316-002-4 01 1 0904-
42 BRACKET; RELAY 1-82698-128-2 01 1 0904-
180 NUT; FLASHER UNIT
M6 FLANGE 		0-91180-106-0 01 1 0904-
180 NUT; FLASHER UNIT
M6 FLANGE 		0-91180-106-0 01 1 0904-
247 SCREW; BRKT
M5X14 		8-94279-325-0 01 1 0904-
247 SCREW; BRKT
M5X14 		8-94279-325-0 03 1 0904-
312 BOLT; BUZZER
(A) M10X35 FLANGE 		0-28651-035-0 01 1 0904-
312 BOLT; BUZZER
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0904-
377 NUT; RELAY
M6 FLANGE 		0-91180-106-0 01 1 0904-
377 NUT; RELAY
M6 FLANGE 		0-91180-106-0 02 1 0904-
440 MODULE; INFORMATION,ABS 1-81510-701-0 01 1 0904-
531 RELAY; MAIN
24V 		1-82550-308-1 01 1 0904-1005
531 RELAY; MAIN
24V 		8-98167-175-0 01 1 1006-
623 BOLT; MODULE
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0904-
661 CONTROL UNIT; FLASHER 1-83470-066-1 01 1 0904-
731 ALARM; INFORMATION 1-83460-051-1 01 1 0904-
734 ALARM; MULTI 1-83460-106-0 01 1 0904-
752 BRACKET; MODULE 8-97611-710-0 01 1 0904-

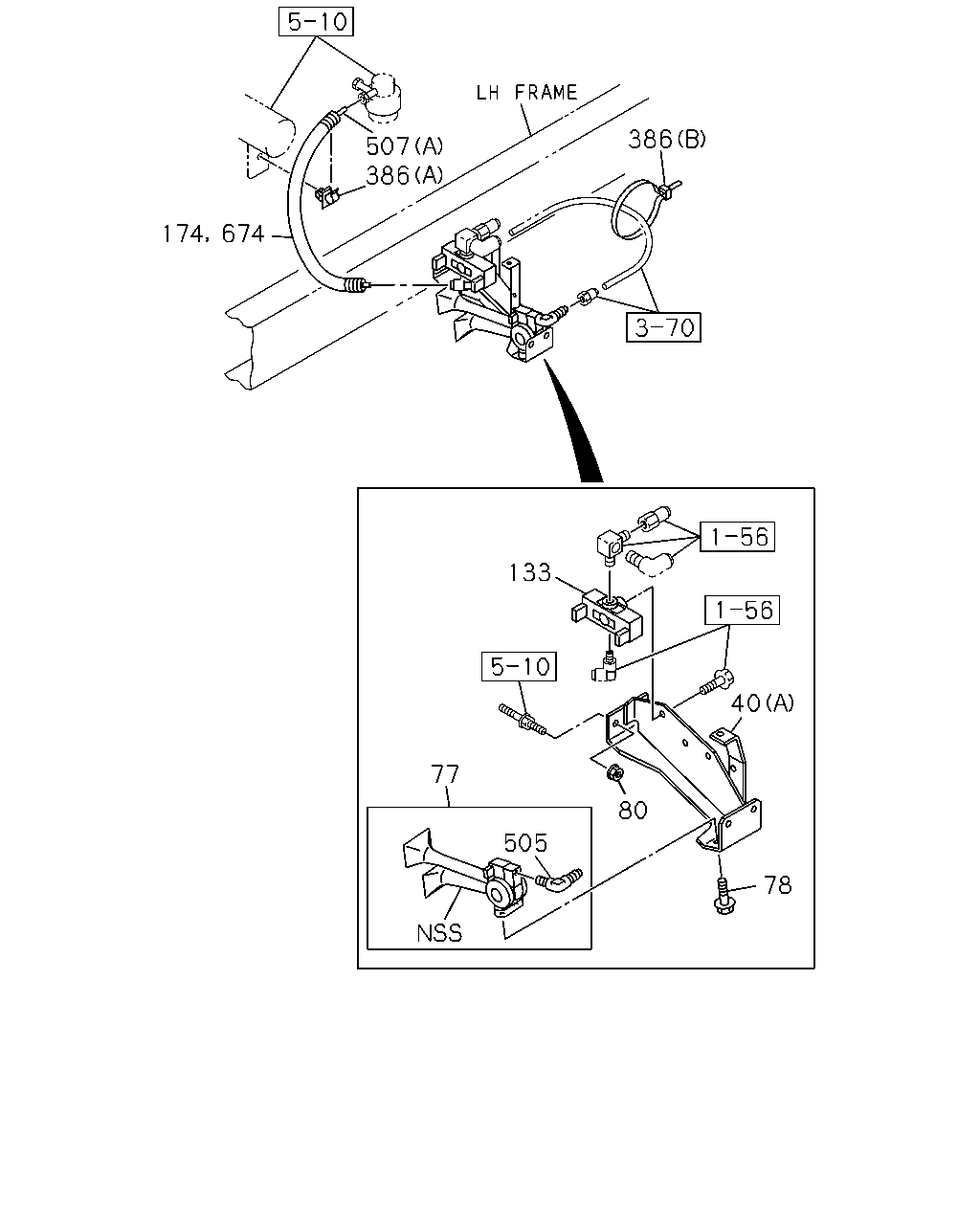

çizim 143620
386 507 386 174 674 133 40 77 80 505 78
BalonParca AdiParca NoAdetTipApplied Date
40 BRACKET; MAG VLV
(B) 		1-53458-380-0 01 1 0904-
40 BRACKET; MAG VLV
(C) 		1-82569-425-0 01 1 0904-
40 BRACKET; MAG VLV
(D) 		1-82698-604-0 02 1 0904-
40 BRACKET; MAG VLV
(A) 		1-53457-180-0 01 1 0904-
77 HORN ASM 1-83430-041-2 01 1 0904-
78 BOLT; AIR HORN
M8X20 FLANGE 		0-28650-820-0 02 1 0904-
80 NUT; MAG VLV
M12 FLANGE 		0-91180-212-0 02 1 0904-
133 VALVE; MAG,AIR HORN 1-53458-378-2 01 1 0904-
174 COVER
L=600 SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0904-
386 CLIP; HARNESS
(B) L=350 		1-09707-183-0 02 1 0904-
386 CLIP; HARNESS
(A) ID=9.5 		5-09709-020-0 01 1 0904-
505 JOINT; AIR HORN 1-83439-006-0 01 1 0904-
507 TUBE; NYLON
(A) SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 0904-
507 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 05 1 0904-
674 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 0904-

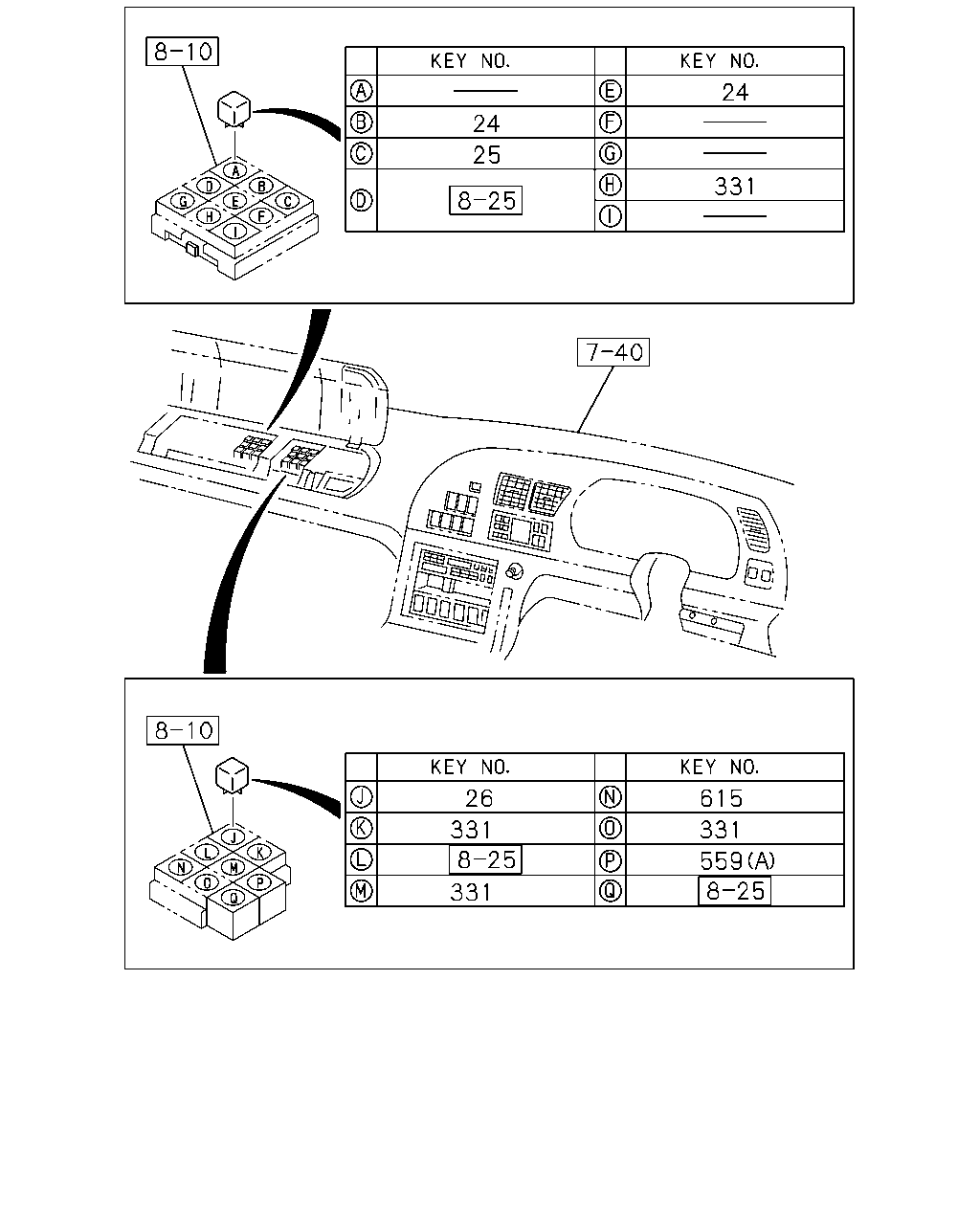

çizim 143645
24 24 25 331 26 615 331 331 559 331
BalonParca AdiParca NoAdetTipApplied Date
24 RELAY; LIGHTING
24V 12.5A PANASONIC 		8-97262-933-0 02 1 0904-
25 RELAY; TAIL LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0904-
26 RELAY; CONSENT
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0904-
331 RELAY; A/C
24V 12.5A PANASONIC 		8-97262-933-0 02 1 0904-
331 RELAY; A/C
24V 12.5A PANASONIC 		8-97262-933-0 02 1 0904-
559 RELAY; MAG VLV
(B) 24V 10A PANASONIC 		8-97173-035-1 01 1 0904-
559 RELAY; MAG VLV
(A) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0904-
615 RELAY; TRAILER
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0904-
çizim 143792
88 450 285 88 424 625 287 282 273 284
BalonParca AdiParca NoAdetTipApplied Date
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0904-
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 04 1 0904-
88 CONNECTOR; MAG VLV
(G) PT1/4 & M12 ELBOW 		1-09656-666-0 01 1 0904-
88 CONNECTOR; MAG VLV
(H) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0904-
88 CONNECTOR; MAG VLV
(J) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0904-
88 CONNECTOR; MAG VLV
(F) DIN8 & R3/8 ELBOW 		1-09660-957-0 05 1 0904-
88 CONNECTOR; MAG VLV
(D) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0904-
88 CONNECTOR; MAG VLV
(K) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 0904-
88 CONNECTOR; MAG VLV
(I) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0904-
88 CONNECTOR; MAG VLV
(A) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 0904-
88 CONNECTOR; MAG VLV
(M) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0904-
88 CONNECTOR; MAG VLV
(L) PT3/8 4WAY 		1-09661-489-0 01 1 0904-
88 CONNECTOR; MAG VLV
(E) DIN8 & M16 ELBOW 		1-09661-531-0 01 1 0904-
88 CONNECTOR; MAG VLV
(B) PT1/8 ELBOW 		8-94338-418-1 01 1 0904-
273 NUT; MAG VLV
M8 FLANGE 		0-91180-108-0 02 1 0904-
273 NUT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE 		0-91180-108-0 02 1 0904-
282 BRACKET; MAG VLV
(C) 		1-82569-298-0 01 1 0904-
282 BRACKET; MAG VLV
(A) 		8-97609-722-0 01 1 0904-
282 BRACKET; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-82569-358-0 01 1 0904-
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 02 1 0904-
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 03 1 0904-
284 BOLT; MAG VLV
(E) M6X60 FLANGE 		0-28050-660-0 02 1 0904-
284 BOLT; MAG VLV
(D) M8X60 FLANGE 		0-28050-860-0 02 1 0904-
284 BOLT; MAG VLV
(C) M8X14 FLANGE 		0-28080-814-0 02 1 0904-
284 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 03 1 0904-
284 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE 		0-28050-650-0 01 1 0904-
284 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE 		0-28650-820-0 02 1 0904-
285 NUT; MAG VLV
(B) M5 		0-91110-505-0 03 1 0904-
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91180-106-0 03 1 0904-
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91180-106-0 04 1 0904-
285 NUT; MAG VLV
(C) M8 FLANGE 		0-91180-108-0 02 1 0904-
285 NUT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6 FLANGE 		0-91180-106-0 01 1 0904-
287 BOLT; BRKT FIX
M8X30 FLANGE 		0-28650-830-0 02 1 0904-
424 ADAPTER
(A) M16 & PT3/8 STRAIGHT 		1-09661-044-0 01 1 0904-
424 ADAPTER
(B) PT3/8 		1-09664-210-0 02 1 0904-
450 VALVE; MAG
(B) 		1-48240-345-0 01 1 0904-
450 VALVE; MAG
(A) 		1-53458-378-2 01 1 0904-
625 GASKET; CONNECTOR
ID=16.2 OD=24 		9-09571-416-0 01 1 0904-

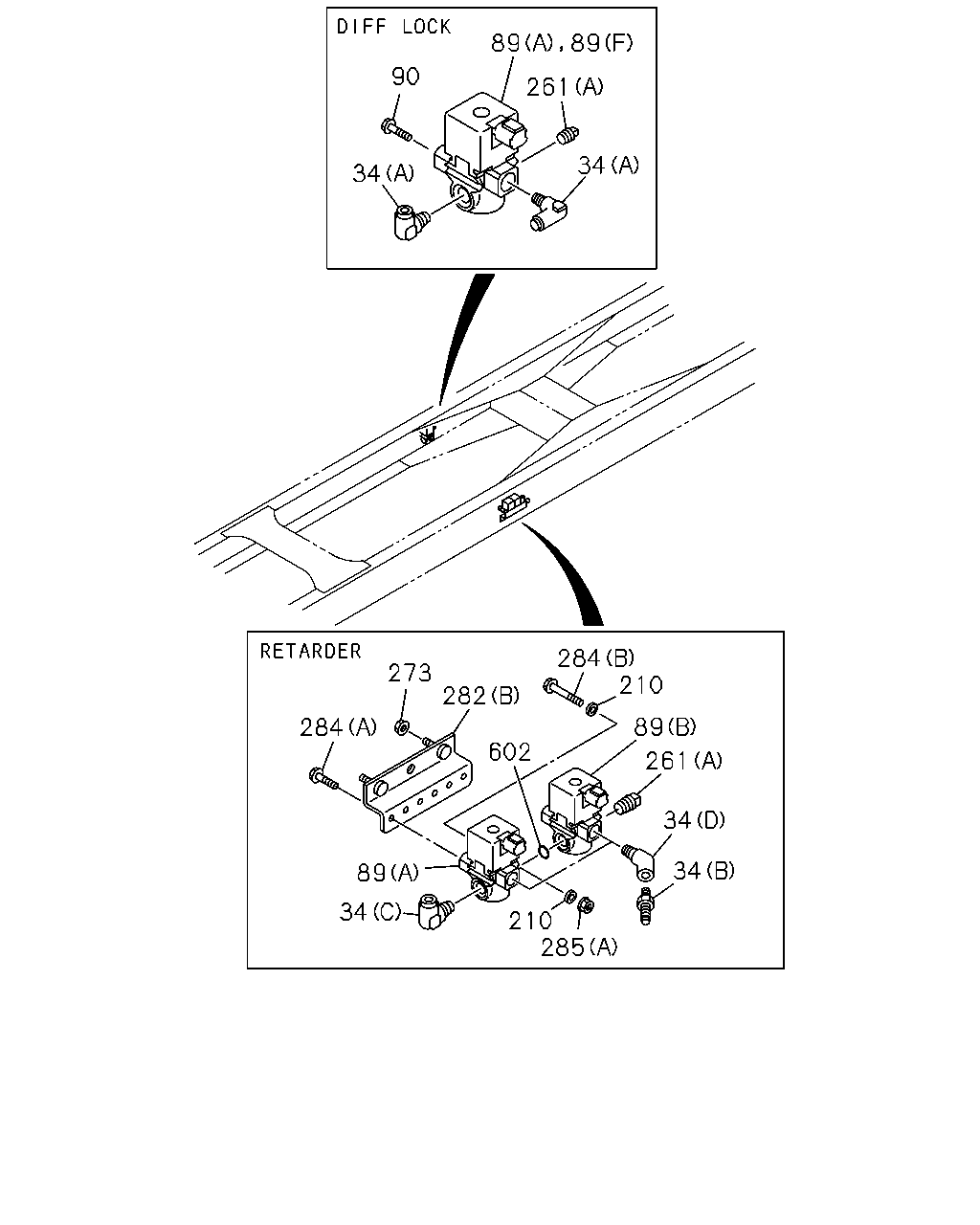

çizim 143834
90 34 89 89 261 34 273 282 284 210 89 261 34 34 285 210 34 89 284 602
BalonParca AdiParca NoAdetTipApplied Date
34 CONNECTOR; MAG VLV,INL PORT
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0904-
34 CONNECTOR; MAG VLV,INL PORT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 02 1 0904-
34 CONNECTOR; MAG VLV,INL PORT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0904-
34 CONNECTOR; MAG VLV,INL PORT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) R1/4 & RC1/4 		1-09664-211-0 02 1 0904-
89 VALVE; MAG,DIFF LOCK
(F) 		8-97641-594-0 01 1 1206-
89 VALVE; MAG,DIFF LOCK
(A) 		1-82563-871-2 01 1 0904-1205
89 VALVE; MAG,DIFF LOCK
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-82563-871-2 01 1 0904-1205
89 VALVE; MAG,DIFF LOCK
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-82563-871-2 01 1 1206-
89 VALVE; MAG,DIFF LOCK
(D) 		1-82564-094-2 01 1 0904-
89 VALVE; MAG,DIFF LOCK
(E) 		1-82564-095-1 02 1 0904-
89 VALVE; MAG,DIFF LOCK
(C) 		1-82564-407-1 01 1 0904-
89 VALVE; MAG,DIFF LOCK
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-82563-872-1 01 1 0904-
90 BOLT; MAG VLV
M8X25 FLANGE 		0-28650-825-0 02 1 0904-
210 WASHER; PL,BRKT 1-82569-266-0 04 1 0904-
210 WASHER; PL,BRKT 1-82569-266-0 06 1 0904-
210 WASHER; PL,BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82569-266-0 02 1 0904-
261 PLUG; MAG VLV
(B) PT3/8 		9-09204-517-0 01 1 0904-
261 PLUG; MAG VLV
(A) PT1/4 		9-99204-513-0 01 1 0904-
261 PLUG; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) PT1/4 		9-99204-513-0 01 1 0904-
261 PLUG; MAG VLV
(A) PT1/4 		9-99204-513-0 01 1 0904-
273 NUT; MAG VLV
M8 FLANGE 		0-91180-108-0 02 1 0904-
273 NUT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE 		0-91180-108-0 02 1 0904-
282 BRACKET; MAG VLV
(C) 		1-82569-298-0 01 1 0904-
282 BRACKET; MAG VLV
(A) 		8-97609-722-0 01 1 0904-
282 BRACKET; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-82569-358-0 01 1 0904-
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 02 1 0904-
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 03 1 0904-
284 BOLT; MAG VLV
(E) M6X60 FLANGE 		0-28050-660-0 02 1 0904-
284 BOLT; MAG VLV
(D) M8X60 FLANGE 		0-28050-860-0 02 1 0904-
284 BOLT; MAG VLV
(C) M8X14 FLANGE 		0-28080-814-0 02 1 0904-
284 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 03 1 0904-
284 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE 		0-28050-650-0 01 1 0904-
284 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE 		0-28650-820-0 02 1 0904-
285 NUT; MAG VLV
(B) M5 		0-91110-505-0 03 1 0904-
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91180-106-0 03 1 0904-
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91180-106-0 04 1 0904-
285 NUT; MAG VLV
(C) M8 FLANGE 		0-91180-108-0 02 1 0904-
285 NUT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6 FLANGE 		0-91180-106-0 01 1 0904-
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 02 1 0904-
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 03 1 0904-
602 GASKET; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8 		9-09565-117-0 01 1 0904-

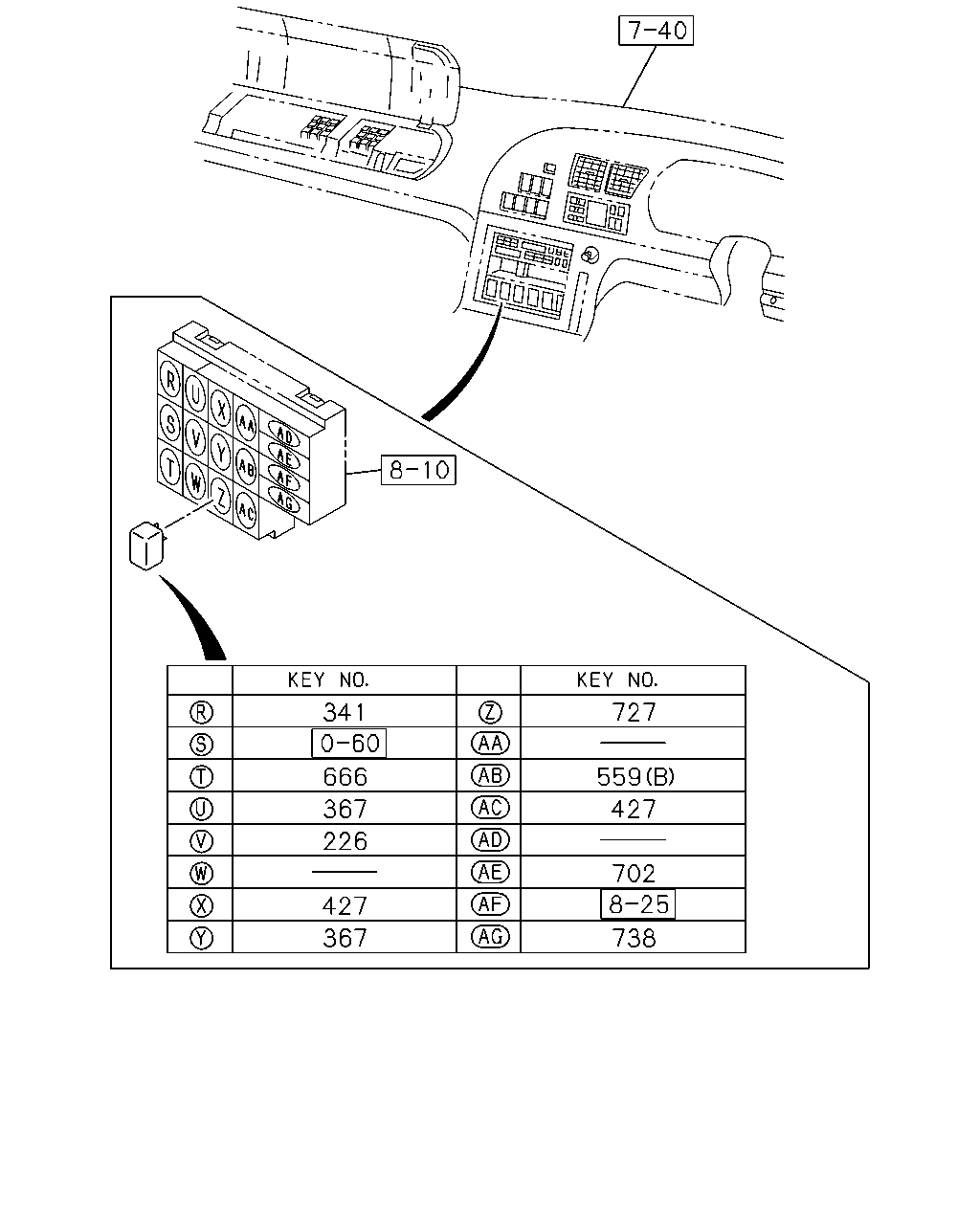

çizim 143853
341 727 666 559 367 427 226 702 427 367 738
BalonParca AdiParca NoAdetTipApplied Date
226 RELAY; EXH BRK
24V 10A PANASONIC 		8-97173-035-1 01 1 0904-
341 RELAY
24V 10A PANASONIC 		8-97173-035-1 01 1 0904-
367 RELAY; NEUTRAL
24V 10A PANASONIC 		8-97173-035-1 01 1 0904-
367 RELAY; NEUTRAL
24V 10A PANASONIC 		8-97173-035-1 01 1 0904-
427 RELAY; RETARDER
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 24V 10A PANASONIC 		8-97173-035-1 02 1 0904-
559 RELAY; MAG VLV
(B) 24V 10A PANASONIC 		8-97173-035-1 01 1 0904-
559 RELAY; MAG VLV
(A) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0904-
666 RELAY; STARTER
24V 10A PANASONIC 		8-97173-035-1 01 1 0904-
702 RELAY; EBS
24V 10A PANASONIC 		8-97173-035-1 01 1 0904-
727 RELAY; START CUT
24V 10A PANASONIC 		8-97173-035-1 01 1 0904-1306
727 RELAY; START CUT
24V 10A PANASONIC 		8-98167-173-0 01 1 1307-
738 RELAY; EXH & RETARDER CUT
24V 10A PANASONIC 		8-97173-035-1 01 1 0904-

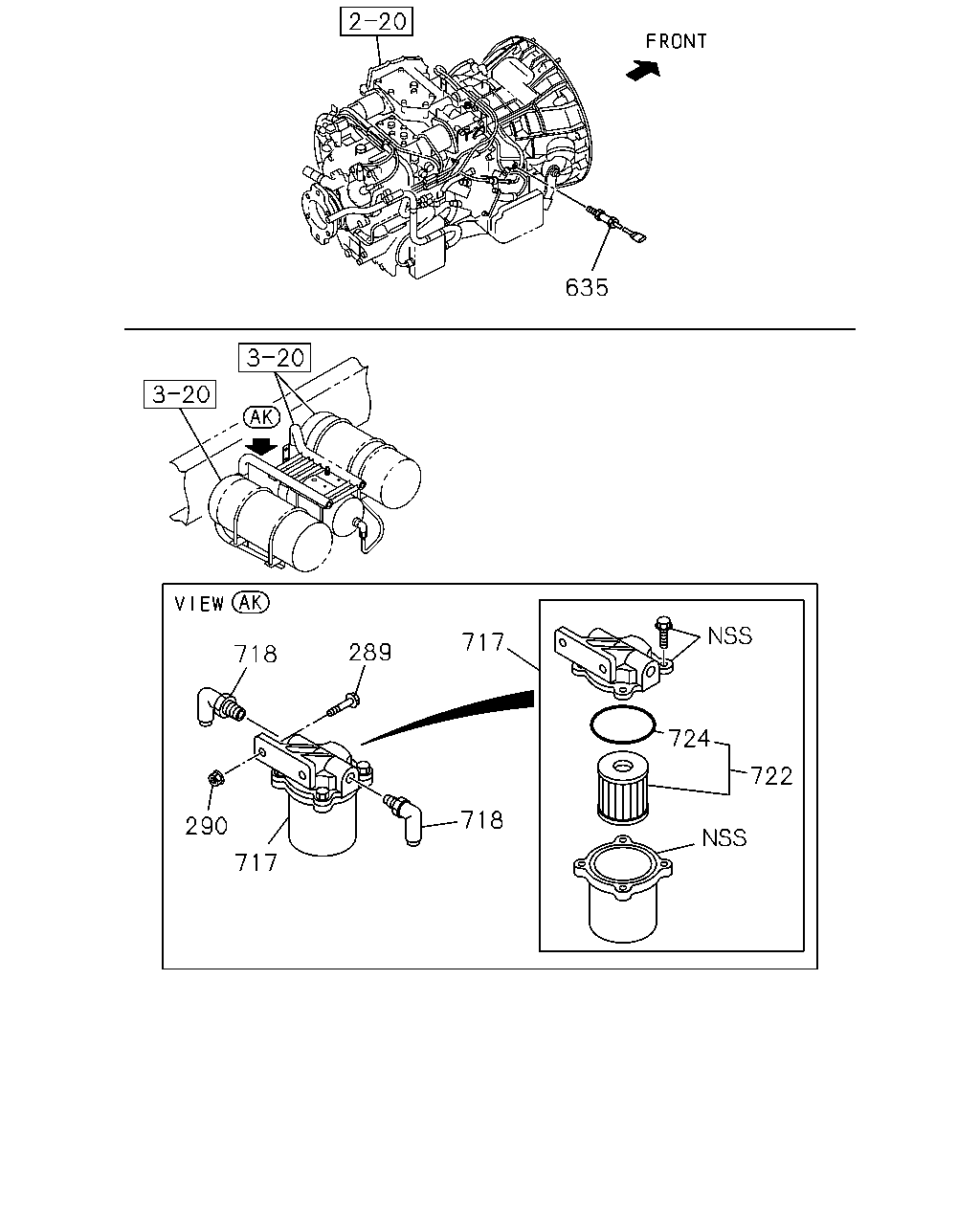

çizim 143876
635 717 289 718 724 722 718 290 717
BalonParca AdiParca NoAdetTipApplied Date
289 BOLT
M8X25 FLANGE 		0-28650-825-0 02 1 0904-
290 NUT
M8 FLANGE 		0-91180-108-0 02 1 0904-
635 SENSOR; PICK UP,INPUT SHAFT 1-81510-736-1 01 1 0904-
717 FILTER; MAG VLV 8-98092-703-0 01 1 0904-
718 CONNECTOR; FILTER
DIN8 & M16 ELBOW 		1-09661-531-0 02 1 0904-
722 ELEMENT; AIR FILTER 1-33779-040-0 01 1 0904-
724 GASKET; AIR FILTER 5-09623-075-0 01 1 0904-

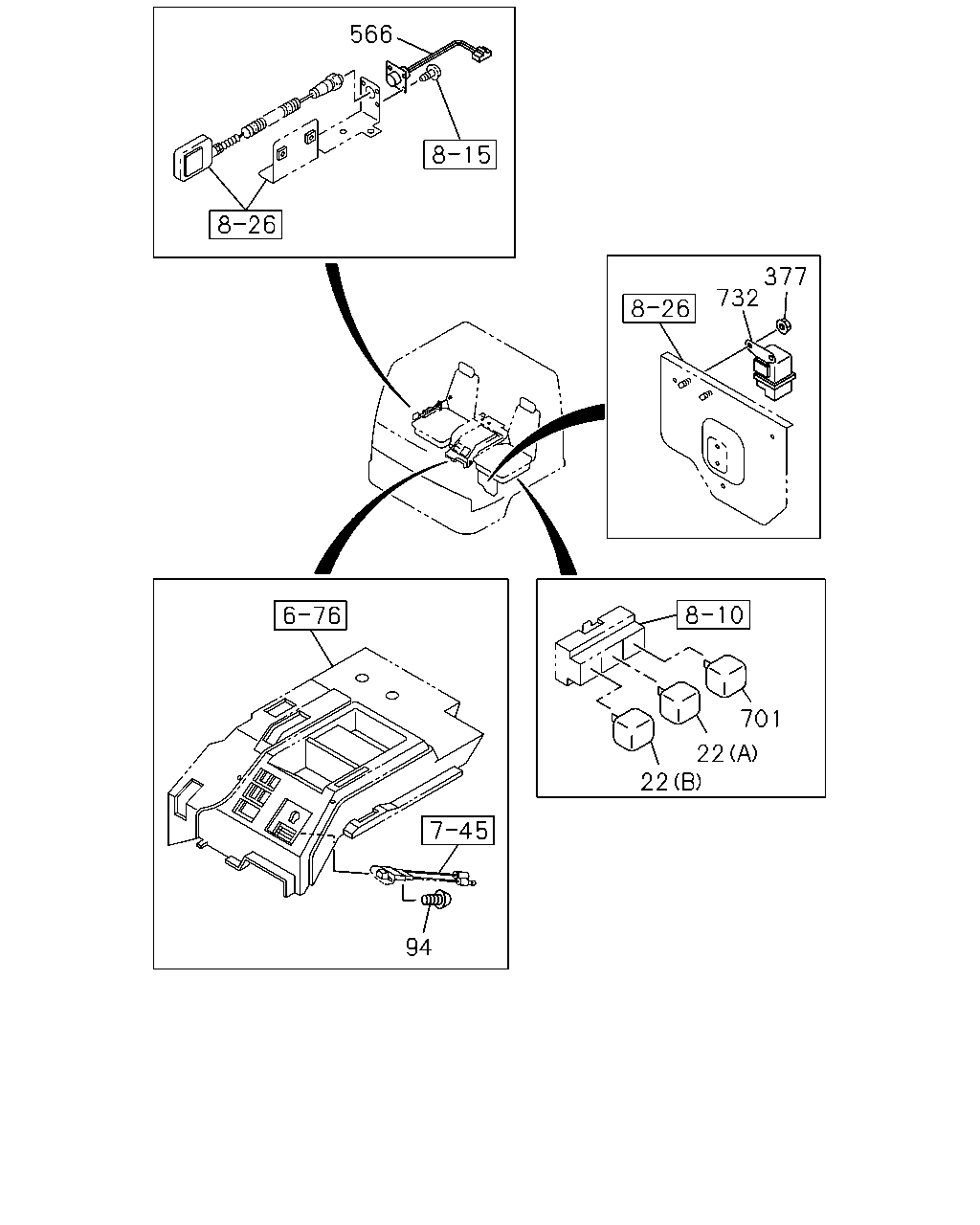

çizim 144067
566 377 732 701 22 22 94
BalonParca AdiParca NoAdetTipApplied Date
22 RELAY; STOP LAMP
(A) 24V 10A PANASONIC 		8-97173-035-1 01 1 0904-
22 RELAY; STOP LAMP
(B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0904-
94 SCREW; CONSENT TO BLIND PNL
M5X10 TAPPING W/PL WASHER 		0-74160-510-0 02 1 0904-
377 NUT; RELAY
M6 FLANGE 		0-91180-106-0 01 1 0904-
377 NUT; RELAY
M6 FLANGE 		0-91180-106-0 02 1 0904-
566 HARNESS; REMOTE CONT 1-82626-888-1 01 1 0904-
701 RELAY; BRK,EBS
24V 10A PANASONIC 		8-97173-035-1 01 1 0904-
732 RELAY; EDS 1-82550-337-1 01 1 0904-

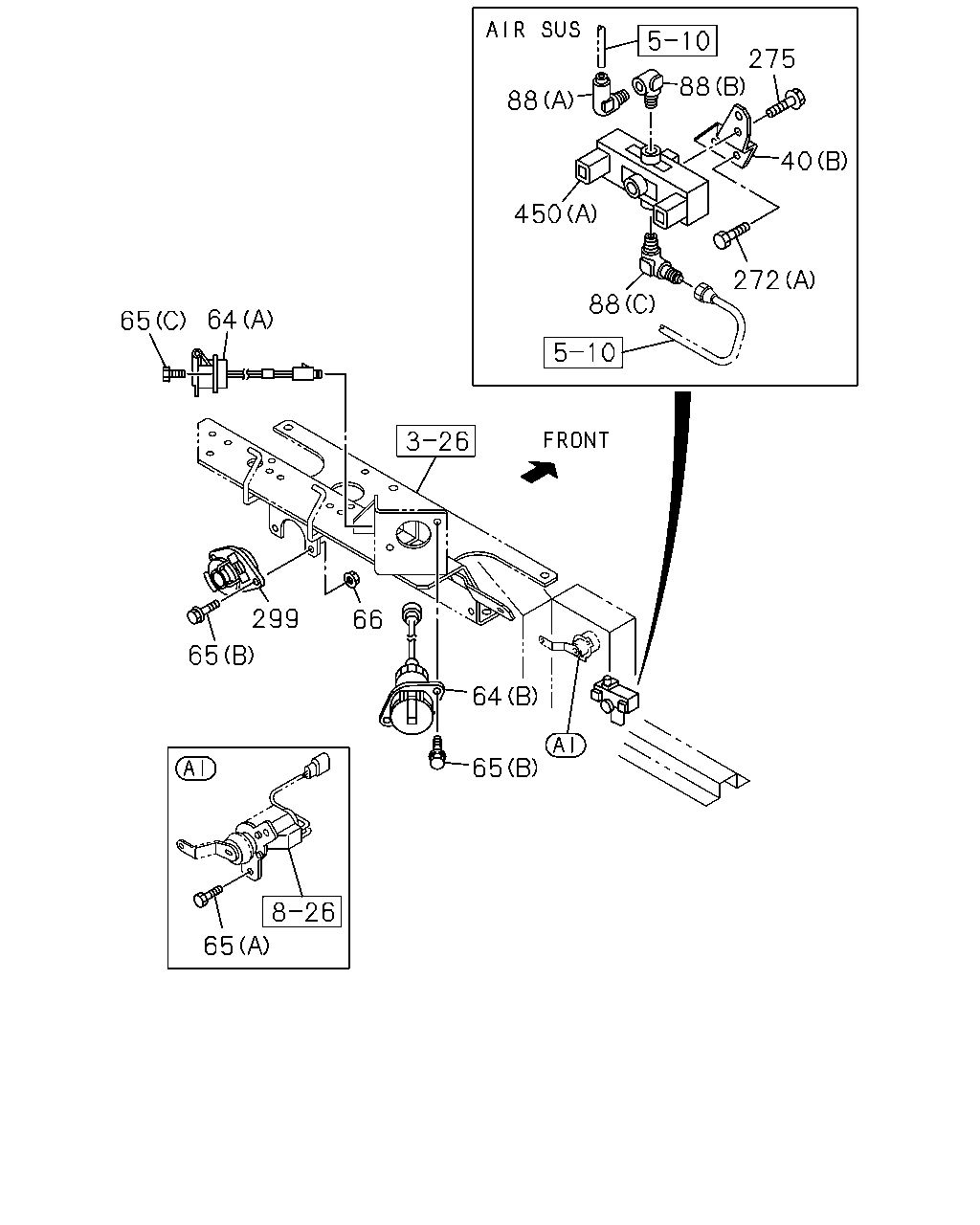

çizim 144075
275 88 88 40 450 272 88 64 65 299 66 64 65 65 65
BalonParca AdiParca NoAdetTipApplied Date
40 BRACKET; MAG VLV
(B) 		1-53458-380-0 01 1 0904-
40 BRACKET; MAG VLV
(C) 		1-82569-425-0 01 1 0904-
40 BRACKET; MAG VLV
(D) 		1-82698-604-0 02 1 0904-
40 BRACKET; MAG VLV
(A) 		1-53457-180-0 01 1 0904-
64 SOCKET; TRAILER
(A) 7P 		1-82523-014-0 01 1 0904-
64 SOCKET; TRAILER
(B) 		1-82698-364-0 01 1 0904-
65 BOLT; SOCKET FIX
(A) M6X16 FLANGE 		0-28050-616-0 02 1 0904-
65 BOLT; SOCKET FIX
(C) M8X25 FLANGE 		0-28650-825-0 02 1 0904-
65 BOLT; SOCKET FIX
(C) M8X25 FLANGE 		0-28650-825-0 04 1 0904-
65 BOLT; SOCKET FIX
(B) M8X25 W/LK&PL WASHER 		0-50640-825-0 04 1 0904-
66 NUT; SOCKET FIX
M8 FLANGE 		0-91180-108-0 01 1 0904-
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0904-
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 04 1 0904-
88 CONNECTOR; MAG VLV
(G) PT1/4 & M12 ELBOW 		1-09656-666-0 01 1 0904-
88 CONNECTOR; MAG VLV
(H) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0904-
88 CONNECTOR; MAG VLV
(J) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0904-
88 CONNECTOR; MAG VLV
(F) DIN8 & R3/8 ELBOW 		1-09660-957-0 05 1 0904-
88 CONNECTOR; MAG VLV
(D) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0904-
88 CONNECTOR; MAG VLV
(K) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 0904-
88 CONNECTOR; MAG VLV
(I) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0904-
88 CONNECTOR; MAG VLV
(A) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 0904-
88 CONNECTOR; MAG VLV
(M) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0904-
88 CONNECTOR; MAG VLV
(L) PT3/8 4WAY 		1-09661-489-0 01 1 0904-
88 CONNECTOR; MAG VLV
(E) DIN8 & M16 ELBOW 		1-09661-531-0 01 1 0904-
88 CONNECTOR; MAG VLV
(B) PT1/8 ELBOW 		8-94338-418-1 01 1 0904-
272 BOLT; MAG VLV
(A) M10X20 FLANGE 		0-28651-020-0 02 1 0904-1208
272 BOLT; MAG VLV
(A) M10X25 FLANGE 		0-28651-025-0 02 1 1209-
272 BOLT; MAG VLV
(B) M10X30 FLANGE 		0-28651-030-0 02 1 0904-
275 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0904-
275 BOLT; BRKT
M8X14 FLANGE 		0-28080-814-0 01 1 0904-
299 SOCKET; PARKING 1-82699-396-2 01 1 0904-
450 VALVE; MAG
(B) 		1-48240-345-0 01 1 0904-
450 VALVE; MAG
(A) 		1-53458-378-2 01 1 0904-

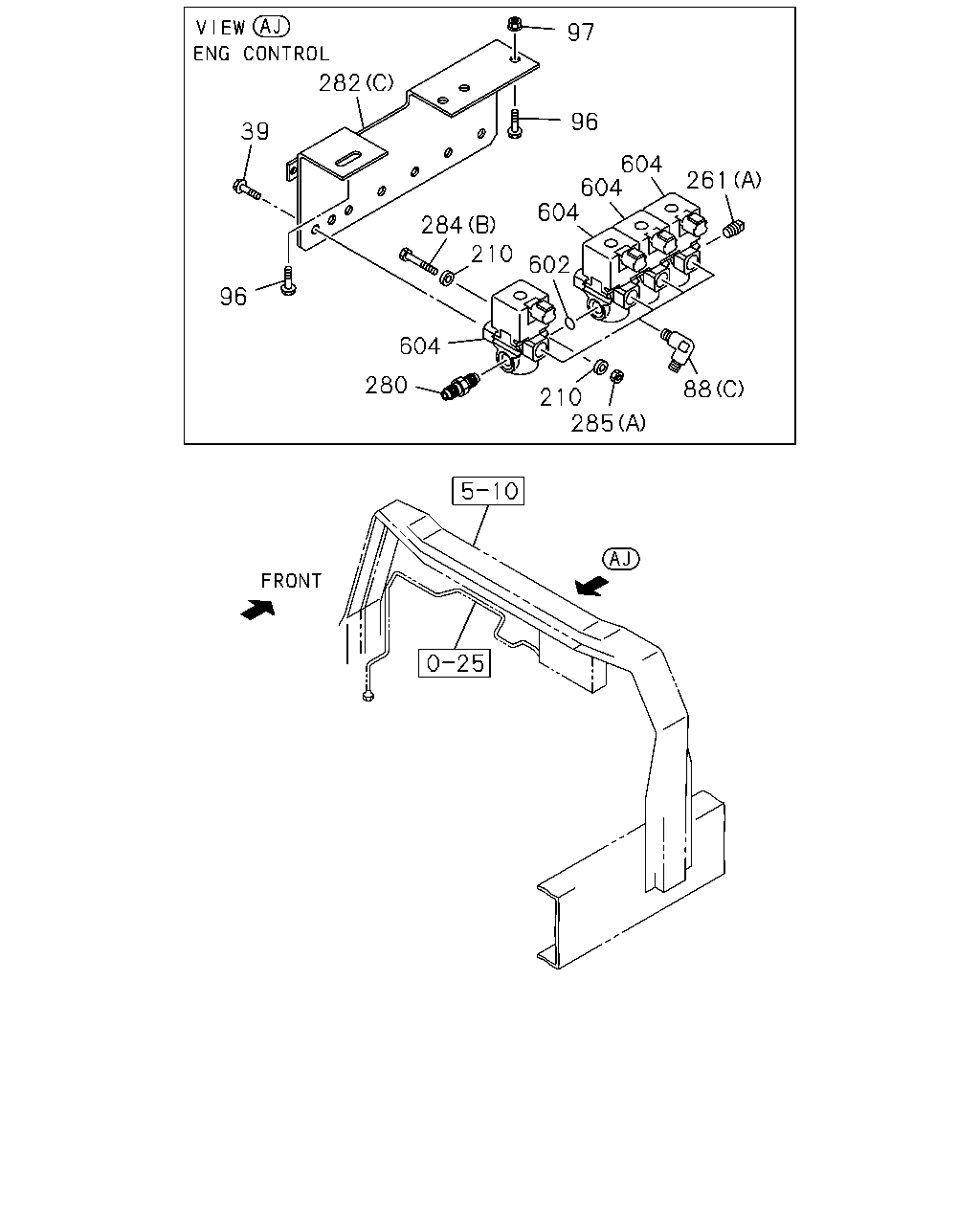

çizim 144111
97 282 96 39 604 604 604 261 284 210 602 96 604 280 88 210 285
BalonParca AdiParca NoAdetTipApplied Date
39 BOLT; BRKT,MAG VLV
M8X20 FLANGE 		0-28650-820-0 04 1 0904-
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0904-
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 04 1 0904-
88 CONNECTOR; MAG VLV
(G) PT1/4 & M12 ELBOW 		1-09656-666-0 01 1 0904-
88 CONNECTOR; MAG VLV
(H) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0904-
88 CONNECTOR; MAG VLV
(J) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0904-
88 CONNECTOR; MAG VLV
(F) DIN8 & R3/8 ELBOW 		1-09660-957-0 05 1 0904-
88 CONNECTOR; MAG VLV
(D) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0904-
88 CONNECTOR; MAG VLV
(K) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 0904-
88 CONNECTOR; MAG VLV
(I) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0904-
88 CONNECTOR; MAG VLV
(A) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 0904-
88 CONNECTOR; MAG VLV
(M) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0904-
88 CONNECTOR; MAG VLV
(L) PT3/8 4WAY 		1-09661-489-0 01 1 0904-
88 CONNECTOR; MAG VLV
(E) DIN8 & M16 ELBOW 		1-09661-531-0 01 1 0904-
88 CONNECTOR; MAG VLV
(B) PT1/8 ELBOW 		8-94338-418-1 01 1 0904-
96 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 01 1 0904-
96 BOLT; BRKT FIX
M10X30 FLANGE 		0-28651-030-0 02 1 0904-
97 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 01 1 0904-
210 WASHER; PL,BRKT 1-82569-266-0 04 1 0904-
210 WASHER; PL,BRKT 1-82569-266-0 06 1 0904-
210 WASHER; PL,BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82569-266-0 02 1 0904-
261 PLUG; MAG VLV
(B) PT3/8 		9-09204-517-0 01 1 0904-
261 PLUG; MAG VLV
(A) PT1/4 		9-99204-513-0 01 1 0904-
261 PLUG; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) PT1/4 		9-99204-513-0 01 1 0904-
261 PLUG; MAG VLV
(A) PT1/4 		9-99204-513-0 01 1 0904-
280 CONNECTOR; IN,MAG VLV
M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0904-
282 BRACKET; MAG VLV
(C) 		1-82569-298-0 01 1 0904-
282 BRACKET; MAG VLV
(A) 		8-97609-722-0 01 1 0904-
282 BRACKET; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-82569-358-0 01 1 0904-
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 02 1 0904-
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 03 1 0904-
284 BOLT; MAG VLV
(E) M6X60 FLANGE 		0-28050-660-0 02 1 0904-
284 BOLT; MAG VLV
(D) M8X60 FLANGE 		0-28050-860-0 02 1 0904-
284 BOLT; MAG VLV
(C) M8X14 FLANGE 		0-28080-814-0 02 1 0904-
284 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 03 1 0904-
284 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE 		0-28050-650-0 01 1 0904-
284 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE 		0-28650-820-0 02 1 0904-
285 NUT; MAG VLV
(B) M5 		0-91110-505-0 03 1 0904-
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91180-106-0 03 1 0904-
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91180-106-0 04 1 0904-
285 NUT; MAG VLV
(C) M8 FLANGE 		0-91180-108-0 02 1 0904-
285 NUT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6 FLANGE 		0-91180-106-0 01 1 0904-
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 02 1 0904-
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 03 1 0904-
602 GASKET; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8 		9-09565-117-0 01 1 0904-
604 VALVE; MAG,ENG CONT 1-82563-871-2 04 1 0904-

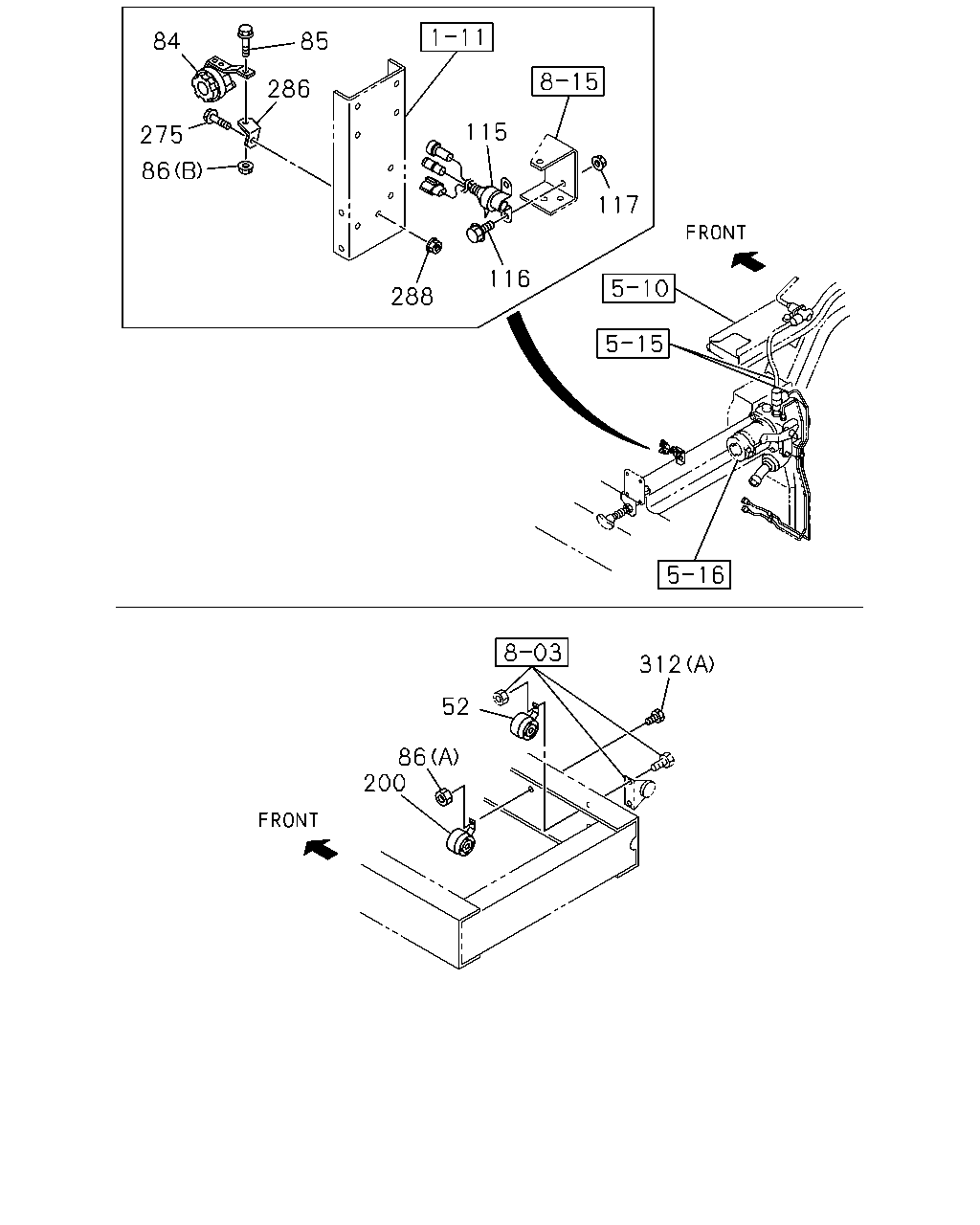

çizim 188244
84 85 286 115 275 86 117 116 288 312 52 86 200
BalonParca AdiParca NoAdetTipApplied Date
52 BUZZER; BACK
METRO DENSO 		8-98069-861-0 01 1 0904-
84 BUZZER; POWER CAB TILT
METRO DENSO 		8-98069-860-0 01 1 0904-
85 BOLT; BUZZER,POWER CAB TILT
M8X20 FLANGE 		0-28650-820-0 01 1 0904-
86 NUT; BUZZER
(B) M8 FLANGE 		0-91180-108-0 01 1 0904-
86 NUT; BUZZER
(A) M10 FLANGE 		0-91180-210-0 01 1 0904-
115 RELAY; POWER CAB TILT UNIT
NIKKO 		1-81171-075-1 01 1 0904-
116 BOLT; RELAY FIX
M8X16 FLANGE 		0-28050-816-0 02 1 0904-
117 NUT; RELAY FIX
M8 FLANGE 		0-91180-108-0 02 1 0904-
200 BUZZER; WARNING,AIR SUSP 1-83460-104-0 01 1 0904-
275 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0904-
275 BOLT; BRKT
M8X14 FLANGE 		0-28080-814-0 01 1 0904-
286 BRACKET 1-82699-199-0 01 1 0904-
288 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 01 1 0904-
312 BOLT; BUZZER
(A) M10X35 FLANGE 		0-28651-035-0 01 1 0904-
312 BOLT; BUZZER
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0904-

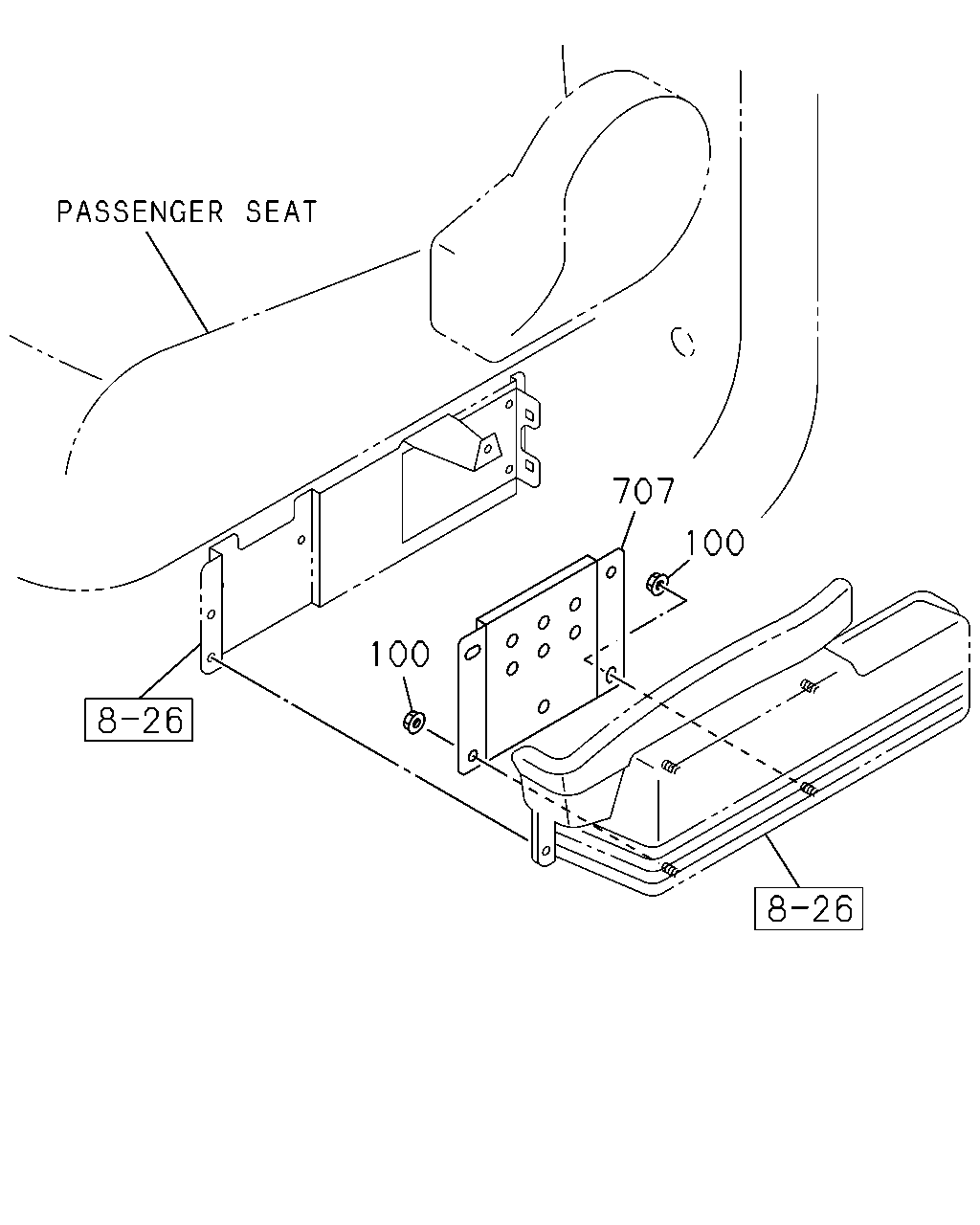

çizim 188245
707 100 100
BalonParca AdiParca NoAdetTipApplied Date
100 NUT; RELAY BOX COVER
M6 FLANGE 		0-91180-106-0 04 1 0904-
707 BOX; BASE BRKT 1-82510-603-1 01 1 0904-

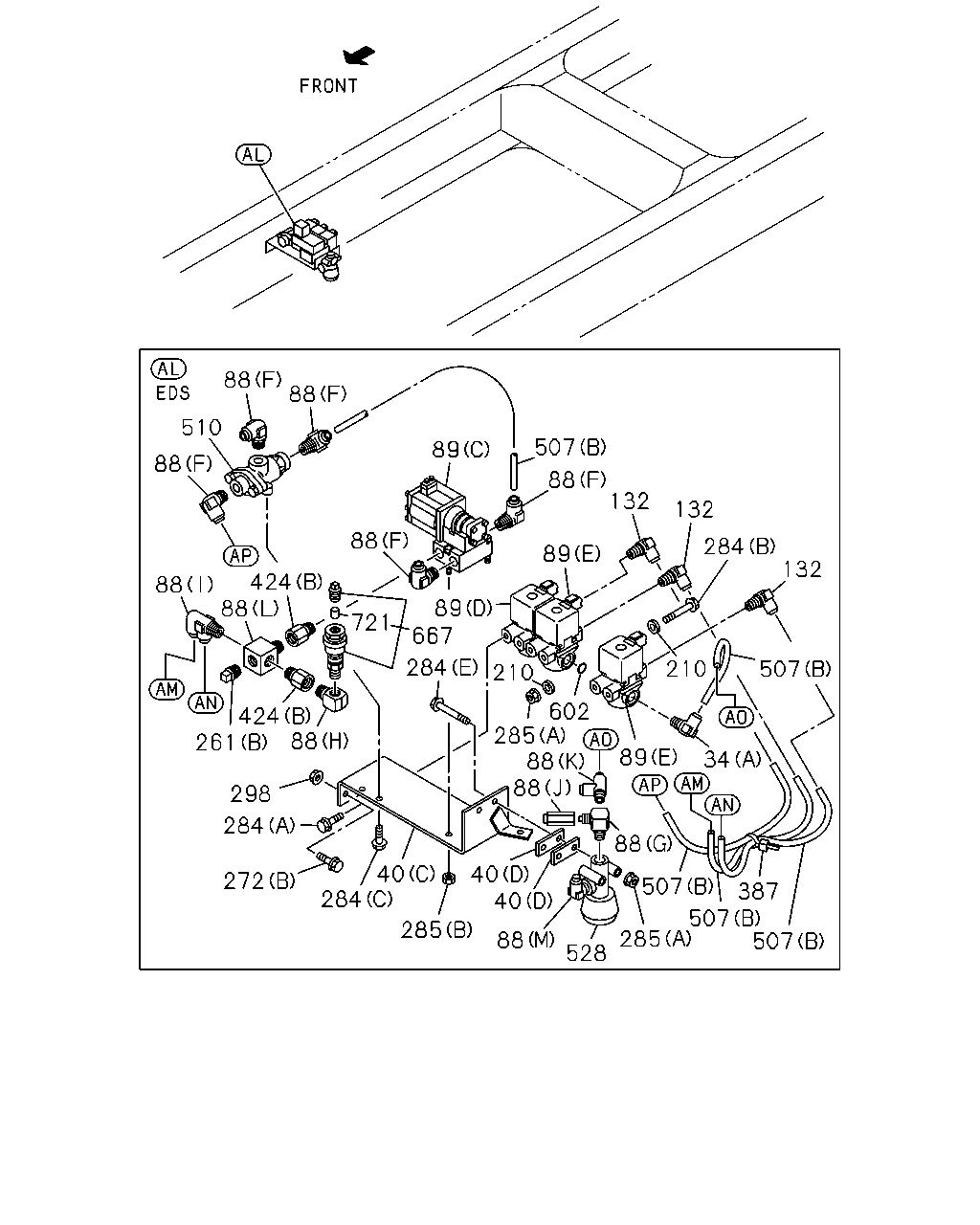

çizim 188246
88 88 510 507 89 88 88 132 132 88 284 132 89 89 667 88 424 88 721 210 284 210 507 602 285 88 89 34 88 424 298 284 88 40 284 40 40 272 507 387 507 507 285 285 88 528 261 88
BalonParca AdiParca NoAdetTipApplied Date
34 CONNECTOR; MAG VLV,INL PORT
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0904-
34 CONNECTOR; MAG VLV,INL PORT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 02 1 0904-
34 CONNECTOR; MAG VLV,INL PORT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0904-
34 CONNECTOR; MAG VLV,INL PORT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) R1/4 & RC1/4 		1-09664-211-0 02 1 0904-
40 BRACKET; MAG VLV
(B) 		1-53458-380-0 01 1 0904-
40 BRACKET; MAG VLV
(C) 		1-82569-425-0 01 1 0904-
40 BRACKET; MAG VLV
(D) 		1-82698-604-0 02 1 0904-
40 BRACKET; MAG VLV
(A) 		1-53457-180-0 01 1 0904-
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0904-
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 04 1 0904-
88 CONNECTOR; MAG VLV
(G) PT1/4 & M12 ELBOW 		1-09656-666-0 01 1 0904-
88 CONNECTOR; MAG VLV
(H) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0904-
88 CONNECTOR; MAG VLV
(J) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0904-
88 CONNECTOR; MAG VLV
(F) DIN8 & R3/8 ELBOW 		1-09660-957-0 05 1 0904-
88 CONNECTOR; MAG VLV
(D) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0904-
88 CONNECTOR; MAG VLV
(K) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 0904-
88 CONNECTOR; MAG VLV
(I) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0904-
88 CONNECTOR; MAG VLV
(A) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 0904-
88 CONNECTOR; MAG VLV
(M) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0904-
88 CONNECTOR; MAG VLV
(L) PT3/8 4WAY 		1-09661-489-0 01 1 0904-
88 CONNECTOR; MAG VLV
(E) DIN8 & M16 ELBOW 		1-09661-531-0 01 1 0904-
88 CONNECTOR; MAG VLV
(B) PT1/8 ELBOW 		8-94338-418-1 01 1 0904-
89 VALVE; MAG,DIFF LOCK
(F) 		8-97641-594-0 01 1 1206-
89 VALVE; MAG,DIFF LOCK
(A) 		1-82563-871-2 01 1 0904-1205
89 VALVE; MAG,DIFF LOCK
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-82563-871-2 01 1 0904-1205
89 VALVE; MAG,DIFF LOCK
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-82563-871-2 01 1 1206-
89 VALVE; MAG,DIFF LOCK
(D) 		1-82564-094-2 01 1 0904-
89 VALVE; MAG,DIFF LOCK
(E) 		1-82564-095-1 02 1 0904-
89 VALVE; MAG,DIFF LOCK
(C) 		1-82564-407-1 01 1 0904-
89 VALVE; MAG,DIFF LOCK
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-82563-872-1 01 1 0904-
132 CONNECTOR; OUTLET,MAG VLV
DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0904-
210 WASHER; PL,BRKT 1-82569-266-0 04 1 0904-
210 WASHER; PL,BRKT 1-82569-266-0 06 1 0904-
210 WASHER; PL,BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82569-266-0 02 1 0904-
261 PLUG; MAG VLV
(B) PT3/8 		9-09204-517-0 01 1 0904-
261 PLUG; MAG VLV
(A) PT1/4 		9-99204-513-0 01 1 0904-
261 PLUG; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) PT1/4 		9-99204-513-0 01 1 0904-
261 PLUG; MAG VLV
(A) PT1/4 		9-99204-513-0 01 1 0904-
272 BOLT; MAG VLV
(A) M10X20 FLANGE 		0-28651-020-0 02 1 0904-1208
272 BOLT; MAG VLV
(A) M10X25 FLANGE 		0-28651-025-0 02 1 1209-
272 BOLT; MAG VLV
(B) M10X30 FLANGE 		0-28651-030-0 02 1 0904-
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 02 1 0904-
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 03 1 0904-
284 BOLT; MAG VLV
(E) M6X60 FLANGE 		0-28050-660-0 02 1 0904-
284 BOLT; MAG VLV
(D) M8X60 FLANGE 		0-28050-860-0 02 1 0904-
284 BOLT; MAG VLV
(C) M8X14 FLANGE 		0-28080-814-0 02 1 0904-
284 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 03 1 0904-
284 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE 		0-28050-650-0 01 1 0904-
284 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE 		0-28650-820-0 02 1 0904-
285 NUT; MAG VLV
(B) M5 		0-91110-505-0 03 1 0904-
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91180-106-0 03 1 0904-
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91180-106-0 04 1 0904-
285 NUT; MAG VLV
(C) M8 FLANGE 		0-91180-108-0 02 1 0904-
285 NUT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6 FLANGE 		0-91180-106-0 01 1 0904-
298 NUT; MAG VLV
M10 FLANGE 		0-91180-210-0 02 1 0904-
387 CLIP; BAND
L=350 		1-09707-183-0 01 1 0904-
424 ADAPTER
(A) M16 & PT3/8 STRAIGHT 		1-09661-044-0 01 1 0904-
424 ADAPTER
(B) PT3/8 		1-09664-210-0 02 1 0904-
507 TUBE; NYLON
(A) SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 0904-
507 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 05 1 0904-
510 VALVE; CHECK 1-48410-531-1 01 1 0904-
528 VALVE; PRESSURE REDUCING 1-48410-744-0 01 1 0904-
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 02 1 0904-
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 03 1 0904-
602 GASKET; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8 		9-09565-117-0 01 1 0904-
667 LUBRICATION 8-98063-001-0 01 1 0904-
721 ELEMENT; LUBRICATION 1-33779-028-0 01 1 0904-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
