Isuzu WW
▶
TRUCKS
▶
EXY
▶
11201 - EXY NEW ZEALAND EURO4
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-25 - SWITCH AND RELAY; INSTRUMENT PANEL
▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL
(#68733) — 47 parça
◀

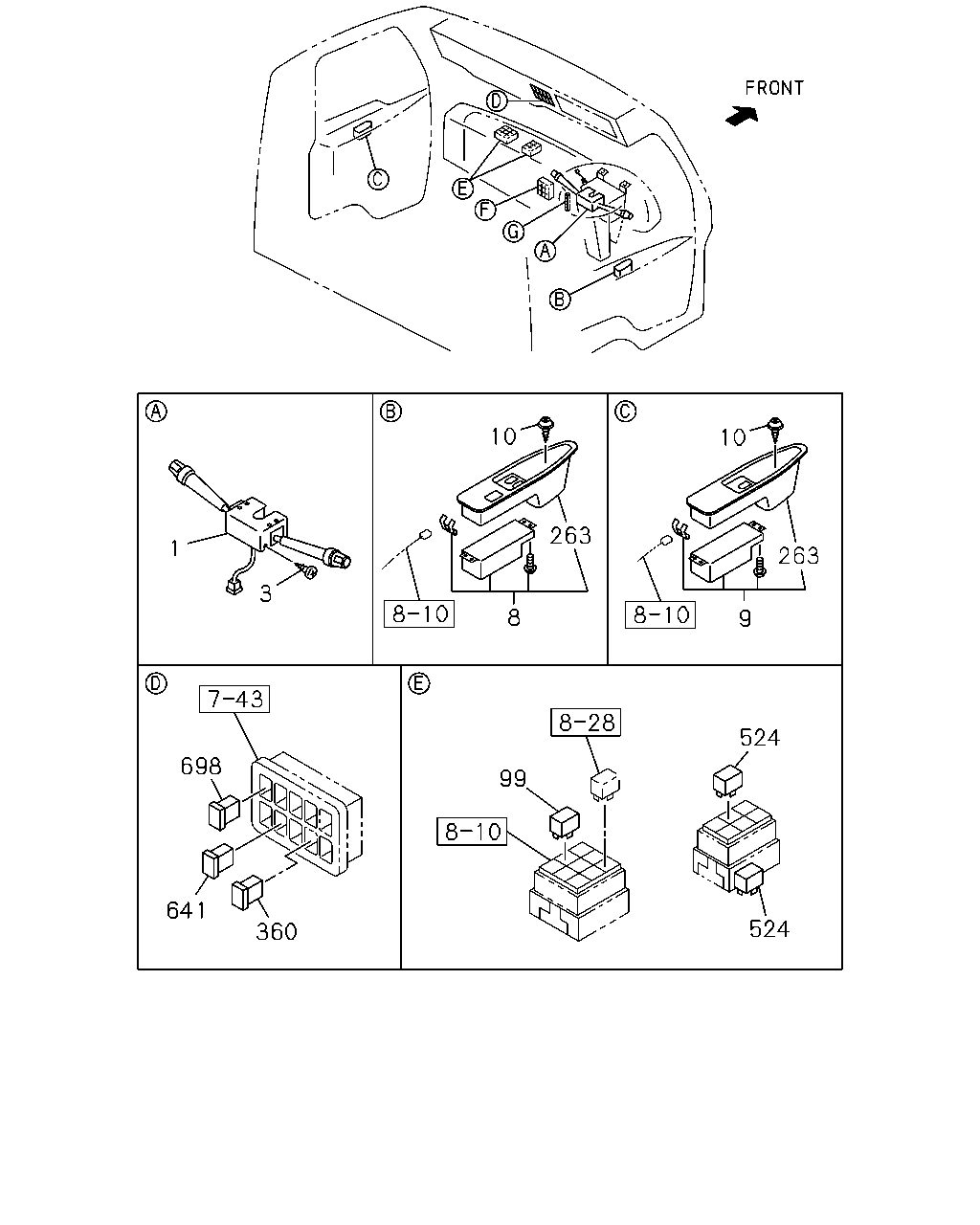

[825A] CAB SIDE NO.2 (12 parça)

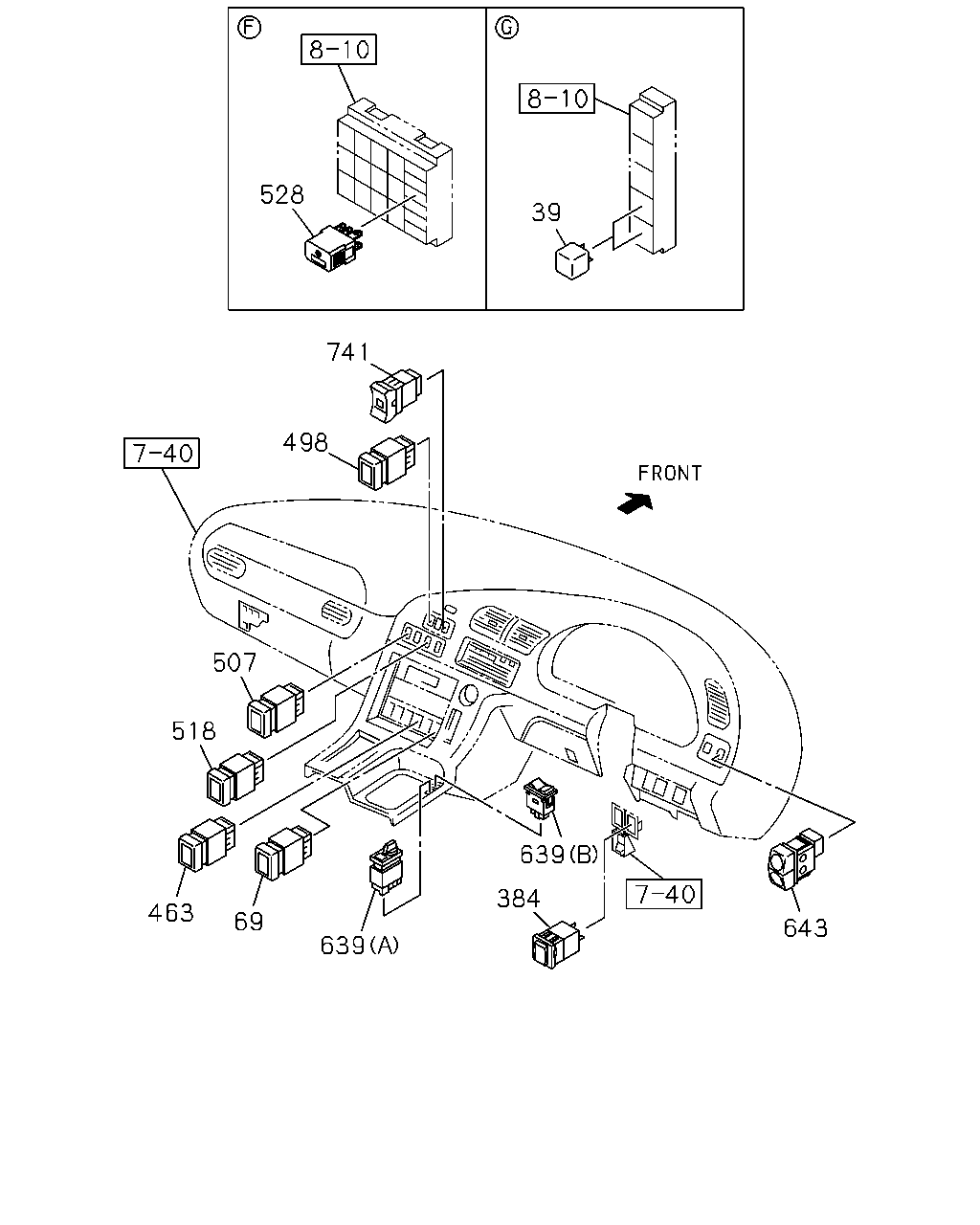

[825A] CAB SIDE NO.1 (13 parça)

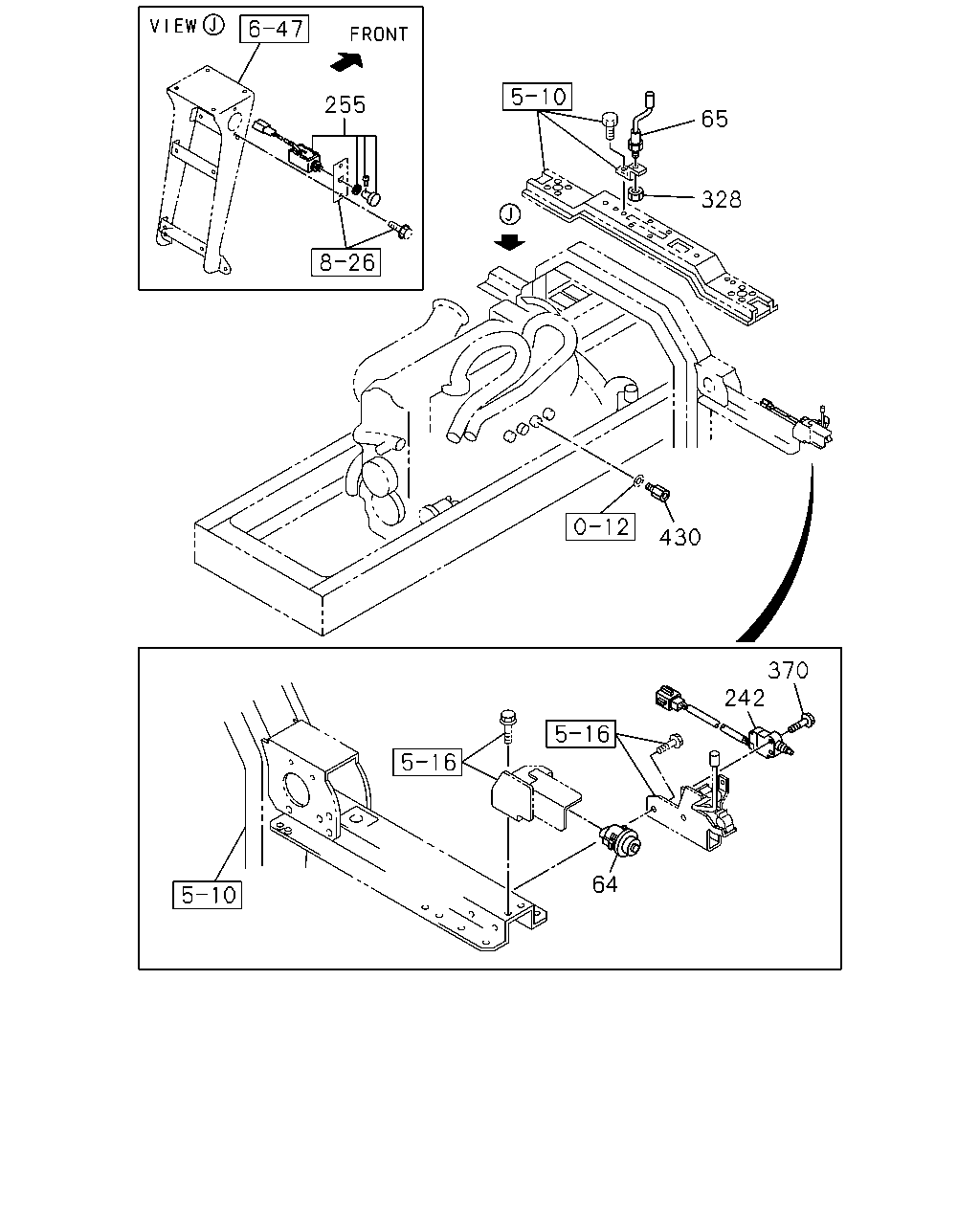

[825A] FRAME SIDE (7 parça)

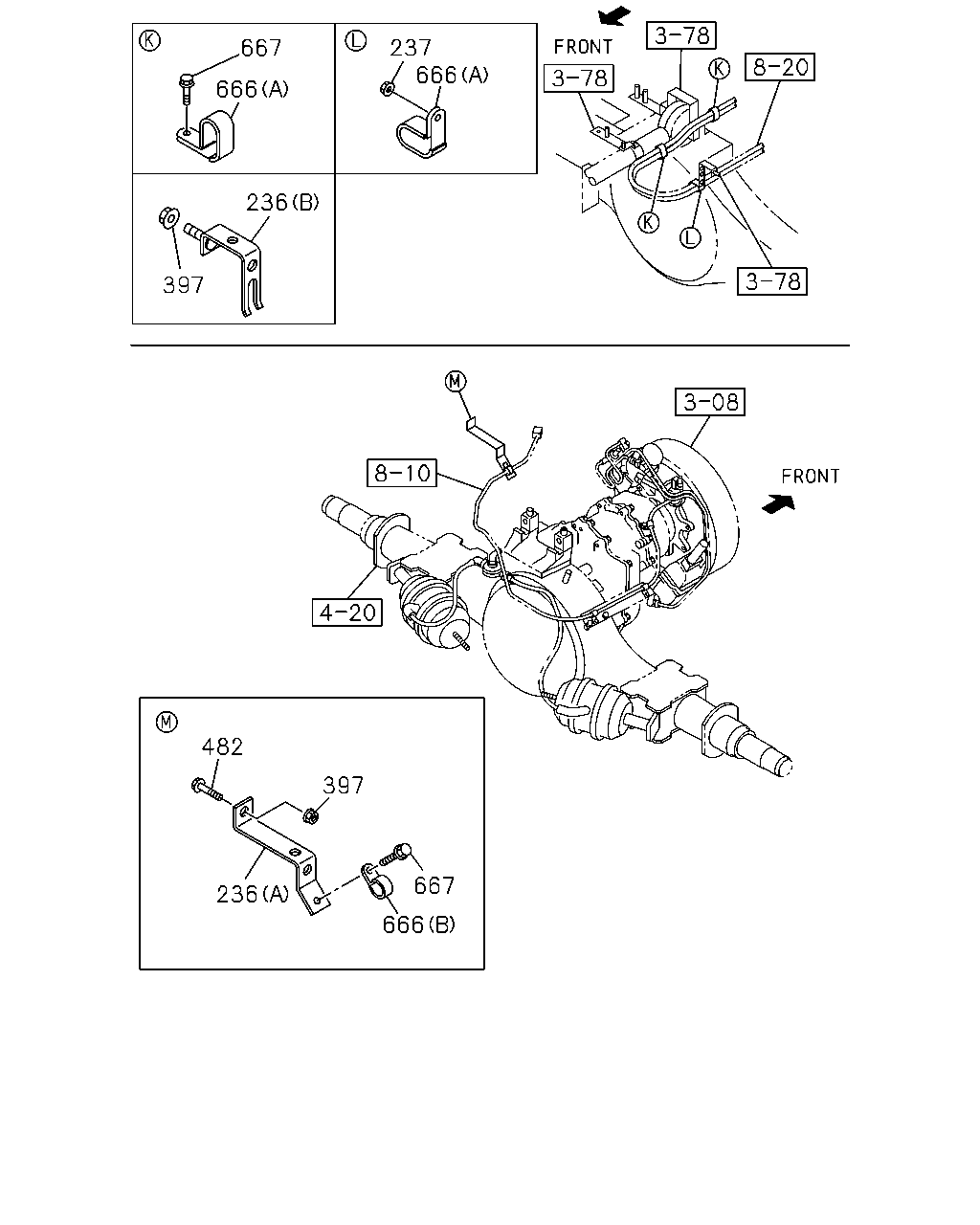

[825A] AXLE SIDE (10 parça)

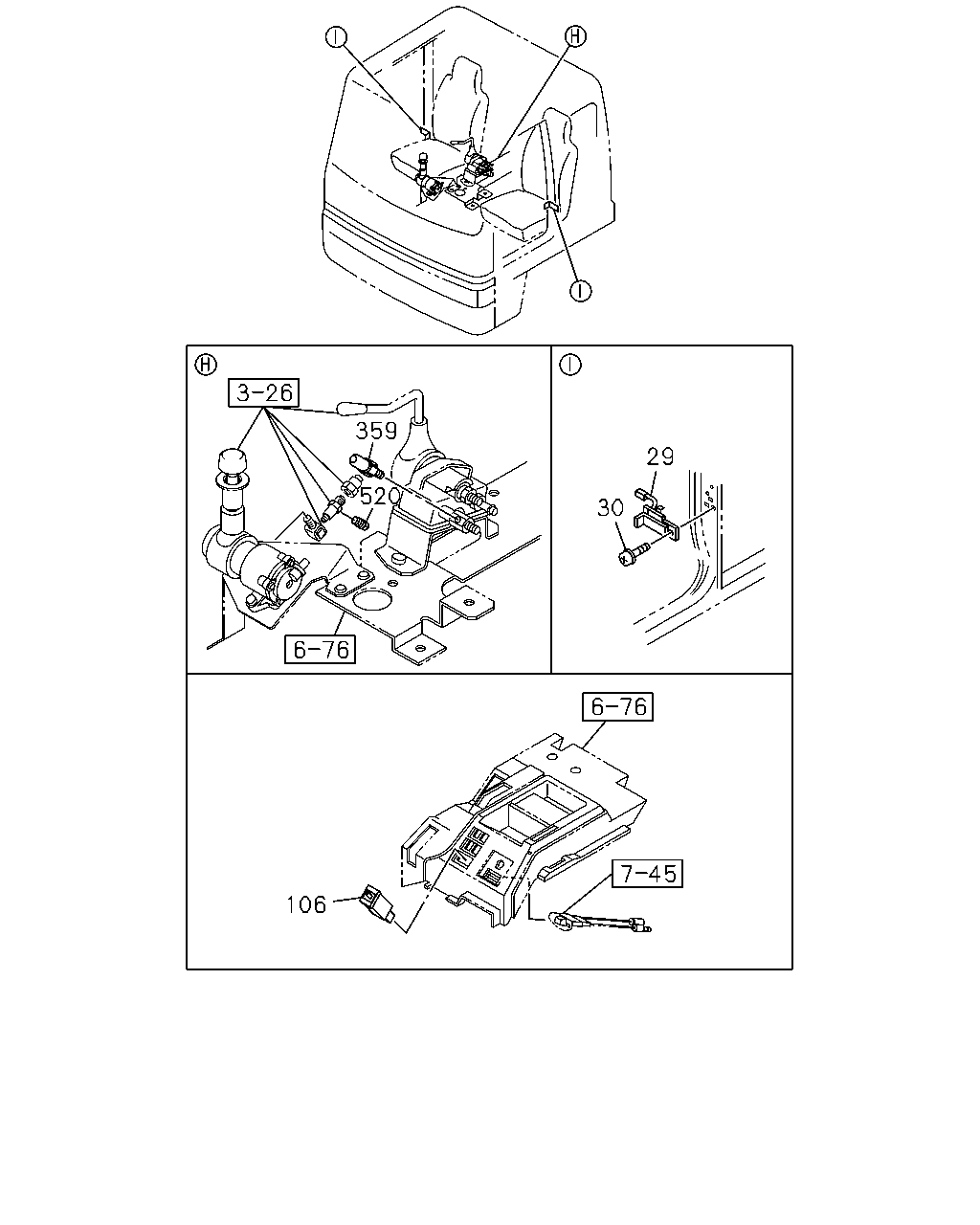

[825A] CAB SIDE NO.3 (5 parça)
▶
528
39
741
498
507
518
639
384
463
69
643
639
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
39
RELAY; DOOR LK
24V 12.5A PANASONIC
8-97262-933-0
02
1
0904-
69
SWITCH; AUTO CRUISE
8-97610-834-0
01
1
0904-
384
SWITCH; IDLING CONT,ELEC
1-82350-213-1
01
1
0904-
463
SWITCH; SPOT LAMP
INSPECTION LAMP<T95>
1-82340-411-0
01
1
0904-
498
SWITCH; ASR
1-82340-642-0
01
1
0904-
507
SWITCH; MIRROR HEATER
1-82340-423-0
01
1
0904-
518
SWITCH; RADIO TUNE
1-82350-231-0
01
1
0904-
528
RELAY; BUZZER
24V 10A PANASONIC
8-97173-035-1
01
1
0904-
639
SWITCH; EMERGENCY
(A)
1-82330-068-0
01
1
0904-
639
SWITCH; EMERGENCY
(B)
1-82350-363-0
01
1
0904-
643
SWITCH; SKIP SHIFT
8-97381-249-0
01
1
0904-
741
SWITCH; TRAILER
8-98147-983-0
01
1
0908-
10
10
263
1
263
3
8
9
524
698
99
641
524
360
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SWITCH; COMB
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>
1-82360-694-2
01
1
0904-
1
SWITCH; COMB
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>
1-82360-695-2
01
1
0904-
3
SCREW; COMB SW
M5X12 TAPPING W/PL WASHER
0-74165-512-0
04
1
0904-
8
SWITCH; POWER WINDOW
DRIVER
1-82380-166-2
01
1
0904-
9
SWITCH; POWER WINDOW
PASSENGER
1-82380-167-1
01
1
0904-
10
SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER
0-74360-516-0
02
1
0904-
99
RELAY; FOG LAMP
24V 12.5A PANASONIC
8-97262-933-0
01
1
0904-
263
COVER; SW
DRIVER
1-82385-005-2
01
1
0904-
263
COVER; SW
PASSENGER
1-82385-006-3
01
1
0904-
360
SWITCH ASM; DIFF LK
1-82340-677-0
01
1
0904-
524
RELAY; LAMP
INSPECTION LAMP<T95> 24V 12.5A PANASONIC
8-97262-933-0
02
1
0904-
641
SWITCH; MAP
8-97615-637-0
01
1
0904-
698
SWITCH; EDS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>
1-82340-698-0
01
1
0904-
255
65
328
430
370
242
64
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
64
SWITCH; CAB TILT MAIN
1-82380-173-2
01
1
0904-
65
SWITCH; CAB TILT LK
STAMP NC
1-82380-125-1
01
1
0904-
242
SWITCH
STAMP NO
1-82380-172-1
01
1
0904-
255
SWITCH; SEARCH LIGHT
INSPECTION LAMP<T95>
8-98106-483-0
01
1
0904-
328
NUT; SW
M16
0-91110-516-0
01
1
0904-
370
BOLT; SW
M6X30 FLANGE
0-28650-630-0
02
1
0904-
430
ADAPTER; SW
M14 & PT1/4 STRAIGHT
1-09669-130-0
01
1
0904-
237
666
667
666
236
397
482
397
667
236
666
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
236
BRACKET; AXLE HARNESS,RR
(B)
1-47479-381-2
01
1
0904-
236
BRACKET; AXLE HARNESS,RR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)
1-82699-996-1
01
1
0904-
237
NUT
M8 FLANGE
0-91180-108-0
01
1
0904-
397
NUT; BRKT FIX
M8 FLANGE
0-91180-108-0
01
1
0904-
397
NUT; BRKT FIX
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE
0-91180-108-0
01
1
0904-
482
BOLT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X30 FLANGE
0-28650-830-0
01
1
0904-
666
CLIP; AXLE HARNESS
(A) ID=11X2 L=20
1-09700-871-0
03
1
0904-
666
CLIP; AXLE HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) ID=11 L=16
0-95235-025-0
01
1
0904-
667
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
02
1
0904-
667
BOLT; CLIP
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X20 FLANGE
0-28650-820-0
01
1
0904-
359
29
520
30
106
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
29
SWITCH; DOOR
8-97855-032-3
02
1
0904-
30
SCREW; DOOR SW
M5X11
1-09981-536-1
02
1
0904-
106
SWITCH; REMOTE CONT MIRROR
1-82350-223-0
02
1
0904-
359
SWITCH; TRAILER BRAKE
STAMP 0.3
8-98010-857-0
01
1
0904-
520
PLUG; CONNECTOR
PT1/4
9-99204-513-0
01
1
0904-
