◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 11201 - EXY NEW ZEALAND EURO4 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#68717) — 30 parça

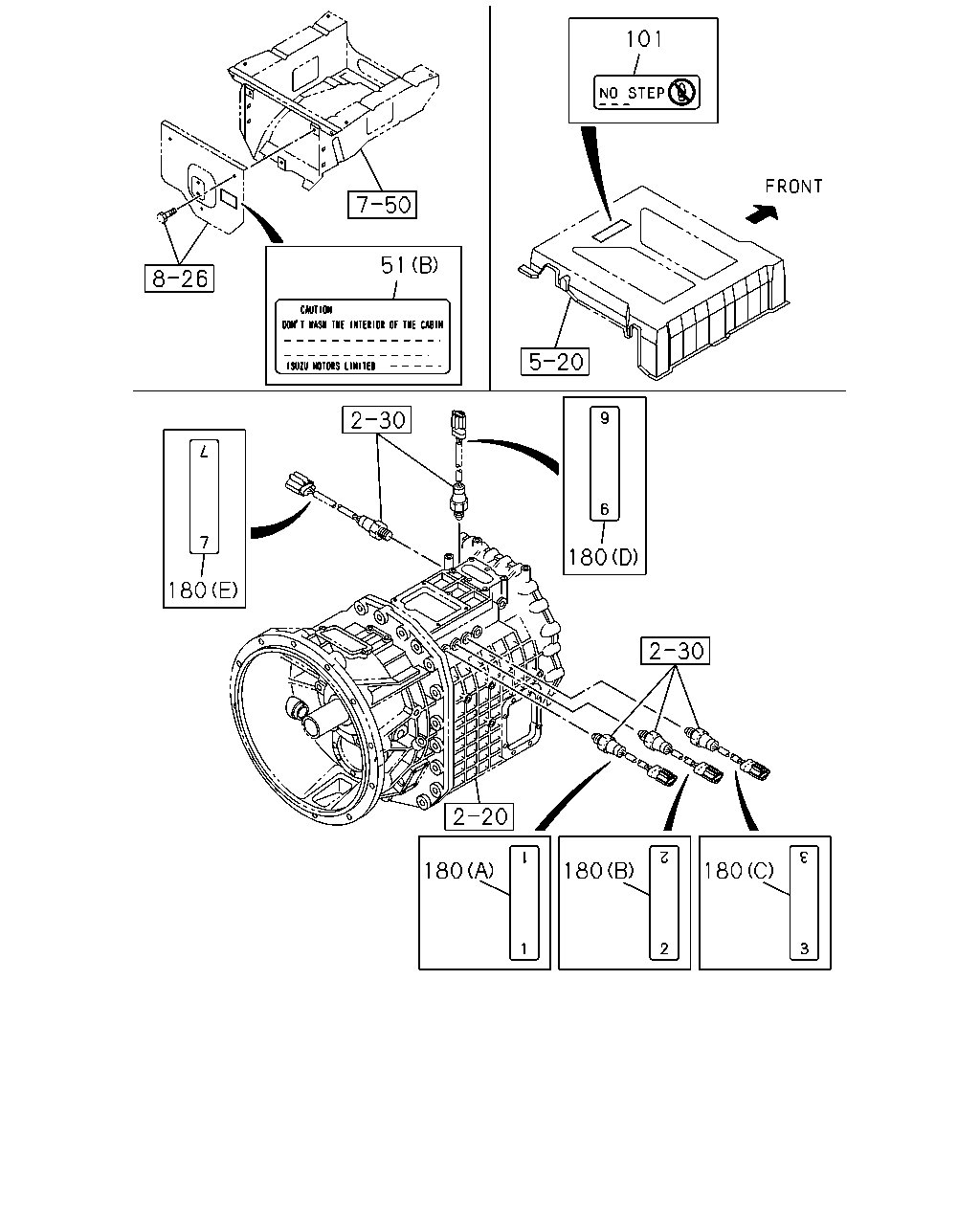

çizim 132728
101 51 180 180 180 180 180
BalonParca AdiParca NoAdetTipApplied Date
51 PLATE; CAUTION,WARNING
(B) 		1-85878-544-0 01 1 0904-
51 PLATE; CAUTION,WARNING
(A) 		1-85880-725-0 01 1 0904-
101 PLATE; CAUTION,NO STEP 8-97624-096-0 01 1 0904-
180 PLATE; CAUTION,SWITCH
(A) 		1-85881-871-0 01 1 0904-
180 PLATE; CAUTION,SWITCH
(B) 		1-85881-872-0 01 1 0904-
180 PLATE; CAUTION,SWITCH
(C) 		1-85881-873-0 01 1 0904-
180 PLATE; CAUTION,SWITCH
(D) 		1-85881-880-0 01 1 0904-
180 PLATE; CAUTION,SWITCH
(E) 		1-85881-881-0 01 1 0904-

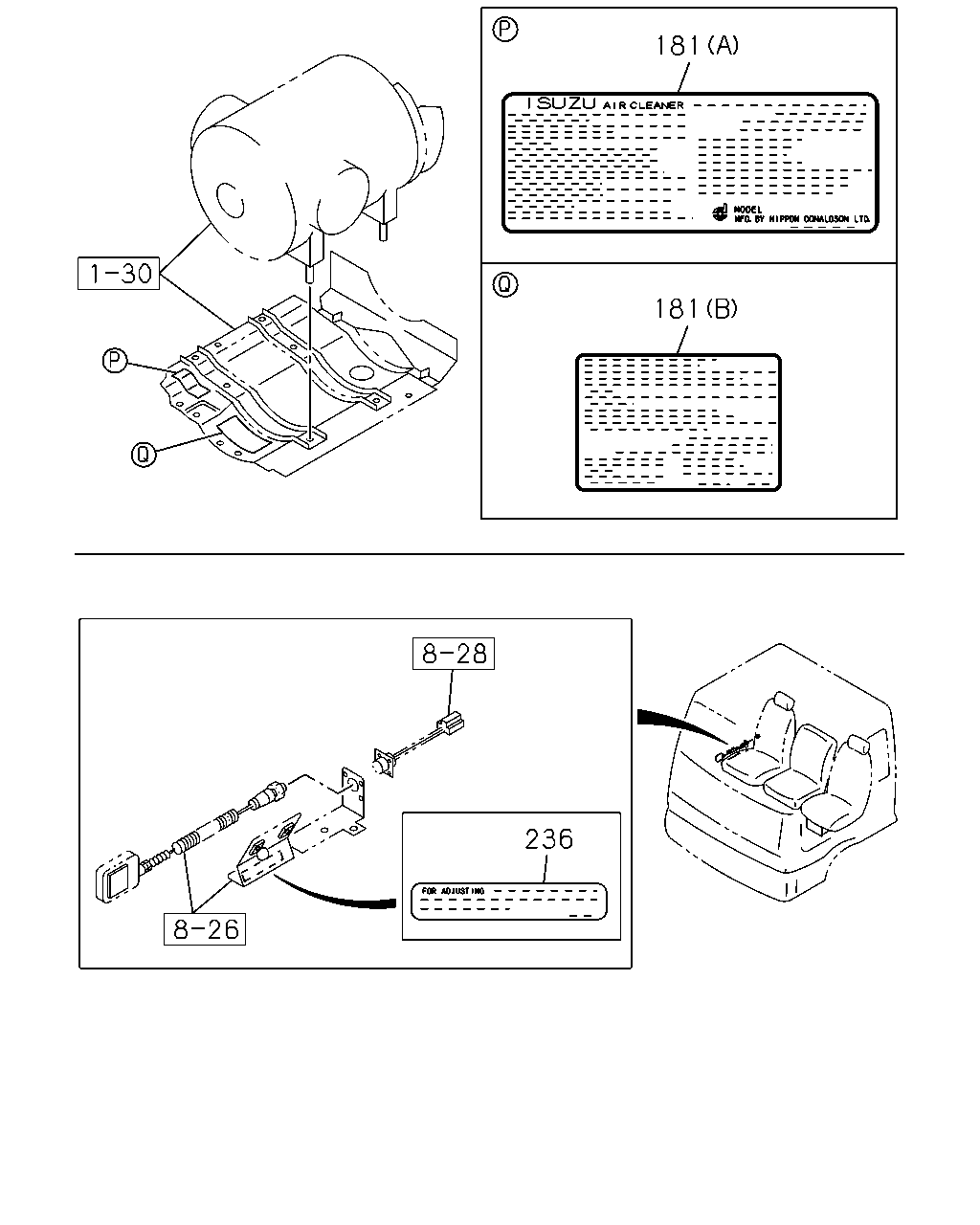

çizim 132957
181 181 236
BalonParca AdiParca NoAdetTipApplied Date
181 PLATE; CAUTION,AIR CLEANER
(A) 		1-85886-796-1 01 1 0904-
181 PLATE; CAUTION,AIR CLEANER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> (B) 		1-85886-813-1 01 1 0904-
236 PLATE; CAUTION,AIR SUS 1-85881-823-0 01 1 0904-

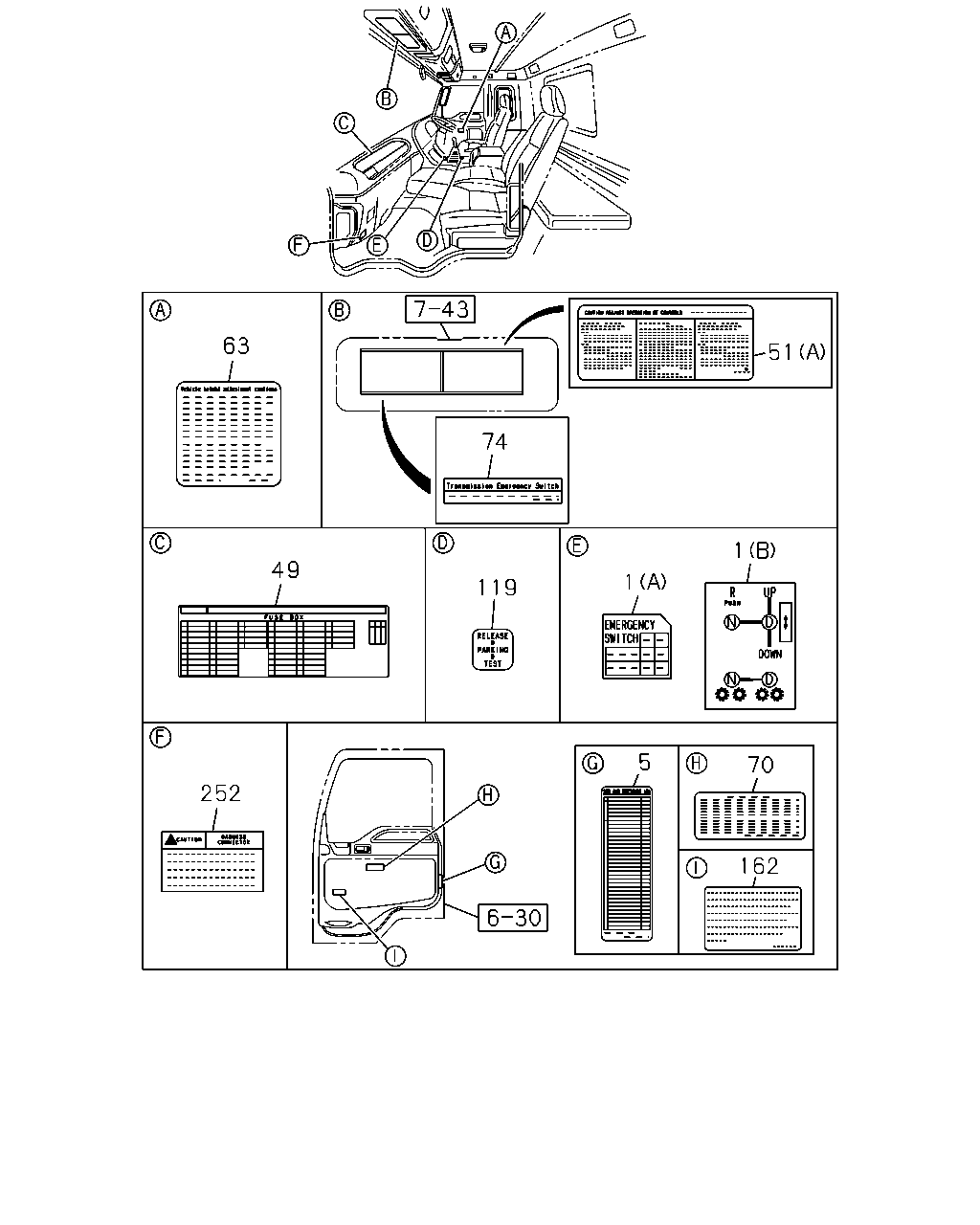

çizim 133167
63 51 74 1 49 1 119 5 70 252 162
BalonParca AdiParca NoAdetTipApplied Date
1 PLATE; CAUTION,SHIFT PATTERN
(B) 		1-85881-798-0 01 1 0904-
1 PLATE; CAUTION,SHIFT PATTERN
(A) 		1-85881-879-1 01 1 0904-
5 LABEL; TIRE AIR PRESSURE 1-85880-778-0 01 1 0904-
49 PLATE; CAUTION,FUSE BOX 8-97632-148-0 01 1 0904-
51 PLATE; CAUTION,WARNING
(B) 		1-85878-544-0 01 1 0904-
51 PLATE; CAUTION,WARNING
(A) 		1-85880-725-0 01 1 0904-
63 PLATE; CAUTION,SEAT AIR 1-85881-861-0 01 1 0904-
70 PLATE; CAUTION,ACT 1-85878-484-0 01 1 0904-
74 PLATE; CAUTION,CHANGE LEV 1-85881-869-0 01 1 0904-
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-791-0 01 1 0904-
162 PLATE; CAUTION,FUEL 8-97623-712-0 01 1 0910-
252 PLATE; CAUTION,HARNESS 1-85878-488-1 01 1 0904-

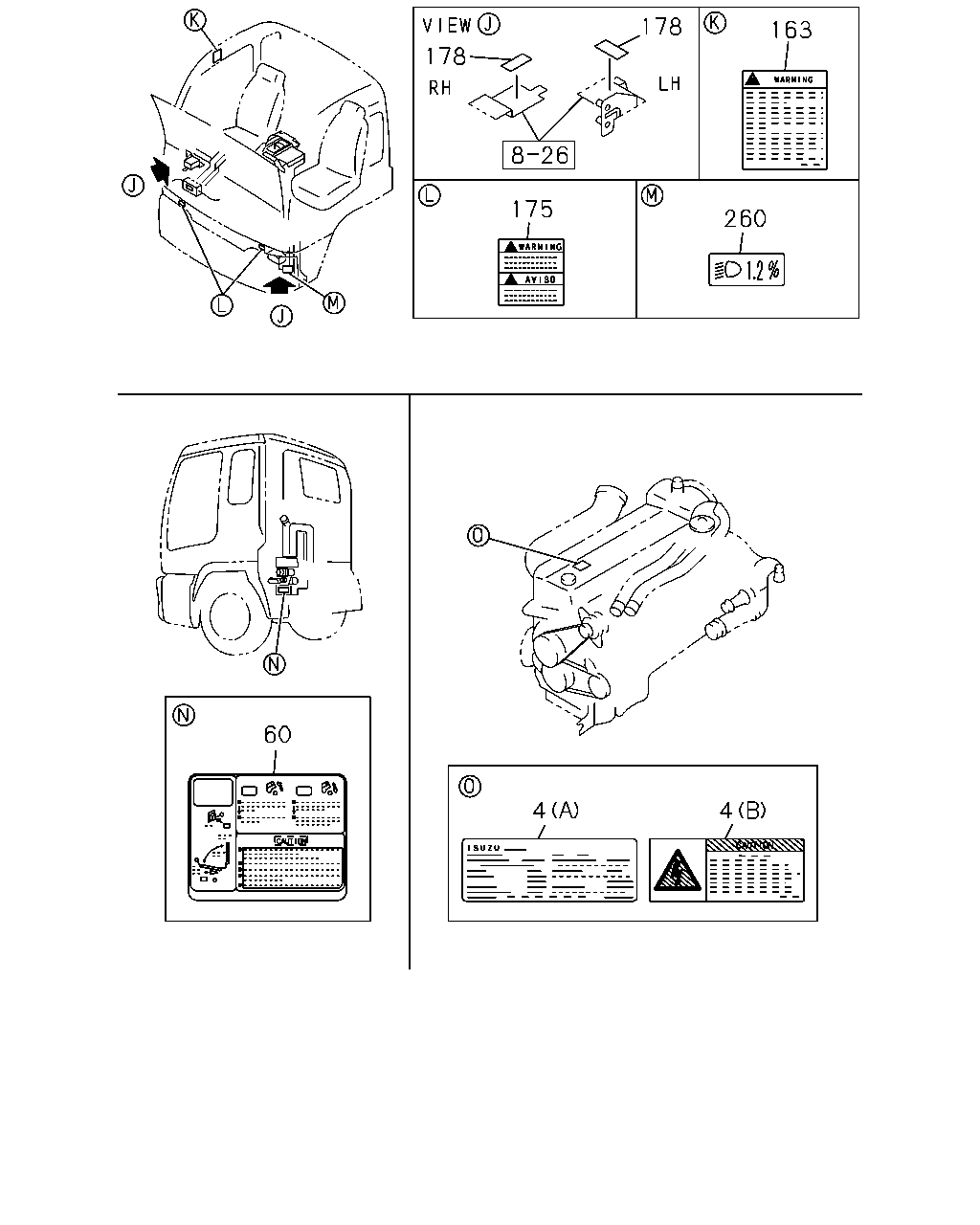

çizim 188265
178 163 178 175 260 60 4 4
BalonParca AdiParca NoAdetTipApplied Date
4 LABEL; ENG MAINTENANCE
(A) 		1-85875-350-2 01 1 0904-
4 LABEL; ENG MAINTENANCE
(B) 		8-94391-524-0 01 1 0904-
60 PLATE; CAUTION,CAB TILT 1-85883-234-0 01 1 0904-
163 PLATE; NAME,AIR BAG 1-85878-485-0 01 1 0904-
175 LABEL; STRG,AIR BAG 1-85878-116-0 02 1 0904-
178 LABEL; SAFETY,DISCHARGE HEAD LAMP 1-85878-497-0 04 1 0904-
260 PLATE; CAUTION,HEAD LAMP LEVELING 1-85878-416-1 01 1 0904-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
