Isuzu WW
▶
TRUCKS
▶
EXY
▶
11201 - EXY NEW ZEALAND EURO4
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-60 - ROOF PANEL
▶

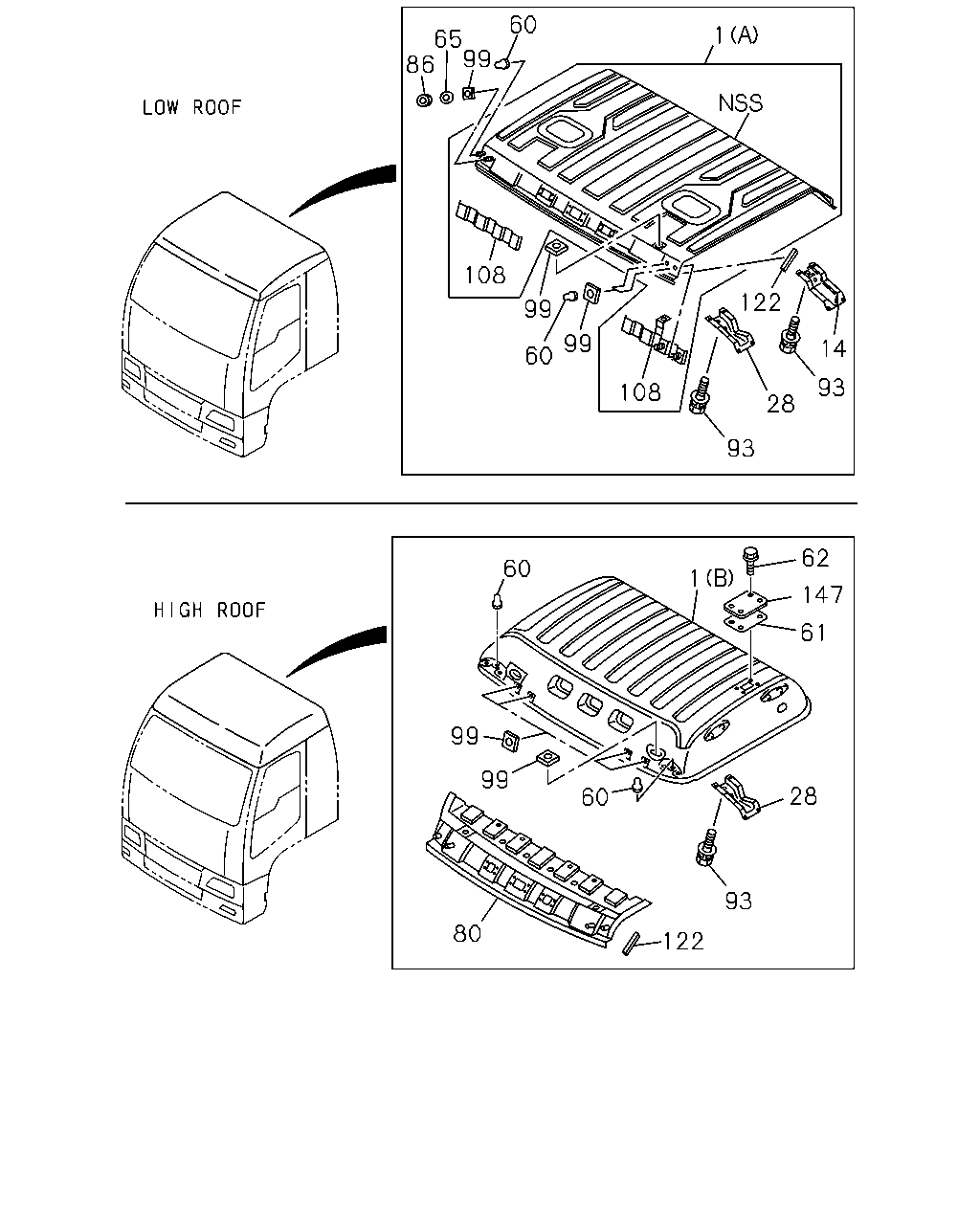

6-60 — ROOF PANEL
(#68705) — 23 parça
60
1
65
99
86
108
122
99
99
14
60
93
108
28
93
62
60
1
147
61
99
99
28
60
93
80
122
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PANEL; ROOF
HIGH ROOF<S2F> (B)
8-98080-057-1
01
1
0904-
1
PANEL; ROOF
LOW ROOF<6XQ> (A)
1-61170-861-0
01
1
0904-
14
SUPPORT; ROOF
LOW ROOF<6XQ>
1-73318-595-3
02
1
0904-
28
SUPPORT; ROOF FRT
1-73317-302-1
01
1
0904-
28
SUPPORT; ROOF FRT
1-73317-301-1
01
1
0904-
60
COVER; ROOF
1-79998-922-3
02
1
0904-
61
SEAL; ROOF COVER
HIGH ROOF<S2F>
8-98071-976-0
02
1
0904-
62
BOLT; ROOF COVER
HIGH ROOF<S2F> M6X16 FLANGE
0-28650-616-0
08
1
0904-
65
WASHER; PL
LOW ROOF<6XQ> ID=8 T=2.3
8-98073-399-0
01
1
0904-
80
PANEL; HEADER,ROOF
HIGH ROOF<S2F>
1-61170-845-0
01
1
0904-
86
NUT; ROOF
LOW ROOF<6XQ> M8 LOCK NUT
0-91370-008-0
01
1
0904-
93
BOLT; SUPPORT
HIGH ROOF<S2F> M6X12 W/LK&PL WASHER
8-94279-200-0
10
1
0904-
93
BOLT; SUPPORT
LOW ROOF<6XQ> M6X12 W/LK&PL WASHER
8-94279-200-0
20
1
0904-
99
SEAL; BODY,METAL
30X30 ID=20 T=0.7
1-61281-380-2
08
1
0904-
99
SEAL; BODY,METAL
30X30 ID=20 T=0.7
1-61281-380-2
10
1
0904-
99
SEAL; BODY,METAL
14X14 ID=10 T=0.7
1-61281-427-1
08
1
0904-
99
SEAL; BODY,METAL
30X30 ID=9 T=0.7
1-61281-444-1
02
1
0904-
99
SEAL; BODY,METAL
55X55 ID=42 T=0.7
1-61281-445-1
02
1
0904-
99
SEAL; BODY,METAL
LOW ROOF<6XQ> 75X50 ID=36
1-61281-458-1
02
1
0904-
108
PATCH; MIRROR
LOW ROOF<6XQ>
1-61170-772-3
01
1
0904-
108
PATCH; MIRROR
LOW ROOF<6XQ>
1-61170-862-1
01
1
0904-
122
SEAL; FRT UPR
1-61270-973-0
02
1
0904-
147
COVER; HOLE,ROOF
HIGH ROOF<S2F>
1-61170-890-1
02
1
0904-
