6-35 — FRONT DOOR TRIM (#68701) — 70 parça

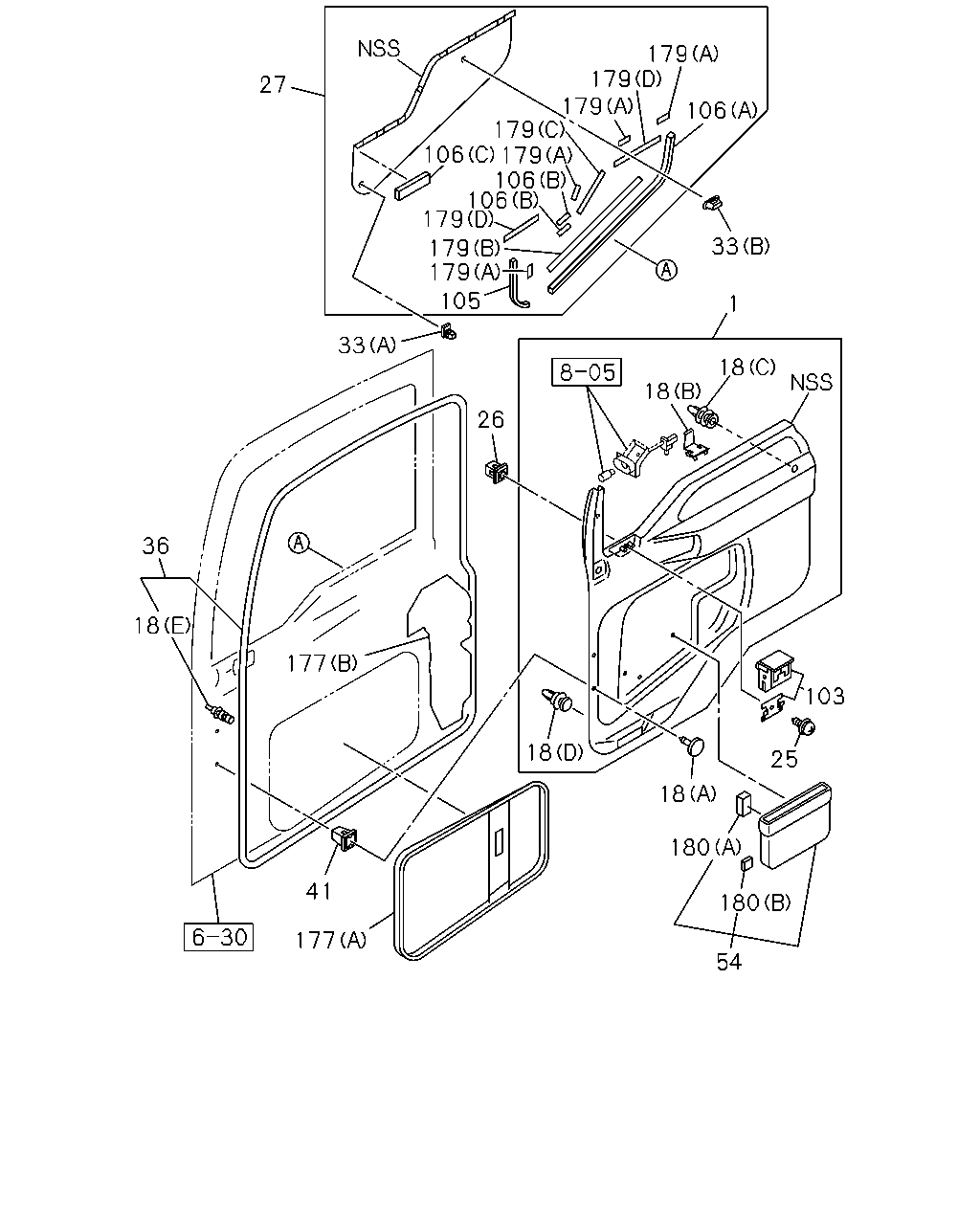

çizim 130793
54 180 180 18 25 103 18 41 177 177 18 36 18 18 26 33 105 179 179 179 106 106 179 106 179 179 179 179 106 33 27 1
BalonParca AdiParca NoAdetTipApplied Date
1 PAD; TRIM,FRT DOOR 1-73337-516-1 01 1 0904-
1 PAD; TRIM,FRT DOOR 1-73337-506-1 01 1 0904-
18 CLIP; DOOR PAD
(B) 		1-09987-262-0 09 1 0904-
18 CLIP; DOOR PAD
(A) D4.2X19.9 GRAY 		1-09987-272-0 04 1 0904-
18 CLIP; DOOR PAD
(C) OD=7.9 BLACK 		8-94279-974-1 02 1 0904-
18 CLIP; DOOR PAD
(D) OD=8.5 GRAY 		8-97893-482-0 10 1 0904-
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 23 1 0904-
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 23 1 0904-
25 SCREW; ASH TRAY,DOOR
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 0904-
26 GROMMET; SCREW,ASH TRAY DOOR
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 0904-
27 PANEL; ORNAMENT,DOOR 1-76217-157-3 01 1 0904-
27 PANEL; ORNAMENT,DOOR 1-76217-149-3 01 1 0904-1210
27 PANEL; ORNAMENT,DOOR 8-98229-330-0 01 1 1211-
33 GROMMET; DOOR ORNAMENT
(A) OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 02 1 0904-
33 GROMMET; DOOR ORNAMENT
(B) 		1-74998-111-0 02 1 0904-
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-177-9 01 1 0904-1010
36 SEAL; DOOR,MAIN,CAB SIDE 8-98177-764-0 01 1 1011-
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-176-9 01 1 0904-1010
36 SEAL; DOOR,MAIN,CAB SIDE 8-98177-763-0 01 1 1011-
41 GROMMET; SCREW,DOOR PAD
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 04 1 0904-
54 BOX; FRT DOOR 1-72537-177-0 01 1 0904-
103 TRAY ASM; ASH,DOOR 1-76458-086-1 01 1 0904-
103 TRAY ASM; ASH,DOOR 1-76458-085-1 01 1 0904-
105 SEAL; DOOR ORNAMENT,FRT 1-76218-082-2 02 1 0904-
106 SEAL; DOOR ORNAMENT
(C) 		8-98226-642-0 01 1 1211-
106 SEAL; DOOR ORNAMENT
(A) 		1-76218-083-2 02 1 0904-
106 SEAL; DOOR ORNAMENT
(B) 		1-76218-104-0 04 1 0904-
177 SEAL; WATER,DOOR
(A) 		1-76778-035-6 01 1 0904-
177 SEAL; WATER,DOOR
(A) 		1-76778-052-2 01 1 0904-
177 SEAL; WATER,DOOR
(B) 		1-76778-055-2 02 1 0904-
179 TAPE; ORNAMENT
(A) L=45 		1-76218-063-2 08 1 0904-
179 TAPE; ORNAMENT
(B) L=770 		1-76218-091-2 02 1 0904-
179 TAPE; ORNAMENT
(C) L=160 		1-76218-094-1 02 1 0904-
179 TAPE; ORNAMENT
(D) L=235 		1-76218-127-1 04 1 0904-
180 SEAL; BOX
(A) 5X10X30 		1-72538-153-1 02 1 0904-
180 SEAL; BOX
(B) 15X30 		1-74998-069-0 02 1 0904-

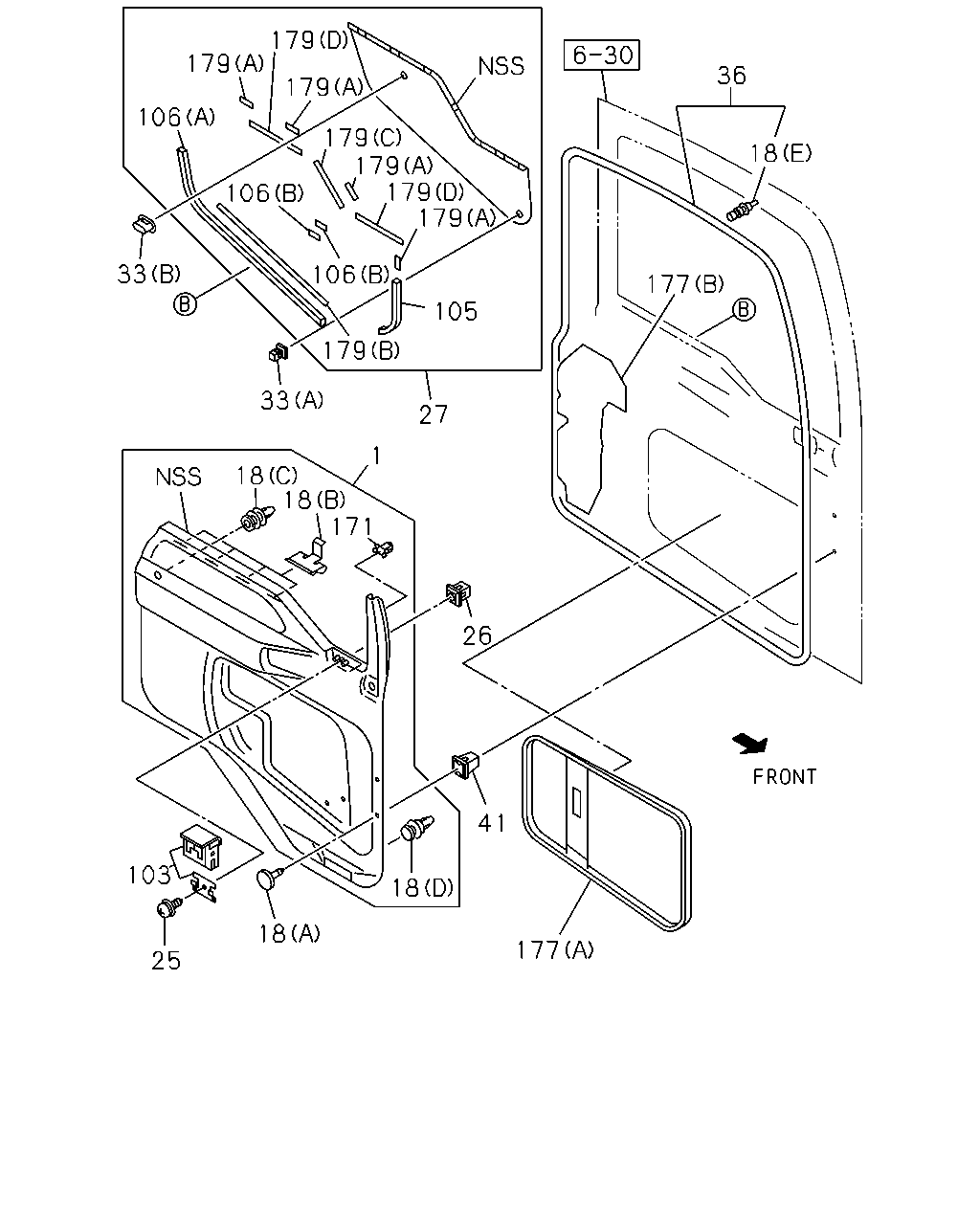

çizim 130797
179 179 36 179 106 179 179 179 179 18 106 33 106 177 105 179 33 27 1 18 18 171 26 41 103 18 18 177 25
BalonParca AdiParca NoAdetTipApplied Date
1 PAD; TRIM,FRT DOOR 1-73337-516-1 01 1 0904-
1 PAD; TRIM,FRT DOOR 1-73337-506-1 01 1 0904-
18 CLIP; DOOR PAD
(B) 		1-09987-262-0 09 1 0904-
18 CLIP; DOOR PAD
(A) D4.2X19.9 GRAY 		1-09987-272-0 04 1 0904-
18 CLIP; DOOR PAD
(C) OD=7.9 BLACK 		8-94279-974-1 02 1 0904-
18 CLIP; DOOR PAD
(D) OD=8.5 GRAY 		8-97893-482-0 10 1 0904-
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 23 1 0904-
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 23 1 0904-
25 SCREW; ASH TRAY,DOOR
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 0904-
26 GROMMET; SCREW,ASH TRAY DOOR
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 0904-
27 PANEL; ORNAMENT,DOOR 1-76217-157-3 01 1 0904-
27 PANEL; ORNAMENT,DOOR 1-76217-149-3 01 1 0904-1210
27 PANEL; ORNAMENT,DOOR 8-98229-330-0 01 1 1211-
33 GROMMET; DOOR ORNAMENT
(A) OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 02 1 0904-
33 GROMMET; DOOR ORNAMENT
(B) 		1-74998-111-0 02 1 0904-
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-177-9 01 1 0904-1010
36 SEAL; DOOR,MAIN,CAB SIDE 8-98177-764-0 01 1 1011-
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-176-9 01 1 0904-1010
36 SEAL; DOOR,MAIN,CAB SIDE 8-98177-763-0 01 1 1011-
41 GROMMET; SCREW,DOOR PAD
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 04 1 0904-
103 TRAY ASM; ASH,DOOR 1-76458-086-1 01 1 0904-
103 TRAY ASM; ASH,DOOR 1-76458-085-1 01 1 0904-
105 SEAL; DOOR ORNAMENT,FRT 1-76218-082-2 02 1 0904-
106 SEAL; DOOR ORNAMENT
(C) 		8-98226-642-0 01 1 1211-
106 SEAL; DOOR ORNAMENT
(A) 		1-76218-083-2 02 1 0904-
106 SEAL; DOOR ORNAMENT
(B) 		1-76218-104-0 04 1 0904-
171 RETAINER; DOOR PAD 1-09987-264-0 01 1 0904-
177 SEAL; WATER,DOOR
(A) 		1-76778-035-6 01 1 0904-
177 SEAL; WATER,DOOR
(A) 		1-76778-052-2 01 1 0904-
177 SEAL; WATER,DOOR
(B) 		1-76778-055-2 02 1 0904-
179 TAPE; ORNAMENT
(A) L=45 		1-76218-063-2 08 1 0904-
179 TAPE; ORNAMENT
(B) L=770 		1-76218-091-2 02 1 0904-
179 TAPE; ORNAMENT
(C) L=160 		1-76218-094-1 02 1 0904-
179 TAPE; ORNAMENT
(D) L=235 		1-76218-127-1 04 1 0904-
