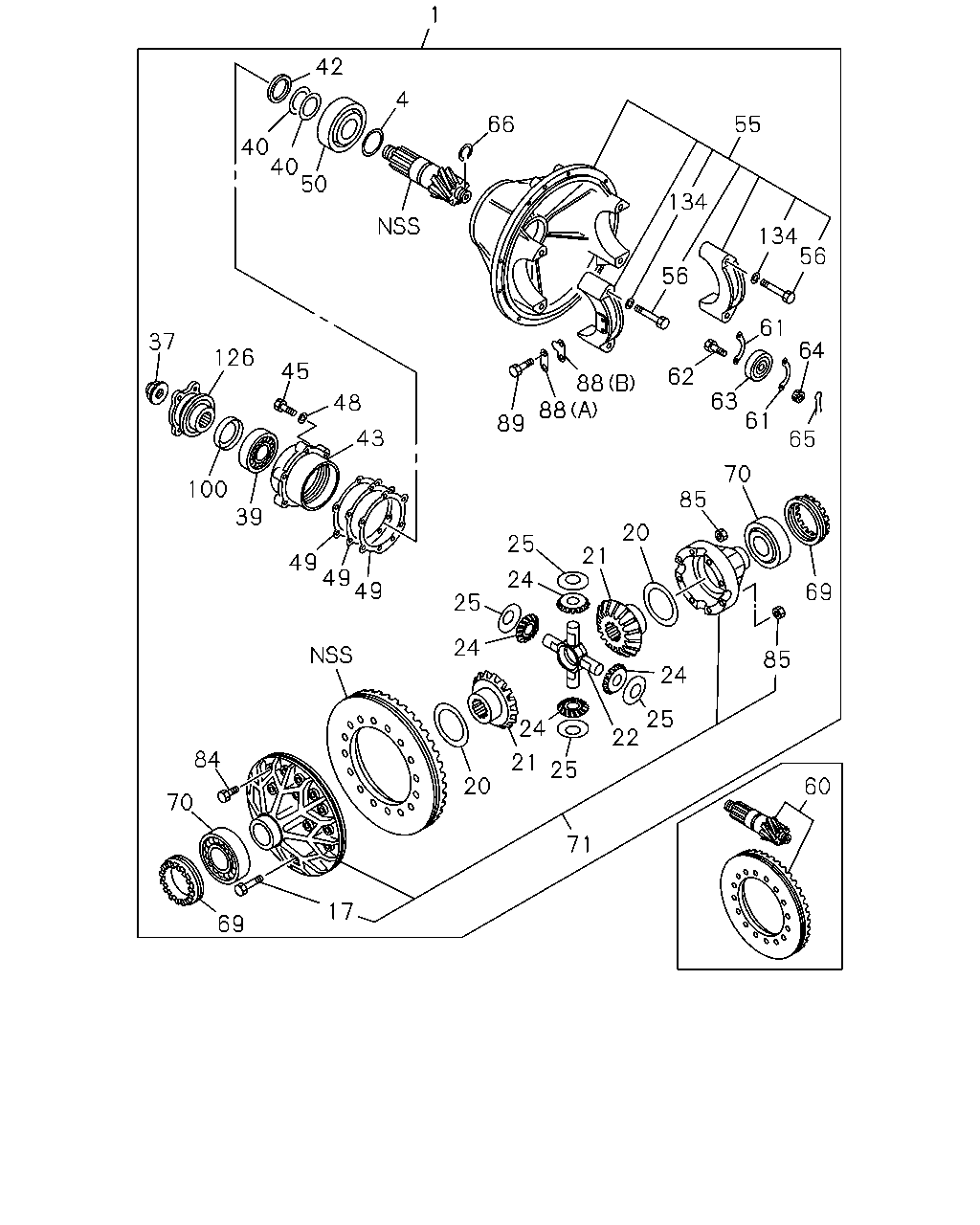

4-25 — REAR FINAL DRIVE (#6870) — 176 parça

1 42 4 66 55 40 40 50 134 134 56 56 61 37 64 126 45 62 88 88 63 61 48 89 43 65 70 100 39 85 20 25 21 49 49 49 24 69 25 24 85 24 25 22 24 84 21 25 20 60 70 71 17 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	DRIVE ASM; FINAL,RR EXC. RR AXLE R105A<BBJ> 41/7	1-41001-310-0	01	1	0505-	●
1	DRIVE ASM; FINAL,RR RR AXLE R105A<BBJ> 43/7	1-41001-256-0	01	1	9806-9911		●
1	DRIVE ASM; FINAL,RR EXC. RR AXLE R105A<BBJ> 43/7	1-41001-307-0	01	1	9806-9911		●
1	DRIVE ASM; FINAL,RR P60 PROP SHF<C2M> 39/7	1-41001-515-0	01	1	9912-			●
1	DRIVE ASM; FINAL,RR RR AXLE R105A<BBJ> 39/6	1-41001-130-0	01	1	9806-9911				●
1	DRIVE ASM; FINAL,RR EXC. RR AXLE R105A<BBJ> 39/6	1-41001-311-0	01	1	9806-9911				●
1	DRIVE ASM; FINAL,RR RR AXLE R105A<BBJ> 39/7	1-41001-257-0	01	1	9806-9911			●
1	DRIVE ASM; FINAL,RR EXC. RR AXLE R105A<BBJ> 39/7	1-41001-276-0	01	1	9806-9911			●
1	DRIVE ASM; FINAL,RR EXC. P60 PROP SHF<C2M> 39/7	1-41001-276-0	01	1	9912-			●
1	DRIVE ASM; FINAL,RR RR AXLE R105A<BBJ> 41/7	1-41001-596-0	01	1	9806-	●
1	DRIVE ASM; FINAL,RR EXC. RR AXLE R105A<BBJ> 41/7	1-41001-310-0	01	1	9806-9911	●
1	DRIVE ASM; FINAL,RR RR AXLE R105A<BBJ> 41/8	1-41001-352-0	01	1	9806-9911					●
1	DRIVE ASM; FINAL,RR EXC. RR AXLE R105A<BBJ> 41/8	1-41001-306-0	01	1	9806-9911					●
4	GASKET; FLANGE,FINAL PINION ID=42	1-09623-475-0	01	1	9806-9911	●	●	●	●	●
4	GASKET; FLANGE,FINAL PINION ID=42	1-09623-475-0	01	1	9912-0208	●		●
4	GASKET; FLANGE,FINAL PINION ID=42	9-09921-116-0	01	1	0209-	●		●
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	12	1	9806-9911	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	12	1	9912-	●		●
20	WASHER; THRUST,SIDE GEAR T=2.75	1-41562-139-0	AR	1	9806-9911	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=2.75	1-41562-139-0	AR	1	9912-	●		●
20	WASHER; THRUST,SIDE GEAR T=2.80	1-41562-140-0	AR	1	9806-9911	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=2.80	1-41562-140-0	AR	1	9912-	●		●
20	WASHER; THRUST,SIDE GEAR T=2.85	1-41562-141-0	AR	1	9806-9911	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=2.85	1-41562-141-0	AR	1	9912-	●		●
20	WASHER; THRUST,SIDE GEAR T=2.90	1-41562-142-0	AR	1	9806-9911	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=2.90	1-41562-142-0	AR	1	9912-	●		●
20	WASHER; THRUST,SIDE GEAR T=2.95	1-41562-143-0	AR	1	9806-9911	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=2.95	1-41562-143-0	AR	1	9912-	●		●
20	WASHER; THRUST,SIDE GEAR T=3.00	1-41562-144-0	AR	1	9806-9911	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.00	1-41562-144-0	AR	1	9912-	●		●
20	WASHER; THRUST,SIDE GEAR T=3.05	1-41562-145-0	AR	1	9806-9911	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.05	1-41562-145-0	AR	1	9912-	●		●
20	WASHER; THRUST,SIDE GEAR T=3.10	1-41562-146-0	AR	1	9806-9911	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.10	1-41562-146-0	AR	1	9912-	●		●
20	WASHER; THRUST,SIDE GEAR T=3.15	1-41562-147-0	AR	1	9806-9911	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.15	1-41562-147-0	AR	1	9912-	●		●
20	WASHER; THRUST,SIDE GEAR T=3.20	1-41562-148-0	AR	1	9806-9911	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.20	1-41562-148-0	AR	1	9912-	●		●
20	WASHER; THRUST,SIDE GEAR T=3.25	1-41562-149-0	AR	1	9806-9911	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.25	1-41562-149-0	AR	1	9912-	●		●
20	WASHER; THRUST,SIDE GEAR T=3.30	1-41562-150-0	AR	1	9806-9911	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.30	1-41562-150-0	AR	1	9912-	●		●
20	WASHER; THRUST,SIDE GEAR T=3.35	1-41562-151-0	AR	1	9806-9911	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.35	1-41562-151-0	AR	1	9912-	●		●
20	WASHER; THRUST,SIDE GEAR T=3.40	1-41562-152-0	AR	1	9806-9911	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.40	1-41562-152-0	AR	1	9912-	●		●
20	WASHER; THRUST,SIDE GEAR T=3.45	1-41562-153-0	AR	1	9806-9911	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.45	1-41562-153-0	AR	1	9912-	●		●
21	GEAR; SIDE,DIFF Z=16	1-41561-064-0	02	1	9806-9808	●	●	●	●	●
21	GEAR; SIDE,DIFF RR AXLE R105A<BBJ> Z=16	1-41561-064-0	02	1	9809-9911	●	●	●	●	●
21	GEAR; SIDE,DIFF Z=16	1-41561-064-0	02	1	9912-0407	●
21	GEAR; SIDE,DIFF RR AXLE R105A<BBJ> Z=16	1-41561-126-0	02	1	0408-	●
21	GEAR; SIDE,DIFF EXC. RR AXLE R105A<BBJ> Z=16	1-41561-075-0	02	1	9809-9911	●	●	●	●	●
21	GEAR; SIDE,DIFF Z=16	1-41561-075-0	02	1	9912-0407			●
21	GEAR; SIDE,DIFF Z=16	1-41561-127-0	02	1	0408-0504			●
21	GEAR; SIDE,DIFF Z=16	1-41561-127-0	02	1	0505-			●
21	GEAR; SIDE,DIFF EXC. RR AXLE R105A<BBJ> Z=16	1-41561-127-0	02	1	0505-	●
22	PIN; CROSS,DIFF PINION OD=30	1-41521-014-1	01	1	9806-9911	●	●	●	●	●
22	PIN; CROSS,DIFF PINION OD=30	1-41521-014-1	01	1	9912-0408	●		●
22	PIN; CROSS,DIFF PINION	1-41521-061-0	01	1	0409-	●		●
24	GEAR; PINION,DIFF Z=10	1-41551-010-2	04	1	9806-9911	●	●	●	●	●
24	GEAR; PINION,DIFF Z=10	1-41551-010-2	04	1	9912-0407	●		●
24	GEAR; PINION,DIFF Z=10	1-41551-041-0	04	1	0408-	●		●
25	WASHER; THRUST,PINION	1-41552-012-0	04	1	9806-9911	●	●	●	●	●
25	WASHER; THRUST,PINION	1-41552-012-0	04	1	9912-	●		●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-067-0	01	1	9806-9911	●	●	●	●	●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-067-0	01	1	9912-	●		●
39	BEARING; FINAL PINION KOYO	1-09812-218-0	01	1	9806-9911	●	●	●	●	●
39	BEARING; FINAL PINION KOYO	1-09812-218-0	01	1	9912-	●		●
40	SHIM; FINAL PINION T=3.50	1-41229-256-0	AR	1	9806-9911	●	●	●	●	●
40	SHIM; FINAL PINION T=3.50	1-41229-256-0	AR	1	9912-	●		●
40	SHIM; FINAL PINION T=3.51	1-41229-257-0	AR	1	9806-9911	●	●	●	●	●
40	SHIM; FINAL PINION T=3.51	1-41229-257-0	AR	1	9912-	●		●
40	SHIM; FINAL PINION T=3.52	1-41229-258-0	AR	1	9806-9911	●	●	●	●	●
40	SHIM; FINAL PINION T=3.52	1-41229-258-0	AR	1	9912-	●		●
40	SHIM; FINAL PINION T=3.53	1-41229-259-0	AR	1	9806-9911	●	●	●	●	●
40	SHIM; FINAL PINION T=3.53	1-41229-259-0	AR	1	9912-	●		●
40	SHIM; FINAL PINION T=3.54	1-41229-260-0	AR	1	9806-9911	●	●	●	●	●
40	SHIM; FINAL PINION T=3.54	1-41229-260-0	AR	1	9912-	●		●
40	SHIM; FINAL PINION T=3.55	1-41229-261-0	AR	1	9806-9911	●	●	●	●	●
40	SHIM; FINAL PINION T=3.55	1-41229-261-0	AR	1	9912-	●		●
40	SHIM; FINAL PINION T=3.56	1-41229-262-0	AR	1	9806-9911	●	●	●	●	●
40	SHIM; FINAL PINION T=3.56	1-41229-262-0	AR	1	9912-	●		●
40	SHIM; FINAL PINION T=3.57	1-41229-263-0	AR	1	9806-9911	●	●	●	●	●
40	SHIM; FINAL PINION T=3.57	1-41229-263-0	AR	1	9912-	●		●
40	SHIM; FINAL PINION T=3.58	1-41229-264-0	AR	1	9806-9911	●	●	●	●	●
40	SHIM; FINAL PINION T=3.58	1-41229-264-0	AR	1	9912-	●		●
40	SHIM; FINAL PINION T=3.59	1-41229-265-0	AR	1	9806-9911	●	●	●	●	●
40	SHIM; FINAL PINION T=3.59	1-41229-265-0	AR	1	9912-	●		●
40	SHIM; FINAL PINION T=3.60	1-41229-266-0	AR	1	9806-9911	●	●	●	●	●
40	SHIM; FINAL PINION T=3.60	1-41229-266-0	AR	1	9912-	●		●
42	COLLAR; DIST,COLLAPSIBLE T=7.40	1-41229-267-0	AR	1	9806-9911	●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.40	1-41229-267-0	AR	1	9912-	●		●
42	COLLAR; DIST,COLLAPSIBLE T=7.60	1-41229-268-0	AR	1	9806-9911	●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.60	1-41229-268-0	AR	1	9912-	●		●
42	COLLAR; DIST,COLLAPSIBLE T=7.80	1-41229-269-0	AR	1	9806-9911	●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.80	1-41229-269-0	AR	1	9912-	●		●
42	COLLAR; DIST,COLLAPSIBLE T=8.00	1-41229-270-0	AR	1	9806-9911	●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.00	1-41229-270-0	AR	1	9912-	●		●
42	COLLAR; DIST,COLLAPSIBLE T=8.20	1-41229-271-0	AR	1	9806-9911	●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.20	1-41229-271-0	AR	1	9912-	●		●
43	CAGE; FINAL PINION	1-41151-028-1	01	1	9806-9911	●	●	●	●	●
43	CAGE; FINAL PINION	1-41151-028-1	01	1	9912-	●		●
45	BOLT; FINAL PINION CAGE M14X50	0-16806-450-0	08	1	9806-9911	●	●	●	●	●
45	BOLT; FINAL PINION CAGE M14X50	0-16806-450-0	08	1	9912-	●		●
48	WASHER; LK,FINAL PINION ID=14.2	9-09150-514-0	08	1	9806-9911	●	●	●	●	●
48	WASHER; LK,FINAL PINION ID=14.2	9-09150-514-0	08	1	9912-0603	●		●
48	WASHER; LK,FINAL PINION ID=14.2	0-91510-514-0	08	1	0604-	●		●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-063-0	AR	1	9806-9911	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-063-0	AR	1	9912-	●		●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-064-0	AR	1	9806-9911	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-064-0	AR	1	9912-	●		●
49	SHIM; FINAL PINION CAGE T=1.00	9-41154-013-0	AR	1	9806-9911	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=1.00	9-41154-013-0	AR	1	9912-	●		●
49	SHIM; FINAL PINION CAGE T=0.50	9-41154-014-0	AR	1	9806-9911	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.50	9-41154-014-0	AR	1	9912-	●		●
50	BEARING; FINAL PINION KOYO	1-09812-042-1	01	1	0612-	●		●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	9806-9911	●	●	●	●	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	9912-	●		●
55	CARRIER; DIFF	1-41110-052-0	01	1	9806-9911	●	●	●	●	●
55	CARRIER; DIFF	1-41110-052-0	01	1	9912-	●		●
56	BOLT; BRG CAP M18X107	1-09050-002-1	04	1	9806-9911	●	●	●	●	●
56	BOLT; BRG CAP M18X107	1-09050-002-1	04	1	9912-	●		●
60	GEAR SET; FINAL DRIVE,RR 43/7	1-41210-277-3	01	1	9806-9911		●
60	GEAR SET; FINAL DRIVE,RR 39/6	1-41210-276-3	01	1	9806-9911				●
60	GEAR SET; FINAL DRIVE,RR 39/7	1-41210-280-3	01	1	9806-			●
60	GEAR SET; FINAL DRIVE,RR 41/7	1-41210-278-3	01	1	9806-	●
60	GEAR SET; FINAL DRIVE,RR 41/8	1-41210-279-3	01	1	9806-9911					●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	9806-9911	●	●	●	●	●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	9912-	●		●
62	BOLT; RET M8X36 W/PIN HOLE	1-09042-035-0	02	1	9806-9911	●	●	●	●	●
62	BOLT; RET M8X36 W/PIN HOLE	1-09042-035-0	02	1	9912-	●		●
63	BEARING; PINION PILOT KOYO	1-09810-229-2	01	1	9806-9911	●	●	●	●	●
63	BEARING; PINION PILOT KOYO	1-09810-229-2	01	1	9912-	●		●
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	9806-9911	●	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	9912-	●		●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	9806-9911	●	●	●	●	●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	9912-0512	●		●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	0601-	●		●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	9806-9911	●	●	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	9912-	●		●
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	9806-9911	●	●	●	●	●
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	9912-	●		●
69	NUT; ADJ,DIFF CAGE M143 H=29	1-41121-006-0	01	1	9806-9911	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE M143 H=29	1-41121-006-0	01	1	9912-	●		●
69	NUT; ADJ,DIFF CAGE M143 H=24	1-41121-005-0	01	1	9806-9911	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE M143 H=24	1-41121-005-0	01	1	9912-	●		●
70	BEARING; DIFF CAGE ID=80 OD=140 T=35.3 NACHI	1-09812-144-0	02	1	9806-9911	●	●	●	●	●
70	BEARING; DIFF CAGE ID=80 OD=140 T=35.3 NACHI	1-09812-144-0	02	1	9912-	●		●
70	BEARING; DIFF CAGE KOYO ID=80 OD=140 T=35.3	1-09812-145-0	02	1	9806-9911	●	●	●	●	●
70	BEARING; DIFF CAGE KOYO ID=80 OD=140 T=35.3	1-09812-145-0	02	1	9912-	●		●
70	BEARING; DIFF CAGE NSK ID=80 OD=140 T=35.3	1-09812-146-0	02	1	9806-9911	●	●	●	●	●
70	BEARING; DIFF CAGE NSK ID=80 OD=140 T=35.3	1-09812-146-0	02	1	9912-	●		●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-127-0	01	1	9806-9911	●	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-127-0	01	1	9912-	●		●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	9806-9911	●	●	●	●	●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	9912-	●		●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	9806-9911	●	●	●	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	9912-	●		●
88	PLATE; LK,ADJ NUT (B) T=2.3	1-41124-002-0	02	1	9806-9911	●	●	●	●	●
88	PLATE; LK,ADJ NUT (B) T=2.3	1-41124-002-0	02	1	9912-	●		●
88	PLATE; LK,ADJ NUT (A) T=1.0	9-41124-005-0	02	1	9806-9911	●	●	●	●	●
88	PLATE; LK,ADJ NUT (A) T=1.0	9-41124-005-0	02	1	9912-	●		●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	9806-9911	●	●	●	●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	9912-0512	●		●
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	0601-	●		●
100	SEAL; OIL,FINAL PINION NOK	1-09625-017-0	01	1	9806-9911	●	●	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-017-0	01	1	9912-	●		●
126	COUPLING; DRIVING PINION	1-37245-215-3	01	1	9806-9911	●	●	●	●	●
126	COUPLING; DRIVING PINION EXC. P60 PROP SHF<C2M>	1-37245-215-3	01	1	9912-0208	●		●
126	COUPLING; DRIVING PINION EXC. P60 PROP SHF<C2M>	1-37245-388-0	01	1	0209-	●		●
126	COUPLING; DRIVING PINION P60 PROP SHF<C2M>	1-37245-188-2	01	1	9912-0208			●
126	COUPLING; DRIVING PINION P60 PROP SHF<C2M>	1-37245-391-0	01	1	0209-			●
134	WASHER; LK,BRG CAP ID=18.2	9-09150-518-0	04	1	9806-9911	●	●	●	●	●
134	WASHER; LK,BRG CAP ID=18.2	9-09150-518-0	04	1	9912-0603	●		●
134	WASHER; LK,BRG CAP ID=18.2	0-91510-518-0	04	1	0604-	●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
