Isuzu WW
▶
TRUCKS
▶
EXY
▶
11201 - EXY NEW ZEALAND EURO4
▶
5 - Frame, Cab Mounting
▶

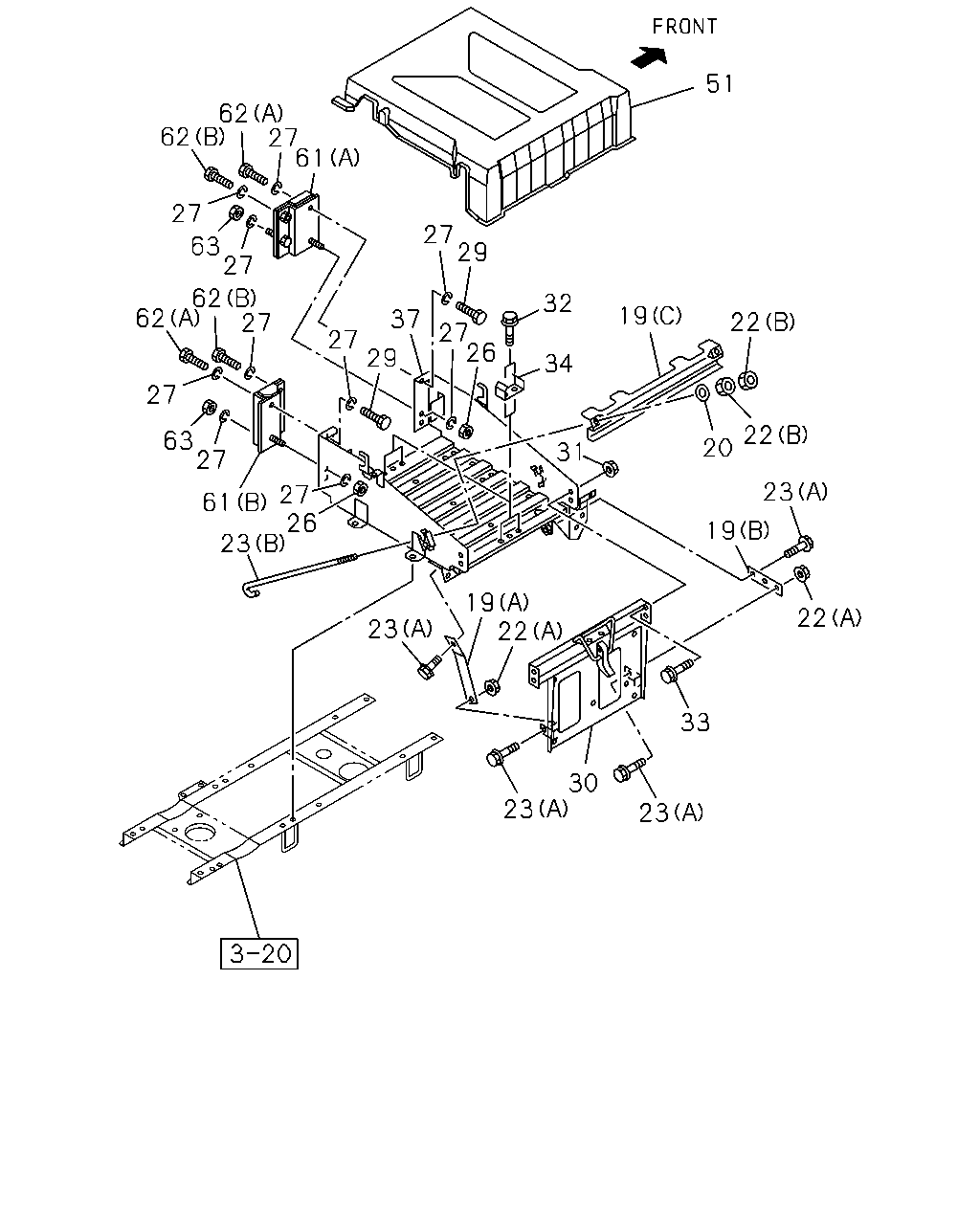

5-20 - BATTERY CARRIER
▶
5-20 — BATTERY CARRIER
(#68692) — 24 parça
51
62
62
27
61
27
27
29
63
27
62
27
32
19
62
37
22
27
26
27
29
34
27
22
20
63
27
31
27
26
23
23
61
19
19
22
22
23
33
30
23
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
19
STAY; BATTERY
(B)
1-47479-118-0
01
1
0904-
19
STAY; BATTERY
(A)
1-47479-874-0
01
1
0904-
19
STAY; BATTERY
(C)
1-53618-039-2
01
1
0904-
20
WASHER; PL,STAY
ID=8.4 OD=22
0-91614-708-0
02
1
0904-
22
NUT; STAY
(B) M8
0-91110-508-0
04
1
0904-
22
NUT; STAY
(A) M8 FLANGE
0-91180-108-0
02
1
0904-
23
BOLT; STAY
(A) M8X20 FLANGE
0-28650-820-0
04
1
0904-
23
BOLT; STAY
(B) L=250
1-53616-108-0
02
1
0904-
26
NUT; BRKT
M14
0-91110-514-0
02
1
0904-
27
WASHER; LK,BRKT
ID=14.2
0-91510-514-0
12
1
0904-
29
BOLT; BRKT TO FRAME
M14X30
0-20851-430-0
02
1
0904-
30
PLATE; BATTERY
1-53619-148-1
01
1
0904-
31
NUT; PLATE
M8 FLANGE
0-91180-108-0
04
1
0904-
32
BOLT; PLATE TO SPACER
BATTERY 115F51 N120<SJ3> M8X16 FLANGE
0-28050-816-0
04
1
0904-
33
BOLT; PLATE TO BRKT
M8X25 FLANGE
0-28650-825-0
04
1
0904-1007
33
BOLT; PLATE TO BRKT
M8X20 FLANGE
0-28650-820-0
04
1
1008-
34
SPACER; BATTERY BRKT
BATTERY 115F51 N120<SJ3>
1-53619-084-0
02
1
0904-
37
BRACKET; BATTERY
1-53610-159-2
01
1
0904-
51
COVER; BATTERY
1-53612-068-0
01
1
0904-
61
DISTANCE; BRKT,BATTERY
(A)
1-53613-504-0
01
1
0904-
61
DISTANCE; BRKT,BATTERY
(B)
1-53613-505-0
01
1
0904-
62
BOLT; DIST TO FRAME,BATTERY
(A) M14X45
1-09000-764-0
02
1
0904-
62
BOLT; DIST TO FRAME,BATTERY
(B) M14X60
1-09000-778-0
02
1
0904-
63
NUT; DIST TO FRAME
M14
1-09440-072-0
04
1
0904-
