Isuzu WW
▶
TRUCKS
▶
EXY
▶
11201 - EXY NEW ZEALAND EURO4
▶
5 - Frame, Cab Mounting
▶
5-01 - FRAME AND OTHER PARTS
▶
5-01 — FRAME AND OTHER PARTS
(#68687) — 58 parça
◀

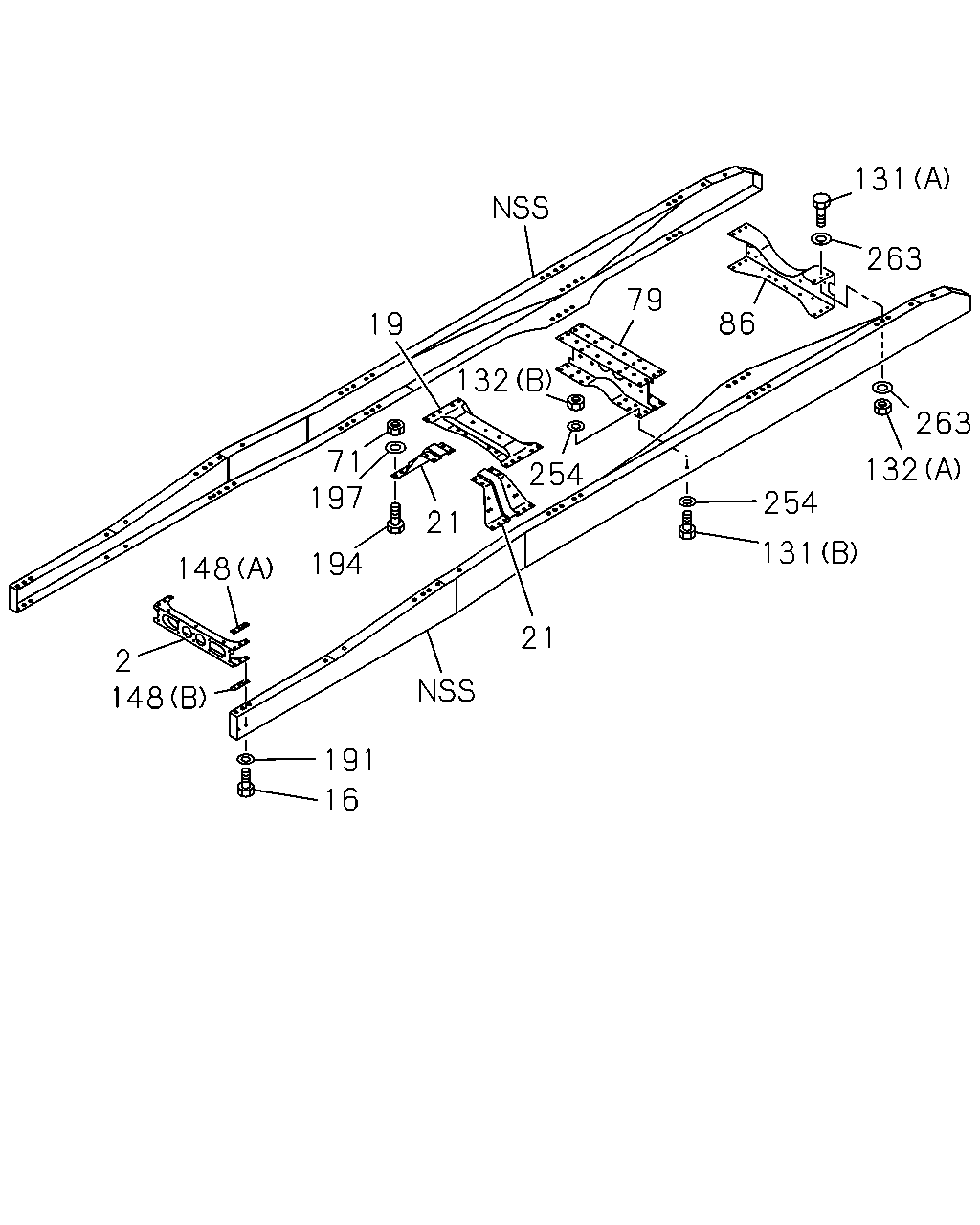

[501A] CROSS MEMBER (20 parça)

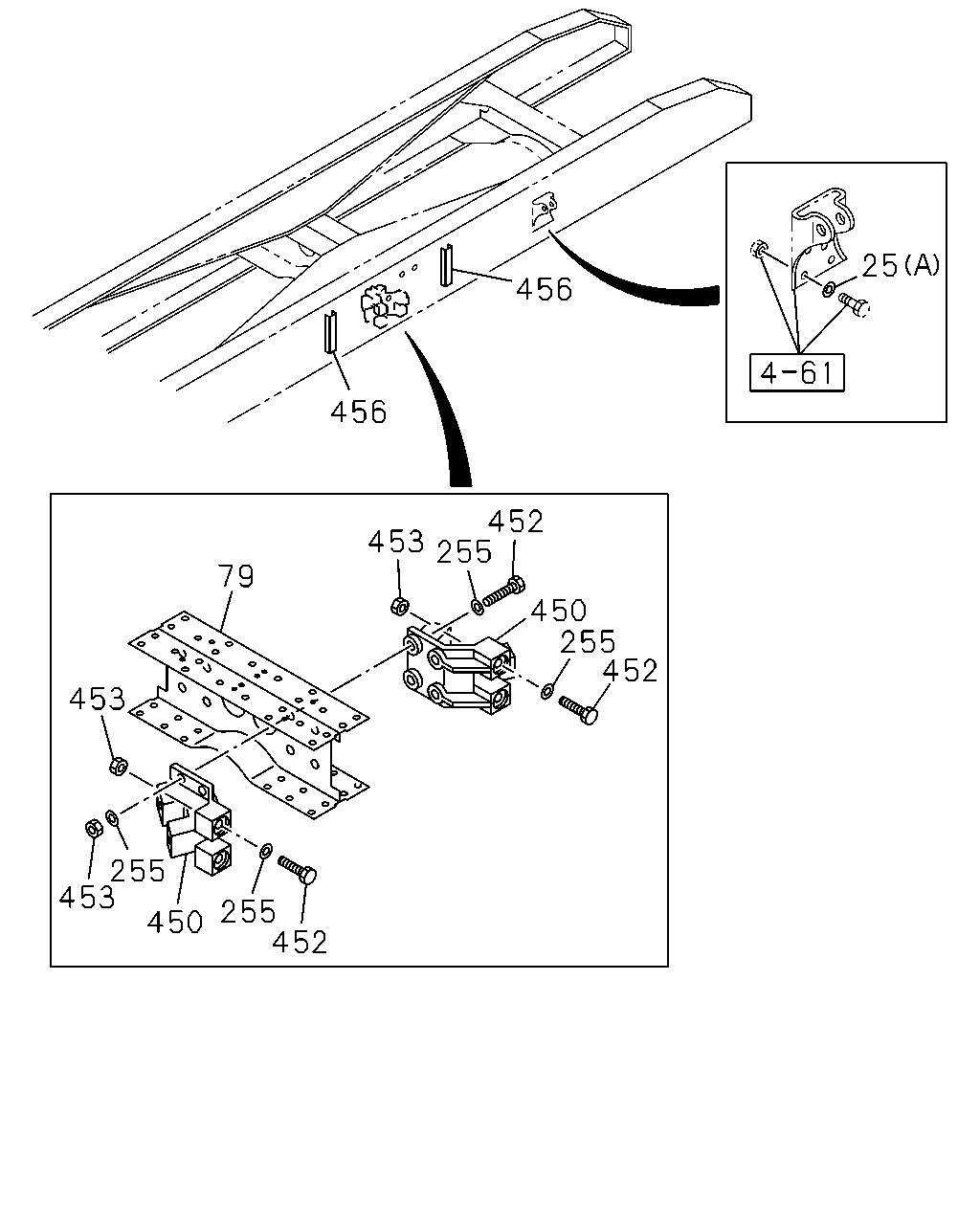

[501A] BRACKET REAR (9 parça)

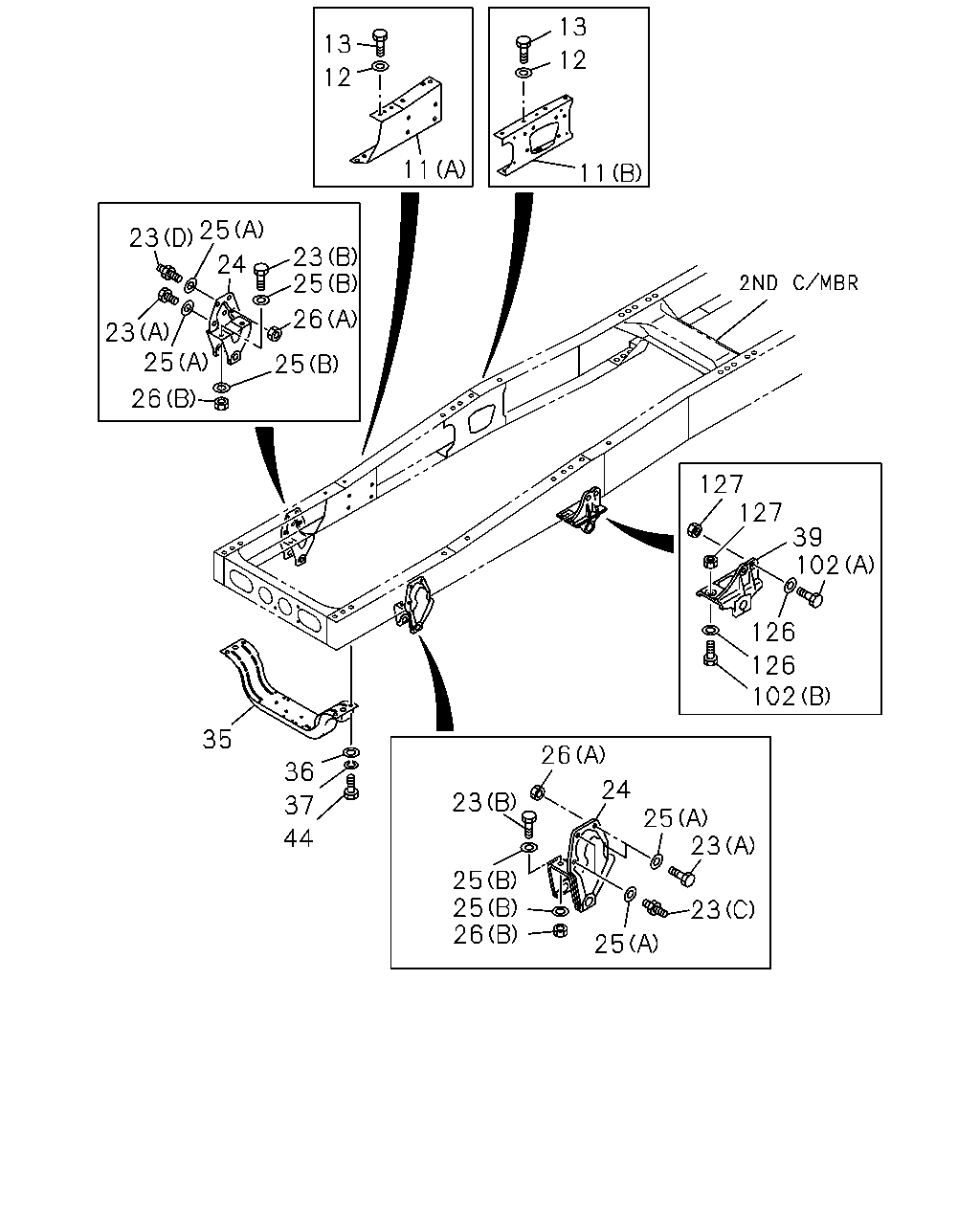

[501A] BRACKET FRONT AND UNDER MEMBER (29 parça)
▶
131
263
132
254
79
86
19
263
71
197
132
21
254
131
194
148
21
2
148
191
16
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MEMBER; CROSS,1ST
8-97604-959-3
01
1
0904-
16
BOLT; 1ST C/MBR TO S/MBR
M16X40
0-20951-640-0
02
1
0904-
19
MEMBER; CROSS,2ND
1-53174-265-0
01
1
0904-
21
GUSSET; 2ND CROSS
1-53164-226-1
01
1
0904-
21
GUSSET; 2ND CROSS
1-53164-227-1
01
1
0904-
71
NUT; 2ND C/MBR
M14
0-91110-514-0
08
1
0904-
79
MEMBER; CROSS,TRUNNION ASM
1-53182-042-2
01
1
0904-
86
MEMBER; CROSS,RR SUSP RR
1-53182-044-0
01
1
0904-
131
BOLT; END C/MBR
(A) M12X40
0-20951-240-0
02
1
0904-
131
BOLT; END C/MBR
(B) M18X60
8-98036-497-0
16
1
0904-
132
NUT; END C/MBR
(A) M12
0-91110-512-0
02
1
0904-
132
NUT; END C/MBR
(B) M18
0-91110-518-0
16
1
0904-
148
SPACER; C/MBR
(A)
1-53168-400-1
02
1
0904-
148
SPACER; C/MBR
(B)
1-53168-403-1
02
1
0904-
191
WASHER; PL,1ST C/MBR TO S/MBR
ID=16.2
1-09503-223-0
02
1
0904-
194
BOLT; 2ND C/MBR
M14X60
0-20951-460-0
08
1
0904-
197
WASHER; PL,2ND C/MBR
ID=15
9-09651-069-0
08
1
0904-1201
197
WASHER; PL,2ND C/MBR
ID=15
8-98010-627-1
08
1
1202-
254
WASHER; PL,C/MBR
ID=19
9-09160-518-0
32
1
0904-
263
WASHER; PL,SUB FRAME
ID=12.5
9-09164-512-0
04
1
0904-
25
456
456
452
453
255
79
450
255
452
453
255
453
255
452
450
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-223-0
08
1
0904-
25
WASHER; PL,BRKT
(A) ID=15
9-09651-069-0
24
1
0904-1201
25
WASHER; PL,BRKT
(A) ID=15
8-98010-627-1
24
1
1202-
79
MEMBER; CROSS,TRUNNION ASM
1-53182-042-2
01
1
0904-
255
WASHER; PL,BRKT
ID=16.2
1-09503-223-0
16
1
0904-
450
BRACKET; V ROD
1-53353-122-1
04
1
0904-
452
BOLT; V ROD
M16X90
1-09000-675-0
16
1
0904-
453
NUT; V ROD
M16 FLANGE
1-09440-066-0
16
1
0904-
456
PATCH; STOPPER
1-53119-203-0
04
1
0904-
13
13
12
12
11
11
25
23
23
25
24
26
23
25
25
26
127
127
39
102
126
126
102
35
26
36
24
23
37
25
23
44
25
25
26
23
25
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
BRACKET; ENG MTG
(A)
1-53211-367-1
01
1
0904-
11
BRACKET; ENG MTG
(A)
1-53211-368-1
01
1
0904-
11
BRACKET; ENG MTG
(B)
8-98056-611-1
01
1
0904-
11
BRACKET; ENG MTG
(B)
8-98056-612-0
01
1
0904-
12
WASHER; PL,BRKT,ENG MTG
ID=15
9-09651-069-0
04
1
0904-1201
12
WASHER; PL,BRKT,ENG MTG
ID=15
8-98010-627-1
04
1
1202-
13
BOLT; BRKT,ENG MTG
M14X40
0-20951-440-0
04
1
0904-
23
BOLT; BRKT,SPR
(A) M14X40
0-20951-440-0
05
1
0904-
23
BOLT; BRKT,SPR
(B) M16X50
0-20951-650-0
04
1
0904-
23
BOLT; BRKT,SPR
(D) M12X35,M14X45 L=100
1-09029-075-0
01
1
0904-
23
BOLT; BRKT,SPR
(C) M12X25,M14X45 L=81
1-09029-103-0
02
1
0904-
24
BRACKET; FRT SPR,FRT
1-53351-237-1
01
1
0904-
24
BRACKET; FRT SPR,FRT
1-53351-238-1
01
1
0904-
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-223-0
08
1
0904-
25
WASHER; PL,BRKT
(A) ID=15
9-09651-069-0
24
1
0904-1201
25
WASHER; PL,BRKT
(A) ID=15
8-98010-627-1
24
1
1202-
26
NUT; BRKT,SPR
(A) M14
0-91110-514-0
08
1
0904-
26
NUT; BRKT,SPR
(B) M16
0-91110-516-0
04
1
0904-
35
MEMBER; UNDER
1-53174-263-2
01
1
0904-
36
WASHER; PL,UNDER MBR
ID=17
9-09164-516-0
04
1
0904-
37
WASHER; LK,UNDER MBR
ID=16.2
0-91510-816-0
04
1
0904-
39
BRACKET; FRT SPR,RR
1-53352-179-0
01
1
0904-
39
BRACKET; FRT SPR,RR
1-53352-180-0
01
1
0904-
44
BOLT; UNDER MBR
M16X60
0-20951-660-0
04
1
0904-
102
BOLT; BRKT,RR SPR
(A) M14X40
0-20951-440-0
04
1
0904-
102
BOLT; BRKT,RR SPR
(B) M14X50
0-20951-450-0
04
1
0904-
126
WASHER; PL,BRKT
ID=15
9-09651-069-0
08
1
0904-1201
126
WASHER; PL,BRKT
ID=15
8-98010-627-1
08
1
1202-
127
NUT; BRKT
M14
0-91110-514-0
04
1
0904-
