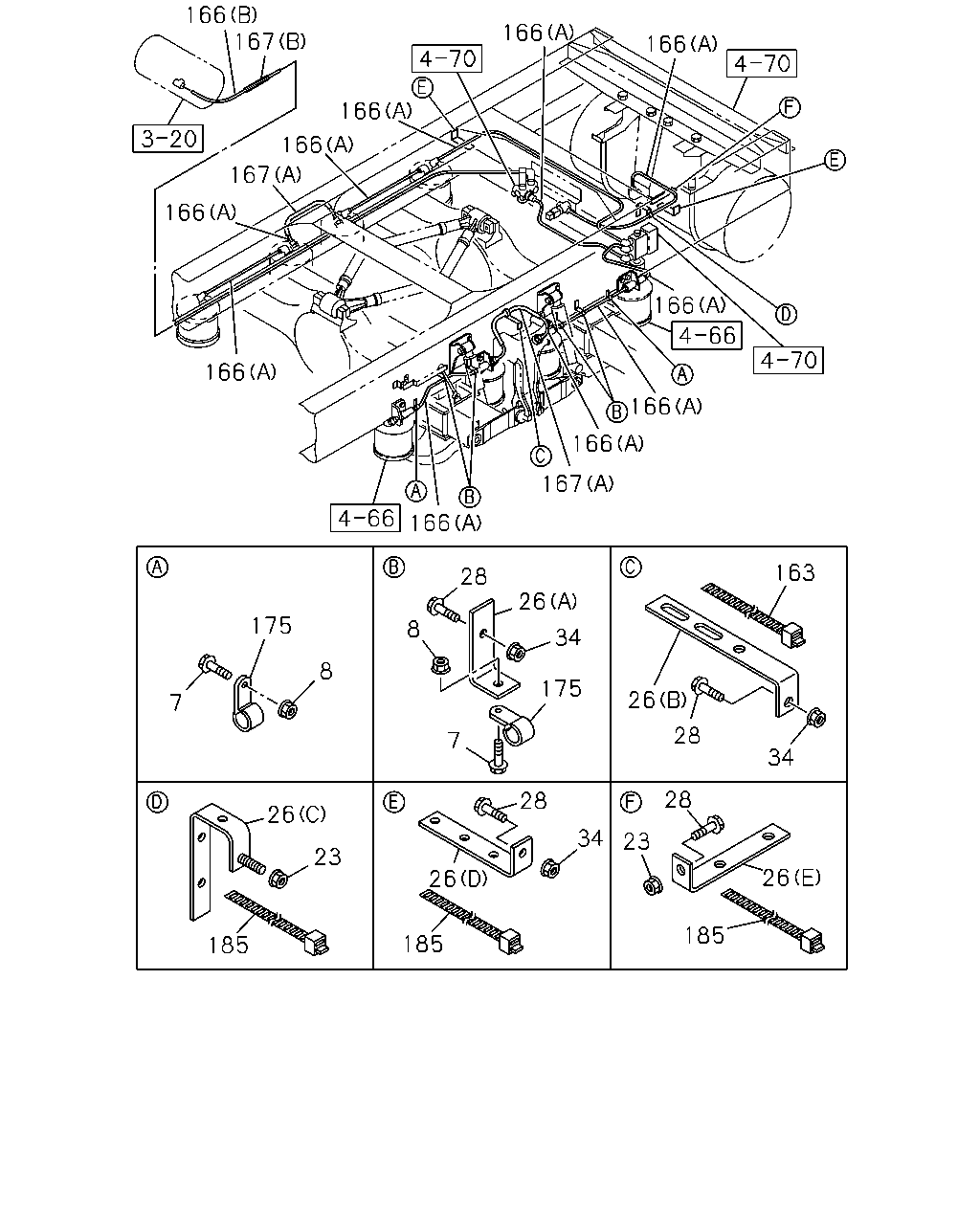

4-71 — AIR SUSPENSION PIPING
(#68685) — 19 parça
166
167
166
166
166
166
167
166
166
166
166
166
167
166
163
28
26
175
8
34
8
175
26
7
28
7
34
28
28
26
34
23
23
26
26
185
185
185
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
7
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
10
1
0904-
7
BOLT; CLIP
M8X30 FLANGE
0-28650-830-0
04
1
0904-
8
NUT; CLIP
M8 FLANGE
0-91180-108-0
10
1
0904-
23
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
0904-
26
BRACKET; CLIP
(B) L=100 H=30
1-47477-645-2
01
1
0904-
26
BRACKET; CLIP
(A) L=75
1-47477-119-0
08
1
0904-
26
BRACKET; CLIP
(C)
1-47479-333-0
01
1
0904-
26
BRACKET; CLIP
(E) L=30
1-47479-481-0
01
1
0904-
26
BRACKET; CLIP
(D) L=120 H=35
1-82698-088-0
02
1
0904-
28
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
09
1
0904-
28
BOLT; BRKT
M8X25 FLANGE
0-28650-825-0
03
1
0904-
34
NUT; BRKT
M8 FLANGE
0-91180-108-0
11
1
0904-
163
CLIP; BAND
L=350
1-09707-183-0
01
1
0904-
166
TUBE; NYLON
(A) SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
0904-
166
TUBE; NYLON
(B) SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
0904-
167
TUBE; CORRUGATE
(A) SERVICED BY L=2000 ID=10
1-87411-019-0
AR
1
0904-
167
TUBE; CORRUGATE
(B) SERVICED BY L=4000 ID=13
1-87411-023-0
AR
1
0904-
175
CLIP
ID=9 L=20
0-95234-835-0
14
1
0904-
185
CLIP; NYLON TUBE
L=350
1-09707-183-0
03
1
0904-
