Isuzu WW
▶
TRUCKS
▶
EXY
▶
11201 - EXY NEW ZEALAND EURO4
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-70 - AIR SUSPENSION VALVE AND CONTROL
▶
4-70 — AIR SUSPENSION VALVE AND CONTROL
(#68684) — 65 parça
◀

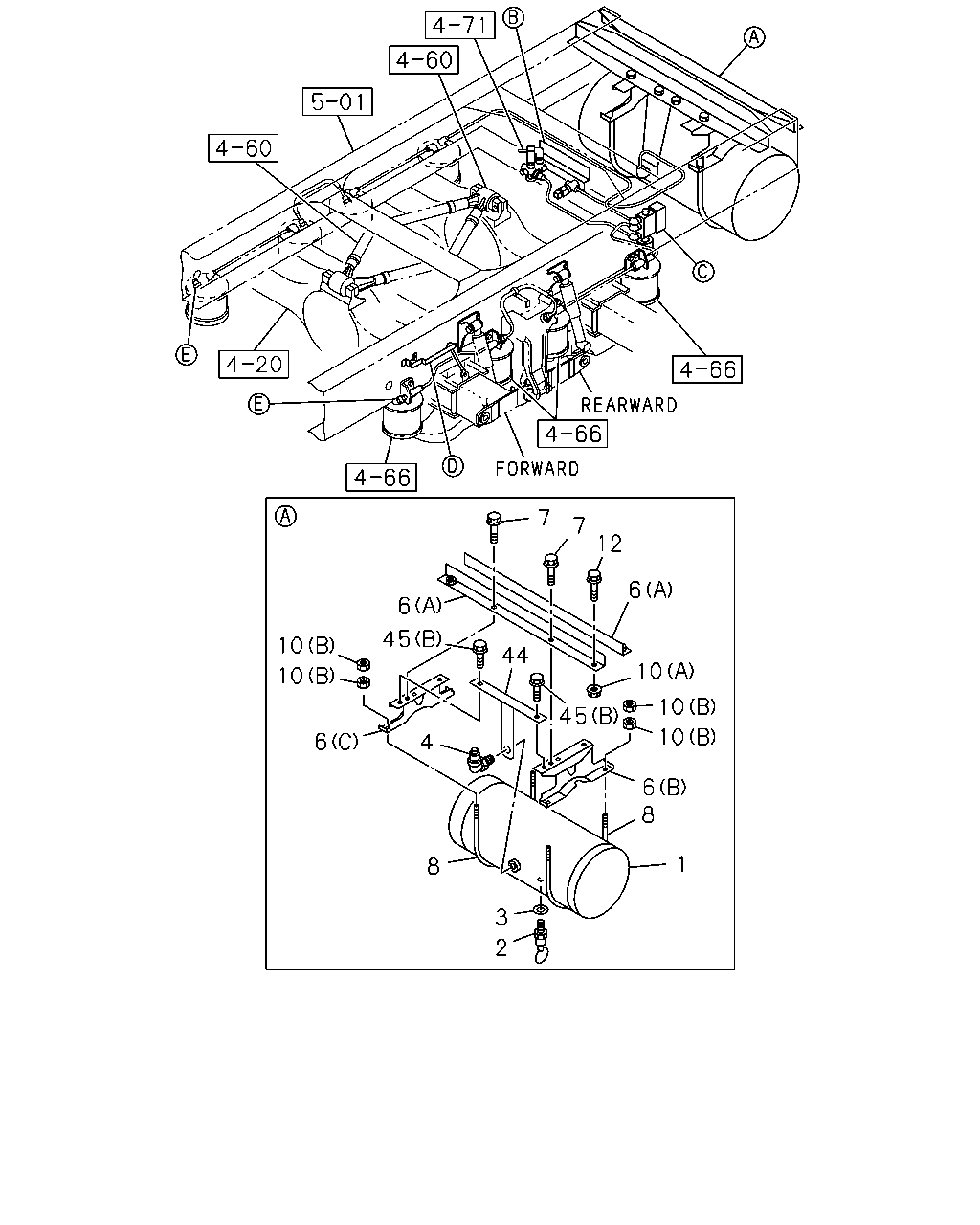

[470A] PIPING AND AIR TANK (15 parça)

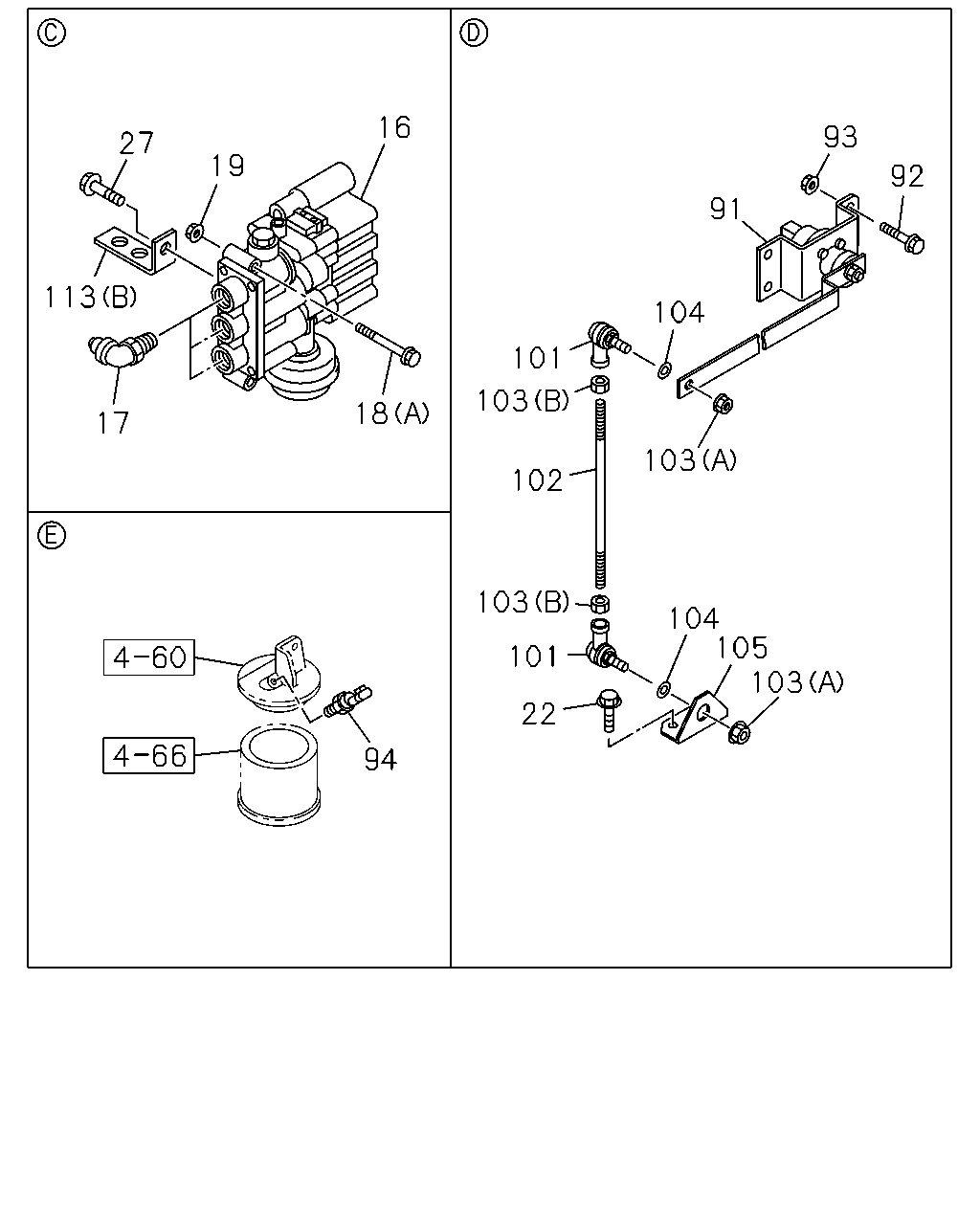

[470A] AIR CONTROL VALVE AND HIGHT SENSOR (20 parça)

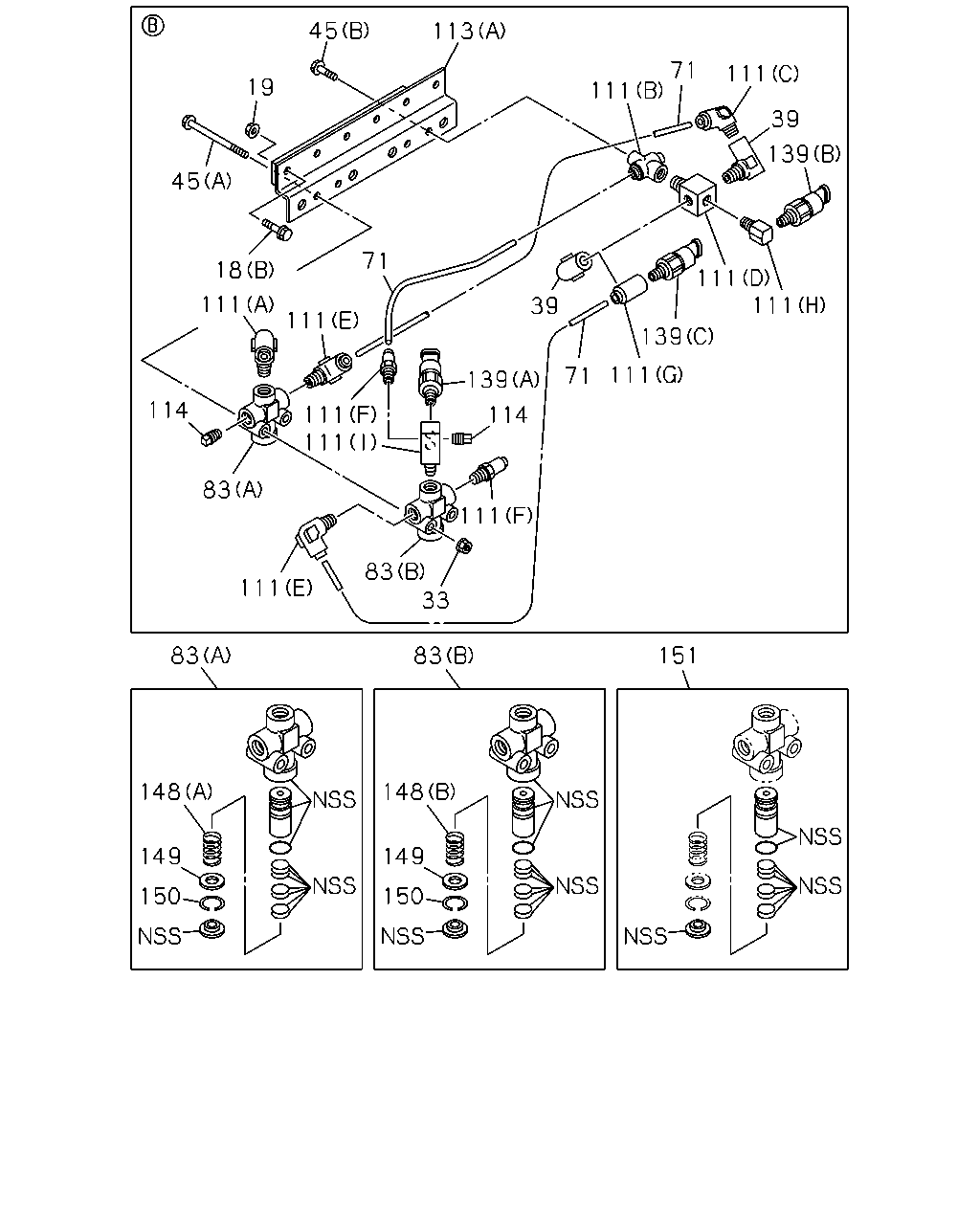

[470A] PROTECTION VALVE (30 parça)
▶
7
7
12
6
6
45
10
44
10
10
10
45
10
6
4
6
8
1
8
3
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK ASM; AIR
1-48371-185-5
01
1
0904-
2
COCK ASM; DRAIN
W/COVER
1-48312-004-2
01
1
0904-
3
GASKET; DRAIN COCK
ID=14
1-09630-145-0
01
1
0904-
4
CONNECTOR; AIR TANK
DIN8 & M22 ELBOW
1-09661-495-0
01
1
0904-
6
BRACKET; AIR TANK
(A)
1-48316-054-0
02
1
0904-
6
BRACKET; AIR TANK
(B)
1-48316-056-0
01
1
0904-
6
BRACKET; AIR TANK
(C)
1-48316-057-0
01
1
0904-
7
BOLT; BRKT,AIR TANK
M12X40 FLANGE
0-28651-240-0
04
1
0904-
8
U-BOLT; AIR TANK
L=303
1-48317-087-2
02
1
0904-
10
NUT; U-BOLT
(B) M8
0-91110-508-0
08
1
0904-
10
NUT; U-BOLT
(A) M12 FLANGE
0-91180-212-0
04
1
0904-
12
BOLT; AIR TANK
M12X30 FLANGE
0-28651-230-0
04
1
0904-
44
STOPPER; AIR TANK
1-48316-055-0
01
1
0904-
45
BOLT
(A) M8X100 FLANGE
0-28050-800-0
02
1
0904-
45
BOLT
(B) M8X20 FLANGE
0-28650-820-0
03
1
0904-
16
93
27
19
92
91
113
104
101
103
18
17
103
102
103
104
105
103
101
22
94
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
16
VALVE; AIR
1-82563-713-0
01
1
0904-
17
CONNECTOR; AIR VLV
1-09661-539-0
03
1
0904-
18
BOLT; AIR VLV
(A) M8X70
0-10855-870-0
02
1
0904-
18
BOLT; AIR VLV
(B) M8X25 FLANGE
0-28650-825-0
03
1
0904-
19
NUT; AIR VLV
M8 FLANGE
0-91180-108-0
05
1
0904-
22
BOLT; BRKT
M8X10 FLANGE
0-28050-810-0
04
1
0904-
27
BOLT; BRKT
M8X12 FLANGE
0-28050-812-0
01
1
0904-
91
SENSOR ASM; ELEC,HIGHT CONT
1-81549-113-0
01
1
0904-
91
SENSOR ASM; ELEC,HIGHT CONT
1-81549-112-0
01
1
0904-
92
BOLT; SENSOR
M8X25 FLANGE
0-28650-825-0
04
1
0904-
93
NUT; SENSOR
M8 FLANGE
0-91180-108-0
04
1
0904-
94
SENSOR ASM; PRESSURE,AIR
THREAD R1/8
1-80220-025-0
02
1
0904-
101
JOINT ASM; BALL
L=45.5
1-09760-118-1
04
1
0904-
102
ROD; LINK
L=210
9-08400-821-0
02
1
0904-
103
NUT; LINK ROD
(B) M8
0-91111-508-0
04
1
0904-
103
NUT; LINK ROD
(A) M8 FLANGE
0-91180-108-0
04
1
0904-
104
WASHER; LINK ROD
ID=8.2
8-94312-733-0
04
1
0904-
105
BRACKET; AXLE LINK ROD
1-42129-238-0
02
1
0904-
113
BRACKET
(B) L=60 H=30
1-47477-716-1
01
1
0904-
113
BRACKET
(A)
1-47479-937-0
01
1
0904-
45
113
71
111
111
19
39
139
45
71
18
111
111
111
39
111
139
111
71
139
114
111
111
114
83
111
83
33
111
83
83
151
148
148
149
149
150
150
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
18
BOLT; AIR VLV
(A) M8X70
0-10855-870-0
02
1
0904-
18
BOLT; AIR VLV
(B) M8X25 FLANGE
0-28650-825-0
03
1
0904-
19
NUT; AIR VLV
M8 FLANGE
0-91180-108-0
05
1
0904-
33
NUT
M8 FLANGE
0-91180-108-0
02
1
0904-
39
VALVE; CHECK
1-48320-031-1
02
1
0904-
45
BOLT
(A) M8X100 FLANGE
0-28050-800-0
02
1
0904-
45
BOLT
(B) M8X20 FLANGE
0-28650-820-0
03
1
0904-
71
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
03
1
0904-
83
VALVE; PROTECTION
(A)
1-48110-209-0
01
1
0904-
83
VALVE; PROTECTION
(B)
1-48110-222-0
01
1
0904-
111
CONNECTOR
(I) PT1/4 4WAY
1-09660-358-0
01
1
0904-
111
CONNECTOR
(H) PT1/4 & PT3/8 2WAY
1-09660-809-0
01
1
0904-
111
CONNECTOR
(E) DIN8 & R1/4 ELBOW
1-09660-956-0
02
1
0904-
111
CONNECTOR
(C) DIN8 & R3/8 ELBOW
1-09660-957-0
01
1
0904-
111
CONNECTOR
(A) DIN12 & R1/4 ELBOW
1-09660-958-0
01
1
0904-
111
CONNECTOR
(F) DIN8 R1/4 STRAIGHT
1-09660-963-0
02
1
0904-
111
CONNECTOR
(B) DIN8 & RC3/8 3WAY
1-09661-129-0
01
1
0904-
111
CONNECTOR
(D) PT3/8 4WAY
1-09661-489-0
01
1
0904-
111
CONNECTOR
(G) DIN8 & RC1/4 & R3/8 3WAY
8-97620-116-0
01
1
0904-
113
BRACKET
(B) L=60 H=30
1-47477-716-1
01
1
0904-
113
BRACKET
(A)
1-47479-937-0
01
1
0904-
114
PLUG
PT1/4
9-99204-513-0
02
1
0904-
139
SWITCH; LOW PRESSURE
(A) STAMP 5.5
8-97609-249-0
01
1
0904-
139
SWITCH; LOW PRESSURE
(C) STAMP 0.4
8-97609-250-0
01
1
0904-
139
SWITCH; LOW PRESSURE
(B) STAMP 6.5
8-97609-252-0
01
1
0904-
148
SPRING; PROTECTION VALVE
(A)
1-48123-093-0
01
1
0904-
148
SPRING; PROTECTION VALVE
(B)
1-48123-094-0
01
1
0904-
149
SEAL; DUST,PROTECTION VALVE
1-48119-447-0
02
1
0904-
150
RING; SNAP,PROTECTION VALVE
1-48119-448-0
02
1
0904-
151
REPAIR KIT; PROTECTION VALVE
1-85576-319-0
02
1
0904-
