Sayfa 4-10 - Isuzu EPC

4-10 — FRONT AXLE (#6867) — 226 parça

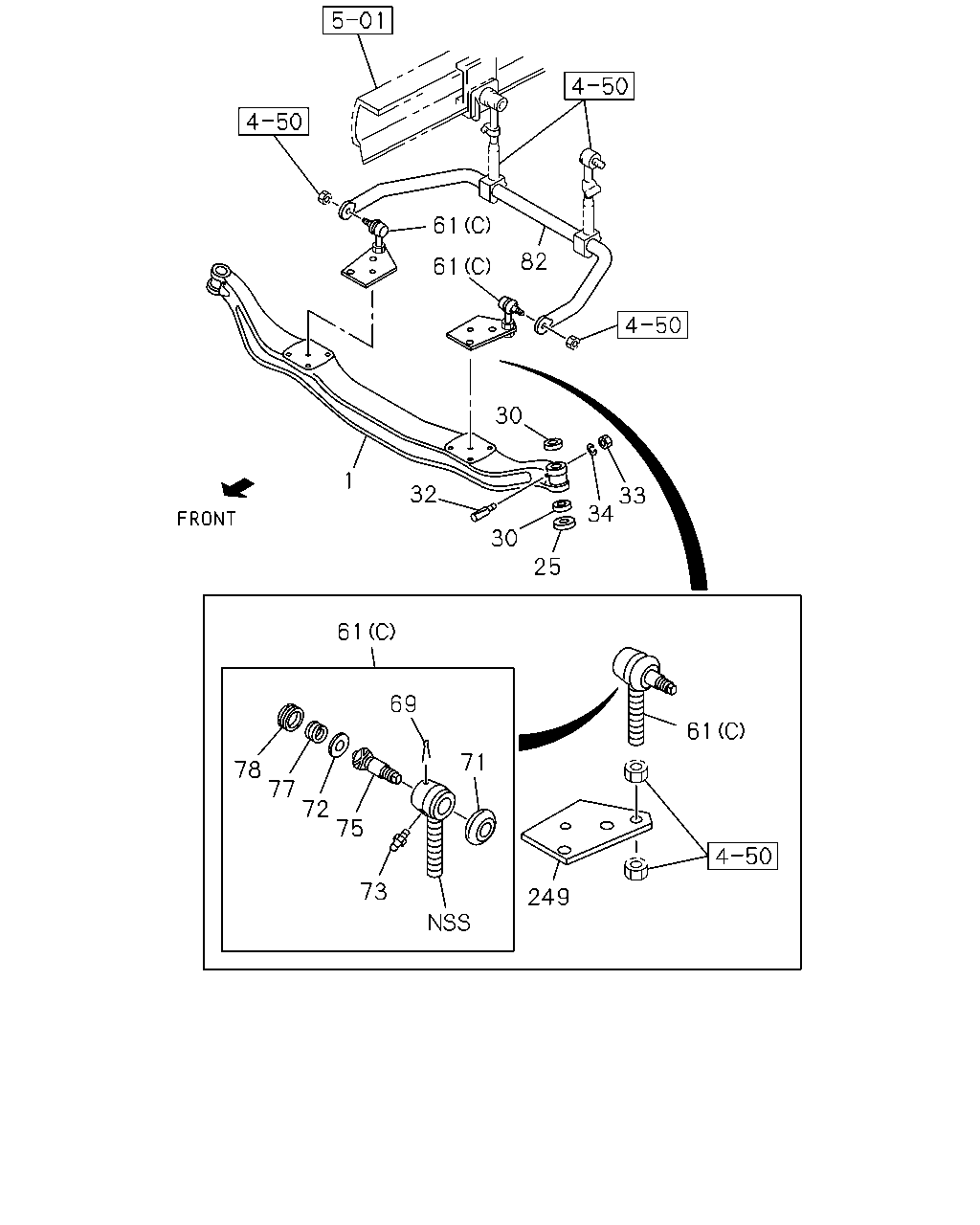

61 82 61 30 1 32 33 34 30 25 61 69 61 71 78 77 72 75 73 249

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT	1-43111-113-5	01	1	9806-
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	9806-
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	9806-
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	9806-
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	9806-
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	9806-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	9806-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	9806-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	9806-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	9806-
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	9806-
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	9806-
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	9806-
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	9806-
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	9806-
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	9806-
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	9806-
32	BOLT; KEY,KING PIN	1-43116-002-1	02	1	9806-
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	9806-0512
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0601-
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	9806-0603
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0604-
61	ROD END; TIE ROD STAB SHF<FE6> (C)	1-43150-470-0	01	1	0001-0306
61	ROD END; TIE ROD STAB SHF<FE6> (C)	1-43150-471-0	01	1	0001-0306
61	ROD END; TIE ROD (A)	1-43150-737-1	01	1	9806-9812
61	ROD END; TIE ROD (A)	1-43150-802-0	01	1	9901-
61	ROD END; TIE ROD (B)	1-43150-736-1	01	1	9806-9812
61	ROD END; TIE ROD (B)	1-43150-801-0	01	1	9901-
61	ROD END; TIE ROD STAB SHF<FE6> (C)	1-43150-470-0	01	1	9806-9911
61	ROD END; TIE ROD FRT STAB SHF<F59> (C)	1-43150-470-0	01	1	9806-9911
61	ROD END; TIE ROD STAB SHF<FE6> (C)	1-43150-471-0	01	1	9806-9911
61	ROD END; TIE ROD FRT STAB SHF<F59> (C)	1-43150-471-0	01	1	9806-9911
69	PIN; SPLIT,TIE ROD END STAB SHF<FE6> OD=2.8 L=55	9-08113-055-0	02	1	0001-0306
69	PIN; SPLIT,TIE ROD END STAB SHF<FE6> OD=2.8 L=55	9-08113-055-0	02	1	9806-9911
69	PIN; SPLIT,TIE ROD END FRT STAB SHF<F59> OD=2.8 L=55	9-08113-055-0	02	1	9806-9911
71	BOOT; TIE ROD END STAB SHF<FE6> D=18.5,29	1-43159-036-0	02	1	0001-0306
71	BOOT; TIE ROD END STAB SHF<FE6> D=18.5,29	1-43159-036-0	02	1	9806-9911
71	BOOT; TIE ROD END FRT STAB SHF<F59> D=18.5,29	1-43159-036-0	02	1	9806-9911
72	SEAT; BALL,TIE ROD JOINT STAB SHF<FE6>	1-44370-002-0	02	1	0001-0306
72	SEAT; BALL,TIE ROD JOINT STAB SHF<FE6>	1-44370-002-0	02	1	9806-9911
72	SEAT; BALL,TIE ROD JOINT FRT STAB SHF<F59>	1-44370-002-0	02	1	9806-9911
73	NIPPLE; GREASE,TIE ROD END STAB SHF<FE6> M6 STRAIGHT	9-09031-006-0	02	1	0001-0306
73	NIPPLE; GREASE,TIE ROD END STAB SHF<FE6> M6 STRAIGHT	9-09031-006-0	02	1	9806-9911
73	NIPPLE; GREASE,TIE ROD END FRT STAB SHF<F59> M6 STRAIGHT	9-09031-006-0	02	1	9806-9911
75	JOINT; BALL,DRAG LINK STAB SHF<FE6>	1-87090-211-0	02	1	0001-0306
75	JOINT; BALL,DRAG LINK STAB SHF<FE6>	1-87090-211-0	02	1	9806-9911
75	JOINT; BALL,DRAG LINK FRT STAB SHF<F59>	1-87090-211-0	02	1	9806-9911
77	SPRING; TIE ROD END STAB SHF<FE6>	1-09580-080-0	02	1	0001-0306
77	SPRING; TIE ROD END STAB SHF<FE6>	1-09580-080-0	02	1	9806-9911
77	SPRING; TIE ROD END FRT STAB SHF<F59>	1-09580-080-0	02	1	9806-9911
78	PLUG; ADJ,ROD END STAB SHF<FE6>	1-44375-001-0	02	1	0001-0306
78	PLUG; ADJ,ROD END STAB SHF<FE6>	1-44375-001-0	02	1	9806-9911
78	PLUG; ADJ,ROD END FRT STAB SHF<F59>	1-44375-001-0	02	1	9806-9911
82	BAR; STAB,FRT SUSP STAB SHF<FE6>	1-51771-039-1	01	1	0001-0306
82	BAR; STAB,FRT SUSP STAB SHF<FE6>	1-51771-203-0	01	1	0307-
82	BAR; STAB,FRT SUSP STAB SHF<FE6>	1-51771-039-1	01	1	9806-9911
82	BAR; STAB,FRT SUSP FRT STAB SHF<F59>	1-51771-039-1	01	1	9806-9911
249	BRACKET; ROD END STAB SHF<FE6>	1-51781-035-0	02	1	0001-0306
249	BRACKET; ROD END STAB SHF<FE6>	1-51781-035-0	02	1	9806-9911
249	BRACKET; ROD END FRT STAB SHF<F59>	1-51781-035-0	02	1	9806-9911

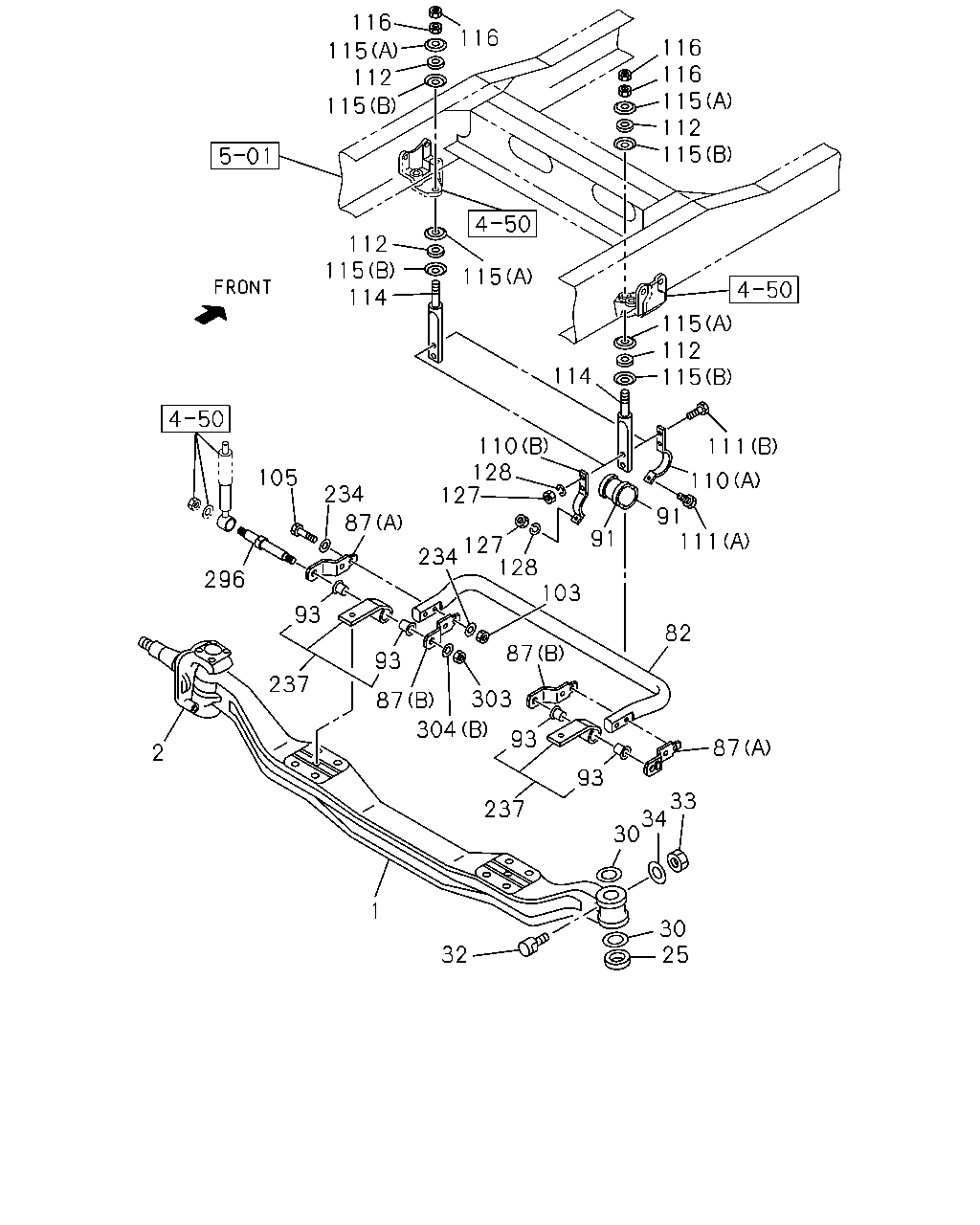

116 116 116 116 115 112 115 115 112 115 112 115 114 115 115 112 115 114 110 128 127 111 105 110 234 91 111 87 91 127 234 128 103 296 93 82 87 93 237 303 87 304 93 87 2 93 33 34 30 237 1 25 32 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT	1-43111-113-5	01	1	9806-
2	KNUCKLE; FRT AXLE	1-43132-079-1	01	1	9806-
2	KNUCKLE; FRT AXLE	1-43131-079-1	01	1	9806-
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	9806-
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	9806-
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	9806-
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	9806-
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	9806-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	9806-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	9806-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	9806-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	9806-
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	9806-
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	9806-
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	9806-
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	9806-
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	9806-
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	9806-
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	9806-
32	BOLT; KEY,KING PIN	1-43116-002-1	02	1	9806-
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	9806-0512
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0601-
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	9806-0603
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0604-
82	BAR; STAB,FRT SUSP STAB SHF<FE6>	1-51771-039-1	01	1	0001-0306
82	BAR; STAB,FRT SUSP STAB SHF<FE6>	1-51771-203-0	01	1	0307-
82	BAR; STAB,FRT SUSP STAB SHF<FE6>	1-51771-039-1	01	1	9806-9911
82	BAR; STAB,FRT SUSP FRT STAB SHF<F59>	1-51771-039-1	01	1	9806-9911
87	BRACKET; STABILIZER STAB SHF<FE6> (A) OUTER	1-51781-083-1	02	1	0307-
87	BRACKET; STABILIZER STAB SHF<FE6> (B) INNER	1-51781-084-1	02	1	0307-
91	BUSHING; RUBBER,STAB BAR STAB SHF<FE6>	1-51779-087-1	04	1	0307-
93	BUSHING; STABILIZER STAB SHF<FE6>	1-51689-015-3	04	1	0307-
103	NUT; BRKT FIX STAB SHF<FE6> M14	9-99110-514-0	04	1	0307-0512
103	NUT; BRKT FIX STAB SHF<FE6> M14	0-91110-514-0	04	1	0601-
105	BOLT; BRKT FIX STAB SHF<FE6> M14X70	9-91066-470-0	04	1	0307-
110	CLAMP; STAB TO ROD STAB SHF<FE6> (A)	1-51789-027-2	02	1	0307-
110	CLAMP; STAB TO ROD STAB SHF<FE6> (B)	1-51789-028-1	02	1	0307-
111	BOLT; CLAMP TO ROD STAB SHF<FE6> (A) M12X30	0-20801-230-0	02	1	0307-
111	BOLT; CLAMP TO ROD STAB SHF<FE6> (B) M12X50	0-20801-250-0	04	1	0307-
112	BUSHING; ROD STAB SHF<FE6>	9-51631-039-0	04	1	0307-
114	ROD; STAB BAR STAB SHF<FE6>	1-51773-083-2	02	1	0307-
115	WASHER; CENTER,STAB TO FRAME STAB SHF<FE6> (A) OUTER ID=16.5	9-51631-040-0	04	1	0307-
115	WASHER; CENTER,STAB TO FRAME STAB SHF<FE6> (B) INNER ID=20.8	9-51631-041-0	04	1	0307-
116	NUT; LK,STAB TO FRAME STAB SHF<FE6> M14	9-99111-414-0	04	1	0307-0512
116	NUT; LK,STAB TO FRAME STAB SHF<FE6> M14	0-91111-514-0	04	1	0601-
127	NUT; CLAMP STAB SHF<FE6> M12	9-99110-412-0	06	1	0307-0512
127	NUT; CLAMP STAB SHF<FE6> M12	0-91110-512-0	06	1	0601-
128	WASHER; LK,CLAMP STAB SHF<FE6> ID=12.2	9-09150-512-0	06	1	0307-0603
128	WASHER; LK,CLAMP STAB SHF<FE6> ID=12.2	0-91510-512-0	06	1	0604-
234	WASHER; STAB STAB SHF<FE6> ID=15	9-09651-069-0	08	1	0307-
237	SUPPORT; STAB BAR STAB SHF<FE6>	1-51681-662-0	02	1	0307-
296	PIN; STAB STAB SHF<FE6>	1-51682-145-2	02	1	0307-
303	NUT; PIN STAB SHF<FE6> M20	9-99110-520-0	02	1	0307-0512
303	NUT; PIN STAB SHF<FE6> M20	0-91110-520-0	02	1	0601-
304	WASHER; PL STAB SHF<FE6> (B) ID=21	9-09164-520-0	02	1	0307-
304	WASHER; PL (A) ID=12.5	9-09164-512-0	04	1	9806-

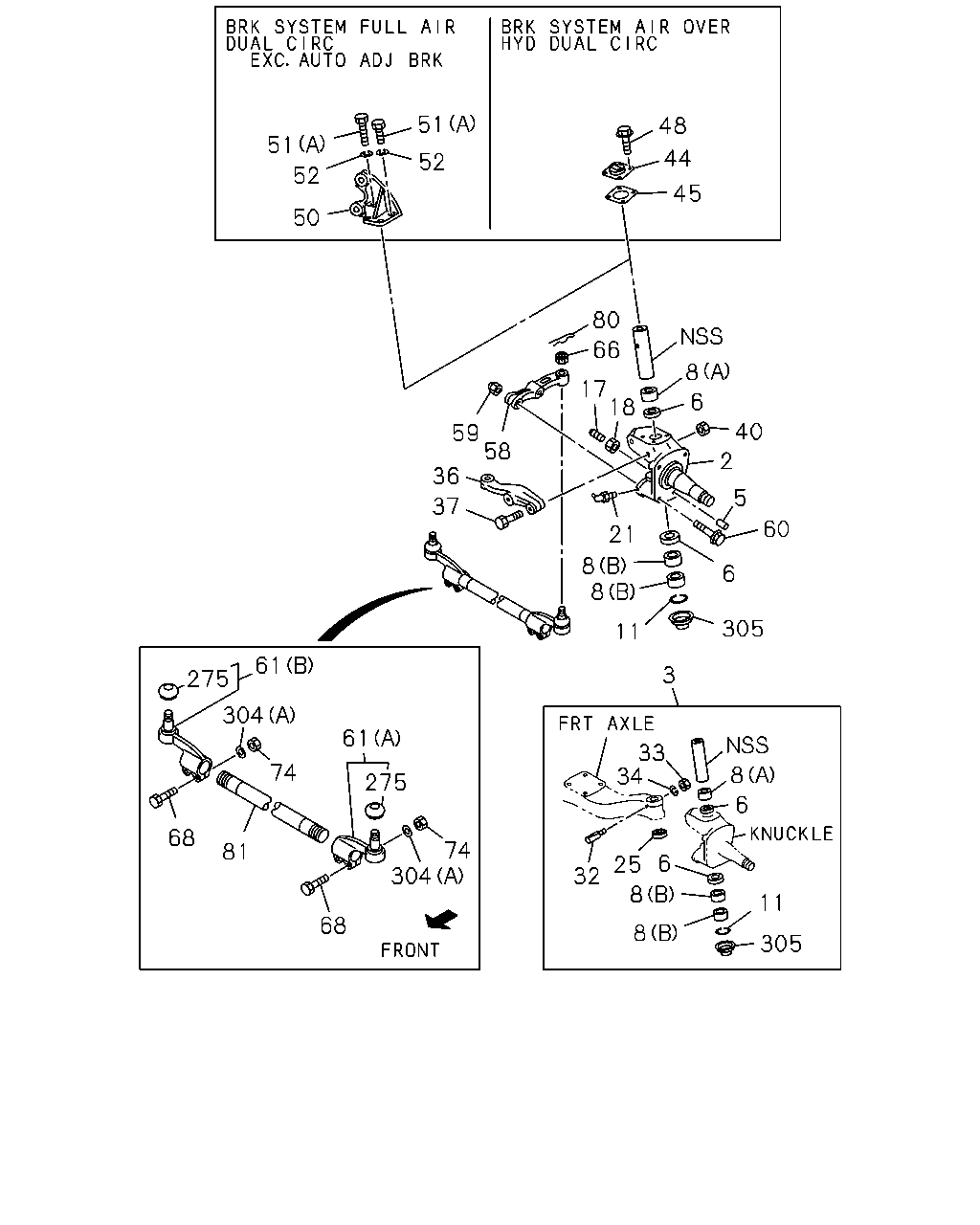

48 44 52 52 45 50 80 66 17 18 6 40 59 58 2 36 5 37 60 21 8 8 6 305 11 61 3 275 304 61 33 34 74 8 275 6 68 74 304 81 6 25 32 8 11 68 8 305 51 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	KNUCKLE; FRT AXLE	1-43132-079-1	01	1	9806-
2	KNUCKLE; FRT AXLE	1-43131-079-1	01	1	9806-
3	KING PIN SET	1-87830-738-5	02	1	9806-
5	PIN; KNUCKLE TO DRUM COVER	1-09740-072-0	02	1	9806-
6	SEAL; KING PIN	9-09926-024-0	04	1	9806-
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-242-0	04	1	9806-
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-243-0	02	1	9806-
11	RING; SNAP,KNUCKLE PLUG	9-09950-204-0	02	1	9806-
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-065-0	02	1	9806-
18	NUT; STOPPER BOLT,KNUCKLE M18	9-99110-518-0	02	1	9806-0512
18	NUT; STOPPER BOLT,KNUCKLE M18	0-91110-518-0	02	1	0601-
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5?	9-09031-110-0	04	1	9806-0512
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5?	0-90301-510-0	04	1	0601-
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	9806-
32	BOLT; KEY,KING PIN	1-43116-002-1	02	1	9806-
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	9806-0512
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0601-
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	9806-0603
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0604-
36	ARM; KNUCKLE	1-43133-063-3	01	1	9806-
37	BOLT; KNUCKLE ARM M22X179	1-09000-578-1	01	1	9806-
37	BOLT; KNUCKLE ARM M22X167	9-09806-847-3	01	1	9806-
40	NUT; KNUCKLE ARM M22	9-09844-670-1	02	1	9806-
44	COVER; KING PIN BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-43175-014-1	02	1	9806-9911
45	GASKET; KING PIN COVER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-42319-044-0	02	1	9806-9911
48	BOLT; COVER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M12X16 FLANGE	0-28081-216-0	08	1	9806-9911
50	BRACKET; POWER CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-43145-010-2	01	1	9806-9911
50	BRACKET; POWER CHAMBER	1-43145-010-3	01	1	9912-
50	BRACKET; POWER CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-43145-009-2	01	1	9806-9911
50	BRACKET; POWER CHAMBER	1-43145-009-3	01	1	9912-
51	BOLT; POWER CHAMBER BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) M12X60	0-10806-260-0	02	1	9806-9911
51	BOLT; POWER CHAMBER BRKT (A) M12X60	0-10806-260-0	02	1	9912-0004
51	BOLT; POWER CHAMBER BRKT (A) M12X60 FLANGE	0-28081-260-0	02	1	0005-0512
51	BOLT; POWER CHAMBER BRKT (A) M12X60 FLANGE	0-28051-260-0	02	1	0601-
51	BOLT; POWER CHAMBER BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) AUTO ADJ BRK<BCU> (A) M12X28	0-20801-228-0	02	1	9806-9911
51	BOLT; POWER CHAMBER BRKT (A) M12X28	0-20801-228-0	02	1	9912-0004
51	BOLT; POWER CHAMBER BRKT (A) M12X25 FLANGE	0-28681-225-0	02	1	0005-0512
51	BOLT; POWER CHAMBER BRKT (A) M12X25 FLANGE	0-28651-225-0	02	1	0601-
51	BOLT; POWER CHAMBER BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) AUTO ADJ BRK<BCU> (B) STUD M8X14,M12X18 L=45.7	1-09029-070-0	04	1	9806-9911
51	BOLT; POWER CHAMBER BRKT (B) STUD M8X14,M12X18 L=45.7	1-09029-070-0	04	1	9912-0004
51	BOLT; POWER CHAMBER BRKT (B) M8X15,M12X26 L=52.7	1-09029-099-0	04	1	0005-
51	BOLT; POWER CHAMBER BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. AUTO ADJ BRK<BCU> (A) M12X28	0-20801-228-0	06	1	9806-9911
52	WASHER; LK,POWER CHAMBER BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=12.2	9-09150-512-0	08	1	9806-9911
52	WASHER; LK,POWER CHAMBER BRKT ID=12.2	9-09150-512-0	08	1	9912-0004
58	ARM; TIE ROD	1-43135-042-3	01	1	9806-
58	ARM; TIE ROD	1-43134-042-3	01	1	9806-
59	NUT; TIE ROD ARM M22	9-09844-670-1	04	1	9806-
60	BOLT; TIE ROD ARM M22X193	1-09000-154-2	04	1	9806-
61	ROD END; TIE ROD STAB SHF<FE6> (C)	1-43150-470-0	01	1	0001-0306
61	ROD END; TIE ROD STAB SHF<FE6> (C)	1-43150-471-0	01	1	0001-0306
61	ROD END; TIE ROD (A)	1-43150-737-1	01	1	9806-9812
61	ROD END; TIE ROD (A)	1-43150-802-0	01	1	9901-
61	ROD END; TIE ROD (B)	1-43150-736-1	01	1	9806-9812
61	ROD END; TIE ROD (B)	1-43150-801-0	01	1	9901-
61	ROD END; TIE ROD STAB SHF<FE6> (C)	1-43150-470-0	01	1	9806-9911
61	ROD END; TIE ROD FRT STAB SHF<F59> (C)	1-43150-470-0	01	1	9806-9911
61	ROD END; TIE ROD STAB SHF<FE6> (C)	1-43150-471-0	01	1	9806-9911
61	ROD END; TIE ROD FRT STAB SHF<F59> (C)	1-43150-471-0	01	1	9806-9911
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	9806-
68	BOLT; TIE ROD END M12X65	9-91061-265-0	04	1	9806-
74	NUT; TIE ROD END M12	9-99110-512-0	04	1	9806-0512
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	0601-
80	PIN; SPLIT,ROD END OD=4.6 L=35	9-08115-035-0	02	1	9806-0606
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	0607-
81	ROD; TIE	1-43151-119-0	01	1	9806-
275	BOOT; ROD END,TIE	1-43159-078-0	02	1	9806-9812
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	9901-
304	WASHER; PL STAB SHF<FE6> (B) ID=21	9-09164-520-0	02	1	0307-
304	WASHER; PL (A) ID=12.5	9-09164-512-0	04	1	9806-
305	COVER; KNUCKLE	1-43175-021-0	02	1	9806-

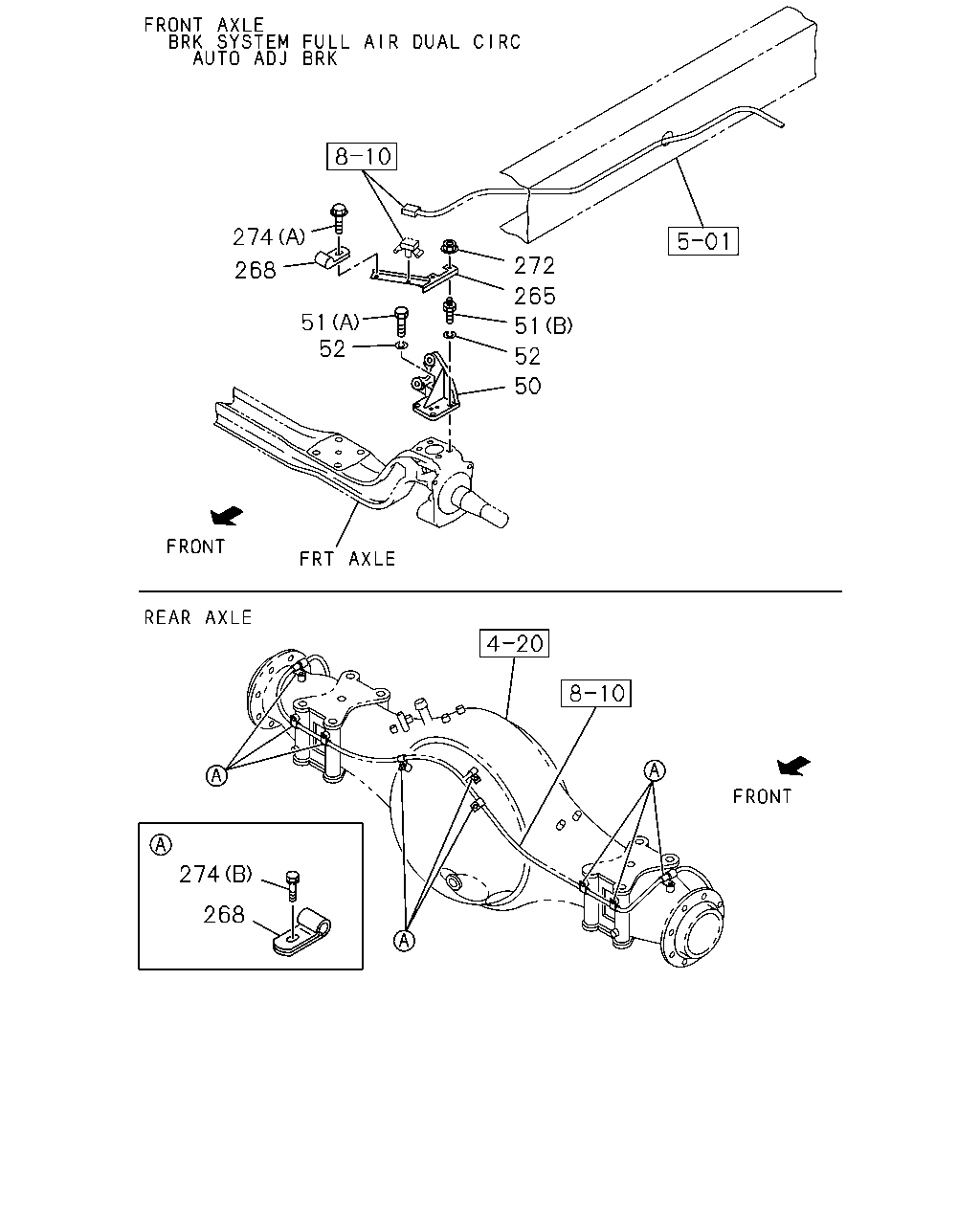

274 272 268 265 51 52 51 52 50 274 268

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
50	BRACKET; POWER CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-43145-010-2	01	1	9806-9911
50	BRACKET; POWER CHAMBER	1-43145-010-3	01	1	9912-
50	BRACKET; POWER CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-43145-009-2	01	1	9806-9911
50	BRACKET; POWER CHAMBER	1-43145-009-3	01	1	9912-
51	BOLT; POWER CHAMBER BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) M12X60	0-10806-260-0	02	1	9806-9911
51	BOLT; POWER CHAMBER BRKT (A) M12X60	0-10806-260-0	02	1	9912-0004
51	BOLT; POWER CHAMBER BRKT (A) M12X60 FLANGE	0-28081-260-0	02	1	0005-0512
51	BOLT; POWER CHAMBER BRKT (A) M12X60 FLANGE	0-28051-260-0	02	1	0601-
51	BOLT; POWER CHAMBER BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) AUTO ADJ BRK<BCU> (A) M12X28	0-20801-228-0	02	1	9806-9911
51	BOLT; POWER CHAMBER BRKT (A) M12X28	0-20801-228-0	02	1	9912-0004
51	BOLT; POWER CHAMBER BRKT (A) M12X25 FLANGE	0-28681-225-0	02	1	0005-0512
51	BOLT; POWER CHAMBER BRKT (A) M12X25 FLANGE	0-28651-225-0	02	1	0601-
51	BOLT; POWER CHAMBER BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) AUTO ADJ BRK<BCU> (B) STUD M8X14,M12X18 L=45.7	1-09029-070-0	04	1	9806-9911
51	BOLT; POWER CHAMBER BRKT (B) STUD M8X14,M12X18 L=45.7	1-09029-070-0	04	1	9912-0004
51	BOLT; POWER CHAMBER BRKT (B) M8X15,M12X26 L=52.7	1-09029-099-0	04	1	0005-
51	BOLT; POWER CHAMBER BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. AUTO ADJ BRK<BCU> (A) M12X28	0-20801-228-0	06	1	9806-9911
52	WASHER; LK,POWER CHAMBER BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=12.2	9-09150-512-0	08	1	9806-9911
52	WASHER; LK,POWER CHAMBER BRKT ID=12.2	9-09150-512-0	08	1	9912-0004
265	BRACKET; CLIP I BEAM BRK SYSTEM FULL AIR DUAL CIRC(Z06) AUTO ADJ BRK<BCU>	1-82699-622-0	01	1	9806-9911
265	BRACKET; CLIP I BEAM	1-82699-622-0	01	1	9912-
265	BRACKET; CLIP I BEAM BRK SYSTEM FULL AIR DUAL CIRC(Z06) AUTO ADJ BRK<BCU>	1-82699-621-0	01	1	9806-9911
265	BRACKET; CLIP I BEAM	1-82699-621-0	01	1	9912-
268	CLIP; HARNESS BRK SYSTEM FULL AIR DUAL CIRC(Z06) AUTO ADJ BRK<BCU> ID=11 L=16	9-09525-025-0	06	1	9806-9911
268	CLIP; HARNESS ID=11 L=16	9-09525-025-0	06	1	9912-0606
268	CLIP; HARNESS ID=11 L=16	0-95235-025-0	06	1	0607-
268	CLIP; HARNESS BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK LINING D2129 NON ASBESTOS<BCL> AUTO ADJ BRK<BCU> ID=11 L=16	9-09525-025-0	09	1	9806-9911
268	CLIP; HARNESS ID=11 L=16	9-09525-025-0	09	1	9912-0504
268	CLIP; HARNESS ID=11 L=16	9-09525-025-0	09	1	0505-0606
268	CLIP; HARNESS ID=11 L=16	0-95235-025-0	09	1	0607-
272	NUT; CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) AUTO ADJ BRK<BCU> M8 FLANGE	0-91150-108-0	04	1	9806-9911
272	NUT; CLIP M8 FLANGE	0-91150-108-0	04	1	9912-0602
272	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	0603-
274	BOLT; CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) AUTO ADJ BRK<BCU> (A) M8X16 W/LK&PL WASHER	0-50140-816-0	02	1	9806-9911
274	BOLT; CLIP (A) M8X16 W/LK&PL WASHER	0-50140-816-0	02	1	9912-0512
274	BOLT; CLIP (A) M8X16 W/LK&PL WASHER	0-50640-816-0	02	1	0601-
274	BOLT; CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK LINING D2129 NON ASBESTOS<BCL> AUTO ADJ BRK<BCU> (B) M8X12 W/LK WASHER	0-50040-812-0	11	1	9806-9911
274	BOLT; CLIP FINAL GEAR 41/7 15.5" HYP(W3S) RR AXLE R105A<BBJ> EXC. P60 PROP SHF<C2M> (B) M8X12 W/LK WASHER	0-50040-812-0	11	1	9912-0504
274	BOLT; CLIP FINAL GEAR 39/7 15.5" HYP(W3K) EXC. RR AXLE R105A<BBJ> (B) M8X12 W/LK WASHER	0-50040-812-0	11	1	9912-0504
274	BOLT; CLIP (B) M8X12 W/LK WASHER	0-50040-812-0	11	1	0505-0512
274	BOLT; CLIP (B) M8X12 W/LK WASHER	0-50540-812-0	11	1	0601-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
