3-80 — BRAKE PIPING; TRAILER (#68664) — 26 parça

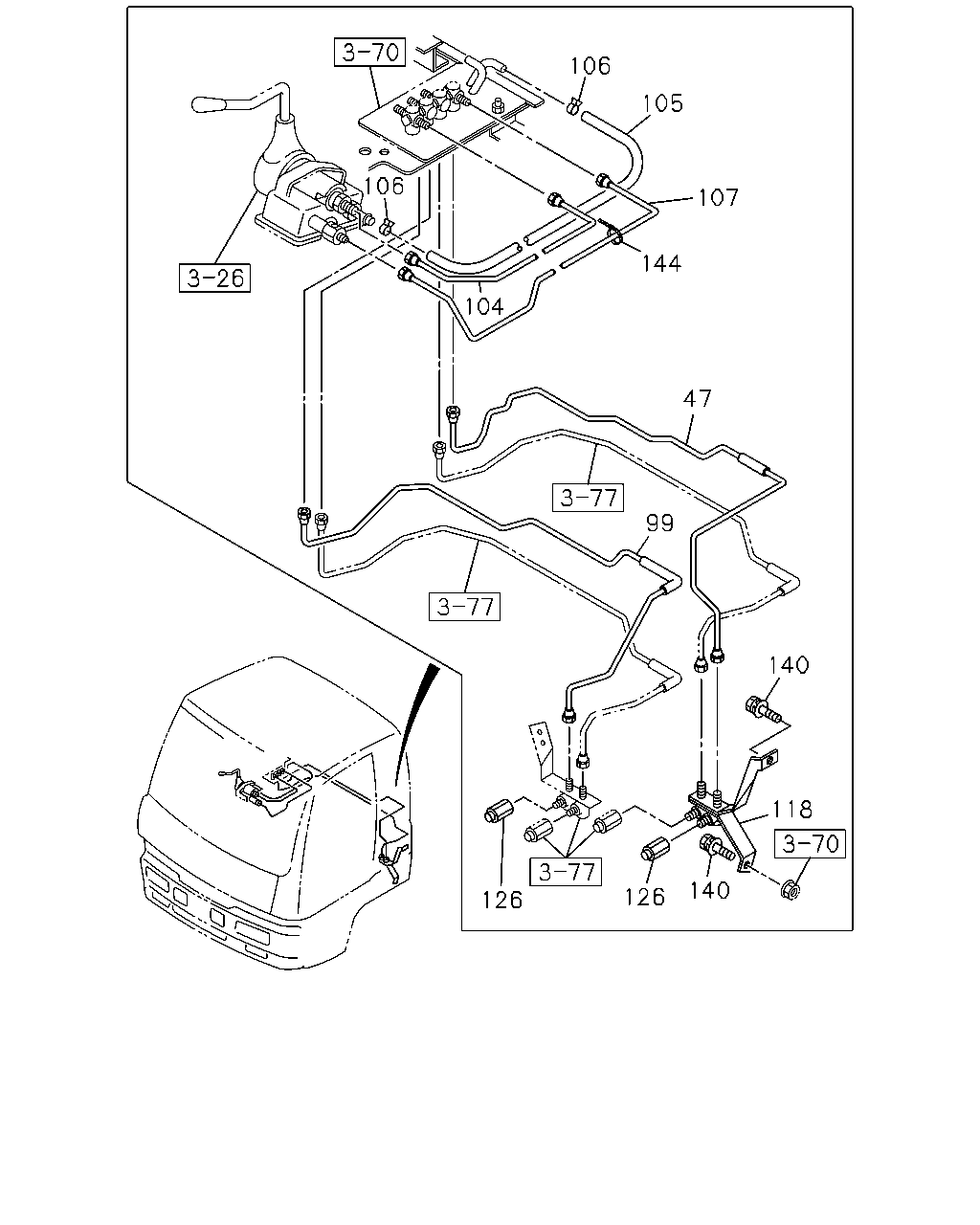

çizim 122415
106 105 106 107 144 104 47 99 140 118 140 126 126
BalonParca AdiParca NoAdetTipApplied Date
47 PIPE; AIR,UNION TO UNION 1-49121-763-2 01 1 0904-
99 PIPE; AIR,JOINT TO JOINT 1-49122-058-1 01 1 0904-
104 PIPE; AIR,JOINT TO PARKING BRK VLV 1-49121-477-0 01 1 0904-
105 PIPE; VINYL,EXH,PARKING BRK VLV
L=400 SERVICED BY L=10000 		9-09914-701-0 01 1 0904-
106 CLIP; PIPE
ID=14 		8-94238-572-0 02 1 0904-
107 PIPE; AIR,JOINT TO PARKING BRK VLV 1-47495-160-0 01 1 0904-
118 JOINT; AIR PIPE 1-47470-608-1 01 1 0904-
126 CONNECTOR; NYLON TUBE
DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 0904-
126 CONNECTOR; NYLON TUBE
DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0904-
140 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0904-0904
140 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905-
144 CLIP; BAND
L=140 		5-09707-031-1 01 1 0904-

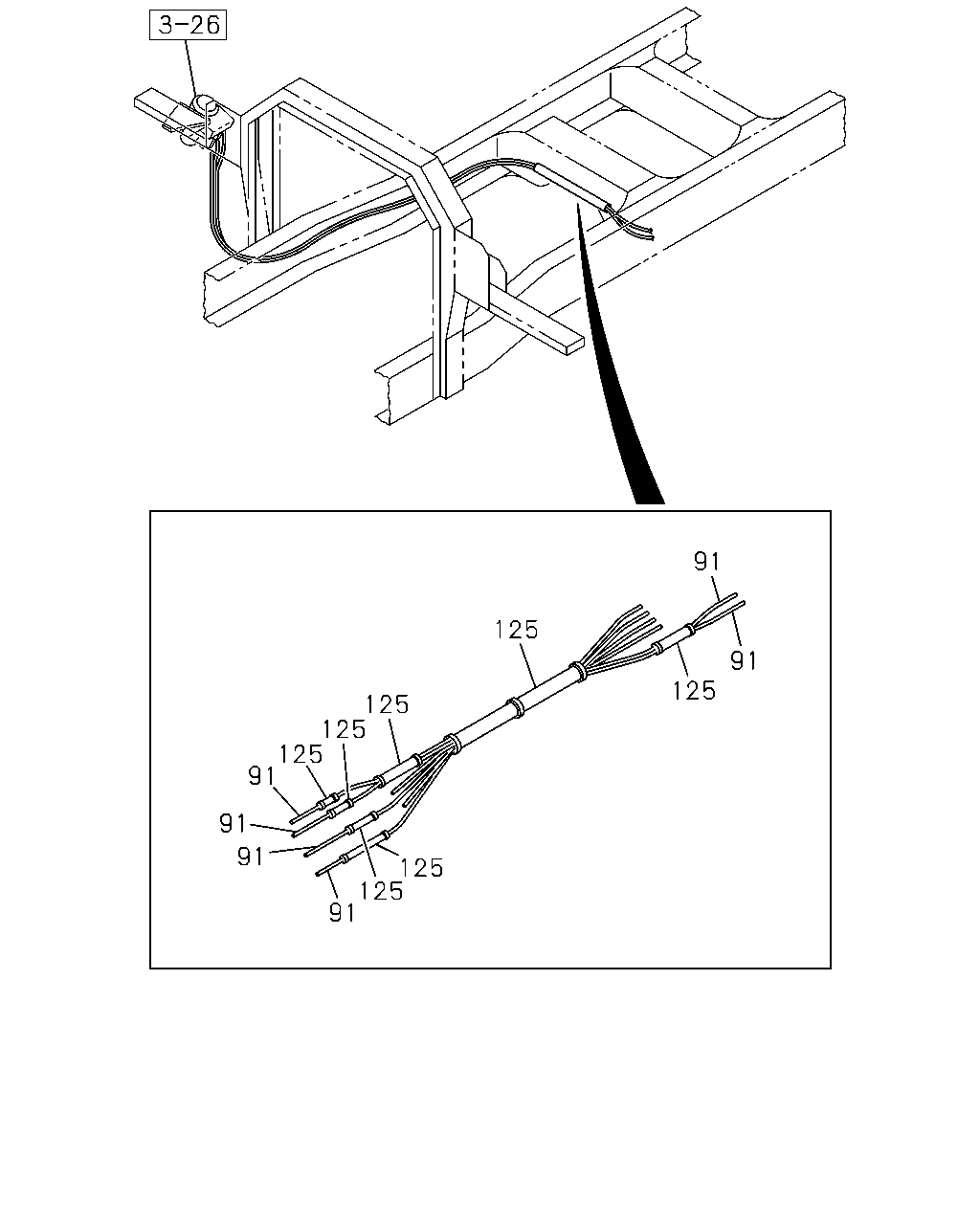

çizim 122566
91 125 91 125 125 125 125 91 91 91 125 125 91
BalonParca AdiParca NoAdetTipApplied Date
91 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0904-
91 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0904-
125 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 0904-

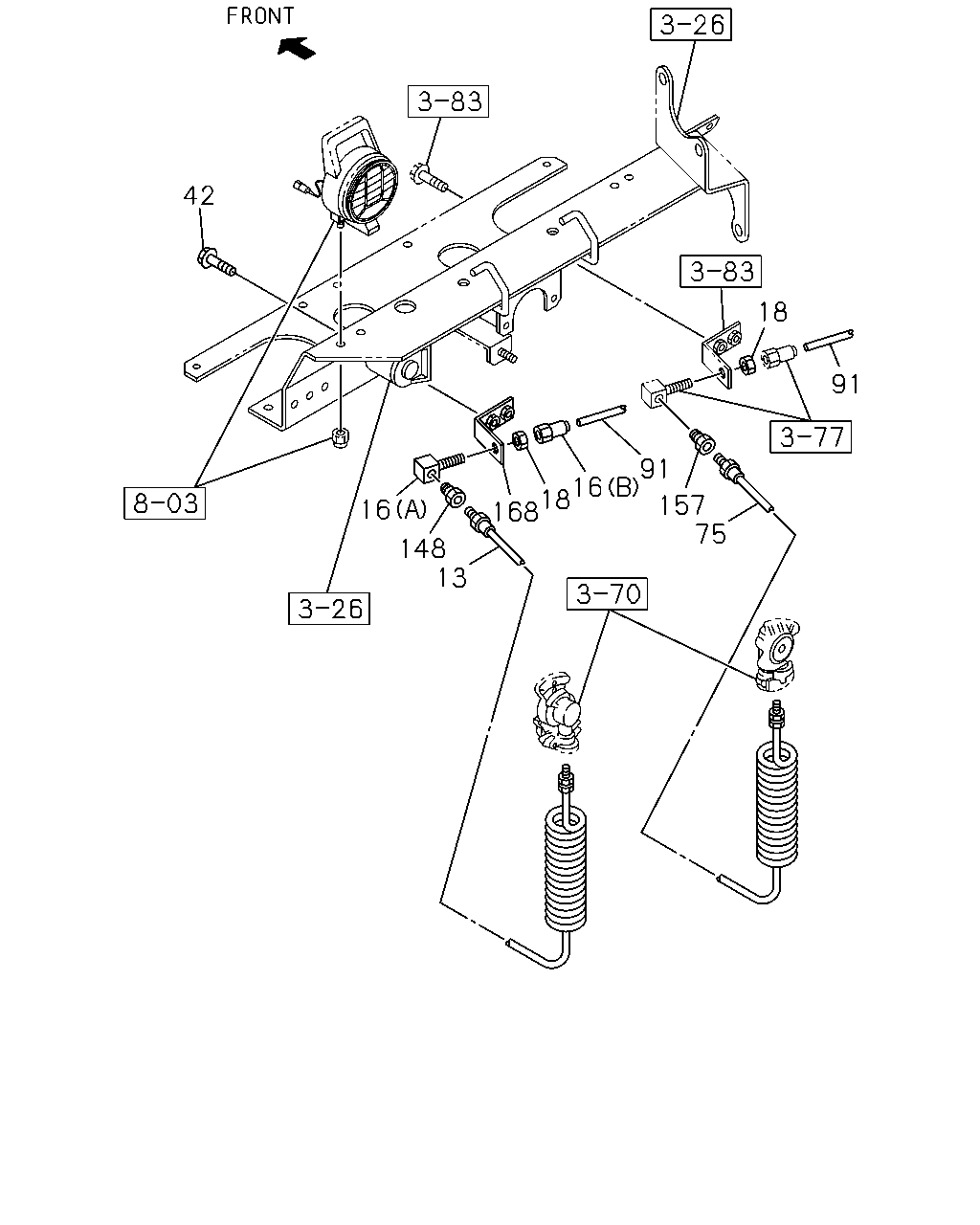

çizim 188209
42 18 91 91 16 18 168 157 75 16 148 13
BalonParca AdiParca NoAdetTipApplied Date
13 HOSE; FLEX,TRAILER SERVICE 1-49212-518-0 01 1 0904-
16 UNION; AIR PIPE
(A) 		1-09650-003-1 01 1 0904-
16 UNION; AIR PIPE
(B) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 0904-
18 NUT; UNION
M20 		0-91111-520-0 02 1 0904-
42 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0904-
75 HOSE; FLEX,TRAILER EMERGENCY 1-49212-518-0 01 1 0904-
91 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0904-
91 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0904-
148 ADAPTER; NYLON TUBE 1-09660-078-0 01 1 0904-
157 ADAPTER 1-09660-078-0 01 1 0904-
168 BRACKET; UNION 1-47478-483-0 01 1 0904-
