◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 10794 - LT(TAIWAN) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#6866) — 206 parça

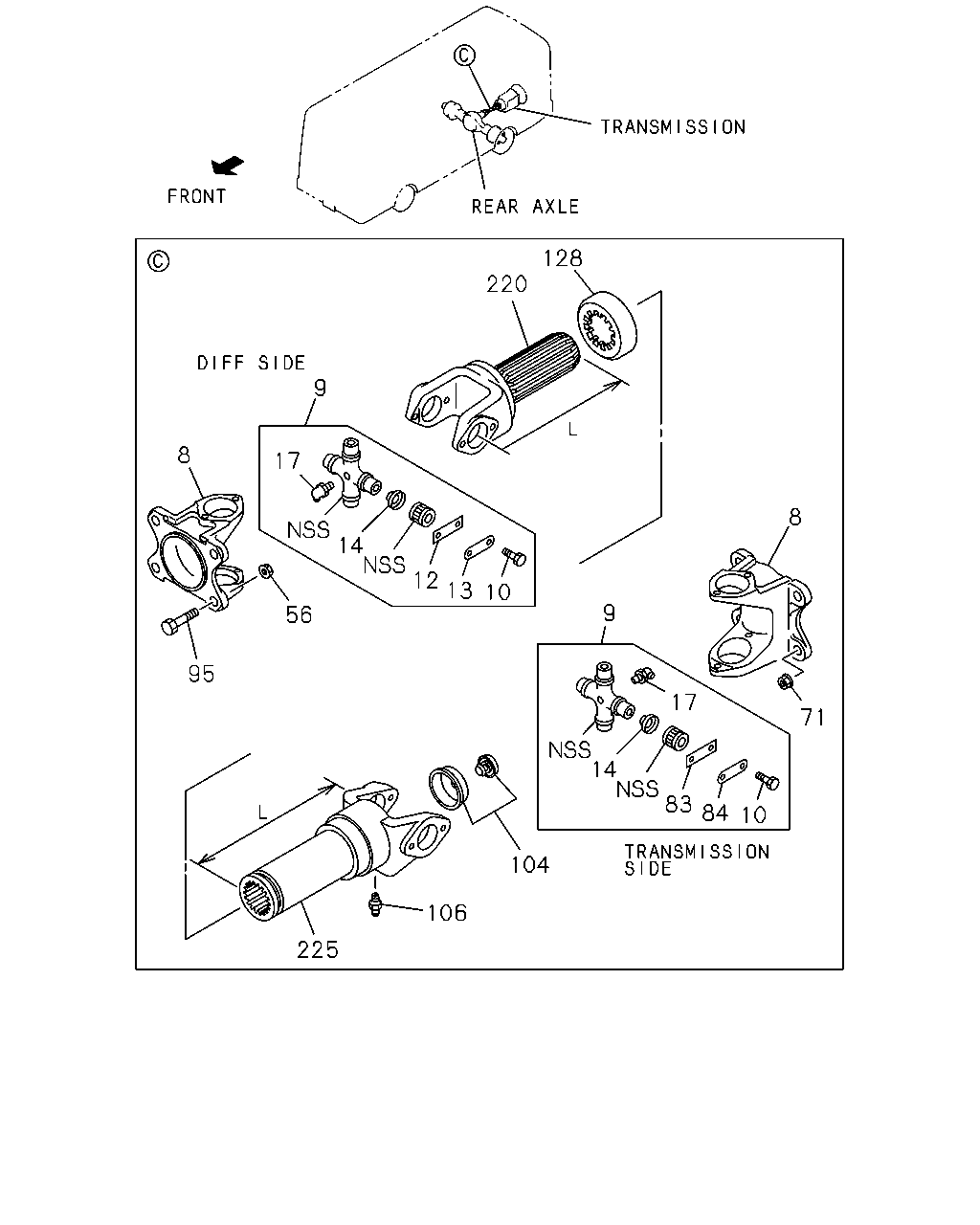

çizim 26025
128 220 9 8 17 8 14 12 13 10 9 56 95 17 71 14 83 84 10 104 106 225
BalonParca AdiParca NoAdetTipApplied Date A B C
8 YOKE; FLANGE,PROP SHAFT
A/T<X9D> 		8-97530-973-0 02 1 9912- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 9806-9911 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
MLD6Q M/T(X5J) 		8-97530-007-1 02 1 9912- ● ●
9 JOURNAL ASM; PROP SHAFT
A/T<X9D> 		1-37300-117-1 AR 1 9912- ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-069-0 AR 1 9806-9808 ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-0 AR 1 9809-9911 ● ● ●
9 JOURNAL ASM; PROP SHAFT
MLD6Q M/T(X5J) 		1-37300-102-1 AR 1 9912- ● ●
10 BOLT; UJT
A/T<X9D> M10X20 		9-02061-020-0 AR 1 9912-0512 ● ●
10 BOLT; UJT
A/T<X9D> M10X20 		0-20951-020-0 AR 1 0601- ● ●
10 BOLT; UJT
A/T<X9D> M10X25 		9-02061-025-0 AR 1 9912- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
A/T<X9D> 		8-97531-156-0 04 1 9912- ● ●
13 COVER; FRT UJT,PROP SHAFT
A/T<X9D> WEIGHT 70 T=6 		8-97531-161-0 AR 1 9912- ● ●
13 COVER; FRT UJT,PROP SHAFT
A/T<X9D> WEIGHT 93 T=8 		8-97531-162-0 AR 1 9912- ● ●
13 COVER; FRT UJT,PROP SHAFT
A/T<X9D> WEIGHT 117 T=10 		8-97531-163-0 AR 1 9912- ● ●
13 COVER; FRT UJT,PROP SHAFT
A/T<X9D> WEIGHT 140 T=12 		8-97531-164-0 AR 1 9912- ● ●
14 COVER; DUST,SPIDER
A/T<X9D> 		9-37352-023-0 08 1 9912- ● ●
14 COVER; DUST,SPIDER 1-37319-012-0 08 1 9809-9911 ● ● ●
14 COVER; DUST,SPIDER
MLD6Q M/T(X5J) 		1-37319-012-0 08 1 9912- ● ●
17 NIPPLE; GREASE,PROP SHAFT
A/T<X9D> PT1/8 ELBOW 67.5? 		9-09031-110-0 02 1 9912-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
A/T<X9D> PT1/8 ELBOW 67.5? 		0-90301-510-0 02 1 0601- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 02 1 9806-9911 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6Q M/T(X5J) PT1/8 ELBOW 		9-09031-210-0 02 1 9912-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6Q M/T(X5J) PT1/8 ELBOW 		0-90301-610-0 02 1 0601- ● ●
56 NUT; YOKE
A/T<X9D> W/FLANGE M16 FLANGE 		1-09449-065-0 04 1 9912- ● ●
56 NUT; YOKE
M14 		9-99110-514-0 04 1 9806-9911 ● ● ●
56 NUT; YOKE
ISUZU M/T<X9A> M14 		9-99110-514-0 04 1 9912-0512 ● ●
56 NUT; YOKE
ISUZU M/T<X9A> M14 		0-91110-514-0 04 1 0601- ● ●
71 NUT; YOKE
A/T<X9D> W/FLANGE M16 FLANGE 		1-09449-065-0 04 1 9912- ● ●
71 NUT; YOKE
M14 		9-99110-514-0 04 1 9806-9911 ● ● ●
71 NUT; YOKE
ISUZU M/T<X9A> M14 		9-99110-514-0 04 1 9912-0512 ● ●
71 NUT; YOKE
ISUZU M/T<X9A> M14 		0-91110-514-0 04 1 0601- ● ●
83 PLATE; LK,UJT,PROP SHAFT
A/T<X9D> 		8-97531-156-0 04 1 9912- ● ●
84 COVER; UJT,PROP SHAFT
A/T<X9D> WEIGHT 70 T=6 		8-97531-161-0 AR 1 9912- ● ●
84 COVER; UJT,PROP SHAFT
A/T<X9D> WEIGHT 93 T=8 		8-97531-162-0 AR 1 9912- ● ●
84 COVER; UJT,PROP SHAFT
A/T<X9D> WEIGHT 117 T=10 		8-97531-163-0 AR 1 9912- ● ●
84 COVER; UJT,PROP SHAFT
A/T<X9D> WEIGHT 140 T=12 		8-97531-164-0 AR 1 9912- ● ●
95 BOLT; YOKE,FINAL
A/T<X9D> M16X48 		1-09000-383-0 04 1 9912- ● ●
95 BOLT; YOKE,FINAL
M14X37 		1-09000-121-0 04 1 9806-9911 ● ● ●
95 BOLT; YOKE,FINAL
ISUZU M/T<X9A> M14X37 		1-09000-121-0 04 1 9912- ● ●
104 PLUG; SLEEVE YOKE 1-09600-033-0 01 1 9806-9808 ● ●
104 PLUG; SLEEVE YOKE
MLD7Q M/T(X5K) 		1-09600-033-0 01 1 9809-9811 ● ● ●
104 PLUG; SLEEVE YOKE
MLD7 M/T<X9Z> 		1-09600-033-0 01 1 9812-9911 ● ● ●
104 PLUG; SLEEVE YOKE
MLD6Q M/T(X5J) 		1-09600-064-0 01 1 9912- ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 9806-9808 ●
104 PLUG; SLEEVE YOKE
MLD6 M/T<X9Y> 		1-09600-064-0 01 1 9809-9911 ● ● ●
104 PLUG; SLEEVE YOKE
A/T<X9D> 		1-09600-067-0 01 1 9912- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9806-9911 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9912-0512 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ●
128 SEAL; SLEEVE 1-37247-002-1 01 1 9806-9808 ● ●
128 SEAL; SLEEVE
MLD7Q M/T(X5K) 		1-37247-002-1 01 1 9809-9811 ● ● ●
128 SEAL; SLEEVE
MLD7 M/T<X9Z> 		1-37247-002-1 01 1 9812-9911 ● ● ●
128 SEAL; SLEEVE
A/T<X9D> 		1-37247-010-0 01 1 9912- ● ●
128 SEAL; SLEEVE 1-37247-015-0 01 1 9806-9808 ●
128 SEAL; SLEEVE
MLD6 M/T<X9Y> 		1-37247-015-0 01 1 9809-9809 ● ● ●
128 SEAL; SLEEVE
MLD6 M/T<X9Y> 		1-37247-024-0 01 1 9810-9911 ● ● ●
128 SEAL; SLEEVE
MLD6Q M/T(X5J) 		1-37247-024-0 01 1 9912- ● ●
220 YOKE; SPLINED
A/T<X9D> L=318 		8-97530-975-0 01 1 9912- ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=214 		1-37241-121-0 01 1 9806-9808 ● ●
225 YOKE; SLEEVE,PROP SHAFT
MLD7Q M/T(X5K) L=214 		1-37241-121-1 01 1 9809-9811 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
MLD7 M/T<X9Z> L=214 		1-37241-121-1 01 1 9812-9911 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
A/T<X9D> L=212 		8-97530-974-0 01 1 9912- ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=271 		1-37241-099-1 01 1 9806-9808 ●
225 YOKE; SLEEVE,PROP SHAFT
MLD6 M/T<X9Y> L=271 		1-37241-099-2 01 1 9809-9911 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
MLD6Q M/T(X5J) L=271 		8-97530-008-1 01 1 9912- ● ●

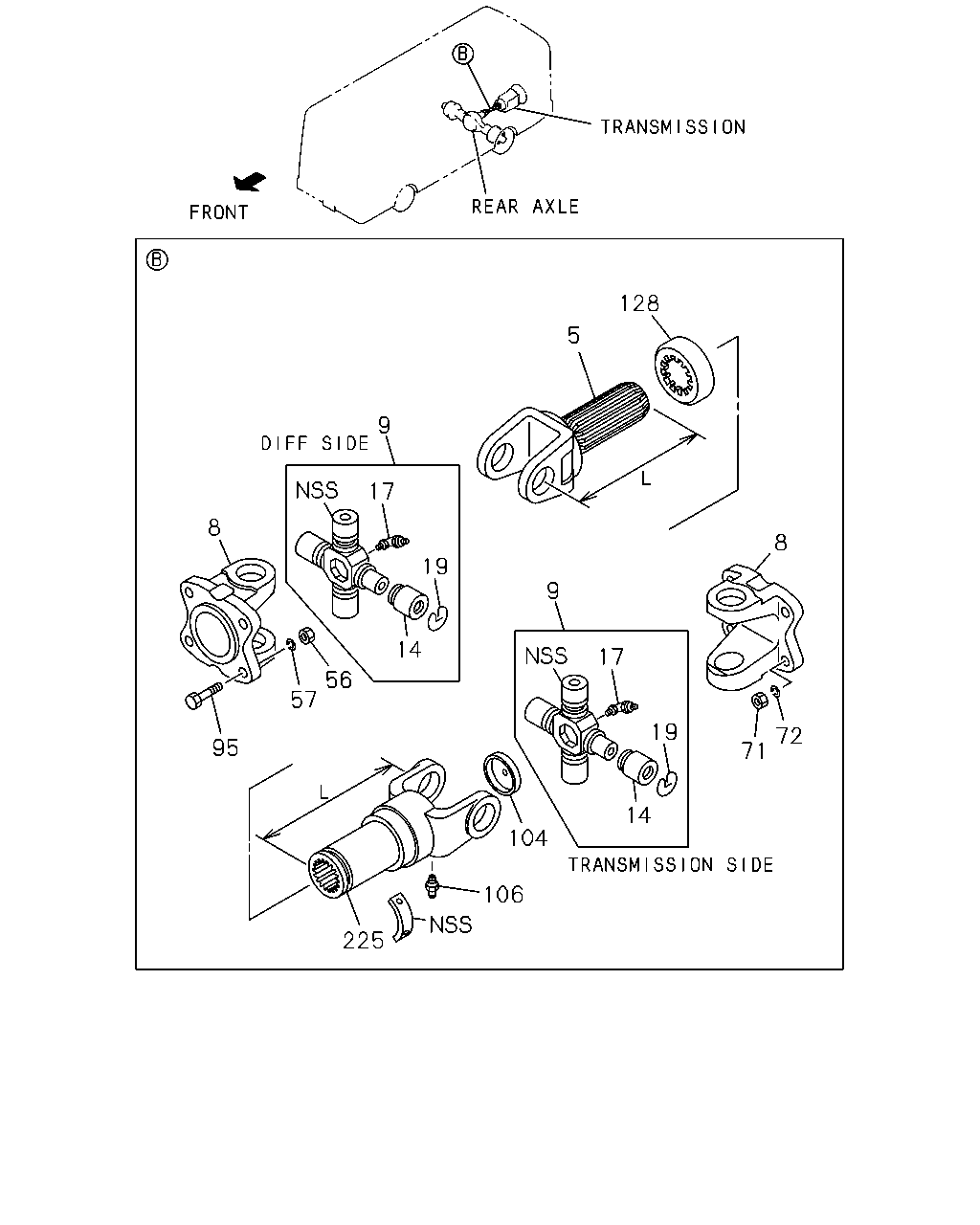

çizim 26026
128 5 9 17 8 8 19 9 14 17 56 57 19 72 95 71 14 104 106 225
BalonParca AdiParca NoAdetTipApplied Date A B C
5 YOKE; STUB,PROP SHAFT
L=271 		1-37171-126-0 01 1 9806-9808 ● ●
5 YOKE; STUB,PROP SHAFT
MLD7Q M/T(X5K) L=271 		1-37171-126-1 01 1 9809-9811 ● ● ●
5 YOKE; STUB,PROP SHAFT
MLD7 M/T<X9Z> L=271 		1-37171-126-1 01 1 9812-9911 ● ● ●
5 YOKE; STUB,PROP SHAFT
MLD6Q M/T(X5J) L=387 		8-97530-009-1 01 1 9912- ● ●
5 YOKE; STUB,PROP SHAFT
L=387 		1-37171-086-0 01 1 9806-9808 ●
5 YOKE; STUB,PROP SHAFT
MLD6 M/T<X9Y> L=387 		1-37171-086-1 01 1 9809-9911 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
A/T<X9D> 		8-97530-973-0 02 1 9912- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 9806-9911 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
MLD6Q M/T(X5J) 		8-97530-007-1 02 1 9912- ● ●
9 JOURNAL ASM; PROP SHAFT
A/T<X9D> 		1-37300-117-1 AR 1 9912- ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-069-0 AR 1 9806-9808 ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-0 AR 1 9809-9911 ● ● ●
9 JOURNAL ASM; PROP SHAFT
MLD6Q M/T(X5J) 		1-37300-102-1 AR 1 9912- ● ●
14 COVER; DUST,SPIDER
A/T<X9D> 		9-37352-023-0 08 1 9912- ● ●
14 COVER; DUST,SPIDER 1-37319-012-0 08 1 9809-9911 ● ● ●
14 COVER; DUST,SPIDER
MLD6Q M/T(X5J) 		1-37319-012-0 08 1 9912- ● ●
17 NIPPLE; GREASE,PROP SHAFT
A/T<X9D> PT1/8 ELBOW 67.5? 		9-09031-110-0 02 1 9912-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
A/T<X9D> PT1/8 ELBOW 67.5? 		0-90301-510-0 02 1 0601- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 02 1 9806-9911 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6Q M/T(X5J) PT1/8 ELBOW 		9-09031-210-0 02 1 9912-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6Q M/T(X5J) PT1/8 ELBOW 		0-90301-610-0 02 1 0601- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 9806-9911 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6Q M/T(X5J) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 9912- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 9806-9911 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6Q M/T(X5J) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 9912- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 9806-9911 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6Q M/T(X5J) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 9912- ● ●
56 NUT; YOKE
A/T<X9D> W/FLANGE M16 FLANGE 		1-09449-065-0 04 1 9912- ● ●
56 NUT; YOKE
M14 		9-99110-514-0 04 1 9806-9911 ● ● ●
56 NUT; YOKE
ISUZU M/T<X9A> M14 		9-99110-514-0 04 1 9912-0512 ● ●
56 NUT; YOKE
ISUZU M/T<X9A> M14 		0-91110-514-0 04 1 0601- ● ●
57 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 04 1 9806-9911 ● ● ●
57 WASHER; LK,YOKE
ISUZU M/T<X9A> ID=14.2 		9-09150-614-0 04 1 9912-0603 ● ●
57 WASHER; LK,YOKE
ISUZU M/T<X9A> ID=14.2 		0-91510-614-0 04 1 0604- ● ●
71 NUT; YOKE
A/T<X9D> W/FLANGE M16 FLANGE 		1-09449-065-0 04 1 9912- ● ●
71 NUT; YOKE
M14 		9-99110-514-0 04 1 9806-9911 ● ● ●
71 NUT; YOKE
ISUZU M/T<X9A> M14 		9-99110-514-0 04 1 9912-0512 ● ●
71 NUT; YOKE
ISUZU M/T<X9A> M14 		0-91110-514-0 04 1 0601- ● ●
72 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 04 1 9806-9911 ● ● ●
72 WASHER; LK,YOKE
ISUZU M/T<X9A> ID=14.2 		9-09150-614-0 04 1 9912-0603 ● ●
72 WASHER; LK,YOKE
ISUZU M/T<X9A> ID=14.2 		0-91510-614-0 04 1 0604- ● ●
95 BOLT; YOKE,FINAL
A/T<X9D> M16X48 		1-09000-383-0 04 1 9912- ● ●
95 BOLT; YOKE,FINAL
M14X37 		1-09000-121-0 04 1 9806-9911 ● ● ●
95 BOLT; YOKE,FINAL
ISUZU M/T<X9A> M14X37 		1-09000-121-0 04 1 9912- ● ●
104 PLUG; SLEEVE YOKE 1-09600-033-0 01 1 9806-9808 ● ●
104 PLUG; SLEEVE YOKE
MLD7Q M/T(X5K) 		1-09600-033-0 01 1 9809-9811 ● ● ●
104 PLUG; SLEEVE YOKE
MLD7 M/T<X9Z> 		1-09600-033-0 01 1 9812-9911 ● ● ●
104 PLUG; SLEEVE YOKE
MLD6Q M/T(X5J) 		1-09600-064-0 01 1 9912- ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 9806-9808 ●
104 PLUG; SLEEVE YOKE
MLD6 M/T<X9Y> 		1-09600-064-0 01 1 9809-9911 ● ● ●
104 PLUG; SLEEVE YOKE
A/T<X9D> 		1-09600-067-0 01 1 9912- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9806-9911 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9912-0512 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ●
128 SEAL; SLEEVE 1-37247-002-1 01 1 9806-9808 ● ●
128 SEAL; SLEEVE
MLD7Q M/T(X5K) 		1-37247-002-1 01 1 9809-9811 ● ● ●
128 SEAL; SLEEVE
MLD7 M/T<X9Z> 		1-37247-002-1 01 1 9812-9911 ● ● ●
128 SEAL; SLEEVE
A/T<X9D> 		1-37247-010-0 01 1 9912- ● ●
128 SEAL; SLEEVE 1-37247-015-0 01 1 9806-9808 ●
128 SEAL; SLEEVE
MLD6 M/T<X9Y> 		1-37247-015-0 01 1 9809-9809 ● ● ●
128 SEAL; SLEEVE
MLD6 M/T<X9Y> 		1-37247-024-0 01 1 9810-9911 ● ● ●
128 SEAL; SLEEVE
MLD6Q M/T(X5J) 		1-37247-024-0 01 1 9912- ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=214 		1-37241-121-0 01 1 9806-9808 ● ●
225 YOKE; SLEEVE,PROP SHAFT
MLD7Q M/T(X5K) L=214 		1-37241-121-1 01 1 9809-9811 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
MLD7 M/T<X9Z> L=214 		1-37241-121-1 01 1 9812-9911 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
A/T<X9D> L=212 		8-97530-974-0 01 1 9912- ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=271 		1-37241-099-1 01 1 9806-9808 ●
225 YOKE; SLEEVE,PROP SHAFT
MLD6 M/T<X9Y> L=271 		1-37241-099-2 01 1 9809-9911 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
MLD6Q M/T(X5J) L=271 		8-97530-008-1 01 1 9912- ● ●

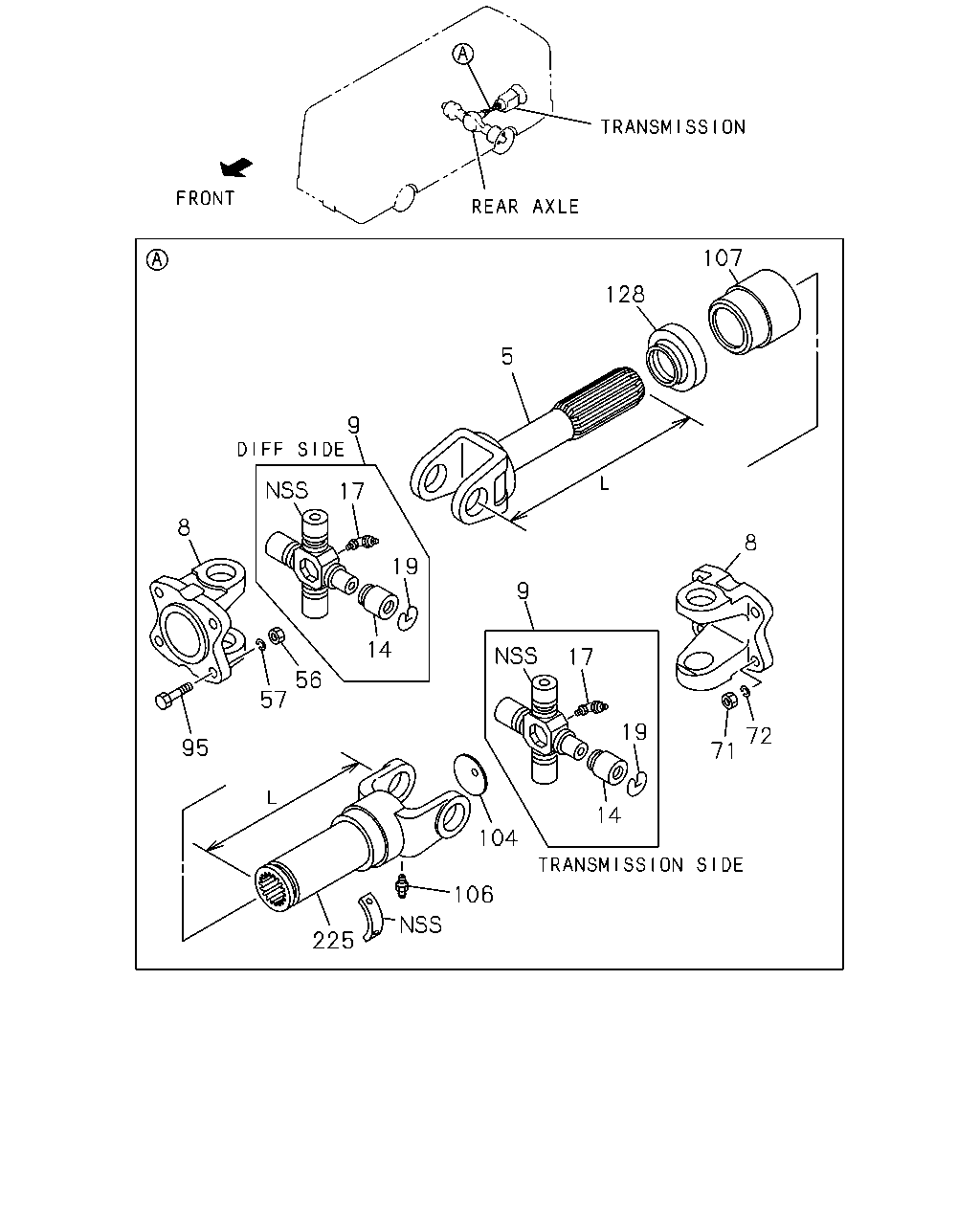

çizim 27033
107 128 5 9 17 8 8 19 9 14 17 56 57 19 72 95 71 14 104 106 225
BalonParca AdiParca NoAdetTipApplied Date A B C
5 YOKE; STUB,PROP SHAFT
L=271 		1-37171-126-0 01 1 9806-9808 ● ●
5 YOKE; STUB,PROP SHAFT
MLD7Q M/T(X5K) L=271 		1-37171-126-1 01 1 9809-9811 ● ● ●
5 YOKE; STUB,PROP SHAFT
MLD7 M/T<X9Z> L=271 		1-37171-126-1 01 1 9812-9911 ● ● ●
5 YOKE; STUB,PROP SHAFT
MLD6Q M/T(X5J) L=387 		8-97530-009-1 01 1 9912- ● ●
5 YOKE; STUB,PROP SHAFT
L=387 		1-37171-086-0 01 1 9806-9808 ●
5 YOKE; STUB,PROP SHAFT
MLD6 M/T<X9Y> L=387 		1-37171-086-1 01 1 9809-9911 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
A/T<X9D> 		8-97530-973-0 02 1 9912- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 9806-9911 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
MLD6Q M/T(X5J) 		8-97530-007-1 02 1 9912- ● ●
9 JOURNAL ASM; PROP SHAFT
A/T<X9D> 		1-37300-117-1 AR 1 9912- ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-069-0 AR 1 9806-9808 ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-0 AR 1 9809-9911 ● ● ●
9 JOURNAL ASM; PROP SHAFT
MLD6Q M/T(X5J) 		1-37300-102-1 AR 1 9912- ● ●
14 COVER; DUST,SPIDER
A/T<X9D> 		9-37352-023-0 08 1 9912- ● ●
14 COVER; DUST,SPIDER 1-37319-012-0 08 1 9809-9911 ● ● ●
14 COVER; DUST,SPIDER
MLD6Q M/T(X5J) 		1-37319-012-0 08 1 9912- ● ●
17 NIPPLE; GREASE,PROP SHAFT
A/T<X9D> PT1/8 ELBOW 67.5? 		9-09031-110-0 02 1 9912-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
A/T<X9D> PT1/8 ELBOW 67.5? 		0-90301-510-0 02 1 0601- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 02 1 9806-9911 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6Q M/T(X5J) PT1/8 ELBOW 		9-09031-210-0 02 1 9912-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6Q M/T(X5J) PT1/8 ELBOW 		0-90301-610-0 02 1 0601- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 9806-9911 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6Q M/T(X5J) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 9912- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 9806-9911 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6Q M/T(X5J) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 9912- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 9806-9911 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6Q M/T(X5J) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 9912- ● ●
56 NUT; YOKE
A/T<X9D> W/FLANGE M16 FLANGE 		1-09449-065-0 04 1 9912- ● ●
56 NUT; YOKE
M14 		9-99110-514-0 04 1 9806-9911 ● ● ●
56 NUT; YOKE
ISUZU M/T<X9A> M14 		9-99110-514-0 04 1 9912-0512 ● ●
56 NUT; YOKE
ISUZU M/T<X9A> M14 		0-91110-514-0 04 1 0601- ● ●
57 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 04 1 9806-9911 ● ● ●
57 WASHER; LK,YOKE
ISUZU M/T<X9A> ID=14.2 		9-09150-614-0 04 1 9912-0603 ● ●
57 WASHER; LK,YOKE
ISUZU M/T<X9A> ID=14.2 		0-91510-614-0 04 1 0604- ● ●
71 NUT; YOKE
A/T<X9D> W/FLANGE M16 FLANGE 		1-09449-065-0 04 1 9912- ● ●
71 NUT; YOKE
M14 		9-99110-514-0 04 1 9806-9911 ● ● ●
71 NUT; YOKE
ISUZU M/T<X9A> M14 		9-99110-514-0 04 1 9912-0512 ● ●
71 NUT; YOKE
ISUZU M/T<X9A> M14 		0-91110-514-0 04 1 0601- ● ●
72 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 04 1 9806-9911 ● ● ●
72 WASHER; LK,YOKE
ISUZU M/T<X9A> ID=14.2 		9-09150-614-0 04 1 9912-0603 ● ●
72 WASHER; LK,YOKE
ISUZU M/T<X9A> ID=14.2 		0-91510-614-0 04 1 0604- ● ●
95 BOLT; YOKE,FINAL
A/T<X9D> M16X48 		1-09000-383-0 04 1 9912- ● ●
95 BOLT; YOKE,FINAL
M14X37 		1-09000-121-0 04 1 9806-9911 ● ● ●
95 BOLT; YOKE,FINAL
ISUZU M/T<X9A> M14X37 		1-09000-121-0 04 1 9912- ● ●
104 PLUG; SLEEVE YOKE 1-09600-033-0 01 1 9806-9808 ● ●
104 PLUG; SLEEVE YOKE
MLD7Q M/T(X5K) 		1-09600-033-0 01 1 9809-9811 ● ● ●
104 PLUG; SLEEVE YOKE
MLD7 M/T<X9Z> 		1-09600-033-0 01 1 9812-9911 ● ● ●
104 PLUG; SLEEVE YOKE
MLD6Q M/T(X5J) 		1-09600-064-0 01 1 9912- ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 9806-9808 ●
104 PLUG; SLEEVE YOKE
MLD6 M/T<X9Y> 		1-09600-064-0 01 1 9809-9911 ● ● ●
104 PLUG; SLEEVE YOKE
A/T<X9D> 		1-09600-067-0 01 1 9912- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9806-9911 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9912-0512 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ●
107 COVER; RET,SLEEVE 1-37249-060-0 01 1 9806-9808 ●
107 COVER; RET,SLEEVE
MLD6 M/T<X9Y> 		1-37249-060-0 01 1 9809-9911 ● ● ●
107 COVER; RET,SLEEVE
MLD6Q M/T(X5J) 		1-37249-060-1 01 1 9912- ● ●
128 SEAL; SLEEVE 1-37247-002-1 01 1 9806-9808 ● ●
128 SEAL; SLEEVE
MLD7Q M/T(X5K) 		1-37247-002-1 01 1 9809-9811 ● ● ●
128 SEAL; SLEEVE
MLD7 M/T<X9Z> 		1-37247-002-1 01 1 9812-9911 ● ● ●
128 SEAL; SLEEVE
A/T<X9D> 		1-37247-010-0 01 1 9912- ● ●
128 SEAL; SLEEVE 1-37247-015-0 01 1 9806-9808 ●
128 SEAL; SLEEVE
MLD6 M/T<X9Y> 		1-37247-015-0 01 1 9809-9809 ● ● ●
128 SEAL; SLEEVE
MLD6 M/T<X9Y> 		1-37247-024-0 01 1 9810-9911 ● ● ●
128 SEAL; SLEEVE
MLD6Q M/T(X5J) 		1-37247-024-0 01 1 9912- ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=214 		1-37241-121-0 01 1 9806-9808 ● ●
225 YOKE; SLEEVE,PROP SHAFT
MLD7Q M/T(X5K) L=214 		1-37241-121-1 01 1 9809-9811 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
MLD7 M/T<X9Z> L=214 		1-37241-121-1 01 1 9812-9911 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
A/T<X9D> L=212 		8-97530-974-0 01 1 9912- ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=271 		1-37241-099-1 01 1 9806-9808 ●
225 YOKE; SLEEVE,PROP SHAFT
MLD6 M/T<X9Y> L=271 		1-37241-099-2 01 1 9809-9911 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
MLD6Q M/T(X5J) L=271 		8-97530-008-1 01 1 9912- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
