Isuzu WW
▶
TRUCKS
▶
EXY
▶
11201 - EXY NEW ZEALAND EURO4
▶
2 - Clutch, Transmission, Trans Axle
▶
2-53 - TRANSMISSION OIL COOLER SYSTEM
▶

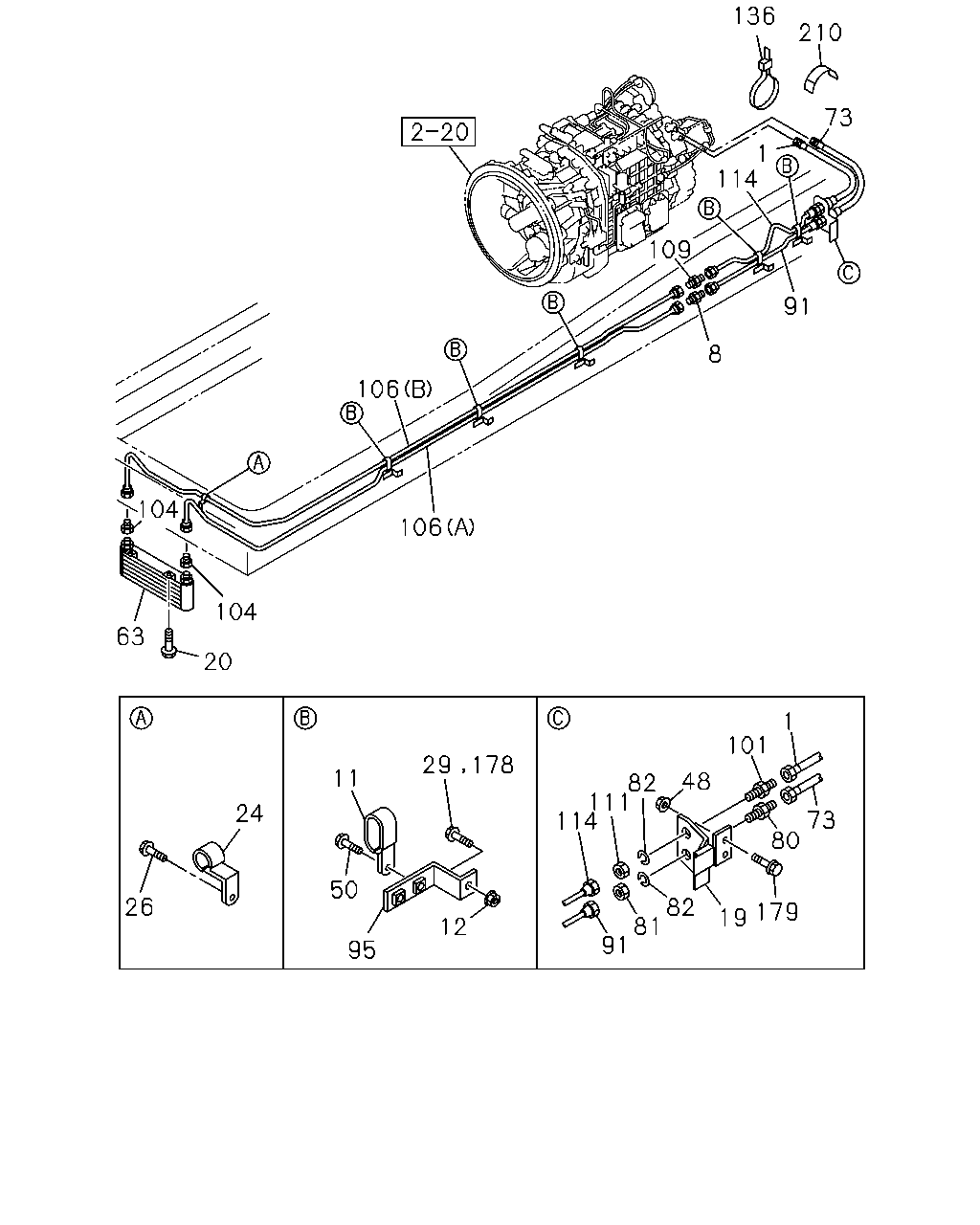

2-53 — TRANSMISSION OIL COOLER SYSTEM
(#68645) — 30 parça
136
210
73
1
114
109
91
8
106
104
106
104
63
20
1
101
29
178
11
48
82
111
114
24
73
80
50
26
82
81
91
179
19
12
95
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; ATF
L=600
1-09365-232-0
01
1
0904-
8
UNION
M22 L=51
0-92123-015-0
01
1
0904-
11
CLIP; PIPE
ID=16X2 L=20
0-95325-535-0
05
1
0904-
12
NUT; BRKT
M8 FLANGE
0-91180-108-0
05
1
0904-
19
BRACKET; FLEX HOSE
1-47479-613-1
01
1
0904-
20
BOLT; COOLER TO BRKT
M10X20 FLANGE
0-28051-020-0
02
1
0904-
24
CLIP; OIL PIPE
ID=15 H=24 L=20
1-09700-606-0
01
1
0904-
26
BOLT; PIPE CLIP
M8X20 FLANGE
0-28650-820-0
01
1
0904-
29
BOLT; FILTER TO BRKT
M8X30 FLANGE
0-28650-830-0
04
1
0904-
48
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
0904-
50
BOLT; CLIP
M8X25 FLANGE
0-28650-825-0
05
1
0904-
63
COOLER; OIL
1-21700-394-0
01
1
0904-1405
63
COOLER; OIL
8-98269-766-0
01
1
1406-
73
HOSE; FLEX,TRANS
L=550
1-09365-231-0
01
1
0904-
80
UNION; FLEX HOSE
M22 & M22 STRAIGHT
1-09654-204-2
01
1
0904-
81
NUT; UNION
M22
0-91111-522-0
01
1
0904-
82
WASHER; LK,UNION
ID=22.5
0-91510-522-0
02
1
0904-
91
PIPE; OIL,FLEX HOSE TO UNION
L=916
8-98117-505-0
01
1
0904-
95
BRACKET; CLIP
1-47479-482-0
05
1
0904-
101
UNION; FLEX HOSE
M22 & M22 STRAIGHT
1-09654-204-2
01
1
0904-
104
CONNECTOR; COOLER
1-09654-398-0
02
1
0904-
106
PIPE ASM; OIL,COOLER TO UNION
(A)
8-98117-506-0
01
1
0904-
106
PIPE ASM; OIL,COOLER TO UNION
(B)
8-98117-507-0
01
1
0904-
109
UNION
M22 L=51
0-92123-015-0
01
1
0904-
111
NUT; UNION
M22
0-91111-522-0
01
1
0904-
114
PIPE; OIL,UNION TO FLEX HOSE
L=835
8-98123-941-0
01
1
0904-
136
CLIP; FLEX HOSE
L=350
1-09707-183-0
01
1
0904-
178
BOLT; BRKT,CLIP
M8X30 FLANGE
0-28650-830-0
01
1
0904-
179
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
02
1
0904-
210
BAND; FLEX HOSE
L=175
1-09707-178-0
01
1
0904-
