2-03 — CLUTCH PEDAL AND CONTROL
(#68633) — 56 parça
◀

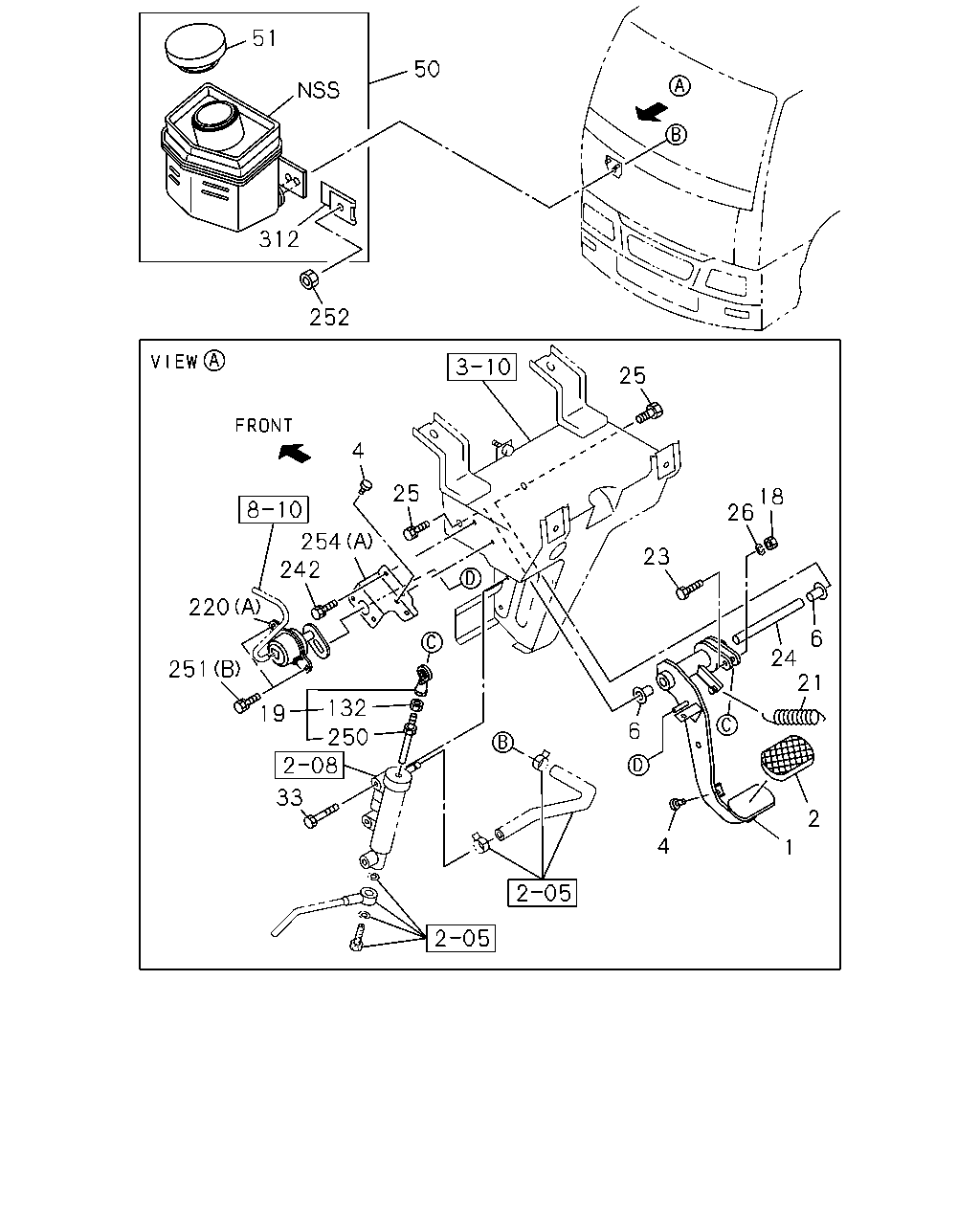

[203A] PEDAL AND TANK (27 parça)

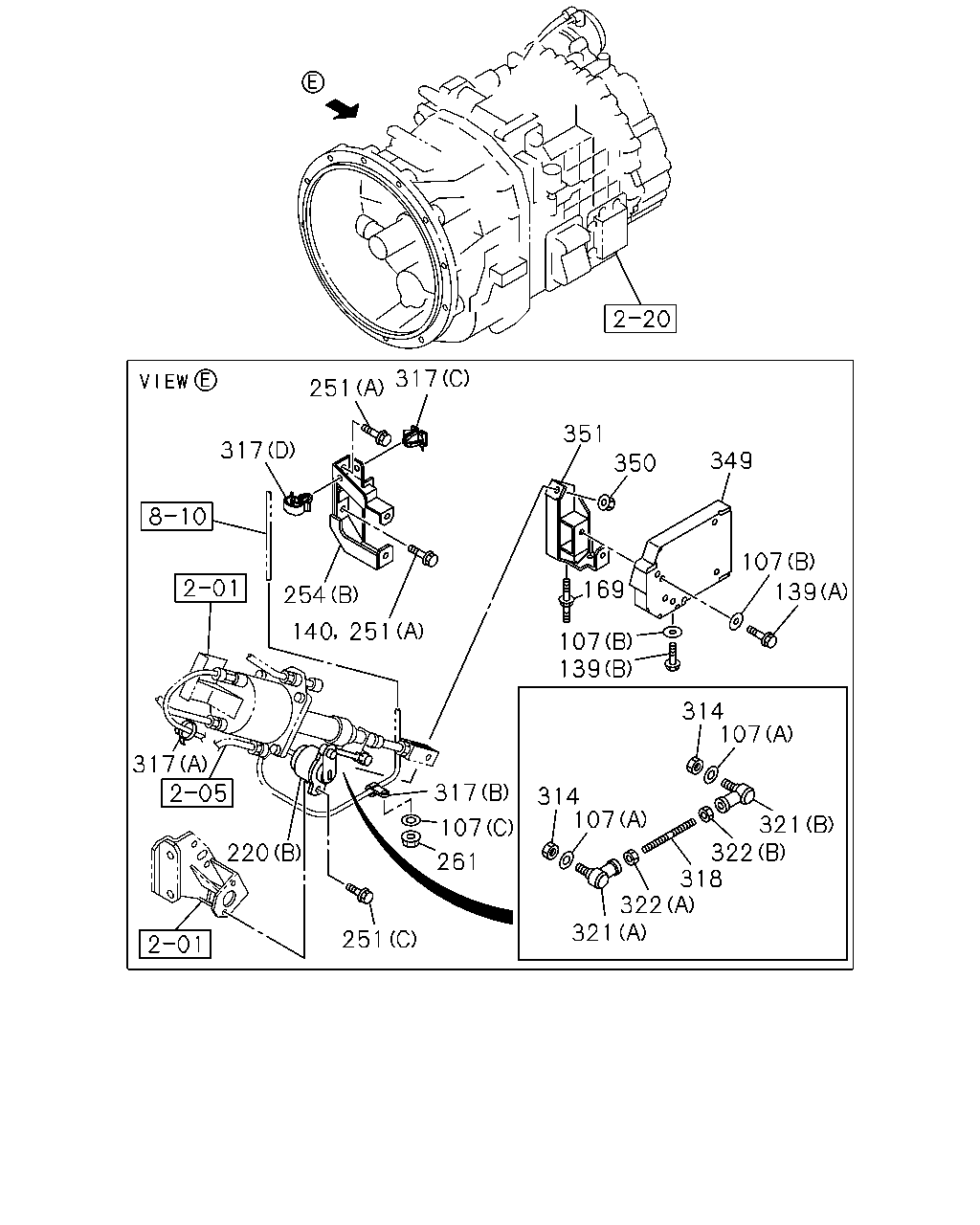

[203A] SENSOR AND BRACKET (29 parça)
▶
51
50
312
252
25
4
25
18
26
254
242
23
220
6
24
21
251
132
19
6
250
33
2
4
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PEDAL; CLU
1-73907-474-1
01
1
0904-
2
COVER; CLU PEDAL
8-97893-618-1
01
1
0904-
4
STOPPER; CLU PEDAL
1-47319-014-1
04
1
0904-
6
BUSHING; CLU PEDAL
1-09330-045-0
02
1
0904-
18
NUT; PUSH ROD
M8
0-91110-508-0
01
1
0904-
19
ROD ASM; PUSH,CLU
1-73907-320-1
01
1
0904-
21
SPRING; RETURN,CLU PEDAL
1-73908-265-0
01
1
0904-
23
BOLT; PUSH ROD
M8X39.7
1-09009-150-0
01
1
0904-
24
SHAFT; CLU PEDAL
1-73908-195-1
01
1
0904-
25
BOLT; PEDAL
M10X35 W/LK WASHER
0-50051-035-0
02
1
0904-
26
WASHER; LK,PUSH ROD
ID=8.2
0-91510-608-0
01
1
0904-
33
BOLT; CLU M/CYL TO BRKT
M10X60 FLANGE
0-28051-060-0
02
1
0904-
50
TANK; OIL,CLU
1-47530-182-0
01
1
0904-
51
CAP; OIL TANK,CLU
8-94136-483-1
01
1
0904-
132
NUT; LK,PUSH ROD
M8
0-91110-508-0
01
1
0904-
220
SENSOR; CLUTCH
(A)
1-80250-014-0
01
1
0904-
220
SENSOR; CLUTCH
(B)
1-81541-121-0
01
1
0904-1502
220
SENSOR; CLUTCH
(B)
8-98131-123-0
01
1
1503-
242
BOLT; BRKT,CLUTCH
M6X16 W/LK WASHER
0-50040-616-0
04
1
0904-
250
ROD; PUSH,CLU
1-73996-219-0
01
1
0904-
251
BOLT; SENSOR
(C) M6X16 FLANGE
0-28650-616-0
02
1
0904-
251
BOLT; SENSOR
(A) M10X25 FLANGE
0-28751-025-0
01
1
0904-
251
BOLT; SENSOR
(B) M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
0904-
252
NUT; OIL TANK
M8 FLANGE W/RUBBER
1-09984-176-0
02
1
0904-
254
BRACKET; CLU SENSOR
(B)
1-31349-072-1
01
1
0904-
254
BRACKET; CLU SENSOR
(A)
1-73998-979-5
01
1
0904-
312
PLATE; OIL TANK,CLU
1-21249-007-1
01
1
0904-
317
251
351
317
349
350
169
107
139
254
140
251
107
139
314
107
317
317
314
107
321
322
318
322
321
107
220
261
251
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
107
WASHER; PL
(C) ID=8.4 OD=16
0-91610-508-0
01
1
0904-
107
WASHER; PL
(B) ID=8.4 OD=22
0-91610-708-0
06
1
0904-
107
WASHER; PL
(A) ID=5.3 OD=16
0-91614-705-0
02
1
0904-
139
BOLT; COVER
(A) M8X16 FLANGE
0-28050-816-0
05
1
0904-
139
BOLT; COVER
(B) M8X35 FLANGE
0-28650-835-0
01
1
0904-
140
BOLT; BRKT
M10X30 FLANGE
0-28751-030-0
01
1
0904-
169
BOLT; CLIP
M8X15,M8X17 L=40
8-98009-913-0
01
1
0904-
220
SENSOR; CLUTCH
(A)
1-80250-014-0
01
1
0904-
220
SENSOR; CLUTCH
(B)
1-81541-121-0
01
1
0904-1502
220
SENSOR; CLUTCH
(B)
8-98131-123-0
01
1
1503-
251
BOLT; SENSOR
(C) M6X16 FLANGE
0-28650-616-0
02
1
0904-
251
BOLT; SENSOR
(A) M10X25 FLANGE
0-28751-025-0
01
1
0904-
251
BOLT; SENSOR
(B) M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
0904-
254
BRACKET; CLU SENSOR
(B)
1-31349-072-1
01
1
0904-
254
BRACKET; CLU SENSOR
(A)
1-73998-979-5
01
1
0904-
261
NUT; CLIP
M8 FLANGE
0-91180-108-0
01
1
0904-
314
NUT; ROD
M5
0-91110-505-0
02
1
0904-
317
CLIP; CABLE
(B) ID=11 L=32
0-95235-065-0
01
1
0904-
317
CLIP; CABLE
(A) L=180
1-09707-162-1
01
1
0904-
317
CLIP; CABLE
(C) OD=9 H=6
1-09709-178-0
01
1
0904-
317
CLIP; CABLE
(D) ID=5-12 L=14.5
1-09987-221-0
01
1
0904-
318
ROD; CLU
0-84100-506-0
01
1
0904-
321
END; ROD
(A)
1-09760-103-2
01
1
0904-
321
END; ROD
(B)
1-09760-104-2
01
1
0904-
322
NUT; ROD END
(A) M5
0-91110-505-0
01
1
0904-
322
NUT; ROD END
(B) M5 LH THREAD
9-09840-277-0
01
1
0904-
349
COVER; SENSOR
1-31349-075-0
01
1
0904-
350
NUT; COVER
M10 FLANGE
0-91180-210-0
01
1
0904-
351
BRACKET; COVER
1-31349-079-0
01
1
0904-
