Isuzu WW
▶
TRUCKS
▶
EXY
▶
11201 - EXY NEW ZEALAND EURO4
▶
2 - Clutch, Transmission, Trans Axle
▶
2-01 - CLUTCH
▶
2-01 — CLUTCH
(#68632) — 34 parça
◀

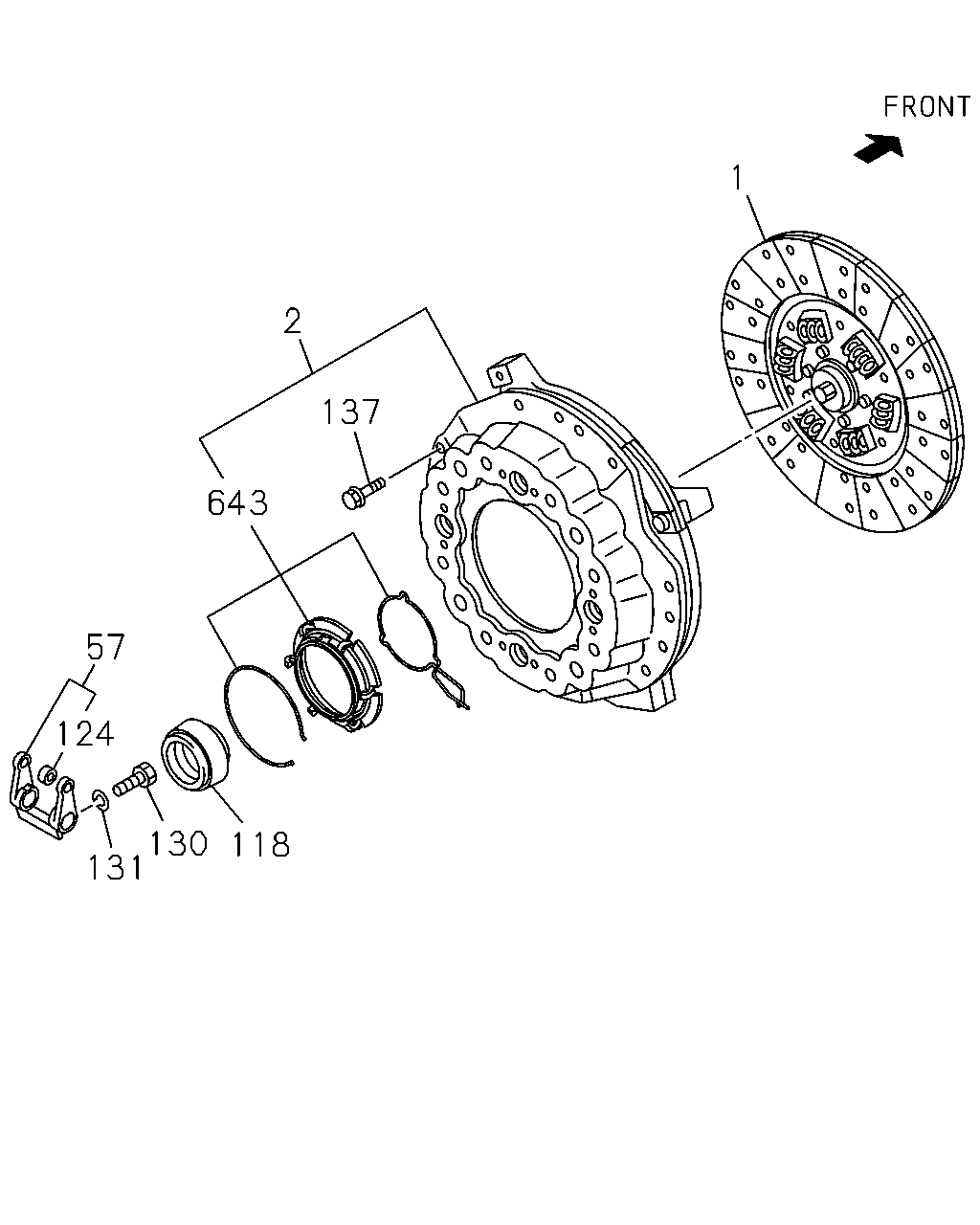

[201A] DISC AND PLATE (10 parça)

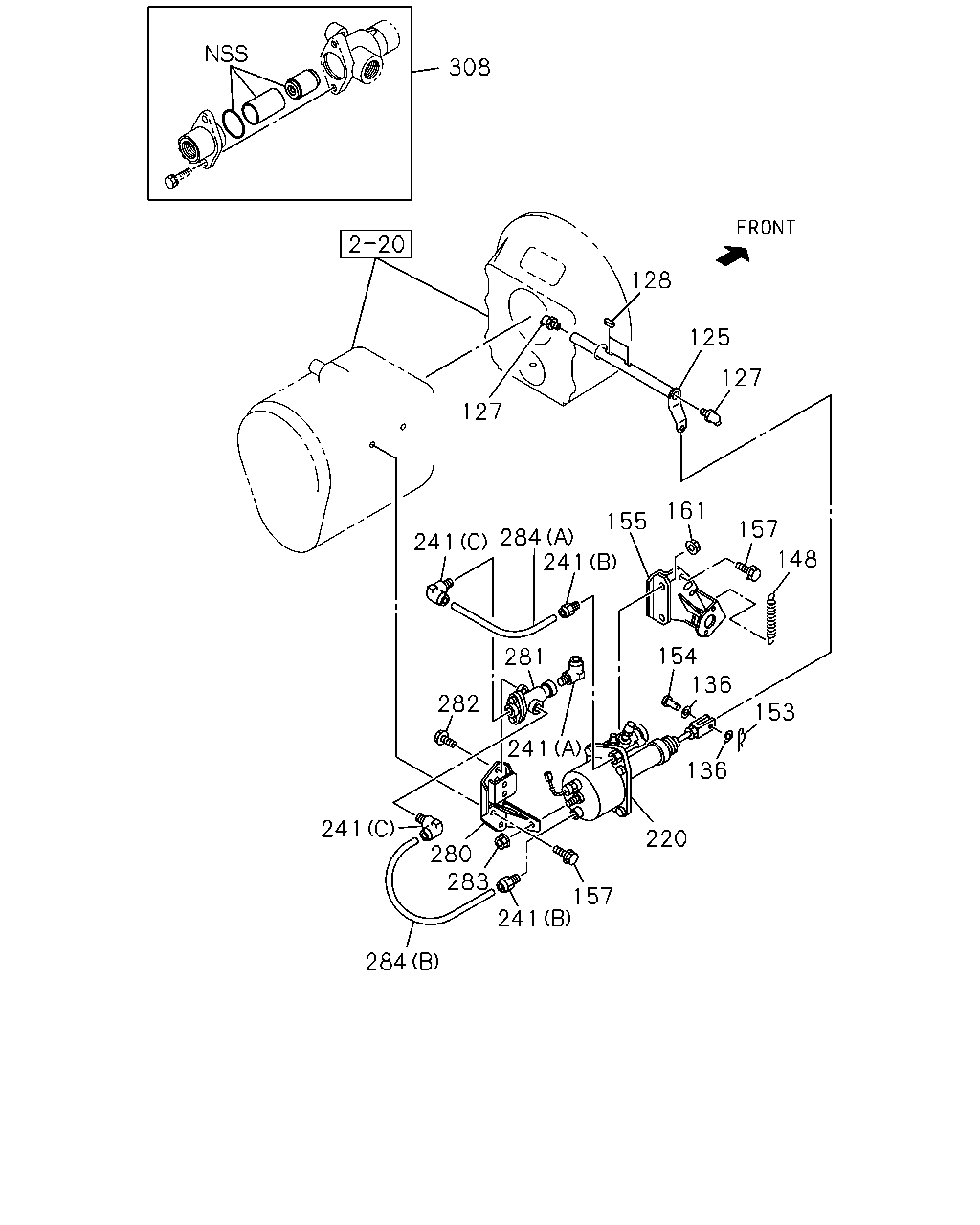

[201A] BOOSTER AND BRACKET (24 parça)
▶
1
2
137
643
57
124
131
130
118
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DISC; CLUTCH
15.5"
1-31240-975-0
01
1
0904-
2
PLATE ASM; PRESSURE,CLU
1-31220-414-0
01
1
0904-
57
FORK; SHIFT,CLU
1-31340-066-1
01
1
0904-
118
BEARING; CLU RELEASE
1-31310-021-0
01
1
0904-1306
118
BEARING; CLU RELEASE
1-31310-028-0
01
1
1307-
124
BEARING; CAM,SHIFT FORK
1-31349-060-1
02
1
0904-
130
SCREW; SHIFT FORK
M8X14
0-61200-814-0
01
1
0904-
131
WASHER; LK,SHIFT FORK
ID=8.2
0-91510-508-0
01
1
0904-
137
BOLT; CLU COVER
M10X110 FLANGE
0-28156-011-0
12
1
0904-
643
REPAIR KIT; CLUTCH
8-98207-785-0
01
1
0904-
308
128
125
127
127
161
155
157
284
241
241
148
154
136
281
282
153
241
136
241
220
280
283
157
241
284
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
125
SHAFT; CLU
1-31342-312-0
01
1
0904-
127
NIPPLE; GREASE,CLU SHAFT
PT1/8 ELBOW
0-90301-610-0
02
1
0904-
128
KEY; FEATHER,CLU SHAFT
1-09735-045-0
02
1
0904-
136
WASHER; PL
ID=15
0-91610-514-0
02
1
0904-
148
SPRING; CLU RETURN
L=43
1-31349-024-0
01
1
0904-
153
PIN; SPLIT,CLU SHAFT
1-09747-009-0
01
1
0904-
154
PIN; JAW JOINT
L=35
1-31424-003-0
01
1
0904-
155
BRACKET; MINIPACK
1-31429-470-1
01
1
0904-
157
BOLT; BRKT
M8X16 FLANGE
0-28050-816-0
01
1
0904-
157
BOLT; BRKT
M10X25 FLANGE
0-28751-025-0
02
1
0904-
157
BOLT; BRKT
M10X30 FLANGE
0-28751-030-0
02
1
0904-
161
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
0904-
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT.
1-31800-440-0
01
1
0904-1105
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT.
1-31800-564-0
01
1
1106-
241
CONNECTOR
(A) DIN8 & R3/8 ELBOW
1-09660-652-1
01
1
0904-
241
CONNECTOR
(B)
1-31829-590-0
02
1
0904-
241
CONNECTOR
(C) ELBOW
1-31829-591-0
02
1
0904-
280
BRACKET; VLV,CHK
1-31429-422-1
01
1
0904-
281
VALVE; CHK
1-48410-594-0
01
1
0904-
282
BOLT; VLV
M8X12 FLANGE
0-28050-812-0
02
1
0904-
283
NUT; BRKT
M10 FLANGE
0-91180-210-0
01
1
0904-
284
TUBE; NYLON
(A)
1-09376-833-1
01
1
0904-
284
TUBE; NYLON
(B)
1-09376-834-1
01
1
0904-
308
REPAIR KIT; CHECK VALVE
1-31829-514-0
01
1
0904-
