1-41 — FUEL PIPING; CHASSIS (#68627) — 24 parça

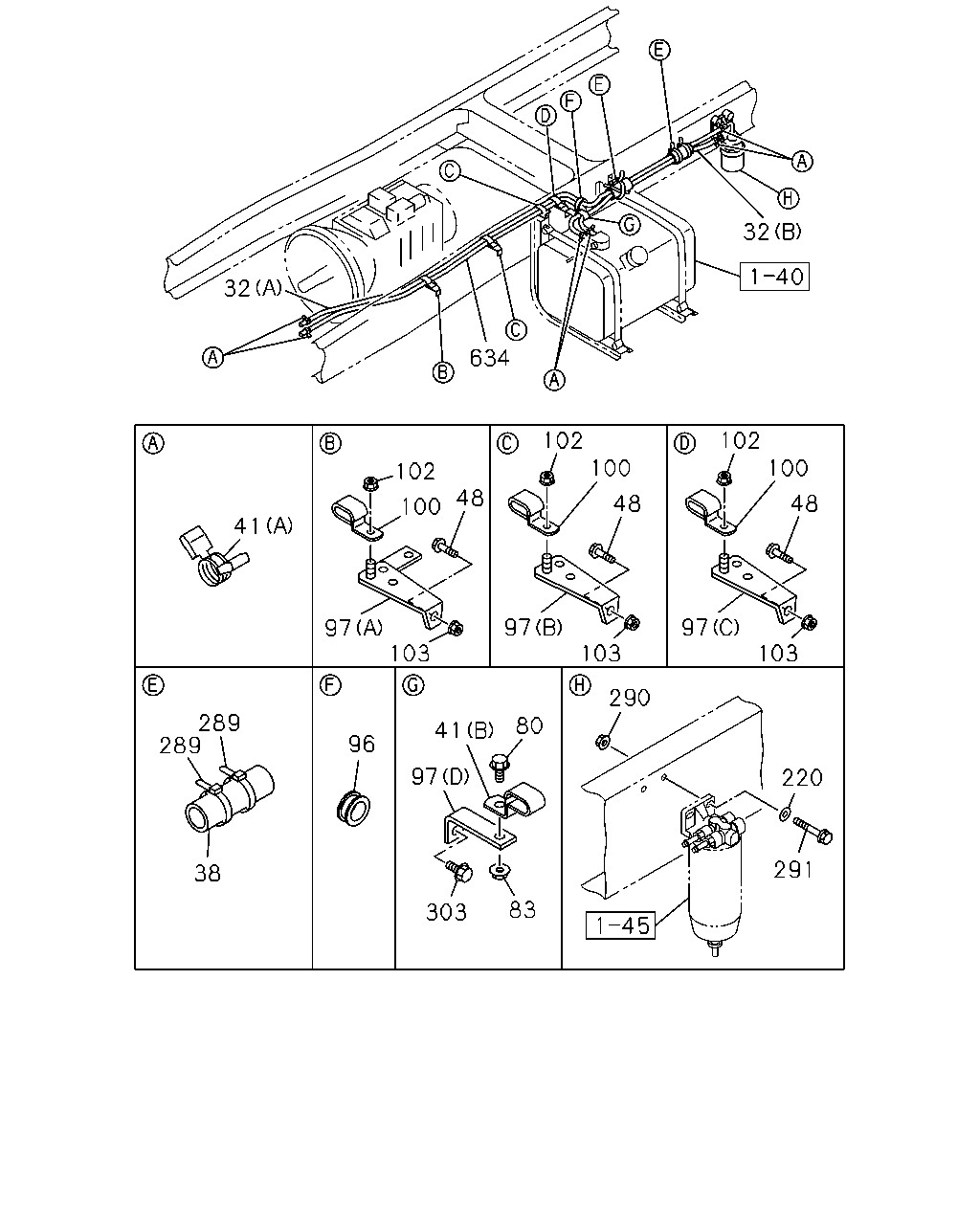

çizim 93074
32 32 634 102 102 100 100 102 48 48 48 100 41 97 97 97 103 103 103 290 289 289 80 41 96 97 220 291 38 83 303
BalonParca AdiParca NoAdetTipApplied Date
32 PIPE; DELIVERY,FUEL TANK
(B) L=900 SERVICED BY L=3000 		0-01260-300-0 01 1 0904-
32 PIPE; DELIVERY,FUEL TANK
(A) L=2200 SERVICED BY L=3000 		0-01262-300-0 01 1 0904-
38 SLEEVE; RUBBER,RUBBER HOSE
L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 0904-
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 0904-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=14 		1-09704-102-0 04 1 0904-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=19 		8-94238-569-0 02 1 0904-
48 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 04 1 0904-
80 BOLT; CLIP,FUEL TANK
M8X20 FLANGE 		0-28650-820-0 01 1 0904-
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 01 1 0904-
96 GROMMET; PIPE,FUEL TANK
ID=32 OD=40 T=23 		1-09332-112-0 01 1 0904-
97 BRACKET; CLIP
(D) 		1-47475-927-0 01 1 0904-1010
97 BRACKET; CLIP
(D) L=68 		1-47475-525-0 01 1 1011-
97 BRACKET; CLIP
(C) 		1-47479-552-0 01 1 0904-
97 BRACKET; CLIP
(B) 		1-47479-723-0 02 1 0904-
97 BRACKET; CLIP
(A) 		1-47479-851-0 01 1 0904-
100 CLIP; FUEL PIPE
ID=19X32 H=17.5 L=22.5 		1-09701-315-0 04 1 0904-
102 NUT; CLIP,FUEL PIPE
M8 FLANGE 		0-91180-108-0 04 1 0904-
103 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 0904-
220 WASHER; PL
ID=10.5 OD=26 		0-91614-710-0 02 1 0904-
289 CLIP; BAND,HOSE
L=250 		5-09707-030-1 04 1 0904-
290 NUT; FILTER TO BRKT
M10 FLANGE 		0-91180-210-0 02 1 0904-
291 BOLT; FILER TO BRKT
M10X50 FLANGE 		0-28051-050-0 02 1 0904-
303 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0904-
634 HOSE; RUBBER RETURN
L=1550 SERVICED BY L=3000 		0-01260-300-0 01 1 0904-
