◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 10794 - LT(TAIWAN) ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶
3-70 — BRAKE PIPING; AIR,AIR MASTER (#6862) — 467 parça

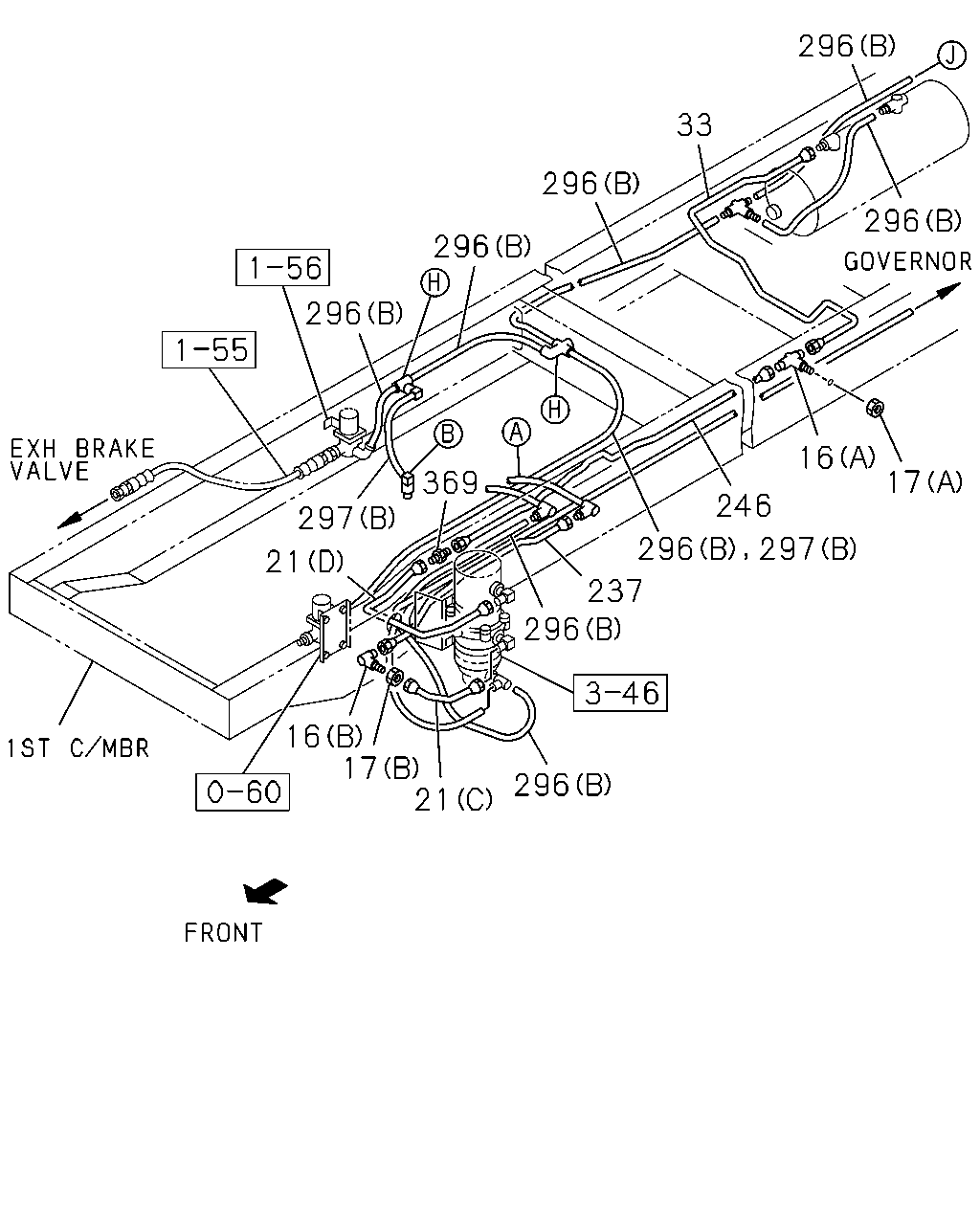

çizim 26360
296 33 296 296 296 296 16 17 369 297 246 21 237 296 16 17 21 296 296 297
BalonParca AdiParca NoAdetTipApplied Date
16 UNION; AIR PIPE
AIR DRYER<PS7> (B) M22 		9-09235-215-1 01 1 9806-9911
16 UNION; AIR PIPE
(B) M22 		9-09235-215-1 01 1 9912-0607
16 UNION; AIR PIPE
(B) M22 		0-92135-215-0 01 1 0608-
16 UNION; AIR PIPE
6HE1-TC ENG(57L) (C) M22 		9-09233-015-1 01 1 9806-9911
16 UNION; AIR PIPE
CTR SPLIT FRAME<TLW> (C) M22 		9-09233-015-1 01 1 9806-9911
16 UNION; AIR PIPE
(C) M22 		9-09233-015-1 01 1 9912-0607
16 UNION; AIR PIPE
(C) M22 		0-92123-015-0 01 1 0608-
16 UNION; AIR PIPE
6HH1-S ENG(65L) EXC. CTR SPLIT FRAME<TLW> (A) M22 2WAY 		1-09654-212-1 01 1 9806-9911
17 NUT; UNION
AIR DRYER<PS7> (B) M22 		9-09111-422-0 01 1 9806-9911
17 NUT; UNION
(B) M22 		9-09111-422-0 01 1 9912-0512
17 NUT; UNION
(B) M22 		0-91111-522-0 01 1 0601-
17 NUT; UNION
6HH1-S ENG(65L) EXC. CTR SPLIT FRAME<TLW> (A) M14 		9-99111-414-0 01 1 9806-9911
21 PIPE; AIR,UNION TO AIR DRYER
6HE1-TC ENG(57L) AIR DRYER<PS7> (A) L=1148 		1-49117-914-0 01 1 9806-9911
21 PIPE; AIR,UNION TO AIR DRYER
(A) L=951 		8-97531-198-0 01 1 9912-9912
21 PIPE; AIR,UNION TO AIR DRYER
(A) 		8-97531-226-0 01 1 0001-
21 PIPE; AIR,UNION TO AIR DRYER
6HE1-TC ENG(57L) AIR DRYER<PS7> (B) L=996 		1-49117-915-0 01 1 9806-9911
21 PIPE; AIR,UNION TO AIR DRYER
(B) L=831 		8-97531-199-0 01 1 9912-
21 PIPE; AIR,UNION TO AIR DRYER
6HH1-S ENG(65L) AIR DRYER<PS7> (C) L=305 		1-49116-043-0 01 1 9806-9911
21 PIPE; AIR,UNION TO AIR DRYER
6HH1-S ENG(65L) AIR DRYER<PS7> (D) L=642 		1-49116-159-0 01 1 9806-9911
33 PIPE; AIR,UNION TO AIR TANK
CTR SPLIT FRAME<TLW> L=1392 		1-49118-306-0 01 1 9806-9911
33 PIPE; AIR,UNION TO AIR TANK
L=1342 		8-97530-064-0 01 1 9912-0109
33 PIPE; AIR,UNION TO AIR TANK 8-97531-283-0 01 1 0110-
33 PIPE; AIR,UNION TO AIR TANK
EXC. CTR SPLIT FRAME<TLW> L=1342 		1-49116-046-0 01 1 9806-9911
237 PIPE; AIR,FLEX HOSE TO UNION
6HE1-TC ENG(57L) AIR DRYER<PS7> L=737 		1-49118-570-0 01 1 9806-9911
237 PIPE; AIR,FLEX HOSE TO UNION
L=737 		8-97530-793-0 01 1 9912-
237 PIPE; AIR,FLEX HOSE TO UNION
6HH1-S ENG(65L) AIR DRYER<PS7> L=772 		1-49116-042-0 01 1 9806-9911
237 PIPE; AIR,FLEX HOSE TO UNION
6HH1-S ENG(65L) EXC. AIR DRYER<PS7>,CTR SPLIT FRAME<TLW> L=1938 		1-49117-328-0 01 1 9806-9911
237 PIPE; AIR,FLEX HOSE TO UNION
6HH1-S ENG(65L) CTR SPLIT FRAME<TLW> EXC. AIR DRYER<PS7> L=904 		1-49118-305-0 01 1 9806-9911
246 PIPE; AIR,UNION TO UNION
6HE1-TC ENG(57L) AIR DRYER<PS7> L=2734 		1-49118-571-0 01 1 9806-9911
246 PIPE; AIR,UNION TO UNION
L=2734 		8-97531-172-0 01 1 9912-0109
246 PIPE; AIR,UNION TO UNION 8-97531-282-0 01 1 0110-
246 PIPE; AIR,UNION TO UNION
6HE1-TC ENG(57L) EXC. AIR DRYER<PS7> L=1941 		1-49118-569-0 01 1 9806-9911
246 PIPE; AIR,UNION TO UNION
6HH1-S ENG(65L) AIR DRYER<PS7> CTR SPLIT FRAME<TLW> L=1501 		1-49118-304-0 01 1 9806-9911
246 PIPE; AIR,UNION TO UNION
6HH1-S ENG(65L) AIR DRYER<PS7> EXC. CTR SPLIT FRAME<TLW> L=2534 		1-49117-329-0 01 1 9806-9911
296 TUBE; NYLON
(A) SERVICED BY L=30000 OD=12 		1-09369-544-0 AR 1 9806-
296 TUBE; NYLON
(B) SERVICED BY L=30000 OD=8 		1-09369-578-0 AR 1 9806-
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9806-
296 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 9806-
296 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 9806-
296 TUBE; NYLON
(A) SERVICED BY L=8000 OD=12 		1-87410-072-0 AR 1 9806-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9806-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 9806-
296 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87410-075-0 AR 1 9806-
296 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 		1-87410-076-0 AR 1 9806-
297 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9806-
297 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9806-
369 UNION; AIR PIPE
6HE1-TC ENG(57L) AIR DRYER<PS7> M22 		9-09235-215-1 01 1 9806-9911
369 UNION; AIR PIPE
M22 		9-09235-215-1 01 1 9912-0607
369 UNION; AIR PIPE
M22 		0-92135-215-0 01 1 0608-
369 UNION; AIR PIPE
6HH1-S ENG(65L) AIR DRYER<PS7> M22 		9-09233-015-1 01 1 9806-9911

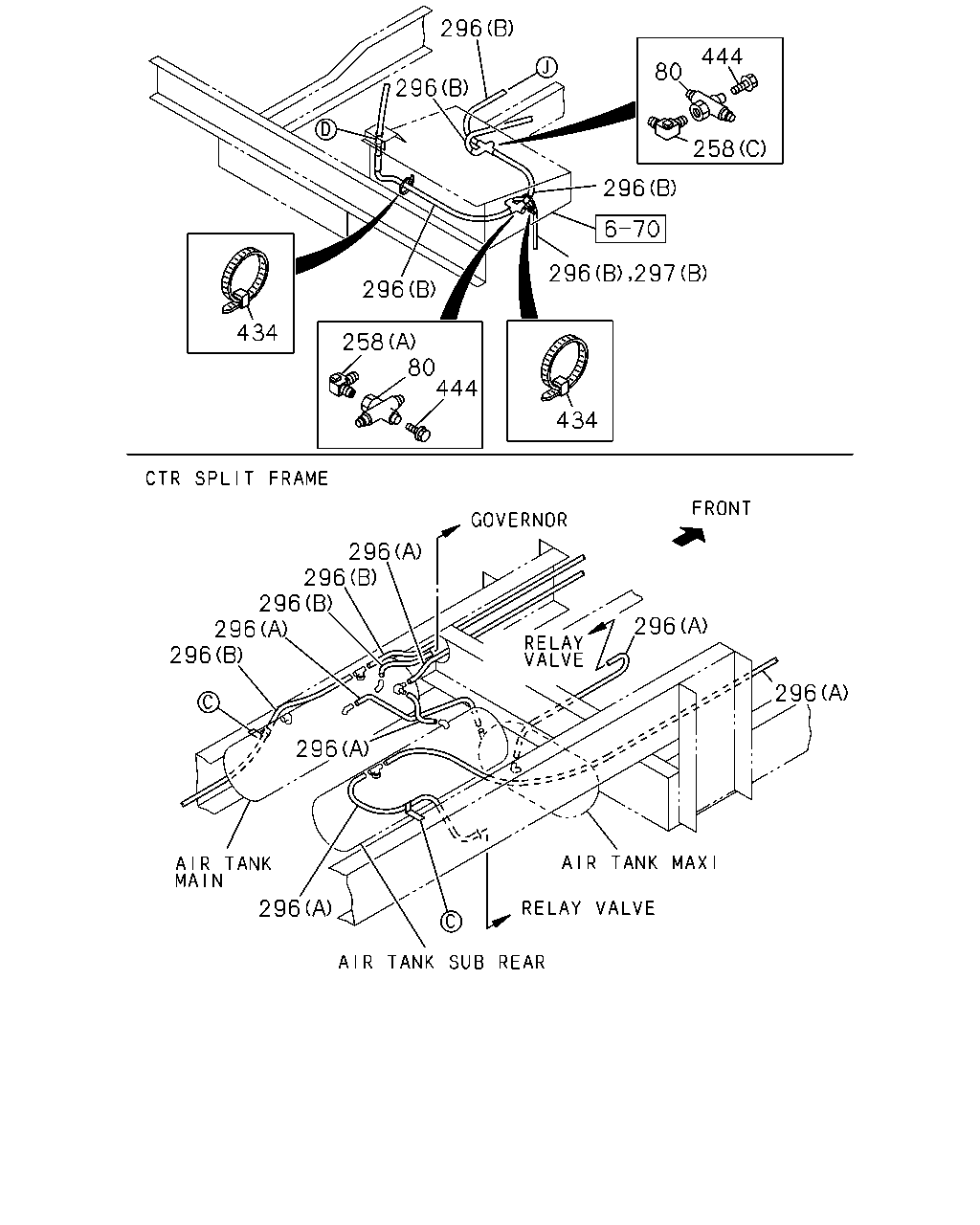

çizim 26969
296 444 80 296 258 296 296 434 258 80 444 434 296 296 296 296 296 296 296 296 296 296 297
BalonParca AdiParca NoAdetTipApplied Date
80 UNION; 3 WAY
DIN8 RC1/4 & M8 		1-09660-735-1 02 1 9912-
80 UNION; 3 WAY
AIR SUSP D/SEAT<A56> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9806-9812
80 UNION; 3 WAY
CLU SYSTEM MINIPACK(B1Z) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9806-9812
80 UNION; 3 WAY
EXC. AIR SUSP D/SEAT<A56>,AIR HORN(WB8) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9806-9812
80 UNION; 3 WAY
EXC. CTR SPLIT FRAME<TLW> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9806-9812
80 UNION; 3 WAY
6HH1-S ENG(65L) OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> EXC. BRK SYSTEM RETARDER<RE2> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9806-9812
80 UNION; 3 WAY
AIR HORN(WB8) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9806-9812
80 UNION; 3 WAY
6HE1-TC ENG(57L) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9806-9812
80 UNION; 3 WAY
6HH1-S ENG(65L) BRK SYSTEM RETARDER<RE2> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9806-9812
80 UNION; 3 WAY
CLU SYSTEM MINIPACK(B1Z) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9901-9911
80 UNION; 3 WAY
EXC. CTR SPLIT FRAME<TLW> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9901-9911
80 UNION; 3 WAY
6HH1-S ENG(65L) OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> EXC. BRK SYSTEM RETARDER<RE2> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9901-9911
80 UNION; 3 WAY
AIR SUSP D/SEAT<A56> AIR HORN(WB8) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9901-9911
80 UNION; 3 WAY
6HE1-TC ENG(57L) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9901-9911
80 UNION; 3 WAY
6HH1-S ENG(65L) BRK SYSTEM RETARDER<RE2> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9901-9911
80 UNION; 3 WAY
MLD6Q M/T(X5J) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9912-0306
80 UNION; 3 WAY
MLD6Q M/T(X5J) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0307-
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0307-
258 CONNECTOR; NYLON TUBE
AIR SUSP D/SEAT<A56> (C) 		1-09660-707-1 01 1 9806-9911
258 CONNECTOR; NYLON TUBE
CLU SYSTEM MINIPACK(B1Z) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 02 1 9806-9808
258 CONNECTOR; NYLON TUBE
CLU SYSTEM MINIPACK(B1Z) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9809-9911
258 CONNECTOR; NYLON TUBE
CLU SYSTEM MINIPACK(B1Z) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9809-9911
258 CONNECTOR; NYLON TUBE
6HH1-S ENG(65L) OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> EXC. BRK SYSTEM RETARDER<RE2> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9809-9911
258 CONNECTOR; NYLON TUBE
6HH1-S ENG(65L) BRK SYSTEM RETARDER<RE2> EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9809-9911
258 CONNECTOR; NYLON TUBE
6HE1-TC ENG(57L) EXC. BRK SYSTEM RETARDER<RE2> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9809-9911
258 CONNECTOR; NYLON TUBE
AIR HORN(WB8) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9809-9911
258 CONNECTOR; NYLON TUBE
MLD6Q M/T(X5J) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9912-0306
258 CONNECTOR; NYLON TUBE
MLD6Q M/T(X5J) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9912-0306
258 CONNECTOR; NYLON TUBE
MLD6Q M/T(X5J) (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0307-
258 CONNECTOR; NYLON TUBE
EXC. CTR SPLIT FRAME<TLW> (D) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 9806-9911
258 CONNECTOR; NYLON TUBE
(D) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 9912-0306
258 CONNECTOR; NYLON TUBE
(D) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0307-
258 CONNECTOR; NYLON TUBE
6HE1-TC ENG(57L) BRK SYSTEM RETARDER<RE2> (B) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9806-9911
258 CONNECTOR; NYLON TUBE
6HH1-S ENG(65L) BRK SYSTEM RETARDER<RE2> OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (B) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9806-9911
258 CONNECTOR; NYLON TUBE
6HE1-TC ENG(57L) EXC. BRK SYSTEM RETARDER<RE2> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9806-9808
258 CONNECTOR; NYLON TUBE
6HH1-S ENG(65L) OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> EXC. BRK SYSTEM RETARDER<RE2> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9806-9808
258 CONNECTOR; NYLON TUBE
6HH1-S ENG(65L) BRK SYSTEM RETARDER<RE2> EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9806-9808
258 CONNECTOR; NYLON TUBE
AIR HORN(WB8) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9806-9808
296 TUBE; NYLON
(A) SERVICED BY L=30000 OD=12 		1-09369-544-0 AR 1 9806-
296 TUBE; NYLON
(B) SERVICED BY L=30000 OD=8 		1-09369-578-0 AR 1 9806-
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9806-
296 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 9806-
296 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 9806-
296 TUBE; NYLON
(A) SERVICED BY L=8000 OD=12 		1-87410-072-0 AR 1 9806-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9806-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 9806-
296 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87410-075-0 AR 1 9806-
296 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 		1-87410-076-0 AR 1 9806-
297 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9806-
297 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9806-
434 CLIP
L=250 		1-09707-126-0 02 1 9806-9812
434 CLIP
AIR HORN(WB8) EXC. AIR SUSP D/SEAT<A56> L=250 		1-09707-126-0 02 1 9806-9812
434 CLIP
AIR HORN(WB8) EXC. AIR SUSP D/SEAT<A56> L=250 		1-09707-126-0 02 1 9901-9911
434 CLIP
A/T ZF 4 HP500 DD-2 W/HYD RETARDER(Y2E),A/T ZF 4 HP500 WO/HYD RETARDER(Y3X) L=250 		1-09707-126-0 01 1 9912-9912
434 CLIP
A/T ZF 4 HP500 DD-2 W/HYD RETARDER(Y2E),A/T ZF 4 HP500 WO/HYD RETARDER(Y3X),A/T ZF 5 HP500 W/HYD RETARDER(Y4M) L=250 		1-09707-126-0 01 1 0001-
434 CLIP
AIR SUSP D/SEAT<A56> AIR HORN(WB8) L=250 		1-09707-126-0 01 1 9806-9806
434 CLIP
EXC. AIR HORN(WB8) L=250 		1-09707-126-0 01 1 9806-9806
434 CLIP
OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> L=250 		1-09707-126-0 01 1 9806-9806
434 CLIP
BRK SYSTEM RETARDER<RE2> L=250 		1-09707-126-0 01 1 9806-9806
434 CLIP
AIR SUSP D/SEAT<A56> AIR HORN(WB8) L=250 		1-09707-126-0 01 1 9807-9812
434 CLIP
EXC. AIR HORN(WB8) L=250 		1-09707-126-0 01 1 9807-9812
434 CLIP
6HE1-TC ENG(57L) L=250 		1-09707-126-0 01 1 9807-9812
434 CLIP
OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> L=250 		1-09707-126-0 01 1 9807-9812
434 CLIP
BRK SYSTEM RETARDER<RE2> L=250 		1-09707-126-0 01 1 9807-9812
434 CLIP
L=250 		1-09707-126-0 01 1 9901-9911
434 CLIP
L=250 		1-09707-126-0 01 1 9901-9911
434 CLIP
AIR SUSP D/SEAT<A56> AIR HORN(WB8) L=250 		1-09707-126-0 01 1 9901-9911
434 CLIP
EXC. AIR HORN(WB8) L=250 		1-09707-126-0 01 1 9901-9911
434 CLIP
6HE1-TC ENG(57L) L=250 		1-09707-126-0 01 1 9901-9911
434 CLIP
OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> L=250 		1-09707-126-0 01 1 9901-9911
434 CLIP
BRK SYSTEM RETARDER<RE2> L=250 		1-09707-126-0 01 1 9901-9911
434 CLIP
L=250 		1-09707-126-0 03 1 9912-
444 BOLT; UNION
M8X16 FLANGE 		0-28080-816-0 01 1 9806-9809
444 BOLT; UNION
CLU SYSTEM MINIPACK(B1Z) M8X16 FLANGE 		0-28080-816-0 01 1 9806-9809
444 BOLT; UNION
AIR SUSP D/SEAT<A56> AIR HORN(WB8) M8X16 FLANGE 		0-28080-816-0 01 1 9806-9809
444 BOLT; UNION
EXC. CTR SPLIT FRAME<TLW> M8X16 FLANGE 		0-28080-816-0 01 1 9806-9809
444 BOLT; UNION
6HH1-S ENG(65L) OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> EXC. BRK SYSTEM RETARDER<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 9806-9809
444 BOLT; UNION
6HE1-TC ENG(57L) M8X16 FLANGE 		0-28080-816-0 01 1 9806-9809
444 BOLT; UNION
6HH1-S ENG(65L) BRK SYSTEM RETARDER<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 9806-9809
444 BOLT; UNION
M8X16 FLANGE 		0-28080-816-0 01 1 9810-9911
444 BOLT; UNION
AIR SUSP D/SEAT<A56> AIR HORN(WB8) M8X16 FLANGE 		0-28080-816-0 01 1 9810-9911
444 BOLT; UNION
EXC. CTR SPLIT FRAME<TLW> M8X16 FLANGE 		0-28080-816-0 01 1 9810-9911
444 BOLT; UNION
CLU SYSTEM MINIPACK(B1Z) M8X16 FLANGE 		0-28080-816-0 01 1 9810-9911
444 BOLT; UNION
6HE1-TC ENG(57L) M8X16 FLANGE 		0-28080-816-0 01 1 9810-9911
444 BOLT; UNION
6HH1-S ENG(65L) OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> EXC. BRK SYSTEM RETARDER<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 9810-9911
444 BOLT; UNION
6HH1-S ENG(65L) BRK SYSTEM RETARDER<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 9810-9911
444 BOLT; UNION
MLD6Q M/T(X5J) M8X16 FLANGE 		0-28080-816-0 01 1 9912-0512
444 BOLT; UNION
MLD6Q M/T(X5J) M8X16 FLANGE 		0-28050-816-0 01 1 0601-
444 BOLT; UNION
M8X16 FLANGE 		0-28080-816-0 02 1 9912-0512
444 BOLT; UNION
M8X16 FLANGE 		0-28050-816-0 02 1 0601-
444 BOLT; UNION
6HE1-TC ENG(57L) AIR DRYER<PS7> M8X20 FLANGE 		0-28680-820-0 01 1 9806-9911
444 BOLT; UNION
M8X20 FLANGE 		0-28680-820-0 01 1 9912-0512
444 BOLT; UNION
M8X20 FLANGE 		0-28650-820-0 01 1 0601-

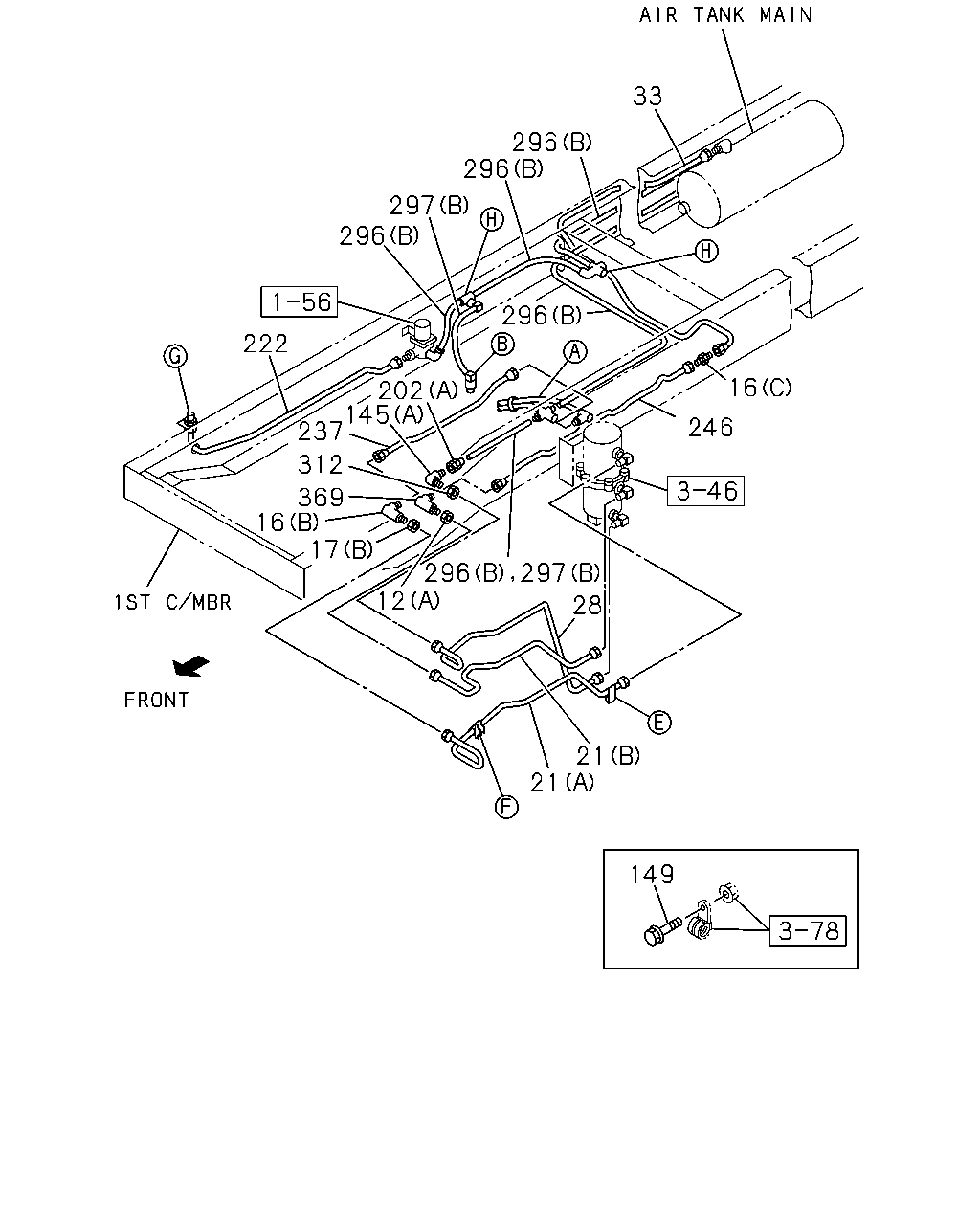

çizim 27052
33 296 296 297 296 296 222 16 202 145 237 246 312 369 16 17 12 28 21 21 149 296 297
BalonParca AdiParca NoAdetTipApplied Date
12 NUT; UNION
(B) M14 		9-99111-414-0 01 1 9806-0512
12 NUT; UNION
(B) M14 		0-91111-514-0 01 1 0601-
12 NUT; UNION
6HE1-TC ENG(57L) AIR DRYER<PS7> (A) M22 		9-09111-422-0 01 1 9806-9911
12 NUT; UNION
(A) M22 		9-09111-422-0 01 1 9912-0512
12 NUT; UNION
(A) M22 		0-91111-522-0 01 1 0601-
16 UNION; AIR PIPE
AIR DRYER<PS7> (B) M22 		9-09235-215-1 01 1 9806-9911
16 UNION; AIR PIPE
(B) M22 		9-09235-215-1 01 1 9912-0607
16 UNION; AIR PIPE
(B) M22 		0-92135-215-0 01 1 0608-
16 UNION; AIR PIPE
6HE1-TC ENG(57L) (C) M22 		9-09233-015-1 01 1 9806-9911
16 UNION; AIR PIPE
CTR SPLIT FRAME<TLW> (C) M22 		9-09233-015-1 01 1 9806-9911
16 UNION; AIR PIPE
(C) M22 		9-09233-015-1 01 1 9912-0607
16 UNION; AIR PIPE
(C) M22 		0-92123-015-0 01 1 0608-
16 UNION; AIR PIPE
6HH1-S ENG(65L) EXC. CTR SPLIT FRAME<TLW> (A) M22 2WAY 		1-09654-212-1 01 1 9806-9911
17 NUT; UNION
AIR DRYER<PS7> (B) M22 		9-09111-422-0 01 1 9806-9911
17 NUT; UNION
(B) M22 		9-09111-422-0 01 1 9912-0512
17 NUT; UNION
(B) M22 		0-91111-522-0 01 1 0601-
17 NUT; UNION
6HH1-S ENG(65L) EXC. CTR SPLIT FRAME<TLW> (A) M14 		9-99111-414-0 01 1 9806-9911
21 PIPE; AIR,UNION TO AIR DRYER
6HE1-TC ENG(57L) AIR DRYER<PS7> (A) L=1148 		1-49117-914-0 01 1 9806-9911
21 PIPE; AIR,UNION TO AIR DRYER
(A) L=951 		8-97531-198-0 01 1 9912-9912
21 PIPE; AIR,UNION TO AIR DRYER
(A) 		8-97531-226-0 01 1 0001-
21 PIPE; AIR,UNION TO AIR DRYER
6HE1-TC ENG(57L) AIR DRYER<PS7> (B) L=996 		1-49117-915-0 01 1 9806-9911
21 PIPE; AIR,UNION TO AIR DRYER
(B) L=831 		8-97531-199-0 01 1 9912-
21 PIPE; AIR,UNION TO AIR DRYER
6HH1-S ENG(65L) AIR DRYER<PS7> (C) L=305 		1-49116-043-0 01 1 9806-9911
21 PIPE; AIR,UNION TO AIR DRYER
6HH1-S ENG(65L) AIR DRYER<PS7> (D) L=642 		1-49116-159-0 01 1 9806-9911
28 PIPE; AIR,AIR DRYER
6HE1-TC ENG(57L) AIR DRYER<PS7> L=1125 SERVICED BY L=1250 		1-47426-353-0 01 1 9806-9911
28 PIPE; AIR,AIR DRYER 8-97531-200-0 01 1 9912-
33 PIPE; AIR,UNION TO AIR TANK
CTR SPLIT FRAME<TLW> L=1392 		1-49118-306-0 01 1 9806-9911
33 PIPE; AIR,UNION TO AIR TANK
L=1342 		8-97530-064-0 01 1 9912-0109
33 PIPE; AIR,UNION TO AIR TANK 8-97531-283-0 01 1 0110-
33 PIPE; AIR,UNION TO AIR TANK
EXC. CTR SPLIT FRAME<TLW> L=1342 		1-49116-046-0 01 1 9806-9911
145 UNION; NYLON TUBE
6HE1-TC ENG(57L) AIR DRYER<PS7> (A) M12 ELBOW 		9-09225-206-1 01 1 9806-9911
145 UNION; NYLON TUBE
(A) M12 ELBOW 		9-09225-206-1 01 1 9912-0607
145 UNION; NYLON TUBE
(A) M12 ELBOW 		0-92125-206-0 01 1 0608-
145 UNION; NYLON TUBE
6HE1-TC ENG(57L) EXC. AIR DRYER<PS7> (B) 		1-09650-252-1 01 1 9806-9911
145 UNION; NYLON TUBE
6HH1-S ENG(65L) (B) 		1-09650-252-1 01 1 9806-9911
149 BOLT; TUBE CLIP
MLD6Q M/T(X5J) M8X25 FLANGE 		0-28680-825-0 01 1 0104-0512
149 BOLT; TUBE CLIP
MLD6Q M/T(X5J) M8X25 FLANGE 		0-28650-825-0 01 1 0601-
202 ADAPTER
6HE1-TC ENG(57L) AIR DRYER<PS7> (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9806-9911
202 ADAPTER
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9912-
202 ADAPTER
6HE1-TC ENG(57L) EXC. AIR DRYER<PS7> (B) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 9806-9911
202 ADAPTER
6HH1-S ENG(65L) (B) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 9806-9911
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1-TC ENG(57L) L=1157 SERVICED BY L=1200 		1-47426-352-0 01 1 9806-9911
222 PIPE; AIR,MAG VLV TO FLEX HOSE
MLD6Q M/T(X5J),A/T ZF 4 HP500 WO/HYD RETARDER(Y3X) L=1057 		8-97530-814-1 01 1 9912-
237 PIPE; AIR,FLEX HOSE TO UNION
6HE1-TC ENG(57L) AIR DRYER<PS7> L=737 		1-49118-570-0 01 1 9806-9911
237 PIPE; AIR,FLEX HOSE TO UNION
L=737 		8-97530-793-0 01 1 9912-
237 PIPE; AIR,FLEX HOSE TO UNION
6HH1-S ENG(65L) AIR DRYER<PS7> L=772 		1-49116-042-0 01 1 9806-9911
237 PIPE; AIR,FLEX HOSE TO UNION
6HH1-S ENG(65L) EXC. AIR DRYER<PS7>,CTR SPLIT FRAME<TLW> L=1938 		1-49117-328-0 01 1 9806-9911
237 PIPE; AIR,FLEX HOSE TO UNION
6HH1-S ENG(65L) CTR SPLIT FRAME<TLW> EXC. AIR DRYER<PS7> L=904 		1-49118-305-0 01 1 9806-9911
246 PIPE; AIR,UNION TO UNION
6HE1-TC ENG(57L) AIR DRYER<PS7> L=2734 		1-49118-571-0 01 1 9806-9911
246 PIPE; AIR,UNION TO UNION
L=2734 		8-97531-172-0 01 1 9912-0109
246 PIPE; AIR,UNION TO UNION 8-97531-282-0 01 1 0110-
246 PIPE; AIR,UNION TO UNION
6HE1-TC ENG(57L) EXC. AIR DRYER<PS7> L=1941 		1-49118-569-0 01 1 9806-9911
246 PIPE; AIR,UNION TO UNION
6HH1-S ENG(65L) AIR DRYER<PS7> CTR SPLIT FRAME<TLW> L=1501 		1-49118-304-0 01 1 9806-9911
246 PIPE; AIR,UNION TO UNION
6HH1-S ENG(65L) AIR DRYER<PS7> EXC. CTR SPLIT FRAME<TLW> L=2534 		1-49117-329-0 01 1 9806-9911
296 TUBE; NYLON
(A) SERVICED BY L=30000 OD=12 		1-09369-544-0 AR 1 9806-
296 TUBE; NYLON
(B) SERVICED BY L=30000 OD=8 		1-09369-578-0 AR 1 9806-
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9806-
296 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 9806-
296 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 9806-
296 TUBE; NYLON
(A) SERVICED BY L=8000 OD=12 		1-87410-072-0 AR 1 9806-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9806-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 9806-
296 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87410-075-0 AR 1 9806-
296 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 		1-87410-076-0 AR 1 9806-
297 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9806-
297 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9806-
312 NUT; UNION
6HE1-TC ENG(57L) AIR DRYER<PS7> M12 		9-99111-412-0 01 1 9806-9808
312 NUT; UNION
6HE1-TC ENG(57L) AIR DRYER<PS7> M12 		9-09840-280-0 01 1 9809-9911
312 NUT; UNION
M12 		9-09840-280-0 01 1 9912-
312 NUT; UNION
6HE1-TC ENG(57L) EXC. AIR DRYER<PS7> M14 		9-99111-414-0 01 1 9806-9911
312 NUT; UNION
6HH1-S ENG(65L) M14 		9-99111-414-0 01 1 9806-9911
369 UNION; AIR PIPE
6HE1-TC ENG(57L) AIR DRYER<PS7> M22 		9-09235-215-1 01 1 9806-9911
369 UNION; AIR PIPE
M22 		9-09235-215-1 01 1 9912-0607
369 UNION; AIR PIPE
M22 		0-92135-215-0 01 1 0608-
369 UNION; AIR PIPE
6HH1-S ENG(65L) AIR DRYER<PS7> M22 		9-09233-015-1 01 1 9806-9911

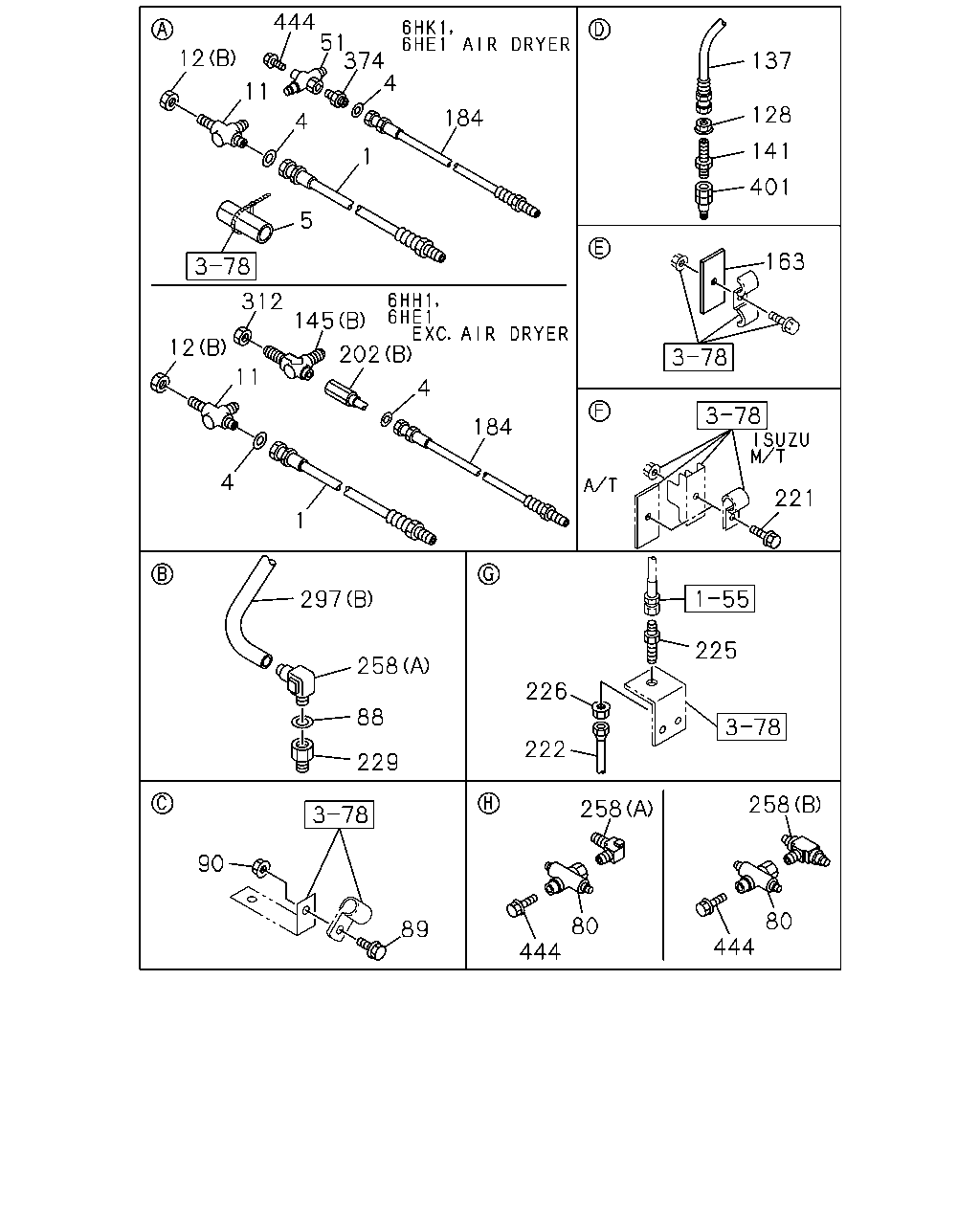

çizim 99131
444 51 374 4 12 137 11 128 184 4 141 1 401 5 163 312 202 145 12 11 4 184 4 221 1 297 225 258 226 88 222 229 258 258 90 80 80 89 444 444
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
6HE1-TC ENG(57L) L=610 		0-07816-610-1 01 1 9806-9911
1 HOSE; FLEX,AIR TANK
L=610 		0-07816-610-1 01 1 9912-0605
1 HOSE; FLEX,AIR TANK
L=610 		0-57816-610-1 01 1 0606-
1 HOSE; FLEX,AIR TANK
6HH1-S ENG(65L) L=380 		0-07816-380-1 01 1 9806-9911
4 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 02 1 9806-
5 SLEEVE; FLEX HOSE
6HE1-TC ENG(57L) ID=23 OD=27 L=40 		1-09337-015-0 01 1 9806-9911
5 SLEEVE; FLEX HOSE
ID=23 OD=27 L=40 		1-09337-015-0 01 1 9912-
11 UNION; AIR PIPE 1-09654-203-1 01 1 9806-
12 NUT; UNION
(B) M14 		9-99111-414-0 01 1 9806-0512
12 NUT; UNION
(B) M14 		0-91111-514-0 01 1 0601-
12 NUT; UNION
6HE1-TC ENG(57L) AIR DRYER<PS7> (A) M22 		9-09111-422-0 01 1 9806-9911
12 NUT; UNION
(A) M22 		9-09111-422-0 01 1 9912-0512
12 NUT; UNION
(A) M22 		0-91111-522-0 01 1 0601-
51 UNION
6HE1-TC ENG(57L) AIR DRYER<PS7> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9806-9911
51 UNION
DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9912-
80 UNION; 3 WAY
DIN8 RC1/4 & M8 		1-09660-735-1 02 1 9912-
80 UNION; 3 WAY
AIR SUSP D/SEAT<A56> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9806-9812
80 UNION; 3 WAY
CLU SYSTEM MINIPACK(B1Z) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9806-9812
80 UNION; 3 WAY
EXC. AIR SUSP D/SEAT<A56>,AIR HORN(WB8) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9806-9812
80 UNION; 3 WAY
EXC. CTR SPLIT FRAME<TLW> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9806-9812
80 UNION; 3 WAY
6HH1-S ENG(65L) OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> EXC. BRK SYSTEM RETARDER<RE2> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9806-9812
80 UNION; 3 WAY
AIR HORN(WB8) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9806-9812
80 UNION; 3 WAY
6HE1-TC ENG(57L) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9806-9812
80 UNION; 3 WAY
6HH1-S ENG(65L) BRK SYSTEM RETARDER<RE2> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9806-9812
80 UNION; 3 WAY
CLU SYSTEM MINIPACK(B1Z) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9901-9911
80 UNION; 3 WAY
EXC. CTR SPLIT FRAME<TLW> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9901-9911
80 UNION; 3 WAY
6HH1-S ENG(65L) OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> EXC. BRK SYSTEM RETARDER<RE2> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9901-9911
80 UNION; 3 WAY
AIR SUSP D/SEAT<A56> AIR HORN(WB8) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9901-9911
80 UNION; 3 WAY
6HE1-TC ENG(57L) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9901-9911
80 UNION; 3 WAY
6HH1-S ENG(65L) BRK SYSTEM RETARDER<RE2> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9901-9911
80 UNION; 3 WAY
MLD6Q M/T(X5J) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9912-0306
80 UNION; 3 WAY
MLD6Q M/T(X5J) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0307-
88 GASKET; NYLON TUBE
CLU SYSTEM MINIPACK(B1Z) ID=14.2 OD=23.0 		9-09572-014-0 01 1 9806-9911
88 GASKET; NYLON TUBE
ISUZU M/T<X9A> ID=14.2 OD=23.0 		9-09572-014-0 01 1 9912-
89 BOLT; TUBE CLIP
CTR SPLIT FRAME<TLW> M8X16 FLANGE 		0-28080-816-0 02 1 9806-9911
90 NUT; TUBE CLIP
CTR SPLIT FRAME<TLW> M8 FLANGE 		0-91150-108-0 02 1 9806-9911
128 NUT; PIPE UNION
M10 FLANGE 		0-91150-210-0 01 1 9806-0602
128 NUT; PIPE UNION
M10 FLANGE 		0-91180-210-0 01 1 0603-
137 HOSE; FLEX,AIR PRESSURE GAGE
L=810 		0-07210-810-0 01 1 9806-0605
137 HOSE; FLEX,AIR PRESSURE GAGE
L=810 		0-57210-810-0 01 1 0606-
141 UNION; FLEX HOSE 1-09650-270-1 01 1 9806-
145 UNION; NYLON TUBE
6HE1-TC ENG(57L) AIR DRYER<PS7> (A) M12 ELBOW 		9-09225-206-1 01 1 9806-9911
145 UNION; NYLON TUBE
(A) M12 ELBOW 		9-09225-206-1 01 1 9912-0607
145 UNION; NYLON TUBE
(A) M12 ELBOW 		0-92125-206-0 01 1 0608-
145 UNION; NYLON TUBE
6HE1-TC ENG(57L) EXC. AIR DRYER<PS7> (B) 		1-09650-252-1 01 1 9806-9911
145 UNION; NYLON TUBE
6HH1-S ENG(65L) (B) 		1-09650-252-1 01 1 9806-9911
163 BRACKET; AIR PIPE
6HE1-TC ENG(57L) AIR DRYER<PS7> L=50 		1-47475-299-2 01 1 9806-9911
163 BRACKET; AIR PIPE
L=50 		1-47475-299-2 01 1 9912-
184 HOSE; FLEX,AIR GOV
6HE1-TC ENG(57L) L=500 		0-07120-500-0 01 1 9806-9911
184 HOSE; FLEX,AIR GOV
L=500 		0-07120-500-0 01 1 9912-
184 HOSE; FLEX,AIR GOV
6HH1-S ENG(65L) MLD6A M/T(X5N),MLD6F M/T(X7K),MLD6S M/T(X7W) L=300 		0-07120-300-0 01 1 9806-9809
184 HOSE; FLEX,AIR GOV
6HH1-S ENG(65L) L=300 		0-07120-300-0 01 1 9810-9911
202 ADAPTER
6HE1-TC ENG(57L) AIR DRYER<PS7> (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9806-9911
202 ADAPTER
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9912-
202 ADAPTER
6HE1-TC ENG(57L) EXC. AIR DRYER<PS7> (B) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 9806-9911
202 ADAPTER
6HH1-S ENG(65L) (B) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 9806-9911
221 BOLT; BRKT
A/T<X9D> M8X30 FLANGE 		0-28680-830-0 01 1 9912-0512
221 BOLT; BRKT
A/T<X9D> M8X30 FLANGE 		0-28650-830-0 01 1 0601-
221 BOLT; BRKT
ISUZU M/T<X9A> M8X25 FLANGE 		0-28680-825-0 02 1 9912-0512
221 BOLT; BRKT
ISUZU M/T<X9A> M8X25 FLANGE 		0-28650-825-0 02 1 0601-
221 BOLT; BRKT
6HE1-TC ENG(57L) AIR DRYER<PS7> M8X40 FLANGE 		0-28680-840-0 01 1 9806-9911
221 BOLT; BRKT
A/T<X9D> M8X40 FLANGE 		0-28680-840-0 01 1 9912-0512
221 BOLT; BRKT
A/T<X9D> M8X40 FLANGE 		0-28650-840-0 01 1 0601-
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1-TC ENG(57L) L=1157 SERVICED BY L=1200 		1-47426-352-0 01 1 9806-9911
222 PIPE; AIR,MAG VLV TO FLEX HOSE
MLD6Q M/T(X5J),A/T ZF 4 HP500 WO/HYD RETARDER(Y3X) L=1057 		8-97530-814-1 01 1 9912-
225 UNION; AIR PIPE
6HE1-TC ENG(57L) M12 2WAY 		1-09654-257-1 01 1 9806-9903
225 UNION; AIR PIPE
6HE1-TC ENG(57L) M12 L=66.5 		9-09223-306-1 01 1 9904-9911
226 NUT; UNION
6HE1-TC ENG(57L) M12 FLANGE 		0-91150-212-0 01 1 9806-9808
226 NUT; UNION
6HE1-TC ENG(57L) M12 		9-09840-280-0 01 1 9809-9911
229 ADAPTER; NYLON TUBE
CLU SYSTEM MINIPACK(B1Z) M14 & PT1/4 		9-48319-149-0 01 1 9806-9911
229 ADAPTER; NYLON TUBE
ISUZU M/T<X9A> M14 & PT1/4 		9-48319-149-0 01 1 9912-0206
229 ADAPTER; NYLON TUBE
ISUZU M/T<X9A> M14 & PT1/4 STRAIGHT 		1-09669-130-0 01 1 0207-
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0307-
258 CONNECTOR; NYLON TUBE
AIR SUSP D/SEAT<A56> (C) 		1-09660-707-1 01 1 9806-9911
258 CONNECTOR; NYLON TUBE
CLU SYSTEM MINIPACK(B1Z) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 02 1 9806-9808
258 CONNECTOR; NYLON TUBE
CLU SYSTEM MINIPACK(B1Z) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9809-9911
258 CONNECTOR; NYLON TUBE
CLU SYSTEM MINIPACK(B1Z) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9809-9911
258 CONNECTOR; NYLON TUBE
6HH1-S ENG(65L) OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> EXC. BRK SYSTEM RETARDER<RE2> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9809-9911
258 CONNECTOR; NYLON TUBE
6HH1-S ENG(65L) BRK SYSTEM RETARDER<RE2> EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9809-9911
258 CONNECTOR; NYLON TUBE
6HE1-TC ENG(57L) EXC. BRK SYSTEM RETARDER<RE2> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9809-9911
258 CONNECTOR; NYLON TUBE
AIR HORN(WB8) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9809-9911
258 CONNECTOR; NYLON TUBE
MLD6Q M/T(X5J) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9912-0306
258 CONNECTOR; NYLON TUBE
MLD6Q M/T(X5J) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9912-0306
258 CONNECTOR; NYLON TUBE
MLD6Q M/T(X5J) (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0307-
258 CONNECTOR; NYLON TUBE
EXC. CTR SPLIT FRAME<TLW> (D) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 9806-9911
258 CONNECTOR; NYLON TUBE
(D) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 9912-0306
258 CONNECTOR; NYLON TUBE
(D) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0307-
258 CONNECTOR; NYLON TUBE
6HE1-TC ENG(57L) BRK SYSTEM RETARDER<RE2> (B) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9806-9911
258 CONNECTOR; NYLON TUBE
6HH1-S ENG(65L) BRK SYSTEM RETARDER<RE2> OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (B) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9806-9911
258 CONNECTOR; NYLON TUBE
6HE1-TC ENG(57L) EXC. BRK SYSTEM RETARDER<RE2> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9806-9808
258 CONNECTOR; NYLON TUBE
6HH1-S ENG(65L) OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> EXC. BRK SYSTEM RETARDER<RE2> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9806-9808
258 CONNECTOR; NYLON TUBE
6HH1-S ENG(65L) BRK SYSTEM RETARDER<RE2> EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9806-9808
258 CONNECTOR; NYLON TUBE
AIR HORN(WB8) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9806-9808
297 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9806-
297 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9806-
312 NUT; UNION
6HE1-TC ENG(57L) AIR DRYER<PS7> M12 		9-99111-412-0 01 1 9806-9808
312 NUT; UNION
6HE1-TC ENG(57L) AIR DRYER<PS7> M12 		9-09840-280-0 01 1 9809-9911
312 NUT; UNION
M12 		9-09840-280-0 01 1 9912-
312 NUT; UNION
6HE1-TC ENG(57L) EXC. AIR DRYER<PS7> M14 		9-99111-414-0 01 1 9806-9911
312 NUT; UNION
6HH1-S ENG(65L) M14 		9-99111-414-0 01 1 9806-9911
374 CONNECTOR
6HE1-TC ENG(57L) AIR DRYER<PS7> M20 & PT1/4 		9-09902-386-0 01 1 9806-9911
374 CONNECTOR
M20 & PT1/4 		9-09902-386-0 01 1 9912-
401 CONNECTOR; FLEX HOSE
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9806-
444 BOLT; UNION
M8X16 FLANGE 		0-28080-816-0 01 1 9806-9809
444 BOLT; UNION
CLU SYSTEM MINIPACK(B1Z) M8X16 FLANGE 		0-28080-816-0 01 1 9806-9809
444 BOLT; UNION
AIR SUSP D/SEAT<A56> AIR HORN(WB8) M8X16 FLANGE 		0-28080-816-0 01 1 9806-9809
444 BOLT; UNION
EXC. CTR SPLIT FRAME<TLW> M8X16 FLANGE 		0-28080-816-0 01 1 9806-9809
444 BOLT; UNION
6HH1-S ENG(65L) OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> EXC. BRK SYSTEM RETARDER<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 9806-9809
444 BOLT; UNION
6HE1-TC ENG(57L) M8X16 FLANGE 		0-28080-816-0 01 1 9806-9809
444 BOLT; UNION
6HH1-S ENG(65L) BRK SYSTEM RETARDER<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 9806-9809
444 BOLT; UNION
M8X16 FLANGE 		0-28080-816-0 01 1 9810-9911
444 BOLT; UNION
AIR SUSP D/SEAT<A56> AIR HORN(WB8) M8X16 FLANGE 		0-28080-816-0 01 1 9810-9911
444 BOLT; UNION
EXC. CTR SPLIT FRAME<TLW> M8X16 FLANGE 		0-28080-816-0 01 1 9810-9911
444 BOLT; UNION
CLU SYSTEM MINIPACK(B1Z) M8X16 FLANGE 		0-28080-816-0 01 1 9810-9911
444 BOLT; UNION
6HE1-TC ENG(57L) M8X16 FLANGE 		0-28080-816-0 01 1 9810-9911
444 BOLT; UNION
6HH1-S ENG(65L) OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> EXC. BRK SYSTEM RETARDER<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 9810-9911
444 BOLT; UNION
6HH1-S ENG(65L) BRK SYSTEM RETARDER<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 9810-9911
444 BOLT; UNION
MLD6Q M/T(X5J) M8X16 FLANGE 		0-28080-816-0 01 1 9912-0512
444 BOLT; UNION
MLD6Q M/T(X5J) M8X16 FLANGE 		0-28050-816-0 01 1 0601-
444 BOLT; UNION
M8X16 FLANGE 		0-28080-816-0 02 1 9912-0512
444 BOLT; UNION
M8X16 FLANGE 		0-28050-816-0 02 1 0601-
444 BOLT; UNION
6HE1-TC ENG(57L) AIR DRYER<PS7> M8X20 FLANGE 		0-28680-820-0 01 1 9806-9911
444 BOLT; UNION
M8X20 FLANGE 		0-28680-820-0 01 1 9912-0512
444 BOLT; UNION
M8X20 FLANGE 		0-28650-820-0 01 1 0601-

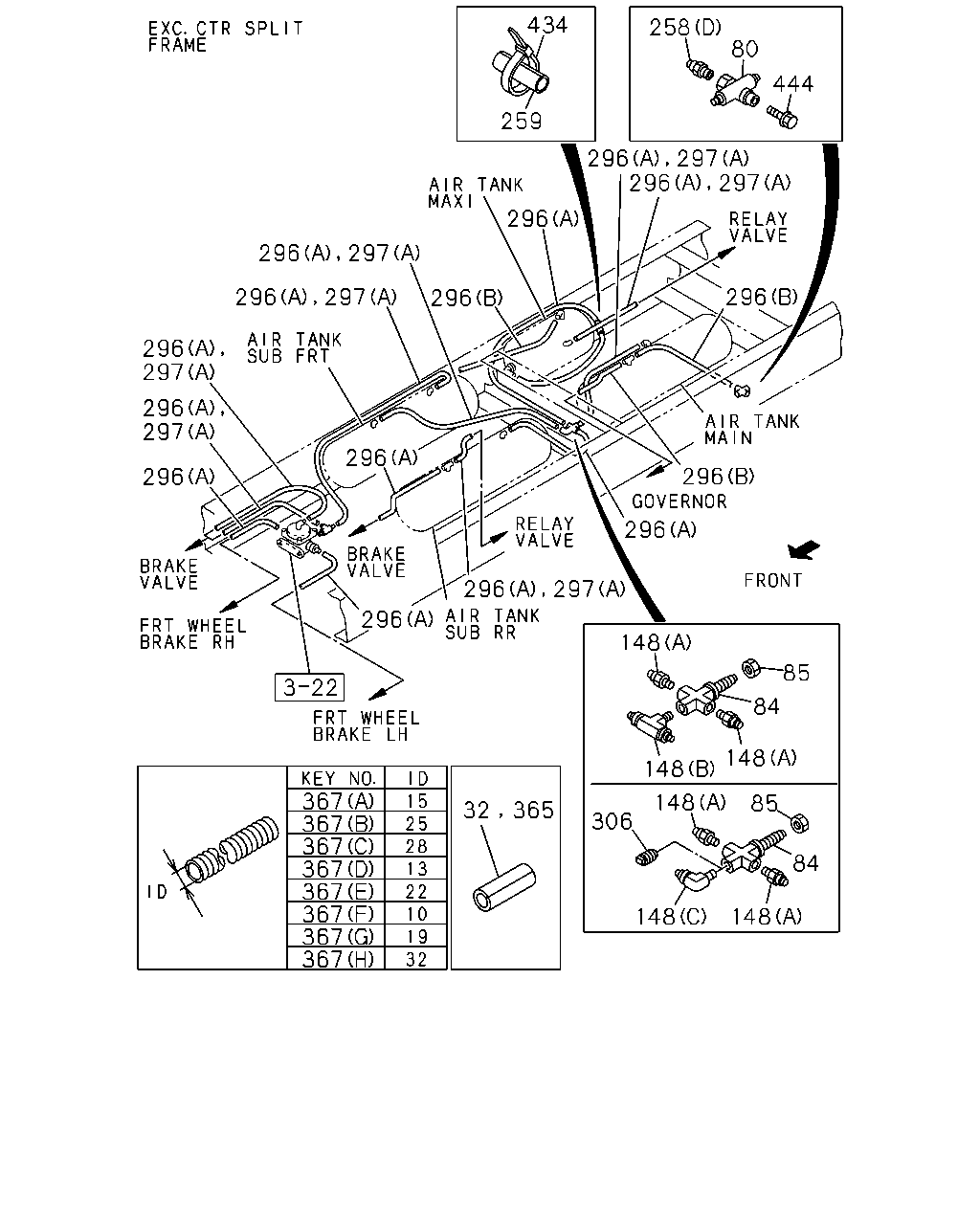

çizim 99135
434 258 80 444 259 296 296 297 296 296 297 296 296 297 296 297 296 296 296 296 296 297 296 148 85 84 148 148 367 367 367 367 367 367 367 367 148 85 306 84 148 148 296 297 296 297 32 365
BalonParca AdiParca NoAdetTipApplied Date
32 SLEEVE; RUBBER,AIR PIPE
ID=17 OD=21 L=40 		1-09337-012-0 01 1 0107-
80 UNION; 3 WAY
DIN8 RC1/4 & M8 		1-09660-735-1 02 1 9912-
80 UNION; 3 WAY
AIR SUSP D/SEAT<A56> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9806-9812
80 UNION; 3 WAY
CLU SYSTEM MINIPACK(B1Z) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9806-9812
80 UNION; 3 WAY
EXC. AIR SUSP D/SEAT<A56>,AIR HORN(WB8) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9806-9812
80 UNION; 3 WAY
EXC. CTR SPLIT FRAME<TLW> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9806-9812
80 UNION; 3 WAY
6HH1-S ENG(65L) OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> EXC. BRK SYSTEM RETARDER<RE2> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9806-9812
80 UNION; 3 WAY
AIR HORN(WB8) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9806-9812
80 UNION; 3 WAY
6HE1-TC ENG(57L) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9806-9812
80 UNION; 3 WAY
6HH1-S ENG(65L) BRK SYSTEM RETARDER<RE2> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9806-9812
80 UNION; 3 WAY
CLU SYSTEM MINIPACK(B1Z) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9901-9911
80 UNION; 3 WAY
EXC. CTR SPLIT FRAME<TLW> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9901-9911
80 UNION; 3 WAY
6HH1-S ENG(65L) OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> EXC. BRK SYSTEM RETARDER<RE2> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9901-9911
80 UNION; 3 WAY
AIR SUSP D/SEAT<A56> AIR HORN(WB8) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9901-9911
80 UNION; 3 WAY
6HE1-TC ENG(57L) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9901-9911
80 UNION; 3 WAY
6HH1-S ENG(65L) BRK SYSTEM RETARDER<RE2> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9901-9911
80 UNION; 3 WAY
MLD6Q M/T(X5J) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9912-0306
80 UNION; 3 WAY
MLD6Q M/T(X5J) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0307-
84 UNION; NYLON TUBE
EXC. CTR SPLIT FRAME<TLW> 		1-09660-756-1 01 1 9806-9911
84 UNION; NYLON TUBE 1-09660-756-1 01 1 9912-
85 NUT; UNION
EXC. CTR SPLIT FRAME<TLW> M22 		9-09111-422-0 01 1 9806-9911
85 NUT; UNION
M22 		9-09111-422-0 01 1 9912-0512
85 NUT; UNION
M22 		0-91111-522-0 01 1 0601-
148 CONNECTOR; UNION
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) DOOR CONT AIR W/SUB AIR TANK<SGW> (C) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 9806-9911
148 CONNECTOR; UNION
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. DOOR CONT AIR W/SUB AIR TANK<SGW>,CTR SPLIT FRAME<TLW> (C) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 9806-9911
148 CONNECTOR; UNION
(C) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 9912-0306
148 CONNECTOR; UNION
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0307-
148 CONNECTOR; UNION
BRK SYSTEM FULL AIR DUAL CIRC(Z06) DOOR CONT AIR W/SUB AIR TANK<SGW> EXC. CTR SPLIT FRAME<TLW> (B) DIN12X2 & R3/8 3WAY 		1-09660-660-1 01 1 9806-9911
148 CONNECTOR; UNION
BRK SYSTEM FULL AIR DUAL CIRC(Z06) DOOR CONT AIR W/SUB AIR TANK<SGW> EXC. CTR SPLIT FRAME<TLW> (A) DIN12 & R3/8 STRAIGHT 		1-09660-669-1 01 1 9806-9809
148 CONNECTOR; UNION
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. DOOR CONT AIR W/SUB AIR TANK<SGW>,CTR SPLIT FRAME<TLW> (A) DIN12 & R3/8 STRAIGHT 		1-09660-669-1 02 1 9806-9809
148 CONNECTOR; UNION
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) DIN12 & R3/8 STRAIGHT 		1-09660-669-1 02 1 9806-9809
148 CONNECTOR; UNION
EXC. CTR SPLIT FRAME<TLW> (A) DIN12 & R3/8 STRAIGHT 		1-09660-669-1 02 1 9810-9911
148 CONNECTOR; UNION
(A) DIN12 & R3/8 STRAIGHT 		1-09660-669-1 02 1 9912-0306
148 CONNECTOR; UNION
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 0307-
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0307-
258 CONNECTOR; NYLON TUBE
AIR SUSP D/SEAT<A56> (C) 		1-09660-707-1 01 1 9806-9911
258 CONNECTOR; NYLON TUBE
CLU SYSTEM MINIPACK(B1Z) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 02 1 9806-9808
258 CONNECTOR; NYLON TUBE
CLU SYSTEM MINIPACK(B1Z) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9809-9911
258 CONNECTOR; NYLON TUBE
CLU SYSTEM MINIPACK(B1Z) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9809-9911
258 CONNECTOR; NYLON TUBE
6HH1-S ENG(65L) OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> EXC. BRK SYSTEM RETARDER<RE2> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9809-9911
258 CONNECTOR; NYLON TUBE
6HH1-S ENG(65L) BRK SYSTEM RETARDER<RE2> EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9809-9911
258 CONNECTOR; NYLON TUBE
6HE1-TC ENG(57L) EXC. BRK SYSTEM RETARDER<RE2> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9809-9911
258 CONNECTOR; NYLON TUBE
AIR HORN(WB8) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9809-9911
258 CONNECTOR; NYLON TUBE
MLD6Q M/T(X5J) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9912-0306
258 CONNECTOR; NYLON TUBE
MLD6Q M/T(X5J) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9912-0306
258 CONNECTOR; NYLON TUBE
MLD6Q M/T(X5J) (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0307-
258 CONNECTOR; NYLON TUBE
EXC. CTR SPLIT FRAME<TLW> (D) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 9806-9911
258 CONNECTOR; NYLON TUBE
(D) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 9912-0306
258 CONNECTOR; NYLON TUBE
(D) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0307-
258 CONNECTOR; NYLON TUBE
6HE1-TC ENG(57L) BRK SYSTEM RETARDER<RE2> (B) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9806-9911
258 CONNECTOR; NYLON TUBE
6HH1-S ENG(65L) BRK SYSTEM RETARDER<RE2> OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (B) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9806-9911
258 CONNECTOR; NYLON TUBE
6HE1-TC ENG(57L) EXC. BRK SYSTEM RETARDER<RE2> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9806-9808
258 CONNECTOR; NYLON TUBE
6HH1-S ENG(65L) OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> EXC. BRK SYSTEM RETARDER<RE2> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9806-9808
258 CONNECTOR; NYLON TUBE
6HH1-S ENG(65L) BRK SYSTEM RETARDER<RE2> EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9806-9808
258 CONNECTOR; NYLON TUBE
AIR HORN(WB8) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9806-9808
259 SLEEVE; RUBBER,NYLON TUBE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) DOOR CONT AIR W/SUB AIR TANK<SGW> ID=17 OD=21 L=40 		1-09337-012-0 02 1 9806-9911
259 SLEEVE; RUBBER,NYLON TUBE
ID=17 OD=21 L=40 		1-09337-012-0 02 1 9912-
259 SLEEVE; RUBBER,NYLON TUBE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=17 OD=21 L=40 		1-09337-012-0 01 1 9806-9811
259 SLEEVE; RUBBER,NYLON TUBE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=17 OD=21 L=40 		1-09337-012-0 04 1 9812-9812
259 SLEEVE; RUBBER,NYLON TUBE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=17 OD=21 L=40 		1-09337-012-0 03 1 9901-9911
296 TUBE; NYLON
(A) SERVICED BY L=30000 OD=12 		1-09369-544-0 AR 1 9806-
296 TUBE; NYLON
(B) SERVICED BY L=30000 OD=8 		1-09369-578-0 AR 1 9806-
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9806-
296 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 9806-
296 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 9806-
296 TUBE; NYLON
(A) SERVICED BY L=8000 OD=12 		1-87410-072-0 AR 1 9806-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9806-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 9806-
296 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87410-075-0 AR 1 9806-
296 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 		1-87410-076-0 AR 1 9806-
297 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9806-
297 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9806-
306 PLUG; NYLON TUBE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. DOOR CONT AIR W/SUB AIR TANK<SGW> PT3/8 		9-09204-517-0 01 1 9806-9911
365 SLEEVE; RUBBER,FLEX HOSE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) AIR DRYER<PS7> ID=17 OD=21 L=40 		1-09337-012-0 01 1 9806-9911
367 TUBE; CORRUGATE
(F) SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 9806-
367 TUBE; CORRUGATE
(D) SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 9806-
367 TUBE; CORRUGATE
(G) SERVICED BY L=2000 ID=19 		1-87410-094-0 AR 1 9806-
367 TUBE; CORRUGATE
(E) SERVICED BY L=2000 ID=22 		1-87410-096-0 AR 1 9806-
367 TUBE; CORRUGATE
(C) SERVICED BY L=2000 ID=28 		1-87410-098-0 AR 1 9806-
367 TUBE; CORRUGATE
(A) SERVICED BY L=2000 ID=15 		1-87410-102-0 AR 1 9806-
367 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=25 		1-87410-100-0 AR 1 9901-
367 TUBE; CORRUGATE
(H) SERVICED BY L=2000 ID=32 		1-87410-104-0 AR 1 9912-
434 CLIP
L=250 		1-09707-126-0 02 1 9806-9812
434 CLIP
AIR HORN(WB8) EXC. AIR SUSP D/SEAT<A56> L=250 		1-09707-126-0 02 1 9806-9812
434 CLIP
AIR HORN(WB8) EXC. AIR SUSP D/SEAT<A56> L=250 		1-09707-126-0 02 1 9901-9911
434 CLIP
A/T ZF 4 HP500 DD-2 W/HYD RETARDER(Y2E),A/T ZF 4 HP500 WO/HYD RETARDER(Y3X) L=250 		1-09707-126-0 01 1 9912-9912
434 CLIP
A/T ZF 4 HP500 DD-2 W/HYD RETARDER(Y2E),A/T ZF 4 HP500 WO/HYD RETARDER(Y3X),A/T ZF 5 HP500 W/HYD RETARDER(Y4M) L=250 		1-09707-126-0 01 1 0001-
434 CLIP
AIR SUSP D/SEAT<A56> AIR HORN(WB8) L=250 		1-09707-126-0 01 1 9806-9806
434 CLIP
EXC. AIR HORN(WB8) L=250 		1-09707-126-0 01 1 9806-9806
434 CLIP
OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> L=250 		1-09707-126-0 01 1 9806-9806
434 CLIP
BRK SYSTEM RETARDER<RE2> L=250 		1-09707-126-0 01 1 9806-9806
434 CLIP
AIR SUSP D/SEAT<A56> AIR HORN(WB8) L=250 		1-09707-126-0 01 1 9807-9812
434 CLIP
EXC. AIR HORN(WB8) L=250 		1-09707-126-0 01 1 9807-9812
434 CLIP
6HE1-TC ENG(57L) L=250 		1-09707-126-0 01 1 9807-9812
434 CLIP
OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> L=250 		1-09707-126-0 01 1 9807-9812
434 CLIP
BRK SYSTEM RETARDER<RE2> L=250 		1-09707-126-0 01 1 9807-9812
434 CLIP
L=250 		1-09707-126-0 01 1 9901-9911
434 CLIP
L=250 		1-09707-126-0 01 1 9901-9911
434 CLIP
AIR SUSP D/SEAT<A56> AIR HORN(WB8) L=250 		1-09707-126-0 01 1 9901-9911
434 CLIP
EXC. AIR HORN(WB8) L=250 		1-09707-126-0 01 1 9901-9911
434 CLIP
6HE1-TC ENG(57L) L=250 		1-09707-126-0 01 1 9901-9911
434 CLIP
OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> L=250 		1-09707-126-0 01 1 9901-9911
434 CLIP
BRK SYSTEM RETARDER<RE2> L=250 		1-09707-126-0 01 1 9901-9911
434 CLIP
L=250 		1-09707-126-0 03 1 9912-
444 BOLT; UNION
M8X16 FLANGE 		0-28080-816-0 01 1 9806-9809
444 BOLT; UNION
CLU SYSTEM MINIPACK(B1Z) M8X16 FLANGE 		0-28080-816-0 01 1 9806-9809
444 BOLT; UNION
AIR SUSP D/SEAT<A56> AIR HORN(WB8) M8X16 FLANGE 		0-28080-816-0 01 1 9806-9809
444 BOLT; UNION
EXC. CTR SPLIT FRAME<TLW> M8X16 FLANGE 		0-28080-816-0 01 1 9806-9809
444 BOLT; UNION
6HH1-S ENG(65L) OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> EXC. BRK SYSTEM RETARDER<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 9806-9809
444 BOLT; UNION
6HE1-TC ENG(57L) M8X16 FLANGE 		0-28080-816-0 01 1 9806-9809
444 BOLT; UNION
6HH1-S ENG(65L) BRK SYSTEM RETARDER<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 9806-9809
444 BOLT; UNION
M8X16 FLANGE 		0-28080-816-0 01 1 9810-9911
444 BOLT; UNION
AIR SUSP D/SEAT<A56> AIR HORN(WB8) M8X16 FLANGE 		0-28080-816-0 01 1 9810-9911
444 BOLT; UNION
EXC. CTR SPLIT FRAME<TLW> M8X16 FLANGE 		0-28080-816-0 01 1 9810-9911
444 BOLT; UNION
CLU SYSTEM MINIPACK(B1Z) M8X16 FLANGE 		0-28080-816-0 01 1 9810-9911
444 BOLT; UNION
6HE1-TC ENG(57L) M8X16 FLANGE 		0-28080-816-0 01 1 9810-9911
444 BOLT; UNION
6HH1-S ENG(65L) OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> EXC. BRK SYSTEM RETARDER<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 9810-9911
444 BOLT; UNION
6HH1-S ENG(65L) BRK SYSTEM RETARDER<RE2> M8X16 FLANGE 		0-28080-816-0 01 1 9810-9911
444 BOLT; UNION
MLD6Q M/T(X5J) M8X16 FLANGE 		0-28080-816-0 01 1 9912-0512
444 BOLT; UNION
MLD6Q M/T(X5J) M8X16 FLANGE 		0-28050-816-0 01 1 0601-
444 BOLT; UNION
M8X16 FLANGE 		0-28080-816-0 02 1 9912-0512
444 BOLT; UNION
M8X16 FLANGE 		0-28050-816-0 02 1 0601-
444 BOLT; UNION
6HE1-TC ENG(57L) AIR DRYER<PS7> M8X20 FLANGE 		0-28680-820-0 01 1 9806-9911
444 BOLT; UNION
M8X20 FLANGE 		0-28680-820-0 01 1 9912-0512
444 BOLT; UNION
M8X20 FLANGE 		0-28650-820-0 01 1 0601-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
