0-41 — FUEL FILTER AND BRACKET (#68609) — 28 parça

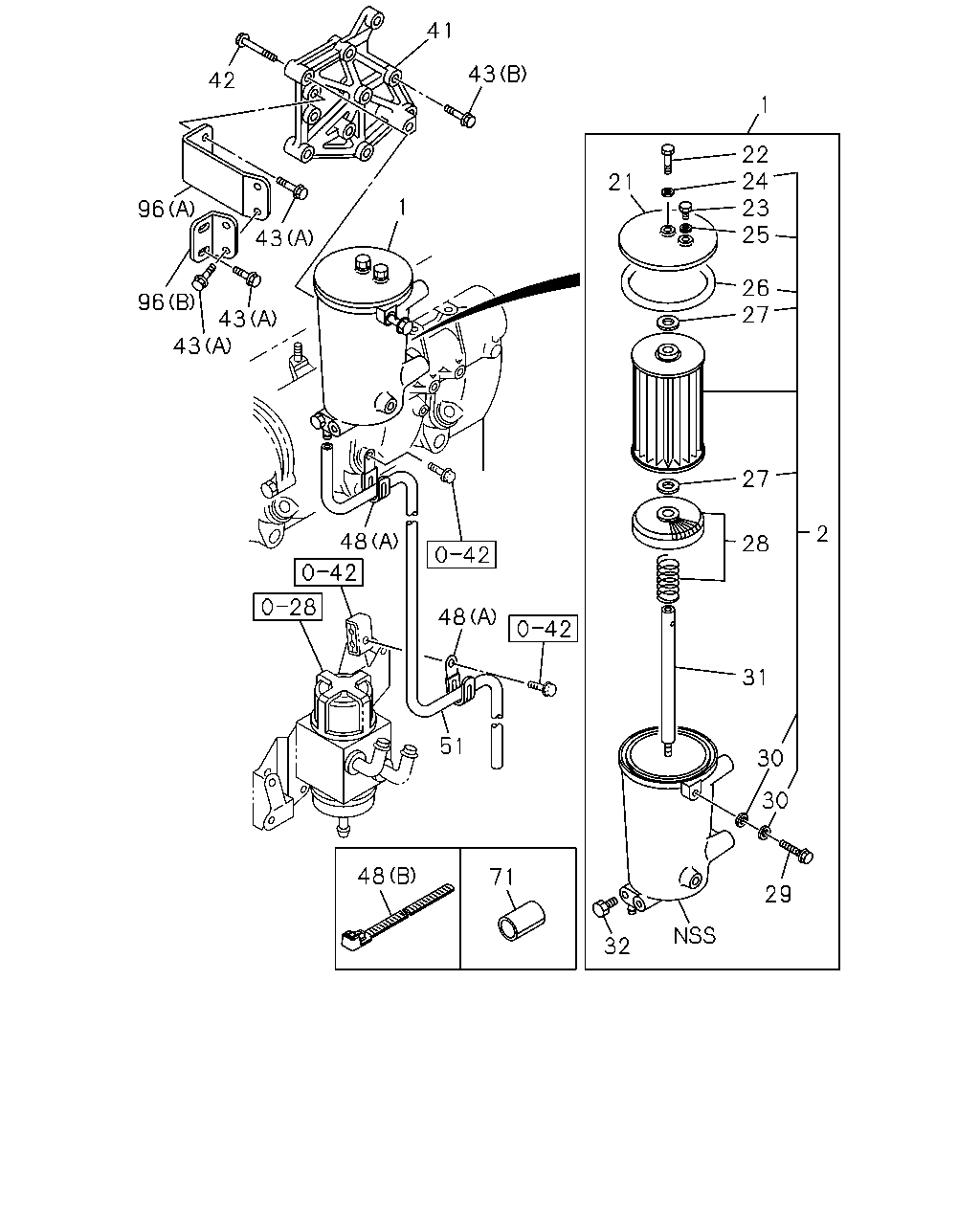

çizim 63646
41 43 42 1 22 24 23 25 21 1 96 43 26 27 96 43 43 27 2 48 28 48 31 51 30 30 48 71 29 32
BalonParca AdiParca NoAdetTipApplied Date
1 FILTER ASM; FUEL 1-13201-006-1 01 1 0904-1106
1 FILTER ASM; FUEL 8-98175-164-0 01 1 1107-
2 ELEMENT KIT; FUEL FILTER
BEST VALUE PARTS 		1-87610-152-0 02 1 1107-
2 ELEMENT KIT; FUEL FILTER 1-87810-976-0 01 1 0904-1106
2 ELEMENT KIT; FUEL FILTER 8-98174-903-0 01 1 1107-
21 COVER; UPR,FUEL FILTER 1-13212-049-1 01 1 0904-
22 BOLT; CENTER TUBE,COVER 1-13219-045-0 01 1 0904-
23 PLUG; COVER 1-13219-074-0 01 1 0904-
24 GASKET; CENTER TUBE BOLT
ID=10.2 OD=15.2 		1-09630-083-0 01 1 0904-
25 GASKET; AIR DRAIN PLUG
ID=10.2 OD=15.2 		1-09630-083-0 01 1 0904-
26 GASKET; COVER TO BODY 9-09720-797-0 01 1 0904-
27 GASKET; ELEMENT 1-09630-007-0 02 1 0904-
28 STRAINER; WATER,FUEL FILTER 1-13251-001-0 01 1 0904-
29 VALVE; OVERFLOW 1-13260-116-0 01 1 0904-
30 GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0904-
31 TUBE; CENTER BOLT 1-13231-026-0 01 1 0904-
32 BOLT; DRAIN,FUEL FILTER 1-13219-030-0 01 1 0904-
41 BRACKET; FUEL FILTER 8-97608-898-1 01 1 0904-
42 BOLT; FUEL FILTER
M10X45 FLANGE 		0-28051-045-0 04 1 0904-
43 BOLT; BRKT
(A) M10X20 FLANGE 		0-28151-020-0 06 1 0904-
43 BOLT; BRKT
(B) M10X60 FLANGE 		0-28151-060-0 04 1 0904-
48 CLIP; VINYL PIPE
(B) L=140 		5-09707-031-1 01 1 0904-1205
48 CLIP; VINYL PIPE
(B) L=140 		8-98216-431-0 01 1 1206-
48 CLIP; VINYL PIPE
(A) ID=21 L=47.5 		8-94178-108-0 02 1 0904-
51 PIPE; VINYL
L=1000 SERVICED BY L=10000 		9-09914-909-0 01 1 0904-
71 SLEEVE; RUBBER,PIPE
ID=10 OD=14 L=30 		9-09956-682-0 01 1 0904-
96 STAY; FUEL FILTER
(A) 		8-97613-183-0 01 1 0904-
96 STAY; FUEL FILTER
(B) 		8-97613-237-1 01 1 0904-
