0-36 — TURBOCHARGER SYSTEM (#68605) — 29 parça

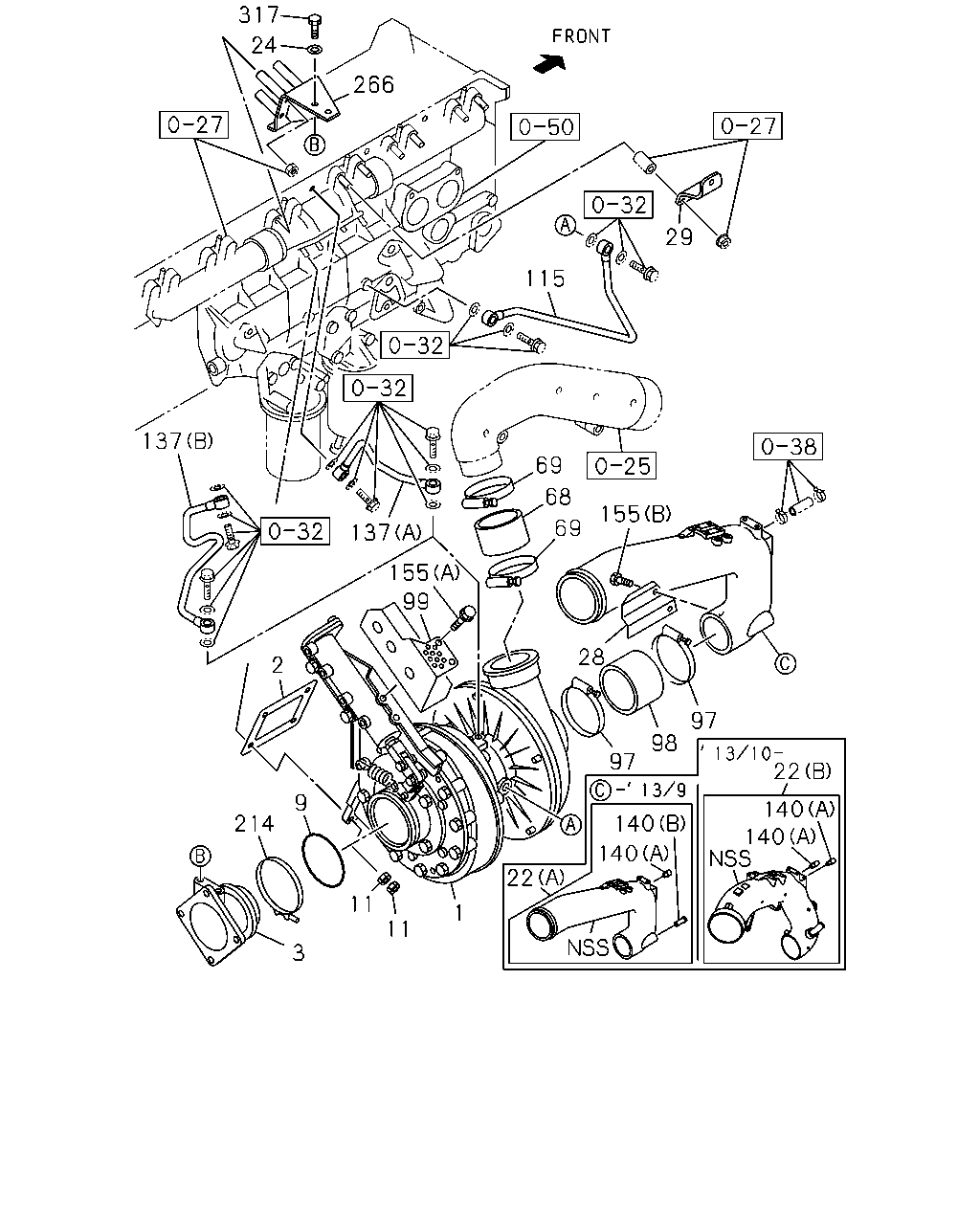

çizim 61043
317 24 266 137 137 155 99 214 3 11 11 1 9 2 28 69 68 69 155 98 97 22 140 140 97 140 140 115 29 22
BalonParca AdiParca NoAdetTipApplied Date
1 TURBOCHARGER ASM 1-14400-448-1 01 1 0904-0908
1 TURBOCHARGER ASM 1-14400-425-5 01 1 0909-
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98116-466-0 01 1 0904-1001
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98162-161-0 01 1 1002-
3 PIPE; EXH,TURBOCHARGER 1-14144-658-1 01 1 0904-
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=80 OD=84 		8-97618-761-1 01 1 0904-
11 NUT; TURBOCHARGER
M10 		1-09420-005-0 08 1 0904-
22 DUCT; INL,ACL TO TURBOCHARGER
(A) 		8-97613-690-3 01 1 0904-1309
22 DUCT; INL,ACL TO TURBOCHARGER
(B) 		8-98254-521-1 01 1 1310-
24 WASHER; PL,PIPE
ID=10.5 OD=22 		1-09500-007-0 02 1 0904-
28 PROTECTOR; HEAT,HOSE,AIR DUCT 1-14181-272-0 01 1 0904-
29 BRACKET; INL PIPE,ACL TO TURBOCHARGER 1-14119-473-0 01 1 0904-
68 HOSE; RUBBER,TURBOCHARGER TO INL COVER 1-09361-116-1 01 1 0904-1007
68 HOSE; RUBBER,TURBOCHARGER TO INL COVER 8-98169-678-0 01 1 1008-
69 CLIP; RUBBER HOSE,TURBOCHARGER
ID=87-111 		8-97375-039-0 02 1 0904-1007
69 CLIP; RUBBER HOSE,TURBOCHARGER
ID=68-85 		8-98096-592-0 02 1 1008-
97 CLIP; HOSE,TURBOCHARGER,INL
ID=104-142 		1-09707-139-0 02 1 0904-
98 HOSE; RUBBER,TURBOCHARGER OUTLET 1-09360-988-0 01 1 0904-
99 PROTECTOR; HEAT 1-14181-350-0 01 1 0904-
115 PIPE; WATER,TURBOCHARGER OUT 1-13722-040-0 01 1 0904-
137 PIPE; WATER,TURBOCHARGER IN
(A) 		1-13722-041-2 01 1 0904-1412
137 PIPE; WATER,TURBOCHARGER IN
(B) 		8-98300-237-0 01 1 1501-
140 PIPE; AIR PIPE
(B) 		8-97603-427-1 01 1 0904-1309
140 PIPE; AIR PIPE
(A) 		9-14119-228-1 02 1 0904-
155 BOLT; HEAT PROTECTOR
(A) M6X10 FLANGE 		0-28050-610-0 04 1 0904-
155 BOLT; HEAT PROTECTOR
(B) M8X12 FLANGE 		0-28050-812-0 02 1 0904-
214 BAND; "V",TURBOCHARGER TO EXH PIPE 8-98006-007-1 01 1 0904-
266 BRACKET; EXH PIPE 8-97606-662-1 01 1 0904-
317 BOLT; EXH PIPE
M10X20 		1-09020-073-2 02 1 0904-
