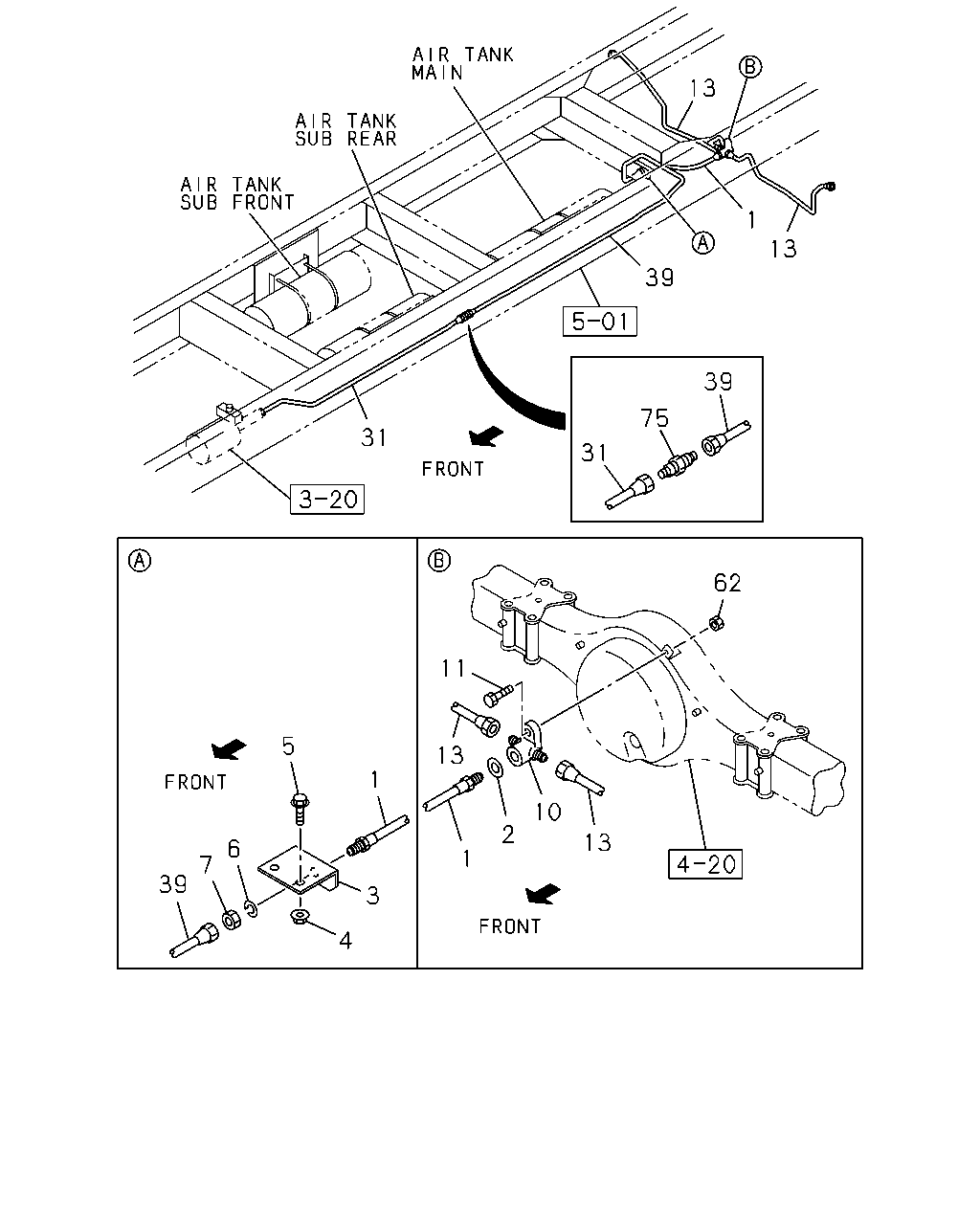

3-55 — BRAKE PIPING; OIL,REAR (#6860) — 15 parça

13 1 13 39 39 75 31 31 62 11 5 13 1 10 2 13 6 1 7 39 3 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=800	1-09364-604-0	01	1	9806-9911
2	GASKET; FLEX HOSE,RR BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) ID=9 OD=17	9-09920-472-0	01	1	9806-9911
3	BRACKET; FLEX HOSE,RR BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47477-569-0	01	1	9806-9911
4	NUT; BRKT,FLEX HOSE,RR BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M10 FLANGE	0-91150-210-0	02	1	9806-9911
5	BOLT; BRKT,FLEX HOSE,RR BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M10X30 FLANGE	0-28681-030-0	02	1	9806-9911
6	WASHER; LK,FLEX HOSE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) ID=12.2	9-09150-512-0	01	1	9806-9911
7	NUT; FLEX HOSE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M12	9-09840-280-0	01	1	9806-9911
10	NIPPLE; RR AXLE CASE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	9-09903-668-3	01	1	9806-9911
11	BOLT; NIPPLE,RR AXLE CASE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M10X40 W/LK WASHER	0-50041-040-0	01	1	9806-9911
13	PIPE; BRK,RR AXLE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47428-639-0	01	1	9806-9911
13	PIPE; BRK,RR AXLE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47428-638-0	01	1	9806-9911
31	PIPE; OIL,AIR MASTER TO UNION BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=1239 SERVICED BY L=1250	1-47428-733-0	01	1	9806-9911
39	PIPE; OIL,UNION TO RR FLEX HOSE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=1821 SERVICED BY L=2000	1-47428-739-0	01	1	9806-9911
62	NUT; NIPPLE,RR AXLE CASE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M10	9-09110-410-0	02	1	9806-9911
75	UNION; OIL PIPE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M12 L=40	9-09223-006-1	01	1	9806-9911
