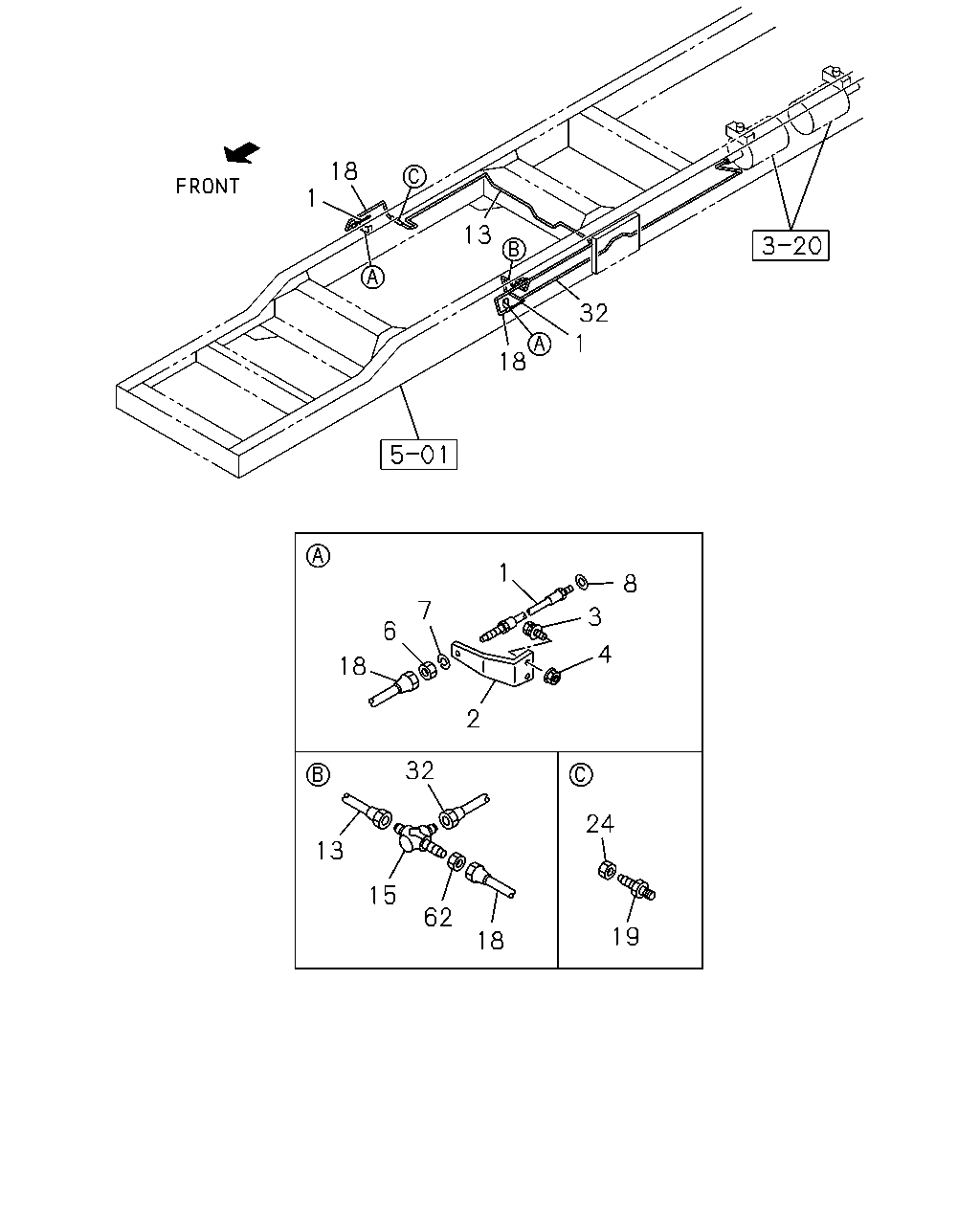

3-52 — BRAKE PIPING; OIL,FRONT (#6859) — 16 parça
çizim 26190
18 1 13 32 1 18 1 8 7 3 6 4 18 2 32 24 13 15 62 19 18
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,FRT BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=590 		1-09364-206-0 02 1 9806-9911
2 BRACKET; FLEX HOSE,FRT BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		1-47476-271-0 02 1 9806-9911
3 BOLT; BRKT,FLEX HOSE,FRT BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8X30 FLANGE 		0-28680-830-0 04 1 9806-9911
4 NUT; FLEX HOSE BRKT,FRT BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8 FLANGE 		0-91150-108-0 04 1 9806-9911
6 NUT; FLEX HOSE,FRT BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M12 		9-09840-280-0 02 1 9806-9911
7 WASHER; LK,FLEX HOSE,FRT BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) ID=12.2 		9-09150-512-0 02 1 9806-9911
8 GASKET; FLEX HOSE,FRT BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) ID=9 OD=17 		9-09920-472-0 02 1 9806-9911
13 PIPE; OIL,UNION TO UNION
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=2153 SERVICED BY L=2200 		1-47428-740-0 01 1 9806-9911
15 JOINT; OIL PIPE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M12 		9-09228-806-1 01 1 9806-9911
18 PIPE; OIL,UNION TO FRT FLEX HOSE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		1-47418-944-0 01 1 9806-9911
18 PIPE; OIL,UNION TO FRT FLEX HOSE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		1-47418-946-0 01 1 9806-9911
19 UNION; OIL PIPE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M12 L=62.5 		9-09223-206-1 01 1 9806-9911
24 NUT; UNION,OIL PIPE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M12 		9-09840-280-0 01 1 9806-9911
32 PIPE; OIL,AIR MASTER TO UNION
WB 5000MM(50W) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=1247 SERVICED BY L=1250 		1-47428-733-0 01 1 9806-9911
32 PIPE; OIL,AIR MASTER TO UNION
WB 5700MM(57W) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=1956 SERVICED BY L=2000 		1-47428-739-0 01 1 9806-9911
62 NUT; JOINT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M12 		9-09840-280-0 01 1 9806-9911
