Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#68571) — 364 parça

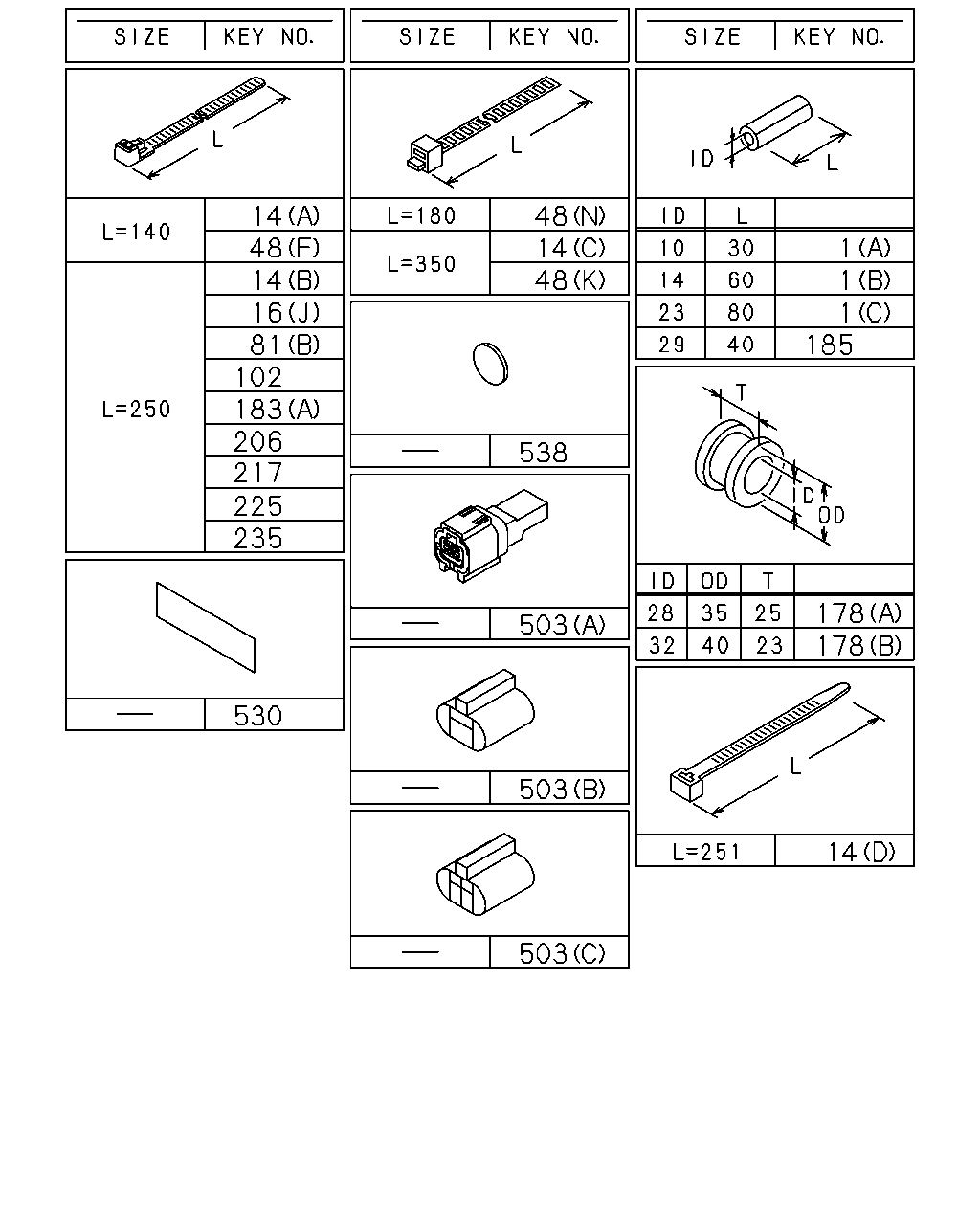

48 14 48 14 48 14 16 81 102 183 206 217 225 235 1 1 1 185 538 178 178 503 530 503 14 503

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER (B) ID=14 OD=18 L=60	1-09337-030-0	01	1	0809-1201
1	SLEEVE; RUBBER EURO2 SPECIFICATION<NT2> (B) ID=14 OD=18 L=60	1-09337-030-0	01	1	1202-
1	SLEEVE; RUBBER (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	0809-1201
1	SLEEVE; RUBBER EURO3 SPECIFICATION<NT3> (C) ID=23 OD=27 L=80	8-97608-976-0	06	1	1202-
1	SLEEVE; RUBBER (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	1202-
14	CLIP; BAND,HARNESS EURO2 SPECIFICATION<NT2> GLOW SYSTEM DELETE<7RK> (B) L=250	8-98216-430-0	01	1	1312-
14	CLIP; BAND,HARNESS EURO3 SPECIFICATION<NT3> (B) L=250	5-09707-030-1	13	1	1202-1205
14	CLIP; BAND,HARNESS EURO3 SPECIFICATION<NT3> (B) L=250	8-98216-430-0	13	1	1206-
14	CLIP; BAND,HARNESS EURO3 SPECIFICATION<NT3> (D) L=251	8-97619-917-0	01	1	1202-
14	CLIP; BAND,HARNESS (C) L=350	1-09707-183-0	01	1	0809-
14	CLIP; BAND,HARNESS (B) L=250	5-09707-030-1	08	1	0809-1201
14	CLIP; BAND,HARNESS EURO2 SPECIFICATION<NT2> (B) L=250	5-09707-030-1	08	1	1202-1205
14	CLIP; BAND,HARNESS EURO2 SPECIFICATION<NT2> (B) L=250	8-98216-430-0	08	1	1206-
14	CLIP; BAND,HARNESS (A) L=140	5-09707-031-1	01	1	0809-1109
16	CLIP; HARNESS (I) ID=11 L=61	1-09700-484-0	01	1	0809-0810
16	CLIP; HARNESS (G) ID=14 H=50 L=20	1-09700-843-0	02	1	0809-
16	CLIP; HARNESS (F) ID=14.5 H=23 L=30	1-09700-859-0	01	1	0809-
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	0809-
16	CLIP; HARNESS (J) L=250	5-09707-030-1	01	1	0809-1001
16	CLIP; HARNESS (J) L=250	5-09707-030-1	05	1	0809-0810
16	CLIP; HARNESS (J) L=250	5-09707-030-1	04	1	0811-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0809-
16	CLIP; HARNESS EXC. AIR DRYER<PS7> (D) OD=9 H=6	1-09709-178-0	01	1	0809-1405
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	0809-1202
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	0809-1202
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (B) L=155	8-97173-307-0	18	1	1203-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> (B) L=155	8-97173-307-0	18	1	1203-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (E) L=40.6	8-97229-357-0	02	1	0809-1202
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (E) L=40.6	8-97229-357-0	02	1	0809-1202
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (E) L=40.6	8-97229-357-0	02	1	1203-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> (E) L=40.6	8-97229-357-0	02	1	1203-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	0809-1202
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	0809-1202
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (C)	8-98052-679-0	02	1	1203-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> (C)	8-98052-679-0	02	1	1203-
48	CLIP; FRAME HARNESS (H) ID=33 L=83	1-09701-291-0	01	1	1306-
48	CLIP; FRAME HARNESS EXC. VIN MODEL YEAR 2011<VZB> (C) ID=20 L=70	1-09700-485-0	04	1	1202-
48	CLIP; FRAME HARNESS FULLER ES11109 DD M/T(Y5N) (L) ID=9 L=28	0-95234-855-0	02	1	1109-
48	CLIP; FRAME HARNESS FULLER ES11109 DD M/T(Y5N) (M) ID=14.5 L=20	1-09701-012-0	01	1	1109-
48	CLIP; FRAME HARNESS FULLER ES11109 DD M/T(Y5N) (N) L=180	1-09707-162-1	02	1	1109-
48	CLIP; FRAME HARNESS EXC. VIN MODEL YEAR 2011<VZB> (C) ID=20 L=70	1-09700-485-0	04	1	1012-1102
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	02	1	1008-1201
48	CLIP; FRAME HARNESS (J) ID=15 L=65	1-09700-466-0	02	1	1202-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (K) L=350	1-09707-183-0	01	1	0910-1110
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (E) ID=16X2 L=50	0-95325-586-0	01	1	0809-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0809-0902
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0809-0902
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0903-
48	CLIP; FRAME HARNESS (J) ID=15 L=65	1-09700-466-0	01	1	0809-
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	04	1	0809-1011
48	CLIP; FRAME HARNESS VIN MODEL YEAR 2011<VZB> (C) ID=20 L=70	1-09700-485-0	03	1	1012-1102
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	03	1	1103-1201
48	CLIP; FRAME HARNESS VIN MODEL YEAR 2011<VZB> (C) ID=20 L=70	1-09700-485-0	03	1	1202-
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	01	1	0809-0902
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	01	1	0809-0902
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	01	1	0903-
48	CLIP; FRAME HARNESS (D) ID=28 L=78	1-09700-858-0	02	1	0809-
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (A) ID=14.5 L=40	1-09701-014-0	01	1	0809-
48	CLIP; FRAME HARNESS (H) ID=33 L=83	1-09701-291-0	03	1	0809-
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	0809-
48	CLIP; FRAME HARNESS (I) OD=9 H=13.5	1-09709-180-0	01	1	0809-
48	CLIP; FRAME HARNESS CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (G) ID=35 L=50	1-09701-214-0	01	1	0809-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (C) ID=20 L=70	1-09700-485-0	19	1	0809-1007
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (J) ID=15 L=65	1-09700-466-0	17	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 6300MM(63W) (C) ID=20 L=70	1-09700-485-0	26	1	0809-1007
48	CLIP; FRAME HARNESS WHEEL BASE 6300MM(63W) (J) ID=15 L=65	1-09700-466-0	24	1	1008-
81	CLIP; HARNESS FULLER ES11109 DD M/T(Y5N) (A) OD=9 H=6	1-09709-178-0	01	1	1109-
81	CLIP; HARNESS ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> (C) OD=9 H=13.5	1-09709-180-0	01	1	0809-1010
81	CLIP; HARNESS ZF9S1110 M/T(Y5E) (C) OD=9 H=13.5	1-09709-180-0	01	1	1011-
81	CLIP; HARNESS ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> (B) L=250	5-09707-030-1	01	1	0809-
102	CLIP; BAND H.S.A SYSTEM<6EP> L=250	5-09707-030-1	01	1	0809-0901
178	GROMMET; HARNESS PERU EQUIPMENT(E07) (A) ID=28 OD=35 T=25	1-09332-011-1	01	1	1202-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=25	1-09332-011-1	02	1	0809-
178	GROMMET; HARNESS (B) ID=32 OD=40 T=23	1-09332-112-0	01	1	0809-1201
178	GROMMET; HARNESS EXC. PERU EQUIPMENT(E07) (B) ID=32 OD=40 T=23	1-09332-112-0	01	1	1202-
183	CLIP; CONNECTOR H.S.A SYSTEM<6EP> (A) L=250	5-09707-030-1	01	1	0809-
183	CLIP; CONNECTOR EXC. H.S.A SYSTEM<6EP> (B) OD=9 H=6	1-09709-178-0	01	1	0809-0810
185	SLEEVE; RUBBER WHEEL BASE 5000MM(50W) ID=29 OD=39 L=40	1-09337-013-0	01	1	0910-1110
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	02	1	0809-
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	02	1	0809-
225	CLIP; AIR TANK HARNESS L=250	5-09707-030-1	04	1	0809-1011
225	CLIP; AIR TANK HARNESS L=250	5-09707-030-1	04	1	1012-1102
225	CLIP; AIR TANK HARNESS VIN MODEL YEAR 2011<VZB> L=250	5-09707-030-1	04	1	1012-1102
225	CLIP; AIR TANK HARNESS L=250	5-09707-030-1	04	1	1103-1201
225	CLIP; AIR TANK HARNESS L=250	5-09707-030-1	04	1	1103-1201
225	CLIP; AIR TANK HARNESS L=250	5-09707-030-1	04	1	1202-
225	CLIP; AIR TANK HARNESS VIN MODEL YEAR 2011<VZB> L=250	5-09707-030-1	04	1	1202-
235	CLIP; HARNESS,SPD SENSOR,SSPS FULLER ES11109 DD M/T(Y5N) L=250	5-09707-030-1	02	1	1109-
503	CONNECTOR EXC. AIR DRYER<PS7> (C)	1-82690-666-0	01	1	0809-1405
503	CONNECTOR EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-82690-668-0	01	1	0809-1201
503	CONNECTOR EURO3 SPECIFICATION<NT3> (B)	1-82690-668-0	01	1	1202-1311
503	CONNECTOR (B)	1-82690-668-0	01	1	1202-1311
503	CONNECTOR EURO3 SPECIFICATION<NT3> (B)	1-82690-668-0	01	1	1312-
503	CONNECTOR EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-82690-668-0	01	1	1312-
503	CONNECTOR EXC. H.S.A SYSTEM<6EP> (A)	1-82691-191-0	01	1	0809-0810
530	SEAL; HARNESS 180X40	1-72498-019-1	14	1	0809-1305
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	1306-
530	SEAL; HARNESS 100X40	1-72498-022-1	06	1	0809-1305
530	SEAL; HARNESS EXC. H.S.A SYSTEM<6EP> 180X40	1-72498-019-1	01	1	1306-
538	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	0809-

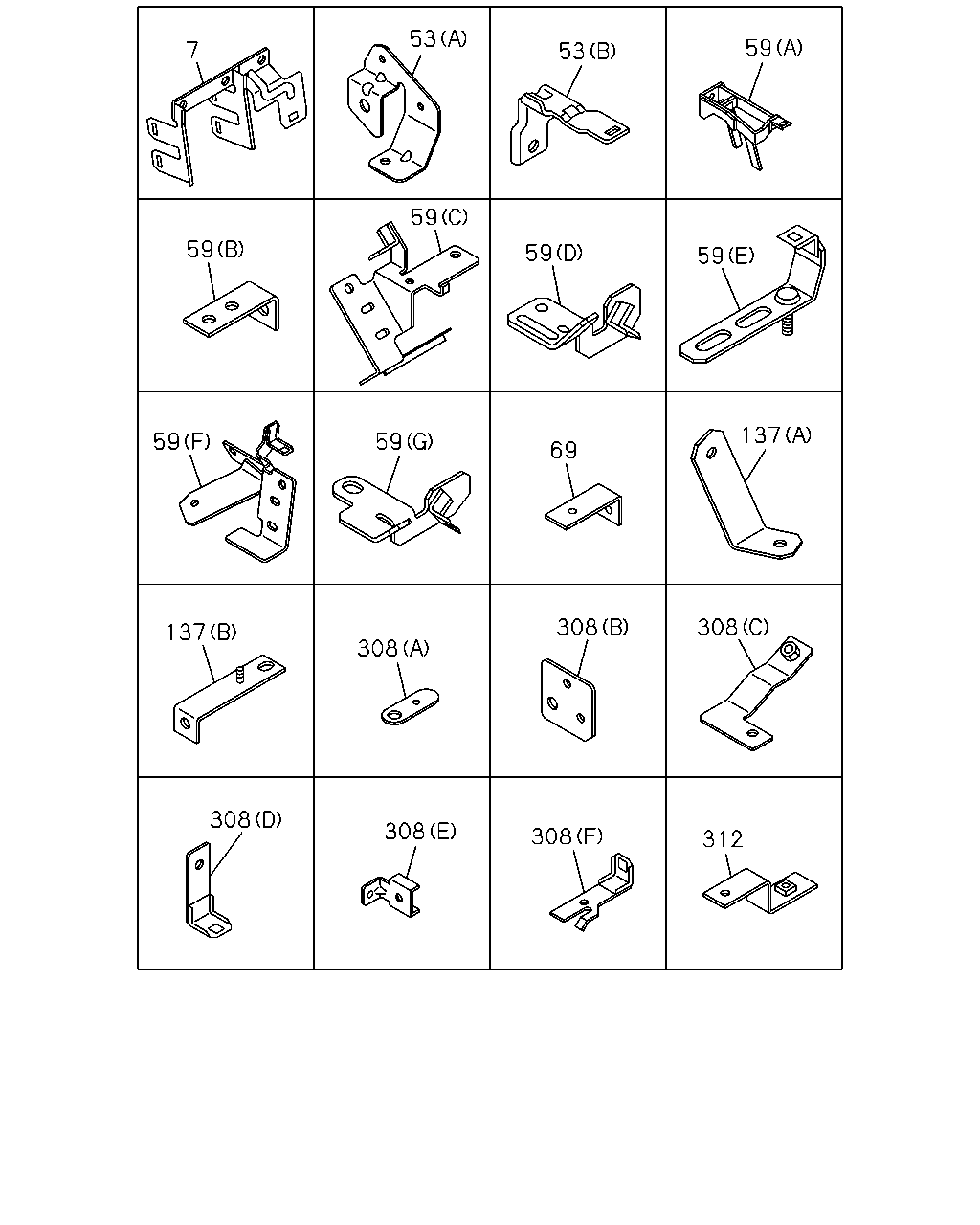

7 59 59 137 308 53 59 59 308 308 53 59 69 308 308 59 59 137 308 312

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	BRACKET; CONNECTOR	8-98090-846-0	01	1	0809-
53	BRACKET; HARNESS (B)	8-98052-458-0	01	1	0809-
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98084-699-0	01	1	0809-
59	BRACKET; FRAME HARNESS (B) L=62	1-21464-170-2	01	1	0809-
59	BRACKET; FRAME HARNESS ZF9S1110 M/T(Y5E) (A)	8-97609-264-2	01	1	0809-1108
59	BRACKET; FRAME HARNESS (A)	8-97609-264-2	01	1	1109-
59	BRACKET; FRAME HARNESS (D)	8-97616-305-0	01	1	0809-1502
59	BRACKET; FRAME HARNESS (G)	8-98254-592-0	01	1	1503-
59	BRACKET; FRAME HARNESS (C)	8-97620-482-1	01	1	0809-0905
59	BRACKET; FRAME HARNESS (F)	8-98107-611-0	01	1	0906-
59	BRACKET; FRAME HARNESS (E)	8-98047-730-0	02	1	0809-
69	BRACKET; CLIP FULLER ES11109 DD M/T(Y5N) L=55	1-47475-304-0	01	1	1109-
137	BRACKET; HARNESS CLAMP (A)	8-97614-728-1	01	1	0809-
137	BRACKET; HARNESS CLAMP (B)	8-97624-013-0	01	1	0809-
308	BRACKET; CLIP,ENG HARNESS EURO3 SPECIFICATION<NT3> (A)	8-97601-310-0	03	1	1202-
308	BRACKET; CLIP,ENG HARNESS EURO3 SPECIFICATION<NT3> (E)	8-97614-078-0	01	1	1202-
308	BRACKET; CLIP,ENG HARNESS EURO3 SPECIFICATION<NT3> (F)	8-98021-291-2	01	1	1202-
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	02	1	0809-1201
308	BRACKET; CLIP,ENG HARNESS EURO2 SPECIFICATION<NT2> (A)	8-97601-310-0	02	1	1202-
308	BRACKET; CLIP,ENG HARNESS (B)	8-98021-692-1	01	1	0809-
308	BRACKET; CLIP,ENG HARNESS (C)	8-98032-178-0	01	1	0809-1201
308	BRACKET; CLIP,ENG HARNESS EURO2 SPECIFICATION<NT2> (C)	8-98032-178-0	01	1	1202-
308	BRACKET; CLIP,ENG HARNESS (D)	8-98075-824-0	01	1	0809-1201
308	BRACKET; CLIP,ENG HARNESS EURO2 SPECIFICATION<NT2> (D)	8-98075-824-0	01	1	1202-
312	BRACKET; CLIP HARNESS	8-97609-110-1	01	1	0809-

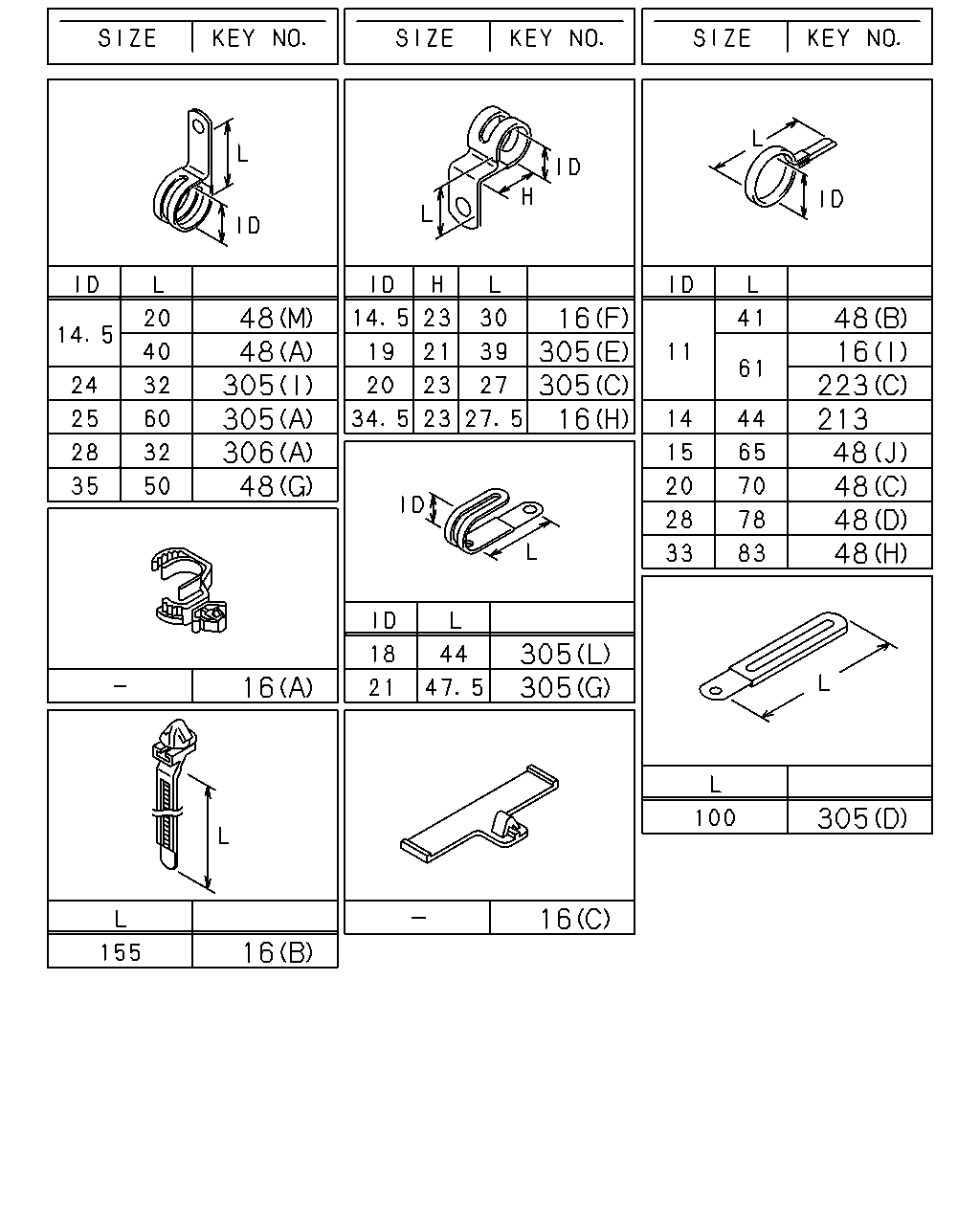

48 48 305 305 306 48 16 305 305 16 48 16 223 213 48 48 48 48 305 305 16 305 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (I) ID=11 L=61	1-09700-484-0	01	1	0809-0810
16	CLIP; HARNESS (G) ID=14 H=50 L=20	1-09700-843-0	02	1	0809-
16	CLIP; HARNESS (F) ID=14.5 H=23 L=30	1-09700-859-0	01	1	0809-
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	0809-
16	CLIP; HARNESS (J) L=250	5-09707-030-1	01	1	0809-1001
16	CLIP; HARNESS (J) L=250	5-09707-030-1	05	1	0809-0810
16	CLIP; HARNESS (J) L=250	5-09707-030-1	04	1	0811-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0809-
16	CLIP; HARNESS EXC. AIR DRYER<PS7> (D) OD=9 H=6	1-09709-178-0	01	1	0809-1405
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	0809-1202
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	0809-1202
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (B) L=155	8-97173-307-0	18	1	1203-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> (B) L=155	8-97173-307-0	18	1	1203-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (E) L=40.6	8-97229-357-0	02	1	0809-1202
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (E) L=40.6	8-97229-357-0	02	1	0809-1202
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (E) L=40.6	8-97229-357-0	02	1	1203-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> (E) L=40.6	8-97229-357-0	02	1	1203-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	0809-1202
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	0809-1202
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (C)	8-98052-679-0	02	1	1203-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> (C)	8-98052-679-0	02	1	1203-
48	CLIP; FRAME HARNESS (H) ID=33 L=83	1-09701-291-0	01	1	1306-
48	CLIP; FRAME HARNESS EXC. VIN MODEL YEAR 2011<VZB> (C) ID=20 L=70	1-09700-485-0	04	1	1202-
48	CLIP; FRAME HARNESS FULLER ES11109 DD M/T(Y5N) (L) ID=9 L=28	0-95234-855-0	02	1	1109-
48	CLIP; FRAME HARNESS FULLER ES11109 DD M/T(Y5N) (M) ID=14.5 L=20	1-09701-012-0	01	1	1109-
48	CLIP; FRAME HARNESS FULLER ES11109 DD M/T(Y5N) (N) L=180	1-09707-162-1	02	1	1109-
48	CLIP; FRAME HARNESS EXC. VIN MODEL YEAR 2011<VZB> (C) ID=20 L=70	1-09700-485-0	04	1	1012-1102
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	02	1	1008-1201
48	CLIP; FRAME HARNESS (J) ID=15 L=65	1-09700-466-0	02	1	1202-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (K) L=350	1-09707-183-0	01	1	0910-1110
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (E) ID=16X2 L=50	0-95325-586-0	01	1	0809-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0809-0902
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0809-0902
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0903-
48	CLIP; FRAME HARNESS (J) ID=15 L=65	1-09700-466-0	01	1	0809-
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	04	1	0809-1011
48	CLIP; FRAME HARNESS VIN MODEL YEAR 2011<VZB> (C) ID=20 L=70	1-09700-485-0	03	1	1012-1102
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	03	1	1103-1201
48	CLIP; FRAME HARNESS VIN MODEL YEAR 2011<VZB> (C) ID=20 L=70	1-09700-485-0	03	1	1202-
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	01	1	0809-0902
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	01	1	0809-0902
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	01	1	0903-
48	CLIP; FRAME HARNESS (D) ID=28 L=78	1-09700-858-0	02	1	0809-
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (A) ID=14.5 L=40	1-09701-014-0	01	1	0809-
48	CLIP; FRAME HARNESS (H) ID=33 L=83	1-09701-291-0	03	1	0809-
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	0809-
48	CLIP; FRAME HARNESS (I) OD=9 H=13.5	1-09709-180-0	01	1	0809-
48	CLIP; FRAME HARNESS CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (G) ID=35 L=50	1-09701-214-0	01	1	0809-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (C) ID=20 L=70	1-09700-485-0	19	1	0809-1007
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (J) ID=15 L=65	1-09700-466-0	17	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 6300MM(63W) (C) ID=20 L=70	1-09700-485-0	26	1	0809-1007
48	CLIP; FRAME HARNESS WHEEL BASE 6300MM(63W) (J) ID=15 L=65	1-09700-466-0	24	1	1008-
213	CLIP; END CROSS HARNESS ID=14 L=44	9-09917-427-0	03	1	0809-
223	CLIP; AIR TANK HARNESS EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=5-12 L=14.5	1-09987-221-0	02	1	1202-
223	CLIP; AIR TANK HARNESS EXC. VIN MODEL YEAR 2011<VZB> (C) ID=11 L=61	1-09700-484-0	01	1	1202-
223	CLIP; AIR TANK HARNESS (C) ID=11 L=61	1-09700-484-0	01	1	0809-1011
223	CLIP; AIR TANK HARNESS EXC. VIN MODEL YEAR 2011<VZB> (C) ID=11 L=61	1-09700-484-0	01	1	1012-1102
223	CLIP; AIR TANK HARNESS (A) ID=5-12 L=14.5	1-09987-221-0	02	1	0809-0902
223	CLIP; AIR TANK HARNESS (A) ID=5-12 L=14.5	1-09987-221-0	01	1	0903-1005
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> (A) ID=5-12 L=14.5	1-09987-221-0	01	1	1006-1201
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) ID=5-12 L=14.5	1-09987-221-0	01	1	1202-
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> (B) OD=9 H=6	1-09709-178-0	01	1	0809-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> (K) ID=26 L=27	1-09701-006-0	01	1	1202-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> (L) ID=18 L=44	8-97367-985-1	01	1	1202-
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	0809-
305	CLIP; ENG HARNESS (H) ID=16 L=40	0-95235-576-0	01	1	0809-
305	CLIP; ENG HARNESS (I) ID=24 L=32	1-09700-766-1	01	1	0809-
305	CLIP; ENG HARNESS (B) ID=24 L=27	1-09700-809-0	03	1	0809-1201
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (B) ID=24 L=27	1-09700-809-0	03	1	1202-
305	CLIP; ENG HARNESS (C) ID=20 H=23 L=27	1-09700-861-0	01	1	0809-0908
305	CLIP; ENG HARNESS EXC. COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07), ECUADOR EQUIPMENT(E46) (C) ID=20 H=23 L=27	1-09700-861-0	01	1	0909-0910
305	CLIP; ENG HARNESS (C) ID=20 H=23 L=27	1-09700-861-0	01	1	0911-
305	CLIP; ENG HARNESS (E) ID=19 L=39 H=21	1-09700-972-1	01	1	0809-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	0809-
305	CLIP; ENG HARNESS (F) OD=9 H=6	1-09709-178-0	01	1	0809-
305	CLIP; ENG HARNESS (G) ID=21 L=47.5	8-94178-108-0	01	1	0809-1311
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5	8-94178-108-0	01	1	1312-
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (G) ID=21 L=47.5	8-94178-108-0	01	1	1312-
305	CLIP; ENG HARNESS (D) L=100	8-94443-021-1	01	1	0809-1201
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (D) L=100	8-94443-021-1	01	1	1202-1310
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (D) L=100	8-94443-021-1	02	1	1311-
306	CLIP; HARNESS,ELEC GOV (A) ID=28 L=32	1-09701-107-1	01	1	0809-
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	0809-

48 305 305 16 81 183 223 305 470 48 81 116 223 48 305 305 16 16 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (I) ID=11 L=61	1-09700-484-0	01	1	0809-0810
16	CLIP; HARNESS (G) ID=14 H=50 L=20	1-09700-843-0	02	1	0809-
16	CLIP; HARNESS (F) ID=14.5 H=23 L=30	1-09700-859-0	01	1	0809-
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	0809-
16	CLIP; HARNESS (J) L=250	5-09707-030-1	01	1	0809-1001
16	CLIP; HARNESS (J) L=250	5-09707-030-1	05	1	0809-0810
16	CLIP; HARNESS (J) L=250	5-09707-030-1	04	1	0811-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0809-
16	CLIP; HARNESS EXC. AIR DRYER<PS7> (D) OD=9 H=6	1-09709-178-0	01	1	0809-1405
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	0809-1202
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	0809-1202
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (B) L=155	8-97173-307-0	18	1	1203-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> (B) L=155	8-97173-307-0	18	1	1203-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (E) L=40.6	8-97229-357-0	02	1	0809-1202
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (E) L=40.6	8-97229-357-0	02	1	0809-1202
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (E) L=40.6	8-97229-357-0	02	1	1203-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> (E) L=40.6	8-97229-357-0	02	1	1203-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	0809-1202
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	0809-1202
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (C)	8-98052-679-0	02	1	1203-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> (C)	8-98052-679-0	02	1	1203-
48	CLIP; FRAME HARNESS (H) ID=33 L=83	1-09701-291-0	01	1	1306-
48	CLIP; FRAME HARNESS EXC. VIN MODEL YEAR 2011<VZB> (C) ID=20 L=70	1-09700-485-0	04	1	1202-
48	CLIP; FRAME HARNESS FULLER ES11109 DD M/T(Y5N) (L) ID=9 L=28	0-95234-855-0	02	1	1109-
48	CLIP; FRAME HARNESS FULLER ES11109 DD M/T(Y5N) (M) ID=14.5 L=20	1-09701-012-0	01	1	1109-
48	CLIP; FRAME HARNESS FULLER ES11109 DD M/T(Y5N) (N) L=180	1-09707-162-1	02	1	1109-
48	CLIP; FRAME HARNESS EXC. VIN MODEL YEAR 2011<VZB> (C) ID=20 L=70	1-09700-485-0	04	1	1012-1102
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	02	1	1008-1201
48	CLIP; FRAME HARNESS (J) ID=15 L=65	1-09700-466-0	02	1	1202-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (K) L=350	1-09707-183-0	01	1	0910-1110
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (E) ID=16X2 L=50	0-95325-586-0	01	1	0809-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0809-0902
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0809-0902
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0903-
48	CLIP; FRAME HARNESS (J) ID=15 L=65	1-09700-466-0	01	1	0809-
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	04	1	0809-1011
48	CLIP; FRAME HARNESS VIN MODEL YEAR 2011<VZB> (C) ID=20 L=70	1-09700-485-0	03	1	1012-1102
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	03	1	1103-1201
48	CLIP; FRAME HARNESS VIN MODEL YEAR 2011<VZB> (C) ID=20 L=70	1-09700-485-0	03	1	1202-
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	01	1	0809-0902
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	01	1	0809-0902
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	01	1	0903-
48	CLIP; FRAME HARNESS (D) ID=28 L=78	1-09700-858-0	02	1	0809-
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (A) ID=14.5 L=40	1-09701-014-0	01	1	0809-
48	CLIP; FRAME HARNESS (H) ID=33 L=83	1-09701-291-0	03	1	0809-
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	0809-
48	CLIP; FRAME HARNESS (I) OD=9 H=13.5	1-09709-180-0	01	1	0809-
48	CLIP; FRAME HARNESS CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (G) ID=35 L=50	1-09701-214-0	01	1	0809-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (C) ID=20 L=70	1-09700-485-0	19	1	0809-1007
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (J) ID=15 L=65	1-09700-466-0	17	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 6300MM(63W) (C) ID=20 L=70	1-09700-485-0	26	1	0809-1007
48	CLIP; FRAME HARNESS WHEEL BASE 6300MM(63W) (J) ID=15 L=65	1-09700-466-0	24	1	1008-
81	CLIP; HARNESS FULLER ES11109 DD M/T(Y5N) (A) OD=9 H=6	1-09709-178-0	01	1	1109-
81	CLIP; HARNESS ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> (C) OD=9 H=13.5	1-09709-180-0	01	1	0809-1010
81	CLIP; HARNESS ZF9S1110 M/T(Y5E) (C) OD=9 H=13.5	1-09709-180-0	01	1	1011-
81	CLIP; HARNESS ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> (B) L=250	5-09707-030-1	01	1	0809-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	03	1	0809-
183	CLIP; CONNECTOR H.S.A SYSTEM<6EP> (A) L=250	5-09707-030-1	01	1	0809-
183	CLIP; CONNECTOR EXC. H.S.A SYSTEM<6EP> (B) OD=9 H=6	1-09709-178-0	01	1	0809-0810
223	CLIP; AIR TANK HARNESS EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=5-12 L=14.5	1-09987-221-0	02	1	1202-
223	CLIP; AIR TANK HARNESS EXC. VIN MODEL YEAR 2011<VZB> (C) ID=11 L=61	1-09700-484-0	01	1	1202-
223	CLIP; AIR TANK HARNESS (C) ID=11 L=61	1-09700-484-0	01	1	0809-1011
223	CLIP; AIR TANK HARNESS EXC. VIN MODEL YEAR 2011<VZB> (C) ID=11 L=61	1-09700-484-0	01	1	1012-1102
223	CLIP; AIR TANK HARNESS (A) ID=5-12 L=14.5	1-09987-221-0	02	1	0809-0902
223	CLIP; AIR TANK HARNESS (A) ID=5-12 L=14.5	1-09987-221-0	01	1	0903-1005
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> (A) ID=5-12 L=14.5	1-09987-221-0	01	1	1006-1201
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) ID=5-12 L=14.5	1-09987-221-0	01	1	1202-
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> (B) OD=9 H=6	1-09709-178-0	01	1	0809-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> (K) ID=26 L=27	1-09701-006-0	01	1	1202-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> (L) ID=18 L=44	8-97367-985-1	01	1	1202-
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	0809-
305	CLIP; ENG HARNESS (H) ID=16 L=40	0-95235-576-0	01	1	0809-
305	CLIP; ENG HARNESS (I) ID=24 L=32	1-09700-766-1	01	1	0809-
305	CLIP; ENG HARNESS (B) ID=24 L=27	1-09700-809-0	03	1	0809-1201
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (B) ID=24 L=27	1-09700-809-0	03	1	1202-
305	CLIP; ENG HARNESS (C) ID=20 H=23 L=27	1-09700-861-0	01	1	0809-0908
305	CLIP; ENG HARNESS EXC. COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07), ECUADOR EQUIPMENT(E46) (C) ID=20 H=23 L=27	1-09700-861-0	01	1	0909-0910
305	CLIP; ENG HARNESS (C) ID=20 H=23 L=27	1-09700-861-0	01	1	0911-
305	CLIP; ENG HARNESS (E) ID=19 L=39 H=21	1-09700-972-1	01	1	0809-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	0809-
305	CLIP; ENG HARNESS (F) OD=9 H=6	1-09709-178-0	01	1	0809-
305	CLIP; ENG HARNESS (G) ID=21 L=47.5	8-94178-108-0	01	1	0809-1311
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5	8-94178-108-0	01	1	1312-
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (G) ID=21 L=47.5	8-94178-108-0	01	1	1312-
305	CLIP; ENG HARNESS (D) L=100	8-94443-021-1	01	1	0809-1201
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (D) L=100	8-94443-021-1	01	1	1202-1310
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (D) L=100	8-94443-021-1	02	1	1311-
306	CLIP; HARNESS,ELEC GOV (A) ID=28 L=32	1-09701-107-1	01	1	0809-
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	0809-
470	CLIP; HARNESS,LICENSE LAMP OD=9 H=6	1-09709-178-0	01	1	0809-

324 334 334 335 428 428

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
324	BRACKET; CLIP	1-47479-430-0	02	1	1212-1212
334	BRACKET FULLER ES11109 DD M/T(Y5N) (A)	1-82698-630-0	01	1	1109-
334	BRACKET FULLER ES11109 DD M/T(Y5N) (B)	8-98098-890-0	01	1	1109-
335	BRACKET; CONNECTOR	8-97619-097-1	01	1	0809-
428	BRACKET (B)	1-47476-658-0	01	1	0809-
428	BRACKET (A)	8-97620-514-0	01	1	0809-

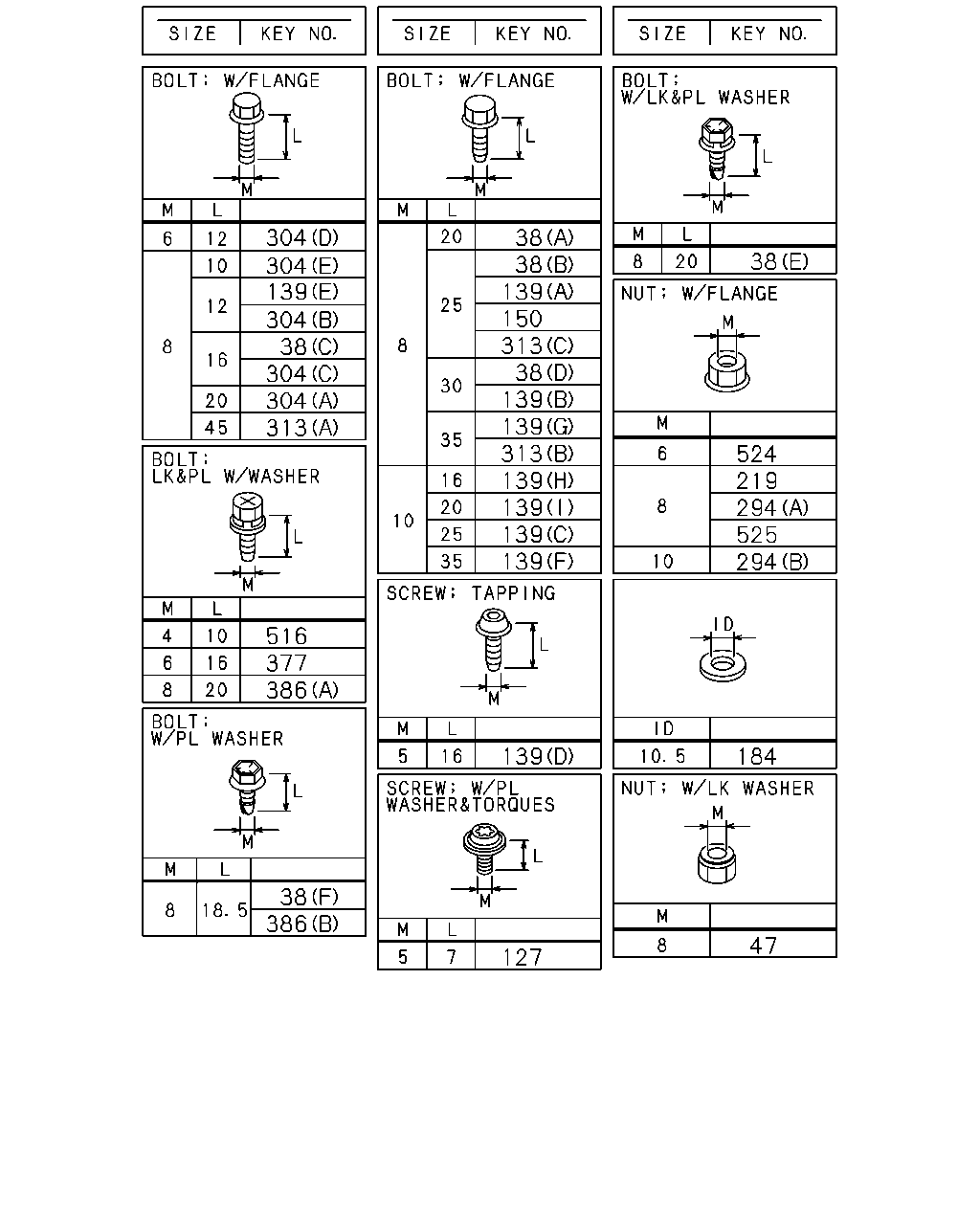

304 139 304 304 304 38 304 313 516 377 386 38 386 38 139 38 150 38 313 139 313 139 139 139 139 139 139 127 38 524 294 219 525 294 184 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS FULLER ES11109 DD M/T(Y5N) (C) M8X16 FLANGE	0-28050-816-0	03	1	1109-
38	BOLT; CLIP,HARNESS ZF9S1110 M/T(Y5E) (C) M8X16 FLANGE	0-28050-816-0	02	1	0809-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	0809-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	04	1	0809-
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	01	1	0809-
38	BOLT; CLIP,HARNESS (E) M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	0809-1201
38	BOLT; CLIP,HARNESS (F) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1202-
47	NUT; GEN TERMINAL M8 W/LK WASHER	8-94279-050-0	01	1	1409-
127	SCREW; FACIA HARNESS CLIP M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	0809-
139	BOLT; BRKT FULLER ES11109 DD M/T(Y5N) (H) M10X16 FLANGE	0-28151-016-0	01	1	1109-
139	BOLT; BRKT FULLER ES11109 DD M/T(Y5N) (I) M10X20 FLANGE	0-28651-020-0	01	1	1109-
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	0809-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0809-1108
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1109-
139	BOLT; BRKT FULLER ES11109 DD M/T(Y5N) (A) M8X25 FLANGE	0-28650-825-0	01	1	1109-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0809-0810
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	0811-
139	BOLT; BRKT (G) M8X35 FLANGE	0-28650-835-0	01	1	0809-
139	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	0809-
139	BOLT; BRKT (F) M10X35 FLANGE	0-28651-035-0	01	1	0809-
139	BOLT; BRKT (F) M10X35 FLANGE	0-28651-035-0	01	1	0809-
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0809-
150	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	02	1	0809-
184	WASHER; PL,STARTER EARTH EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1202-
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	0809-0809
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	02	1	0810-1201
184	WASHER; PL,STARTER EARTH EURO2 SPECIFICATION<NT2> ID=10.5 OD=22 T=2.0	1-09503-265-0	02	1	1202-
184	WASHER; PL,STARTER EARTH EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> ID=10.5 OD=22 T=2.0	1-09503-265-0	02	1	1202-
219	NUT M8 FLANGE	0-91180-108-0	01	1	0809-
294	NUT (A) M8 FLANGE	0-91180-108-0	03	1	0902-0905
294	NUT (A) M8 FLANGE	0-91180-108-0	05	1	0906-
294	NUT (A) M8 FLANGE	0-91180-108-0	05	1	0809-0901
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0902-0905
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0809-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0809-
294	NUT (B) M10 FLANGE	0-91180-210-0	02	1	0809-
304	BOLT; ENG HARNESS CLIP EURO3 SPECIFICATION<NT3> (D) M6X12 FLANGE	0-28050-612-0	01	1	1202-
304	BOLT; ENG HARNESS CLIP EURO3 SPECIFICATION<NT3> (E) M8X10 FLANGE	0-28050-810-0	01	1	1202-
304	BOLT; ENG HARNESS CLIP EURO3 SPECIFICATION<NT3> (B) M8X12 FLANGE	0-28050-812-0	03	1	1202-
304	BOLT; ENG HARNESS CLIP EURO3 SPECIFICATION<NT3> (C) M8X16 FLANGE	0-28050-816-0	03	1	1202-
304	BOLT; ENG HARNESS CLIP EURO3 SPECIFICATION<NT3> (A) M8X20 FLANGE	0-28050-820-0	02	1	1202-
304	BOLT; ENG HARNESS CLIP COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07), ECUADOREQUIPMENT(E46) (C) M8X16 FLANGE	0-28050-816-0	04	1	0909-0910
304	BOLT; ENG HARNESS CLIP (B) M8X12 FLANGE	0-28050-812-0	06	1	0809-1201
304	BOLT; ENG HARNESS CLIP EURO2 SPECIFICATION<NT2> (B) M8X12 FLANGE	0-28050-812-0	06	1	1202-
304	BOLT; ENG HARNESS CLIP (C) M8X16 FLANGE	0-28050-816-0	05	1	0809-0908
304	BOLT; ENG HARNESS CLIP EXC. COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07), ECUADOR EQUIPMENT(E46) (C) M8X16 FLANGE	0-28050-816-0	05	1	0909-0910
304	BOLT; ENG HARNESS CLIP (C) M8X16 FLANGE	0-28050-816-0	05	1	0911-1201
304	BOLT; ENG HARNESS CLIP EURO2 SPECIFICATION<NT2> (C) M8X16 FLANGE	0-28050-816-0	05	1	1202-
304	BOLT; ENG HARNESS CLIP (A) M8X20 FLANGE	0-28050-820-0	04	1	0809-1201
304	BOLT; ENG HARNESS CLIP EURO2 SPECIFICATION<NT2> (A) M8X20 FLANGE	0-28050-820-0	04	1	1202-
313	BOLT; BRKT (A) M8X45 FLANGE	0-28050-845-0	01	1	0809-
313	BOLT; BRKT (C) M8X25 FLANGE	0-28650-825-0	01	1	0809-
313	BOLT; BRKT (B) M8X35 FLANGE	0-28650-835-0	01	1	0809-
313	BOLT; BRKT (B) M8X35 FLANGE	0-28650-835-0	01	1	0809-
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	0809-
386	BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	0809-1202
386	BOLT; GRAND HARNESS (B) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1203-
516	BOLT; HARNESS M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	0809-
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	04	1	0809-
525	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0809-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
