3-41 — REAR BRAKE POWER CHAMBER (#6857) — 238 parça

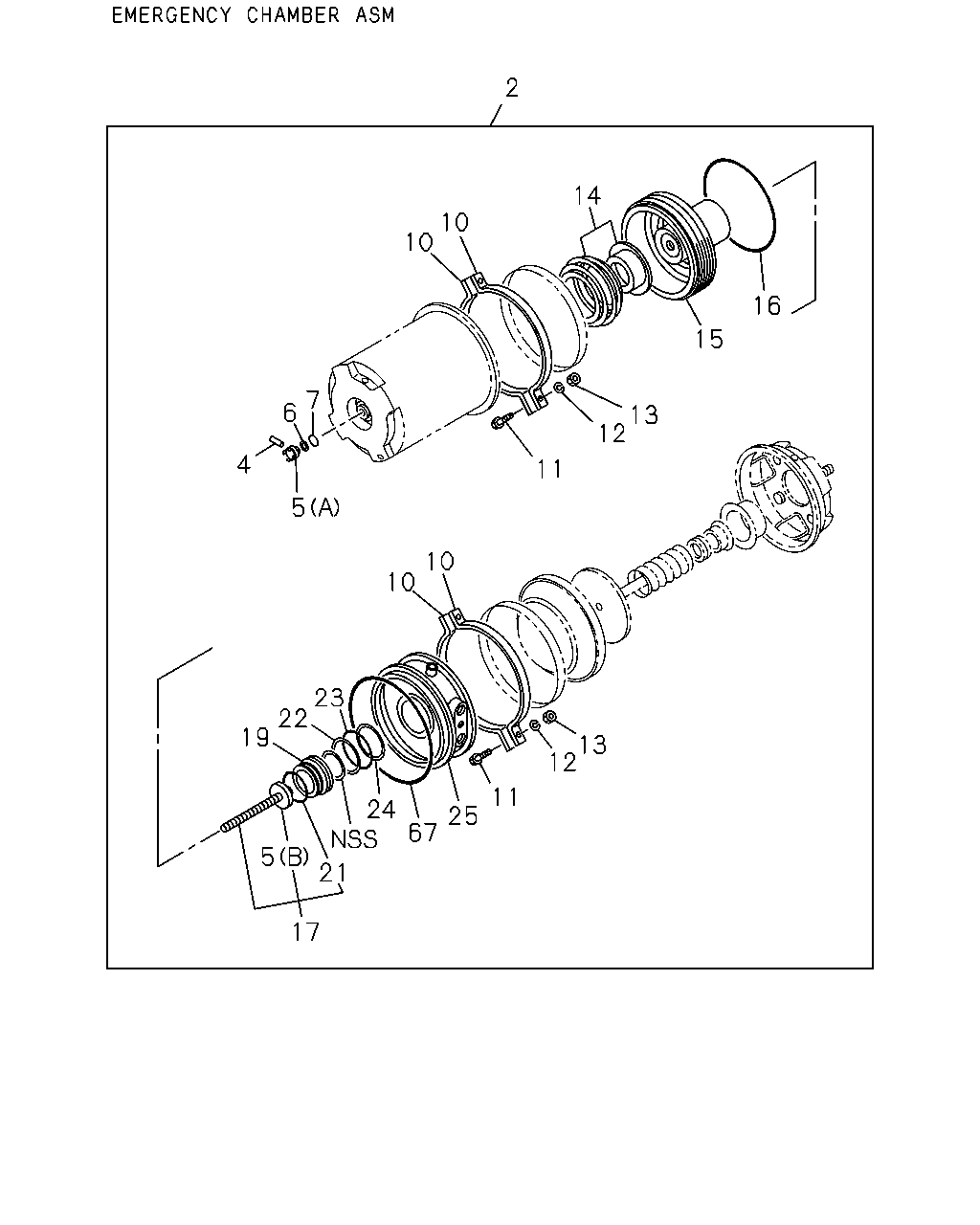

çizim 26917
2 14 10 10 16 15 7 6 13 12 4 11 5 10 10 23 22 19 13 12 11 24 25 67 21 17
BalonParca AdiParca NoAdetTipApplied Date
2 CHAMBER; EMERGENCY
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48252-014-0 01 1 9806-0102
2 CHAMBER; EMERGENCY
FINAL GEAR 39/7 15.5" HYP(W3K) EXC. RR AXLE R105A<BBJ> 		1-48252-014-0 01 1 0103-0104
2 CHAMBER; EMERGENCY
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48252-014-0 01 1 0105-
2 CHAMBER; EMERGENCY
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48252-015-0 01 1 9806-
4 PIN; STRAIGHT,SPR CHAMBER
FINAL GEAR 41/7 15.5" HYP(W3S) RR AXLE R105A<BBJ> EXC. P60 PROP SHF<C2M> 		1-48259-056-0 04 1 0103-0104
4 PIN; STRAIGHT,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-056-0 04 1 9806-0102
4 PIN; STRAIGHT,SPR CHAMBER
FINAL GEAR 39/7 15.5" HYP(W3K) EXC. RR AXLE R105A<BBJ> 		1-48259-056-0 04 1 0103-0104
4 PIN; STRAIGHT,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-056-0 04 1 0105-
5 NUT; SHELL
FINAL GEAR 41/7 15.5" HYP(W3S) RR AXLE R105A<BBJ> EXC. P60 PROP SHF<C2M> (A) 		1-48259-054-0 02 1 0103-0104
5 NUT; SHELL
FINAL GEAR 41/7 15.5" HYP(W3S) RR AXLE R105A<BBJ> EXC. P60 PROP SHF<C2M> (B) 		1-48259-074-0 02 1 0103-0104
5 NUT; SHELL
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		1-48259-054-0 02 1 9806-0102
5 NUT; SHELL
FINAL GEAR 39/7 15.5" HYP(W3K) EXC. RR AXLE R105A<BBJ> (A) 		1-48259-054-0 02 1 0103-0104
5 NUT; SHELL
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		1-48259-054-0 02 1 0105-
5 NUT; SHELL
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) 		1-48259-074-0 02 1 9806-0102
5 NUT; SHELL
FINAL GEAR 39/7 15.5" HYP(W3K) EXC. RR AXLE R105A<BBJ> (B) 		1-48259-074-0 02 1 0103-0104
5 NUT; SHELL
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) 		1-48259-074-0 02 1 0105-
6 GASKET; SHELL
FINAL GEAR 41/7 15.5" HYP(W3S) RR AXLE R105A<BBJ> EXC. P60 PROP SHF<C2M> 		9-09920-268-0 02 1 0103-0104
6 GASKET; SHELL
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		9-09920-268-0 02 1 9806-0102
6 GASKET; SHELL
FINAL GEAR 39/7 15.5" HYP(W3K) EXC. RR AXLE R105A<BBJ> 		9-09920-268-0 02 1 0103-0104
6 GASKET; SHELL
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		9-09920-268-0 02 1 0105-
7 GASKET
FINAL GEAR 41/7 15.5" HYP(W3S) RR AXLE R105A<BBJ> EXC. P60 PROP SHF<C2M> 		1-48259-055-0 02 1 0103-0104
7 GASKET
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-055-0 02 1 9806-0102
7 GASKET
FINAL GEAR 39/7 15.5" HYP(W3K) EXC. RR AXLE R105A<BBJ> 		1-48259-055-0 02 1 0103-0104
7 GASKET
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-055-0 02 1 0105-
10 RING; CLAMP,SPR CHAMBER
FINAL GEAR 41/7 15.5" HYP(W3S) RR AXLE R105A<BBJ> EXC. P60 PROP SHF<C2M> 		1-48259-016-0 08 1 0103-0104
10 RING; CLAMP,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-016-0 08 1 9806-0102
10 RING; CLAMP,SPR CHAMBER
FINAL GEAR 39/7 15.5" HYP(W3K) EXC. RR AXLE R105A<BBJ> 		1-48259-016-0 08 1 0103-0104
10 RING; CLAMP,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-016-0 08 1 0105-
11 BOLT; CLAMP RING
FINAL GEAR 41/7 15.5" HYP(W3S) RR AXLE R105A<BBJ> EXC. P60 PROP SHF<C2M> 		1-48259-092-0 08 1 0103-0104
11 BOLT; CLAMP RING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-092-0 08 1 9806-0102
11 BOLT; CLAMP RING
FINAL GEAR 39/7 15.5" HYP(W3K) EXC. RR AXLE R105A<BBJ> 		1-48259-092-0 08 1 0103-0104
11 BOLT; CLAMP RING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-092-0 08 1 0105-
12 WASHER; LK,CLAMP RING
FINAL GEAR 41/7 15.5" HYP(W3S) RR AXLE R105A<BBJ> EXC. P60 PROP SHF<C2M> ID=10.2 		9-09150-510-0 08 1 0103-0104
12 WASHER; LK,CLAMP RING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=10.2 		9-09150-510-0 08 1 9806-0102
12 WASHER; LK,CLAMP RING
FINAL GEAR 39/7 15.5" HYP(W3K) EXC. RR AXLE R105A<BBJ> ID=10.2 		9-09150-510-0 08 1 0103-0104
12 WASHER; LK,CLAMP RING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=10.2 		9-09150-510-0 08 1 0105-
13 NUT; CLAMP RING
FINAL GEAR 41/7 15.5" HYP(W3S) RR AXLE R105A<BBJ> EXC. P60 PROP SHF<C2M> 		9-83315-080-0 08 1 0103-0104
13 NUT; CLAMP RING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		9-83315-080-0 08 1 9806-0102
13 NUT; CLAMP RING
FINAL GEAR 39/7 15.5" HYP(W3K) EXC. RR AXLE R105A<BBJ> 		9-83315-080-0 08 1 0103-0104
13 NUT; CLAMP RING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		9-83315-080-0 08 1 0105-
14 SPRING & SEAT SET
FINAL GEAR 41/7 15.5" HYP(W3S) RR AXLE R105A<BBJ> EXC. P60 PROP SHF<C2M> 		1-48259-037-0 02 1 0103-0104
14 SPRING & SEAT SET
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-037-0 02 1 9806-0102
14 SPRING & SEAT SET
FINAL GEAR 39/7 15.5" HYP(W3K) EXC. RR AXLE R105A<BBJ> 		1-48259-037-0 02 1 0103-0104
14 SPRING & SEAT SET
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-037-1 02 1 0105-
15 PISTON
FINAL GEAR 41/7 15.5" HYP(W3S) RR AXLE R105A<BBJ> EXC. P60 PROP SHF<C2M> 		1-48262-005-0 02 1 0103-0104
15 PISTON
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48262-005-0 02 1 9806-0102
15 PISTON
FINAL GEAR 39/7 15.5" HYP(W3K) EXC. RR AXLE R105A<BBJ> 		1-48262-005-0 02 1 0103-0104
15 PISTON
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48262-005-0 02 1 0105-
16 GASKET
FINAL GEAR 41/7 15.5" HYP(W3S) RR AXLE R105A<BBJ> EXC. P60 PROP SHF<C2M> 		1-48259-048-0 02 1 0103-0104
16 GASKET
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-048-0 02 1 9806-0102
16 GASKET
FINAL GEAR 39/7 15.5" HYP(W3K) EXC. RR AXLE R105A<BBJ> 		1-48259-048-0 02 1 0103-0104
16 GASKET
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-048-0 02 1 0105-
17 BOLT ASM; EMERGENCY
FINAL GEAR 41/7 15.5" HYP(W3S) RR AXLE R105A<BBJ> EXC. P60 PROP SHF<C2M> 		1-48259-073-0 02 1 0103-0104
17 BOLT ASM; EMERGENCY
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-073-0 02 1 9806-0102
17 BOLT ASM; EMERGENCY
FINAL GEAR 39/7 15.5" HYP(W3K) EXC. RR AXLE R105A<BBJ> 		1-48259-073-0 02 1 0103-0104
17 BOLT ASM; EMERGENCY
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-073-0 02 1 0105-
19 COVER; PISTON
FINAL GEAR 41/7 15.5" HYP(W3S) RR AXLE R105A<BBJ> EXC. P60 PROP SHF<C2M> 		1-48269-011-0 02 1 0103-0104
19 COVER; PISTON
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48269-011-0 02 1 9806-0102
19 COVER; PISTON
FINAL GEAR 39/7 15.5" HYP(W3K) EXC. RR AXLE R105A<BBJ> 		1-48269-011-0 02 1 0103-0104
19 COVER; PISTON
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48269-011-0 02 1 0105-
21 GASKET; SPR CHAMBER
FINAL GEAR 41/7 15.5" HYP(W3S) RR AXLE R105A<BBJ> EXC. P60 PROP SHF<C2M> 		1-48259-049-0 02 1 0103-0104
21 GASKET; SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-049-0 02 1 9806-0102
21 GASKET; SPR CHAMBER
FINAL GEAR 39/7 15.5" HYP(W3K) EXC. RR AXLE R105A<BBJ> 		1-48259-049-0 02 1 0103-0104
21 GASKET; SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-049-0 02 1 0105-
22 RING; BACKUP,SPR CHAMBER
FINAL GEAR 41/7 15.5" HYP(W3S) RR AXLE R105A<BBJ> EXC. P60 PROP SHF<C2M> 		1-48259-019-0 02 1 0103-0104
22 RING; BACKUP,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-019-0 02 1 9806-0102
22 RING; BACKUP,SPR CHAMBER
FINAL GEAR 39/7 15.5" HYP(W3K) EXC. RR AXLE R105A<BBJ> 		1-48259-019-0 02 1 0103-0104
22 RING; BACKUP,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-019-0 02 1 0105-
23 GASKET; SPR CHAMBER
FINAL GEAR 41/7 15.5" HYP(W3S) RR AXLE R105A<BBJ> EXC. P60 PROP SHF<C2M> 		1-48259-047-0 02 1 0103-0104
23 GASKET; SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-047-0 02 1 9806-0102
23 GASKET; SPR CHAMBER
FINAL GEAR 39/7 15.5" HYP(W3K) EXC. RR AXLE R105A<BBJ> 		1-48259-047-0 02 1 0103-0104
23 GASKET; SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-047-0 02 1 0105-
24 BEARING; SPR CHAMBER
FINAL GEAR 41/7 15.5" HYP(W3S) RR AXLE R105A<BBJ> EXC. P60 PROP SHF<C2M> 		1-48259-020-0 02 1 0103-0104
24 BEARING; SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-020-0 02 1 9806-0102
24 BEARING; SPR CHAMBER
FINAL GEAR 39/7 15.5" HYP(W3K) EXC. RR AXLE R105A<BBJ> 		1-48259-020-0 02 1 0103-0104
24 BEARING; SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-020-0 02 1 0105-
25 PLATE; PRESSURE,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-077-0 01 1 9806-0102
25 PLATE; PRESSURE,SPR CHAMBER
FINAL GEAR 39/7 15.5" HYP(W3K) EXC. RR AXLE R105A<BBJ> 		1-48259-077-0 01 1 0103-0104
25 PLATE; PRESSURE,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-077-0 01 1 0105-
25 PLATE; PRESSURE,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-078-0 01 1 9806-
67 GASKET; SPR CHAMBER
FINAL GEAR 41/7 15.5" HYP(W3S) RR AXLE R105A<BBJ> EXC. P60 PROP SHF<C2M> 		1-48259-053-0 02 1 0103-0104
67 GASKET; SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-053-0 02 1 9806-0102
67 GASKET; SPR CHAMBER
FINAL GEAR 39/7 15.5" HYP(W3K) EXC. RR AXLE R105A<BBJ> 		1-48259-053-0 02 1 0103-0104
67 GASKET; SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-053-0 02 1 0105-

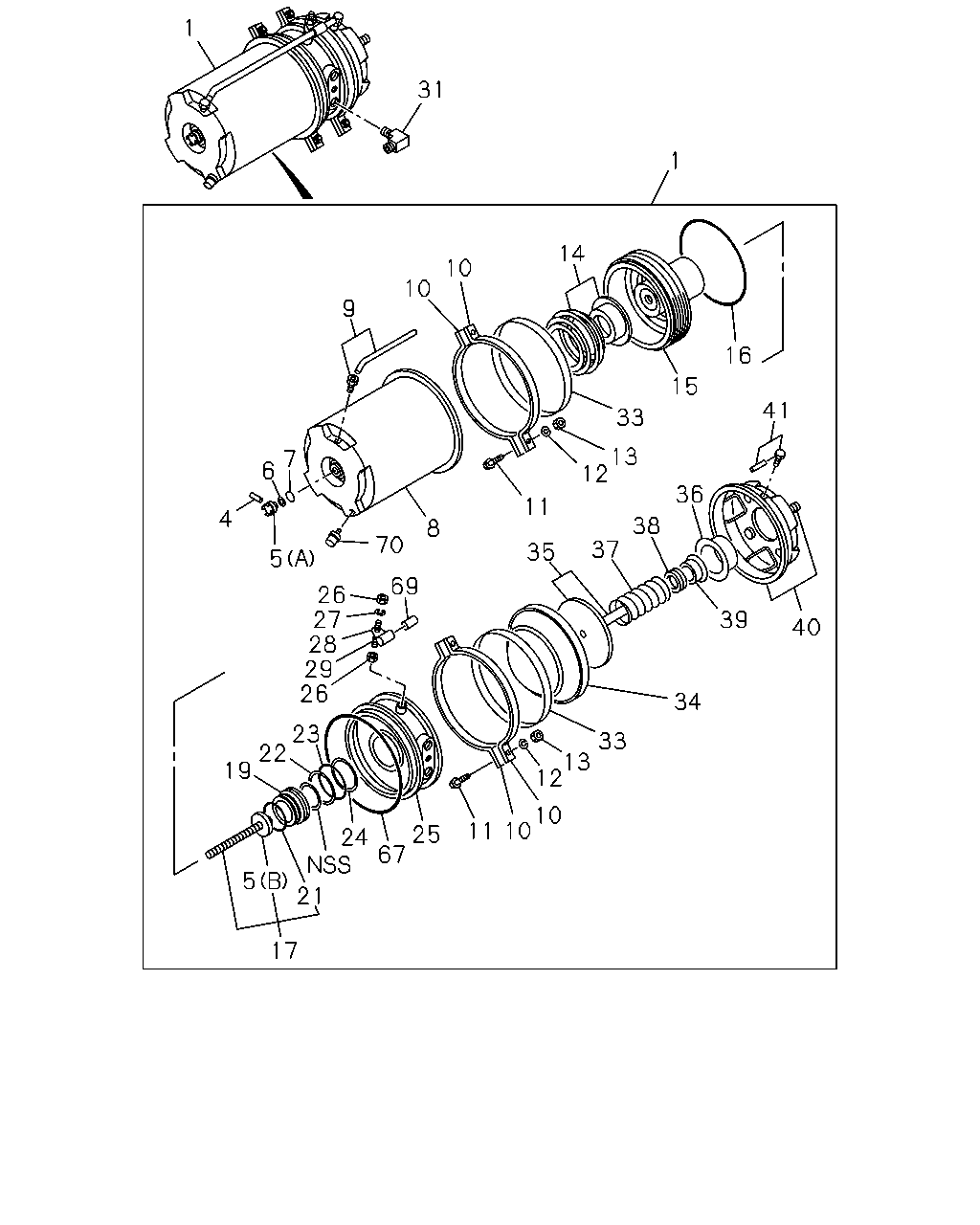

çizim 99129
1 31 1 14 10 10 9 16 15 41 33 13 12 7 6 36 11 4 38 8 70 37 35 5 69 26 27 28 29 26 39 40 34 23 22 19 33 13 12 10 10 11 24 25 67 5 21 17
BalonParca AdiParca NoAdetTipApplied Date
1 CHAMBER ASM; SPRING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48250-641-1 01 1 9806-
1 CHAMBER ASM; SPRING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48250-640-0 01 1 9806-0102
1 CHAMBER ASM; SPRING
FINAL GEAR 39/7 15.5" HYP(W3K) EXC. RR AXLE R105A<BBJ> 		1-48250-640-0 01 1 0103-0104
1 CHAMBER ASM; SPRING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48250-640-1 01 1 0105-
4 PIN; STRAIGHT,SPR CHAMBER
FINAL GEAR 41/7 15.5" HYP(W3S) RR AXLE R105A<BBJ> EXC. P60 PROP SHF<C2M> 		1-48259-056-0 04 1 0103-0104
4 PIN; STRAIGHT,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-056-0 04 1 9806-0102
4 PIN; STRAIGHT,SPR CHAMBER
FINAL GEAR 39/7 15.5" HYP(W3K) EXC. RR AXLE R105A<BBJ> 		1-48259-056-0 04 1 0103-0104
4 PIN; STRAIGHT,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-056-0 04 1 0105-
5 NUT; SHELL
FINAL GEAR 41/7 15.5" HYP(W3S) RR AXLE R105A<BBJ> EXC. P60 PROP SHF<C2M> (A) 		1-48259-054-0 02 1 0103-0104
5 NUT; SHELL
FINAL GEAR 41/7 15.5" HYP(W3S) RR AXLE R105A<BBJ> EXC. P60 PROP SHF<C2M> (B) 		1-48259-074-0 02 1 0103-0104
5 NUT; SHELL
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		1-48259-054-0 02 1 9806-0102
5 NUT; SHELL
FINAL GEAR 39/7 15.5" HYP(W3K) EXC. RR AXLE R105A<BBJ> (A) 		1-48259-054-0 02 1 0103-0104
5 NUT; SHELL
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		1-48259-054-0 02 1 0105-
5 NUT; SHELL
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) 		1-48259-074-0 02 1 9806-0102
5 NUT; SHELL
FINAL GEAR 39/7 15.5" HYP(W3K) EXC. RR AXLE R105A<BBJ> (B) 		1-48259-074-0 02 1 0103-0104
5 NUT; SHELL
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) 		1-48259-074-0 02 1 0105-
6 GASKET; SHELL
FINAL GEAR 41/7 15.5" HYP(W3S) RR AXLE R105A<BBJ> EXC. P60 PROP SHF<C2M> 		9-09920-268-0 02 1 0103-0104
6 GASKET; SHELL
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		9-09920-268-0 02 1 9806-0102
6 GASKET; SHELL
FINAL GEAR 39/7 15.5" HYP(W3K) EXC. RR AXLE R105A<BBJ> 		9-09920-268-0 02 1 0103-0104
6 GASKET; SHELL
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		9-09920-268-0 02 1 0105-
7 GASKET
FINAL GEAR 41/7 15.5" HYP(W3S) RR AXLE R105A<BBJ> EXC. P60 PROP SHF<C2M> 		1-48259-055-0 02 1 0103-0104
7 GASKET
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-055-0 02 1 9806-0102
7 GASKET
FINAL GEAR 39/7 15.5" HYP(W3K) EXC. RR AXLE R105A<BBJ> 		1-48259-055-0 02 1 0103-0104
7 GASKET
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-055-0 02 1 0105-
8 SHELL; CYL,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-069-0 01 1 9806-0102
8 SHELL; CYL,SPR CHAMBER
FINAL GEAR 39/7 15.5" HYP(W3K) EXC. RR AXLE R105A<BBJ> 		1-48259-069-0 01 1 0103-0104
8 SHELL; CYL,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-069-0 01 1 0105-
8 SHELL; CYL,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-070-0 01 1 9806-
9 PIPE ASM; SHELL
FINAL GEAR 41/7 15.5" HYP(W3S) RR AXLE R105A<BBJ> EXC. P60 PROP SHF<C2M> 		1-48259-076-0 02 1 0103-0104
9 PIPE ASM; SHELL
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-076-0 02 1 9806-0102
9 PIPE ASM; SHELL
FINAL GEAR 39/7 15.5" HYP(W3K) EXC. RR AXLE R105A<BBJ> 		1-48259-076-0 02 1 0103-0104
9 PIPE ASM; SHELL
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-076-0 02 1 0105-
10 RING; CLAMP,SPR CHAMBER
FINAL GEAR 41/7 15.5" HYP(W3S) RR AXLE R105A<BBJ> EXC. P60 PROP SHF<C2M> 		1-48259-016-0 08 1 0103-0104
10 RING; CLAMP,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-016-0 08 1 9806-0102
10 RING; CLAMP,SPR CHAMBER
FINAL GEAR 39/7 15.5" HYP(W3K) EXC. RR AXLE R105A<BBJ> 		1-48259-016-0 08 1 0103-0104
10 RING; CLAMP,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-016-0 08 1 0105-
11 BOLT; CLAMP RING
FINAL GEAR 41/7 15.5" HYP(W3S) RR AXLE R105A<BBJ> EXC. P60 PROP SHF<C2M> 		1-48259-092-0 08 1 0103-0104
11 BOLT; CLAMP RING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-092-0 08 1 9806-0102
11 BOLT; CLAMP RING
FINAL GEAR 39/7 15.5" HYP(W3K) EXC. RR AXLE R105A<BBJ> 		1-48259-092-0 08 1 0103-0104
11 BOLT; CLAMP RING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-092-0 08 1 0105-
12 WASHER; LK,CLAMP RING
FINAL GEAR 41/7 15.5" HYP(W3S) RR AXLE R105A<BBJ> EXC. P60 PROP SHF<C2M> ID=10.2 		9-09150-510-0 08 1 0103-0104
12 WASHER; LK,CLAMP RING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=10.2 		9-09150-510-0 08 1 9806-0102
12 WASHER; LK,CLAMP RING
FINAL GEAR 39/7 15.5" HYP(W3K) EXC. RR AXLE R105A<BBJ> ID=10.2 		9-09150-510-0 08 1 0103-0104
12 WASHER; LK,CLAMP RING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=10.2 		9-09150-510-0 08 1 0105-
13 NUT; CLAMP RING
FINAL GEAR 41/7 15.5" HYP(W3S) RR AXLE R105A<BBJ> EXC. P60 PROP SHF<C2M> 		9-83315-080-0 08 1 0103-0104
13 NUT; CLAMP RING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		9-83315-080-0 08 1 9806-0102
13 NUT; CLAMP RING
FINAL GEAR 39/7 15.5" HYP(W3K) EXC. RR AXLE R105A<BBJ> 		9-83315-080-0 08 1 0103-0104
13 NUT; CLAMP RING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		9-83315-080-0 08 1 0105-
14 SPRING & SEAT SET
FINAL GEAR 41/7 15.5" HYP(W3S) RR AXLE R105A<BBJ> EXC. P60 PROP SHF<C2M> 		1-48259-037-0 02 1 0103-0104
14 SPRING & SEAT SET
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-037-0 02 1 9806-0102
14 SPRING & SEAT SET
FINAL GEAR 39/7 15.5" HYP(W3K) EXC. RR AXLE R105A<BBJ> 		1-48259-037-0 02 1 0103-0104
14 SPRING & SEAT SET
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-037-1 02 1 0105-
15 PISTON
FINAL GEAR 41/7 15.5" HYP(W3S) RR AXLE R105A<BBJ> EXC. P60 PROP SHF<C2M> 		1-48262-005-0 02 1 0103-0104
15 PISTON
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48262-005-0 02 1 9806-0102
15 PISTON
FINAL GEAR 39/7 15.5" HYP(W3K) EXC. RR AXLE R105A<BBJ> 		1-48262-005-0 02 1 0103-0104
15 PISTON
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48262-005-0 02 1 0105-
16 GASKET
FINAL GEAR 41/7 15.5" HYP(W3S) RR AXLE R105A<BBJ> EXC. P60 PROP SHF<C2M> 		1-48259-048-0 02 1 0103-0104
16 GASKET
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-048-0 02 1 9806-0102
16 GASKET
FINAL GEAR 39/7 15.5" HYP(W3K) EXC. RR AXLE R105A<BBJ> 		1-48259-048-0 02 1 0103-0104
16 GASKET
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-048-0 02 1 0105-
17 BOLT ASM; EMERGENCY
FINAL GEAR 41/7 15.5" HYP(W3S) RR AXLE R105A<BBJ> EXC. P60 PROP SHF<C2M> 		1-48259-073-0 02 1 0103-0104
17 BOLT ASM; EMERGENCY
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-073-0 02 1 9806-0102
17 BOLT ASM; EMERGENCY
FINAL GEAR 39/7 15.5" HYP(W3K) EXC. RR AXLE R105A<BBJ> 		1-48259-073-0 02 1 0103-0104
17 BOLT ASM; EMERGENCY
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-073-0 02 1 0105-
19 COVER; PISTON
FINAL GEAR 41/7 15.5" HYP(W3S) RR AXLE R105A<BBJ> EXC. P60 PROP SHF<C2M> 		1-48269-011-0 02 1 0103-0104
19 COVER; PISTON
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48269-011-0 02 1 9806-0102
19 COVER; PISTON
FINAL GEAR 39/7 15.5" HYP(W3K) EXC. RR AXLE R105A<BBJ> 		1-48269-011-0 02 1 0103-0104
19 COVER; PISTON
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48269-011-0 02 1 0105-
21 GASKET; SPR CHAMBER
FINAL GEAR 41/7 15.5" HYP(W3S) RR AXLE R105A<BBJ> EXC. P60 PROP SHF<C2M> 		1-48259-049-0 02 1 0103-0104
21 GASKET; SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-049-0 02 1 9806-0102
21 GASKET; SPR CHAMBER
FINAL GEAR 39/7 15.5" HYP(W3K) EXC. RR AXLE R105A<BBJ> 		1-48259-049-0 02 1 0103-0104
21 GASKET; SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-049-0 02 1 0105-
22 RING; BACKUP,SPR CHAMBER
FINAL GEAR 41/7 15.5" HYP(W3S) RR AXLE R105A<BBJ> EXC. P60 PROP SHF<C2M> 		1-48259-019-0 02 1 0103-0104
22 RING; BACKUP,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-019-0 02 1 9806-0102
22 RING; BACKUP,SPR CHAMBER
FINAL GEAR 39/7 15.5" HYP(W3K) EXC. RR AXLE R105A<BBJ> 		1-48259-019-0 02 1 0103-0104
22 RING; BACKUP,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-019-0 02 1 0105-
23 GASKET; SPR CHAMBER
FINAL GEAR 41/7 15.5" HYP(W3S) RR AXLE R105A<BBJ> EXC. P60 PROP SHF<C2M> 		1-48259-047-0 02 1 0103-0104
23 GASKET; SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-047-0 02 1 9806-0102
23 GASKET; SPR CHAMBER
FINAL GEAR 39/7 15.5" HYP(W3K) EXC. RR AXLE R105A<BBJ> 		1-48259-047-0 02 1 0103-0104
23 GASKET; SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-047-0 02 1 0105-
24 BEARING; SPR CHAMBER
FINAL GEAR 41/7 15.5" HYP(W3S) RR AXLE R105A<BBJ> EXC. P60 PROP SHF<C2M> 		1-48259-020-0 02 1 0103-0104
24 BEARING; SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-020-0 02 1 9806-0102
24 BEARING; SPR CHAMBER
FINAL GEAR 39/7 15.5" HYP(W3K) EXC. RR AXLE R105A<BBJ> 		1-48259-020-0 02 1 0103-0104
24 BEARING; SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-020-0 02 1 0105-
25 PLATE; PRESSURE,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-077-0 01 1 9806-0102
25 PLATE; PRESSURE,SPR CHAMBER
FINAL GEAR 39/7 15.5" HYP(W3K) EXC. RR AXLE R105A<BBJ> 		1-48259-077-0 01 1 0103-0104
25 PLATE; PRESSURE,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-077-0 01 1 0105-
25 PLATE; PRESSURE,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-078-0 01 1 9806-
26 NUT; PRESSURE PLATE
FINAL GEAR 41/7 15.5" HYP(W3S) RR AXLE R105A<BBJ> EXC. P60 PROP SHF<C2M> 		1-48259-058-0 04 1 0103-0104
26 NUT; PRESSURE PLATE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-058-0 04 1 9806-0102
26 NUT; PRESSURE PLATE
FINAL GEAR 39/7 15.5" HYP(W3K) EXC. RR AXLE R105A<BBJ> 		1-48259-058-0 04 1 0103-0104
26 NUT; PRESSURE PLATE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-058-0 04 1 0105-
27 WASHER; PRESSURE PLATE
FINAL GEAR 41/7 15.5" HYP(W3S) RR AXLE R105A<BBJ> EXC. P60 PROP SHF<C2M> ID=8.2 		9-09150-508-0 02 1 0103-0104
27 WASHER; PRESSURE PLATE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=8.2 		9-09150-508-0 02 1 9806-0102
27 WASHER; PRESSURE PLATE
FINAL GEAR 39/7 15.5" HYP(W3K) EXC. RR AXLE R105A<BBJ> ID=8.2 		9-09150-508-0 02 1 0103-0104
27 WASHER; PRESSURE PLATE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=8.2 		9-09150-508-0 02 1 0105-
28 BRACKET; PRESSURE PLATE,HOSE
FINAL GEAR 41/7 15.5" HYP(W3S) RR AXLE R105A<BBJ> EXC. P60 PROP SHF<C2M> 		1-48259-059-0 02 1 0103-0104
28 BRACKET; PRESSURE PLATE,HOSE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-059-0 02 1 9806-0102
28 BRACKET; PRESSURE PLATE,HOSE
FINAL GEAR 39/7 15.5" HYP(W3K) EXC. RR AXLE R105A<BBJ> 		1-48259-059-0 02 1 0103-0104
28 BRACKET; PRESSURE PLATE,HOSE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-059-0 02 1 0105-
29 STUD; PRESSURE PLATE
FINAL GEAR 41/7 15.5" HYP(W3S) RR AXLE R105A<BBJ> EXC. P60 PROP SHF<C2M> 		1-48259-050-0 02 1 0103-0104
29 STUD; PRESSURE PLATE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-050-0 02 1 9806-0102
29 STUD; PRESSURE PLATE
FINAL GEAR 39/7 15.5" HYP(W3K) EXC. RR AXLE R105A<BBJ> 		1-48259-050-0 02 1 0103-0104
29 STUD; PRESSURE PLATE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-050-0 02 1 0105-
31 CONNECTOR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) M20 & PT1/4 		9-09902-386-0 01 1 0207-0411
31 CONNECTOR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) M20 & PT3/8 ELBOW 		1-09660-686-0 01 1 9806-0411
33 RETAINER; DIAPH
FINAL GEAR 41/7 15.5" HYP(W3S) RR AXLE R105A<BBJ> EXC. P60 PROP SHF<C2M> 		1-48259-044-0 04 1 0103-0104
33 RETAINER; DIAPH
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-044-0 04 1 9806-0102
33 RETAINER; DIAPH
FINAL GEAR 39/7 15.5" HYP(W3K) EXC. RR AXLE R105A<BBJ> 		1-48259-044-0 04 1 0103-0104
33 RETAINER; DIAPH
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-044-0 04 1 0105-
34 DIAPHRAGM
FINAL GEAR 41/7 15.5" HYP(W3S) RR AXLE R105A<BBJ> EXC. P60 PROP SHF<C2M> 		1-48252-056-0 02 1 0103-0104
34 DIAPHRAGM
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48252-056-0 02 1 9806-0102
34 DIAPHRAGM
FINAL GEAR 39/7 15.5" HYP(W3K) EXC. RR AXLE R105A<BBJ> 		1-48252-056-0 02 1 0103-0104
34 DIAPHRAGM
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48252-056-0 02 1 0105-
35 PLATE; ROD END,SPR CHAMBER
FINAL GEAR 41/7 15.5" HYP(W3S) RR AXLE R105A<BBJ> EXC. P60 PROP SHF<C2M> 		1-48253-010-0 02 1 0103-0104
35 PLATE; ROD END,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48253-010-0 02 1 9806-0102
35 PLATE; ROD END,SPR CHAMBER
FINAL GEAR 39/7 15.5" HYP(W3K) EXC. RR AXLE R105A<BBJ> 		1-48253-010-0 02 1 0103-0104
35 PLATE; ROD END,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48253-010-0 02 1 0105-
36 RETAINER; SPR CHAMBER
FINAL GEAR 41/7 15.5" HYP(W3S) RR AXLE R105A<BBJ> EXC. P60 PROP SHF<C2M> 		1-48259-043-0 02 1 0103-0104
36 RETAINER; SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-043-0 02 1 9806-0102
36 RETAINER; SPR CHAMBER
FINAL GEAR 39/7 15.5" HYP(W3K) EXC. RR AXLE R105A<BBJ> 		1-48259-043-0 02 1 0103-0104
36 RETAINER; SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-043-0 02 1 0105-
37 SPRING; LWR,SPR CHAMBER
FINAL GEAR 41/7 15.5" HYP(W3S) RR AXLE R105A<BBJ> EXC. P60 PROP SHF<C2M> 		1-48255-016-0 02 1 0103-0104
37 SPRING; LWR,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48255-016-0 02 1 9806-0102
37 SPRING; LWR,SPR CHAMBER
FINAL GEAR 39/7 15.5" HYP(W3K) EXC. RR AXLE R105A<BBJ> 		1-48255-016-0 02 1 0103-0104
37 SPRING; LWR,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48255-016-0 02 1 0105-
38 COVER; ROD & PLATE
FINAL GEAR 41/7 15.5" HYP(W3S) RR AXLE R105A<BBJ> EXC. P60 PROP SHF<C2M> 		1-48259-066-0 02 1 0103-0104
38 COVER; ROD & PLATE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-066-0 02 1 9806-0102
38 COVER; ROD & PLATE
FINAL GEAR 39/7 15.5" HYP(W3K) EXC. RR AXLE R105A<BBJ> 		1-48259-066-0 02 1 0103-0104
38 COVER; ROD & PLATE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-066-0 02 1 0105-
39 COVER; ROD & PLATE
FINAL GEAR 41/7 15.5" HYP(W3S) RR AXLE R105A<BBJ> EXC. P60 PROP SHF<C2M> 		1-48259-065-0 01 1 0103-0104
39 COVER; ROD & PLATE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-065-0 02 1 9806-0102
39 COVER; ROD & PLATE
FINAL GEAR 39/7 15.5" HYP(W3K) EXC. RR AXLE R105A<BBJ> 		1-48259-065-0 02 1 0103-0104
39 COVER; ROD & PLATE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-065-0 02 1 0105-
40 COVER ASM; LWR,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) W/STUD 		1-48259-067-1 01 1 9806-0102
40 COVER ASM; LWR,SPR CHAMBER
FINAL GEAR 39/7 15.5" HYP(W3K) EXC. RR AXLE R105A<BBJ> W/STUD 		1-48259-067-1 01 1 0103-0104
40 COVER ASM; LWR,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) W/STUD 		1-48259-067-1 01 1 0105-
40 COVER ASM; LWR,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) W/STUD 		1-48259-068-1 01 1 9806-
41 PIPE ASM; LWR COVER
FINAL GEAR 41/7 15.5" HYP(W3S) RR AXLE R105A<BBJ> EXC. P60 PROP SHF<C2M> 		1-48259-075-0 02 1 0103-0104
41 PIPE ASM; LWR COVER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-075-0 02 1 9806-0102
41 PIPE ASM; LWR COVER
FINAL GEAR 39/7 15.5" HYP(W3K) EXC. RR AXLE R105A<BBJ> 		1-48259-075-0 02 1 0103-0104
41 PIPE ASM; LWR COVER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-075-0 02 1 0105-
67 GASKET; SPR CHAMBER
FINAL GEAR 41/7 15.5" HYP(W3S) RR AXLE R105A<BBJ> EXC. P60 PROP SHF<C2M> 		1-48259-053-0 02 1 0103-0104
67 GASKET; SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-053-0 02 1 9806-0102
67 GASKET; SPR CHAMBER
FINAL GEAR 39/7 15.5" HYP(W3K) EXC. RR AXLE R105A<BBJ> 		1-48259-053-0 02 1 0103-0104
67 GASKET; SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-053-0 02 1 0105-
69 HOSE; PRESSURE PLATE
FINAL GEAR 41/7 15.5" HYP(W3S) RR AXLE R105A<BBJ> EXC. P60 PROP SHF<C2M> 		1-48259-051-0 02 1 0103-0104
69 HOSE; PRESSURE PLATE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-051-0 02 1 9806-0102
69 HOSE; PRESSURE PLATE
FINAL GEAR 39/7 15.5" HYP(W3K) EXC. RR AXLE R105A<BBJ> 		1-48259-051-0 02 1 0103-0104
69 HOSE; PRESSURE PLATE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-051-0 02 1 0105-
70 COVER; EXH,SPR CHAMBER
FINAL GEAR 41/7 15.5" HYP(W3S) RR AXLE R105A<BBJ> EXC. P60 PROP SHF<C2M> 		1-48259-052-0 02 1 0103-0104
70 COVER; EXH,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-052-0 02 1 9806-0102
70 COVER; EXH,SPR CHAMBER
FINAL GEAR 39/7 15.5" HYP(W3K) EXC. RR AXLE R105A<BBJ> 		1-48259-052-0 02 1 0103-0104
70 COVER; EXH,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-052-0 02 1 0105-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
