Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#68564) — 595 parça

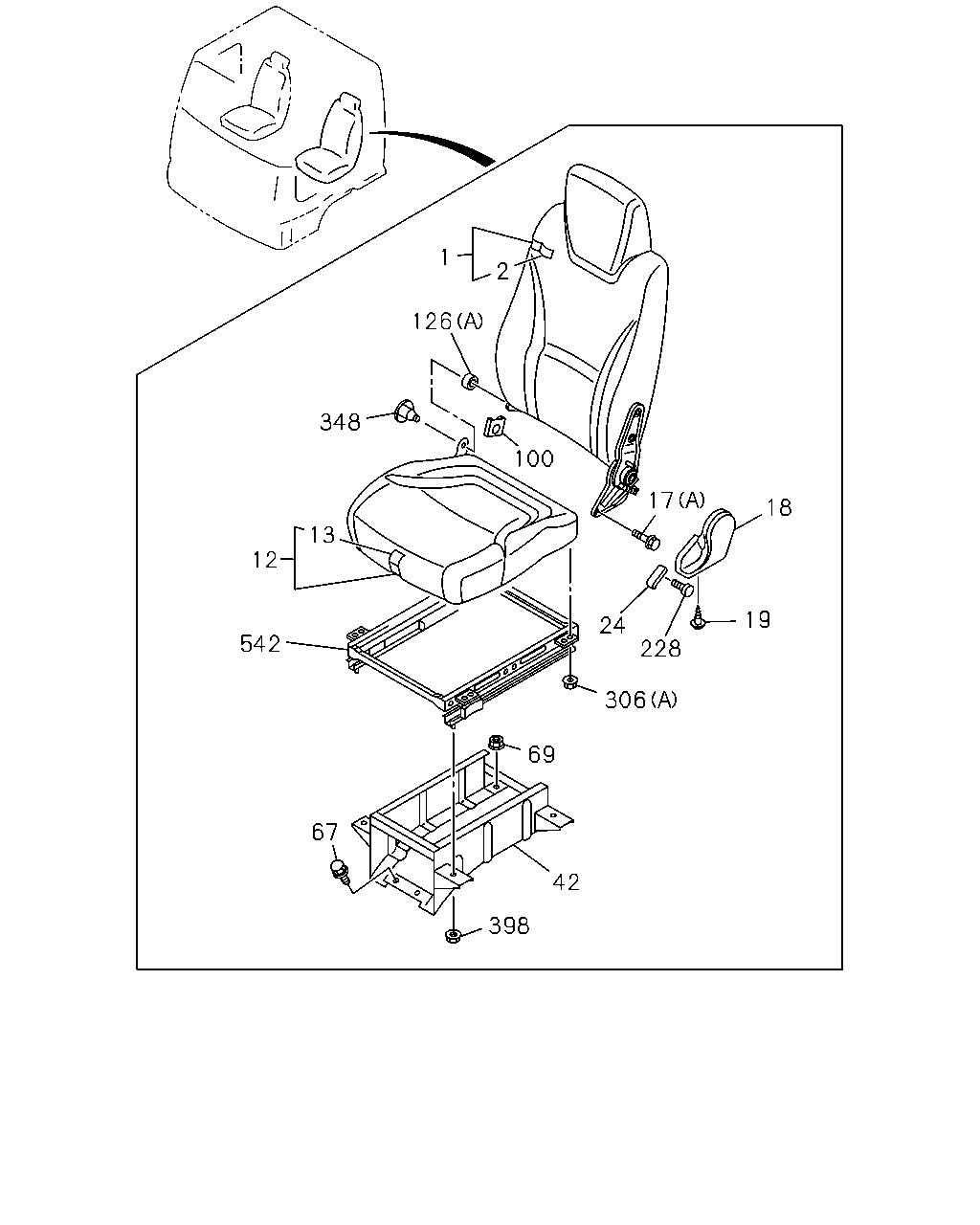

2 1 126 100 348 13 12 542 17 18 19 228 24 306 69 42 398 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY	8-97416-204-0	01	1	1001-1009
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY	8-97421-409-1	01	1	1010-1512
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL>	8-97466-621-0	01	1	1601-
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY	8-97414-116-2	01	1	0809-0902
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY	8-97416-203-0	01	1	0903-1009
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY	8-97421-408-1	01	1	1010-1506
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY	8-97421-408-1	01	1	1510-1512
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY	8-97466-623-0	01	1	1601-
1	BACK ASM; SEAT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY	8-97414-037-3	01	1	0809-1009
1	BACK ASM; SEAT VINYL SEAT<A83> DARK GRAY	8-97414-037-5	01	1	1010-1502
1	BACK ASM; SEAT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY	8-97414-037-5	01	1	1503-1509
1	BACK ASM; SEAT VINYL SEAT<A83> DARK GRAY	8-97414-037-5	01	1	1510-1512
1	BACK ASM; SEAT VINYL SEAT<A83>	8-97466-619-0	01	1	1601-
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY	8-97414-117-1	01	1	0809-0902
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY	8-97416-208-0	01	1	0903-1009
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY	8-97421-413-0	01	1	1010-1506
2	COVER; TRIM,FRT SEAT,BACK DARK GRAY	8-97421-413-0	01	1	1510-
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY	8-97414-038-1	01	1	0809-1009
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT<A83> DARK GRAY	8-97414-038-2	01	1	1010-1502
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY	8-97414-038-2	01	1	1503-1509
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT<A83> DARK GRAY	8-97414-038-2	01	1	1510-
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY	8-97416-209-0	01	1	1001-1009
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY	8-97421-414-0	01	1	1010-
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY	8-97414-114-0	01	1	0809-0902
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY	8-97416-213-1	01	1	0903-0912
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY	8-97416-213-1	01	1	1001-1009
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY	8-97421-399-1	01	1	1010-1506
12	CUSHION; SEAT,FRT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY	8-97421-399-2	01	1	1507-1509
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY	8-97421-399-2	01	1	1510-1512
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL>	8-97466-612-0	01	1	1601-
12	CUSHION; SEAT,FRT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY	8-97414-035-1	01	1	0809-1009
12	CUSHION; SEAT,FRT VINYL SEAT<A83> DARK GRAY	8-97414-035-2	01	1	1010-1502
12	CUSHION; SEAT,FRT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY	8-97414-035-2	01	1	1503-1509
12	CUSHION; SEAT,FRT VINYL SEAT<A83> DARK GRAY	8-97414-035-2	01	1	1510-1512
12	CUSHION; SEAT,FRT VINYL SEAT<A83>	8-97466-609-0	01	1	1601-
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY	8-97414-115-0	01	1	0809-0902
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY	8-97416-218-0	01	1	0903-0912
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY	8-97416-218-0	01	1	1001-1009
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY	8-97421-403-1	01	1	1010-1506
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY	8-97421-403-2	01	1	1507-1509
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY	8-97421-403-2	01	1	1510-
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY	8-97414-036-0	01	1	0809-1009
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT<A83> DARK GRAY	8-97414-036-1	01	1	1010-1502
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY	8-97414-036-1	01	1	1503-1509
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT<A83> DARK GRAY	8-97414-036-1	01	1	1510-
17	BOLT; RECLINING (A) M10X20	8-98062-661-0	04	1	0809-1203
17	BOLT; RECLINING (A) M10X20	8-98062-661-0	02	1	1204-1506
17	BOLT; RECLINING RIGID SEAT WO/ARM REST<TAZ> (A) M10X20	8-98062-661-0	02	1	1507-1509
17	BOLT; RECLINING (A) M10X20	8-98062-661-0	02	1	1510-
17	BOLT; RECLINING (B) M8X20	8-98092-334-0	04	1	0809-1203
17	BOLT; RECLINING (B) M8X20	8-98092-334-0	02	1	1204-
18	COVER; RECLINING GRAY	8-97409-361-0	01	1	0809-1506
18	COVER; RECLINING RIGID SEAT WO/ARM REST<TAZ> GRAY	8-97409-361-0	01	1	1507-1509
18	COVER; RECLINING GRAY	8-97409-361-0	01	1	1510-
19	SCREW; COVER M5	8-98062-663-0	01	1	0809-1506
19	SCREW; COVER RIGID SEAT WO/ARM REST<TAZ> M5	8-98062-663-0	01	1	1507-1509
19	SCREW; COVER M5	8-98062-663-0	01	1	1510-
24	KNOB; RECLINING,FRT,SEAT GRAY	8-97409-362-0	01	1	0809-1506
24	KNOB; RECLINING,FRT,SEAT RIGID SEAT WO/ARM REST<TAZ> GRAY	8-97409-362-0	01	1	1507-1509
24	KNOB; RECLINING,FRT,SEAT GRAY	8-97409-362-0	01	1	1510-
42	STAND; DRIVER SEAT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	1-75558-604-1	01	1	0809-0912
42	STAND; DRIVER SEAT RIGID SEAT WO/ARM REST<TAZ>	1-75558-604-2	01	1	1001-
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE	0-28451-020-0	02	1	0809-
69	NUT; FRT SEAT M10 FLANGE	0-91180-110-0	02	1	0809-
100	COVER; HINGE	8-98203-070-0	01	1	1110-1506
100	COVER; HINGE RIGID SEAT WO/ARM REST<TAZ>	8-98203-070-0	01	1	1507-1509
100	COVER; HINGE	8-98203-070-0	01	1	1510-1512
100	COVER; HINGE	8-98286-009-0	01	1	1601-
126	BUSHING; HINGE,RECLINING (A)	8-98063-218-0	01	1	0809-1506
126	BUSHING; HINGE,RECLINING RIGID SEAT WO/ARM REST<TAZ> (A)	8-98063-218-0	01	1	1507-1509
126	BUSHING; HINGE,RECLINING (A)	8-98063-218-0	01	1	1510-1512
126	BUSHING; HINGE,RECLINING (A)	8-98286-007-0	01	1	1601-
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> (B)	8-97854-900-0	01	1	0809-
228	SCREW; KNOB M4	8-98062-662-0	01	1	0809-1506
228	SCREW; KNOB RIGID SEAT WO/ARM REST<TAZ> M4	8-98062-662-0	01	1	1507-1509
228	SCREW; KNOB M4	8-98062-662-0	01	1	1510-
306	NUT; SEAT ADJ VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE	1-75538-207-0	08	1	0809-0905
306	NUT; SEAT ADJ VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE	1-75538-207-0	08	1	0912-0912
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE	1-75538-207-0	08	1	1001-
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE	1-75538-207-0	06	1	0809-1009
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE	1-75538-207-0	06	1	1010-1502
306	NUT; SEAT ADJ (A) M8 FLANGE	1-75538-207-0	06	1	1503-1506
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE	1-75538-207-0	06	1	1510-
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	0809-
348	BOLT; HINGE,SEAT	8-98286-008-0	01	1	1601-
398	NUT; STAND VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	1-75538-207-0	04	1	0809-0912
398	NUT; STAND RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	1-75538-207-0	04	1	1001-
542	ADJUSTER ASM; SEAT SLIDE VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	8-98092-333-0	01	1	0809-0912
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ>	8-98092-333-0	01	1	1001-1502
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ>	8-98291-654-0	01	1	1503-

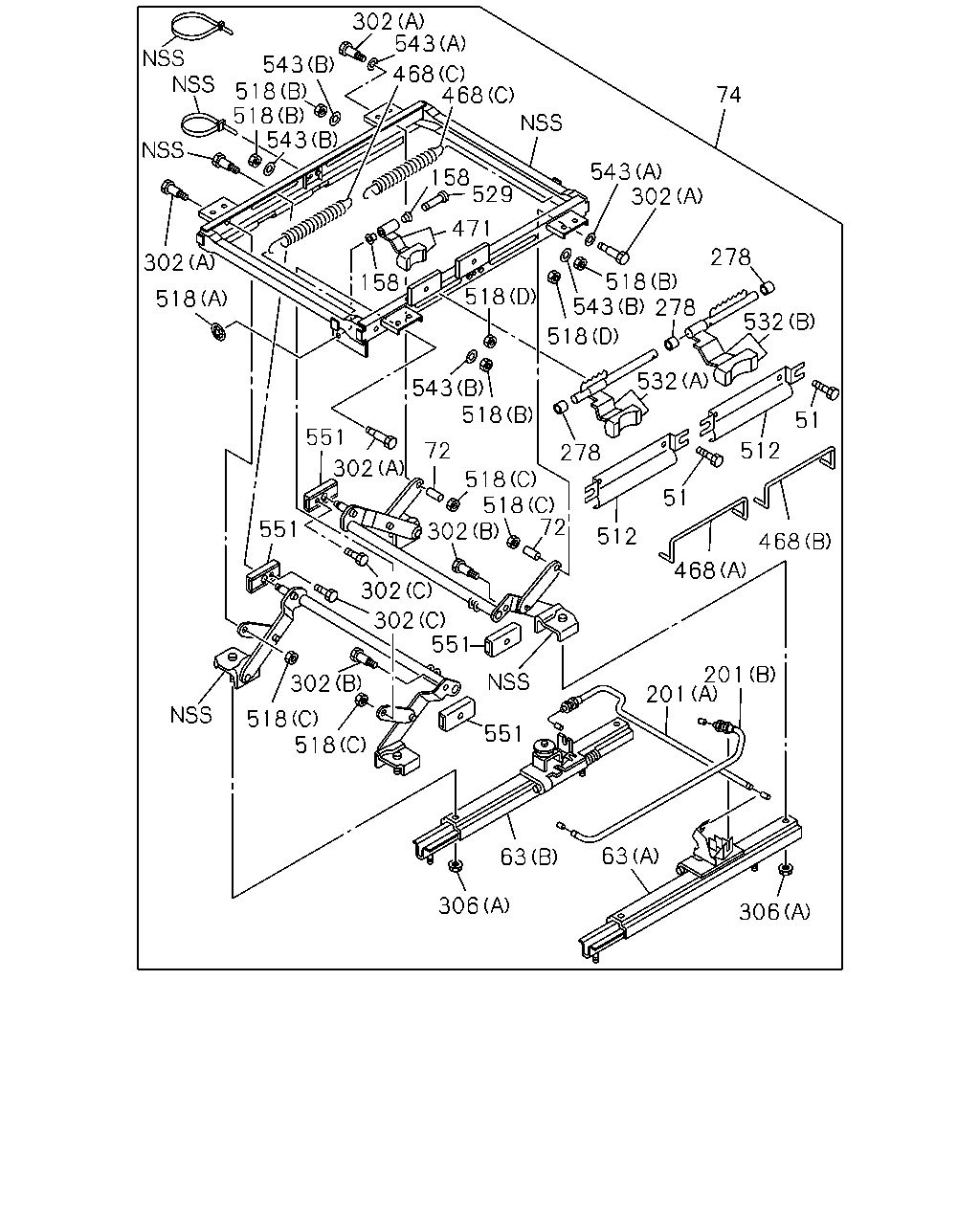

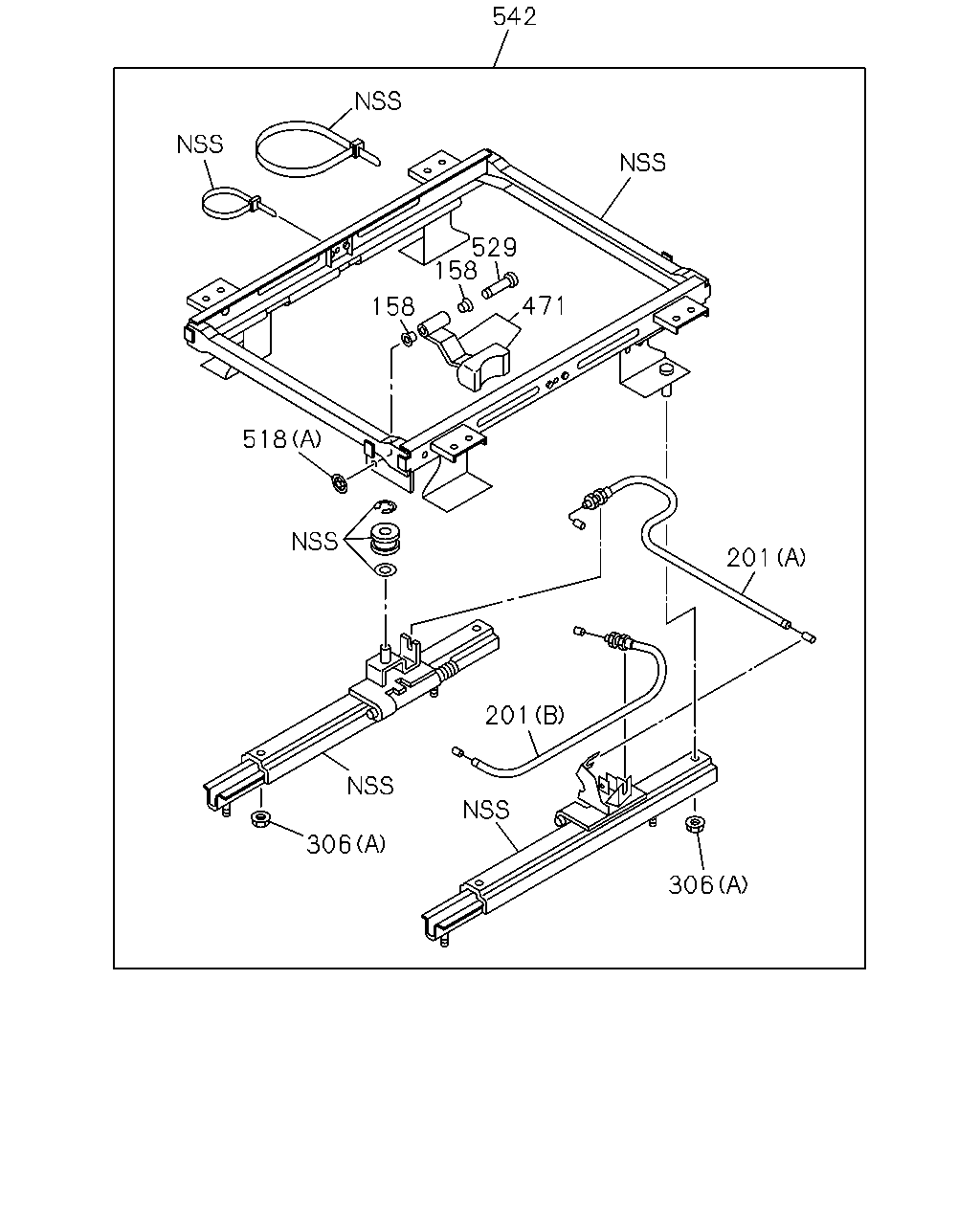

542 529 158 158 471 518 201 201 306 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
158	BUSHING; LINK ARM	1-75518-209-0	02	1	0809-1506
158	BUSHING; LINK ARM RIGID SEAT WO/ARM REST<TAZ>	1-75518-209-0	02	1	1507-1509
158	BUSHING; LINK ARM	1-75518-209-0	02	1	1510-
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	0809-1506
201	CABLE; ADJ RIGID SEAT WO/ARM REST<TAZ> (A) L=667	1-75518-288-0	01	1	1507-1509
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	1510-
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	0809-1506
201	CABLE; ADJ RIGID SEAT WO/ARM REST<TAZ> (B) L=605	1-75518-289-1	01	1	1507-1509
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	1510-
306	NUT; SEAT ADJ VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE	1-75538-207-0	08	1	0809-0905
306	NUT; SEAT ADJ VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE	1-75538-207-0	08	1	0912-0912
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE	1-75538-207-0	08	1	1001-
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE	1-75538-207-0	06	1	0809-1009
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE	1-75538-207-0	06	1	1010-1502
306	NUT; SEAT ADJ (A) M8 FLANGE	1-75538-207-0	06	1	1503-1506
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE	1-75538-207-0	06	1	1510-
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	0809-
471	LEVER; SEAT ADJ	8-98107-870-0	01	1	0809-1506
471	LEVER; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ>	8-98107-870-0	01	1	1507-1509
471	LEVER; SEAT ADJ	8-98107-870-0	01	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) M8	1-75518-264-0	04	1	0809-1009
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (C) M8	1-75518-264-0	04	1	1010-1502
518	NUT; TILT ADJ (C) M8	1-75518-264-0	04	1	1503-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (C) M8	1-75518-264-0	04	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (E) M8 FLANGE	1-75538-207-0	04	1	0809-1009
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE	1-75538-207-0	04	1	1010-1502
518	NUT; TILT ADJ (E) M8 FLANGE	1-75538-207-0	04	1	1503-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE	1-75538-207-0	04	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) M6 LOCK NUT	5-09984-020-0	02	1	0809-1009
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT	5-09984-020-0	02	1	1010-1502
518	NUT; TILT ADJ (D) M6 LOCK NUT	5-09984-020-0	02	1	1503-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT	5-09984-020-0	02	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8 FLANGE	8-94152-886-0	04	1	0809-1009
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE	8-94152-886-0	04	1	1010-1502
518	NUT; TILT ADJ (B) M8 FLANGE	8-94152-886-0	04	1	1503-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE	8-94152-886-0	04	1	1510-
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	0809-1506
518	NUT; TILT ADJ RIGID SEAT WO/ARM REST<TAZ> (A)	1-75518-263-0	01	1	1507-1509
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	1510-
529	PIN; LINK	1-75518-262-0	01	1	0809-1506
529	PIN; LINK RIGID SEAT WO/ARM REST<TAZ>	1-75518-262-0	01	1	1507-1509
529	PIN; LINK	1-75518-262-0	01	1	1510-
542	ADJUSTER ASM; SEAT SLIDE VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	8-98092-333-0	01	1	0809-0912
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ>	8-98092-333-0	01	1	1001-1502
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ>	8-98291-654-0	01	1	1503-

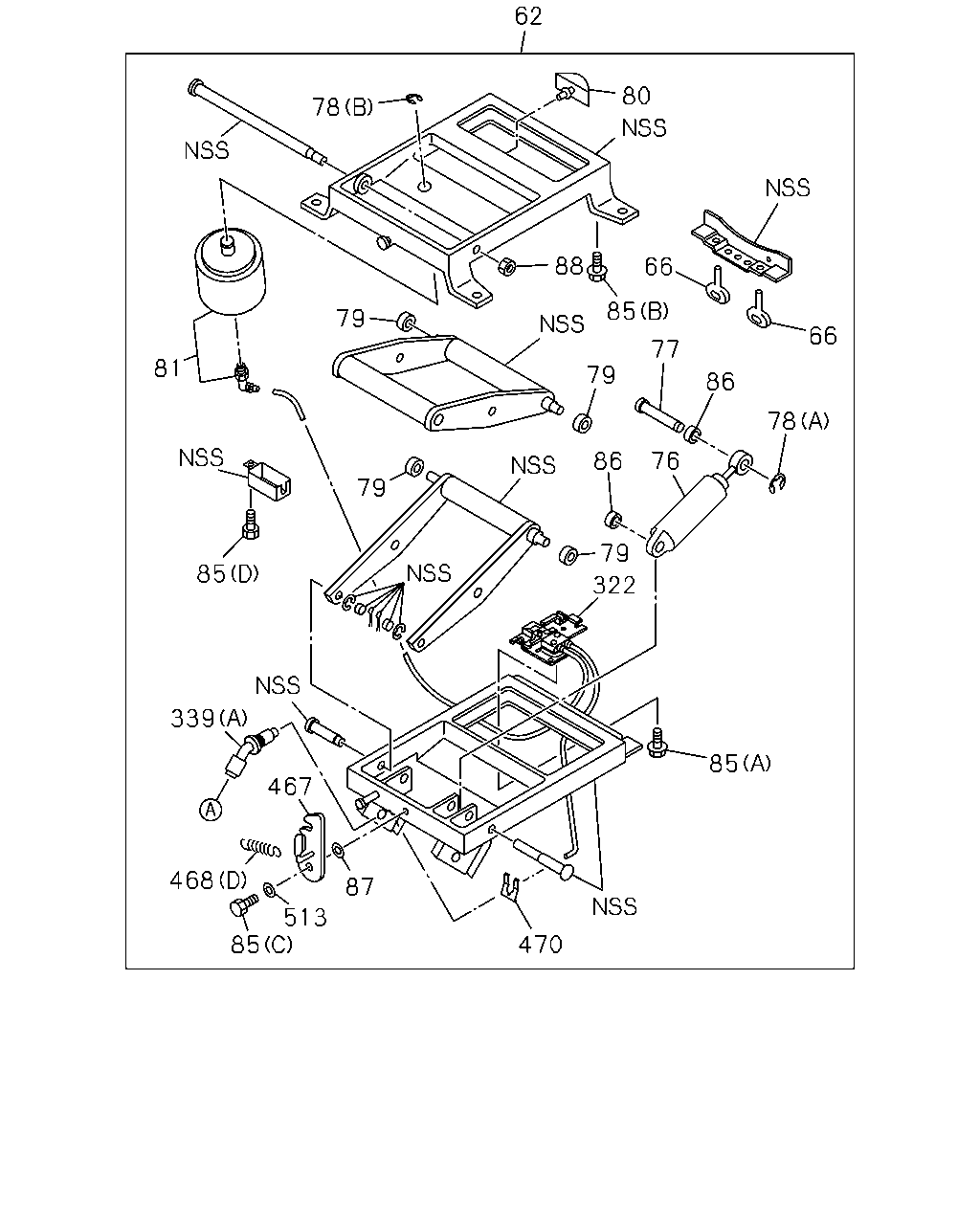

62 78 80 66 66 88 77 85 86 76 78 79 79 81 79 79 86 322 85 470 87 467 339 468 513 85 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75538-185-7	01	1	0809-0905
62	DAMPER ASM; SEAT SUSP	1-75538-185-7	01	1	0912-1009
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-185-8	01	1	1010-1403
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-451-0	01	1	1404-1502
62	DAMPER ASM; SEAT SUSP	8-98261-451-0	01	1	1503-1506
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-451-0	01	1	1510-
66	RUBBER; LWR STOPPER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75538-145-0	02	1	0809-0905
66	RUBBER; LWR STOPPER	1-75538-145-0	02	1	0912-1009
66	RUBBER; LWR STOPPER AIR SUSP DRIVER SEAT<A56>	1-75538-145-0	02	1	1010-1502
66	RUBBER; LWR STOPPER	1-75538-145-0	02	1	1503-1506
66	RUBBER; LWR STOPPER AIR SUSP DRIVER SEAT<A56>	1-75538-145-0	02	1	1510-
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75538-139-0	01	1	0809-0905
76	DAMPER; AIR SUSP	1-75538-139-0	01	1	0912-1009
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-139-0	01	1	1010-1502
76	DAMPER; AIR SUSP	1-75538-139-0	01	1	1503-1506
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-139-0	01	1	1510-
77	PIN; DAMPER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75538-138-2	01	1	0809-0905
77	PIN; DAMPER	1-75538-138-2	01	1	0912-1009
77	PIN; DAMPER AIR SUSP DRIVER SEAT<A56>	1-75538-138-2	01	1	1010-1502
77	PIN; DAMPER	1-75538-138-2	01	1	1503-1506
77	PIN; DAMPER AIR SUSP DRIVER SEAT<A56>	1-75538-138-2	01	1	1510-
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) ID=8	9-09185-408-0	01	1	0809-0905
78	RING; SNAP (A) ID=8	9-09185-408-0	01	1	0912-1009
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (A) ID=8	9-09185-408-0	01	1	1010-1502
78	RING; SNAP (A) ID=8	9-09185-408-0	01	1	1503-1506
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (A) ID=8	9-09185-408-0	01	1	1510-
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) ID=15	9-09185-415-0	01	1	0809-0905
78	RING; SNAP (B) ID=15	9-09185-415-0	01	1	0912-1009
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (B) ID=15	9-09185-415-0	01	1	1010-1502
78	RING; SNAP (B) ID=15	9-09185-415-0	01	1	1503-1506
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (B) ID=15	9-09185-415-0	01	1	1510-
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75538-159-0	04	1	0809-0905
79	ROLLER ASM; AIR SUSP	1-75538-159-0	04	1	0912-1009
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-159-0	04	1	1010-1403
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-489-0	04	1	1404-1502
79	ROLLER ASM; AIR SUSP	8-98261-489-0	04	1	1503-1506
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-489-0	04	1	1510-
80	RUBBER; STOPPER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-09987-123-0	01	1	0809-0905
80	RUBBER; STOPPER	1-09987-123-0	01	1	0912-1009
80	RUBBER; STOPPER AIR SUSP DRIVER SEAT<A56>	1-09987-123-0	01	1	1010-1502
80	RUBBER; STOPPER	1-09987-123-0	01	1	1503-1506
80	RUBBER; STOPPER AIR SUSP DRIVER SEAT<A56>	1-09987-123-0	01	1	1510-
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75538-151-2	01	1	0809-0905
81	SPRING; AIR	1-75538-151-2	01	1	0912-1009
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56>	1-75538-151-2	01	1	1010-1312
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56>	8-98242-816-0	01	1	1401-1502
81	SPRING; AIR	8-98242-816-0	01	1	1503-1506
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56>	8-98242-816-0	01	1	1510-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8X22 W/LK&PL WASHER	1-75538-209-0	03	1	0809-0905
85	BOLT; AIR SUSP (B) M8X22 W/LK&PL WASHER	1-75538-209-0	03	1	0912-1009
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER	1-75538-209-0	03	1	1010-1312
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER	1-75538-209-0	02	1	1401-1502
85	BOLT; AIR SUSP (B) M8X22 W/LK&PL WASHER	1-75538-209-0	02	1	1503-1506
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER	1-75538-209-0	02	1	1510-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C)	1-09980-577-0	01	1	0809-0905
85	BOLT; AIR SUSP (C)	1-09980-577-0	01	1	0912-1009
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (C)	1-09980-577-1	01	1	1010-1502
85	BOLT; AIR SUSP (C)	1-09980-577-1	01	1	1503-1506
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (C)	1-09980-577-1	01	1	1510-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M6X12	1-75538-208-0	02	1	0809-0905
85	BOLT; AIR SUSP (A) M6X12	1-75538-208-0	02	1	0912-1009
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (A) M6X12	1-75538-208-1	02	1	1010-1502
85	BOLT; AIR SUSP (A) M6X12	1-75538-208-1	02	1	1503-1506
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (A) M6X12	1-75538-208-1	02	1	1510-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (D) M8X25 W/LK&PL WASHER	8-98243-394-0	01	1	1401-1502
85	BOLT; AIR SUSP (D) M8X25 W/LK&PL WASHER	8-98243-394-0	01	1	1503-1506
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (D) M8X25 W/LK&PL WASHER	8-98243-394-0	01	1	1510-
86	BUSHING; GUIDE AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	0809-0905
86	BUSHING; GUIDE OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	0912-1009
86	BUSHING; GUIDE AIR SUSP DRIVER SEAT<A56> OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	1010-1502
86	BUSHING; GUIDE OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	1503-1506
86	BUSHING; GUIDE AIR SUSP DRIVER SEAT<A56> OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	1510-
87	WASHER; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> ID=8.2	0-91510-508-0	01	1	0809-0905
87	WASHER; AIR SUSP ID=8.2	0-91510-508-0	01	1	0912-1009
87	WASHER; AIR SUSP AIR SUSP DRIVER SEAT<A56> ID=8.2	0-91510-508-0	01	1	1010-1502
87	WASHER; AIR SUSP ID=8.2	0-91510-508-0	01	1	1503-1506
87	WASHER; AIR SUSP AIR SUSP DRIVER SEAT<A56> ID=8.2	0-91510-508-0	01	1	1510-
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M10	1-75537-273-1	01	1	0809-0905
88	NUT; AIR SUSP M10	1-75537-273-1	01	1	0912-1009
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> M10	1-75537-273-1	01	1	1010-1502
88	NUT; AIR SUSP M10	1-75537-273-1	01	1	1503-1506
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> M10	1-75537-273-1	01	1	1510-
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75538-187-2	01	1	0809-0905
322	VALVE; AIR SPRING	1-75538-187-2	01	1	0912-1009
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56>	1-75538-187-3	01	1	1010-1502
322	VALVE; AIR SPRING	1-75538-187-3	01	1	1503-1506
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56>	1-75538-187-3	01	1	1510-
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	1-75538-131-3	01	1	0809-0905
339	UNION; DRIVER SEAT (A)	1-75538-131-3	01	1	0912-1009
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (A)	1-75538-131-3	01	1	1010-1502
339	UNION; DRIVER SEAT (A)	1-75538-131-3	01	1	1503-1506
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (A)	1-75538-131-3	01	1	1510-

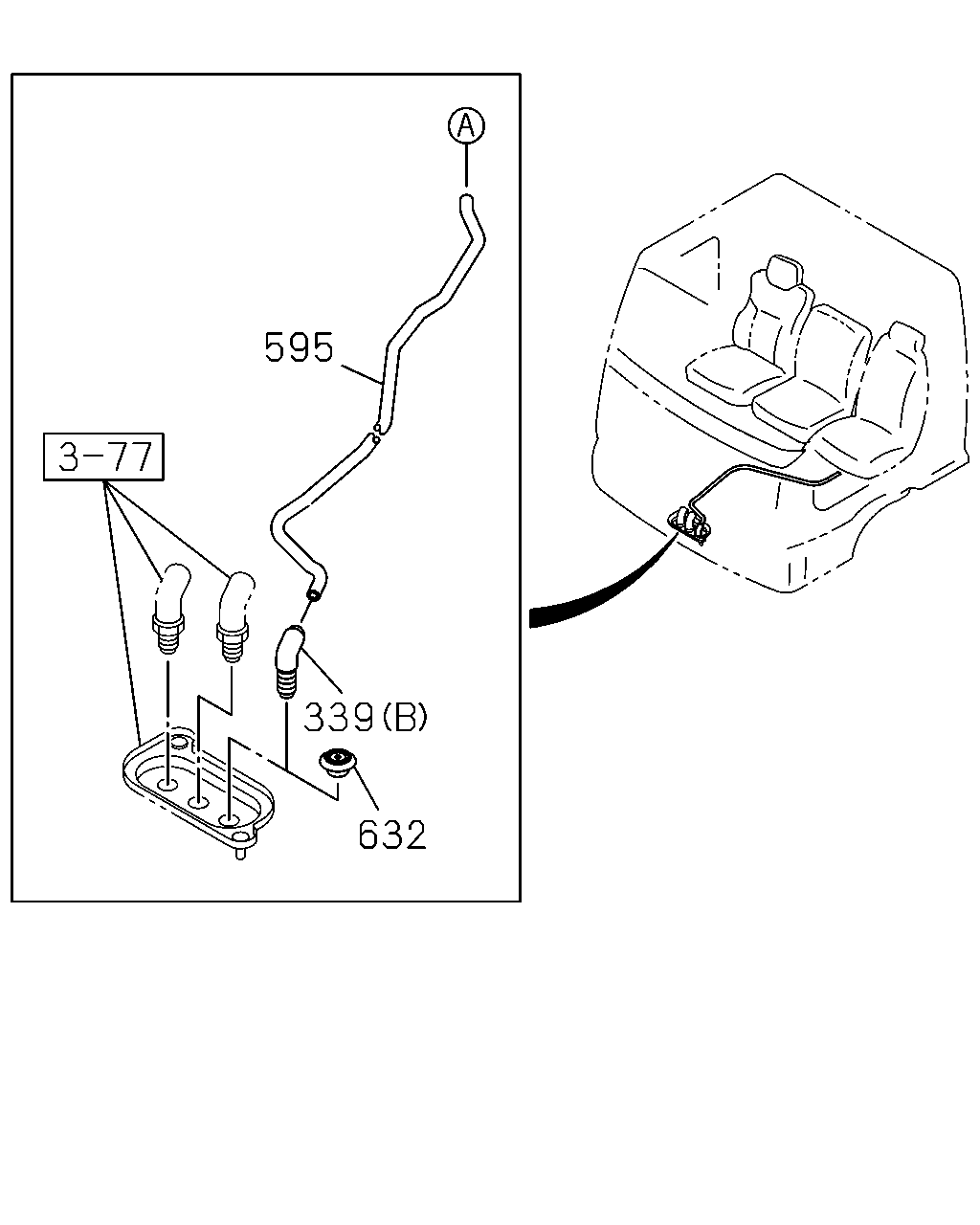

339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (B)	8-98014-971-0	01	1	0809-
467	LEVER; LOCK AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75538-134-0	01	1	0809-0905
467	LEVER; LOCK	1-75538-134-0	01	1	0912-1009
467	LEVER; LOCK AIR SUSP DRIVER SEAT<A56>	1-75538-134-0	01	1	1010-1502
467	LEVER; LOCK	1-75538-134-0	01	1	1503-1506
467	LEVER; LOCK AIR SUSP DRIVER SEAT<A56>	1-75538-134-0	01	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D)	1-75538-132-0	01	1	0809-0905
468	SPRING; RETURN (D)	1-75538-132-0	01	1	0912-1009
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (D)	1-75538-132-0	01	1	1010-1502
468	SPRING; RETURN (D)	1-75538-132-0	01	1	1503-1506
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (D)	1-75538-132-0	01	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	1-75518-206-0	01	1	0809-1009
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (A)	1-75518-206-0	01	1	1010-1502
468	SPRING; RETURN (A)	1-75518-206-0	01	1	1503-1506
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (A)	1-75518-206-0	01	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B)	1-75518-207-0	01	1	0809-1009
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (B)	1-75518-207-0	01	1	1010-1502
468	SPRING; RETURN (B)	1-75518-207-0	01	1	1503-1506
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (B)	1-75518-207-0	01	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C)	1-75518-208-0	02	1	0809-1009
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (C)	1-75518-208-0	02	1	1010-1502
468	SPRING; RETURN (C)	1-75518-208-0	02	1	1503-1506
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (C)	1-75518-208-0	02	1	1510-
470	CLIP; HOSE AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75538-137-0	01	1	0809-0905
470	CLIP; HOSE	1-75538-137-0	01	1	0912-1009
470	CLIP; HOSE AIR SUSP DRIVER SEAT<A56>	1-75538-137-0	01	1	1010-1502
470	CLIP; HOSE	1-75538-137-0	01	1	1503-1506
470	CLIP; HOSE AIR SUSP DRIVER SEAT<A56>	1-75538-137-0	01	1	1510-
513	SPACER; LEVER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75538-133-0	01	1	0809-0905
513	SPACER; LEVER	1-75538-133-0	01	1	0912-1009
513	SPACER; LEVER AIR SUSP DRIVER SEAT<A56>	1-75538-133-0	01	1	1010-1502
513	SPACER; LEVER	1-75538-133-0	01	1	1503-1506
513	SPACER; LEVER AIR SUSP DRIVER SEAT<A56>	1-75538-133-0	01	1	1510-

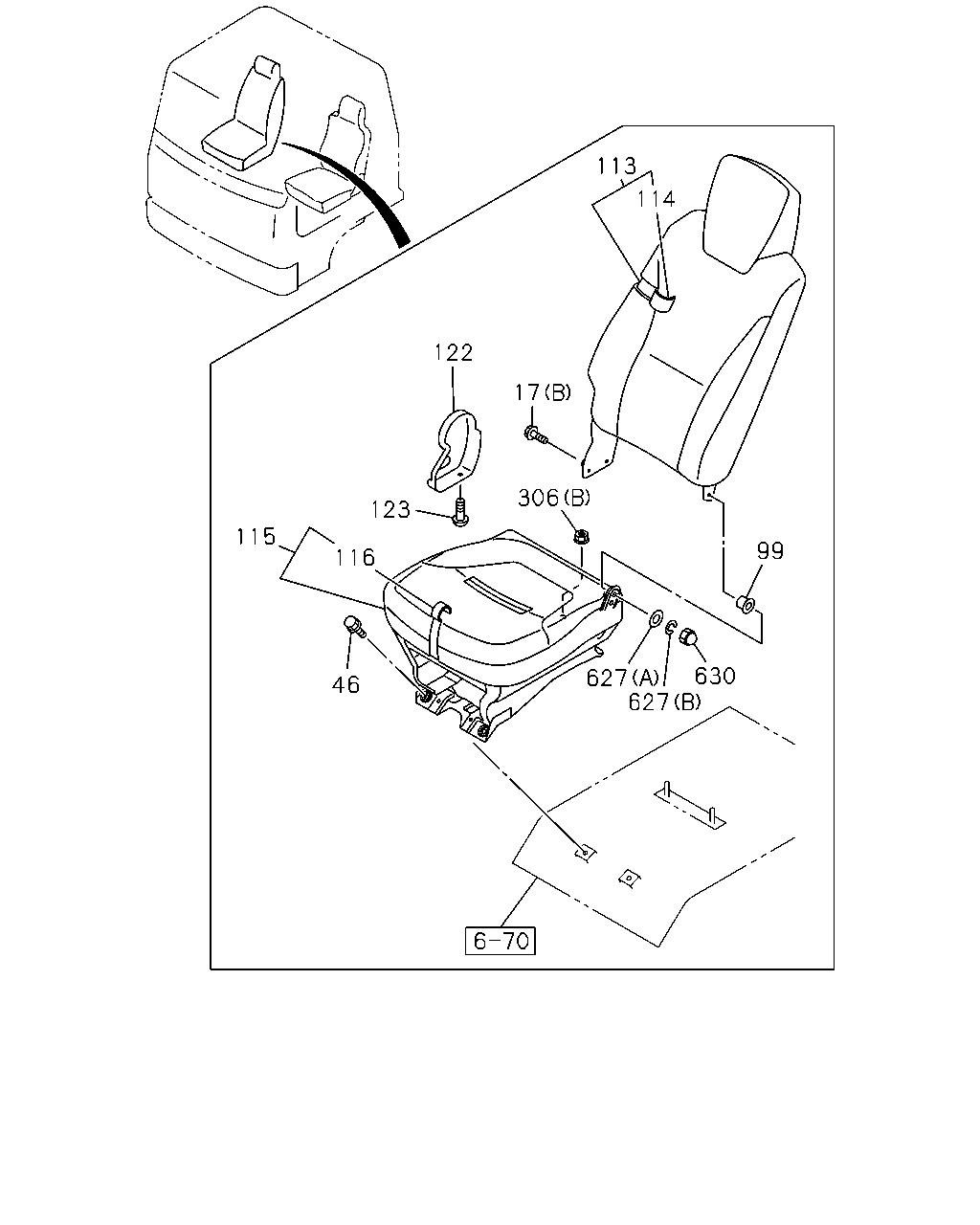

113 114 122 17 306 123 115 99 116 627 630 627 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	BOLT; RECLINING (A) M10X20	8-98062-661-0	04	1	0809-1203
17	BOLT; RECLINING (A) M10X20	8-98062-661-0	02	1	1204-1506
17	BOLT; RECLINING RIGID SEAT WO/ARM REST<TAZ> (A) M10X20	8-98062-661-0	02	1	1507-1509
17	BOLT; RECLINING (A) M10X20	8-98062-661-0	02	1	1510-
17	BOLT; RECLINING (B) M8X20	8-98092-334-0	04	1	0809-1203
17	BOLT; RECLINING (B) M8X20	8-98092-334-0	02	1	1204-
46	BOLT; STAND TO FLOOR M10X20 FLANGE	0-28451-020-0	02	1	0809-
99	BUSHING; SEAT BACK	8-98063-219-0	01	1	0809-1009
99	BUSHING; SEAT BACK	8-98112-751-0	01	1	1010-
113	BACK ASM; SEAT SEAT CLOTH<7FL> DARK GRAY	8-97414-126-0	01	1	0809-0902
113	BACK ASM; SEAT SEAT CLOTH<7FL> DARK GRAY	8-97416-222-0	01	1	0903-1009
113	BACK ASM; SEAT SEAT CLOTH<7FL> DARK GRAY	8-97421-423-0	01	1	1010-
113	BACK ASM; SEAT VINYL SEAT<A83> DARK GRAY	8-97414-041-1	01	1	0809-
114	COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> DARK GRAY	8-97414-127-0	01	1	0809-0902
114	COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> DARK GRAY	8-97416-224-0	01	1	0903-1009
114	COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> DARK GRAY	8-97421-425-0	01	1	1010-
114	COVER; TRIM,PASSENGER SEAT,BACK VINYL SEAT<A83> DARK GRAY	8-97414-042-0	01	1	0809-
115	CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> DARK GRAY	8-97414-124-0	01	1	0809-0902
115	CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> DARK GRAY	8-97416-226-0	01	1	0903-1009
115	CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> DARK GRAY	8-97421-419-1	01	1	1010-
115	CUSHION ASM; PASSENGER SEAT VINYL SEAT<A83> DARK GRAY	8-97414-039-1	01	1	0809-
116	COVER; TRIM,PASSENGER SEAT,CUSHION SEAT CLOTH<7FL> DARK GRAY	8-97414-125-0	01	1	0809-0902
116	COVER; TRIM,PASSENGER SEAT,CUSHION SEAT CLOTH<7FL> DARK GRAY	8-97416-228-0	01	1	0903-1009
116	COVER; TRIM,PASSENGER SEAT,CUSHION SEAT CLOTH<7FL> DARK GRAY	8-97421-421-0	01	1	1010-
116	COVER; TRIM,PASSENGER SEAT,CUSHION VINYL SEAT<A83> DARK GRAY	8-97414-040-0	01	1	0809-
122	COVER; ADJ,RECLINING GRAY	8-97414-043-0	01	1	0809-
123	SCREW; COVER,RECLINING M5	8-98070-026-0	01	1	0809-
306	NUT; SEAT ADJ VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE	1-75538-207-0	08	1	0809-0905
306	NUT; SEAT ADJ VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE	1-75538-207-0	08	1	0912-0912
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE	1-75538-207-0	08	1	1001-
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE	1-75538-207-0	06	1	0809-1009
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE	1-75538-207-0	06	1	1010-1502
306	NUT; SEAT ADJ (A) M8 FLANGE	1-75538-207-0	06	1	1503-1506
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE	1-75538-207-0	06	1	1510-
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	0809-
627	WASHER; FRT SEAT (A)	8-98063-223-0	01	1	0809-
627	WASHER; FRT SEAT (B)	8-98063-224-0	01	1	0809-
630	NUT; CAP M8	8-98063-225-0	01	1	0809-

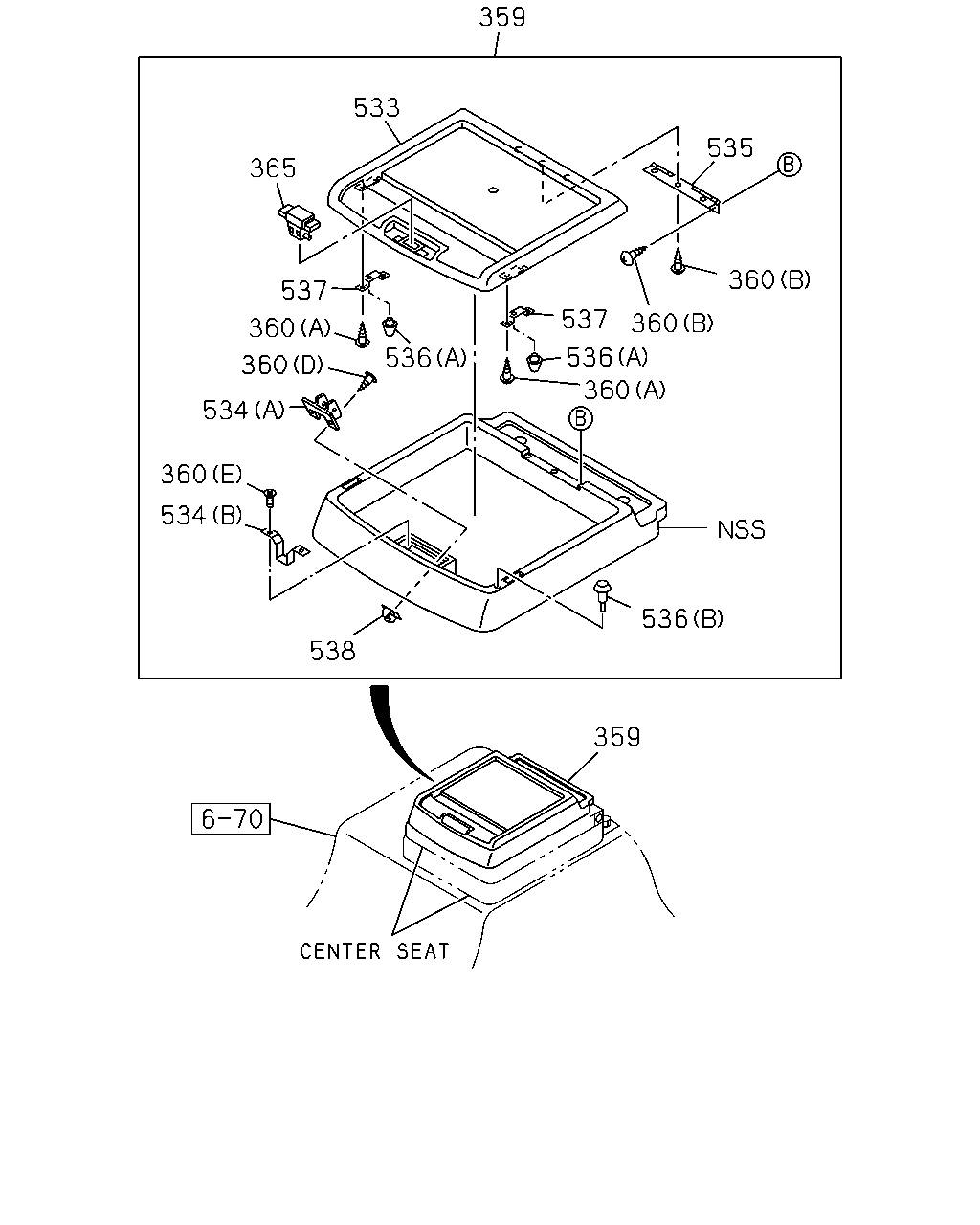

359 533 535 365 360 537 537 360 360 536 536 360 360 534 360 534 536 538 359

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-977-2	01	1	0809-1006
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97417-261-0	01	1	1007-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	0809-1009
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1010-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16	0-70040-416-0	06	1	0809-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5X16 TAPPING W/PL WASHER	0-74360-516-0	04	1	0809-1110
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5	8-98062-663-0	04	1	1111-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (D) M5X20	9-09829-324-1	02	1	0809-1009
365	LOCK ASM; SEAT SEAT ASM - WITH CENTER SEAT<7BC>	1-72538-312-0	01	1	0809-
533	LID; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-979-1	01	1	0809-1006
533	LID; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97417-263-0	01	1	1007-
534	STRIKER; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> (A)	1-72538-181-0	01	1	0809-1009
534	STRIKER; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> (B)	1-72538-190-0	01	1	1010-
535	HINGE; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC>	1-72447-391-1	01	1	0809-
536	RUBBER; CUSHION SEAT ASM - WITH CENTER SEAT<7BC> (A)	5-09983-002-1	02	1	0809-1009
536	RUBBER; CUSHION SEAT ASM - WITH CENTER SEAT<7BC> (B)	1-72538-187-0	02	1	1010-
537	BRACKET; RUBBER SEAT ASM - WITH CENTER SEAT<7BC>	1-72548-057-1	02	1	0809-1009
538	GROMMET; SCREW SEAT ASM - WITH CENTER SEAT<7BC>	1-09983-165-0	02	1	0809-1009

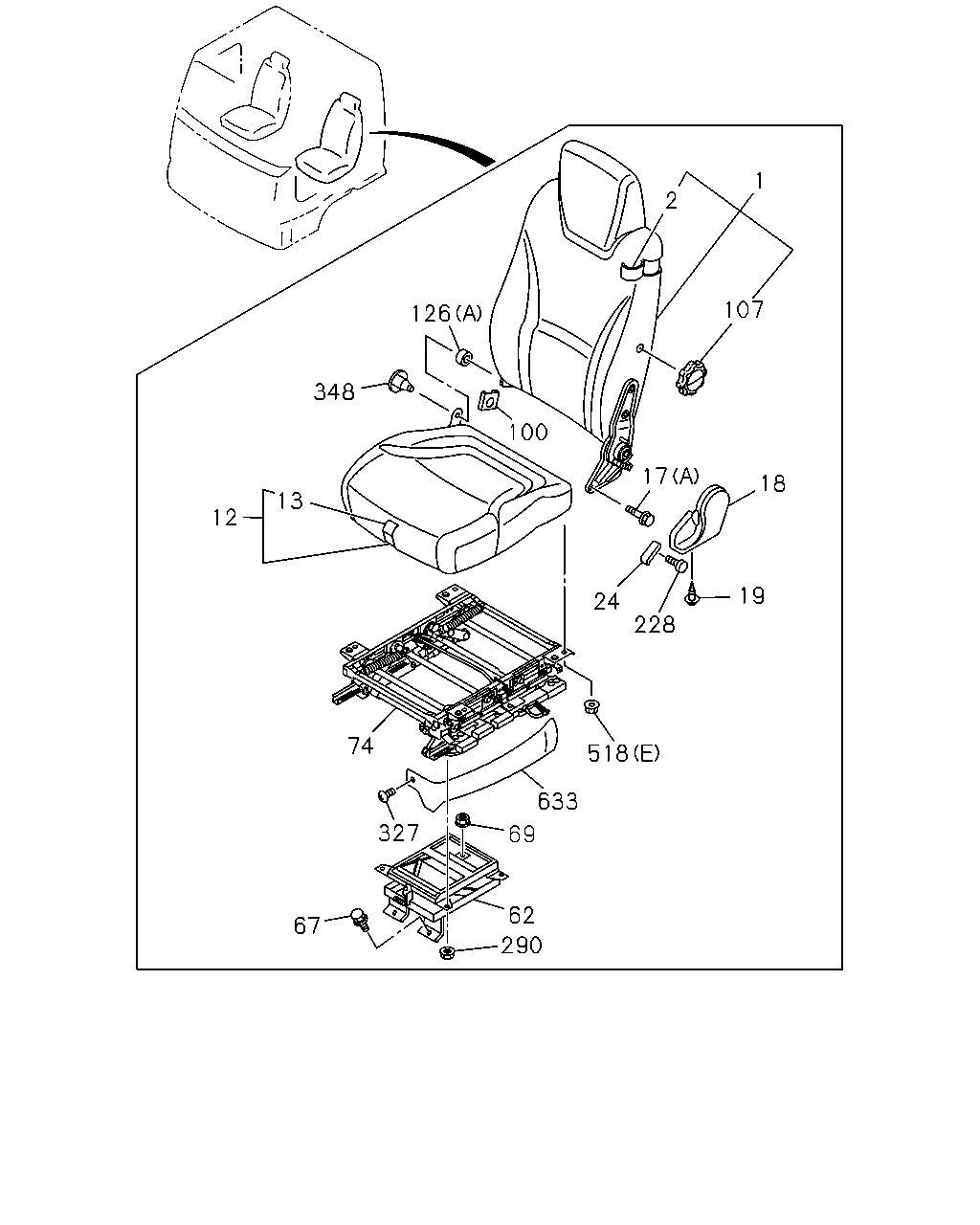

126 348 13 12 74 327 67 290 69 62 633 518 228 24 19 18 17 100 107 1 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY	8-97416-204-0	01	1	1001-1009
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY	8-97421-409-1	01	1	1010-1512
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL>	8-97466-621-0	01	1	1601-
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY	8-97414-116-2	01	1	0809-0902
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY	8-97416-203-0	01	1	0903-1009
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY	8-97421-408-1	01	1	1010-1506
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY	8-97421-408-1	01	1	1510-1512
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY	8-97466-623-0	01	1	1601-
1	BACK ASM; SEAT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY	8-97414-037-3	01	1	0809-1009
1	BACK ASM; SEAT VINYL SEAT<A83> DARK GRAY	8-97414-037-5	01	1	1010-1502
1	BACK ASM; SEAT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY	8-97414-037-5	01	1	1503-1509
1	BACK ASM; SEAT VINYL SEAT<A83> DARK GRAY	8-97414-037-5	01	1	1510-1512
1	BACK ASM; SEAT VINYL SEAT<A83>	8-97466-619-0	01	1	1601-
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY	8-97414-117-1	01	1	0809-0902
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY	8-97416-208-0	01	1	0903-1009
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY	8-97421-413-0	01	1	1010-1506
2	COVER; TRIM,FRT SEAT,BACK DARK GRAY	8-97421-413-0	01	1	1510-
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY	8-97414-038-1	01	1	0809-1009
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT<A83> DARK GRAY	8-97414-038-2	01	1	1010-1502
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY	8-97414-038-2	01	1	1503-1509
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT<A83> DARK GRAY	8-97414-038-2	01	1	1510-
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY	8-97416-209-0	01	1	1001-1009
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY	8-97421-414-0	01	1	1010-
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY	8-97414-114-0	01	1	0809-0902
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY	8-97416-213-1	01	1	0903-0912
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY	8-97416-213-1	01	1	1001-1009
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY	8-97421-399-1	01	1	1010-1506
12	CUSHION; SEAT,FRT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY	8-97421-399-2	01	1	1507-1509
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY	8-97421-399-2	01	1	1510-1512
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL>	8-97466-612-0	01	1	1601-
12	CUSHION; SEAT,FRT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY	8-97414-035-1	01	1	0809-1009
12	CUSHION; SEAT,FRT VINYL SEAT<A83> DARK GRAY	8-97414-035-2	01	1	1010-1502
12	CUSHION; SEAT,FRT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY	8-97414-035-2	01	1	1503-1509
12	CUSHION; SEAT,FRT VINYL SEAT<A83> DARK GRAY	8-97414-035-2	01	1	1510-1512
12	CUSHION; SEAT,FRT VINYL SEAT<A83>	8-97466-609-0	01	1	1601-
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY	8-97414-115-0	01	1	0809-0902
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY	8-97416-218-0	01	1	0903-0912
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY	8-97416-218-0	01	1	1001-1009
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY	8-97421-403-1	01	1	1010-1506
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY	8-97421-403-2	01	1	1507-1509
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY	8-97421-403-2	01	1	1510-
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY	8-97414-036-0	01	1	0809-1009
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT<A83> DARK GRAY	8-97414-036-1	01	1	1010-1502
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY	8-97414-036-1	01	1	1503-1509
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT<A83> DARK GRAY	8-97414-036-1	01	1	1510-
17	BOLT; RECLINING (A) M10X20	8-98062-661-0	04	1	0809-1203
17	BOLT; RECLINING (A) M10X20	8-98062-661-0	02	1	1204-1506
17	BOLT; RECLINING RIGID SEAT WO/ARM REST<TAZ> (A) M10X20	8-98062-661-0	02	1	1507-1509
17	BOLT; RECLINING (A) M10X20	8-98062-661-0	02	1	1510-
17	BOLT; RECLINING (B) M8X20	8-98092-334-0	04	1	0809-1203
17	BOLT; RECLINING (B) M8X20	8-98092-334-0	02	1	1204-
18	COVER; RECLINING GRAY	8-97409-361-0	01	1	0809-1506
18	COVER; RECLINING RIGID SEAT WO/ARM REST<TAZ> GRAY	8-97409-361-0	01	1	1507-1509
18	COVER; RECLINING GRAY	8-97409-361-0	01	1	1510-
19	SCREW; COVER M5	8-98062-663-0	01	1	0809-1506
19	SCREW; COVER RIGID SEAT WO/ARM REST<TAZ> M5	8-98062-663-0	01	1	1507-1509
19	SCREW; COVER M5	8-98062-663-0	01	1	1510-
24	KNOB; RECLINING,FRT,SEAT GRAY	8-97409-362-0	01	1	0809-1506
24	KNOB; RECLINING,FRT,SEAT RIGID SEAT WO/ARM REST<TAZ> GRAY	8-97409-362-0	01	1	1507-1509
24	KNOB; RECLINING,FRT,SEAT GRAY	8-97409-362-0	01	1	1510-
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75538-185-7	01	1	0809-0905
62	DAMPER ASM; SEAT SUSP	1-75538-185-7	01	1	0912-1009
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-185-8	01	1	1010-1403
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-451-0	01	1	1404-1502
62	DAMPER ASM; SEAT SUSP	8-98261-451-0	01	1	1503-1506
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-451-0	01	1	1510-
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE	0-28451-020-0	02	1	0809-
69	NUT; FRT SEAT M10 FLANGE	0-91180-110-0	02	1	0809-
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98093-429-0	01	1	0809-1009
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98093-429-0	01	1	1010-1502
74	ADJUSTER; FRT SEAT,HEIGHT CONT	8-98291-641-0	01	1	1503-1506
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98291-641-0	01	1	1510-
100	COVER; HINGE	8-98203-070-0	01	1	1110-1506
100	COVER; HINGE RIGID SEAT WO/ARM REST<TAZ>	8-98203-070-0	01	1	1507-1509
100	COVER; HINGE	8-98203-070-0	01	1	1510-1512
100	COVER; HINGE	8-98286-009-0	01	1	1601-
107	DIAL; SEAT RECLINING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98063-174-0	01	1	0809-1506
107	DIAL; SEAT RECLINING	8-98063-174-0	01	1	1510-
126	BUSHING; HINGE,RECLINING (A)	8-98063-218-0	01	1	0809-1506
126	BUSHING; HINGE,RECLINING RIGID SEAT WO/ARM REST<TAZ> (A)	8-98063-218-0	01	1	1507-1509
126	BUSHING; HINGE,RECLINING (A)	8-98063-218-0	01	1	1510-1512
126	BUSHING; HINGE,RECLINING (A)	8-98286-007-0	01	1	1601-
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> (B)	8-97854-900-0	01	1	0809-
228	SCREW; KNOB M4	8-98062-662-0	01	1	0809-1506
228	SCREW; KNOB RIGID SEAT WO/ARM REST<TAZ> M4	8-98062-662-0	01	1	1507-1509
228	SCREW; KNOB M4	8-98062-662-0	01	1	1510-
290	NUT; ADJ TO SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M8 FLANGE	1-75538-207-0	04	1	0809-1009
290	NUT; ADJ TO SUSP AIR SUSP DRIVER SEAT<A56> M8 FLANGE	1-75538-207-0	04	1	1010-1502
290	NUT; ADJ TO SUSP M8 FLANGE	1-75538-207-0	04	1	1503-1506
290	NUT; ADJ TO SUSP AIR SUSP DRIVER SEAT<A56> M8 FLANGE	1-75538-207-0	04	1	1510-
327	CLIP; COVER AIR SUSP DRIVER SEAT<A56> ID=459	1-09987-273-0	02	1	0809-
348	BOLT; HINGE,SEAT	8-98286-008-0	01	1	1601-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) M8	1-75518-264-0	04	1	0809-1009
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (C) M8	1-75518-264-0	04	1	1010-1502
518	NUT; TILT ADJ (C) M8	1-75518-264-0	04	1	1503-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (C) M8	1-75518-264-0	04	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (E) M8 FLANGE	1-75538-207-0	04	1	0809-1009
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE	1-75538-207-0	04	1	1010-1502
518	NUT; TILT ADJ (E) M8 FLANGE	1-75538-207-0	04	1	1503-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE	1-75538-207-0	04	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) M6 LOCK NUT	5-09984-020-0	02	1	0809-1009
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT	5-09984-020-0	02	1	1010-1502
518	NUT; TILT ADJ (D) M6 LOCK NUT	5-09984-020-0	02	1	1503-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT	5-09984-020-0	02	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8 FLANGE	8-94152-886-0	04	1	0809-1009
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE	8-94152-886-0	04	1	1010-1502
518	NUT; TILT ADJ (B) M8 FLANGE	8-94152-886-0	04	1	1503-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE	8-94152-886-0	04	1	1510-
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	0809-1506
518	NUT; TILT ADJ RIGID SEAT WO/ARM REST<TAZ> (A)	1-75518-263-0	01	1	1507-1509
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	1510-
633	COVER; ADJ,TILT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> GRAY	8-97414-118-0	01	1	0809-1009
633	COVER; ADJ,TILT AIR SUSP DRIVER SEAT<A56> GRAY	8-97414-118-0	01	1	1010-1502
633	COVER; ADJ,TILT GRAY	8-97414-118-0	01	1	1503-1506
633	COVER; ADJ,TILT AIR SUSP DRIVER SEAT<A56> GRAY	8-97414-118-0	01	1	1510-

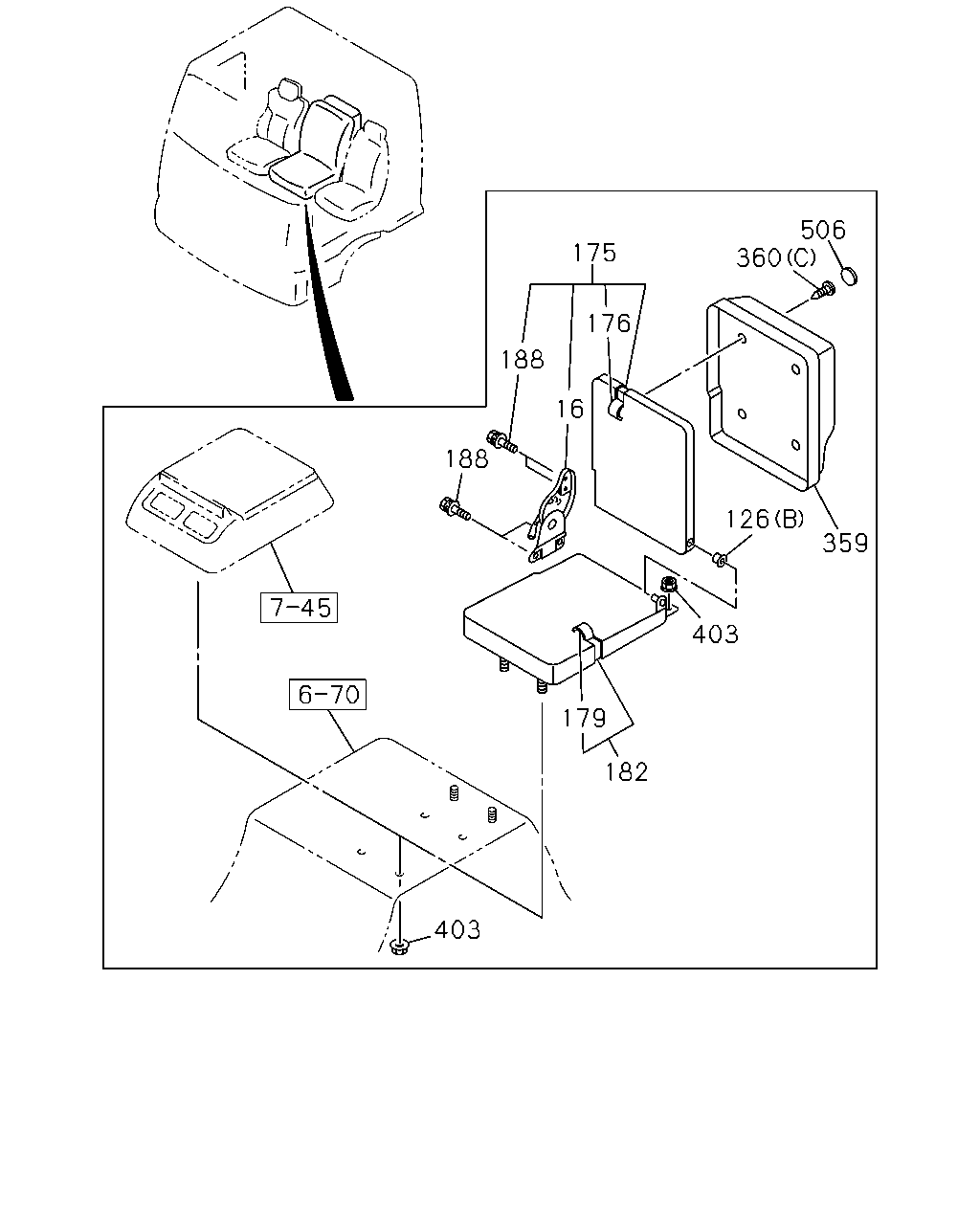

506 360 175 176 188 16 188 126 359 403 179 182 403

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	ADJUSTER ASM; RECLINING SEAT ASM - WITH CENTER SEAT<7BC>	1-75418-062-1	01	1	0809-
126	BUSHING; HINGE,RECLINING (A)	8-98063-218-0	01	1	0809-1506
126	BUSHING; HINGE,RECLINING RIGID SEAT WO/ARM REST<TAZ> (A)	8-98063-218-0	01	1	1507-1509
126	BUSHING; HINGE,RECLINING (A)	8-98063-218-0	01	1	1510-1512
126	BUSHING; HINGE,RECLINING (A)	8-98286-007-0	01	1	1601-
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> (B)	8-97854-900-0	01	1	0809-
175	BACK ASM; PASSENGER CENTER SEAT VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97409-975-0	01	1	0809-0905
175	BACK ASM; PASSENGER CENTER SEAT VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97409-975-1	01	1	0908-
175	BACK ASM; PASSENGER CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97409-984-0	01	1	0809-0902
175	BACK ASM; PASSENGER CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97416-233-0	01	1	0903-1009
175	BACK ASM; PASSENGER CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97421-434-1	01	1	1010-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97409-976-0	01	1	0809-0905
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97409-976-1	01	1	0908-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97409-985-0	01	1	0809-0902
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97416-234-0	01	1	0903-1009
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97421-435-1	01	1	1010-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97414-690-0	01	1	0809-0905
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97414-690-1	01	1	0908-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97414-691-0	01	1	0809-0902
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97416-238-0	01	1	0903-1009
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97421-433-1	01	1	1010-
182	CUSHION ASM; CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97414-131-0	01	1	0809-0902
182	CUSHION ASM; CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97416-236-0	01	1	0903-1009
182	CUSHION ASM; CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97421-431-3	01	1	1010-
182	CUSHION ASM; CENTER SEAT VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97414-129-3	01	1	0809-
188	BOLT; BACK TO CUSHION SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE	1-75198-053-0	04	1	0809-
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-977-2	01	1	0809-1006
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97417-261-0	01	1	1007-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	0809-1009
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1010-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16	0-70040-416-0	06	1	0809-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5X16 TAPPING W/PL WASHER	0-74360-516-0	04	1	0809-1110
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5	8-98062-663-0	04	1	1111-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (D) M5X20	9-09829-324-1	02	1	0809-1009
403	NUT; CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> M8 FLANGE	0-91180-108-0	04	1	0809-
506	CAP; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-980-1	04	1	0809-1006
506	CAP; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-980-1	02	1	1007-

595 339 632

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	1-75538-131-3	01	1	0809-0905
339	UNION; DRIVER SEAT (A)	1-75538-131-3	01	1	0912-1009
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (A)	1-75538-131-3	01	1	1010-1502
339	UNION; DRIVER SEAT (A)	1-75538-131-3	01	1	1503-1506
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (A)	1-75538-131-3	01	1	1510-
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (B)	8-98014-971-0	01	1	0809-
595	TUBE; NYLON AIR SUSP DRIVER SEAT<A56>	8-98041-300-0	01	1	0809-
632	GROMMET RIGID SEAT WO/ARM REST<TAZ> OD=24	8-94119-796-0	01	1	0809-

74 543 302 278 532 51 512 51 468 468 201 201 306 63 63 306 551 518 518 302 551 302 302 551 302 551 302 72 518 518 72 512 278 518 543 518 302 543 518 518 543 302 543 468 468 158 529 471 158 518 518 543 518 278 532

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
51	SCREW; COVER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75518-325-1	04	1	0809-1009
51	SCREW; COVER AIR SUSP DRIVER SEAT<A56>	1-75518-325-1	04	1	1010-1502
51	SCREW; COVER	1-75518-325-1	04	1	1503-1506
51	SCREW; COVER AIR SUSP DRIVER SEAT<A56>	1-75518-325-1	04	1	1510-
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B)	1-75518-227-1	01	1	0809-1009
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (B)	1-75518-227-1	01	1	1010-1502
63	ADJUSTER; SEAT SLIDE (B)	1-75518-227-1	01	1	1503-1506
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (B)	1-75518-227-1	01	1	1510-
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	1-75518-324-0	01	1	0809-1009
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (A)	1-75518-324-0	01	1	1010-1502
63	ADJUSTER; SEAT SLIDE (A)	1-75518-324-0	01	1	1503-1506
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (A)	1-75518-324-0	01	1	1510-
72	SPACER; SEAT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75518-334-1	02	1	0809-1009
72	SPACER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>	1-75518-334-1	02	1	1010-1502
72	SPACER; SEAT ADJ	8-98291-668-0	02	1	1503-1506
72	SPACER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>	8-98291-668-0	02	1	1510-
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98093-429-0	01	1	0809-1009
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98093-429-0	01	1	1010-1502
74	ADJUSTER; FRT SEAT,HEIGHT CONT	8-98291-641-0	01	1	1503-1506
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98291-641-0	01	1	1510-
158	BUSHING; LINK ARM	1-75518-209-0	02	1	0809-1506
158	BUSHING; LINK ARM RIGID SEAT WO/ARM REST<TAZ>	1-75518-209-0	02	1	1507-1509
158	BUSHING; LINK ARM	1-75518-209-0	02	1	1510-
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	0809-1506
201	CABLE; ADJ RIGID SEAT WO/ARM REST<TAZ> (A) L=667	1-75518-288-0	01	1	1507-1509
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	1510-
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	0809-1506
201	CABLE; ADJ RIGID SEAT WO/ARM REST<TAZ> (B) L=605	1-75518-289-1	01	1	1507-1509
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	1510-
278	COLLAR; FRT SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75518-244-0	03	1	0809-1009
278	COLLAR; FRT SEAT AIR SUSP DRIVER SEAT<A56>	1-75518-244-0	03	1	1010-1502
278	COLLAR; FRT SEAT	1-75518-244-0	03	1	1503-1506
278	COLLAR; FRT SEAT AIR SUSP DRIVER SEAT<A56>	1-75518-244-0	03	1	1510-
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B)	1-75518-266-2	02	1	0809-1009
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (B)	1-75518-266-2	02	1	1010-1502
302	BOLT; ADJ,HEIGHT CONT (B)	1-75518-266-2	02	1	1503-1506
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (B)	1-75518-266-2	02	1	1510-
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	1-75518-270-1	04	1	0809-1009
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (A)	1-75518-270-1	04	1	1010-1502
302	BOLT; ADJ,HEIGHT CONT (A)	8-98291-667-0	04	1	1503-1506
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (A)	8-98291-667-0	04	1	1510-
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C)	1-75518-336-1	02	1	0809-1009
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (C)	1-75518-336-1	02	1	1010-1502
302	BOLT; ADJ,HEIGHT CONT (C)	1-75518-336-1	02	1	1503-1506
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (C)	1-75518-336-1	02	1	1510-
306	NUT; SEAT ADJ VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE	1-75538-207-0	08	1	0809-0905
306	NUT; SEAT ADJ VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE	1-75538-207-0	08	1	0912-0912
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE	1-75538-207-0	08	1	1001-
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE	1-75538-207-0	06	1	0809-1009
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE	1-75538-207-0	06	1	1010-1502
306	NUT; SEAT ADJ (A) M8 FLANGE	1-75538-207-0	06	1	1503-1506
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE	1-75538-207-0	06	1	1510-
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	0809-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D)	1-75538-132-0	01	1	0809-0905
468	SPRING; RETURN (D)	1-75538-132-0	01	1	0912-1009
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (D)	1-75538-132-0	01	1	1010-1502
468	SPRING; RETURN (D)	1-75538-132-0	01	1	1503-1506
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (D)	1-75538-132-0	01	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	1-75518-206-0	01	1	0809-1009
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (A)	1-75518-206-0	01	1	1010-1502
468	SPRING; RETURN (A)	1-75518-206-0	01	1	1503-1506
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (A)	1-75518-206-0	01	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B)	1-75518-207-0	01	1	0809-1009
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (B)	1-75518-207-0	01	1	1010-1502
468	SPRING; RETURN (B)	1-75518-207-0	01	1	1503-1506
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (B)	1-75518-207-0	01	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C)	1-75518-208-0	02	1	0809-1009
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (C)	1-75518-208-0	02	1	1010-1502
468	SPRING; RETURN (C)	1-75518-208-0	02	1	1503-1506
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (C)	1-75518-208-0	02	1	1510-
471	LEVER; SEAT ADJ	8-98107-870-0	01	1	0809-1506
471	LEVER; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ>	8-98107-870-0	01	1	1507-1509
471	LEVER; SEAT ADJ	8-98107-870-0	01	1	1510-
512	COVER; LEVER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75518-245-1	02	1	0809-1009
512	COVER; LEVER AIR SUSP DRIVER SEAT<A56>	1-75518-245-1	02	1	1010-1502
512	COVER; LEVER	1-75518-245-1	02	1	1503-1506
512	COVER; LEVER AIR SUSP DRIVER SEAT<A56>	1-75518-245-1	02	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) M8	1-75518-264-0	04	1	0809-1009
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (C) M8	1-75518-264-0	04	1	1010-1502
518	NUT; TILT ADJ (C) M8	1-75518-264-0	04	1	1503-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (C) M8	1-75518-264-0	04	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (E) M8 FLANGE	1-75538-207-0	04	1	0809-1009
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE	1-75538-207-0	04	1	1010-1502
518	NUT; TILT ADJ (E) M8 FLANGE	1-75538-207-0	04	1	1503-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE	1-75538-207-0	04	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) M6 LOCK NUT	5-09984-020-0	02	1	0809-1009
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT	5-09984-020-0	02	1	1010-1502
518	NUT; TILT ADJ (D) M6 LOCK NUT	5-09984-020-0	02	1	1503-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT	5-09984-020-0	02	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8 FLANGE	8-94152-886-0	04	1	0809-1009
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE	8-94152-886-0	04	1	1010-1502
518	NUT; TILT ADJ (B) M8 FLANGE	8-94152-886-0	04	1	1503-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE	8-94152-886-0	04	1	1510-
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	0809-1506
518	NUT; TILT ADJ RIGID SEAT WO/ARM REST<TAZ> (A)	1-75518-263-0	01	1	1507-1509
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	1510-
529	PIN; LINK	1-75518-262-0	01	1	0809-1506
529	PIN; LINK RIGID SEAT WO/ARM REST<TAZ>	1-75518-262-0	01	1	1507-1509
529	PIN; LINK	1-75518-262-0	01	1	1510-
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	1-75518-221-0	01	1	0809-1009
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (A)	1-75518-221-0	01	1	1010-1502
532	LEVER ASM; TILT (A)	1-75518-221-0	01	1	1503-1506
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (A)	1-75518-221-0	01	1	1510-
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B)	1-75518-222-1	01	1	0809-1009
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (B)	1-75518-222-1	01	1	1010-1502
532	LEVER ASM; TILT (B)	1-75518-222-1	01	1	1503-1506
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (B)	1-75518-222-1	01	1	1510-
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	1-75518-335-0	02	1	0809-1009
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (A)	1-75518-335-0	02	1	1010-1502
543	WASHER; HEIGHT ADJUSTER (A) ID=13 OD=19	8-98291-669-0	02	1	1503-1506
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (A) ID=13 OD=19	8-98291-669-0	02	1	1510-
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) ID=8.4	9-09160-508-0	04	1	0809-1009
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (B) ID=8.4	9-09160-508-0	04	1	1010-1502
543	WASHER; HEIGHT ADJUSTER (B) ID=8.4	9-09160-508-0	04	1	1503-1506
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (B) ID=8.4	9-09160-508-0	04	1	1510-
551	SLIDER; HEIGHT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75518-265-0	04	1	0809-1009
551	SLIDER; HEIGHT ADJ AIR SUSP DRIVER SEAT<A56>	1-75518-265-0	04	1	1010-1502
551	SLIDER; HEIGHT ADJ	1-75518-265-0	04	1	1503-1506
551	SLIDER; HEIGHT ADJ AIR SUSP DRIVER SEAT<A56>	1-75518-265-0	04	1	1510-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
