Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11153 - FVZ(LHD)
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-45 - CONSOLE BOX
▶

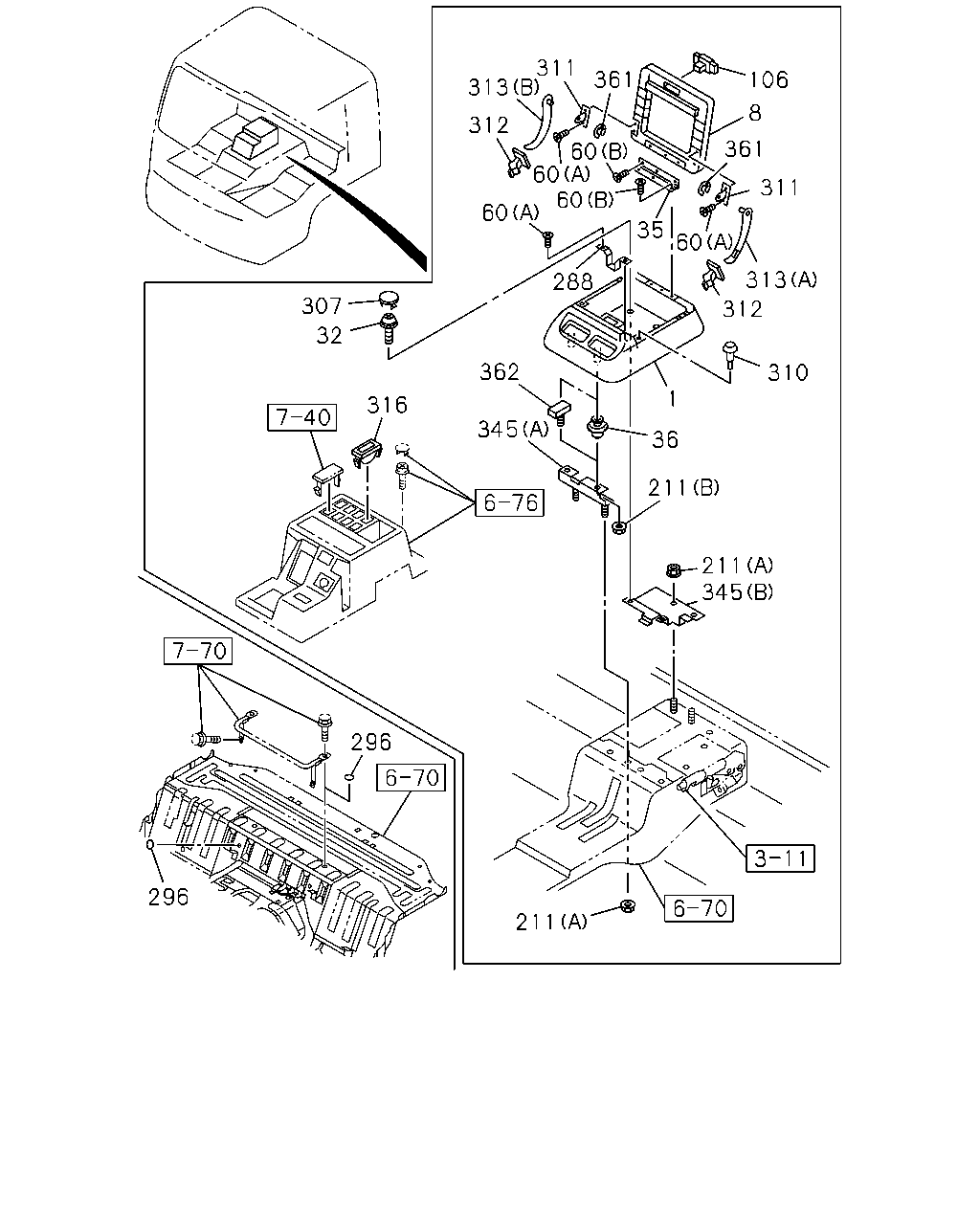

7-45 — CONSOLE BOX
(#68563) — 24 parça
311
313
361
106
8
312
60
60
60
361
311
60
35
60
313
288
307
312
32
362
310
1
316
345
36
211
211
345
296
296
211
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BOX; PARCEL
CENTER SEAT DELETE<SP9> GRAY
8-97408-710-0
01
1
0809-
8
LID; CENTER CONSOLE
CENTER SEAT DELETE<SP9> GRAY
8-97408-712-0
01
1
0809-
32
SCREW; PARCEL BOX
CENTER SEAT DELETE<SP9> M6X16
0-38050-616-0
02
1
0809-
35
HINGE; CENTER CONSOLE
CENTER SEAT DELETE<SP9>
1-72538-182-1
01
1
0809-
36
FASTENER; CENTER CONSOLE
CENTER SEAT DELETE<SP9>
1-09984-190-0
02
1
0809-
60
SCREW; BOX
CENTER SEAT DELETE<SP9> (A) M5X14 TAPPING CK-HEAD
0-70040-514-0
06
1
0809-
60
SCREW; BOX
CENTER SEAT DELETE<SP9> (B) M5X14
8-94279-325-0
04
1
0809-
106
LOCK; CONSOLE LID
CENTER SEAT DELETE<SP9>
1-72538-312-0
01
1
0809-
211
NUT; CENTER CONSOLE
CENTER SEAT DELETE<SP9> (A) M8 FLANGE
1-75538-207-0
04
1
0809-0811
211
NUT; CENTER CONSOLE
CENTER SEAT DELETE<SP9> (A) M8 FLANGE
0-91180-108-0
04
1
0812-
211
NUT; CENTER CONSOLE
CENTER SEAT DELETE<SP9> (B) M8 FLANGE
8-94279-518-0
02
1
0809-
288
STOPPER; LID,CONSOLE
CENTER SEAT DELETE<SP9>
1-72538-190-0
01
1
0809-
296
SEAL
EXC. MATTRESS SLEEPER CAB<E40> OD=25 BLACK
1-76798-019-0
04
1
1010-
307
COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE<SP9> GRAY
8-97407-951-0
02
1
0809-
310
CUSHION; CTR CONSOLE
CENTER SEAT DELETE<SP9>
1-72538-187-0
02
1
0809-
311
HOLDER; CONSOLE
CENTER SEAT DELETE<SP9>
1-72538-188-2
02
1
0809-
312
STOPPER; CONSOLE
CENTER SEAT DELETE<SP9>
1-72538-186-1
02
1
0809-
313
ARM; CTR CONSOLE
CENTER SEAT DELETE<SP9> (A)
1-72538-184-3
01
1
0809-
313
ARM; CTR CONSOLE
CENTER SEAT DELETE<SP9> (B)
1-72538-185-3
01
1
0809-
316
BOX; COIN
8-94482-280-2
02
1
0809-
345
BRACKET; CTR CONSOLE
CENTER SEAT DELETE<SP9> (A)
1-72538-232-1
01
1
0809-
345
BRACKET; CTR CONSOLE
CENTER SEAT DELETE<SP9> (B)
1-72538-233-0
01
1
0809-
361
RING; SNAP
CENTER SEAT DELETE<SP9> ID=5
9-09185-405-0
02
1
0809-
362
STUD; CONSOLE BOX
CENTER SEAT DELETE<SP9>
1-72538-308-0
02
1
0809-
