3-40 — FRONT BRAKE POWER CHAMBER (#6856) — 22 parça

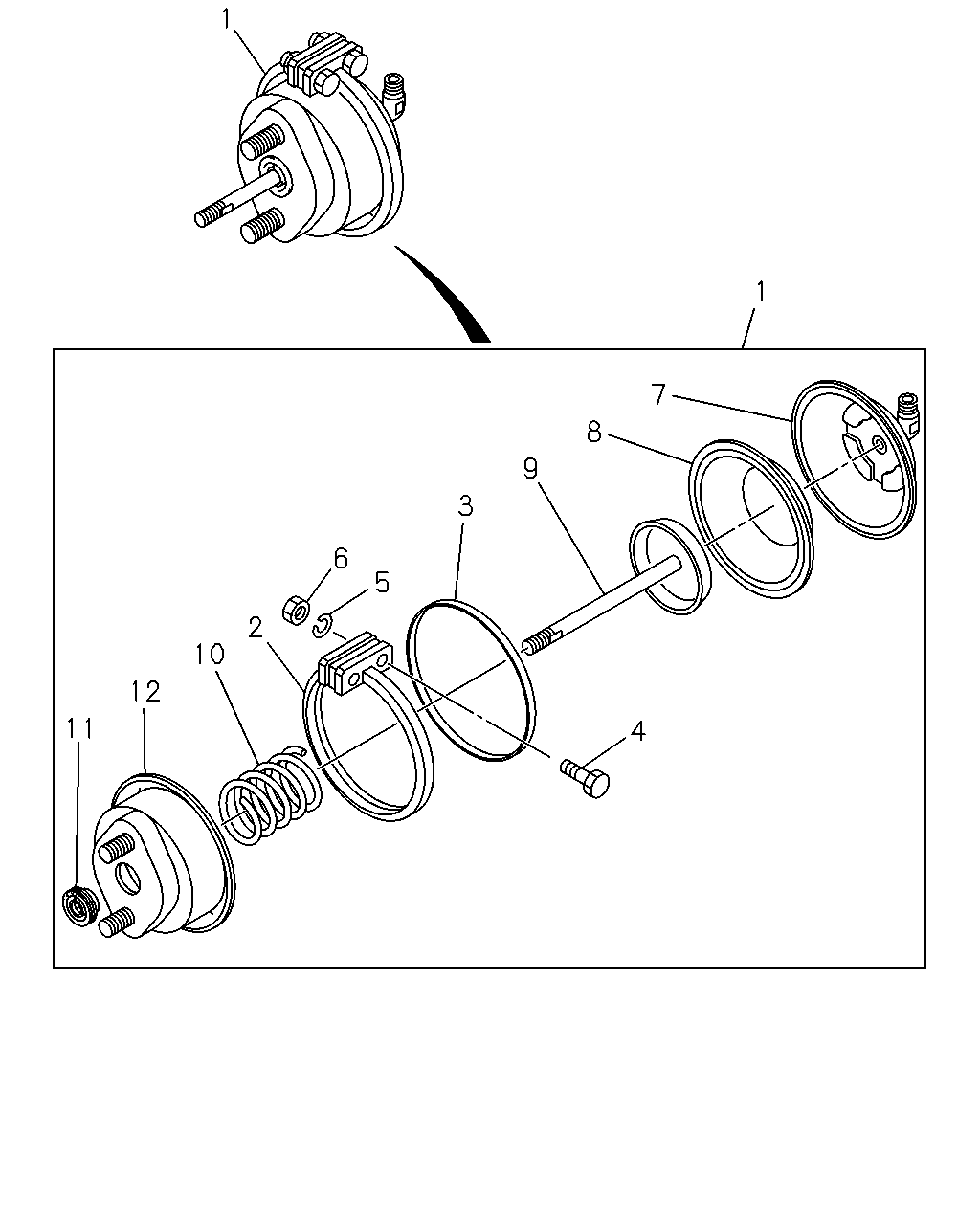

çizim 26916
1 1 7 8 9 3 6 5 2 10 12 11 4
BalonParca AdiParca NoAdetTipApplied Date
1 CHAMBER ASM; POWER,FRT BRK
BRK SYSTEM FULL AIR DUAL CIRC(Z06) AUTO ADJ BRK<BCU> 		1-48250-639-0 02 1 9806-9911
1 CHAMBER ASM; POWER,FRT BRK 1-48250-639-0 02 1 9912-0304
1 CHAMBER ASM; POWER,FRT BRK 1-48250-835-0 02 1 0305-
1 CHAMBER ASM; POWER,FRT BRK
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. AUTO ADJ BRK<BCU> 		1-48250-338-0 02 1 9806-9911
2 RING; CLAMP,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-001-0 02 1 9806-
3 RETAINER; DIAPH
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		9-48259-016-0 04 1 9806-
4 BOLT; CLAMP RING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-002-0 04 1 9806-0304
4 BOLT; CLAMP RING 1-48259-313-0 04 1 0305-
5 WASHER; LK,CLAMP RING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=10.2 		9-09150-510-0 04 1 9806-
6 NUT; CLAMP RING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) M10 		9-09110-010-0 04 1 9806-
7 COVER ASM; UPR,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48251-039-0 02 1 9806-
8 DIAPHRAGM; SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) AUTO ADJ BRK<BCU> 		1-48252-054-0 02 1 9806-9911
8 DIAPHRAGM; SPR CHAMBER 1-48252-054-0 02 1 9912-
8 DIAPHRAGM; SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. AUTO ADJ BRK<BCU> 		1-48252-006-0 02 1 9806-9911
9 PISTON; SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) AUTO ADJ BRK<BCU> 		1-48253-040-0 02 1 9806-9911
9 PISTON; SPR CHAMBER 1-48253-040-0 02 1 9912-
9 PISTON; SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. AUTO ADJ BRK<BCU> 		1-48253-001-0 02 1 9806-9911
10 SPRING; PISTON,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) AUTO ADJ BRK<BCU> 		1-48255-015-0 02 1 9806-9911
10 SPRING; PISTON,SPR CHAMBER 1-48255-015-0 02 1 9912-
10 SPRING; PISTON,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. AUTO ADJ BRK<BCU> 		1-48255-001-0 02 1 9806-9911
11 SEAL; PISTON,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48252-025-0 02 1 9806-
12 COVER ASM; LWR,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48251-019-0 02 1 9806-
